Are vintage dropouts a design flaw or hazard?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Are vintage dropouts a design flaw or hazard?

Old 04-08-19, 08:37 PM
  #26
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by Bandera View Post
No, they do not: Silly old heavy/obsolete design.

-Bandera
wgscott is offline
Old 04-08-19, 08:38 PM
  #27
tkamd73
Senior Member

Join Date: Dec 2015
Location: Menomonee Falls, WI
Posts: 359

Bikes: 1984 Schwinn Supersport, 1992 PDG Series 5 Paramount, 1988 Trek 400t, 1977 Trek TX900, 1982 Bianchi Champione del Mondo, 1986 Trek 400 Elance, 1978 Raleigh Supercourse

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 121 Post(s)
All my bikes have similar drop outs with 126mm spacing. Before every ride, check tire pressures and QRs, kind of a common sense thing, rear wheel has never budged. Not a designed flaw, just how it was done back when.
Tim
tkamd73 is offline
Old 04-08-19, 08:38 PM
  #28
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 2,631
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Originally Posted by wgscott View Post
Is there any reason the drop-out should be horizontal?
Most of the time, no. It does make a frame more versatile, i.e. it's easy to set up as a single-speed.
HTupolev is offline
Old 04-08-19, 08:42 PM
  #29
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Originally Posted by wgscott View Post
Here is the bike, fwiw:
I spy a Campagnolo Nuovo Grand Sport adjuster in front, and a genericish Shimano one at the back.

The wing end of the Q/R wouldn't happen to be squared off Campagnolo Triomphe, would it? That would be the one QR that I can distinctly remember having this identical issue with. Those things didn't bite well at all.

-Kurt
__________________
cudak888 is offline
Old 04-08-19, 08:52 PM
  #30
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 7,813

Bikes: '87 Miyata 912, '87 Schwinn Prelude, '90 Fuji Saratoga, Black Mountain Cycles Monstercross V4, '89 Novara/Centurion Ironman, '18 Diamondback Syncr, '18 handmade steel roadbike

Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 2706 Post(s)
Originally Posted by wgscott View Post
Is there any reason the drop-out should be horizontal?
Short answer- very rarely.

long answer- horizontal dropouts are still useful for single speed and fixie bikes since the chain can easily be tensioned properly.
horizontal dropouts were(are?) useful on bikes all over the world that are single speed and use fenders since chain tension and fender clearance can be adjusted. Since many bikes were and still are single speed, it can be useful.

for a feared road bike though?...vertical dropouts work fine and the wheel attaches easier since there is more clearance.
mstateglfr is offline
Old 04-08-19, 09:14 PM
  #31
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by cudak888 View Post
I spy a Campagnolo Nuovo Grand Sport adjuster in front, and a genericish Shimano one at the back.
Woa! Good eye. I had to replace the rear wheel at one point, and had a 105 on there. I think they must have confiscated the original skewer, which I never even noticed.

That makes me feel a bit better about replacing it with something more robust.
wgscott is offline
Old 04-08-19, 09:32 PM
  #32
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,512

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 433 Post(s)
I don't think that's a flawed design as powerful sprinters used them for many years without problems. Track racers use nutted axles but I doubt they are really necessary.
Reynolds is offline
Old 04-08-19, 09:37 PM
  #33
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Originally Posted by wgscott View Post
Woa! Good eye. I had to replace the rear wheel at one point, and had a 105 on there. I think they must have confiscated the original skewer, which I never even noticed.

That makes me feel a bit better about replacing it with something more robust.
Methinks that the Q/R on there now is whatever was on the replacement wheel.

They may have "saved" that rear hub, though one of the LBS I frequent chucks wheels out to the garbage in back. Picked up some decent dual-walled MTB wheels w/stainless spokes an 8-speed cassette for free last week. The catch? 10 broken spokes; 5 per rim. Bought some replacements and they seem to be truing up nicely.

-Kurt
__________________
cudak888 is offline
Old 04-08-19, 09:37 PM
  #34
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Would this work better, and would it look ok?

wgscott is offline
Old 04-08-19, 09:40 PM
  #35
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by cudak888 View Post
Methinks that the Q/R on there now is whatever was on the replacement wheel.

They may have "saved" that rear hub, though one of the LBS I frequent chucks wheels out to the garbage in back. Picked up some decent dual-walled MTB wheels w/stainless spokes an 8-speed cassette for free last week. The catch? 10 broken spokes; 5 per rim. Bought some replacements and they seem to be truing up nicely.

-Kurt
I think this was done at an REI bike shop in suburban Chicago sometime around 1995. (I was living in Cambridge and had this thing back home in the USA and would ride it then. I trashed the rear wheel).

I went out in the garage and verified that you are right. I wonder why they didn't let me keep the original QR? (I just checked a drawer full of them and I don't have the original.)
wgscott is offline
Old 04-08-19, 09:42 PM
  #36
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by jetboy View Post
quick release can only get so tight: get some
and then you can get it nice and snug.
What are these?

I found something similar, and it was $12 for a pair, so I just ordered it to see if it will be an improvement. I would probably just use it on the rear wheel, if I can really crank it down with a hex torque wrench

https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1

Last edited by wgscott; 04-08-19 at 10:11 PM.
wgscott is offline
Old 04-08-19, 09:42 PM
  #37
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Originally Posted by wgscott View Post
I went out in the garage and verified that you are right. I wonder why they didn't let me keep the original QR? (I just checked a drawer full of them and I don't have the original.)
"What customer doesn't want back becomes free parts for us," say mechanics.

-Kurt
__________________
cudak888 is offline
Old 04-08-19, 09:45 PM
  #38
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,693

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
Originally Posted by wgscott View Post
Would this work better, and would it look ok?
I have no idea, but IMO just get an Ultegra QR and be done with it. They will hold. Old school internal cam.

Lever should begin to engage at about perpendicular. You can be a little more slack in the front wheel. Kinda depends on your size. Once in a blue moon even old internal cam campys would slip on horizontals BITD. Usually if it was a big torquey rider who got a bit to slack tightening the lever, and then took off hard from a stop sign.

Horizontals were handy for converting to fix in winter. Since no one does that anymore, not much point.
Salamandrine is online now
Old 04-08-19, 10:03 PM
  #39
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,693

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
Originally Posted by wgscott View Post
I went out in the garage and verified that you are right. I wonder why they didn't let me keep the original QR? (I just checked a drawer full of them and I don't have the original.)
If it's an external cam, there's yer problem.

If you are aware of the issue, and you have one of the better external cams, they'll work with horizontals if you remember to keep them well lubed and semi crazy tight. I did that for a while, then forgot, once. Oops. Went back to internal cam and everything is always OK now. Why worry.
Salamandrine is online now
Old 04-08-19, 10:07 PM
  #40
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by Salamandrine View Post
If it's an external cam, there's yer problem.
No. It is internal cam.
wgscott is offline
Old 04-08-19, 10:10 PM
  #41
scarlson
Member

Join Date: Jun 2010
Location: Medford MA
Posts: 34

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b super touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Vertical dropouts are hardly new. Herse/Singer/Goëland/Routens/Charrel/Taylor used them so that a fat-tired wheel could be removed from under a fender without letting the air out of the tire. Actually invented in pre-war France, like a lot of the other "new" bike stuff to come to market in the past 30 years.

I use 126mm quick releases on 130 and even 135 wheels all the time. It's only a problem if it isn't threading through the whole threaded part of the nut.

As some have noted, on some bikes with thin dropouts the axle can stick out and hinder the operation of the QR. Or you may have an issue with one of the volute springs in there collapsing or otherwise getting messed up and keeping the thing from biting down. Boutique hubs like your White are maybe more prone to this.

Last edited by scarlson; 04-08-19 at 10:49 PM.
scarlson is online now
Old 04-08-19, 10:26 PM
  #42
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 581

Bikes: vintage 531 & campy

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Are vintage dropouts a design flaw or hazard?

Neither.
SurferRosa is online now
Old 04-08-19, 10:45 PM
  #43
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2293 Post(s)
Originally Posted by SurferRosa View Post
Are vintage dropouts a design flaw or hazard?

Neither.

Oh
wgscott is offline
Old 04-08-19, 10:58 PM
  #44
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 133
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 64 Post(s)
I'm not convinced screw type skewers hold better than a good internal cam skewer. I think a QR might be able to have an even higher force if you're willing to push down on the lever hard because the threads don't have to spin while tightening it.

It's important that the QR nut and the wheel locknut have serrated steel surfaces though. Some skewers and wheels are just aluminum there and it doesn't bite into the dropouts.

I think Surly also makes a tug for horizontal drop outs that comes with four integrated bottle openers that will get encrusted with mud and grease if you're into that kind of thing.
Kuromori is offline
Old 04-08-19, 11:26 PM
  #45
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,563

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1501 Post(s)
Originally Posted by wgscott View Post
I think this was done at an REI bike shop in suburban Chicago sometime around 1995. (I was living in Cambridge and had this thing back home in the USA and would ride it then. I trashed the rear wheel).

I went out in the garage and verified that you are right. I wonder why they didn't let me keep the original QR? (I just checked a drawer full of them and I don't have the original.)
Is that when you went 126 to 130? A shop isn't going to let you ride with the old 126 because the odds are goo that not al the nut threads would be engaged with the now too-short QR skewer. I fully second getting any Shimano 130 skewer with a steel skewer and asymmetric lever (ie internal cam). To my (limited) knowledge, all SHimano skewers are steel skeweres and asymmetric.

No one has talked about non-steel skewers (titanium and aluminum), but they are marginal at best on horizontal dropouts and worthless on a chromed horizontal dropout. The reason is very simple, A QR has so only much take-up, ie so much stretch on the skewer, All skewers have the same diameter, the largest diameter that fits nicely inside the axle. The clamping force on the dropout can be shown with sophomore engineering math to be equal to the stretch times the diameter times modulus of elasticity and divided by the length. Now the modulus of elasticity is a function of the metal used. Steel is 30 million. Ti 15 milllion, Aluminum 10 million. Since you cannot change any of the other factors, that modulus decides how much your QR can clamp. Steel is the best by a factor of two.

With a horizontal dropout, only steel and the above mentioned asymmetrical levers should ever be used since the QR is the only thing keeping the wheel in place. That said, a quality steel QR (doesn't have to be expensive, cheap QBP steel skewers work just fine; cheap Shimanos are better) adjusted so it take a firm effort leaving an imprint on your hand will work every time and has for the past 90 years. I have 100,000 miles on them and every failure has been operator error. (Well I purchased a couple of inferior design levers before I knew better in the '80s.)

I have one bike with vertical dropouts and 12,000 miles. Every other bike I have ever owned has had horizontal dropouts. Vertical dropouts were standard for Peter Mooney when I ordered my frame. I requested horizontal so I could run fix gear without issue later if I wanted.

Good serrations on the steel nut and clamp assembly (as pointed out in post #44 ) is very important since you are running the very hard and slippery chromed dropouts. This rules out some of the more expensive dropouts and more than a few with poorly designed or executed nut surfaces, Look there carefully.

Ben
79pmooney is offline
Old 04-09-19, 12:02 AM
  #46
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,805

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 115 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Campy QRs

I've had a rear wheel shift and lock up against the left chain stay a number times. On several occasions it happened as I was cresting a rise out of the saddle at slow speed. The bars turned fully to the right and I dropped straight down. It was usually after I had taken the rear wheel out for some reason and failed to tighten the QR enough.

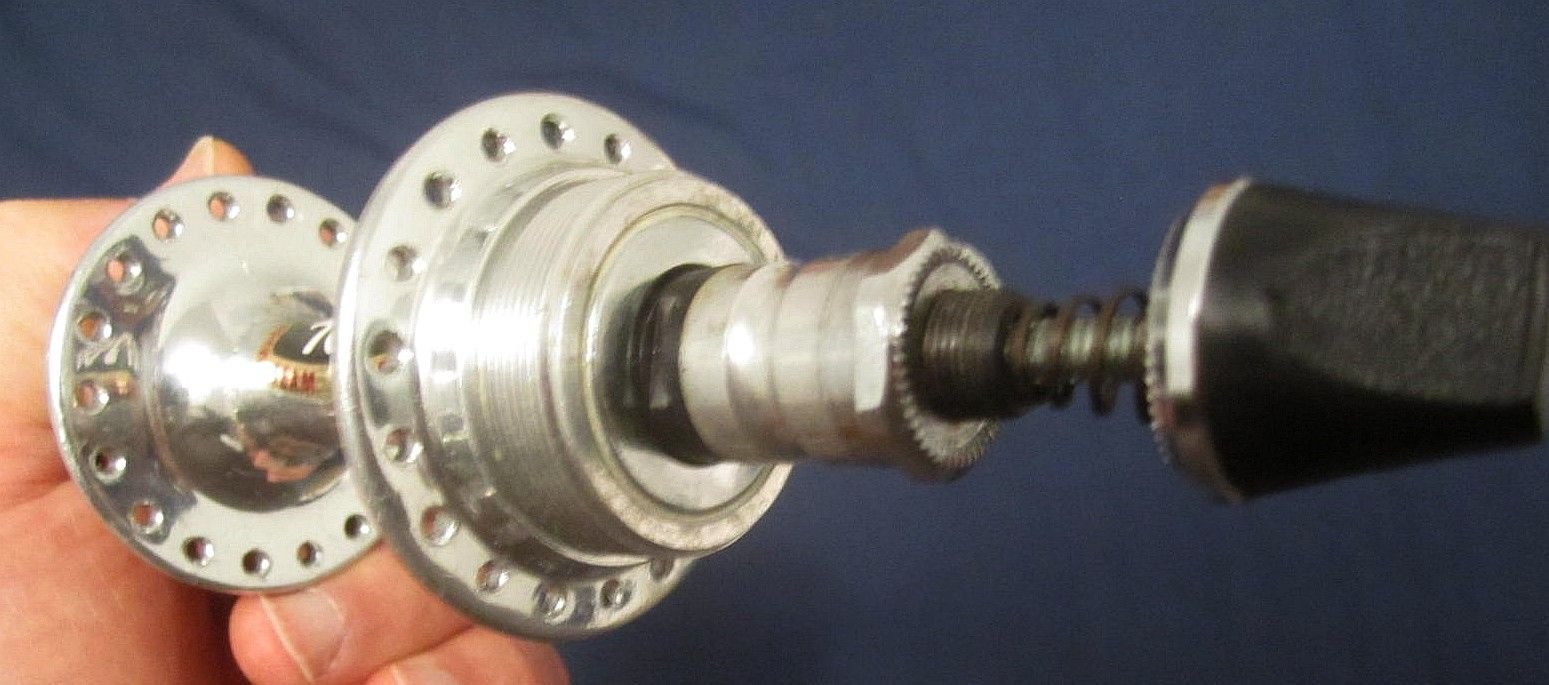

It's rarely happened with Campy QRs and hubs with deep serrations in the axle locknuts. Most frequently it's occurred with Shimano QRs with little or no serrations inside the faces. My suspicion is that they were designed for use with vertical dropouts where less pressure is required to keep the wheels from shifting.

Earlier and later Shimano QRs with larger serrations don't have the problem. Atom QRs used on Normandy and Atom hubs plus Maillard QRs work well too.

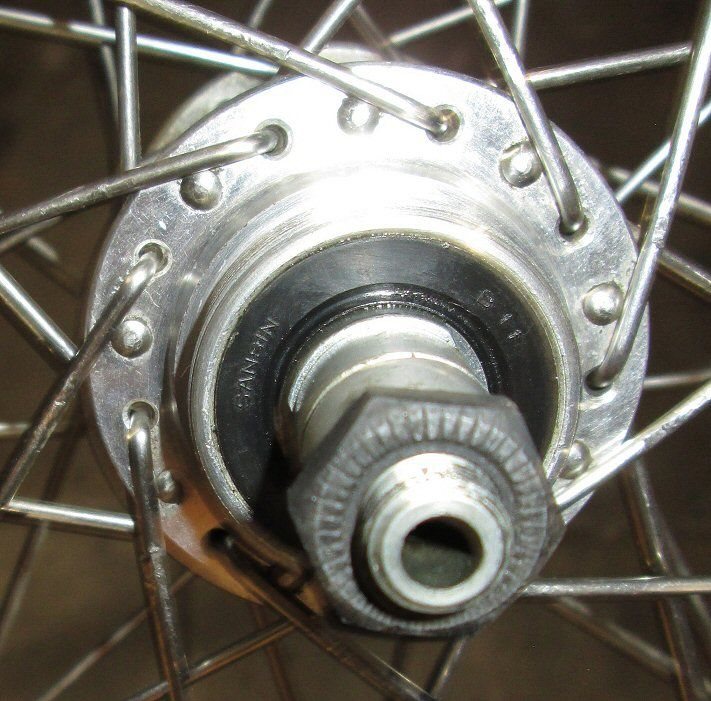

Sanshin (Suntour) rear hub showing serrations.




The White hubs probably have smooth aluminum faces on the axle ends like most of the other light weight hubs which can have the same problem. Only the QR serrations dig into the dropouts. If the QRs are not tight enough then they can easily slip.

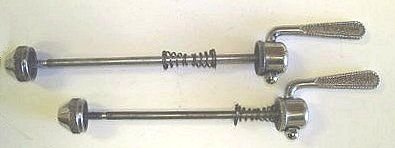

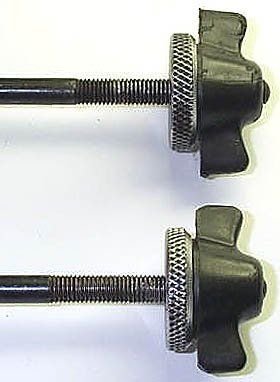

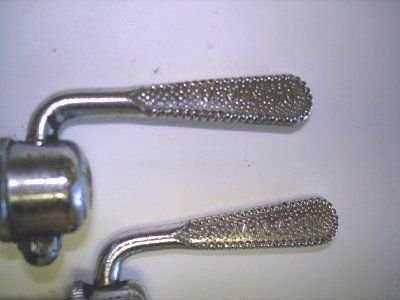

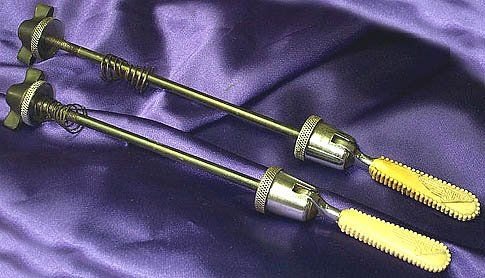

The WORST QRs were the ones made by Simplex in the 60's and early 70's. They came on a lot of French bikes including PX-10s. The "snap over center" levers could be tightened either direction but would not hold well the wrong way. Also a lot of riders would use the levers to screw them tight which didn't work well either. Some of them had chrome plated steel levers. During the bike boom there were some that had levers made out of some kind of cast pot metal that were prone to breaking at the pin hinge.

They were discontinued about 1973, probably because of liability issues.



When bikes came in for service with those QRs we'd throw them away and for $5.00 replace them with Atom QRs.




verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 04-09-19 at 12:33 AM.
verktyg is offline
Old 04-09-19, 12:20 AM
  #47
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 21,861
Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 8010 Post(s)
You have the wrong dropouts.

I have these coming in the mail shortly.



One should be able to loosen the quick release while riding, pedal, and it keeps the wheel straight. Then, tighten up the quick release, all while still riding the bicycle.

And, I think the hook in front should keep the wheel from falling out as one can't pull it forward out of the slots.

Don't ask why it has the cable stop... completely unnecessary.
CliffordK is offline
Old 04-09-19, 12:25 AM
  #48
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 21,861
Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 8010 Post(s)
As far as the horizontal Campy dropouts, I get my quick release leavers TIGHT... and it has been years since I've pulled a wheel forward.

Although, I had a slight problem with my Funny Bike. Tire clearance was so tight that a shift of a mm or so forward in the slots was bad. So, I found that it helped to pull the QR back when tightening it down, so the QR shaft was tight against the axle on the right side. I think I was playing with lightweight QRs, and went back to the basic steel ones.
CliffordK is offline
Old 04-09-19, 01:00 AM
  #49
bonsai80
Junior Member

Join Date: May 2014
Location: SGV, Socal
Posts: 7

Bikes: Nishiki Tri-A, Centurion Ironman, Downtube 9S, Origami Crane

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I have an old low-end mountain bike that used to have a chronic problem with the rear wheel slipping in the drive side dropout. Problem turned out to be that the drive side dropout was tweaked and not quite parallel to the non-drive side. After straightening it out the wheel stopped slipping.
bonsai80 is offline
Old 04-09-19, 05:33 AM
  #50
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,693

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
Originally Posted by wgscott View Post
No. It is internal cam.

OK. As mentioned by others, some skewers are better than others. The rear wheel can shift if you're not careful even with good quick releases.


FWIW I use White Industries hubs with Ultegra skewers in horizontal dropouts and it works great. I'd imagine it'd be the same with Dura Ace. It's a combo that works, and they are only a few grams more than weight weenie skewers. (bad place to save grams anyway)


Anyone using Paul QR? I considered splurging on these, but the alloy ends gave me pause. Then again alloy skewers worked OK BITD, mostly. I have alloy VO QR on another bike, the ones that look like old Ofmega/Avocet. Unfortunately they were just discontinued.


verktyg - I used to like those Simplex! Never had a problem with mine. I guess I was lucky. I must have not had the pot metal levers, and never figured out that the levers would sort of work backwards. They were on my commute PX10 for years and the bike used to get locked up all the time with the front wheel off. This was when 99.99% of people took it for a 'worthless' UO8.
Salamandrine is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
