Are vintage dropouts a design flaw or hazard?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Are vintage dropouts a design flaw or hazard?

Reply

Old 04-08-19, 07:05 PM
  #1
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Are vintage dropouts a design flaw or hazard?

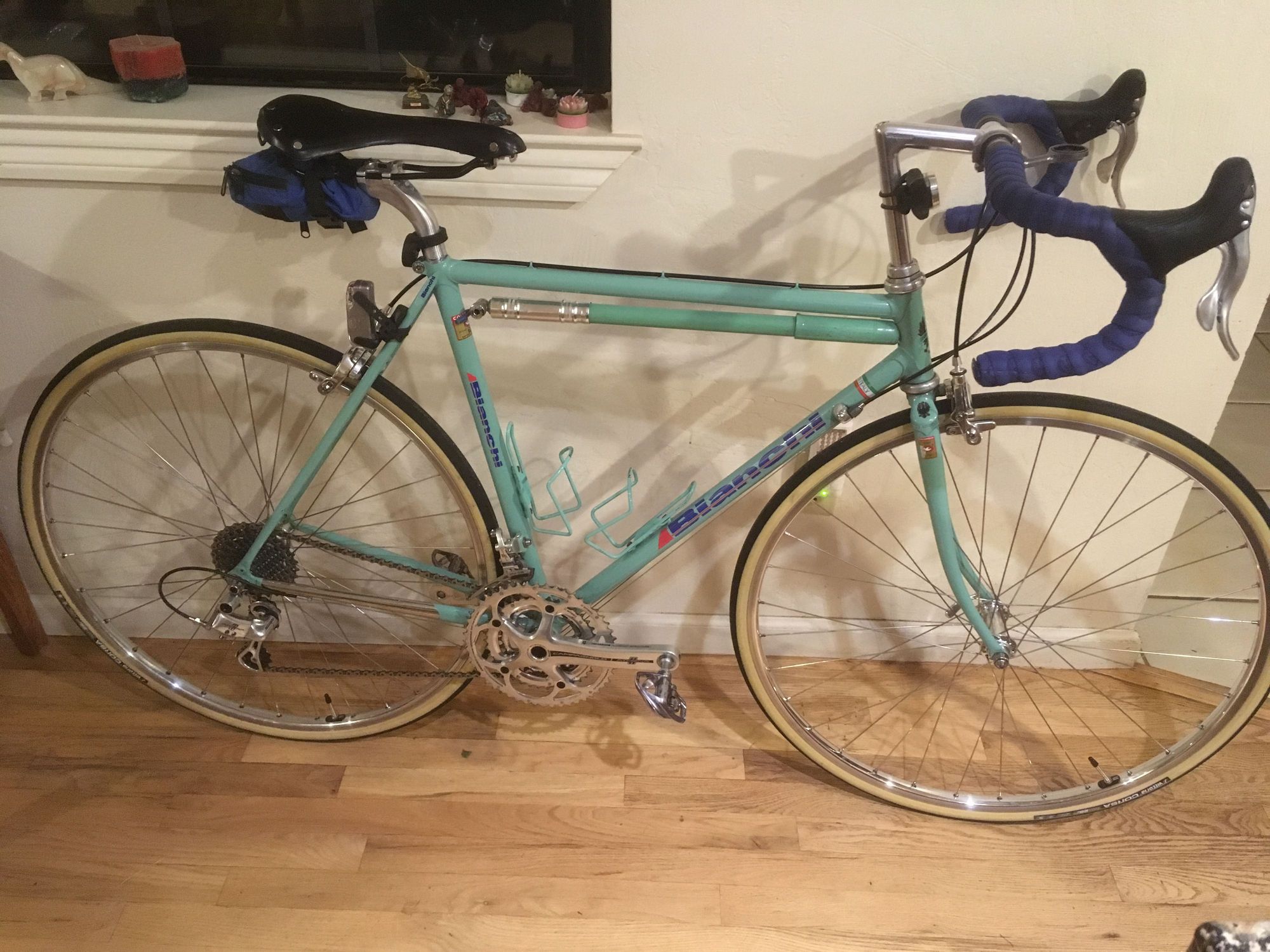

I was riding my Bianchi today. It has Gipiemme dropouts that look like this:




As I was standing and hammering up a hill in what was probably a too-high gear, my wheel moved in the dropout. I have closed-cam Crampy quick-releases. I guess I just didn't have it on tight enough.

In any case, the wheel immediately locked on the frame, and down I went. Fortunately, due to my overall suckiness, I was going about Garmin-pause speed, so nothing bruised except my ego, and maybe my knee and hip. (It was my first significant fall since breaking my ankle 5 years ago, so I was pleasantly surprised by the outcome).

Was this dropout (from 1986 in my case) a design flaw?

I looked on my 2014 steel bike and the dropouts for the rear wheel go down, not forward, so presumably the risk of the wheel moving in the frame is substantially less.
wgscott is offline
Reply With Quote
Old 04-08-19, 07:13 PM
  #2
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Check your axles. Do they poke out past the dropout? If so, your quick release might have been bottoming out more on the axle than biting the dropout. Could have been a simple case of needing to tighten the Q/R more too.

I wouldn't say horizontal dropouts are at fault for this. Vertical dropouts - as on modern bikes today - often have a slight angle to them as well which could aid a wheel coming out, if a Q/R wasn't biting. Even if it was straight down, one could get a wheel to pop out of one with a slightly-loose QR.

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 04-08-19, 07:17 PM
  #3
friendofpugs
Senior Member

friendofpugs's Avatar

Join Date: Oct 2017
Location: Oshkosh, WI
Posts: 200

Bikes: I have a few...

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
I've had that happen to me a few times (though always from a start so I haven't crashed, thank goodness) and it's a real confidence killer, for sure. Sometimes I don't stand up and pedal for fear of wrenching the wheel out again.
__________________
Current: '93 Trek 950, '89 Peugeot Athena, '87 Bianchi Sport SX, '79 Trek 937, '77 Trek TX700, '71 Gitane TdF
Past: '05 Cannondale R900, '04 Fuji Roubaix Pro, '96 Bianchi Reparto Course EL OS, '96 Serotta CSI, '89 Trek 400, '89 Bianchi Giro, '88 Panasonic DX4000, '87 Trek 400T, '85 Team Fuji, '85 Trek 400, '82 Trek 614, '81 Gios Torino, '72 Follis 472
friendofpugs is offline
Reply With Quote
Old 04-08-19, 07:24 PM
  #4
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 2,631
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1141 Post(s)
Horizontal dropouts can be prone to wheel slippage, but they usually work fine.

Is there smooth paint or chrome on the clamp surfaces of the dropout? Sometimes that needs to be roughed up before the wheel clamping works properly.
HTupolev is offline
Reply With Quote
Old 04-08-19, 07:25 PM
  #5
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 2,947

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 606 Post(s)
quick release can only get so tight: get some
and then you can get it nice and snug.
jetboy is offline
Reply With Quote
Old 04-08-19, 07:36 PM
  #6
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
Check your dropouts with the proper alignment tool to make sure that they are parallel.
Use classic Internal Cam QR skewers from Campag or Shimano properly tensioned not the "modern" external cam designs which lack the compression needed for horizontal dropouts: Done.



-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan

Last edited by Bandera; 04-08-19 at 07:42 PM.
Bandera is offline
Reply With Quote
Old 04-08-19, 07:40 PM
  #7
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 14,568

Bikes: A bunch of old bikes and a few new ones

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 3413 Post(s)
Originally Posted by Bandera View Post
Use classic Internal Cam QR skewers like Shimano still makes not the "modern" external cam designs which lack the compression needed for horizontal dropouts: Done.

-Bandera
+ 1 on this. Get a real quick release. People raced on bikes with these drop outs for a long time . . .
bikemig is online now
Reply With Quote
Old 04-08-19, 07:40 PM
  #8
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by HTupolev View Post
Horizontal dropouts can be prone to wheel slippage, but they usually work fine.

Is there smooth paint or chrome on the clamp surfaces of the dropout? Sometimes that needs to be roughed up before the wheel clamping works properly.
It is chrome, but it is the first time this happened since 1986. I just took the bike out of my trainer, so it is possible I somehow loosened the QR a little bit when I did that.
wgscott is offline
Reply With Quote
Old 04-08-19, 07:41 PM
  #9
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by bikemig View Post
+ 1 on this. Get a real quick release. People raced on bikes with these drop outs for a long time . . .
It is the Tullio-designed Crampy internal cam skewer that I got with the bike in 1986.


Edit:

It turns out is a Shimano look-alike that I think came with a replacement 105 wheel I got ca. 1995. But functionally, I think it is nearly identical and is internal cam.

Last edited by wgscott; 04-10-19 at 05:29 PM.
wgscott is offline
Reply With Quote
Old 04-08-19, 07:42 PM
  #10
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by Bandera View Post
Check your dropouts with the proper alignment tool to make sure that they are parallel.
Use classic Internal Cam QR skewers from Campag or Shimano properly tensioned not the "modern" external cam designs which lack the compression needed for horizontal dropouts: Done.



-Bandera
I am.
wgscott is offline
Reply With Quote
Old 04-08-19, 07:46 PM
  #11
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 14,568

Bikes: A bunch of old bikes and a few new ones

Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 3413 Post(s)
Originally Posted by wgscott View Post
It is the Tullio-designed Crampy internal cam skewer that I got with the bike in 1986.
Yep with a chrome drop out, it can be tough to get them tight enough but yeah the internal cam skewer should do the job.
bikemig is online now
Reply With Quote
Old 04-08-19, 07:47 PM
  #12
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 898

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Originally Posted by wgscott View Post
As I was standing and hammering up a hill in what was probably a too-high gear, my wheel moved in the dropout... I guess I just didn't have it on tight enough. In any case, the wheel immediately locked on the frame, and down I went.

Was this dropout (from 1986 in my case) a design flaw?
Why is it a design flaw if you did not have the QR tight enough???

The next thing you know, he'll be asking for a positive retention device on every axle attachment point.
Bad Lag is offline
Reply With Quote
Old 04-08-19, 07:51 PM
  #13
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
Originally Posted by wgscott View Post
It is chrome, but it is the first time this happened since 1986. I just took the bike out of my trainer, so it is possible I somehow loosened the QR a little bit when I did that.
If your machine in this config has never had this problem in the previous 33 years the hardware is not likely to suddenly be suspect.
Something has changed, most likely moving from the trainer to the road.
Re-set QR tension F&R and proceed like it was 1986.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 04-08-19, 07:57 PM
  #14
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by Bad Lag View Post
Why is it a design flaw if you did not have the QR tight enough???

The next thing you know, he'll be asking for a positive retention device on every axle attachment point.
Same reason a fork with dropouts facing down and back with disc brakes is a design flaw.

Is there any reason the drop-out should be horizontal?

The QR was by no means loose. I had to pry the thing open while lying in a pool of blood in the middle of an interstate highway.
wgscott is offline
Reply With Quote
Old 04-08-19, 08:00 PM
  #15
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Originally Posted by wgscott View Post
Same reason a fork with dropouts facing down and back with disc brakes is a design flaw.

Is there any reason the drop-out should be horizontal?

The QR was by no means loose. I had to pry the thing open while lying in a pool of blood in the middle of an interstate highway.
Well, then you might prefer bikes from the turn of the century. Some of them had holes for axles, not dropouts.

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 04-08-19, 08:00 PM
  #16
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by Bandera View Post
If your machine in this config has never had this problem in the previous 33 years the hardware is not likely to suddenly be suspect.
Something has changed, most likely moving from the trainer to the road.
Re-set QR tension F&R and proceed like it was 1986.

-Bandera
Well, I got new wheels with a 130mm White Industry Hub, and had the frame cold-set (by someone competent) from its original 126mm-compatible geometry about 3 years ago, so I have made some hardware changes...
wgscott is offline
Reply With Quote
Old 04-08-19, 08:00 PM
  #17
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by cudak888 View Post
Well, then you might prefer bikes from the turn of the century. Some of them had holes for axles, not dropouts.

-Kurt
Which century? Sounds like through-axles.
wgscott is offline
Reply With Quote
Old 04-08-19, 08:02 PM
  #18
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 23,073

Bikes: http://www.theheadbadge.com

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 156 Post(s)
Originally Posted by wgscott View Post
Which century? Sounds like through-axles.
19th. Though I could weld some washers onto the dropouts of 1990 Specialized if you'd prefer the 20th

-Kurt
__________________
cudak888 is offline
Reply With Quote
Old 04-08-19, 08:08 PM
  #19
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
Originally Posted by wgscott View Post
Well, I got new wheels with a 130mm White Industry Hub, and had the frame cold-set (by someone competent) from its original 126mm-compatible geometry about 3 years ago, so I have made some hardware changes...
So you are using the 126 "Tullio-designed Crampy internal cam skewer that I got with the bike in 1986" QR w/ a 130 WI hub?

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 04-08-19, 08:13 PM
  #20
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
Originally Posted by Bandera View Post
So you are using the 126 "Tullio-designed Crampy internal cam skewer that I got with the bike in 1986" QR w/ a 130 WI hub?

-Bandera
Yup.

Is that bad?

I mean, functionally?

I modernized the bike with an Athena 11 speed triple groupset, and had to get new wheels.
wgscott is offline
Reply With Quote
Old 04-08-19, 08:15 PM
  #21
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
To answer the title question:
"Are vintage dropouts a design flaw or hazard?"

No, they were/are not.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 04-08-19, 08:21 PM
  #22
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
Originally Posted by wgscott View Post
Yup.

Is that bad?

I mean, functionally?

I modernized the bike with an Athena 11 speed triple groupset, and had to get new wheels.
Dunno, never did try a 126 QR on 130 spacing, or would be inclined to do so.
If I had a new 130 wheel to install on a re-spaced horizontal dropout frame-set I'd go with a new Shimano 130 spec internal cam QR with great confidence that all would stay put.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 04-08-19, 08:25 PM
  #23
wgscott
VectorPotential sensitive
Thread Starter

wgscott's Avatar

Join Date: Jul 2013
Location: The Timbers of Fennario (CL77)
Posts: 4,350

Bikes: Steel

Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 2292 Post(s)
@Bandera

I've got Shimano Dura Ace internal cams on my 2014 bike. I guess I could always try that. Those things don't budge.

The headset and the quick releases are about the only thing that remains from the original build.

Here is the bike, fwiw:

wgscott is offline
Reply With Quote
Old 04-08-19, 08:34 PM
  #24
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,627
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 957 Post(s)
I've got Shimano Dura Ace internal cams on my 2014 bike. I guess I could always try that. Those things don't budge.
No, they do not: Silly old heavy/obsolete design.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Reply With Quote
Old 04-08-19, 08:36 PM
  #25
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 9,155

Bikes: '76 Paramount, Salsa Timberjack, Burley Samba, Terra Trike

Mentioned: 53 Post(s)
Tagged: 0 Thread(s)
Quoted: 1323 Post(s)
The old design didnít kill anyone most of the time. Clearly vertical drops are a conspiracy
Darth Lefty is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
