1974 Schwinn Sports Tourer crankset

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1974 Schwinn Sports Tourer crankset

Old 04-11-19, 11:09 AM
  #1
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
1974 Schwinn Sports Tourer crankset

My dad has a 1974 Sports Tourer and the left crank came loose and now it can't be tightened and he wants a replacement. My question is what crankset should I be looking for?

He doesn't do the internet or cell phone otherwise I could look at pictures. The online catalog doesn't list what crank it came with or at least I didn't see it.

Any help would be appreciated.
88Tempo is offline
Old 04-11-19, 11:16 AM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,589

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 393 Times in 252 Posts
The Sports Tourers were specced with various cranks depending on the year and how good supply was for the OEM. Nervar Star or TA "Schwinn Approved" (Cyclotouriste with extra chain guides/guards designed by Schwinn to aid shifting). I believe when TA had trouble keeping up with demand during the bike boom Schwinn started speccing Nervar to make up the deficit.

While not OEM, I believe the 3-arm TA Professional crankset was a relatively popular upgrade option for Sports Tourers at the Schwinn shops. I have seen a few Sports Tourers with this crank, including my own.

@Metacortex has lots of detailed knowledge on when different components were specced on these bikes.

Last edited by TenGrainBread; 04-11-19 at 11:22 AM.
TenGrainBread is offline
Old 04-11-19, 11:26 AM
  #3
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
Originally Posted by TenGrainBread View Post
The Sports Tourers were specced with various cranks depending on the year and how good supply was for the OEM. Nervar Star or TA "Schwinn Approved" (Cyclotouriste with extra chain guides/guards designed by Schwinn to aid shifting). I believe when TA had trouble keeping up with demand during the bike boom Schwinn started speccing Nervar to make up the deficit.

While not OEM, I believe the 3-arm TA Professional crankset was a relatively popular upgrade option for Sports Tourers at the Schwinn shops. I have seen a few Sports Tourers with this crank, including my own.

@Metacortex has lots of detailed knowledge on when different components were specced on these bikes.
Thanks for the info. If I can find any of those I think he'll be happy. He has a thing about keeping stuff original so as long as it was a possibility it should be okay.
88Tempo is offline
Old 04-11-19, 11:36 AM
  #4
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,583

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 286 Times in 190 Posts

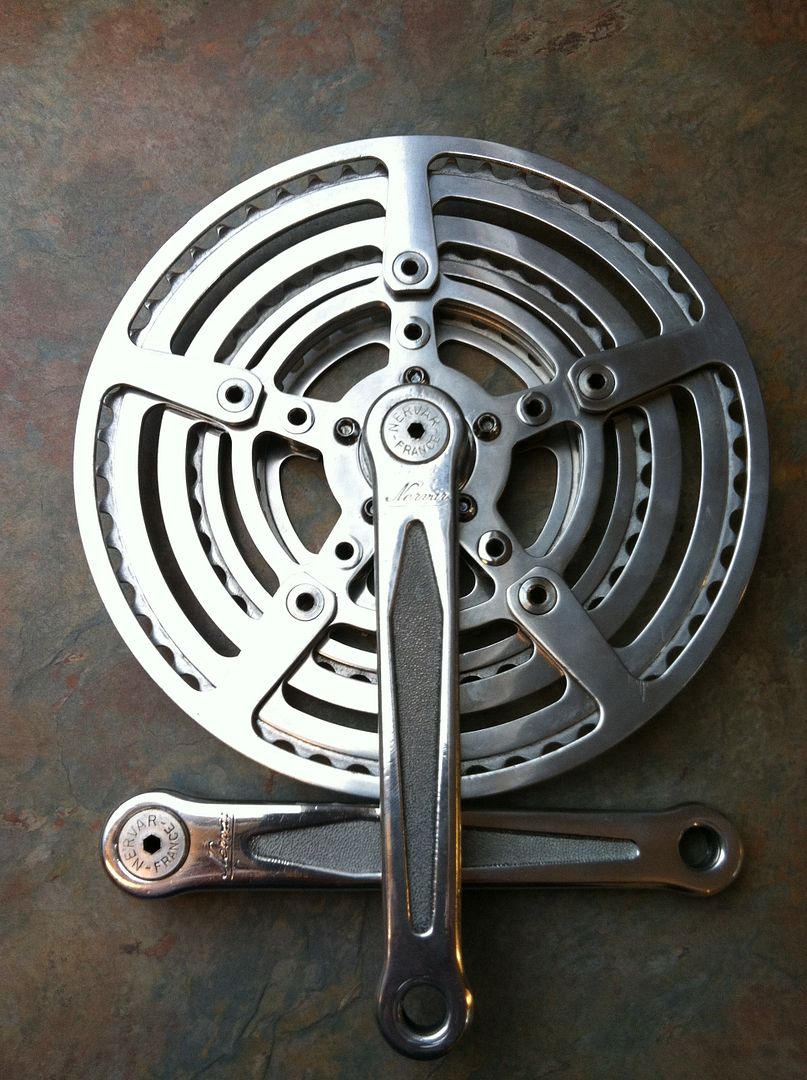

By '74, IIRC, it should be a Nervar that looks mostly like this one. I've polished mine and added a granny gear for hill climbing.

__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 04-11-19, 11:39 AM
  #5
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,589

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 393 Times in 252 Posts
Found this post from Metacortex from a couple years ago:

Originally Posted by Metacortex View Post
Schwinn originally intended on using only the TA crankset when the Sports Tourer was introduced in 1971, however due to shortages they quickly added the Nervar crankset as an alternative. From 1971 through 1974 both cranksets were used interchangeably but for 1975 (final year for the Sports Tourer) only the Nervar crankset was used. In 1976 the Superior replaced the Sports Tourer and also used only Nervar cranksets until it was discontinued in '78.

TenGrainBread is offline
Old 04-11-19, 11:47 AM
  #6
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
I like that Nervar crankset. Thanks for the picture now I know what to look for on Ebay.
88Tempo is offline
Old 04-11-19, 12:16 PM
  #7
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,589

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 393 Times in 252 Posts
Originally Posted by 88Tempo View Post
I like that Nervar crankset. Thanks for the picture now I know what to look for on Ebay.
Two words of warning:
1. Make sure the bottom bracket spindle taper is not damaged before installing a new crank. If the old crank doesn't stay tight the bottom bracket spindle might need replacing as well.

2. When shopping for Nervar cranks be aware of the threading. The cranks used on these Schwinns had English threads for the pedals, but if you buy a Nervar or TA crank made for the French market it might have French pedal threads. Which can be tapped to English but best to be aware.
TenGrainBread is offline
Old 04-11-19, 01:26 PM
  #8
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
Originally Posted by TenGrainBread View Post
Two words of warning:
1. Make sure the bottom bracket spindle taper is not damaged before installing a new crank. If the old crank doesn't stay tight the bottom bracket spindle might need replacing as well.

2. When shopping for Nervar cranks be aware of the threading. The cranks used on these Schwinns had English threads for the pedals, but if you buy a Nervar or TA crank made for the French market it might have French pedal threads. Which can be tapped to English but best to be aware.
Thanks for all the info guys. There is a bike swap meet this weekend and I will look there first, but if not Ebay it is.
88Tempo is offline
Old 04-11-19, 01:46 PM
  #9
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,879

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6856 Post(s)
Liked 1,459 Times in 928 Posts
If you find it hard to find an exact replacement, virtually any left crank will do. Just make sure the length is right, probably 170mm.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Old 04-11-19, 02:36 PM
  #10
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
Originally Posted by noglider View Post
If you find it hard to find an exact replacement, virtually any left crank will do. Just make sure the length is right, probably 170mm.
You are right about the 170 mm crank arms.

He's kind of picky about keeping stuff original. Otherwise I have a nice crankset off a Nishiki International (badly dinged downtube) I could send him.

While in theory I like keeping bikes like that original all my bikes are changed from factory spec. The only bike I have that might be a considered a classic though is a 72 Fuji Finest.

He has a Sports Tourer and a Touring Paramount.
88Tempo is offline
Old 04-11-19, 03:06 PM
  #11
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,583

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 678 Post(s)
Liked 286 Times in 190 Posts
Originally Posted by 88Tempo View Post
...He has a Sports Tourer and a Touring Paramount.
Pictures! Please!
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 04-11-19, 03:24 PM
  #12
88Tempo
Senior Member
Thread Starter

Join Date: Jun 2018
Posts: 280
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Likes: 0
Liked 19 Times in 15 Posts
Originally Posted by pastorbobnlnh View Post
Pictures! Please!
I don't have any sorry.

I remember riding the Paramount in High School. Red, foam on the handlebars instead of tape and bar end shifters.

I know in late 80's my brother was riding the Paramount a lot all over far Northern California.

He had to send it back to the factory to be repaired and painted since he cracked/broke a weld on the bottom bracket. He also had water bottle mounts put on at the time. Bought fancy set of tubulars and everything.
88Tempo is offline
