Help changing location of shifters

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help changing location of shifters

Reply

Old 04-15-19, 03:03 AM
  #1
redmanf1
Member
Thread Starter

Join Date: Sep 2008
Posts: 35
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Help changing location of shifters

She is wanting the shifters to be closer to the bars. Can someone help with what the parts that I would need to do this? Maybe a list of items or links to ebay or items for sale on here.

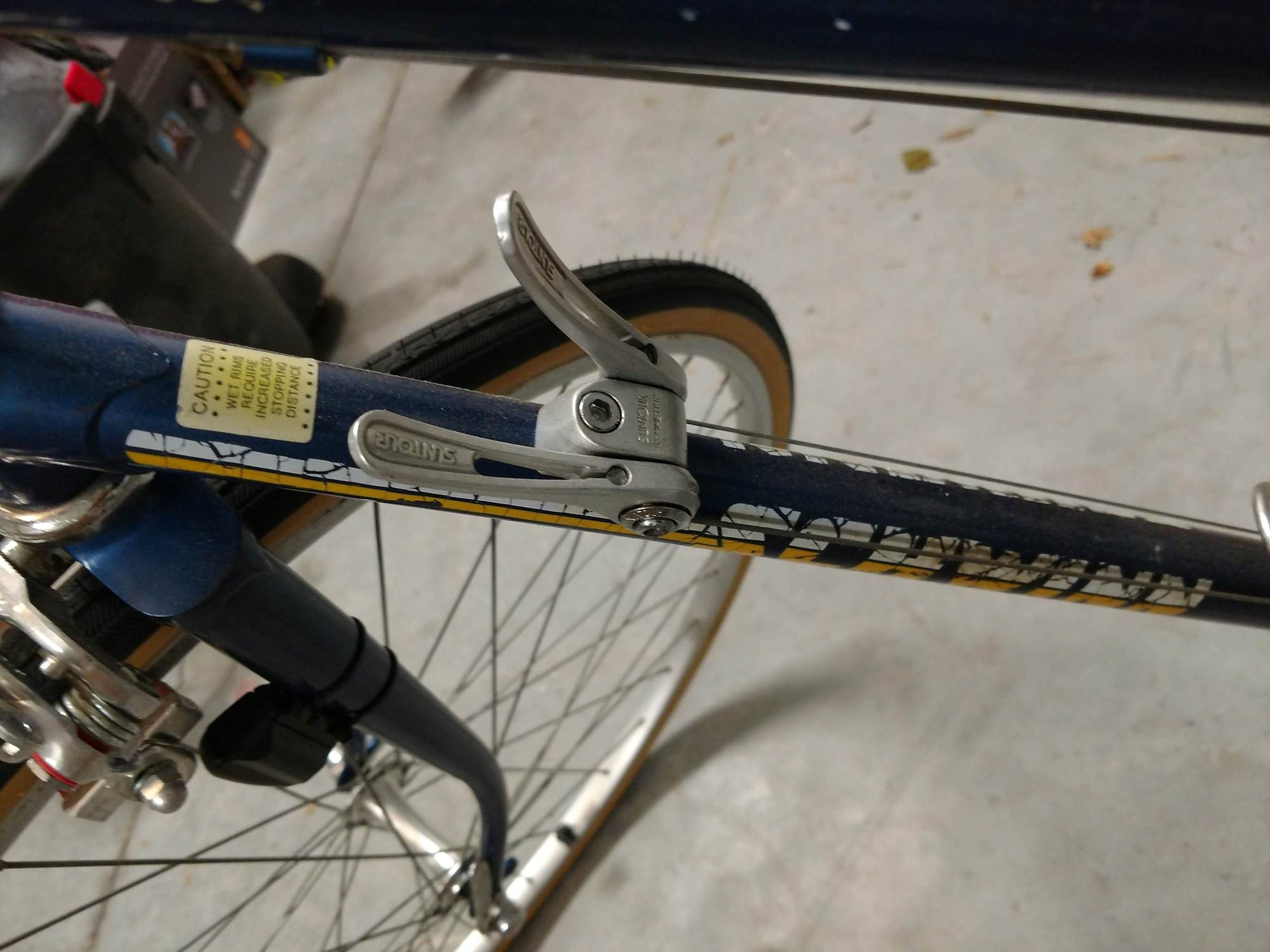

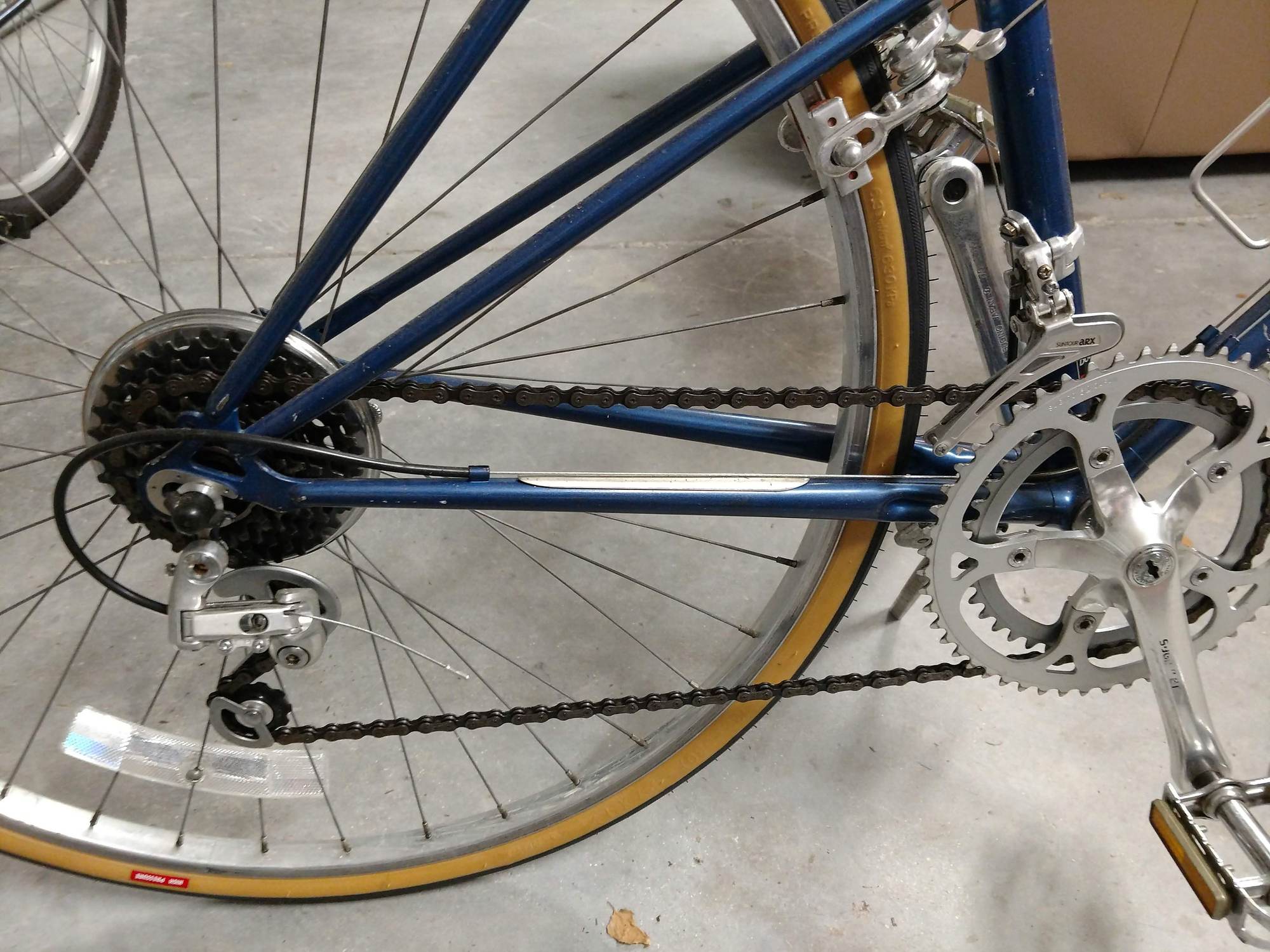

The bike is an 84 early 85 {bike was built sept 1984** and is a Le Tour mixte. Pictures attached...

Thank you for any help
Nelson


.



redmanf1 is offline
Reply With Quote
Old 04-15-19, 04:55 AM
  #2
horatio
Hump, what hump?

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,192

Bikes: See signature

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
You could try clamp-on shifters. Stem shifters would get them level with the bars. Then there’s bar-end or even STI options.
__________________
### 60cm Ciocc Designer '84 frameset to trade for something comparable in a 54-56 size ###

2010 AB T1X ** 2010 Cannondale SIX-5 ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 198? Mercian Olympic
horatio is offline
Reply With Quote
Old 04-15-19, 05:05 AM
  #3
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Helsingborg, Sweden
Posts: 2,357

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; '90s Helkama "Trekking"; 1984 Ross MTB (in USA)

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
What type of handlebar does it have? What type of shifter does she want?

I would pick whichever friction shifters I liked, and then worry about replacing the existing shifters with a cable stop.

Possibilities include stem shifters or bar-end shifters if you want drop handlebars, or MTB-style thumbshifters or stem shifters if you want a more upright handlebar.
DiegoFrogs is offline
Reply With Quote
Old 04-15-19, 09:30 AM
  #4
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,003

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1551 Post(s)
You just happen to have the most difficult shifters to replace... that Suntour aero shifter mount throws a monkey wrench into the works... there were actually cablestops made to work with those mounts, but they’re RARE. You can fabricate something fancy- but that’s an awful lot of work.

Im assuming you’re going with upright bars- so personally, I like the idea of thumb shifters- your hands can still control the bars as you’re shifting.

I think what I’d want to do is score a set of the Suntour ratcheting thumb shifters and a clamp on cable stop and use the aero braze on as the clamp stop.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

I might have gotten away with it too, if it wasn't for these blasted kids and their dog.

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 04-15-19, 10:33 AM
  #5
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,063

Bikes: '04 Felt SR91, '82 Univega Competizione, '72 Motobecane Grand Record, '72 Puch Bergmeister

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
This is probably the easiest way to go:

Cable stops, which you would clamp on just above the shifter boss: https://www.rivbike.com/collections/...on-cable-stops

And, assuming the bike has upright handlebars, these thumb shifters have a good reputation: https://www.amazon.com/Sunrace-SLM10...40701881&psc=1

Like GoldenBoy said above, the shifter boss under those Suntour Symmetric shifters has unique dimensions and unique thread pitch, so they're not easy to replace elegantly. The cablestop that he mentions is indeed exceedingly rare.
noobinsf is offline
Reply With Quote
Old 04-15-19, 10:39 AM
  #6
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,063

Bikes: '04 Felt SR91, '82 Univega Competizione, '72 Motobecane Grand Record, '72 Puch Bergmeister

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 283 Post(s)
Also, if you have drop handlebars, you hopefully have a bike co-op near you, and you could pick up a set of used stem-mounted shifters cheaply.
noobinsf is offline
Reply With Quote
Old 04-15-19, 10:40 AM
  #7
fleslider
Senior Member

fleslider's Avatar

Join Date: Feb 2014
Location: Fort Collins, CO
Posts: 1,200

Bikes: 1974 Paramount ~ 1974 Raleigh Pro ~ 1977 Pro-Tour ~ 1978 TX900 ~ IronMan 85,87:E/M,88:M/Pro,89:E ~ 88/90/99 GT Avalanche~ 1992 Cannondale T1000 ~ 1992/94 Klein Pinnacle ~ 1998 Peugeot Festina Replica

Mentioned: 70 Post(s)
Tagged: 0 Thread(s)
Quoted: 339 Post(s)
If you have a Bike COOP in your area they probably have exactly what you need and it will be cheap.
fleslider is offline
Reply With Quote
Old 04-15-19, 11:43 AM
  #8
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 5,930

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Originally Posted by noobinsf View Post
This is probably the easiest way to go:

Cable stops, which you would clamp on just above the shifter boss: https://www.rivbike.com/collections/...on-cable-stops

And, assuming the bike has upright handlebars, these thumb shifters have a good reputation: https://www.amazon.com/Sunrace-SLM10...40701881&psc=1

Like GoldenBoy said above, the shifter boss under those Suntour Symmetric shifters has unique dimensions and unique thread pitch, so they're not easy to replace elegantly. The cablestop that he mentions is indeed exceedingly rare.
+1 this was what I was going to suggest
__________________
Looking for Torpado Superlight 58cm
squirtdad is offline
Reply With Quote
Old 04-15-19, 12:11 PM
  #9
redmanf1
Member
Thread Starter

Join Date: Sep 2008
Posts: 35
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Thank you very much for all the reply's. Sorry I did not describe or picture the handlebars. They are dropdown, picture attached.
Thanks again for all the help...
Nelson



.



.
redmanf1 is offline
Reply With Quote
Old 04-15-19, 12:21 PM
  #10
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 1,374

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 361 Post(s)
I think the easiest solution would normally be to replace the DT shifters with cable stops and then mount some stem shifters -Suntour made some good ones, however you have a frame with a single boss for Suntours Symmetric shifters so cables stops will be more challenging here is a thread that discusses this issue
ryansu is offline
Reply With Quote
Old 04-15-19, 02:05 PM
  #11
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 581

Bikes: vintage 531 & campy

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Get her a nicer cockpit while you're at it.

Turkey levers without hoods and foam tape? <shudder>
SurferRosa is offline
Reply With Quote
Old 04-15-19, 08:59 PM
  #12
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,003

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1551 Post(s)
No comments yet about the Series 90 Paramounts?

Nice, nice bikes.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

I might have gotten away with it too, if it wasn't for these blasted kids and their dog.

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 04-16-19, 07:22 AM
  #13
WFdave
Member

Join Date: Nov 2017
Posts: 46
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
How often does she get into the drops? If rarely, I would consider a flat bar conversion having the brake levers and shifters on the bar adding a clamp of cable stop to the down tube. Is this a 6 or 7 speed rear cog?
WFdave is offline
Reply With Quote
Old 04-16-19, 08:30 AM
  #14
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,116

Bikes: Several, mostly not name brands.

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1578 Post(s)
Originally Posted by The Golden Boy View Post
You just happen to have the most difficult shifters to replace... that Suntour aero shifter mount throws a monkey wrench into the works... there were actually cablestops made to work with those mounts, but theyre RARE. You can fabricate something fancy- but thats an awful lot of work.
Just use a standard, downtube cable clamp. Position it just above the existing braze-on lever muont, so as to use the mount to prevent the clamp from sliding down the tube with use. Not particularly elegant, but fully functional.

JohnDThompson is online now
Reply With Quote
Old 04-16-19, 03:01 PM
  #15
cannonride15
Senior Member

Join Date: Sep 2015
Location: Hampton Roads
Posts: 82

Bikes: Cannondales: '85 ST400, '86 SR800, '87 SM600

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
@redmanf1, this thread may provide a more elegant solution, Interest in CNC machined aero mount cable stops?.
cannonride15 is offline
Reply With Quote
Old 04-16-19, 10:44 PM
  #16
redmanf1
Member
Thread Starter

Join Date: Sep 2008
Posts: 35
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by The Golden Boy View Post
No comments yet about the Series 90 Paramounts?

Nice, nice bikes.
Thank you...

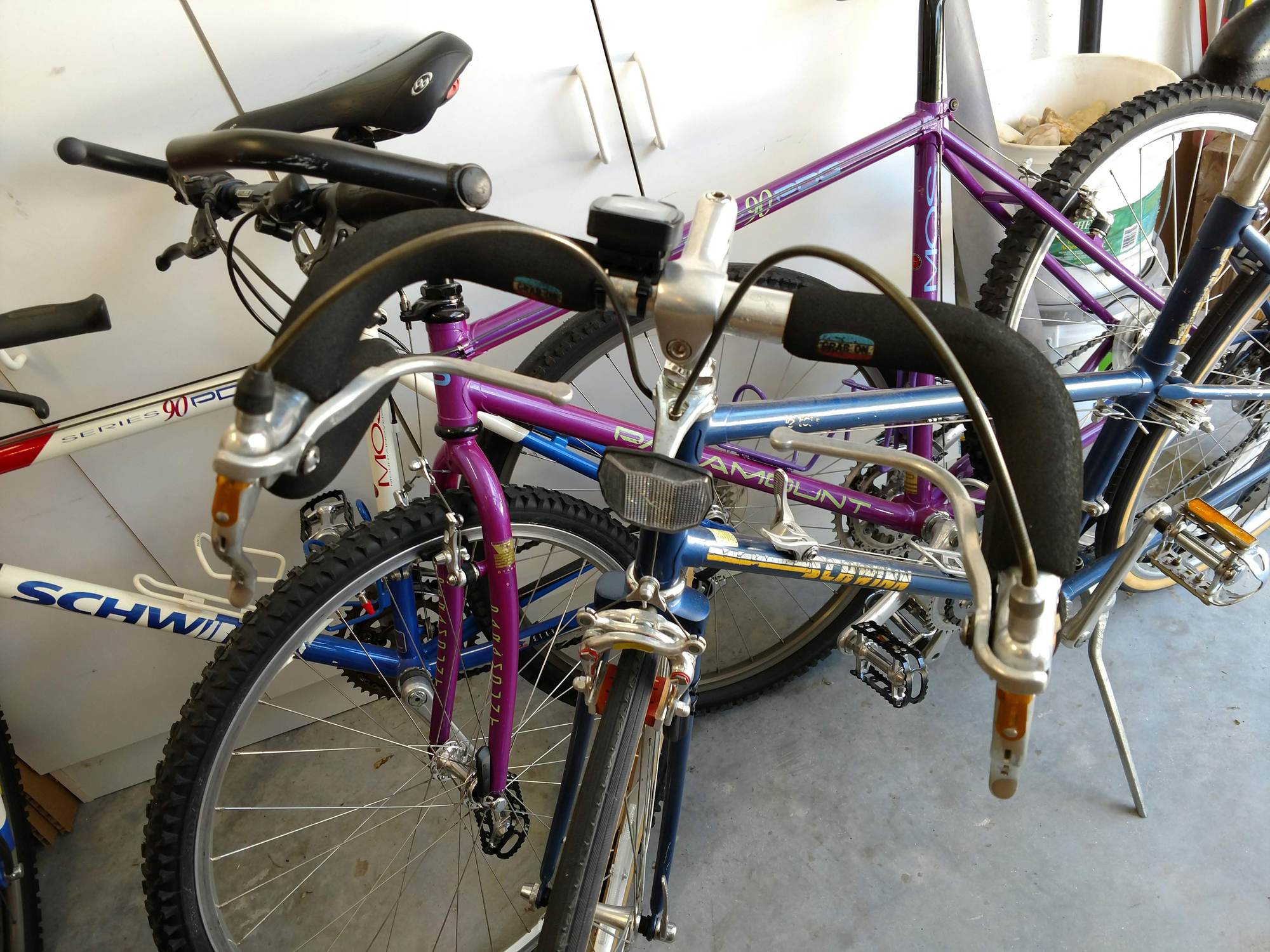

It is a 6 speed cog. This bike actually came with taped bars but she likes the foam bars so I put them on for her. The bike reminds her of one she had as a girl and uses the upper part of the bars. She is just not comfortable reaching down to shift so that is why I am looking for a solution. Thank you very much for all the help....
redmanf1 is offline
Reply With Quote
Old 04-17-19, 12:02 AM
  #17
redmanf1
Member
Thread Starter

Join Date: Sep 2008
Posts: 35
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I found these and I think they would fit ok. I think the index set (1) would be nice if they will work with her bike. If not how about number 2?
Thanks again...

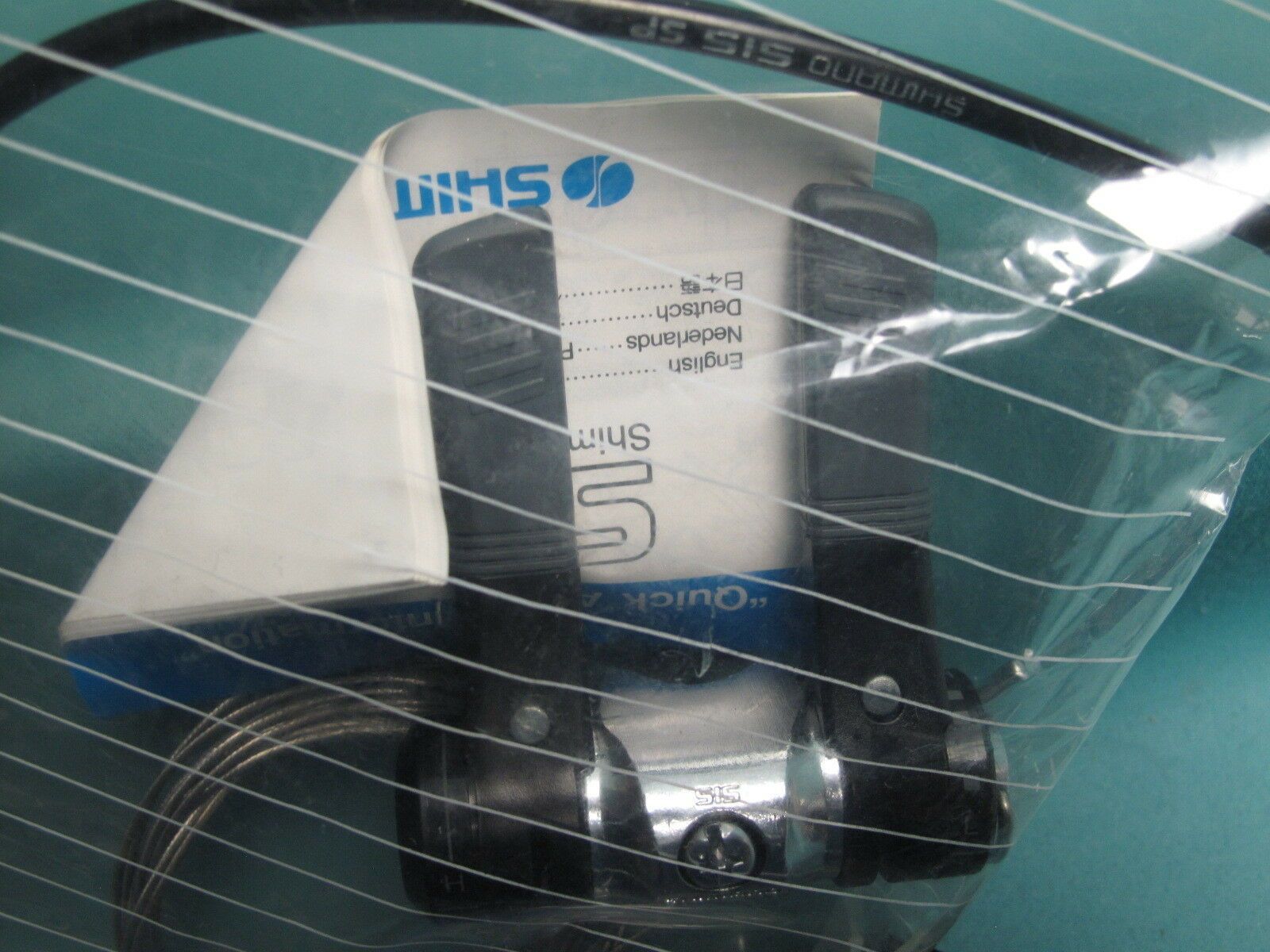

Set 1 : Vintage Shimano Index SIS Shifter Set Stem Mount with Housing & Cables 6 spd New
Guess I would need to change the cassette and derailleur to index and leave the main friction???

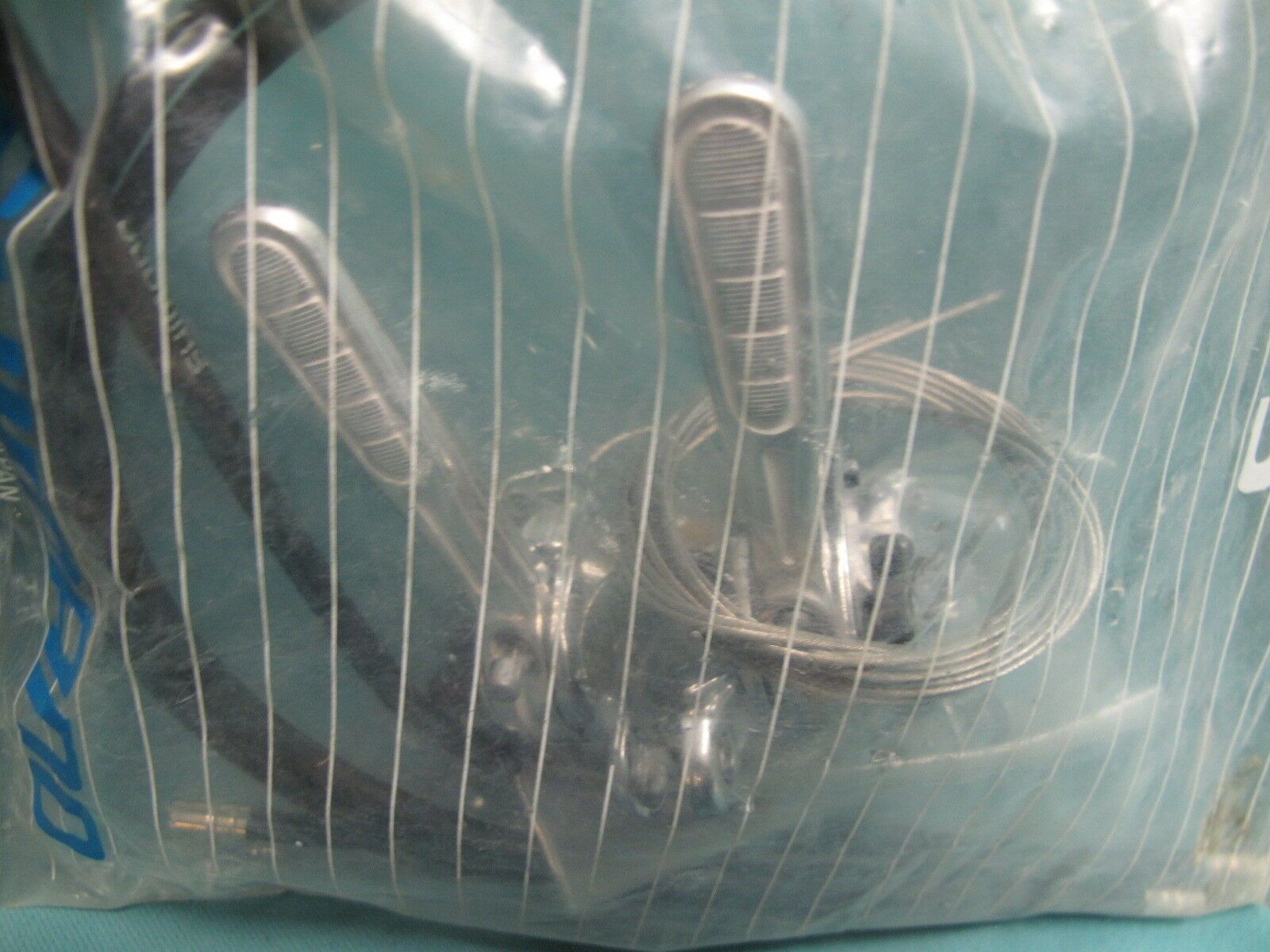

Set 2 : Vintage Shimano Friction Shifters Set Stem Mount With Clamps Housing Cables New


.


Last edited by redmanf1; 04-17-19 at 11:01 AM.
redmanf1 is offline
Reply With Quote
Old 04-17-19, 06:58 AM
  #18
Dr.Lou
Junior Member

Dr.Lou's Avatar

Join Date: Apr 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
FWIW,
I agree with stem shifters. I also like bar cons. DT shifters always seemed awkward.
Dr.Lou is online now
Reply With Quote
Old 04-17-19, 11:13 AM
  #19
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,003

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1551 Post(s)
Originally Posted by redmanf1 View Post
I found these and I think they would fit ok. I think the index set (1) would be nice if they will work with her bike. If not how about number 2?
Thanks again...

Set 1 : Vintage Shimano Index SIS Shifter Set Stem Mount with Housing & Cables 6 spd New
Guess I would need to change the cassette and derailleur to index and leave the main friction???

Set 2 : Vintage Shimano Friction Shifters Set Stem Mount With Clamps Housing Cables New
I wouldn’t do either of those unless you wanted to convert to indexed shifting.

I would do these:

https://rover.ebay.com/rover/0/0/0?m...2F254149002961


With this:

https://rover.ebay.com/rover/0/0/0?m...2F254180352158



That gives you the ratcheting Power shifters to mount at the stem- and a cable stop.



I’m not associated with either of those eBay sellers or auctions. Just the first ones that showed up like I was looking for.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

I might have gotten away with it too, if it wasn't for these blasted kids and their dog.

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 04-17-19, 11:52 AM
  #20
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,691

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 1626 Post(s)
+1 on the Suntour Power shifters on the stem. A custom adapter stop for the aero DT shifter braze-on would be nice, and the cleanest looking, but it's a perhaps a bit extravagant for this level of bike. A simple suntour or similar band clamp type cable stop will suffice. The braze on will function as a stop to keep it from sliding down.

Indexing won't work on drivetrains of that era, at least not without replacing everything.

Shimano friction shifters of that time were meh at best, and often not very good at all. Suntour was superior. Shimano got better later. IMHO of course...
Salamandrine is offline
Reply With Quote
Old 04-17-19, 03:07 PM
  #21
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,003

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 1551 Post(s)
Originally Posted by Salamandrine View Post
Shimano friction shifters of that time were meh at best, and often not very good at all. Suntour was superior. Shimano got better later. IMHO of course...
The Shimano L422 shifters were pretty cool- Those were the ones that ratcheted both ways- I'm kind of undecided whether I like the regular power shifters better or not...

I'm not exactly sure if these are stem shifters or not- the ad says "aero top mount" but it's a clamp that goes around something- I'm pretty sure these be stem shifters. And they're $13 shipped.

https://www.ebay.com/p/Shimano-L422-...ing/1507735120


Again, I've got nothing to do with the seller or auction.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

I might have gotten away with it too, if it wasn't for these blasted kids and their dog.

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Reply With Quote
Old 04-17-19, 04:46 PM
  #22
jcb3
Senior Member

jcb3's Avatar

Join Date: Sep 2014
Location: Irvine, CA
Posts: 543

Bikes: 1983 Trek 700, 1972 Peugeot PX10, 1989 Nishiki Cascade, 2014 Focus Izalco

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 112 Post(s)
There’s a big ugly sharp hunk of metal under the shifter body, so adapting stops to the body is way more elegant than taking it off. (See link below)

Dont lose the Allen screw that holds the shifter to the frame. they are next to impossible to find, some unusual thread pitch as I recall.


Suntour Symmetric Conversion

+1 on the suntour power shifters.
jcb3 is offline
Reply With Quote
Old 04-17-19, 07:49 PM
  #23
jskita
Junior Member

Join Date: Jan 2018
Location: Orange County, CA
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You said she only rides the upper part of the bars. As another poster suggested you can try some flatter bars. I think she might find that very comfortable. I put Soma Sparrow bars on my daughter's mixte. I am currently taking off her front derailleur so she just uses one friction thumb shifter for the rear.
jskita is offline
Reply With Quote
Old 04-17-19, 08:18 PM
  #24
Glennr134
Member

Join Date: Apr 2019
Location: Scranton , Pennsylvania
Posts: 36

Bikes: 1968 Hercules 10spd. 1971 Raleigh Grand prix 12spd. Bridgstone 10spd, BSA 12 spd. 1872 Rudge high wheel

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
I have an 85 letour lux with the same shifter. I took them off and put shamano 600 down tube clamp on shifters butted up against the braze on stud. Will put a chrome screw in the stud to dress it up a bit.
Glennr134 is offline
Reply With Quote
Old 04-17-19, 08:26 PM
  #25
Glennr134
Member

Join Date: Apr 2019
Location: Scranton , Pennsylvania
Posts: 36

Bikes: 1968 Hercules 10spd. 1971 Raleigh Grand prix 12spd. Bridgstone 10spd, BSA 12 spd. 1872 Rudge high wheel

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
I have an 85 letour lux with the same shifter. I took them off and put shamano 600 down tube clamp on shifters butted up against the braze on stud. Will put a chrome screw in the stud to dress it up a bit.
Glennr134 is offline
Reply With Quote

Thread Tools
Search this Thread

Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service
