Will Ultegra brake hoods work on Dura Ace 7402 brake levers?

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Will Ultegra brake hoods work on Dura Ace 7402 brake levers?

Old 04-20-19, 08:33 AM
  #1
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,314

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Will Ultegra brake hoods work on Dura Ace 7402 brake levers?

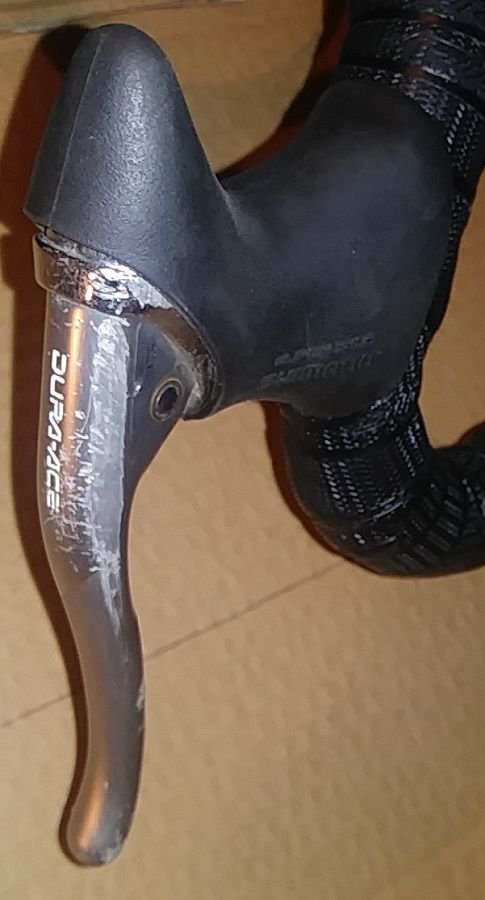

Here is a Dura Ace 7402 brake hood, that unfortunately was sold before I could buy the pair. I have identical brake hoods that are worn out and in need of replacement. While they do come up, usually in used condition, it is a matter of waiting a long time to find them, if /when they are offered for sale.

However here is a similar looking Shimano Ultegra brake hood which is readily available, has any one used this brake hood to replace the Dura Ace 7402 shown above? Will it work? Are their other brake hoods that work, such as the Shimano 600 brake hoods?



Thanks for your advice, also for any leads on where a set of Dura Ace 7402 brake hoods can be found.

Last edited by since6; 04-20-19 at 08:37 AM.
since6 is offline
Old 04-20-19, 09:27 AM
  #2
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 459

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
My experience says no.
blamester is offline
Old 04-20-19, 11:20 AM
  #3
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,413

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '92 Specialized Epic Carbon - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '92? Bushnell Track Bike

Mentioned: 148 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Seconded. I don't have any with me, but my experience in looking and handling 6209-sub-model 600 levers (last year or so of the 6200 generation that ended in 1987) and 1051-sub-model 105 levers (first years of the 1050 generation that began in 1987) is that the hoods of those will be a lot closer in look and fit to a 7402 lever. Those several years of overlap saw the first SLR branded levers (and SLR look-a-likes) and all of them were pretty consistent in terms of the lever blade trim ring (plated for DA & 600, dark grey plastic for 105) and slender lever body. They seem to be extremely close in shape. If anyone has experience using either of these lever hoods, that would be a great addition.

EDIT: Pictures added for help

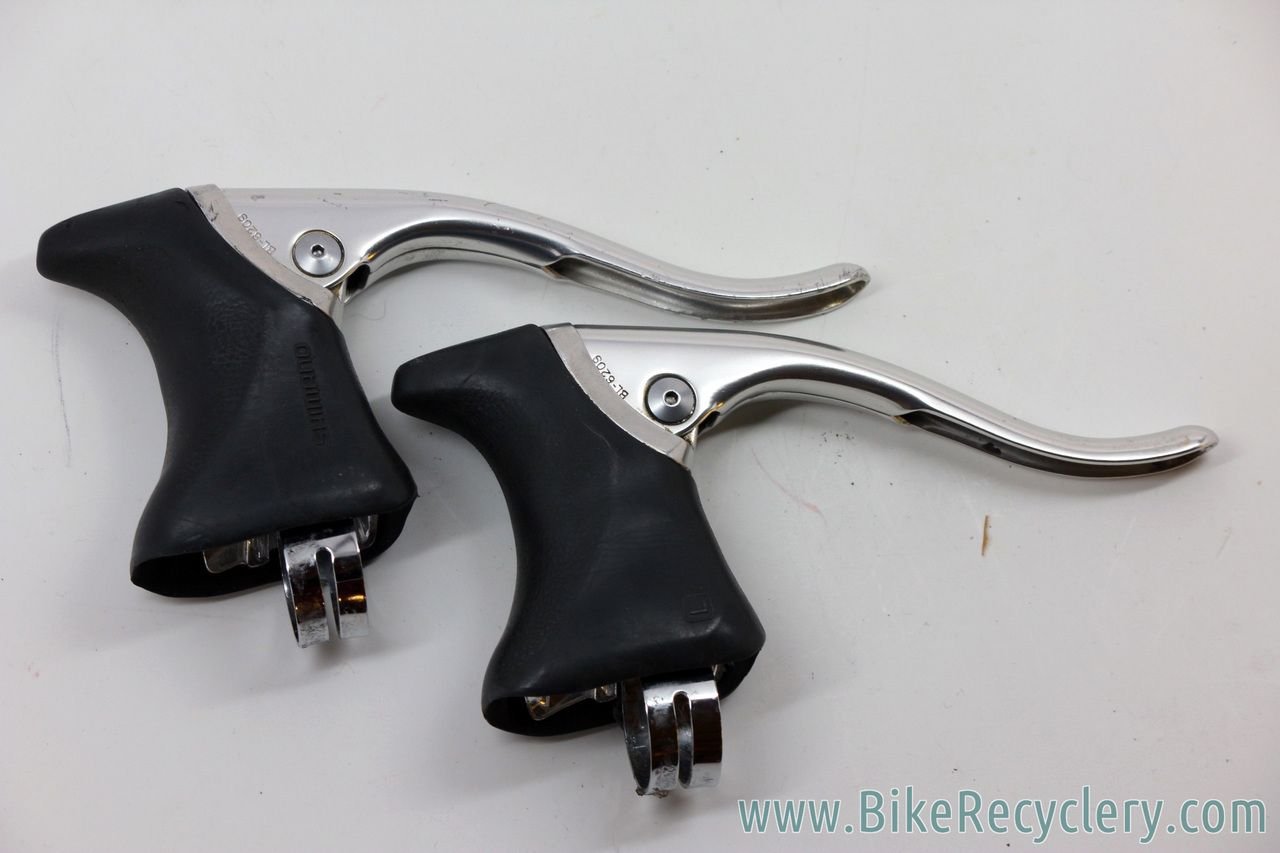

1051 brake levers:


6209 brake levers:

Last edited by RiddleOfSteel; 04-20-19 at 11:25 AM.
RiddleOfSteel is offline
Old 04-20-19, 11:55 AM
  #4
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,314

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Riddleofsteel I think you are right.

I looked at my Centurion Ironman Expert brakes and brake hoods and in comparing them to the Dura Ace 7402 brake levers and hoods the look very similar. Some white hoods came up for sale (the Centurion has white hoods so having a spare pair in this rare color was a must) so I ordered them and will see how they look to fit on the Dura Ace after they come in.

I will post what I find out.

Thanks all.
since6 is offline
Old 04-20-19, 12:17 PM
  #5
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 819

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 170 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I no longer recall the p/n of these hoods but they look like they might be same ones that OP asked about. I had to do some sculpting of the internal feature of the hoods to improve the fit. Although I can tug on the hoods and get them to look like they fit well, the position shown in the pic is naturally assumed after riding. The hoods do feel a little squirmy since there are no keying features to locate hood to lever body.

I hope nobody is offended by the condition of the lever. This bike was used as intended.

__________________
I.C.
Insidious C. is online now
Old 04-20-19, 12:34 PM
  #6
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,541
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 339 Post(s)
Liked 16 Times in 13 Posts
PM me your address. I have a pair .
RobbieTunes is offline
Old 04-20-19, 12:39 PM
  #7
since6
Senior Member
Thread Starter

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,314

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Never offended by use.
Use means there's always a story waiting to be told.

Thanks RobbieTunes will do, these will be going on the Panasonic Team America Custom I posted on recently. The current hoods are not yet at the Wicked Witch of the West "I'm melting, I'm melting" stage could use retirement and refreshing.
since6 is offline
Old 04-20-19, 02:05 PM
  #8
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,224

Bikes: I'd rather not count how many, thank you

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Sadly, nothing but 7402 hoods will properly fit 7402 lever bodies. Same story with 7401, 1050/51, 6209 and 6400 lever bodies and hoods- all of them are unique to each model. 6403 will interchange with BL-R600 but only because they both use 6403 lever bodies.

7400 non-aero levers work well with Record style Rustines hoods, tho.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 04-20-19, 05:30 PM
  #9
RiddleOfSteel
Lugged, Dura-Ace Glory

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 2,413

Bikes: '87 Schwinn Prologue - '74 Schwinn Paramount P15 - '8X Davidson Impulse - '88 Land Shark Road Shark - '92 Specialized Epic Carbon - '15 Cannondale CAAD10 Disc - '81 Trek 710 - '92? Bushnell Track Bike

Mentioned: 148 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Likes: 0
Liked 6 Times in 5 Posts
Originally Posted by rccardr View Post
Sadly, nothing but 7402 hoods will properly fit 7402 lever bodies. Same story with 7401, 1050/51, 6209 and 6400 lever bodies and hoods- all of them are unique to each model. 6403 will interchange with BL-R600 but only because they both use 6403 lever bodies.

7400 non-aero levers work well with Record style Rustines hoods, tho.
Sadly, for exact fit, this is the story for many of Shimano's hoods in this late-'80s to early '90s period, though they finally streamlined things a bit with the BL-R400 and R600 levers in that the body and hoods are Shimano 600 (6403, specifically) copies--same metal mold!). Though generally, the Super SLR era of brake levers up and down the range were much more similar than they were different from each other.

I was just at one of the LBS's I volunteer at and had the chance to compare 1051 and 6209 levers with 7402 levers, and they are as near as makes no difference--at least externally. Many curves, angles, and measurements line up nearly on the money. And this isn't me being approximate or lazy in my comparisons. Looks like RT to the rescue, which is fantastic.
RiddleOfSteel is offline
Old 04-20-19, 07:38 PM
  #10
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 5,224

Bikes: I'd rather not count how many, thank you

Mentioned: 142 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Forgot to mention that BL-R400 brakes and BL-R600 brakes also have different hoods. Close, but not the same.
600's have a higher front arch than 400's.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 04-21-19, 01:51 PM
  #11
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,541
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 339 Post(s)
Liked 16 Times in 13 Posts
My hoods, once pulled out of the despair bin, appear to be 7401's. Which means they'll loosely fit the 7402, but not well, and not tight. Plus, it appears I tried to make them fit 7200's in the past, poking a hole in the top to make them non-aero.


Sad snapshot of the frustration brought about by Shimano, at least re: hoods.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
