Rotrax - Does this look bad to you?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Rotrax - Does this look bad to you?

Old 04-23-19, 05:19 PM
  #1
steppinthefunk
Designer
Thread Starter

steppinthefunk's Avatar

Join Date: Aug 2005
Posts: 1,372
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Rotrax - Does this look bad to you?

Hey guys and gals...
I have always wanted a Rotrax. And I have always wanted to try my hand at an acid bath restoration.
But does this frame look bent too far to be worth it (rear triangle)?

__________________

Last edited by steppinthefunk; 04-23-19 at 05:38 PM.
steppinthefunk is offline
Old 04-23-19, 05:27 PM
  #2
steppinthefunk
Designer
Thread Starter

steppinthefunk's Avatar

Join Date: Aug 2005
Posts: 1,372
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
more pics:

__________________
steppinthefunk is offline
Old 04-23-19, 05:37 PM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,472
Mentioned: 265 Post(s)
Tagged: 1 Thread(s)
Quoted: 2113 Post(s)
Liked 328 Times in 290 Posts
-----

Right seat stay has a shallow bow in it, easily straightened - no danger of harm.

Lug pattern: NERVEX 48/161

Crown: Vagner Nr. 11+

Pump pegs are NERVEX Nr. 845

Looks like it would make for a fine project.

Fairly late by Rotrax standards.

As you may already have learned, the Veteran Cycle Club of the U.K has a marque enthusiast for Rotrax. If you join the club you could get serial number, date, model & specifications information from this person. They would of course be delighted to record your serial for their registry.

https://www.v-cc.org.uk/Marque%20Enthusiasts.html

If you elect to proceed with the project please make a thread or continue with this one...

-----

Last edited by juvela; 04-23-19 at 08:08 PM. Reason: punctuation
juvela is offline
Old 04-23-19, 05:58 PM
  #4
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,018
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1035 Post(s)
Liked 304 Times in 171 Posts
If everything is in alignment, leave the bow in the seat stay alone and ride it.
TiHabanero is offline
Old 04-23-19, 06:54 PM
  #5
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,734
Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 523 Post(s)
Liked 169 Times in 137 Posts
Yes, take this to a frame repair individual and that stay should be fine, he/she can touch up the alignment, too. Only thing I'd caution against is depending on the material of that headbadge maybe best to remove and set aside and THEN give the frame/fork that acid bath.
Very worthwhile project: bringing this Rotrax back to life!
unworthy1 is offline
Old 04-23-19, 07:57 PM
  #6
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,128

Bikes: A few

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 1538 Post(s)
Liked 331 Times in 245 Posts
That stay is a piece of pie! Looks like a nice frame. Why that particular marque interests you?
3speedslow is offline
Old 04-23-19, 08:16 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,947

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2159 Post(s)
Liked 367 Times in 279 Posts
That's a small amount of bow, and it could easily be repaired by someone who knows what they are doing. BITD any decent bike shop could have fixed it. There was a VAR tool we used to use.

The alignment and dropouts will need to be checked and tweaked afterwards.
Salamandrine is offline
Old 04-23-19, 08:21 PM
  #8
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,874

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 595 Post(s)
Liked 161 Times in 112 Posts
+1 to above. I've seen much worse stays that straightened OK.
Reynolds is offline
Old 04-23-19, 11:54 PM
  #9
NothEndReCycle
Junior Member

Join Date: Apr 2019
Posts: 13
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Steel is Real; Bend Away
NothEndReCycle is offline
Old 04-24-19, 12:17 PM
  #10
steppinthefunk
Designer
Thread Starter

steppinthefunk's Avatar

Join Date: Aug 2005
Posts: 1,372
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Thanks for all the replies!
Looks like I have an incoming project!
steppinthefunk is offline
Old 04-24-19, 12:21 PM
  #11
steppinthefunk
Designer
Thread Starter

steppinthefunk's Avatar

Join Date: Aug 2005
Posts: 1,372
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by 3speedslow View Post
Why that particular marque interests you?
For some reason I have a thing for relatively obscure british brands with good history...
Plus, the name Rotrax just sounds cool and their decals are sweet! lol
steppinthefunk is offline
Old 04-24-19, 02:07 PM
  #12
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,128

Bikes: A few

Mentioned: 108 Post(s)
Tagged: 0 Thread(s)
Quoted: 1538 Post(s)
Liked 331 Times in 245 Posts
Originally Posted by steppinthefunk View Post
For some reason I have a thing for relatively obscure british brands with good history...
Plus, the name Rotrax just sounds cool and their decals are sweet! lol
Sounds like 3 great reasons to me! I was just wondering if maybe you had a connection to it or might the Father, Uncle race on them...
3speedslow is offline
Old 04-24-19, 02:17 PM
  #13
Wildwood
Veteran/Pacifist/Resister

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 9,916

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 2314 Post(s)
Liked 774 Times in 482 Posts
This is a much newer frame - early 70s - and without any tube replacements it became a stable (no hands stable) rider.

Wildwood is offline
Old 04-26-19, 07:50 AM
  #14
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,905

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 166 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Likes: 0
Liked 331 Times in 231 Posts

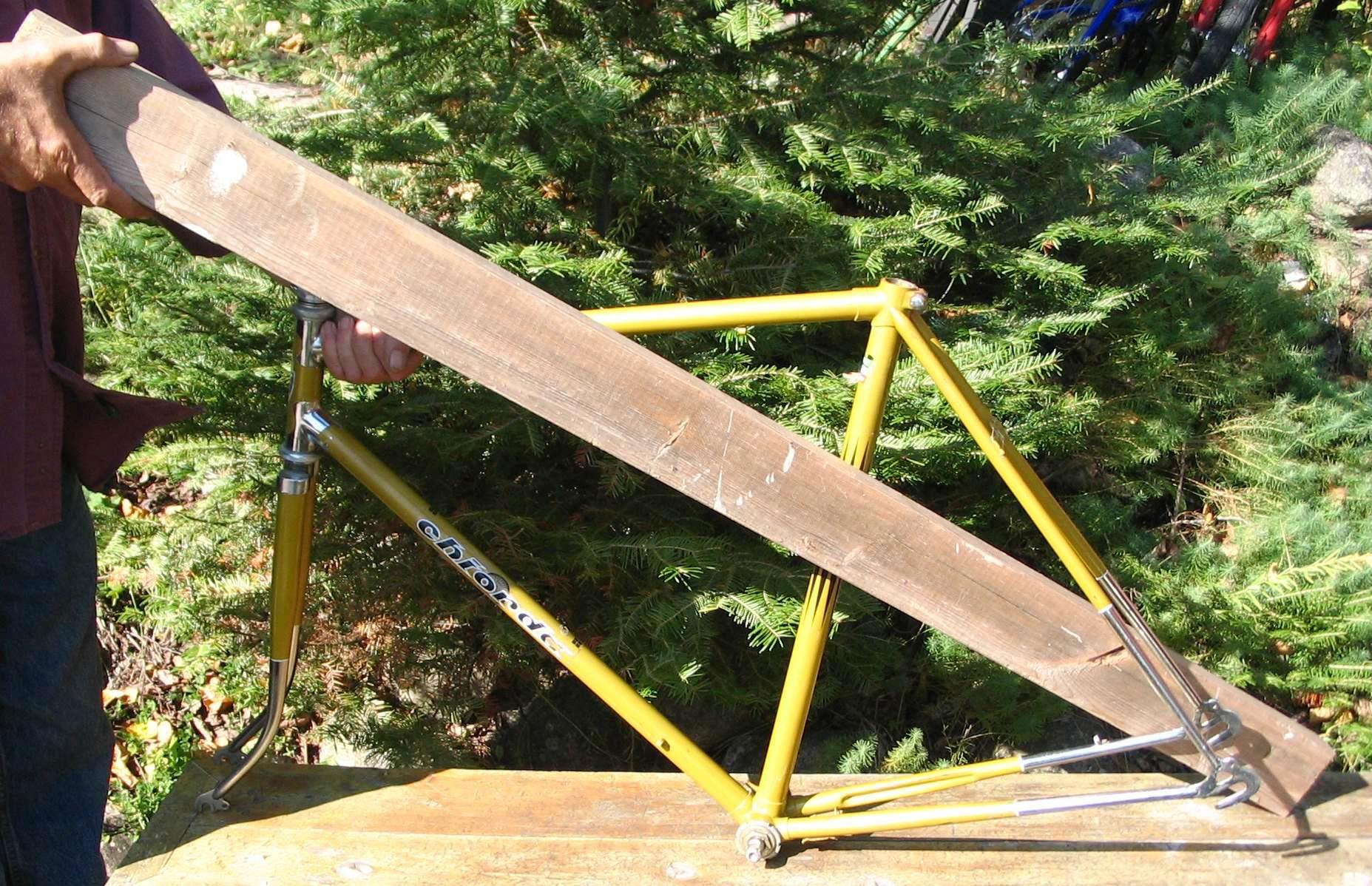

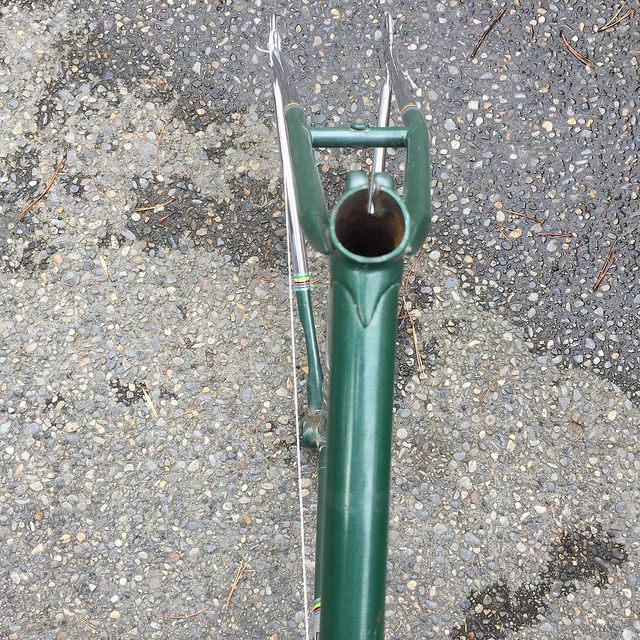

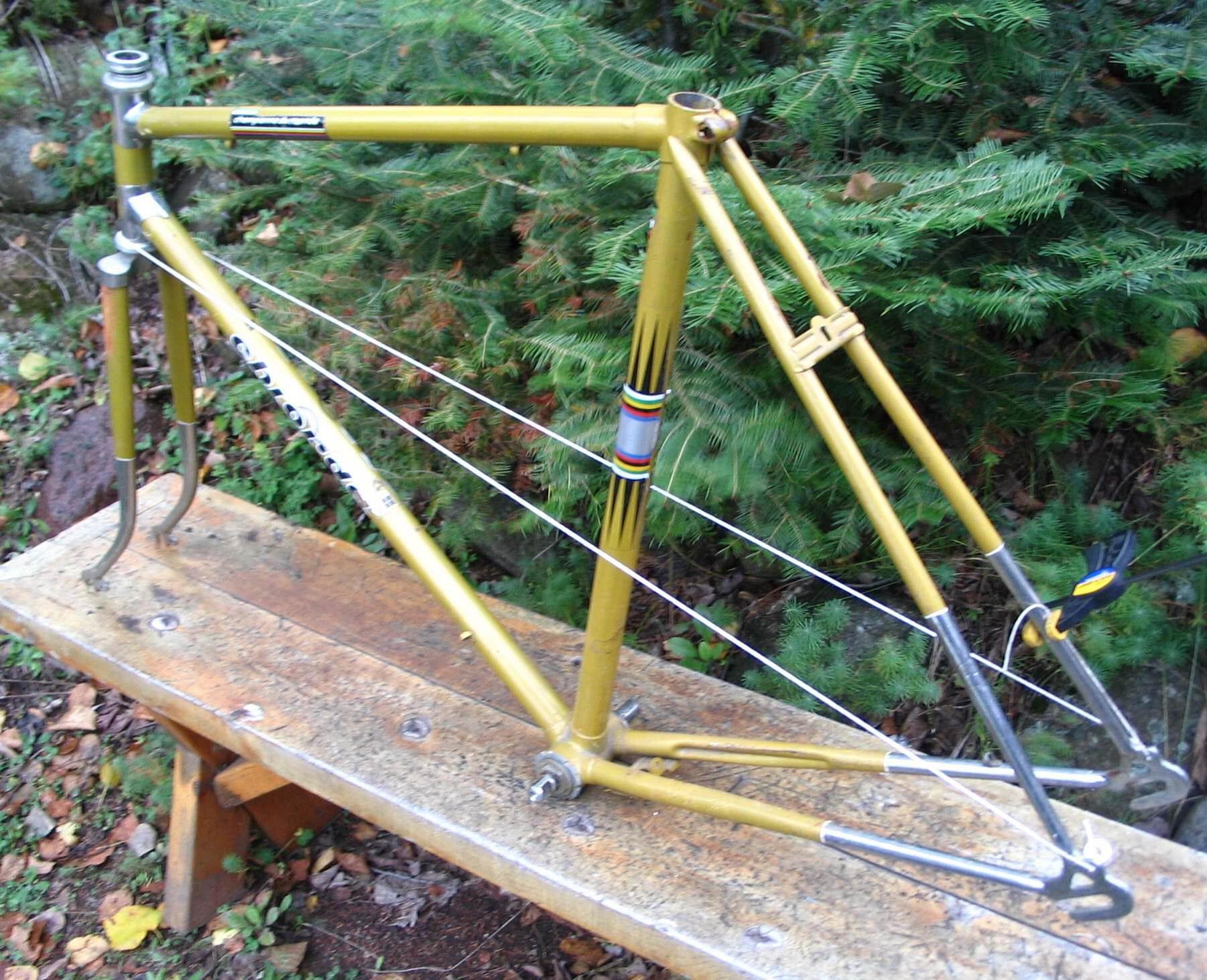

Straighten the stay and then take the time to look at Frame and Fork Repair, paying close attention to Stringing and Centering or aligning...


__________________
"98% of the bikes I buy are projects".
randyjawa is offline
