Barcon Installation Questions...

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Barcon Installation Questions...

Old 04-27-19, 05:29 PM
  #1
mmcc73
Senior Member
Thread Starter

Join Date: Apr 2013
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 5 Times in 2 Posts
Barcon Installation Questions...

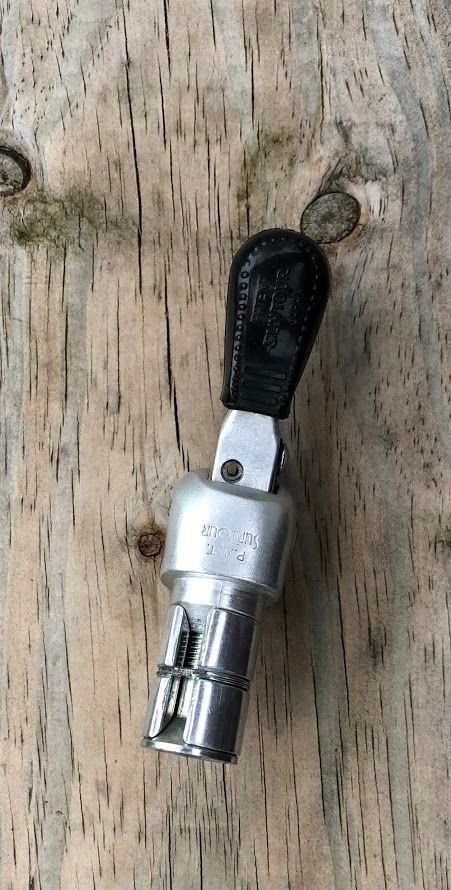

Hi - Iím soon to be installing a pair of barcons (see pictures) and I have a couple of very basic questions. Iíve found threads dealing with cable routing but nothing to this level of potential dumbness.

- How do I access the bolt that causes the expanders to expand, thereby locking the shifter in the handlebar?

- Which way is up? When installed should tensioning the inner cable be done when pulling the shifter upward or pushing it downward?

Thanks!


mmcc73 is offline
Old 04-27-19, 05:41 PM
  #2
John Nolan
Senior Member

Join Date: Apr 2007
Location: Ottawa, Canada
Posts: 435

Bikes: Raleigh Classic 15, 84; Miyata Ridge Runner SE, 85; Miyata 610, 86; Miyata 100M, 86; Miyata Valley Runner, 88; Miyata Triple Cross, 89; GT Karakoram, 90; Marinoni Touring, 95; Long Haul Trucker, 2013

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Here's a link to the installation manual:
http://www.ragandbone.ca/PDFs/suntou...ers-manual.pdf
John Nolan is offline
Likes For John Nolan:
Old 04-27-19, 05:43 PM
  #3
mmcc73
Senior Member
Thread Starter

Join Date: Apr 2013
Posts: 128
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 5 Times in 2 Posts
Awesome - thanks!
mmcc73 is offline
Old 04-27-19, 05:46 PM
  #4
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,761

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 64 Times in 39 Posts
You're gonna love em.
52telecaster is offline
Old 04-27-19, 08:10 PM
  #5
Fahrenheit531
50th Anniversary Edition

Fahrenheit531's Avatar

Join Date: Aug 2013
Location: Tucson, AZ
Posts: 3,526

Bikes: Schwinn Paramount ('71) and Volare ('78); Raleigh Competition GS ('79)

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 569 Post(s)
Liked 96 Times in 54 Posts
Always cool to see the original documentation. Thanks @John Nolan
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
Fahrenheit531 is offline
Old 04-27-19, 10:38 PM
  #6
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,056
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Liked 51 Times in 37 Posts
I agree that you will love them.

One piece of advise: the "locknut" on the screw that goes through the center of the shifter can come loose and disappear. Get used to snugging it down periodically.

Finding replacements is not impossible but they're pricey:
https://www.ebay.com/itm/Suntour-Bar...-/173822982487
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 04-28-19, 03:10 AM
  #7
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,315

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 649 Post(s)
Likes: 0
Liked 100 Times in 80 Posts
One piece of advise: the "locknut" on the screw that goes through the center of the shifter can come loose and disappear. Get used to snugging it down periodically.
Excellent heads up advice. When I install a set and set the adjustment, I always put a drop of Loctite on the lock nut. As for pricey new ones - fogedaboudit. I have on a few occassions just took an old nut, filed it to fit and Bob's your uncle.

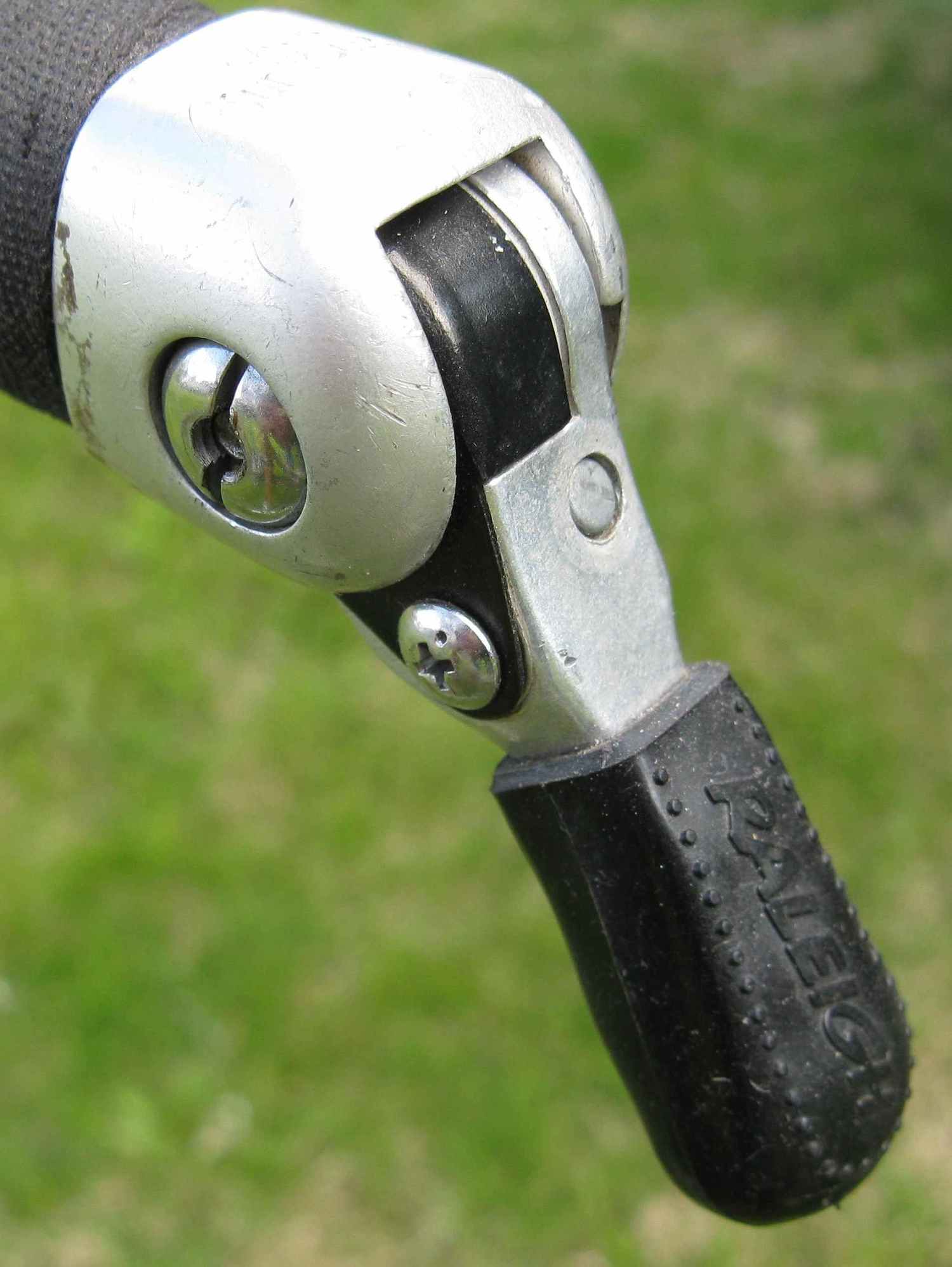

This is the culprit and this one is original. Could not find a picture of one that I made...
__________________
"98% of the bikes I buy are projects". Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 04-28-19, 04:52 AM
  #8
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,492

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Liked 14 Times in 12 Posts
In case you didn't catch the note on the installation sheet, turn the 6 mm wrench counter-clockwise to tighten the expander, and clockwise to loosen. This probably comes up more for people who are trying to remove them from old handlebars.
Pompiere is offline
Old 04-28-19, 05:09 AM
  #9
Prowler
Senior Member

Join Date: Nov 2013
Location: Near Pottstown, PA: 30 NW of Philadelphia
Posts: 1,328

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 33 Times in 20 Posts
Originally Posted by Jeff Wills View Post
One piece of advise: the "locknut" on the screw that goes through the center of the shifter can come loose and disappear.
Someone here suggested applying a round 'dot' of black electrical tape over that nut, adhering to the shifter body too. Maybe 1/2" diameter. I put those on my Suntours and they've stayed for three years now. Works fine, lasts a long time, fail safe and drains to the bilge.

I really like my barcons. I have them on my 1974 Crescent. Lovely ride.
Prowler is offline
Old 04-29-19, 12:50 AM
  #10
Big Block
Senior Member

Join Date: Jan 2010
Location: Adelaide, Australia
Posts: 659
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 11 Times in 8 Posts
Very timely for me. A set of the Suntour barcons arrived in the post today. Those installation instructions will make my life so much easier.
Many thanks
Big Block is offline
Old 04-29-19, 04:31 AM
  #11
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,111

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1811 Post(s)
Liked 92 Times in 69 Posts
Originally Posted by John Nolan View Post
Here's a link to the installation manual:
http://www.ragandbone.ca/PDFs/suntou...ers-manual.pdf
Wow. Blast from the past. That's exactly how I remember installing them in the shop. Haven't seen the instructions in decades.

OP, keep in mind that tape then was assumed to be cotton. You'll have a hard time tucking modern padded tape into the end of the bar and still getting the barcons in. Fizik would probably be OK, just. I recall doing one with cork when it first came out BITD and it was a bear. You're better off wrapping upwards in the modern manner if using padded tape.
Salamandrine is offline
Old 04-29-19, 07:54 AM
  #12
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,854
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 49 Times in 34 Posts
A good replacement for those locknuts can be made from the head of a pan head screw. Just cut the head off, drill and tap M4. +1 on the Loctite.
due ruote is offline
Old 04-29-19, 08:13 AM
  #13
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 2,761

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 849 Post(s)
Likes: 0
Liked 64 Times in 39 Posts
Originally Posted by due ruote View Post
A good replacement for those locknuts can be made from the head of a pan head screw. Just cut the head off, drill and tap M4. +1 on the Loctite.
Great idea.
52telecaster is offline
Old 08-03-19, 10:15 PM
  #14
Mr. Juicy Juice
Junior Member

Join Date: Jul 2019
Location: Portland, ME
Posts: 11

Bikes: 1974 Sekai 2000 Special

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 0 Times in 0 Posts
anyone know the best adaptor to use to convert a suntour barcon set up to a downtube set up or a stem set up for a roadbike? Is it even worth it to keep the shifters or should I just buy new ones?
Mr. Juicy Juice is offline
Old 08-03-19, 10:27 PM
  #15
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,854
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 49 Times in 34 Posts
Originally Posted by Mr. Juicy Juice View Post
anyone know the best adaptor to use to convert a suntour barcon set up to a downtube set up or a stem set up for a roadbike? Is it even worth it to keep the shifters or should I just buy new ones?
Just buy a set of Suntour Power shifters with downtube or stem band. They are essentially the same shifters and much less expensive.
due ruote is offline
Likes For due ruote:
Old 08-03-19, 10:36 PM
  #16
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 993
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 355 Post(s)
Likes: 0
Liked 58 Times in 38 Posts
The lever that says, ďTick Tack, Tick Tack.Ē
deux jambes is offline
Old 08-04-19, 07:37 AM
  #17
Whit51
Senior Member

Whit51's Avatar

Join Date: Sep 2007
Location: Reston VA
Posts: 415
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Liked 4 Times in 4 Posts
The lever body tends to rotate when you are snugging it down tight. I insert a long hex wrench in the hole in the lever body where the shift lever attaches to hold the lever body straight while tightening. Also, the small hex nuts that were used to hold reflectors on old pedals work fine ( but don't look as nice) as a replacement for the lock nut, providing you find the right size.
Whit51 is offline
Old 08-04-19, 07:57 AM
  #18
Last ride 76
Senior Member

Last ride 76's Avatar

Join Date: Nov 2013
Location: Just moved...1 km S. Now above the "Bike Path" ( River Road, Piermont, NY)
Posts: 1,200

Bikes: Old Bikes: '74 Ron Cooper, Crashed and repaired '76, restored 2015!!! need restoration '74 Witcomb track bike (bought in '75) '75 Carlsbad Masi, bought in '76 New bikes: 84-85 Gios torino "Professional" '76 Olmo Competition C Titiano

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 90 Times in 72 Posts
Originally Posted by Mr. Juicy Juice View Post
anyone know the best adaptor to use to convert a suntour barcon set up to a downtube set up or a stem set up for a roadbike? Is it even worth it to keep the shifters or should I just buy new ones?
buy or trade, not a good candidate for conversion.
Last ride 76 is offline
Old 08-05-19, 07:57 AM
  #19
Mr. Juicy Juice
Junior Member

Join Date: Jul 2019
Location: Portland, ME
Posts: 11

Bikes: 1974 Sekai 2000 Special

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Liked 0 Times in 0 Posts
Thanks for all the advice! Think I'll clean up the Barcons and look to sell them.
Mr. Juicy Juice is offline
Old 08-05-19, 10:24 PM
  #20
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,056
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 467 Post(s)
Liked 51 Times in 37 Posts
Originally Posted by Mr. Juicy Juice View Post
anyone know the best adaptor to use to convert a suntour barcon set up to a downtube set up or a stem set up for a roadbike? Is it even worth it to keep the shifters or should I just buy new ones?
As others said- they are not easy to convert. Search for SunTour Power Ratchet shifters from the early '80's: same bulletproof mechanism, different mounting.

Here's an old thread about them: Suntour Power Ratcheting Shifter
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
