Old 05-15-19, 12:03 PM
  #26
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Originally Posted by vintagerando View Post
Doesn't the steel wool remove the finish?
This method is only for nonanodized aluminum parts.
SB_Greg is offline
Old 05-15-19, 12:26 PM
  #27
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,892

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 127 Post(s)
Tagged: 0 Thread(s)
Quoted: 502 Post(s)
Likes: 0
Liked 21 Times in 19 Posts
Stronglight 49, 93 & 99 Polished Cranks

Originally Posted by vintagerando View Post
@verktyg In the above photo of the Mod 93 cranks, you mentioned they are "polished". How do you get them to look this good? What do you use?
Those model 49, 93 and 99 Stronglight cranks came that way new from the factory.

Because they were not anodized, the surface of the aluminum can corrode fairly deep which makes polishing a lot of work.

In cranks or any other bike component with an uneven gray corroded surface, it's probably easiest to start with some "wet or dry" silicon carbide sanding paper like that used in auto body shops. For really bad corrosion, start with 120 or 240 grit and then go up to finer grits from there. Use with water for faster cutting action.

Once you get under the corrosion you can switch to maroon or light gray Scotch Brite, steel wool or what have you then follow up with metal polish. I like SemiChrome for this.

You can polish the parts on a buffing wheel but you can easily remove too much material.

BTW, steel wool is about 38 to 48 Rockwell C hardness. The chrome on a plated surface is about 80 Rockwell C. The surface of anodized aluminum is over 93 Rockwell hardness (usually at a depth of .001" to .005").

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 05-15-19 at 05:16 PM.
verktyg is offline
Old 05-15-19, 12:33 PM
  #28
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
thanks for the knowledge @verktyg
SB_Greg is offline
Old 05-18-19, 05:23 PM
  #29
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts

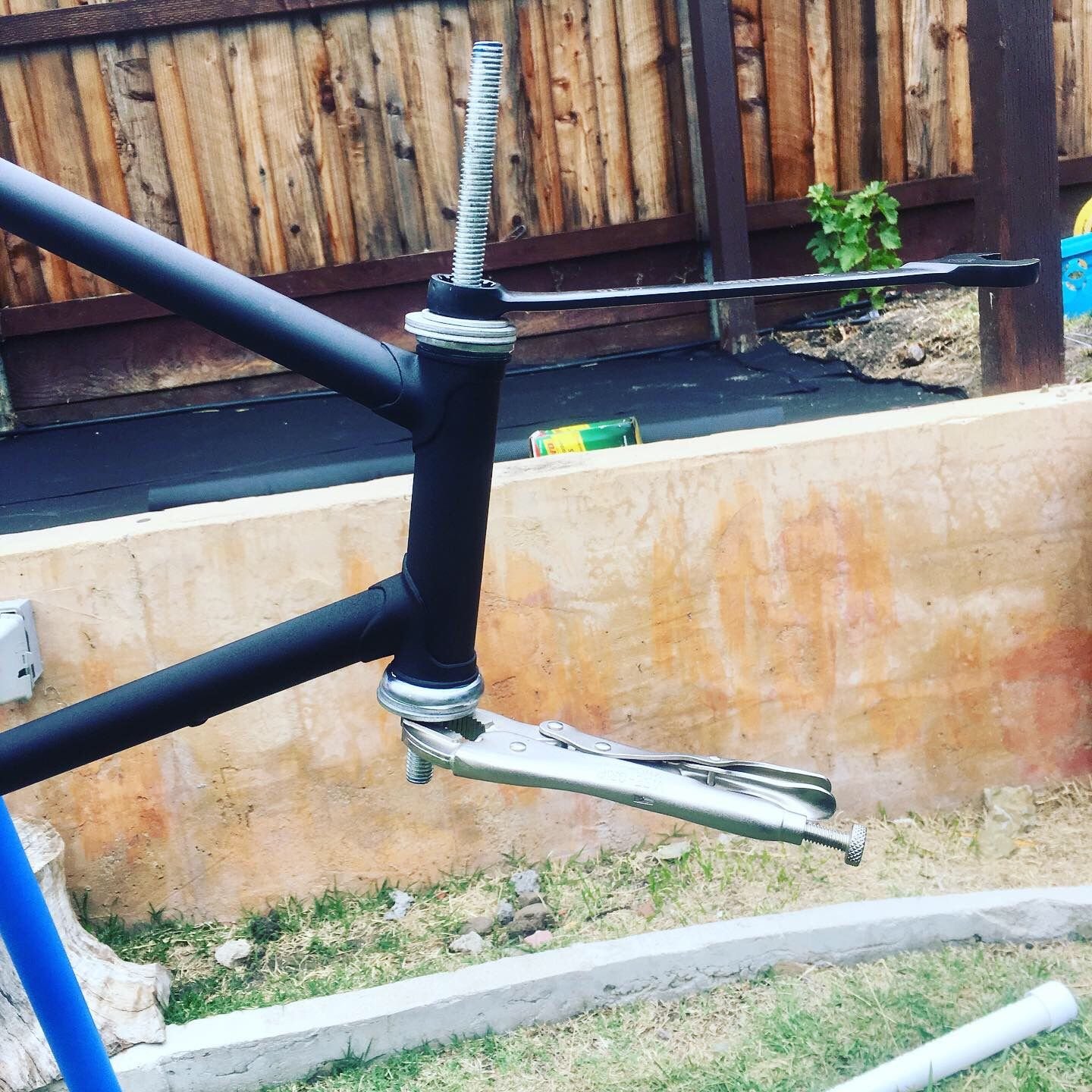

The cartridge bottom bracket arrived today so reassembly began.






Last edited by SB_Greg; 05-19-19 at 09:55 PM.
SB_Greg is offline
Old 05-18-19, 06:30 PM
  #30
7Shifty
7Shifty

Join Date: May 2019
Posts: 10

Bikes: Peugeot PX10 I Fuji Feather

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by SB_Greg View Post
Yesterday I drove about an hour north and purchased a hard luck case 1977-1979 (based on headbadge--the serial number plate has been removed) Peugeot PX10. The bad news is the right chrome fork has rust damage and the frame has been resprayed black (originally white). The good news is it is my size and it came with a number of perks including a Simplex seat post (anyone know what kind this is?), a drillium version of a Stronglight 49D crankset, Zeus pedals, gold anodized Mafac brake calipers, and a few other tidbits of interest. I also got it for $50.00. I will soak the frame and a few other parts in a rust bath. I tried to use nail polish to remove some of the spray paint to no effect. I have some stronger acetone at work I will try and if that doesn't work I will have to come up with some other plan for the finish. It could be I will turn this into some kind of a commuter.


As purchased


disassembled


1977-1979 headbadge


I bought the bike for this crankset and it will shine up nicely.


I love these!


Anyone know what kind of Simplex seat post this is?


You know you are in for it when the freewheel looks like this!
Do we have the same model?? https://imgur.com/gallery/D2FRFFq
7Shifty is offline
Old 05-18-19, 06:52 PM
  #31
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
I think yours in newer.
SB_Greg is offline
Old 05-19-19, 07:09 AM
  #32
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,406

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 21 Times in 21 Posts

Very impressive restoration so far!

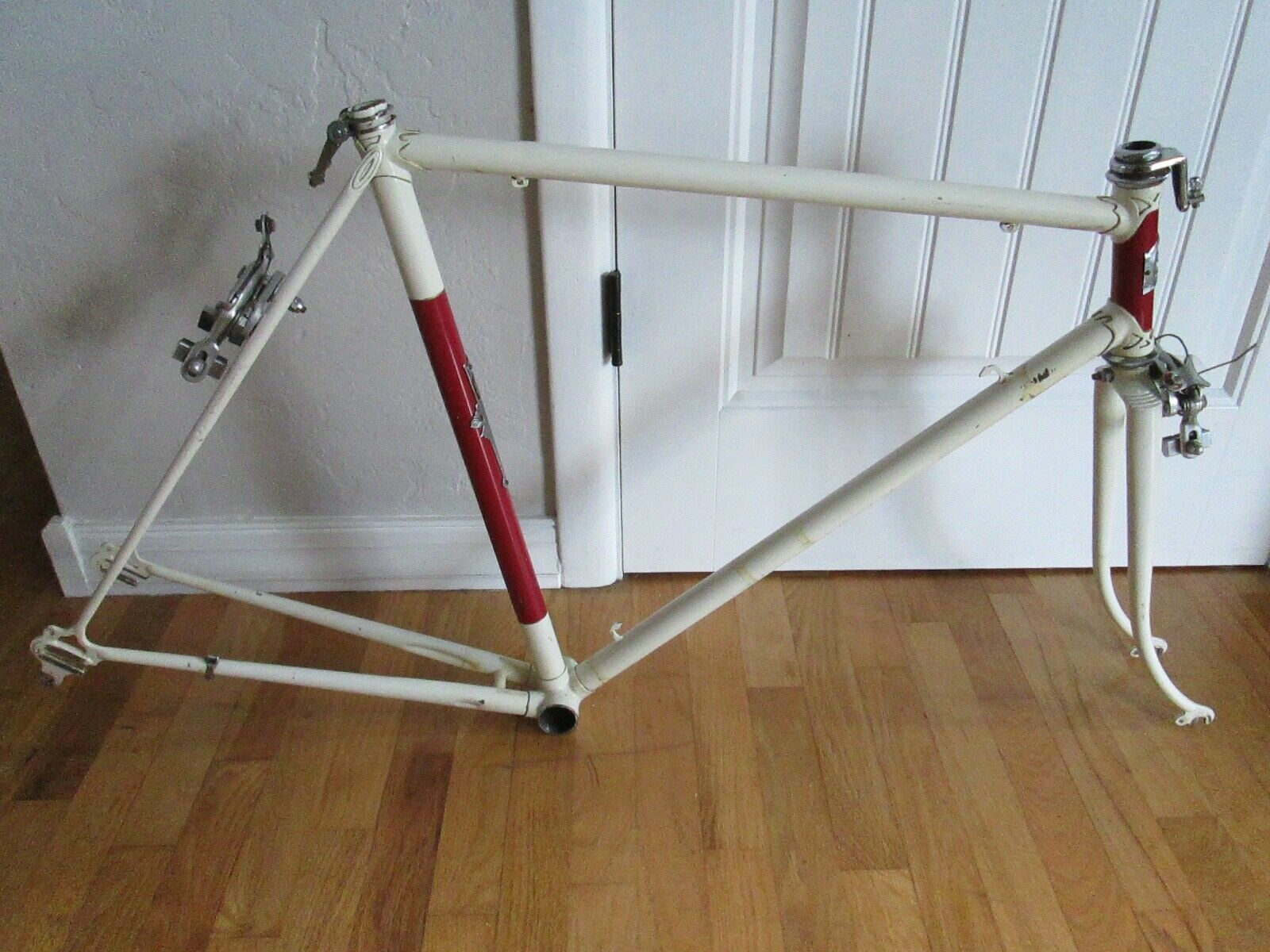

I just picked up an example of Chas.'s admonition, "A fully painted frame that should have chrome plating, especially on the 'socks' - the lower parts of the forks and stays - is frequently an indicator that the chrome was rusted." This was an N+1 frameset/project I didn't really need (second Capo Sieger), but I low-balled the seller, and he surprised me by accepting my offer. This originally had half-chrome forks and stays and chromed head lugs. Since the repaint is pretty decent, I plan simply to add decals and have my wife (a talented artist) paint the small head lug cutouts red to match the rest of the head tube, per the original. I debated painting the originally chromed areas silver, but that often looks tacky, so I think I'll pass. My other Sieger has its chrome and original components, so this one will be a resto-mod, anyway, with 1980 Stronglight cranks, cartridge BB, 1970s SunTour barcons, 1973 Brooks Pro saddle, aluminum (Campag.?) seatpost, rest TBD.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069

Last edited by John E; 05-19-19 at 07:12 AM.
John E is offline
Old 05-19-19, 02:48 PM
  #33
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Cool frame!
SB_Greg is offline
Old 05-29-19, 05:10 PM
  #34
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts

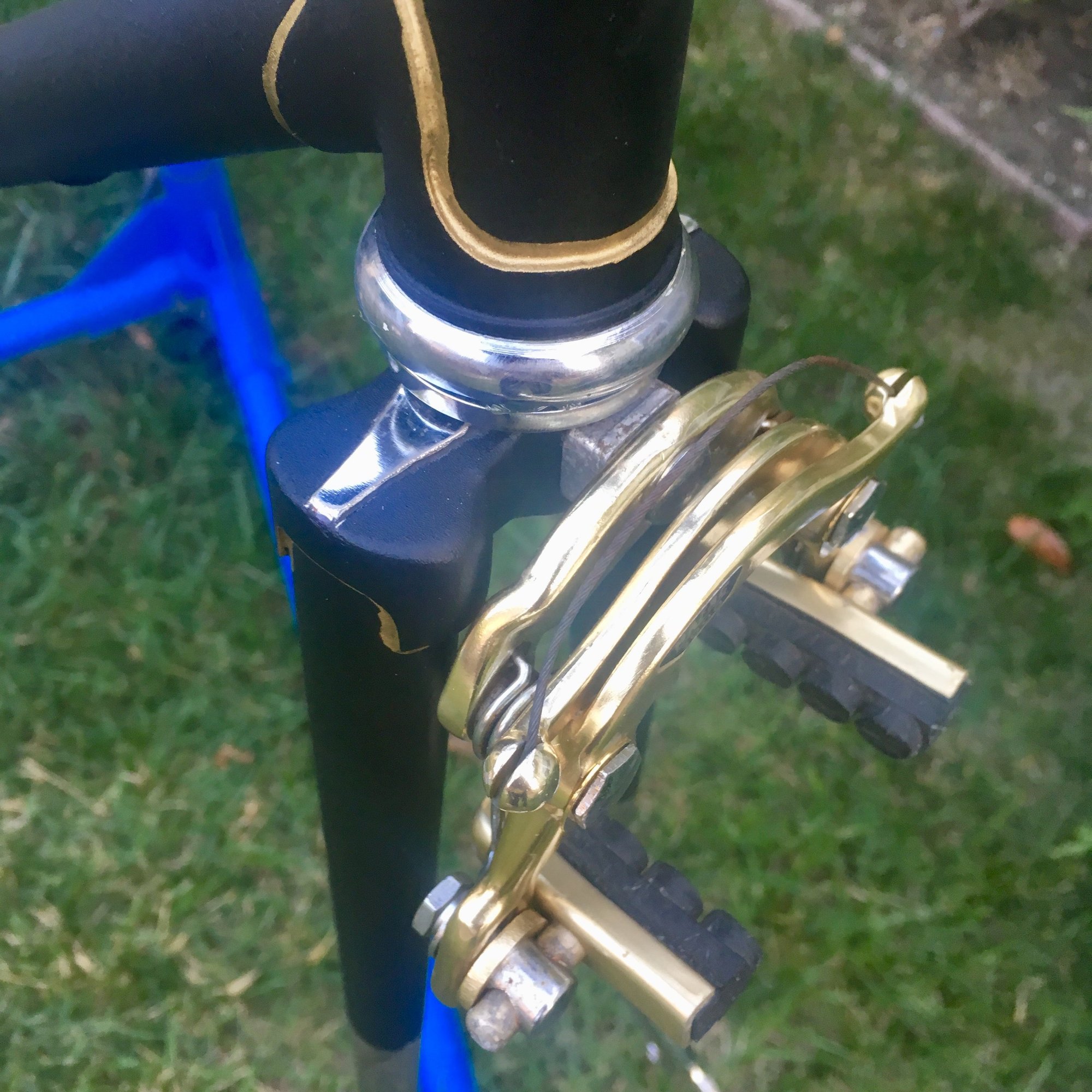

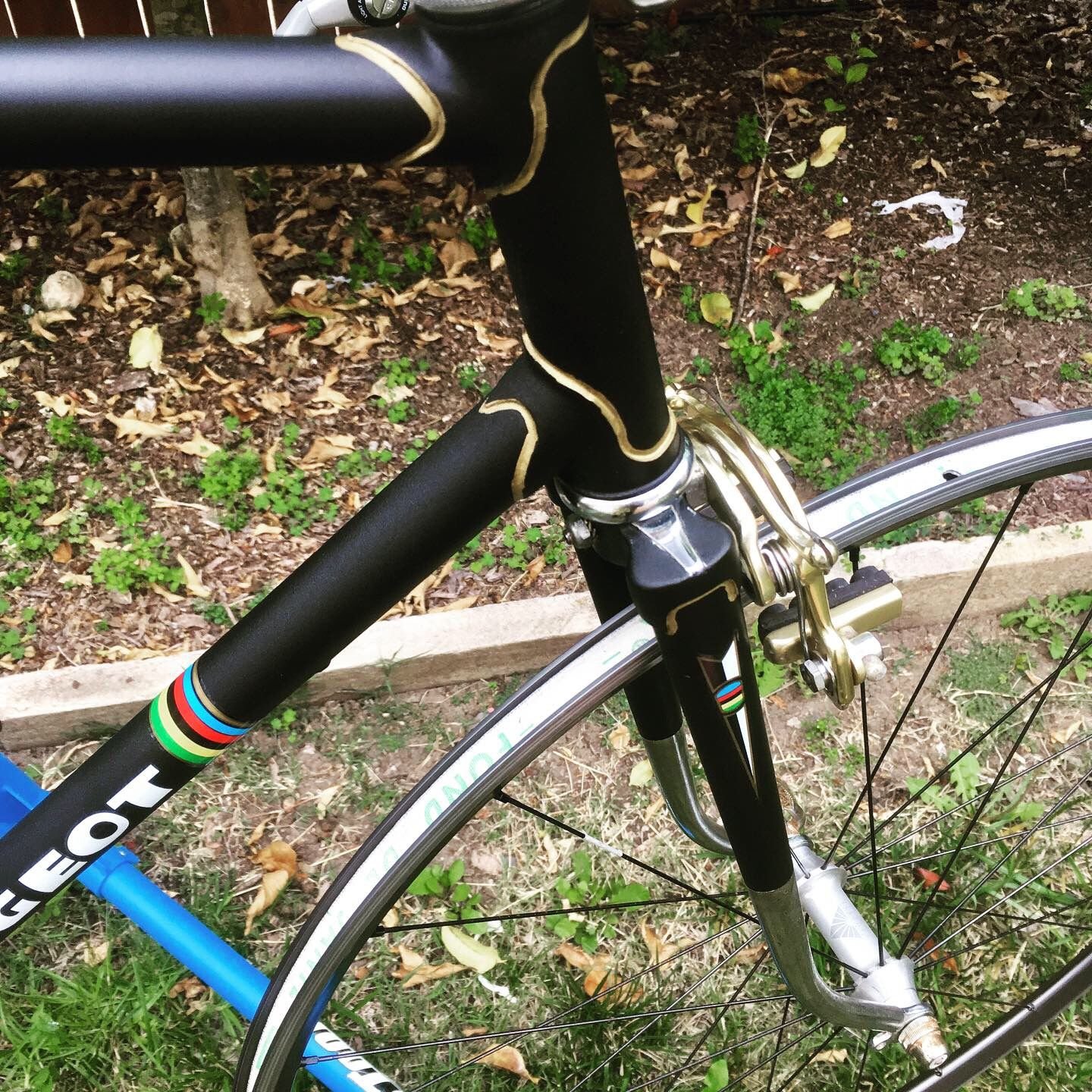

Update: I used an oil-based gold metallic sharpie paint pen to line the lugs. Came out a bit wide but otherwise Iím happy with it. I also cleaned, reassembled and reinstalled the Mafac 2000 calipers. Mafac brake levers got pulled off another PX10 of mine. Shimano bar end shifters were also added. Velocals will be here in a couple days then I need to get some wheels and a saddle. Resisting the urge to steal. A Brooks Pro off another of my bikes.





Last edited by SB_Greg; 05-30-19 at 09:18 AM.
SB_Greg is offline
Old 05-29-19, 10:52 PM
  #35
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 1,773

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 464 Post(s)
Liked 40 Times in 33 Posts
Looking good, is the head badge going back on?

I kind like those 70s chunky Peugeot badges that looks like the buttons on a vintage cigarette vending machines, the kind that was in the lobby of every restaurant back in they day before we wised up, thankfully, about second hand smoke.
ryansu is offline
Old 05-30-19, 07:19 AM
  #36
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Yes the badge is going back on. I need to find two reasonably screws for that or consider glueing it in place. It previously had two pretty ugly large screws holding it in place.

Last edited by SB_Greg; 05-30-19 at 07:31 AM.
SB_Greg is offline
Likes For SB_Greg:
Old 05-30-19, 08:40 AM
  #37
Phil_gretz
Journeyman Bike Commuter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,033

Bikes: '71 Jeunet 630, '79 Peugeot PXN10LE, '83 Fuji America, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 567 Post(s)
Liked 77 Times in 51 Posts
Originally Posted by SB_Greg View Post
...Mafac brake levers got pulled off another PX10 of mine. ...



Your brake levers need to slide considerably forward on the hooks. Maybe align the bottom of the drops co-linear with the bottom of the lever handles?
Phil_gretz is offline
Old 05-30-19, 09:17 AM
  #38
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Originally Posted by Phil_gretz View Post
Your brake levers need to slide considerably forward on the hooks. Maybe align the bottom of the drops co-linear with the bottom of the lever handles?
Ha! yes. I just slid them on the bars. I haven't set them into place yet.
SB_Greg is offline
Old 06-01-19, 03:58 PM
  #39
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts

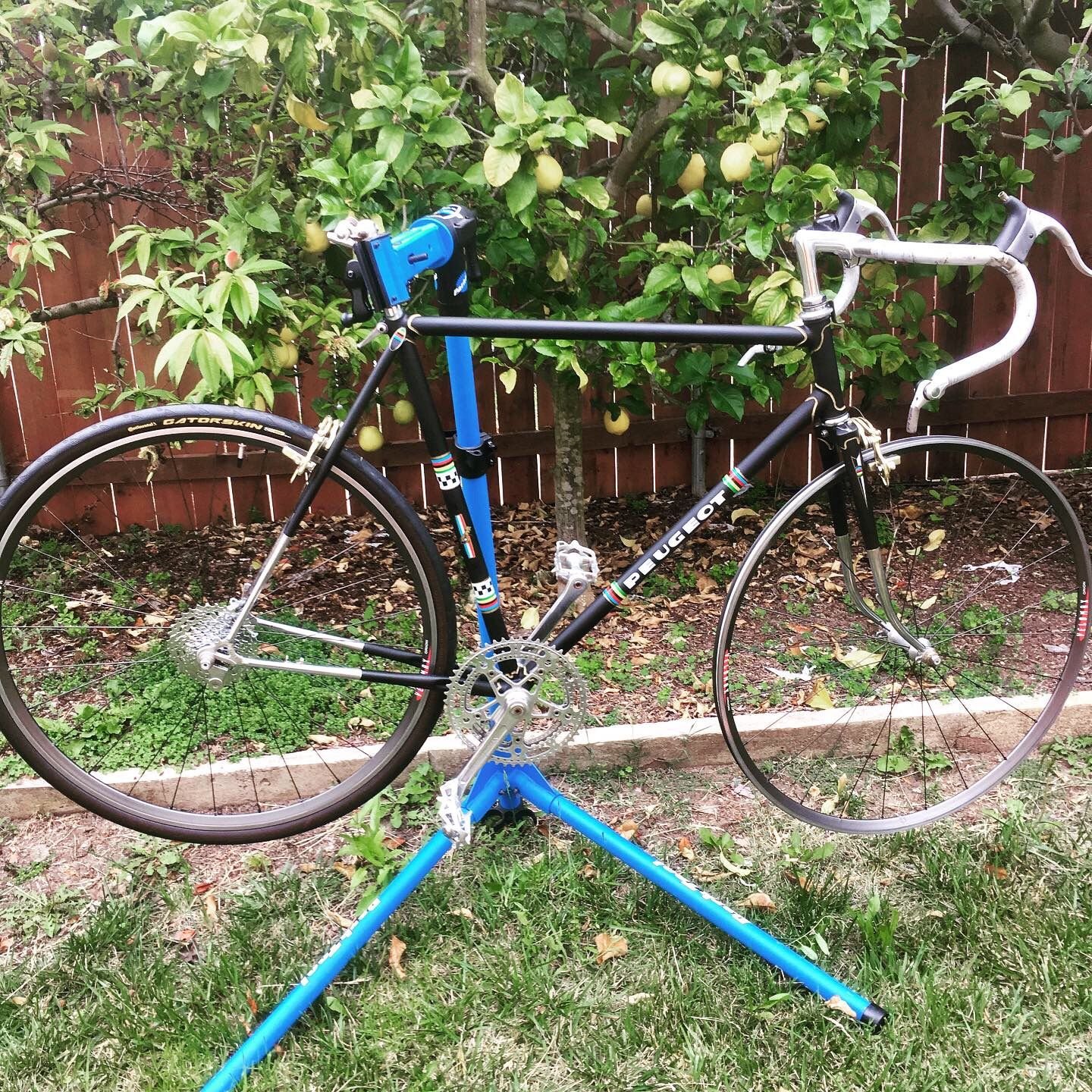

Velocals arrived and I got a couple wheels and Gatorskins. Need to think about derailleurs now.


SB_Greg is offline
Likes For SB_Greg:
Old 06-01-19, 09:02 PM
  #40
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,028

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1110 Post(s)
Liked 53 Times in 40 Posts
@SB_Greg

I realize you're still sorting, just want to make sure you turn the pad holders around.
merziac is offline
Old 06-01-19, 09:38 PM
  #41
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
Good eye. Yessir!
SB_Greg is offline
Old 06-02-19, 06:09 AM
  #42
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,760
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 659 Post(s)
Liked 55 Times in 41 Posts
I still don't like the matte black but I have to say you did a pretty amazing job with the paint. The lug lining and decals are very well-done.
TenGrainBread is online now
Old 06-02-19, 07:22 AM
  #43
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,406

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 698 Post(s)
Liked 21 Times in 21 Posts
Holy cr@p! That thing is turning out gorgeous. Nice save, nice work. Your photodocumentation should provide encouragement and reassurance to anyone who finds a rustbucket with a good pedigree. (Oh wait ... I resemble that remark. )
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 06-02-19, 09:25 PM
  #44
santa fe 2926
Senior Member

Join Date: Sep 2017
Location: Oklahoma City
Posts: 68

Bikes: Roberts SLX, Mercian 531, Torpado SLX, Peugeot PSV-10, Charlie Roberts full touring

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Nice Work!

Really nice, excellent work!
santa fe 2926 is offline
Old 06-07-19, 05:40 AM
  #45
Silvestru
Member

Silvestru's Avatar

Join Date: Jun 2019
Posts: 42
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Amazing... It looks stunning!
Congratulations on the find and on the hard work.
Silvestru is offline
Old 06-07-19, 10:05 AM
  #46
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,728

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '74 Peugeot U08, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 222 Post(s)
Liked 8 Times in 7 Posts
Looks great! Take an action shot once it is back on the road.
greg3rd48 is offline
Old 06-08-19, 07:39 PM
  #47
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts

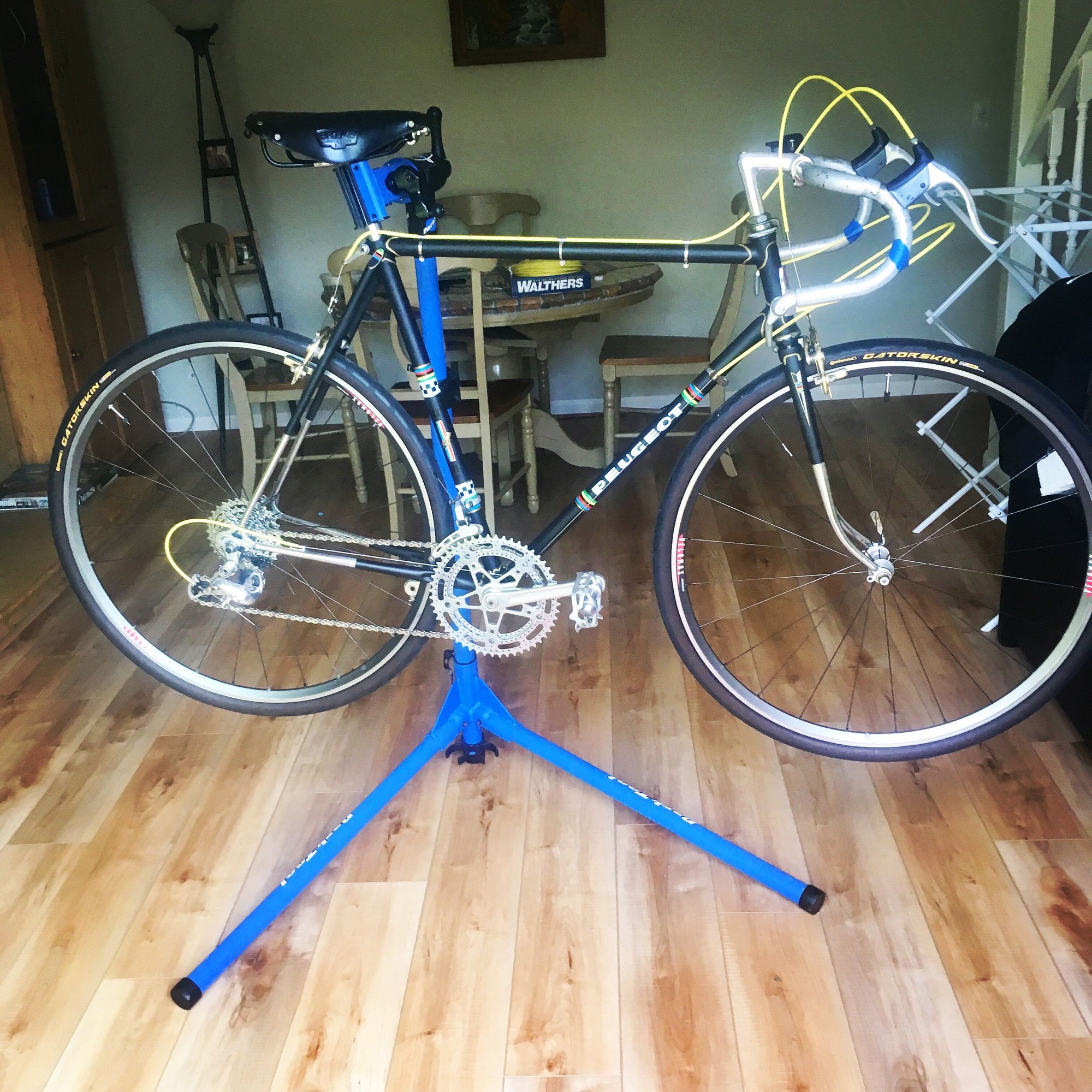

I cold set the rear stays and found a way to install (without butchering the dropouts) and get working a modernish 10 speed rear derailleur along with a 8 speed cassette.

I pulled off a Brooks saddle from another bike in the shed and ran the cables today. Itís likely Iíll finish in the next couple days. Couple test rides and tweaking. Itís a smooth ride. Bar tape when Iím feeling lucky.

Last edited by SB_Greg; 06-09-19 at 10:54 PM.
SB_Greg is offline
Old 06-09-19, 08:04 PM
  #48
thatoreoguy
Junior Member

Join Date: Jun 2019
Posts: 12
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
great restoration. How do you like the gator skins? I am toss up between them and the thiccslicks
thatoreoguy is offline
Old 06-09-19, 09:28 PM
  #49
Flying G
Senior Member

Flying G's Avatar

Join Date: Jun 2017
Location: Northern CA
Posts: 75

Bikes: 1971 Gitane TDF, 1974 Gitane Interclub, 2001 Serotta Rapid Tour CS3 and 1986 Bruce Gordon touring bike, 1972 Gitane Super Corsa (restoration project) and 1978 Michal Johnson mystery road bike.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Great job and a creative way to rebuild this bike! Looking forward to seeing it when done.
Flying G is offline
Old 06-09-19, 10:52 PM
  #50
SB_Greg
Senior Member
Thread Starter

SB_Greg's Avatar

Join Date: Jul 2017
Location: Santa Barbara, California
Posts: 205

Bikes: 2018 Trek Domane SL5; 1965 Peugeot PX10; 1974 Peugeot PX10E

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 9 Times in 7 Posts
I have Gatorskins on another bike. I really like them.
Originally Posted by thatoreoguy View Post
great restoration. How do you like the gator skins? I am toss up between them and the thiccslicks
SB_Greg is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
