Eddy Merckx Aero

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Eddy Merckx Aero

Old 05-15-19, 12:29 PM
  #1
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
Eddy Merckx Aero

At the beginning of the 1980s, every serious bicycle manufacturer thought it appropriate to have the "aero" model in its offer - EMC also fell into this fashion. The frame was made to order, and several hundred (road and pista) were produced. They were definitely produced from 1981 (I did not find earlier) until 1987 (maybe later). Characteristics of the frames:
- flattened tubes (in the full version only head, steering and top tubes remained round)
- fixing for "rabbit ears" on top of the lower tube

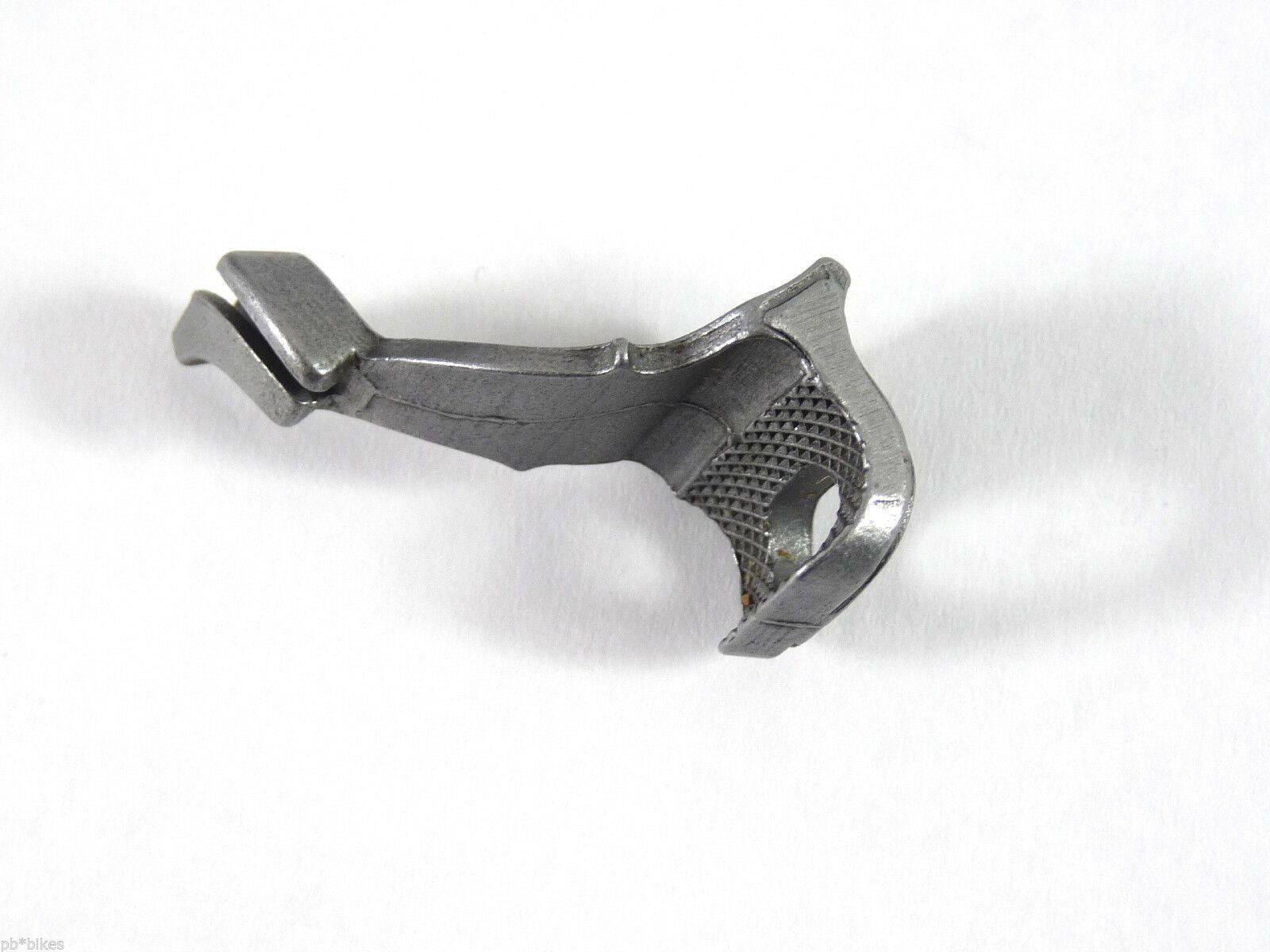

- top tube guides of another pattern ("de Rosa style")
- shorter SSC
- FD braze-on ( debut in EM)
- slope fork crown (debut in EM); in the earliest framework (1981) de Rosa crowns were used (without any letters, but with "hearts"), EM made a crown with its logo from 1982.
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-20-19, 08:11 AM
  #2
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts








CyclesMakaron is offline
Likes For CyclesMakaron:
Old 09-20-19, 03:33 PM
  #3
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 270

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 69 Times in 47 Posts
Originally Posted by CyclesMakaron View Post








Hi,
I don't really know EM bikes, but I see the right rear dropout is a Campagnolo Portacatena. These were applied during the period 1978-82.
This also confirms that it is a very early piece. A full body picture of the frame? Plz!
Old Fireleg is offline
Likes For Old Fireleg:
Old 09-20-19, 03:54 PM
  #4
jiangshi
OFG in Exile

Join Date: Jul 2013
Posts: 1,764
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 430 Post(s)
Liked 146 Times in 99 Posts
Very cool, thanks for sharing. What does the Columbus tubing decal say?
jiangshi is offline
Old 09-20-19, 04:48 PM
  #5
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,288

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1165 Post(s)
Liked 730 Times in 508 Posts
Interesting front derailleur braze-on that's NOT suitable for the Shimano Dura Ace AX or Shimano 600 AX front derailleur and that's because it does NOT have the integral cable guide that would be at the rear of the seatube when the derailleur braze-on is in place. My understanding is the the AX stuff was only available 1981 - 1983 inclusive.



Cheers
Miele Man is offline
Old 09-20-19, 05:20 PM
  #6
KonAaron Snake
Fat Guy on a Little Bike

KonAaron Snake's Avatar

Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 17,117

Bikes: Two wheeled ones

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1217 Post(s)
Liked 199 Times in 114 Posts
Columbus had an aero tubing - I think called air. De Rosa also had an aero model that is, unsurprisingly, very similar.

Frankly this is one area where the Euros are put to shame by the Japanese bikes of the era (particularly the lotus super aero pro). The Japanese bikes are a lot more interesting with better integration with the aero gruppos.
KonAaron Snake is offline
Old 09-21-19, 12:02 AM
  #7
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
The frame dates back to 1981, when the EMC aero version was produced, it used the usual Columbus SL, which it modified (i.e. flattened) with its magnificent 50t press (it was in the factory in Meise). In 1980-1982, EMC used Campagnolo exclusively and nobody thought about using Japanese "aero" groups, this early FD braze-on model in EMC was used in 1981-1986. EM Aero is the result of following fashion rather than a consistent design (frame+groupset), few of them were produced (a few hundred?). This copy is interesting because of two things: it is the earliest EM Aero I know and, as you can see, there was no slope crown fork with the "EM" logo yet, hence the "loan" of the crown pattern from De Rosa.

Translated with www.DeepL.com/Translator
CyclesMakaron is offline
Old 09-21-19, 05:21 AM
  #8
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts


CyclesMakaron is offline
Old 09-21-19, 06:35 AM
  #9
KonAaron Snake
Fat Guy on a Little Bike

KonAaron Snake's Avatar

Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 17,117

Bikes: Two wheeled ones

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1217 Post(s)
Liked 199 Times in 114 Posts
Originally Posted by CyclesMakaron View Post
The frame dates back to 1981, when the EMC aero version was produced, it used the usual Columbus SL, which it modified (i.e. flattened) with its magnificent 50t press (it was in the factory in Meise). In 1980-1982, EMC used Campagnolo exclusively and nobody thought about using Japanese "aero" groups, this early FD braze-on model in EMC was used in 1981-1986. EM Aero is the result of following fashion rather than a consistent design (frame+groupset), few of them were produced (a few hundred?). This copy is interesting because of two things: it is the earliest EM Aero I know and, as you can see, there was no slope crown fork with the "EM" logo yet, hence the "loan" of the crown pattern from De Rosa.

Translated with www.DeepL.com/Translator
Picchio did.

The aero-merckx is a mehhh example of that fashion, though the De Rosa crowns always look nice on a Merckx. It’s interesting for its relative scarcity, and because it represents a significant turning point of European design no longer being the innovative standard. Still - I wouldn’t trade my Lotus for it.
KonAaron Snake is offline
Old 09-21-19, 01:35 PM
  #10
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
Merckx can't be mehhh
CyclesMakaron is offline
Likes For CyclesMakaron:
Old 12-29-20, 05:25 PM
  #11
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have an Eddy Merckx Aero with a “CS” serial number. From the thread on EM ID numbers, would this would indicate a “Capri Sonne” team frame? The fork is the EM panto sloping crown.

Mr_Krist is offline
Old 12-31-20, 01:11 AM
  #12
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
Thank you for the information
Yes, this is the frame built for Capri Sonne 1982; the "slope with EM" fork appeared at the end of 1981 just "on the occasion" of building aero frames for Kelme and Capri Sonne teams
This is the second CS frame I have seen... and the second one repainted in EMC (Capri Sonne colours were different)
More picture pls
CyclesMakaron is offline
Old 12-31-20, 07:12 AM
  #13
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thank you CyclesMakaron for confirming it as a 1982 Carpi Sonne team frame. Here are some more photos...


Mr_Krist is offline
Old 12-31-20, 07:28 AM
  #14
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I have done some research on the 1982 Capri Sonne team and I believe the frame was most likely made for Dutch rider Peter Winnen. He was among the best riders on the team and probably had more frames made for him, he was the shortest on the team and rode a small frame size. This can be seen in these photos of him riding am Aero model during the 1982 Tour de France mountain stages.





​​​​​​​
Mr_Krist is offline
Old 12-31-20, 12:50 PM
  #15
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
From some other photos and videos of the 1982 Tour de France, it is also clear that his Aero model was painted white while his other “Professional” bike was Capri Sonne silver color.
Mr_Krist is offline
Old 12-31-20, 02:10 PM
  #16
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
Flawless observation - thank you again
Your frame has slides on TT in the style of "De Rosa" ( it should be anyway ), but the frame in the first photo has standard slides (from "normal" Professional)...
Maybe Peter Winnen (lucky guy) had two aero...
CyclesMakaron is offline
Old 01-01-21, 05:11 AM
  #17
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Yes, my guess it was a second frame made at the end of the season (serial number 30) and perhaps never used.

In 1983 Winnen moved to Raleigh and team Merckx Capri Sonne no longer existed so this frame was not needed.

Last edited by Mr_Krist; 01-01-21 at 06:25 AM.
Mr_Krist is offline
Old 01-01-21, 09:48 AM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 15,485
Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 1746 Post(s)
Liked 619 Times in 481 Posts
Interesting

pretty scarce as never saw one in SoCal

a friend had an early Merckx, nice bike, as it was so early, we wondered about how deep the DeRosa involvement was.
repechage is offline
Old 01-01-21, 11:21 AM
  #19
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by repechage View Post
Interesting

pretty scarce as never saw one in SoCal

a friend had an early Merckx, nice bike, as it was so early, we wondered about how deep the DeRosa involvement was.
They are pretty scarce here in Europe as well. I have only seen one other for sale. Based on the pricing in this Japanese catalog, it was also the most expensive model in the line which probably also added to its scarcity.

Mr_Krist is offline
Old 01-01-21, 11:58 AM
  #20
shuru421
Senior Member

Join Date: Aug 2012
Posts: 695
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 261 Post(s)
Liked 15 Times in 10 Posts
Originally Posted by CyclesMakaron View Post


Hey Cycles, is that part of your steed?
shuru421 is offline
Old 01-02-21, 07:57 AM
  #21
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
Yes, this is my 'early Aero', although the wall looks a bit different now
CyclesMakaron is offline
Old 01-02-21, 09:00 AM
  #22
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

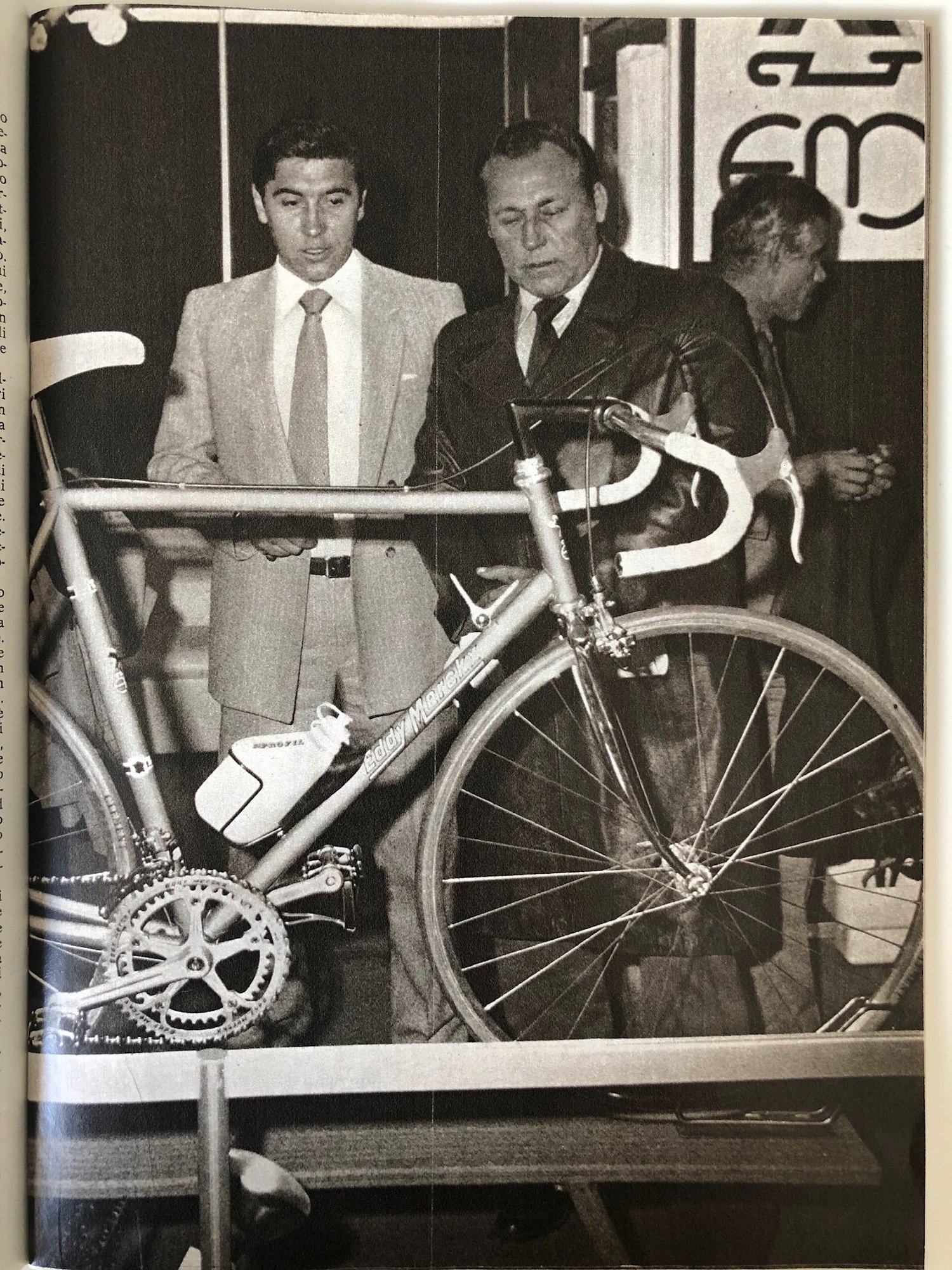

Here is another photo I found of Eddy with a Merckx “Aero”. This one is unique it only has two brake cable guides and also a different seat lug with what looks like a integrated seat clamp bolt. Probably made as a one-off for that trade show.

Mr_Krist is offline
Old 01-02-21, 12:55 PM
  #23
Mr_Krist
Member

Join Date: Jul 2014
Posts: 25
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Above photo with Eddy was taken at the 47th EICMA in Milano, Nov. 1981
Mr_Krist is offline
Old 01-03-21, 12:02 AM
  #24
CyclesMakaron
Senior Member
Thread Starter

Join Date: Oct 2016
Posts: 509
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
Likes: 0
Liked 230 Times in 163 Posts
This is a completely different design - it looks like a showpiece that has not entered serial production... at Merckx
But there was a company that helped Merckx:
