converting to combo shift/brake levers

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

converting to combo shift/brake levers

Old 05-19-19, 02:42 PM
  #1
mobiledan
Newbie
Thread Starter

Join Date: May 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
converting to combo shift/brake levers

Has anyone converted from downtube shifters to the new combo shift/brake levers? I'm wondering what sort of problems I might run into doing that to my 70's Raleigh.

I'm also wondering if I can switch from the 5 gear sprocket to a 7 gear cassette, Maybe going with a different rear derailleur with a longer throw, allowing for a bigger hill-climbing ring.
mobiledan is offline
Old 05-19-19, 02:55 PM
  #2
MB33
Senior Member

Join Date: Oct 2017
Posts: 62
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I know one guy who tried it, his bike blew up afterwards.
MB33 is offline
Likes For MB33:
Old 05-19-19, 03:09 PM
  #3
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 8,270

Bikes: '87 Schwinn Prelude, Black Mountain Cycles Monstercross V4, '89 Novara/Centurion Ironman, '18 Diamondback Syncr, '18 handmade steel roadbike

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2966 Post(s)
Likes: 0
Liked 146 Times in 104 Posts
Originally Posted by mobiledan View Post
Has anyone converted from downtube shifters to the new combo shift/brake levers? I'm wondering what sort of problems I might run into doing that to my 70's Raleigh.

I'm also wondering if I can switch from the 5 gear sprocket to a 7 gear cassette, Maybe going with a different rear derailleur with a longer throw, allowing for a bigger hill-climbing ring.
Retro roadies- old frames with STI's or Ergos

Yes, it's done all the time around here. It allows for classic frames with smaller tubing and traditional lug construction to blend with current technology and comfort.

- you will need indexing front and rear derailleurs in order to use STI shifters.
- you will need to go to a minimum of 7 cogs in back since STIs start there.
- depending on what wheels you have, you may need to get ones that can accomodate a 7sp freewheel/cassette or larger.
mstateglfr is offline
Old 05-19-19, 03:42 PM
  #4
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 7,733

Bikes: Yes, please.

Mentioned: 190 Post(s)
Tagged: 0 Thread(s)
Quoted: 1059 Post(s)
Liked 42 Times in 34 Posts

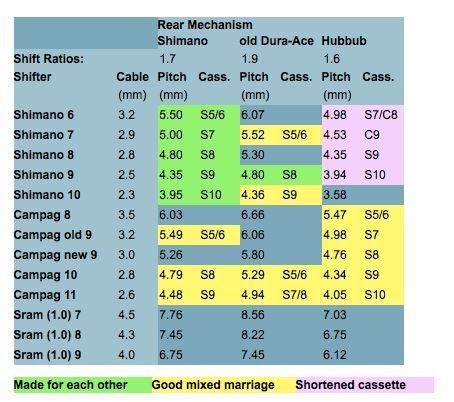

It can be done with five or six cogs as well. Pre-2001 Campagnolo brifters, combined with a Shimano RD, will shift a 5/6 speed block nicely:



Tried it with good results:

__________________
Reasons to be cheerful!
non-fixie is offline
Likes For non-fixie:
Old 05-19-19, 04:06 PM
  #5
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,634

Bikes: Too many to list here check my signature.

Mentioned: 94 Post(s)
Tagged: 2 Thread(s)
Quoted: 1265 Post(s)
Liked 39 Times in 30 Posts
Originally Posted by mobiledan View Post
Has anyone converted from downtube shifters to the new combo shift/brake levers? I'm wondering what sort of problems I might run into doing that to my 70's Raleigh.

I'm also wondering if I can switch from the 5 gear sprocket to a 7 gear cassette, Maybe going with a different rear derailleur with a longer throw, allowing for a bigger hill-climbing ring.
Hello and welcome to the forums.

Sure it could be done but how complicated will it be is the question. As already noted you'll need new derailleurs, and very possibly new wheels and of course the shifters. You might also need a new crankset and bottom bracket as well.

My first question would be, what model Raleigh? If you have something top of the line like an International or Professional that you really enjoy it might be worth the expense to find a 'donor' bike (with an english bottom bracket of course) and simply swap the parts over.

If you have a lower end model it may not be worth the expense.

Any pics of your bike? or just more information about it?
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is offline
Old 05-19-19, 05:12 PM
  #6
CyclingFool95
Senior Member

Join Date: Apr 2019
Location: Northern NJ
Posts: 151

Bikes: 1987 Pinarello Montello, 1995 Litespeed Classic, 1996 Colnago Master Light, 2006 Opera Leonardo FP

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Liked 11 Times in 10 Posts
You need to decide how far you want to go and how much you want to spend. I took my 80s Pinarello to from 6 speed downtube to 8 speed Campy Ergopower back in 93. I was lucky that my frame was able to take a 130mm hub (old wheels/frames are 126mm, newer ones are 130mm - yes, the 4mm really makes a difference). You can find 8/9, even 10 speed groups pretty cheap, but then you will also need to find a set of wheels. Shimano 8/9/10 speeds all use the same rear hub. Campy 8 speed is a stand-alone. Campy 9/10/11 all use the same rear hub. For all the speeds, the cassettes are unique. Different speed derailleurs may or may not work correctly with different speed STI/Ergo levers. Brake throw ratios also varied with some so the brakes may or may not work quite right with a given set of levers. Just buy a complete low end group (Shimano Tiagra or 105, Campy Centaur) and some low end wheels, and you'll probably get much better performance than what you have now. And, the first time you shift under power on a climb, you'll wonder why you didnt switch years ago. (My epiphany was when I ran out of power, but still had a couple of gears left, and the hill was too steep to take my hand off the bars to shift)
CyclingFool95 is offline
Old 05-19-19, 05:17 PM
  #7
DHPflaumer
Senior Member

DHPflaumer's Avatar

Join Date: May 2019
Location: Providence, RI
Posts: 89

Bikes: Norther Klickitat Pass, Soma Grand Randonneur, Surly Cross Check

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 32 Times in 18 Posts
It's definitely doable but I wouldn't do it. I'm all about that classic simplicity and (in addition to genuinely liking them) downtube shifters just look right to me. I'm a bit of a hypocrite here as I do like aero brake levers. There's just so little cable then...
DHPflaumer is offline
Old 05-19-19, 05:43 PM
  #8
BFisher
Senior Member

Join Date: Aug 2013
Location: NEPA
Posts: 267
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 27 Posts
Originally Posted by mobiledan View Post
Has anyone converted from downtube shifters to the new combo shift/brake levers? I'm wondering what sort of problems I might run into doing that to my 70's Raleigh.

I'm also wondering if I can switch from the 5 gear sprocket to a 7 gear cassette, Maybe going with a different rear derailleur with a longer throw, allowing for a bigger hill-climbing ring.
I've done the changeover and love the bike I built! My advice:

1. Study - know what you want out of the bike, what you want to spend, what's involved - does it make sense to upgrade your frame?
2. Read the Retro Roadies thread that mstateglfr linked to.
3. Keep your eyes peeled for deals. It may be harder now because of Shimano's issue with UK dealers selling complete groupsets to US buyers (a whole 'nother ball of wax). IDK.
4. Go for it! The rewards are worth it:
BFisher is offline
Old 05-21-19, 09:10 PM
  #9
mobiledan
Newbie
Thread Starter

Join Date: May 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
A good frame.

It is a Competition. 531 double butted, nice lugs, built at the Carlton plant.
We be
Originally Posted by Bianchigirll View Post
Hello and welcome to the forums.

Sure it could be done but how complicated will it be is the question. As already noted you'll need new derailleurs, and very possibly new wheels and of course the shifters. You might also need a new crankset and bottom bracket as well.

My first question would be, what model Raleigh? If you have something top of the line like an International or Professional that you really enjoy it might be worth the expense to find a 'donor' bike (with an english bottom bracket of course) and simply swap the parts over.

If you have a lower end model it may not be worth the expense.

Any pics of your bike? or just more information about it?
mobiledan is offline
Old 05-21-19, 09:32 PM
  #10
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 1,559

Bikes: 1961 Legnano Gran Premio, 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 491 Post(s)
Likes: 0
Liked 69 Times in 50 Posts
Several years ago my steel Bianchi frame got killed by a car, but all the components, even wheels survived. It came with a Shimano Exage drivetrain with downtube shifters.. By then I had discovered integrated brake lever shifters. I found some 8 speed Sora brifters on sale at Nashbar, to go with a $99 Nashbar aluminum frame. The 8 speed shifters worked fine with the 7 speed Exage, except the last click on the right lever went nowhere. I'm not a great mechanic, but it all went together amazingly well. The whole setup worked fine, but the aluminum frame didnt match the Bianchi ride quality, so I sold the bike to a neighbor.
Slightspeed is offline
Old 05-21-19, 09:44 PM
  #11
mobiledan
Newbie
Thread Starter

Join Date: May 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The ride quality of my old Competition beats any new frame I could afford. Thanks for the encouraging words.
mobiledan is offline
Old 05-21-19, 09:49 PM
  #12
mobiledan
Newbie
Thread Starter

Join Date: May 2019
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Classic purity.

Originally Posted by DHPflaumer View Post
It's definitely doable but I wouldn't do it. I'm all about that classic simplicity and (in addition to genuinely liking them) downtube shifters just look right to me. I'm a bit of a hypocrite here as I do like aero brake levers. There's just so little cable then...
Until recently, I felt exactly like that. But I've been riding a high bred with ratchet shifters, and I am not as comfortable as I used to be with the downtube shifters
mobiledan is offline
Old 05-22-19, 12:25 AM
  #13
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 9,070

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 157 Post(s)
Tagged: 0 Thread(s)
Quoted: 2772 Post(s)
Liked 141 Times in 115 Posts
Yup, I recently switched the early '90s Trek 5900 from downtube to MicroShift brifters. No problems. Works great. The existing 7-speed Shimano front and rear derailleurs and freewheel worked just fine with the new shifters.

As other folks have described, the main advantage I've found is being able to shift while standing to climb or sprint; or any other occasion when I need to keep my hands on the bars and shift, especially in tight group rides when I can't take another line.

Oh, and the ergonomics are better. The hoods are more comfortable and the brake levers have a lighter touch.

I kept downtube shifters on my other road bike. I like 'em fine. But I do need to keep in mind the limitations, which usually just means fewer shifts and grunting it out or spinning faster than my usual cadence, for a few moments. On solo rides it's almost never a problem. It might have cost me a few seconds on a roller coaster time trial route.

Last edited by canklecat; 05-22-19 at 12:51 AM.
canklecat is online now
Old 05-22-19, 07:25 AM
  #14
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,143

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Originally Posted by mobiledan View Post
Until recently, I felt exactly like that. But I've been riding a high bred with ratchet shifters, and I am not as comfortable as I used to be with the downtube shifters
Sounds like you will love it as I know exactly what you are saying here, I have done 4 of my bikes so far. The other big plus for me is that our area once pretty empty with few stop lights, etc, is now busy and I like keeping my hands on the brake levers when shifting.
easyupbug is offline
Old 05-22-19, 09:14 AM
  #15
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,122
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 7 Times in 6 Posts
Originally Posted by mobiledan View Post
It is a Competition. 531 double butted, nice lugs, built at the Carlton plant.
We be
Is it a Competition with the proprietary Huret dropouts (like a '74 and a few years later)?

IF YOU DO, then step#1 will be modifying the hanger - and you have to ADD, not subtract, material. Nothing from all the other suggestions will work if your rear derailleur doesn't hang right.

Last edited by Ex Pres; 05-22-19 at 03:44 PM.
Ex Pres is offline
Old 05-22-19, 09:35 AM
  #16
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 25,758
Mentioned: 32 Post(s)
Tagged: 1 Thread(s)
Quoted: 346 Post(s)
Liked 60 Times in 50 Posts
Welcome to the forum.

I suggest you make friends with @Bianchigirll and @CyclingFool95, as their posts are clear and concise. Use caution around @BFisher, because those Centurion fans are, well, batcrap crazy.

It can be done, and a Competition is a nice platform, but you need to look at the frame, too; a few things "going in...:"
1-Cable routing. I think your RD is not an issue, but the FD may need some tweaking.
2-Cable stops. Check to see how you would mount same on the DT, and perhaps one for the FD and RD.
3-Rear dropout spacing. You may need to cold set a 120 to 130, and it needs to be done right.
4-Rear cog clearance at the R chain stay. Always fun if you are almost done and realize a problem there.

There are many options, from 7-sp Shimano or Microshift, to the Campy solution as outlined above (which is elegant and works), to full-on frame mods (above) and whatever you want.

If it's been done, someone here probably did it. Take your time, ask advice, get your posts in to be able to post pics, and I'm sure we'll see your bike in modern kit before long.
__________________
Robbie ♪♫♪...☻
I have unfinished business.

RobbieTunes is offline
Old 05-22-19, 02:05 PM
  #17
BFisher
Senior Member

Join Date: Aug 2013
Location: NEPA
Posts: 267
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 31 Times in 27 Posts
Originally Posted by RobbieTunes View Post
Welcome to the forum.

I suggest you make friends with @Bianchigirll and @CyclingFool95, as their posts are clear and concise. Use caution around @BFisher, because those Centurion fans are, well, batcrap crazy.

It can be done, and a Competition is a nice platform, but you need to look at the frame, too; a few things "going in...:"
1-Cable routing. I think your RD is not an issue, but the FD may need some tweaking.
2-Cable stops. Check to see how you would mount same on the DT, and perhaps one for the FD and RD.
3-Rear dropout spacing. You may need to cold set a 120 to 130, and it needs to be done right.
4-Rear cog clearance at the R chain stay. Always fun if you are almost done and realize a problem there.

There are many options, from 7-sp Shimano or Microshift, to the Campy solution as outlined above (which is elegant and works), to full-on frame mods (above) and whatever you want.

If it's been done, someone here probably did it. Take your time, ask advice, get your posts in to be able to post pics, and I'm sure we'll see your bike in modern kit before long.
Crazy like fox...
All sound advice here.
BFisher is offline
Old 05-22-19, 03:54 PM
  #18
gugie
Crapmaster Emeritus

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,358

Bikes: JP Weigle'd Raleigh Competition reconstruct, 73 Raleigh Competition 650b'ed, 96 Bike Friday NWT, 83 Lotus Classique, 78 Centurion ProTour, 73 Raleigh Grand Sports

Mentioned: 775 Post(s)
Tagged: 0 Thread(s)
Quoted: 2216 Post(s)
Likes: 0
Liked 46 Times in 34 Posts
To the OP: depending on the year it was made, your Competition may have Huret dropouts. The derailleur stop was made for their derailleurs, which is at the "4 o'clock" position. Campagnolo set the modern standard with the "7 o'clock" position. They can be permanently modified by brazing a bit of material in, if you look hard enough you can find adapters that attach and do the same thing.

Here's a good picture from Peter Weigle's Flickr images that shows the difference in stop position:

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 05-22-19, 03:59 PM
  #19
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,862
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Liked 49 Times in 42 Posts
Wow, no one has mentioned -- since your concern is about reaching the downtube shifters -- look into bar-end shifters. They're close to your hands, but allow you to keep your current friction-based driveline.
madpogue is offline
Old 05-22-19, 05:49 PM
  #20
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 2,988

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 57 Post(s)
Tagged: 0 Thread(s)
Quoted: 624 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by non-fixie View Post

Tried it with good results:

I like this bike, I like it a lot
I'd ride this bike, If I could
Without a thought.
jetboy is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
eastbay71
Classic & Vintage
13
11-07-15 04:22 PM
speedy25
Classic & Vintage
15
10-03-12 07:18 AM
ridefixedlld
Southeast
5
05-16-10 12:37 PM
Porter20
Southeast
2
05-18-08 08:43 PM
Gravity Worx
Mountain Biking
21
07-07-07 10:11 AM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
