old Robin Hood, what is the braze on/hole in right chain stay for?

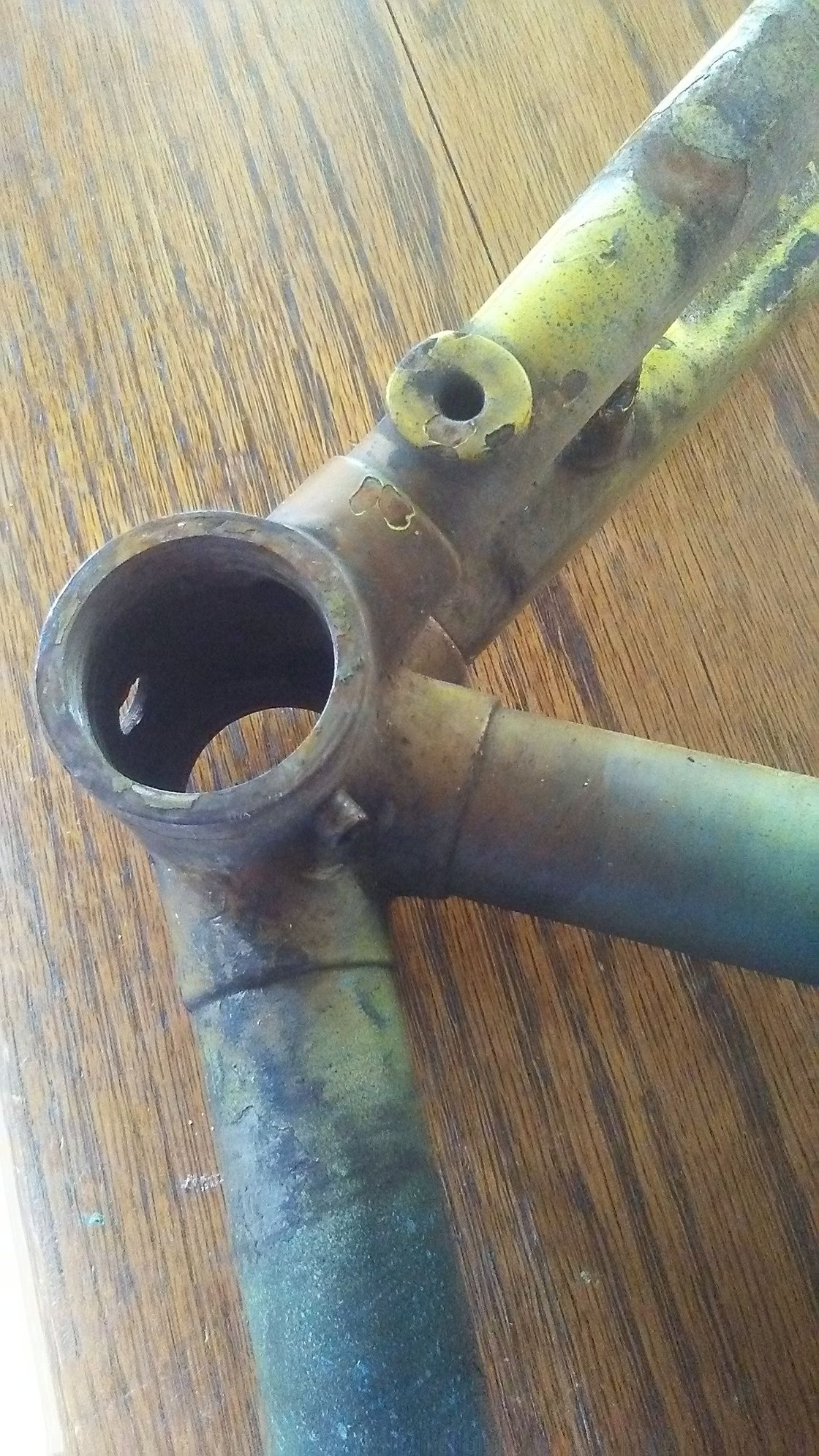

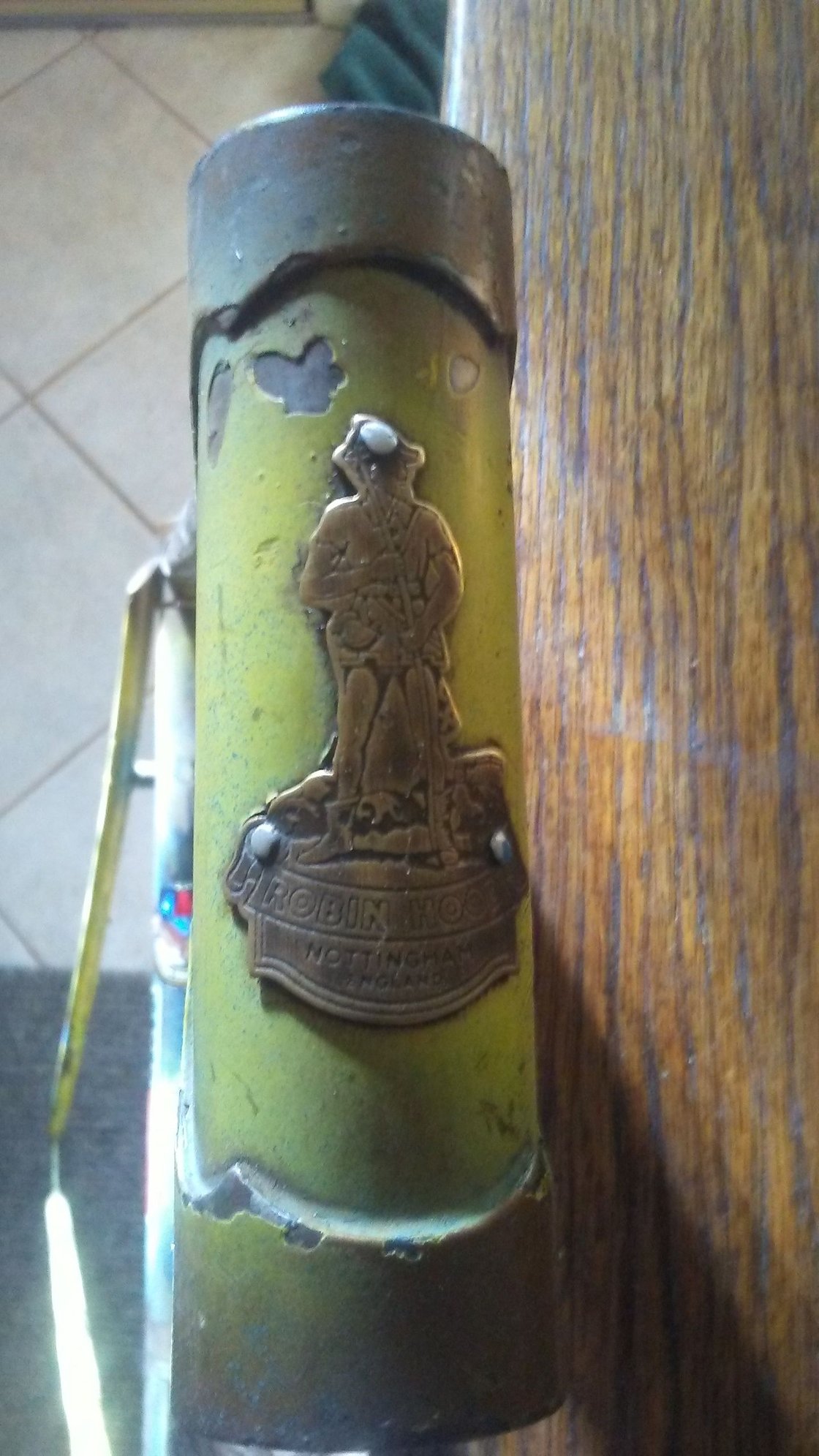

I bought an old Robin Hood frame because it had Campagnolo shifters, derailleurs, headset and cable clips. The frame appears to be a 3spd,



that was set up like a road bike. It has a large braze on, with an unthreaded hole, on the right chain stay near the bottom bracket. Does anyone know what this hole is for? I hope your guys can help- Thanks- Don
donc49@hotmail. is offline
Old 05-24-19, 09:36 AM
  #2
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Power steering flud resevoir.
Weresquatch is offline
Likes For Weresquatch:
Old 05-24-19, 09:54 AM
  #3
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,947

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1822 Post(s)
Liked 694 Times in 451 Posts
It might have been an attachment point for a rod brake set up. The oil port on top of the BB points to an early frame. Hope you get this one rolling!
3speedslow is offline
Old 05-24-19, 10:54 AM
  #4
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,925
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 21 Times in 18 Posts
I wonder if it would hold a pulley for the cable to the rear three speed hub?
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 05-24-19, 11:04 AM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,672

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 103 Post(s)
Tagged: 0 Thread(s)
Quoted: 2992 Post(s)
Liked 1,589 Times in 1,053 Posts
Along the lines of being for a shift cable pulley, could it be the "pulley" itself? Ie, the cable running under the cylinder like it was a pulley. If so, the "pulley" would just be a washerlike cylinder curved on the left side for the chainstay. Hole would not run through and the inside wold be painted. The location looks right for a clean lead form a downtube shifter.

Edit: the oilport can be seen on the BB shell.

Ben
79pmooney is offline
Old 05-24-19, 11:05 AM
  #6
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,058

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 518 Post(s)
Liked 209 Times in 143 Posts
My guess is an attachment bolt for a chain guard.
__________________
"My only true wisdom is in knowing I have none" -Socrates
Hudson308 is offline
Old 05-24-19, 11:48 AM
  #7
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by Hudson308 View Post
My guess is an attachment bolt for a chain guard.
The hole isn't threaded....how would any sort of pulley or chain guard stay on there?
Weresquatch is offline
Old 05-24-19, 11:58 AM
  #8
dweenk
Senior Member

dweenk's Avatar

Join Date: Mar 2013
Location: Maryland
Posts: 3,758

Bikes: 1972 Fuji S-10-S,1970 Raleigh Sports, and more

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 204 Times in 146 Posts
Possibly a hole to receive a peg that would stabilize a chainguard?
__________________
"The man who does not read has no advantage over the man who cannot read." –Mark Twain
dweenk is offline
Old 05-24-19, 11:58 AM
  #9
gna
Count Orlok Member

gna's Avatar

Join Date: May 2009
Location: St. Paul, MN
Posts: 1,615

Bikes: Raleigh Sports, Raleigh Twenty, Raleigh Wyoming, Schwinn Le Tour Luxe Frankenbike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Originally Posted by Weresquatch View Post
The hole isn't threaded....how would any sort of pulley or chain guard stay on there?
That hole could be tapped for mounting a chaincase. They were just part of the frame for many years. I had a Popular Special frame that had that lug as well as the oil port on the bottom bracket. I'm guessing it was from about 1960. They stopped putting that lug on frames a few years later.
gna is offline
Old 05-24-19, 11:59 AM
  #10
Weresquatch
Senior Member

Join Date: May 2019
Location: Pacific NW (of the US)
Posts: 74

Bikes: Just the normal stuff, cruisers, duilies, fatbike, road bikes, single speeds...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Liked 12 Times in 11 Posts
Originally Posted by dweenk View Post
Possibly a hole to receive a peg that would stabilize a chainguard?
I've never seen a set up like that myself......I still like the rod-brake explanation best, but?
Weresquatch is offline
Old 05-24-19, 01:02 PM
  #11
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,989

Bikes: Mostly English - predominantly Raleighs

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 334 Times in 234 Posts
This is pure speculation, but it seems to be in a location where it might keep a chain that gets dropped from wedging between the frame and the chainring.
__________________
In search of what to search for.
USAZorro is offline
Old 05-24-19, 01:10 PM
  #12
cszipper
Junior Member

Join Date: Jan 2018
Location: Morris Cty, NJ
Posts: 19
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
It is a mounting point for a full chaincase. I have the same on a 1956 Rudge and a 1952 Humber, both three speeds. Raleigh's three speed frames back then had the mount whether they shipped with a full case or just the hockey stick guard. You'll likely find that it is tapped for a 26tpi bolt if you clean off all the paint on it. My Rudge is tapped even though it was shipped with a hockey stick guard.

-Carl
cszipper is offline
Old 05-24-19, 02:03 PM
  #13
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,629

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 729 Post(s)
Liked 994 Times in 465 Posts
Quiver...
thinktubes is offline
Old 05-24-19, 02:23 PM
  #14
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,567

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 107 Post(s)
Tagged: 0 Thread(s)
Quoted: 1831 Post(s)
Liked 975 Times in 657 Posts
Originally Posted by cszipper View Post
It is a mounting point for a full chaincase. I have the same on a 1956 Rudge and a 1952 Humber, both three speeds. Raleigh's three speed frames back then had the mount whether they shipped with a full case or just the hockey stick guard. You'll likely find that it is tapped for a 26tpi bolt if you clean off all the paint on it. My Rudge is tapped even though it was shipped with a hockey stick guard.

-Carl
This is all correct. They are often pre-tapped.
clubman is offline
Old 05-24-19, 04:37 PM
  #15
donc49@hotmail.
Junior Member
Thread Starter

Join Date: Mar 2014
Posts: 19
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 0 Times in 0 Posts
Thank all you guys for the input. It looks like the consensus is that it is for a full chaincase. I'll go with that. I thought it might be for a chain guard, but assumed it would be threaded. I though the quiver comment was great! Thank you all again- Don
donc49@hotmail. is offline
Old 05-24-19, 10:02 PM
  #16
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,620

Bikes: https://www.theheadbadge.com

Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 1569 Post(s)
Liked 1,823 Times in 1,051 Posts
Chaincase mounting boss.

cudak888 is offline
Likes For cudak888:
Old 05-25-19, 10:46 AM
  #17
donc49@hotmail.
Junior Member
Thread Starter

Join Date: Mar 2014
Posts: 19
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Liked 0 Times in 0 Posts

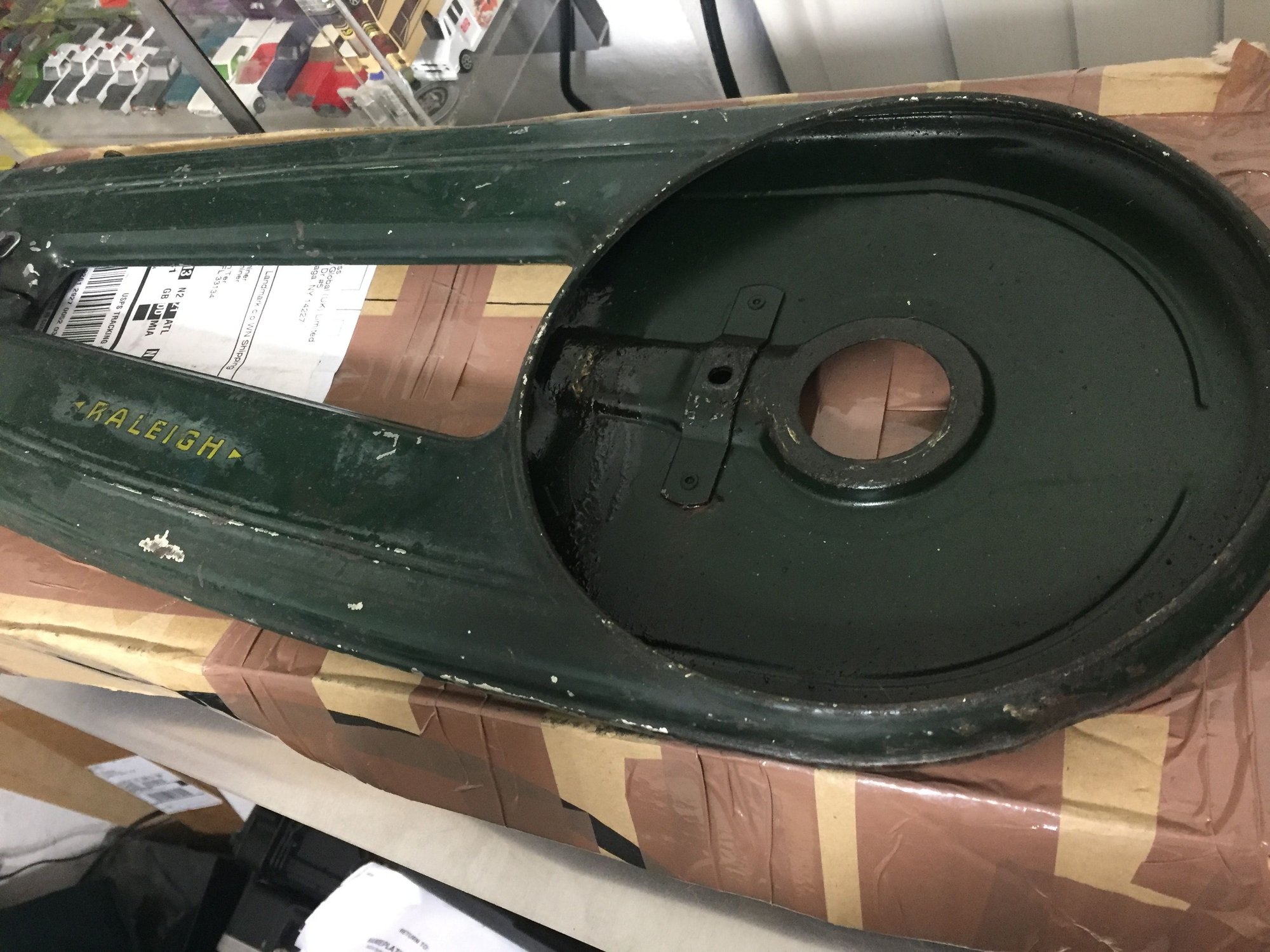

Thanks for the picture of the chain case. There is the hole for the bolt into the chain stay- Thanks again- Don
donc49@hotmail. is offline
