Hair-line cracks in crank arm? Safe to ride?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Hair-line cracks in crank arm? Safe to ride?

Old 06-14-19, 06:17 AM
  #1
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,973
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Liked 24 Times in 20 Posts
Hair-line cracks in crank arm? Safe to ride?

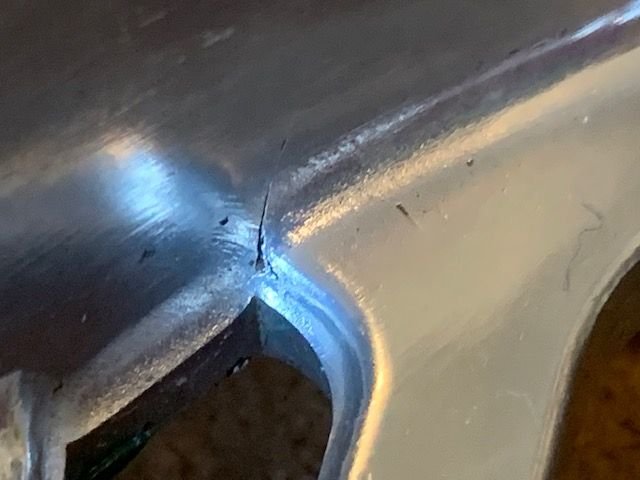

I was very disappointed to find tiny cracks on the left and right side of the drive-side crank of these Sugino cranks. (If you saw my post in Sales; I am still looking for a Sugino 110bcd crankset)
When i got these cranks, they were covered in grim, grease and dirt.So, I didnt see the cracks. I need some searches on the Web, and it appears the failures tend to happen on the crank arm towards the fluting (pedal end) on these cranks (and similarly on Campy).
So, I understand its difficult to predict if the cracks will get worse. But, I was hoping I could get some opinions of the likelihood (based on personal experience) of the cracks leading to the crank failing.
What are your thoughts?





__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 06-14-19, 06:31 AM
  #2
abshipp
Senior Member

Join Date: Sep 2017
Location: Rockford IL
Posts: 430

Bikes: 1976 Motobecane Grand Jubile, 1977 Schwinn Super Le Tour 12.2 Chrome, 1981 Trek 716, 2010 Banshee Paradox

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 37 Times in 25 Posts
Originally Posted by vintagerando View Post
I was very disappointed to find tiny cracks on the left and right side of the drive-side crank of these Sugino cranks. (If you saw my post in Sales; I am still looking for a Sugino 110bcd crankset)
When i got these cranks, they were covered in grim, grease and dirt.So, I didnt see the cracks. I need some searches on the Web, and it appears the failures tend to happen on the crank arm towards the fluting (pedal end) on these cranks (and similarly on Campy).
So, I understand its difficult to predict if the cracks will get worse. But, I was hoping I could get some opinions of the likelihood (based on personal experience) of the cracks leading to the crank failing.
What are your thoughts?
I wouldn't.

Yes, they might be fine for years and years with those cracks. Especially if they are on a bike that you don't ride very hard.

But then there might be that one time where a loose dog starts after you and you stand up out of the saddle and mash to get away, and that's what it takes for the crank to give way.

Just not worth it, imo. A crank failure would likely happen when you are putting out a lot of power, and crank failures are up there with sudden fork failure or shearing a pedal spindle in levels of severity and danger, and likely injury to yourself.
abshipp is offline
Likes For abshipp:
Old 06-14-19, 06:39 AM
  #3
P!N20
Senior Member

P!N20's Avatar

Join Date: Aug 2010
Posts: 620
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 249 Post(s)
Liked 61 Times in 55 Posts
I broke a crank arm about 12 months back and I didnít get any warning signs. While it scared the hell out of me, it didnít put me in any immediate danger, but you never know when itís going to give way, so I say - bin it.
P!N20 is offline
Old 06-14-19, 06:44 AM
  #4
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 18,307
Mentioned: 467 Post(s)
Tagged: 1 Thread(s)
Quoted: 2657 Post(s)
Likes: 0
Liked 160 Times in 144 Posts
Cracks almost invariable propagate and lead to catastrophic failure.
T-Mar is offline
Old 06-14-19, 07:05 AM
  #5
gugie
Pimp on a bike

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 7,560

Bikes: It's complicated.

Mentioned: 823 Post(s)
Tagged: 0 Thread(s)
Quoted: 2318 Post(s)
Liked 143 Times in 85 Posts
With aluminum, there's no way to know. I sadly had to chuck a set of Stronglight 99 crankarms for the same reason.

Hackoff all the spider arms, file and polish, cut out a bit of the pedal area and make a bottle opener out of it.


__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-14-19, 07:18 AM
  #6
sdn40
Senior Member

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 499

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Likes: 0
Liked 44 Times in 33 Posts
What would Murphy say ?
sdn40 is offline
Old 06-14-19, 08:09 AM
  #7
since6
Senior Member

Join Date: Nov 2015
Location: Lacey, WA
Posts: 1,499

Bikes: Stevenson Custom, Stevenson Custom Tandem, Nishiki Professional

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 301 Post(s)
Likes: 0
Liked 59 Times in 38 Posts
Balance an awkward fall where you break a collar bone, wrist, arm, damage a knee, against the cost of replacing a set of crank arms, it just isn't worth the risk. While it sucks to replace crank arms it's also great that you can see the crack and know the condition exist. Also Sugino cranks are pretty plentiful.
since6 is offline
Old 06-14-19, 08:17 AM
  #8
martl
Strong Walker

martl's Avatar

Join Date: May 2007
Location: Munich, Germany
Posts: 767

Bikes: too many

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 74 Post(s)
Liked 15 Times in 14 Posts
-> scrap bin or wall hanger material now, sadly. Aluinum is very delicate about notch effect and will give up without prior notice. Doesn't take a lot of phantasy to picture the effect of a crank breaking while riding standing, as, for example, pulling away after a top.
martl is offline
Old 06-14-19, 08:24 AM
  #9
Dean51
Senior Member

Dean51's Avatar

Join Date: Feb 2016
Location: Olympic Peninsula, WA
Posts: 398

Bikes: '82 YKonno Allez, ~'80 Ron Cooper, '87 Ciocc Designer 84, '77 Schwinn Volare, '86 Tommasini Racing, Ciocc Mockba 80, '98 S-Works Hardtail Mtn., Nishiki Int'l Singlespeed

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 138 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
I would not ride that crank. I really like the idea of turning it into a bottle opener as suggested by @gugie! FWIW, you can reduce the likelihood of developing these stress cracks with some preemptive filing/sanding of the sharp edges. I've done this to several Campy & Sugino cranks that I have....barely noticeable if done with care. Sadly, I view yours as too far gone for this treatment.

Dean
__________________
Roll Me Up and Smoke Me When I Die
Dean51 is offline
Old 06-14-19, 08:27 AM
  #10
Kent T
Senior Member

Join Date: Nov 2018
Location: East Tennessee
Posts: 202

Bikes: 2002 Trek 800 Singletrack, 1982 Bridgestone Spica

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 24 Times in 19 Posts
Originally Posted by T-Mar View Post
Cracks almost invariable propagate and lead to catastrophic failure.
Which is very true. Cracks spread and propagate. Failure is on it's way. And especially if you have to pedal hard and fast to escape some dog, or keep up with the peloton. I'd just hunt down a replacement, service the bike, and then go back to knowing you're good and reliable.
Kent T is offline
Old 06-14-19, 08:30 AM
  #11
Paletti
Member

Join Date: Apr 2017
Posts: 45

Bikes: 1985 DeRosa SLX, 1994 DeRosa Primato, 2009 DeRosa x-light, 1993 Paletti, 1983 Colnago aero cx, 1984 Colnago Mexico, 1983 Colner strato professional, 2016 Colnago V1-R

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 2 Times in 2 Posts
While I see a lot of posts on frames where people are going overboard on things not being safe .. this is one that I would recommend not riding. There will be no warning and if you are putting any serious force on it .. it could be a serious injury.
Paletti is offline
Old 06-14-19, 08:31 AM
  #12
scozim
Ellensburg, WA

scozim's Avatar

Join Date: Aug 2008
Location: Ellensburg, WA
Posts: 3,406

Bikes: See my signature

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 190 Post(s)
Liked 5 Times in 5 Posts
I've retired a couple of cranks with cracks similar to those. One heavier rider I know here crashed a few years ago as he stood to accelerate and the crank arm broke. He ended up with a concussion and broken ribs. I've inspected my older cranksets more frequently since then.
__________________
1984 Gitane Sprint; 1984 Gitane Tour de France; 1982 Trek 610; 1968 Peugeot PL8; 1982 Nishiki Marina 12; 1972 Peugeot PX-10; 1987 Trek 800 Antelope (touring/commuting set up); 1993 Trek 950 mtb; 1997 Klein Pulse Comp mtb; 1989 Peugeot Limestone hybrid (for touring); 1975 Gitane Olympic; 1983 Vitus 979; 1989 Spectrum Titanium:
scozim is offline
Old 06-14-19, 08:32 AM
  #13
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: Durham, NC
Posts: 1,512

Bikes: Many, and the list changes frequently

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Liked 103 Times in 71 Posts
I hit the road really hard a few years ago when my Sugino Mighty Tour crank broke. That crank should go to the metal recyclers. Don't risk injury.
Moe Zhoost is offline
Old 06-14-19, 08:33 AM
  #14
jethin
Senior Member

jethin's Avatar

Join Date: Oct 2009
Posts: 768
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Likes: 0
Liked 23 Times in 14 Posts
I consider myself to be the guy who says "nah, ride it!" in marginal situations. In this case I would not.
jethin is offline
Old 06-14-19, 08:36 AM
  #15
jdawginsc
Senior Member

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 270

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 31 Times in 17 Posts
Medical bills are more expensive than a replacement crankset and effort to install.

Love the bottle opener idea!
jdawginsc is offline
Old 06-14-19, 09:00 AM
  #16
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,525

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 725 Post(s)
Liked 51 Times in 47 Posts
Been there ... done that -- snapped a Sugino Mighty Compe crank across the pedal eye during an out-of-saddle climb. I was not too seriously injured in the resulting fall, but certainly could have been.

I have broken frames at the bottom bracket shell and the drive side chainstay, even the front of the downtube, with no threat to my well-being, but I do not trust handlebars, stems, cranks, chains, steerer tubes, or forks.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 06-14-19, 09:30 AM
  #17
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,116

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1815 Post(s)
Liked 97 Times in 74 Posts
That crack is pretty far in. I'd expect it to crack any day. Not safe.

When cracks first appear in this location, you can typically continue to ride for a little while, but this one has been going a while already. Time to recycle.
Salamandrine is offline
Old 06-14-19, 09:44 AM
  #18
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,399

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 496 Post(s)
Liked 12 Times in 12 Posts
I too would err on the side of too high a risk. However, the first picture looks like a void as does the second but with the addition of propagation. Curious locations! I would expect them to be nearer the arm/spider junction.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 06-14-19, 10:04 AM
  #19
2old
Senior Member

Join Date: Jul 2014
Posts: 1,679
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 241 Post(s)
Liked 22 Times in 19 Posts
Wouldn't even consider it. I broke a crank once just after a relatively steep ascent when the trail had become less severe. No problem since I was pedaling easily; really glad it didn't occur on the steep part.
2old is offline
Old 06-14-19, 10:04 AM
  #20
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 7,214

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1781 Post(s)
Likes: 0
Liked 171 Times in 128 Posts
I've never seen a crank crack or break there. Across the pedal threads is common and across the taper flats happens. That said, cranks break unless retired before they do. That crack will grow. Perhaps (and I am thinking unlikely) the crack will grow across the spider web and not be catastrophic. I think the crack progressing slower into the crank itself is more likely.

The three crank failures I have seen first hand were two Campagnolo cranks tha tbroke on bikes whose wheels I was on in races and myself. Both Campy riders crashed. I did well to slip past. First starting a climb when he came out of the saddle. Second coming out of a downhill criterium corner. Mine was as I stood for the last few feet of a minor climb. Put my foot down on the road, sat down, stopped, dismounted and clomped around looking for my pedal until I realized it was on my foot! I had 3/4s of a mile of downhill to meet friends. One had a pickup. Sometimes you get lucky.

So, as I said above, cranks break unless retired before they do. This one is asking for that retirement package.

Ben
79pmooney is offline
Old 06-14-19, 10:18 AM
  #21
ThermionicScott
hungry

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,060

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2311 Post(s)
Liked 265 Times in 200 Posts
Interesting to see a crack (if it is one) inside the spider arm instead of where it meets the crankarm, where you would expect it. Can you see the crack on the backside at all?

Since the consensus is that the crank is toast, you have nothing to lose by getting out the Dremel and seeing how far you can go in with a skinny grinding stone. Some of the pictures make it look like no more than a weird scratch.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498

Last edited by ThermionicScott; 06-14-19 at 11:35 AM.
ThermionicScott is online now
Old 06-14-19, 10:51 AM
  #22
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,973
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Liked 24 Times in 20 Posts
Originally Posted by ThermionicScott View Post
Interesting to see a crack (if it is one) inside the spider arm instead of where it meets the arm, where you would expect it. Can you see the crack on the backside at all?

Since the consensus is that the crank is toast, you have nothing to lose by getting out the Dremel and seeing how far you can go in with a skinny grinding stone. Some of the pictures make it look like no more than a weird scratch.
No "crack" does not go the backside (I should have mentioned that). It can barely even be felt on the front with the tip of your finger.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 06-14-19, 10:59 AM
  #23
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 211

Bikes: 1970's Windsor Professional, Pinarello Gavia TSX,Guerciotti SL,Basso Gap, Vintage Moser SL,Concorde TSX,Concorde TVT, Mondia Super,Vitus 979.Diamant SLX

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 41 Post(s)
Liked 26 Times in 21 Posts
Thats a really odd spot for a crack that was caused by heavy pedal smashing, or rider weight.

Looks like a crack in the casting process and it could possibly be merely cosmetic.The aluminmu probably developed fatigue over the years and the crack eventually showed up ,For it to be on the Drive side on that braced/supported area is very rare ,usually the cracks develop on the square taper on the outermost corner. In that case its Junk.

If you have a Tig welder available you can bevel cut it to see the depth of the crack , lay down a bead,polish it back up and you'd be ok.
All this depends on the severity of the crack.

Crank arms usually do not develop cracks there, it could be a fluke.
Manny66 is offline
Old 06-14-19, 07:20 PM
  #24
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,973
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Liked 24 Times in 20 Posts
Originally Posted by ThermionicScott View Post
Interesting to see a crack (if it is one) inside the spider arm instead of where it meets the crankarm, where you would expect it. Can you see the crack on the backside at all?

Since the consensus is that the crank is toast, you have nothing to lose by getting out the Dremel and seeing how far you can go in with a skinny grinding stone. Some of the pictures make it look like no more than a weird scratch.
You have my attention. Take me to school. (I do have a Dremel with 50 accessories). So, what is the approach. Grind out the anomaly?
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 06-14-19, 07:27 PM
  #25
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,973
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 443 Post(s)
Liked 24 Times in 20 Posts
Originally Posted by Manny66 View Post
Thats a really odd spot for a crack that was caused by heavy pedal smashing, or rider weight.


Crank arms usually do not develop cracks there, it could be a fluke.
Yes, my research on the Web (and some posters here) indicate that the Mighty breaks at the end of the fluting design near the pedal. It really looks like its on the surface.

In addition....the original owner (and only owner) is a guy of slight build. Maybe he had a different build years ago, but this fellas is several inches smaller than me. His son was there when I bought the bike. Again, his son (probably in his mid 30s, is not a big guy; maybe 165lbs and 5'9-10". The origjnal owner was a recreational rider; i just think he never used this bike hard.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
