It's done! 1974 Raleigh Super Tourer rebuild

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

It's done! 1974 Raleigh Super Tourer rebuild

Old 06-23-19, 04:53 PM
  #1
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
It's done! 1974 Raleigh Super Tourer rebuild

Big thanks to everyone here that helped me with info & input 2+ years ago when I first got my hands on the frame, and the last few months once I finally was able to start the restoration process. It was a lot of fun learning about the bike and old components and how to bring a grimy old steed back to life again. The bike was made in the Worksop factory in Nottingham, England. I was able to save and recondition most of the original parts but had to get some new ones...
Parts:

•Reynolds 531 frame

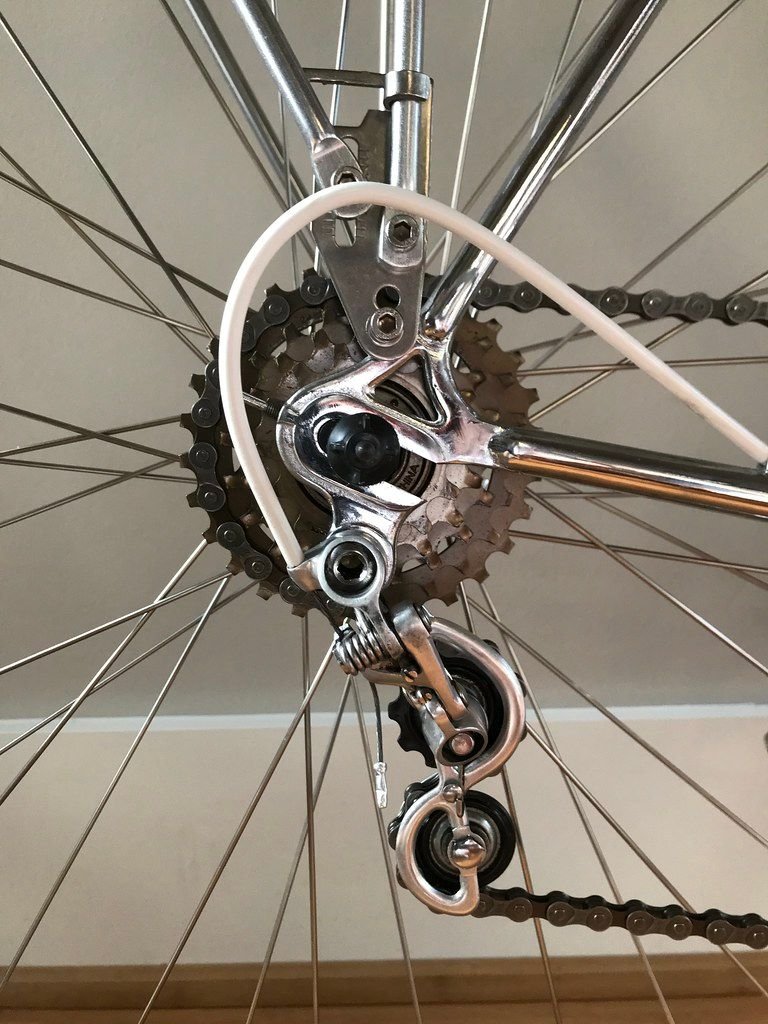

•Huret Jubilee 5-speed rear derailleur (original)
•Huret front derailleur (original)
•Huret downtube shift levers & clamp (originally mounted to the stem, I had to find a NOS branded proper sized clamp to move them)
•Stronglight 93 56t/38t crank (original)
•Shimano Uniglide 14/28t 5 speed freewheel (new)
•Weinmann Symetric side-pull brakes (original)

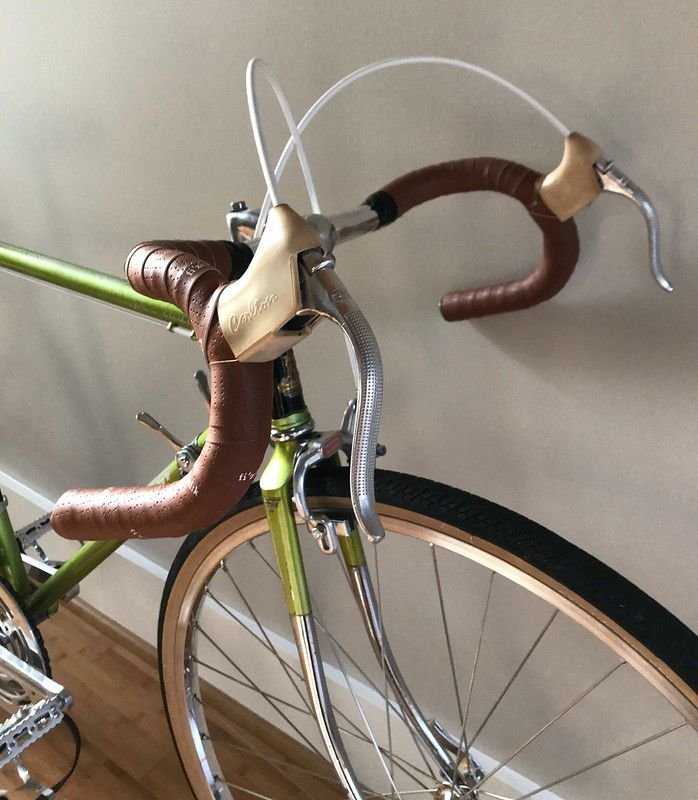

•Weinmann alloy brake levers—Carlton branded hoods (original)
•GB 1” threaded 25.4 stem (original)
•SomaFab Brevet Randonneur bars (new)
•Brooks B17 saddle; honey (new)
•Sunlite alloy 350x27.2mm seat post (new)
•Panaracer Pasalea 27x1 1/4” tires
•Sun CR18 27” rims laced to Origin8 hubs
•MKS Sylvan Touring pedals (new)
•Pletscher “Clem” rear rack from @Rivbike (new)
•Clarks cables & housing (new)
•Fizik Tempo Microtex Classic bad tape
•Platt bar end plugs
Only thing missing is the frame pump that mounts under the top tube - still looking for one that will fit it.
I'd also like to see if I can find some new decals to replace the faded/scratched off ones. But other than that - she's ready to roll!

What do y'all think!









__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 06-23-19, 05:03 PM
  #2
gna
Count Orlok Member

gna's Avatar

Join Date: May 2009
Location: St. Paul, MN
Posts: 1,636

Bikes: Raleigh Sports, Raleigh Twenty, Raleigh Wyoming, Schwinn Le Tour Luxe Frankenbike

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Liked 36 Times in 20 Posts
gna is online now
Old 06-23-19, 05:14 PM
  #3
cyclic_eric
Senior Member

cyclic_eric's Avatar

Join Date: Jan 2013
Location: Oakland CA
Posts: 209

Bikes: 1984 Gitane TdF, 1984 Holdsworth 753

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 81 Post(s)
Liked 90 Times in 58 Posts
Absolutely gorgeous - really great job.
For my riding area I'd rarely shift into that 56 chainring!
Even with 27 x 1-1/4 it looks like you still have clearance for fenders - very practical. Should be a sweet ride.
cyclic_eric is offline
Old 06-23-19, 05:39 PM
  #4
horatio
Hump, what hump?

horatio's Avatar

Join Date: Dec 2003
Location: SC midlands
Posts: 1,920

Bikes: See signature

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 333 Post(s)
Liked 223 Times in 142 Posts
Sweet! Nicely done.
__________________
2010 AB T1X ** 2010 Cannondale SIX-5 ** 1993 Cannondale RS900 ** 1988 Bottecchia Team Record ** 1989 Bianchi Brava ** 1988 Nishiki Olympic ** 1987 Centurion Ironman Expert(2) ** 1985 DeRosa Professional SLX ** 1982 Colnago Super ** 1982 Basso Gap ** 198? Ciocc Competition SL ** 19?? Roberts Audax ** 198? Brian Rourke ** 1982 Mercian Olympic ** 1970 Raleigh Professional MK I ** 1952 Raleigh Sports


horatio is offline
Old 06-23-19, 06:21 PM
  #5
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 8,187

Bikes: Waterford Paramount Touring, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion, Nishiki Cresta GT

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 2359 Post(s)
Liked 1,484 Times in 1,041 Posts
Too clean. Go out and put some miles on it.
thumpism is offline
Old 06-23-19, 06:30 PM
  #6
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 2,339

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1131 Post(s)
Liked 488 Times in 364 Posts
Awesome touring rig. Chain guard? Awesome. Color and chrome? Awesome. Handle bar choice? Awesome.

Last edited by GrainBrain; 06-23-19 at 06:40 PM.
GrainBrain is offline
Old 06-23-19, 06:49 PM
  #7
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,129

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2052 Post(s)
Liked 1,361 Times in 885 Posts
whew!
clubman is offline
Old 06-23-19, 07:06 PM
  #8
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,110

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1880 Post(s)
Liked 816 Times in 518 Posts
Nicely done! Can you comment on how the weinmann brakes do their job?
3speedslow is offline
Old 06-23-19, 07:58 PM
  #9
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
Originally Posted by 3speedslow View Post
Nicely done! Can you comment on how the weinmann brakes do their job?
Even with brand new pads they're not great. I'll definitely have to be more conscious of how I brake - especially since I reversed the sides of the levers on the bars. I thought about getting newer brakes, but they have the cable stop on the opposite side and would make cabling the rear brakes janky. I'm sure I'll get used to it.
I will add the curve of the levers makes it harder to get my smaller hands around them to brake than modern levers.
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 06-23-19, 08:17 PM
  #10
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 970
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 447 Post(s)
Liked 428 Times in 257 Posts
Originally Posted by cyclic_eric View Post
For my riding area I'd rarely shift into that 56 chainring!
Thats a 56?!?!?! Damn, tough man ring!
jackbombay is offline
Old 06-23-19, 11:23 PM
  #11
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,386

Bikes: It's complicated.

Mentioned: 1144 Post(s)
Tagged: 0 Thread(s)
Quoted: 3909 Post(s)
Liked 3,188 Times in 1,436 Posts
Finished nicely!

Ride it, figure out what works for you, don’t be afraid to change out what’s not.

Dirty little secret: we used to change components to improve the bike even back then.
gugie is offline
Likes For gugie:
Old 06-24-19, 07:37 AM
  #12
qcpmsame
Semper Fi

Join Date: Jan 2008
Posts: 12,911
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1159 Post(s)
Liked 313 Times in 212 Posts
Very nice work, you did a great job on this restoration. Well done sir, very well done.

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 06-24-19, 09:12 AM
  #13
shrtdstncrdr
Senior Member

Join Date: Jan 2013
Location: Sartell, MN
Posts: 324

Bikes: Trek Millennia, Trek 400, Raleigh Superbe, Giant OCR3, Bianchi Milano

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 123 Post(s)
Liked 58 Times in 39 Posts
Looks great!
shrtdstncrdr is offline
Old 06-24-19, 10:28 AM
  #14
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,992

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 223 Post(s)
Liked 259 Times in 119 Posts
Beautiful bike, and job well done! I love the paint with the black contrast panels on those bikes, very sharp. The sloping fork crown and the gentle curve of the fork look great too. That bicycle just checks so many boxes for me.

I agree with what Gugie is saying, changing parts for a better ride is just smart. I have a couple bikes that I made an effort to "restore" to OEM spec. It turned out, OEM spec made the bike less enjoyable for me when I was riding them. Consequently, they get passed up in favor of less "correct" bicycles that I enjoy riding. In hindsight, I probably would have left them alone.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Old 06-24-19, 01:10 PM
  #15
USAZorro
Seńor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,118

Bikes: Mostly English - predominantly Raleighs

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1120 Post(s)
Liked 434 Times in 295 Posts
Lovely. Hope it rides as amazingly as it looks. Perhaps you can find a Zefal pump from the era.
__________________
In search of what to search for.
USAZorro is offline
Old 06-24-19, 01:28 PM
  #16
riverdrifter
Senior Member

riverdrifter's Avatar

Join Date: Apr 2019
Location: Central Illinois
Posts: 465

Bikes: Trek 620, Jamis Satellite Sport, Raleigh Sport

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 139 Times in 66 Posts
Fantastic!
riverdrifter is offline
Old 06-24-19, 01:34 PM
  #17
djm323
Junior Member

Join Date: Oct 2012
Posts: 21
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Originally Posted by the sci guy View Post
Even with brand new pads they're not great. I'll definitely have to be more conscious of how I brake - especially since I reversed the sides of the levers on the bars. I thought about getting newer brakes, but they have the cable stop on the opposite side and would make cabling the rear brakes janky. I'm sure I'll get used to it.
I found the braking with Paul centerpulls, Koolstop pads, and new rims to be disappointing for quite a few miles until the rims scuffed up and the pads bedded in.
djm323 is offline
Old 06-24-19, 01:43 PM
  #18
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
Originally Posted by gugie View Post
Finished nicely!

Ride it, figure out what works for you, don’t be afraid to change out what’s not.

Dirty little secret: we used to change components to improve the bike even back then.
Originally Posted by mkeller234 View Post
Beautiful bike, and job well done! I love the paint with the black contrast panels on those bikes, very sharp. The sloping fork crown and the gentle curve of the fork look great too. That bicycle just checks so many boxes for me.

I agree with what Gugie is saying, changing parts for a better ride is just smart. I have a couple bikes that I made an effort to "restore" to OEM spec. It turned out, OEM spec made the bike less enjoyable for me when I was riding them. Consequently, they get passed up in favor of less "correct" bicycles that I enjoy riding. In hindsight, I probably would have left them alone.
Indeed. I was happy to restore it as close to original as I could to begin with (mostly to see if I could), but seeing as how brakes are a pretty important part of not dying, if it turns out they don't pull their weight I'll switch them out.

Originally Posted by USAZorro View Post
Lovely. Hope it rides as amazingly as it looks. Perhaps you can find a Zefal pump from the era.
I haven't gone hardcore searching for one yet, but I am hopeful something is out there. It's funny because the rack I got has pegs for a mini pump as well
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 06-24-19, 01:59 PM
  #19
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
Oh and for those familiar with the original components and were wondering: while I had to get new wheels as the old ones weren't serviceable, I did keep the original Maillard 700 hubs, and the Maillard Atom 70 5-speed freewheel - they cleaned up wonderfully and look lovely. I've put them aside to build wheels around in the future, since they need to stay a mated set due to their threading.
__________________
Twitter@theSurlyBiker
Instagram@theSurlyBiker
the sci guy is offline
Old 06-24-19, 04:23 PM
  #20
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,386

Bikes: It's complicated.

Mentioned: 1144 Post(s)
Tagged: 0 Thread(s)
Quoted: 3909 Post(s)
Liked 3,188 Times in 1,436 Posts
@the sci guy

I think I can help you with that pump, give me a PM.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-24-19, 04:27 PM
  #21
ascherer
Senior Member

ascherer's Avatar

Join Date: Jul 2007
Location: Manhattan & Woodstock NY
Posts: 2,089

Bikes: 1987 Mercian Pro, 1985 Shogun 500, early '70s Falcon San Remo, 1972 PeugeotPX-10, 1971 Raleigh International, 1971 Peugeot PX-10, 1970 Raleigh Professional Mk1

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 632 Post(s)
Liked 1,290 Times in 529 Posts
Great job on that!
__________________
1987 Mercian Pro, 1985 Shogun 500, 197? Falcon San Remo, 1972 Peugeot PX-10, 1971 Peugeot PX-10, 1971 Raleigh International, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 2016 Dawes Streetfighter, 1984 Lotus Eclair, 1975 Motobecane Jubile Mixte, 1974 Raleigh Sports, 1972 Raleigh Super Course, 1971 Philips Sport



ascherer is offline
Old 06-24-19, 10:42 PM
  #22
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,869

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 518 Times in 364 Posts
Very nice, I restored a 70s Gran Prix with that same bronze green and I recall it shining up nicely. Have fun on it now that you're done.
ryansu is offline
Old 06-25-19, 12:00 AM
  #23
Winkd
Training Wheel Enthusiast

Join Date: Jun 2019
Location: Seattle
Posts: 11

Bikes: Peugeot PX-10

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I love many, many things about this bike! Nicely done
Winkd is offline
Old 06-29-19, 03:05 PM
  #24
the sci guy
bill nyecycles
Thread Starter

the sci guy's Avatar

Join Date: Mar 2013
Location: Houston TX
Posts: 3,283
Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 757 Post(s)
Liked 300 Times in 166 Posts
Thanks for the love everyone. It rides like a dream.
Quick follow up question - is it safe to have holes drilled in the downtube for some rivnuts for a bottle cage mount?
the sci guy is offline
Old 06-29-19, 04:54 PM
  #25
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 13,016

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 2360 Post(s)
Liked 999 Times in 591 Posts
Pretty and pretty cool!

Congratulations!
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
