How much better are Weinmann Centerpulls than Sidepulls?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

How much better are Weinmann Centerpulls than Sidepulls?

Old 08-06-19, 05:03 PM
  #26
Bandera
~>~

Join Date: Mar 2013
Location: TX Hill Country
Posts: 5,931
Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1112 Post(s)
Liked 164 Times in 109 Posts
When I went through the Chicago factory school for Schwinn Approved mechanic certification in the '70's we were shown the proper technique using the two 10mm Weinmann open/closed brake wrenches to reliably center Varsity brakes: No violence required.

That being said I have the choice on my town bike to use a variety of C&V calipers from my stock and go w/ Weinmann 610 center-pulls: simple, reliable and effective enough.
Brakes will only slow you down, I've never gotten obsessed w/ something that I use as little as possible.

-Bandera
__________________
'74 Raleigh Internat'l. '77 Trek TX900 FG. '90 Vitus 979. '10 Merckx EMX3. '13 Soma Stanyan
Bandera is offline
Likes For Bandera:
Old 08-06-19, 05:03 PM
  #27
HTupolev
Senior Member

Join Date: Apr 2015
Location: Seattle
Posts: 3,440
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 1545 Post(s)
Liked 504 Times in 262 Posts
Originally Posted by noglider View Post
People who have only ridden bikes with dual pivots or V brakes will try old brakes and say they "don't work" but it's because they're not used to squeezing hard enough. Not everyone is strong enough. If you're strong enough and don't mind squeezing hard, the 605s will be fine.
Not just a matter of MA. The long distance from pivot to pad on single-pivot brakes results in lots of flex if the arms aren't made heavy and stiff (or very short, severely limiting clearance). Oftentimes the modulation is spongy and regressive as a result.
HTupolev is offline
Old 08-06-19, 05:50 PM
  #28
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,381

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 732 Post(s)
Liked 373 Times in 251 Posts
Centering Side Pull Brakes

Originally Posted by noglider View Post
...I'm not sure, but I think that sometimes whacking the spring doesn't bend the spring but instead turns the center bolt the required amount. It doesn't matter how it works. The important thing is that it does work.
I've used an 8" x 3/4" brass drift for years to center side pulls that don't have adjusting flats. I place the end on top of the spring at the center pivot and give it a gentle tap or two. Works every time. I also recheck the tightness of the rear mounting nut before and after minor surgery. I've seen the nut loosen a little after the operation.

In the past year I've had the pleasure of overhauling Weinmann 605 brake calipers plus DiaCompe levers and DiaCompe 610 calipers. I wasn't aware of the differences in the springs but just about every thing else between the 2 brands interchange.

I took the suicide levers off of a set of DiaCompe levers and replaced the red pivot pins with Weinmann ones, also the nylon bushings. Those bushing wear quickly especially with the angular torque applied by the suicide levers. Replacing the bushings makes a big difference in the levers.

The later version DiaCompe center pulls came with decent pads that have a lot of stopping power. Again, I sand down the faces of all of my brake pads whether new or replacements or during servicing.

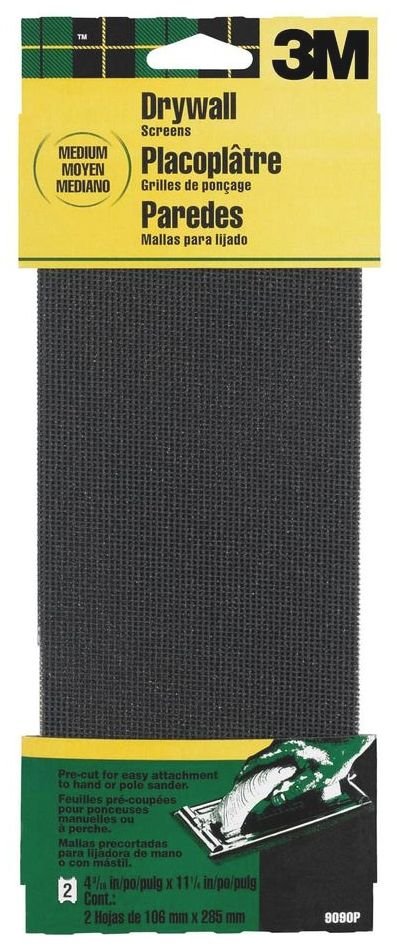

3M makes a product called Drywall Sanding Screen. It's inexpensive and you can get it at hardware and paint stores. Medium grit works well for sanding down the braking surfaces of pads.

I put a sheet of paper on a flat surface and put the screen on top of it (the paper makes it easy to collect and dispose of the dust). A few minutes per pad making sure the faces are square to the holders and it's done. taking 1mm of old hard pad face takes a little longer.


Screen Cloth looks like this:

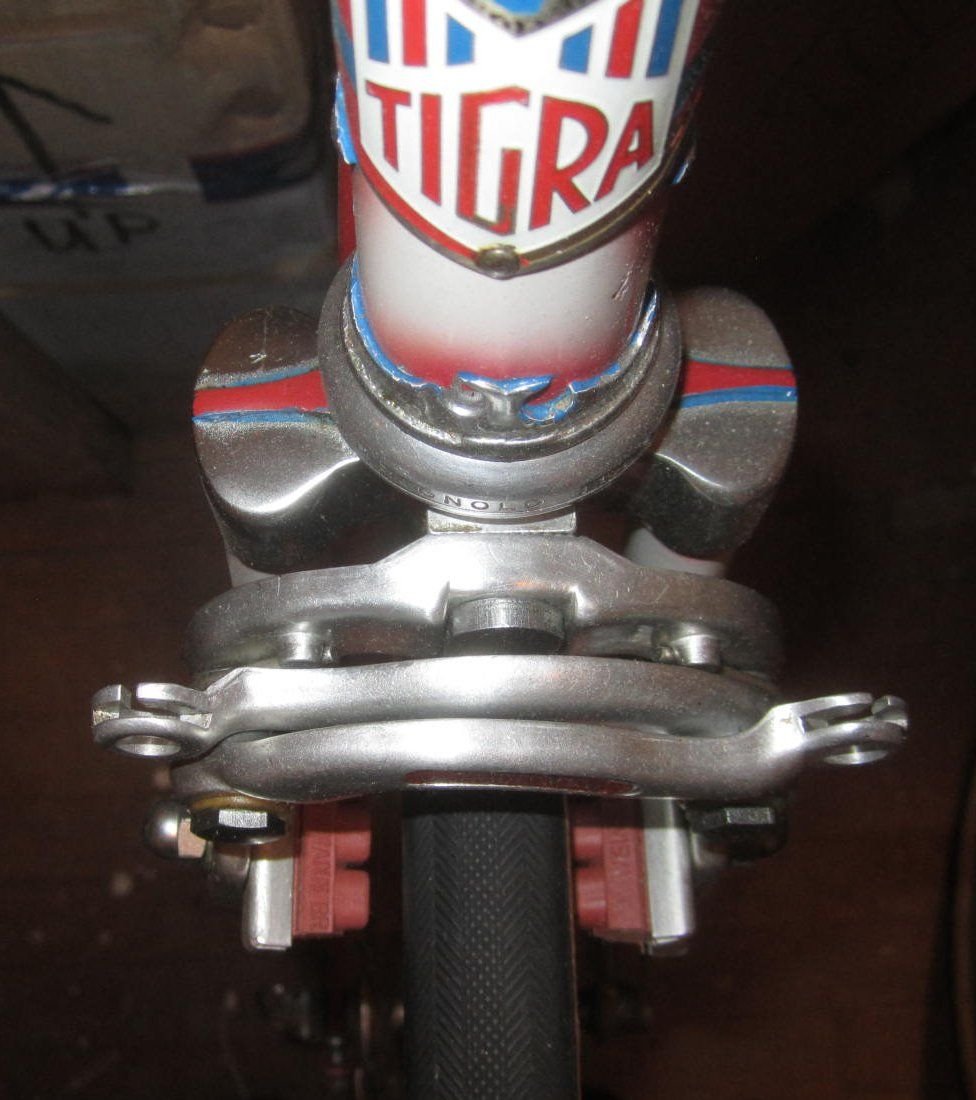

I have Weinmann 999 brakes on my 1965 Tigra. The caliper arms are beefier than on later 610/750 brakes.

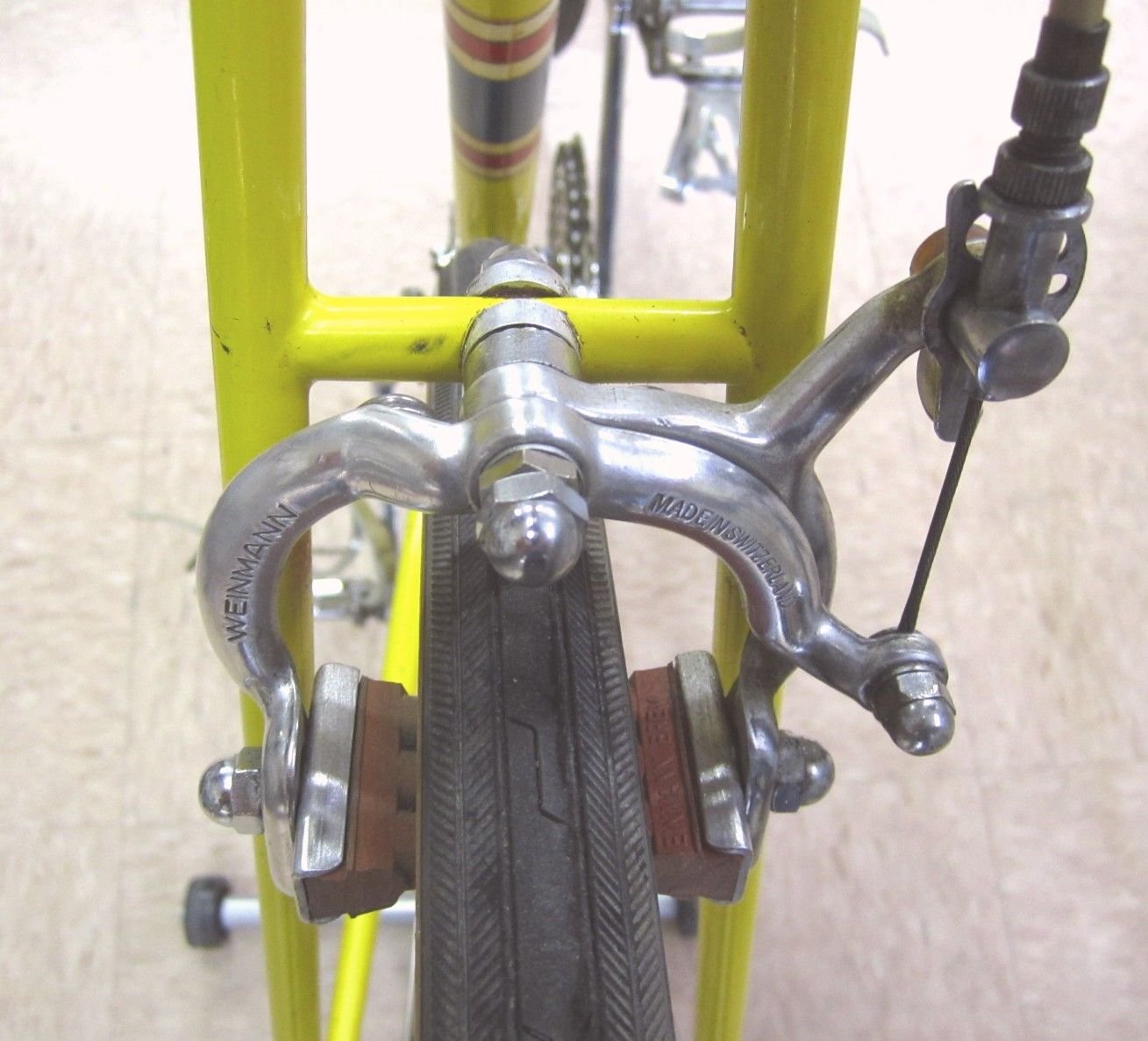

Old Weinmann 500 style side pulls on a 1960 Schwinn Paramount




Notice both style brakes have short 3 Dot brake pads.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 08-06-19, 08:52 PM
  #29
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,419

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1084 Post(s)
Liked 975 Times in 614 Posts
Originally Posted by noglider View Post
It seems to me that the alloy that Weinmann used resulted in arms that were more flexible than the higher end stuff.
This is where the Kool-Stop compound comes into play. The extra grip afforded by the compound compensates for the lack of rigidity of the Weinmann arms - making a "meh" brakeset into one that performs well.

Of course, some (myself included) may not accept flexy brake arms on their machines, so this is where it boils down to personal preference.

Originally Posted by HTupolev View Post
Not just a matter of MA. The long distance from pivot to pad on single-pivot brakes results in lots of flex if the arms aren't made heavy and stiff (or very short, severely limiting clearance). Oftentimes the modulation is spongy and regressive as a result.
I'm surprised nobody has mentioned rim width in regards to centerpulls either. The Weinmann 999/610/750 and the Dia-Compe copies are made for wide rims. The brake arms are placed well apart from each other; enough so that factory Weinmann pads and similar copies are usually not wide enough to be used in conjunction with many popular road rims of the era (Super Champions, Rigida AL1320's, etc).

However - with that said - this does not seem to prevent many people (or mechanics) from trying to use them improperly with narrow rims and C&V-style brake pads. The gap results in pads that get swung upwards at a 10 degree angle to meet the rim surface as the caliper arms are overextended.

I don't consider such a setup correct, nor a valid metric to critique the performance of the 999/610/750 upon. It is possible to compensate by running a modern pad with enough thread to allow for some inboard shimming, but most C&V pads don't have enough threads to allow someone to put a washer between the pad and the caliper on the inside.

-Kurt
__________________







cudak888 is offline
Old 08-07-19, 10:35 AM
  #30
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,051

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2780 Post(s)
Liked 705 Times in 496 Posts
Originally Posted by cudak888 View Post
I'm surprised nobody has mentioned rim width in regards to centerpulls either. The Weinmann 999/610/750 and the Dia-Compe copies are made for wide rims. The brake arms are placed well apart from each other; enough so that factory Weinmann pads and similar copies are usually not wide enough to be used in conjunction with many popular road rims of the era (Super Champions, Rigida AL1320's, etc).

However - with that said - this does not seem to prevent many people (or mechanics) from trying to use them improperly with narrow rims and C&V-style brake pads. The gap results in pads that get swung upwards at a 10 degree angle to meet the rim surface as the caliper arms are overextended.

I don't consider such a setup correct, nor a valid metric to critique the performance of the 999/610/750 upon. It is possible to compensate by running a modern pad with enough thread to allow for some inboard shimming, but most C&V pads don't have enough threads to allow someone to put a washer between the pad and the caliper on the inside.

-Kurt
How wide are we talking? I'm running 750's with Kool-Stop Continentals on 24mm rims, and now I'm curious whether I'm over or under the intended use.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is online now
Old 08-07-19, 11:42 AM
  #31
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,182

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2264 Post(s)
Liked 492 Times in 358 Posts
FWIW I've been riding the Gran Compe 610 reissues with Velocity A23 rims for the last several years, and they work just fine. As one might guess, A23 rims are 23mm wide. That's basically the same as old Super champ 58, and Weinmann concaves, IIRC.

Rigida 1320 were more like 19mm I think. Didn't stop Motobecane (et al) from spec'ing them with Weinmanns on many different bikes BITD. Didn't 1320 have slightly angled sides? That probably helped a bit.
