Wheel revamp

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Wheel revamp

Old 08-07-19, 03:39 AM
  #1
dieterpi
Member
Thread Starter

Join Date: Jul 2019
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 5 Times in 3 Posts
Wheel revamp

In my bike restoration project, I want to share the wheel revamp. The wheels looked like this:


And after loads of elbow grease, it looks like.


Amazing what metal polish can do. Not fully satisfied though, I should have fine sanded some parts of the rim (still has some marks/dents in it).
I guess it would be a better revamp, if I where to replace the spokes and then be able to clean the entire rim and hub even better. However, I never build a tire, and that looks quite complicated.

Meanwhile, while I'm at it, should I replace the (1 cm wide) rim tape? Any suggestions?
dieterpi is offline
Old 08-07-19, 03:42 AM
  #2
nomadmax
Senior Member

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,547
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 816 Times in 417 Posts
Great job!

I'd put some new Velox tape on them.
nomadmax is offline
Old 08-07-19, 04:31 AM
  #3
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
I have a big roll of gorilla tape, so gorilla tape is what most rims get. Unlike rim tape, gorilla tape is also useful for other things.
Kuromori is offline
Old 08-07-19, 07:07 AM
  #4
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,579

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1068 Post(s)
Liked 381 Times in 247 Posts
Nice job. Did you open up the hub and get new grease in the bearings? Simple job and it's much more important than polishing the rims.
TenGrainBread is offline
Old 08-07-19, 08:53 AM
  #5
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,044

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2779 Post(s)
Liked 700 Times in 492 Posts
Originally Posted by dieterpi View Post


Amazing what metal polish can do. Not fully satisfied though, I should have fine sanded some parts of the rim (still has some marks/dents in it).
I guess it would be a better revamp, if I where to replace the spokes and then be able to clean the entire rim and hub even better. However, I never build a tire, and that looks quite complicated.

Meanwhile, while I'm at it, should I replace the (1 cm wide) rim tape? Any suggestions?
Originally Posted by nomadmax View Post
Great job!

I'd put some new Velox tape on them.
+1, that looks great! Velox makes a 10mm tape that would be perfect.
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 08-07-19, 09:10 AM
  #6
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,015

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 846 Post(s)
Likes: 0
Liked 398 Times in 266 Posts

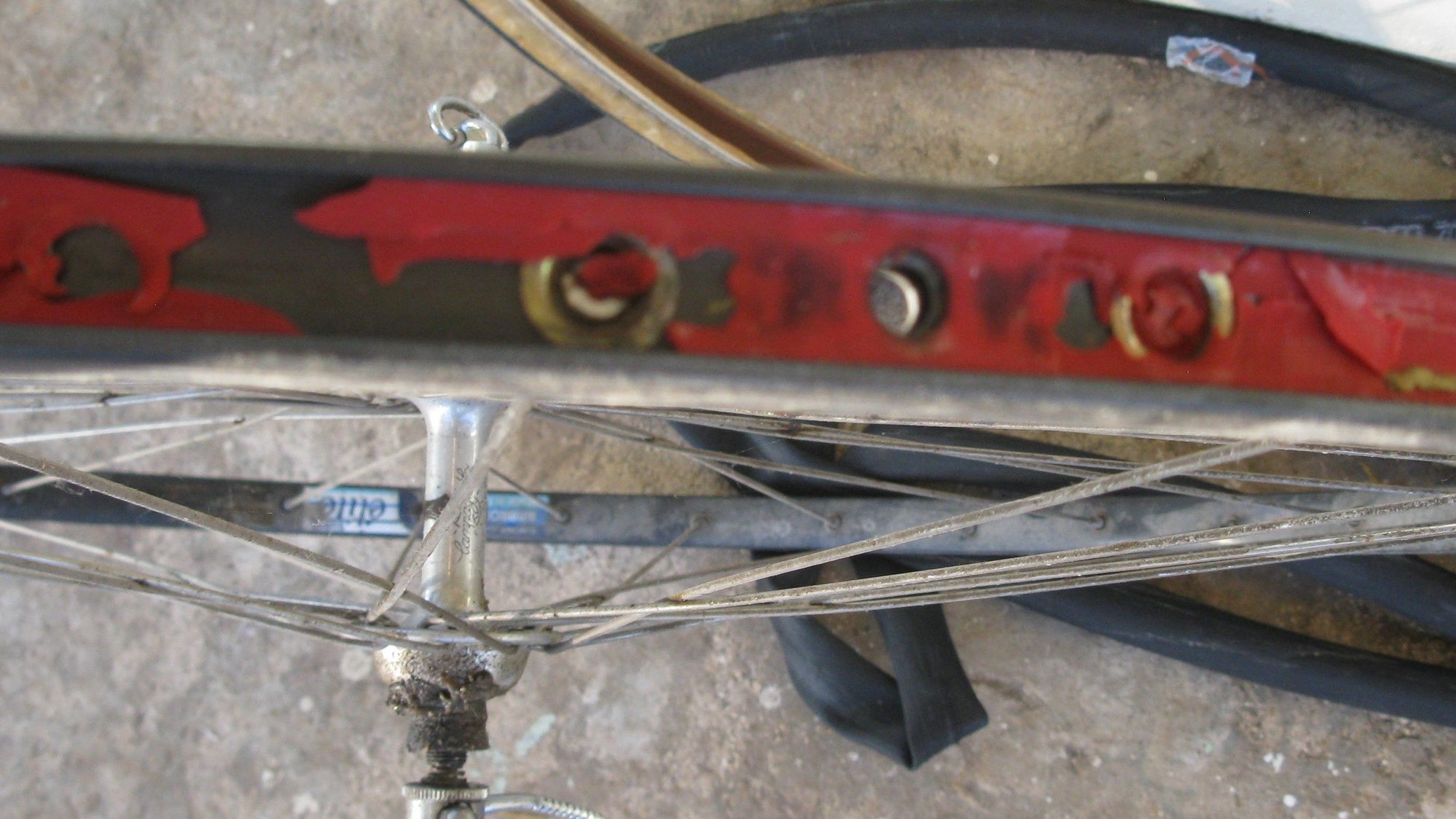

New rim tape? Yes, absolutely! This rim tape, used and old, was still pliable when I assembled the wheels. Two years later, the tape had hardened to become brittle and started cracking up inside, eventually puncturing an inner tube. This is what that old rim tape came out looking like...


__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 08-07-19, 09:14 AM
  #7
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 892

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 256 Post(s)
Liked 42 Times in 32 Posts
Originally Posted by dieterpi View Post
In my bike restoration project, I want to share the wheel revamp. The wheels looked like this:


And after loads of elbow grease, it looks like.


Amazing what metal polish can do.
Are pics 1 & 2 different wheels, or did you polish so much the hub is now much narrower? If the latter, I'm impressed!
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 08-07-19, 11:20 AM
  #8
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,925

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1204 Post(s)
Liked 926 Times in 575 Posts
Originally Posted by tiger1964 View Post
Are pics 1 & 2 different wheels?
Looks like the rear and the front.

Originally Posted by dieterpi View Post
However, I never build a tire, and that looks quite complicated.


Yes, leave that to the pros.

But a wheel, on the other hand, is pretty simple to rebuild with the aid of Sheldon's wheel building page.
SurferRosa is online now
Old 08-07-19, 06:51 PM
  #9
Bad Lag
Senior Member

Join Date: Jul 2013
Location: So Cal, for now
Posts: 1,319

Bikes: 1975 Bob Jackson - Nuovo Record, Brooks Pro, Clips & Straps

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 472 Post(s)
Liked 101 Times in 64 Posts
I use oil-soaked steel wool (0000 grit) to clean and polish the spokes.

Surround the spoke with a small ball and rub along the length of the spoke. Then, move to the next one.
Bad Lag is offline
Old 08-07-19, 07:13 PM
  #10
dieterpi
Member
Thread Starter

Join Date: Jul 2019
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 5 Times in 3 Posts
Originally Posted by TenGrainBread View Post
Nice job. Did you open up the hub and get new grease in the bearings? Simple job and it's much more important than polishing the rims.
I opened up the hubs and changed the grease and the bearings. Also changed from solid to a hollow axle to be able to work with quick release handles.

Originally Posted by tiger1964 View Post
Are pics 1 & 2 different wheels, or did you polish so much the hub is now much narrower? If the latter, I'm impressed!
I haven't got that much elbow grease ;-)

Originally Posted by SurferRosa View Post
...
Yes, leave that to the pros.
...
No rubber harvest for me ;-)

Originally Posted by Bad Lag View Post
I use oil-soaked steel wool (0000 grit) to clean and polish the spokes.
Surround the spoke with a small ball and rub along the length of the spoke. Then, move to the next one.
Good idea! I changed my method for polishing the rear rim. First wet (WD-40) sanding with 400 then 600, 800 and stopped at 1000 grit. Then using metal polish to get the shine. Works faster then before, but perhaps sanding further with finer grit would be even better.
dieterpi is offline
Old 08-08-19, 12:19 AM
  #11
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,856

Bikes: A green one, "Ragleigh," or something.

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 1568 Post(s)
Liked 424 Times in 249 Posts
@SurferRosa I'm always ready to hear some expert advice on tire building. It's an area where I admit I have very little experience.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Likes For Lascauxcaveman:
Old 08-08-19, 01:58 AM
  #12
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,015

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 846 Post(s)
Likes: 0
Liked 398 Times in 266 Posts
I use aluminum foil to clean spokes. If the wheel is disassembled, the foil also works to clean spoke hole eyelets. And, no fear of leaving any steel wool fibers to oxidize. Just crumple the foil, shiny side out, then rub the spoke. This works on steel, plated steel and chrome plating.
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
