Eisentraut Touring ~ The Build Thread

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Eisentraut Touring ~ The Build Thread

Old 08-10-19, 11:22 AM
  #1
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Eisentraut Touring ~ The Build Thread

NOTE: OP's posts prior to 8/15/19 have been edited (reduced text & photos) to promote a concise thread.

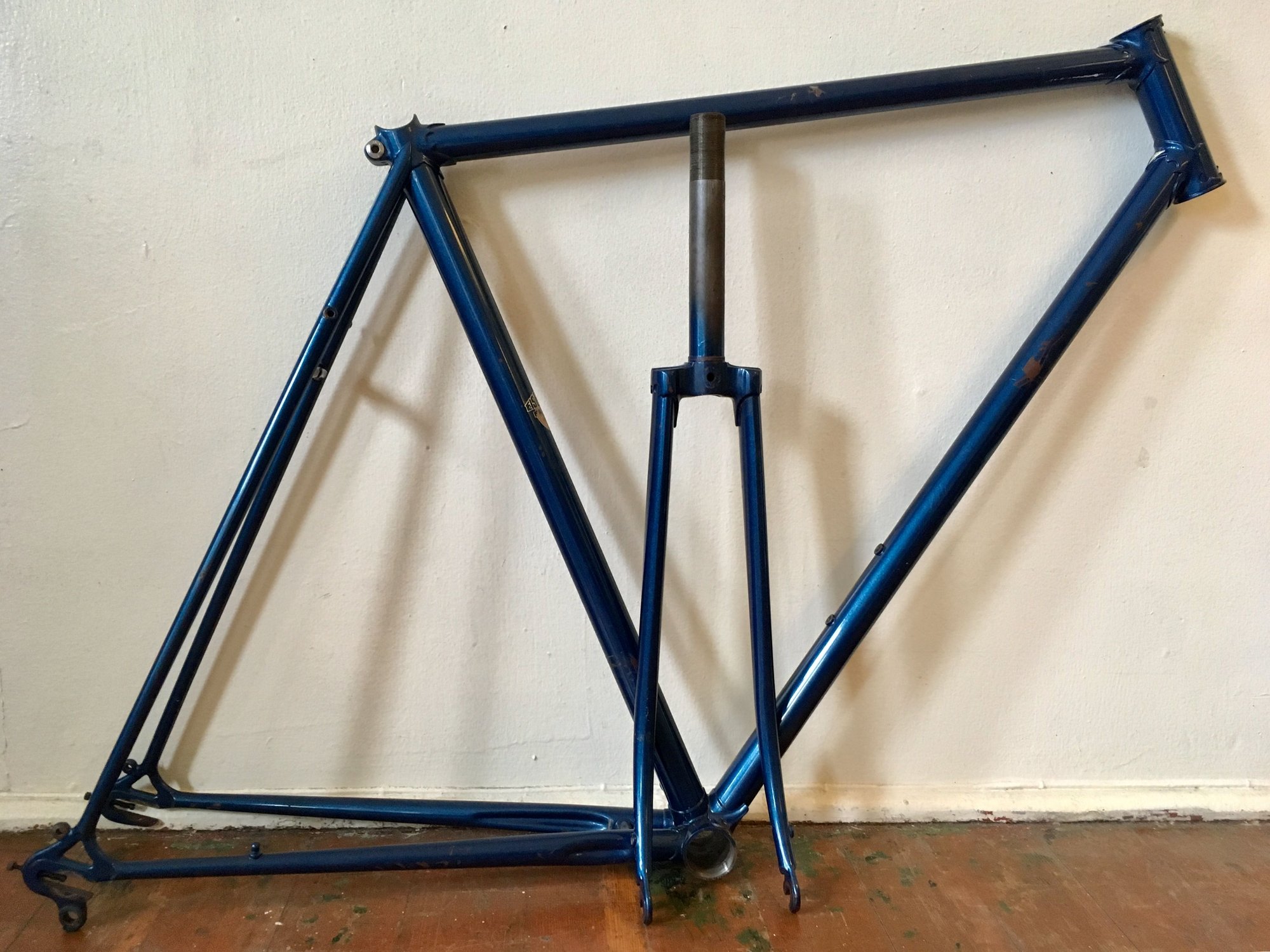

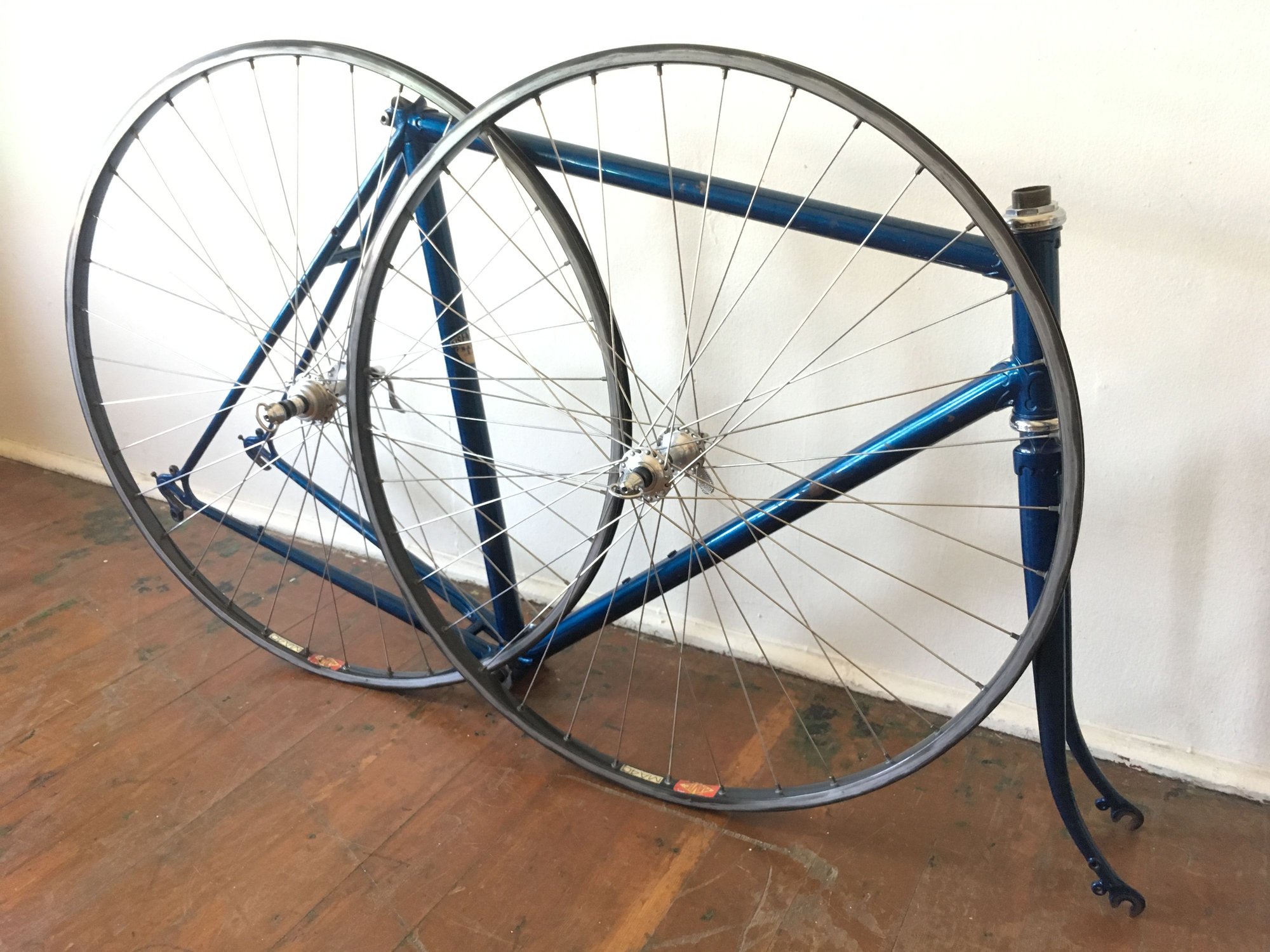

January of this year 2019, with the help of certain BF C&V members, I lucked into an Eisentraut Limited Touring frame.






In the past 7 months I’ve made build plans, revised build plans, saved for parts, hunted parts, procured parts, changed my mind about parts, sold parts to acquire different parts.... And all the while, the frame lay waiting in pretty much the exact spot as pictured above, day after day.

Ever anxious to transform this lovely handcrafted bicycle frame into an actual machine, roll it through town, and to take it for a weekend spin out into the country, the time has finally come! Plans are cinched up, parts are collected, and all but a few finishing touches or final details are nailed down.

Hence this post, the build thread, as I’ve very much been looking forward to sharing the experience of this project with all of you.

Last edited by deux jambes; 08-15-19 at 04:16 PM.
deux jambes is offline
Likes For deux jambes:
Old 08-10-19, 11:58 AM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,879
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 83 Times in 63 Posts
Exciting! Can't wait to see it built up.
TenGrainBread is offline
Old 08-10-19, 12:17 PM
  #3
noobinsf
Senior Member

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,201

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 323 Post(s)
Liked 24 Times in 19 Posts
Anxious to see it! I was thrilled for you when you landed the frame, so I’ll be watching this thread eagerly.
noobinsf is offline
Old 08-10-19, 10:29 PM
  #4
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Originally Posted by TenGrainBread View Post
Exciting! Can't wait to see it built up.
Originally Posted by noobinsf View Post
Anxious to see it! I was thrilled for you when you landed the frame, so I’ll be watching this thread eagerly.
Thanks you two.

The fact that I’ve never built a bike from the frame up makes this project all the more exciting for me.

-- -- --

I should mention that I took care of two initial tasks last March.


First, to keep the frame as rust free as possible, I decided it hit with a good dose of Frame Saver.

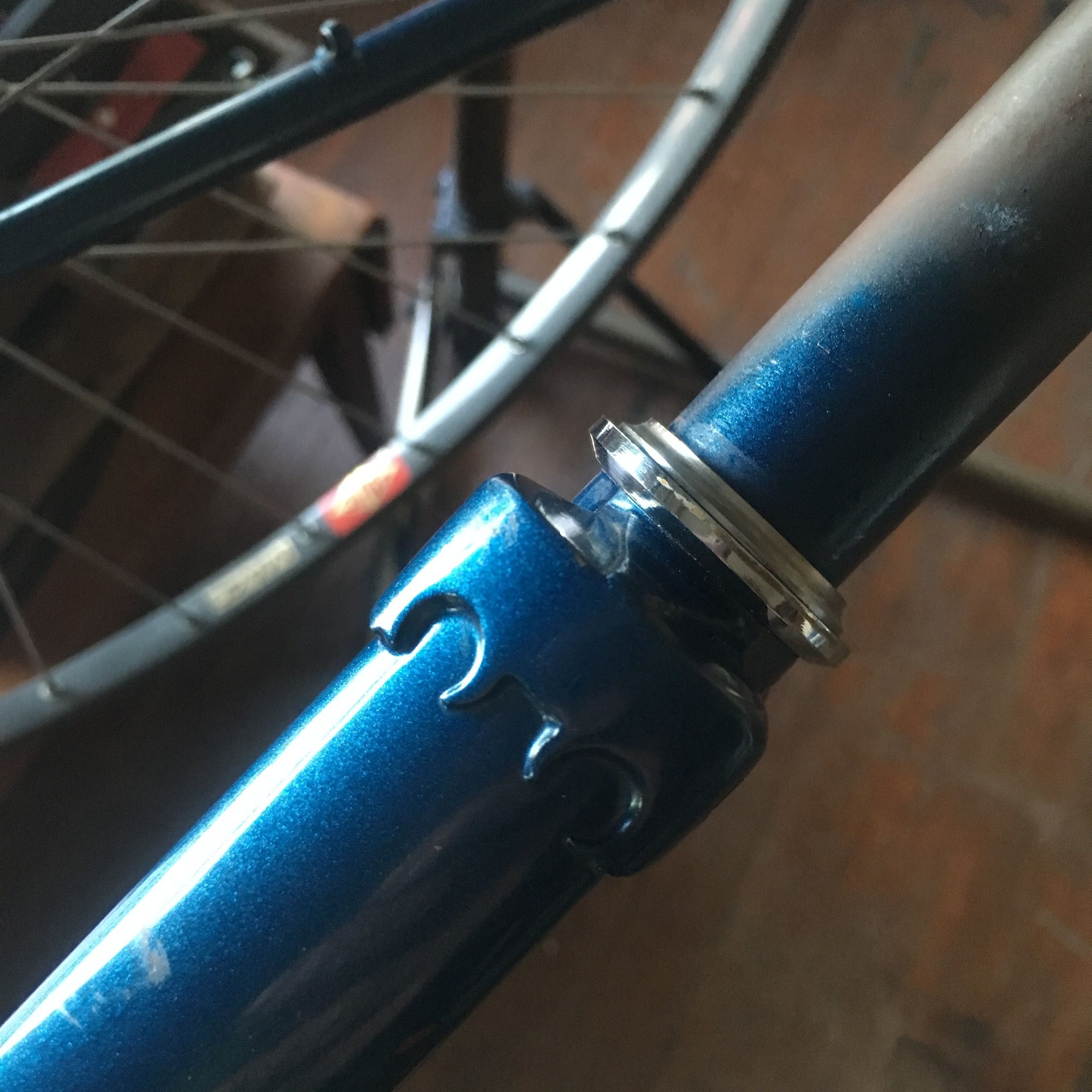

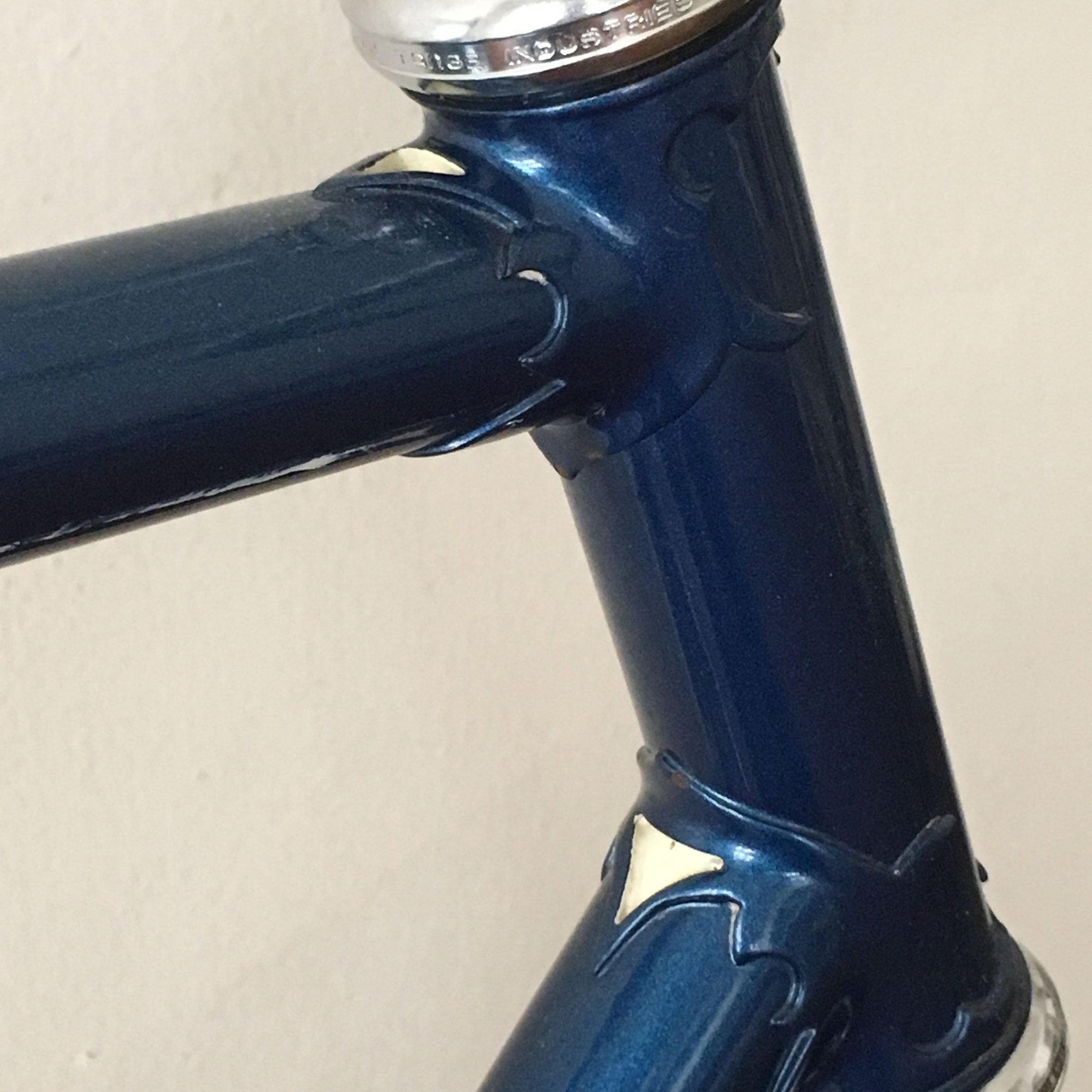

Next, was the Tange Levin headset. A Co-Op find which was caked in hard grease, and mud when I bought it. But it was complete, and once cleaned, it appeared practically brand new. Careful use of a large lag bolt, and washers did the trick. Also got the crown race nicely seated. Other than these two operations, the frame has sat untouched for the past 7 months.




Last edited by deux jambes; 08-15-19 at 02:41 PM.
deux jambes is offline
Likes For deux jambes:
Old 08-11-19, 04:18 AM
  #5
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 2,958

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Likes: 0
Liked 60 Times in 48 Posts
Ed Litton worked together with Albert Eisentraut (but not on the Limited frames). He may still have some replacement Limited decals.

Some of the Limiteds may have been built by Bruce Gordon. They were "production" frames and as such were a team effort.

verktyg
verktyg is online now
Likes For verktyg:
Old 08-11-19, 06:04 AM
  #6
mountaindave
Happy Commuter

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 3,330

Bikes: Red bikes. Why do I have so many red bikes?! I thought green was my favorite color

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 677 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Wow!
mountaindave is offline
Likes For mountaindave:
Old 08-11-19, 07:06 AM
  #7
Essthreetee
Senior Member

Essthreetee's Avatar

Join Date: Jun 2012
Location: Central California
Posts: 987

Bikes: 2001 LeMond Nevada City, ‘92 Merlin Titanium, '84 Torpado Super Strada, ‘84 Schwinn Tempo, '81 Bianchi Limites, '73 Raleigh Supercourse

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Likes: 0
Liked 15 Times in 13 Posts
Very cool. You have some strong self control and patience.
I would have never been able to let that frame sit for a month...let alone half a year.
Good luck with your build. I love these kind of threads.
__________________
"They ain't following me, I'm just in front." - Rubber Duck

lol <---- does that look like someone drowning to anyone else?
Essthreetee is offline
Likes For Essthreetee:
Old 08-11-19, 07:18 AM
  #8
mississippimud
Senior Member

mississippimud's Avatar

Join Date: May 2011
Posts: 202
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 6 Times in 5 Posts
Nice project would you mind sharing some photos and stories with the American Built Frames Only group on Facebook , Thanks !
mississippimud is offline
Old 08-11-19, 08:41 AM
  #9
jethin
Senior Member

jethin's Avatar

Join Date: Oct 2009
Posts: 741
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Nice. Looking forward to seeing how this shapes up. Not that it matters much, but is that the original paint?
jethin is offline
Old 08-11-19, 10:18 AM
  #10
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Originally Posted by verktyg View Post
Ed Litton worked together with Albert Eisentraut (but not on the Limited frames). He may still have some replacement Limited decals.

Some of the Limiteds may have been built by Bruce Gordon. They were "production" frames and as such were a team effort.

verktyg
Thank you for mentioning Ed Litton. I’d heard his name here on C&V before, but have remained unfamiliar. A quick google search shows he’s a notable figure!

I was aware that Bruce Gordon was involved with the production of the Limited. And I’ve heard that when asked, he stated that he couldn’t even tell which frames he’d had his hands on or not. I feel like that statement speaks to a high level of quality control in the Eisentraut shop.

-- -- --

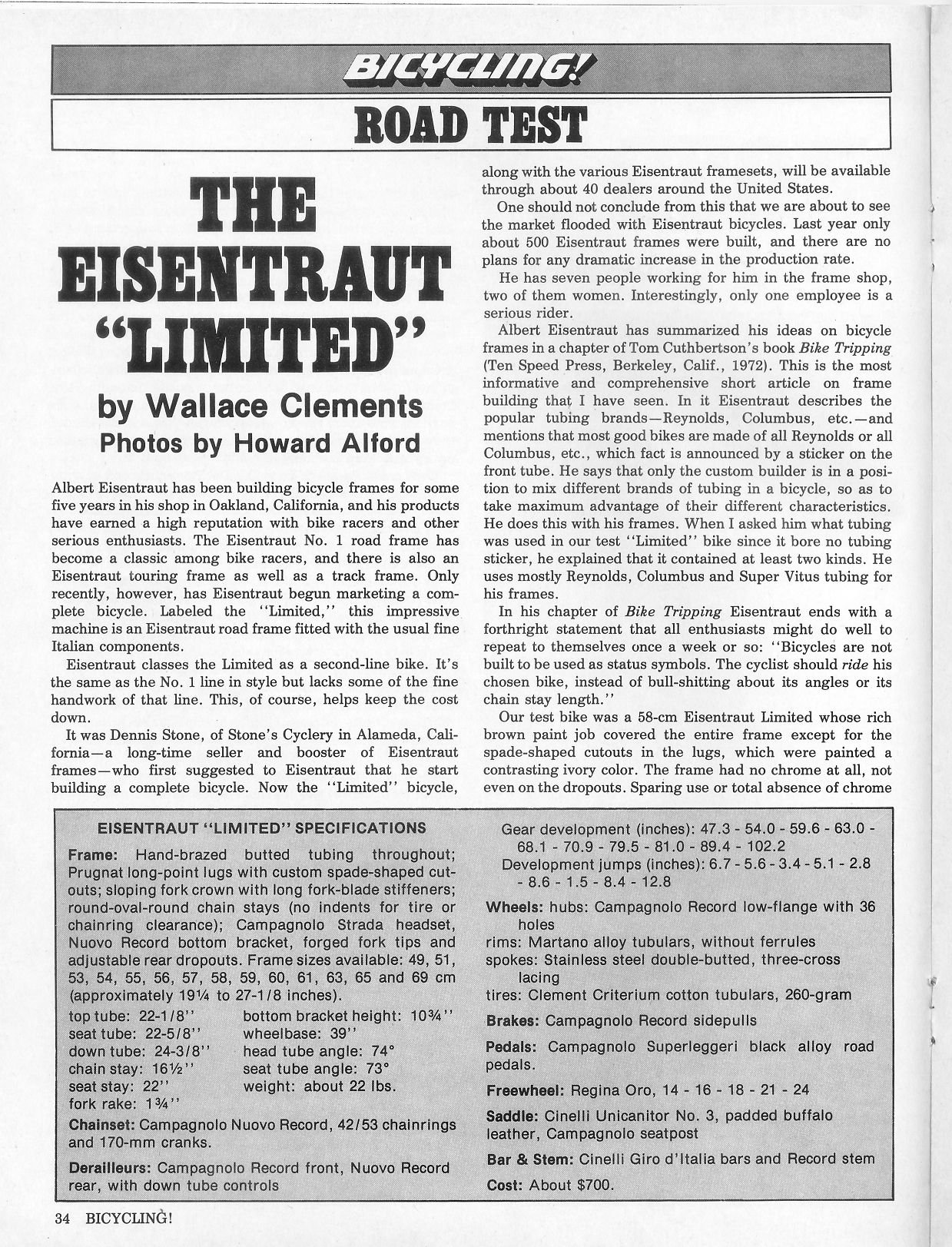

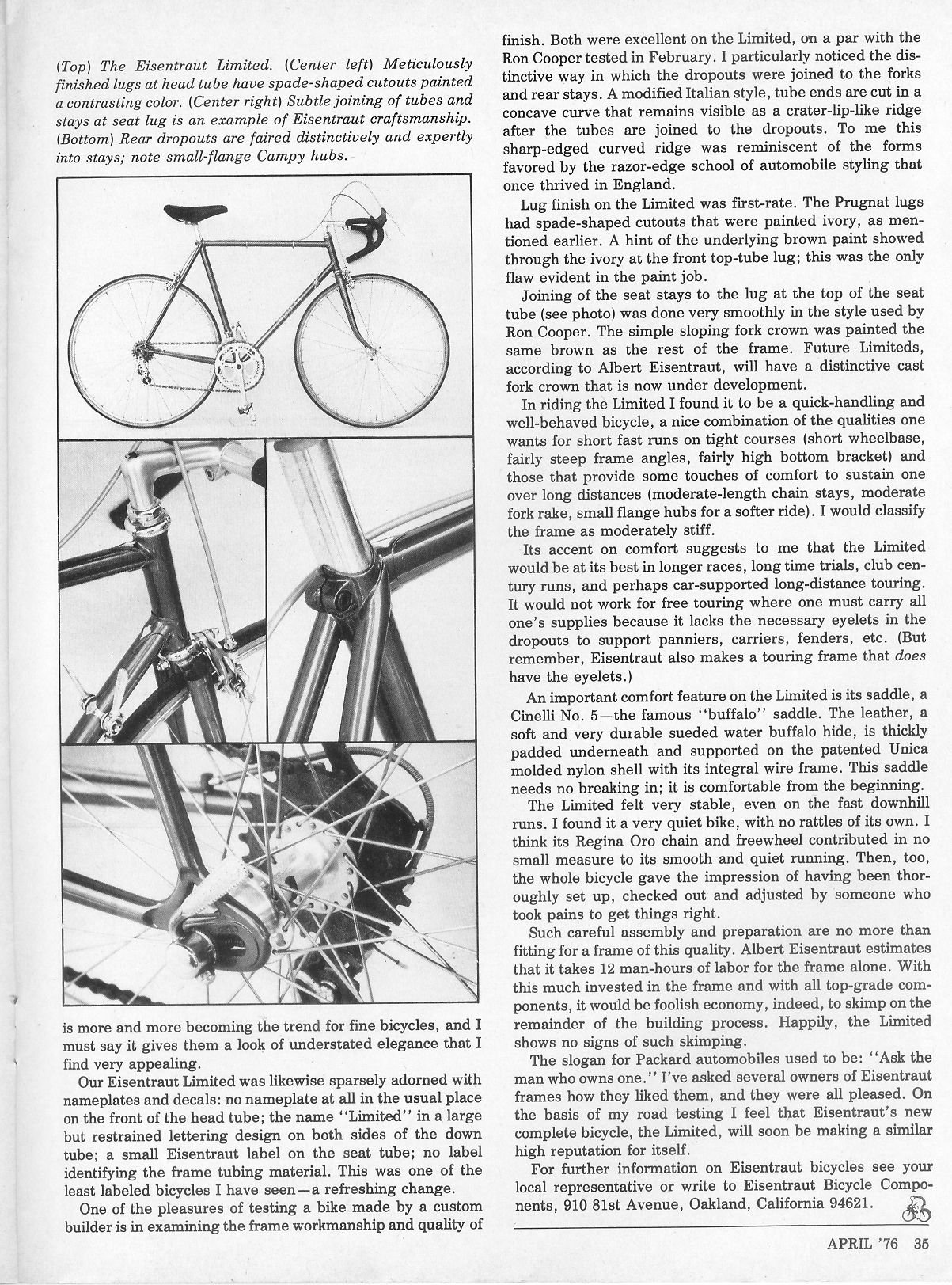

Slight off topic, and focused on the standard Limited, but I found this ‘76 Bicycling review interesting...




Last edited by deux jambes; 08-15-19 at 01:01 PM.
deux jambes is offline
Old 08-11-19, 11:05 AM
  #11
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Originally Posted by mountaindave View Post
Wow!
Stay tuned Dave! I hope you have a good supply of popcorn...

Originally Posted by Essthreetee View Post
Very cool. You have some strong self control and patience.

I would have never been able to let that frame sit for a month...let alone half a year.

Good luck with your build. I love these kind of threads.
Thanks. I think that limited time, and money have probably factored into the 7 month wait more so than any notable amount of self control or patience.

Originally Posted by jethin View Post

Nice. Looking forward to seeing how this shapes up. Not that it matters much, but is that the original paint?

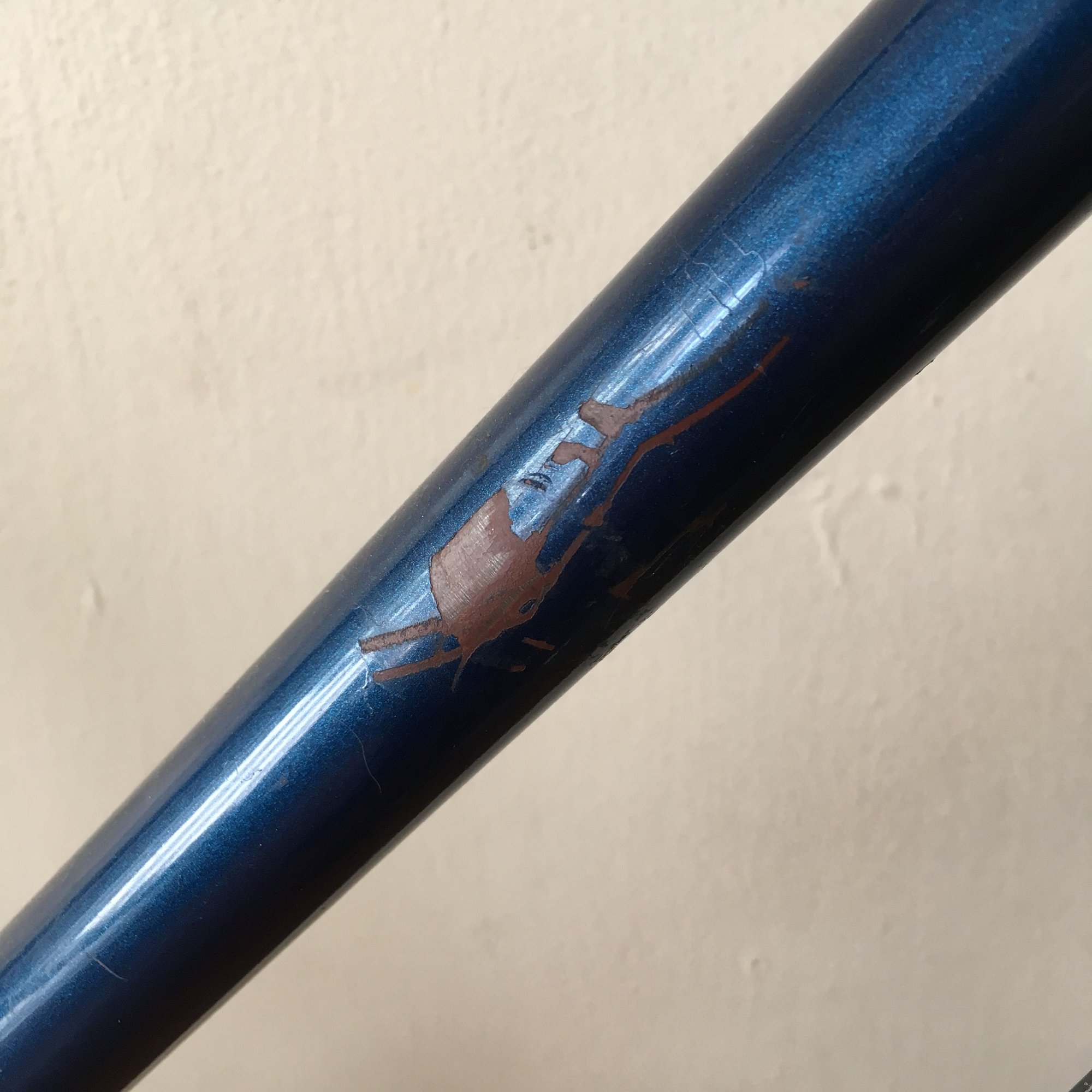

While I can’t be certain, I believe the paint is original. The Ivory cutouts are one clue. Also where there is damage, I don’t see any indication of a repaint.



Last edited by deux jambes; 08-15-19 at 02:33 PM.
deux jambes is offline
Old 08-11-19, 11:07 AM
  #12
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 15,300

Bikes: A bunch of old bikes and a few new ones

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 3691 Post(s)
Liked 123 Times in 100 Posts
Cool frame and good looking build.
bikemig is offline
Old 08-11-19, 01:41 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,207
Mentioned: 215 Post(s)
Tagged: 1 Thread(s)
Quoted: 1658 Post(s)
Liked 43 Times in 40 Posts
-----


Headset tip -

The Tange Levin would look better assembled if the ends of the head tube were chamfer cut.

This permits the head cups to seat slightly deeper with less of a gap between them and the horizontal edge of the lug.


VAR offered a chamfer cutter for their head mill. Do not know about other head mill makers.

-----
juvela is online now
Old 08-14-19, 02:26 PM
  #14
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Originally Posted by mississippimud View Post
Nice project would you mind shahring some photos and stories with the American Built Frames Only group on Facebook , Thanks !
Thanks for asking. Perhaps when she’s all built up.


Originally Posted by juvela View Post
-----


Headset tip -

The Tange Levin would look better assembled if the ends of the head tube were chamfer cut.

This permits the head cups to seat slightly deeper with less of a gap between them and the horizontal edge of the lug.


VAR offered a chamfer cutter for their head mill. Do not know about other head mill makers.

-----
Great tip for someone who can afford a VAR head mill, or who might have access to one. However I could live happy with it as it is.


— — —


As planned, I’m kick starting this project today. I’m hoping to get bearings in the headset, install the fork, and bottom bracket. If there’s enough time left, I may start rebuilding the hubs.

Meanwhile, got a Sram PC-850 soaking in mineral spirits. Couple of seat post parts soaking in oxalic acid. And slowly flushing out the freewheel with WD for starters.

Last edited by deux jambes; 08-15-19 at 02:35 PM.
deux jambes is offline
Likes For deux jambes:
Old 08-14-19, 06:35 PM
  #15
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts

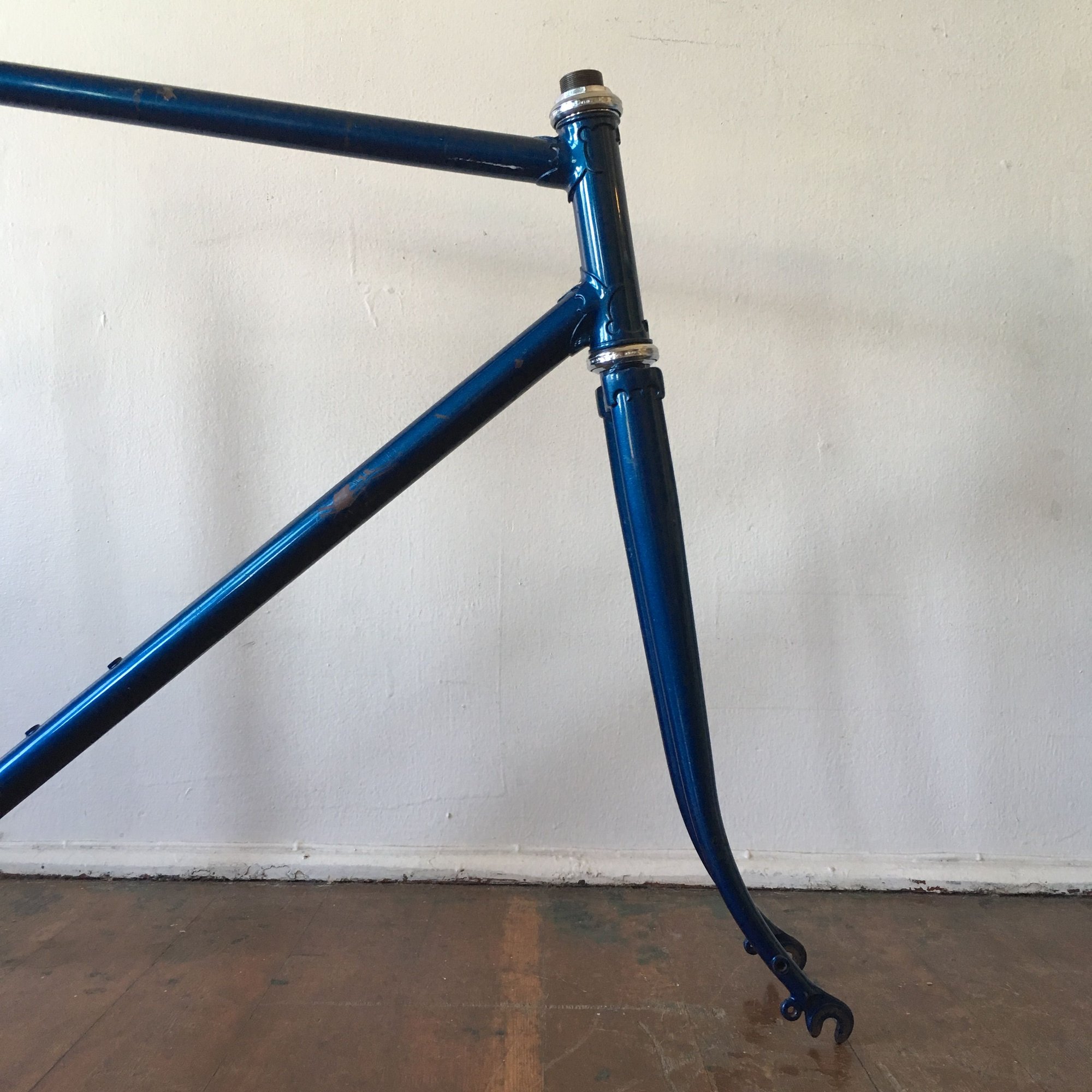

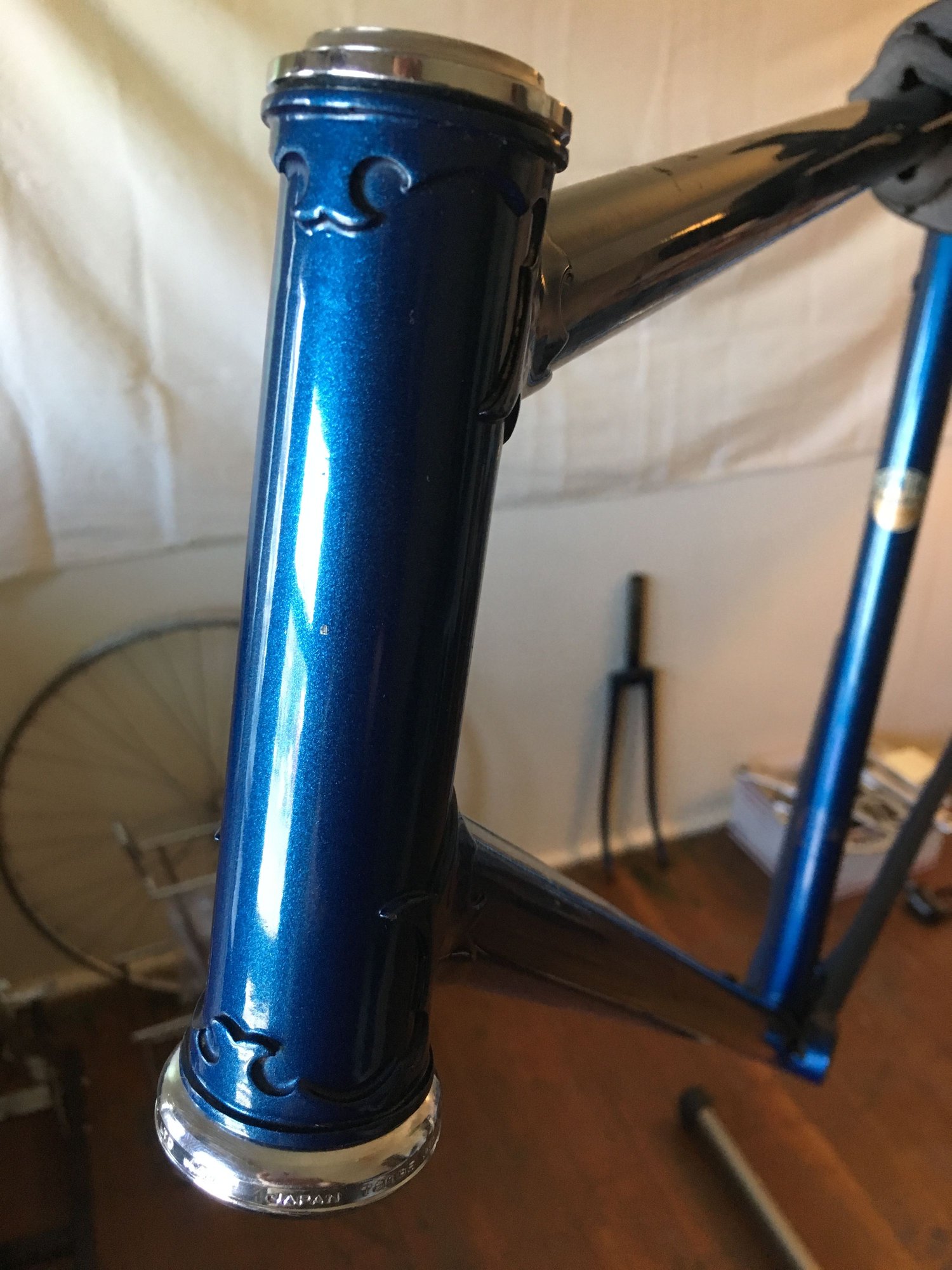

So far so good for the day’s plans. Got a smooth spinning headset, and bottom bracket.

I’m waiting on a package this week which will be incorporated into the headset, so I’ll leave the locknut off, and wait for final adjustment until then...

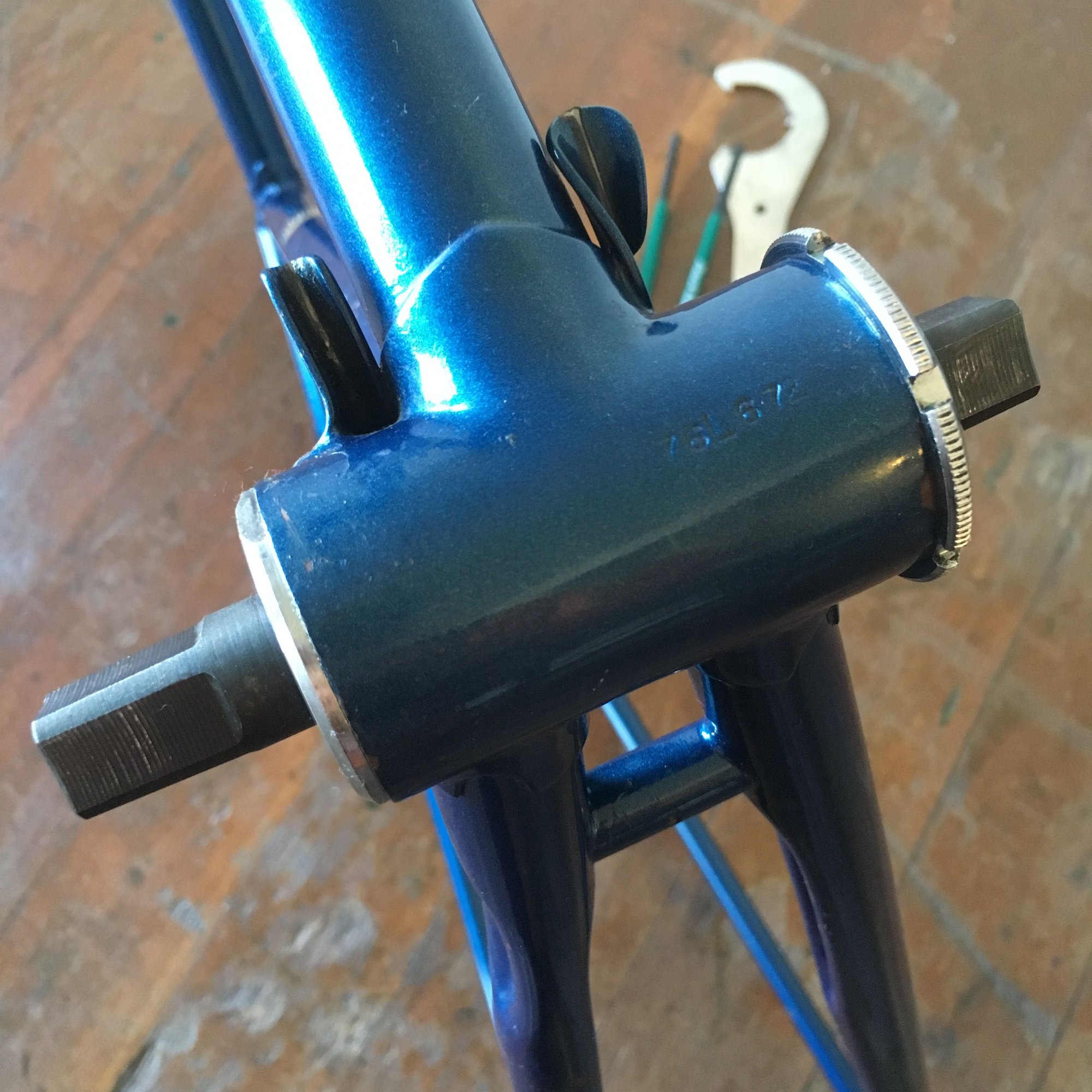

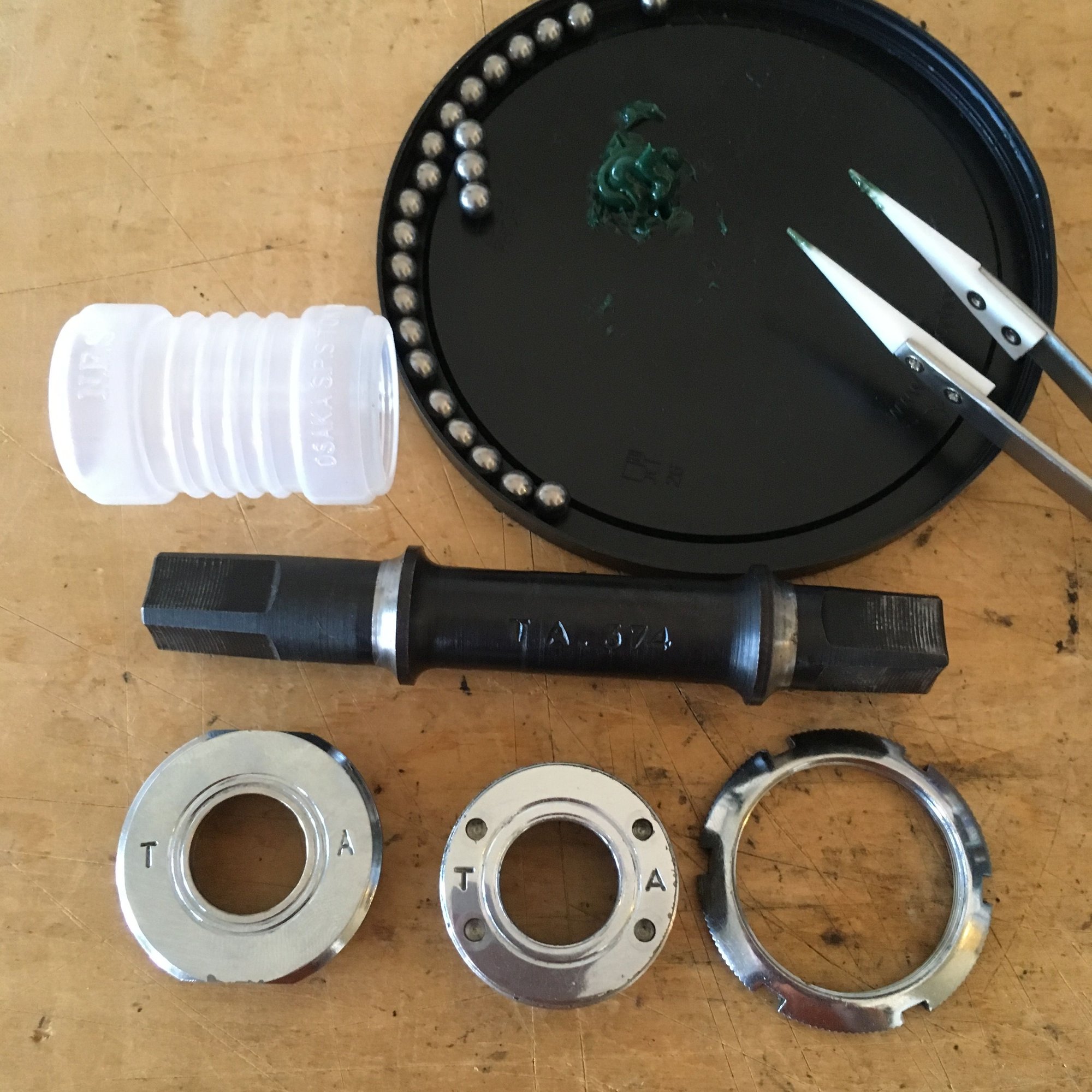

As for the bottom bracket, it was procured from the Co-Op as well. I had to dig through two 5 gal. buckets full of cups, and spindles to piece it together. An extra bonus that all the bearing surfaces were smooth, and shiny!



Last edited by deux jambes; 08-15-19 at 02:35 PM.
deux jambes is offline
Old 08-14-19, 06:38 PM
  #16
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 1,879
Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 83 Times in 63 Posts
Nice. Love the bb you pieced together.

What's going on the steerer? Cable hanger for centerpulls? Decaleur?

If you have a pin spanner I would see if you can disassemble that freewheel and get some new grease in there. Peace of mind. Just make sure to pull apart over a bucket so you can catch the bearings.
TenGrainBread is offline
Old 08-14-19, 06:40 PM
  #17
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
While fiddlin’ around with the bottom bracket shell, I noticed the serial number seems to confirm a 1976 build date. Anyone familiar with Eisentraut serial numbers?

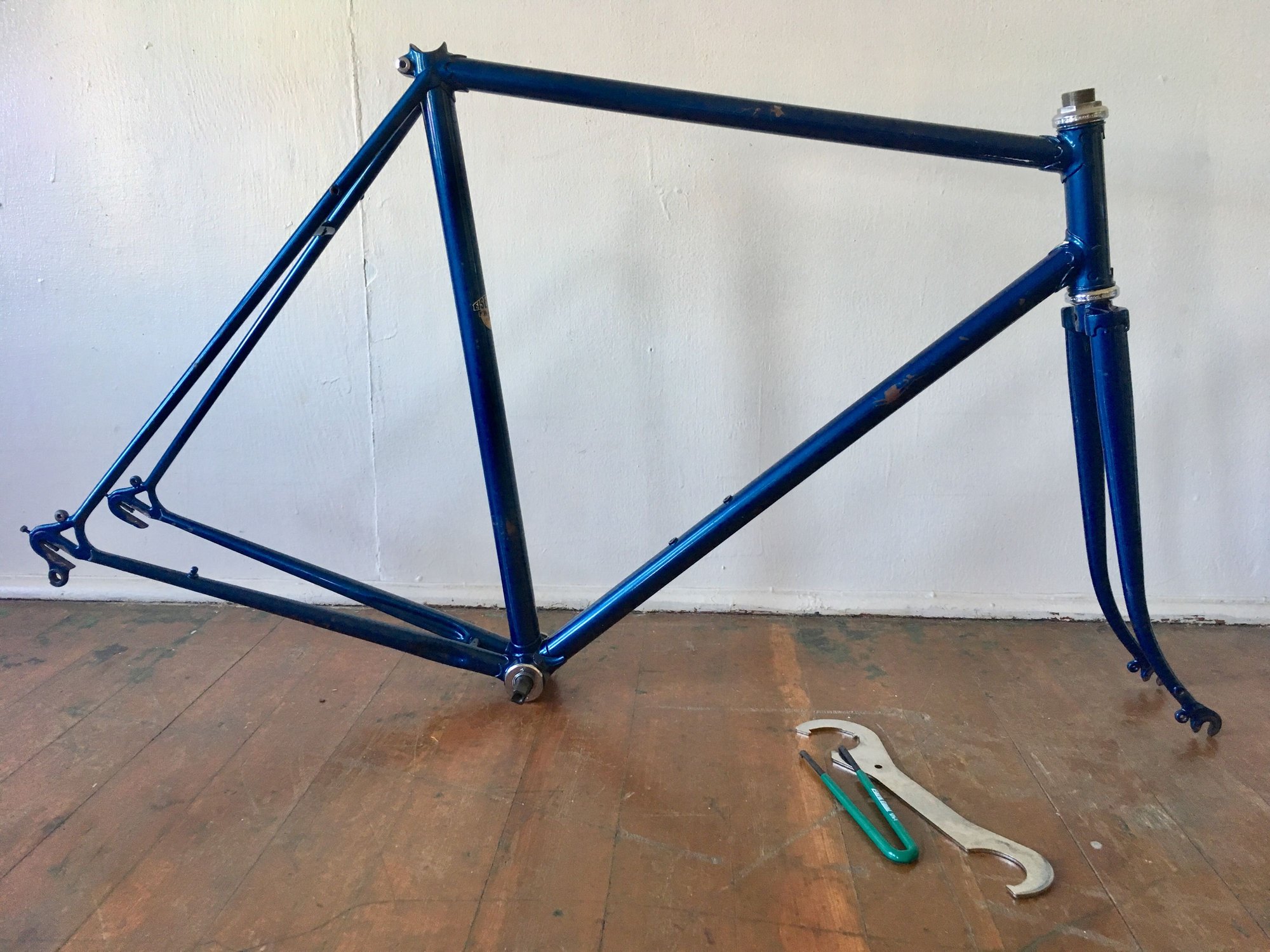

And finally, the results of today’s “labor” so far... An actual frameset!


Last edited by deux jambes; 08-15-19 at 02:36 PM.
deux jambes is offline
Old 08-14-19, 07:42 PM
  #18
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Originally Posted by TenGrainBread View Post
Nice. Love the bb you pieced together.

What's going on the steerer? Cable hanger for centerpulls? Decaleur?

If you have a pin spanner I would see if you can disassemble that freewheel and get some new grease in there. Peace of mind. Just make sure to pull apart over a bucket so you can catch the bearings.
Thank you. The bb should be a perfect mate for the crankset. Banking on a good chainline... we'll see!

And you guessed it... got a decaluer on the way

The FW is a New Winner. I’m not sure I want to dink around with trying to open it up without the special tool made for ‘em. Otherwise, I completely get where you’re coming from. The plan is to soak it in mineral spirits after the initial flush, and then follow that cleaning up with a final soak in a proper lubricant. Mystery Marvel Oil was one suggestion given so far.


— — —

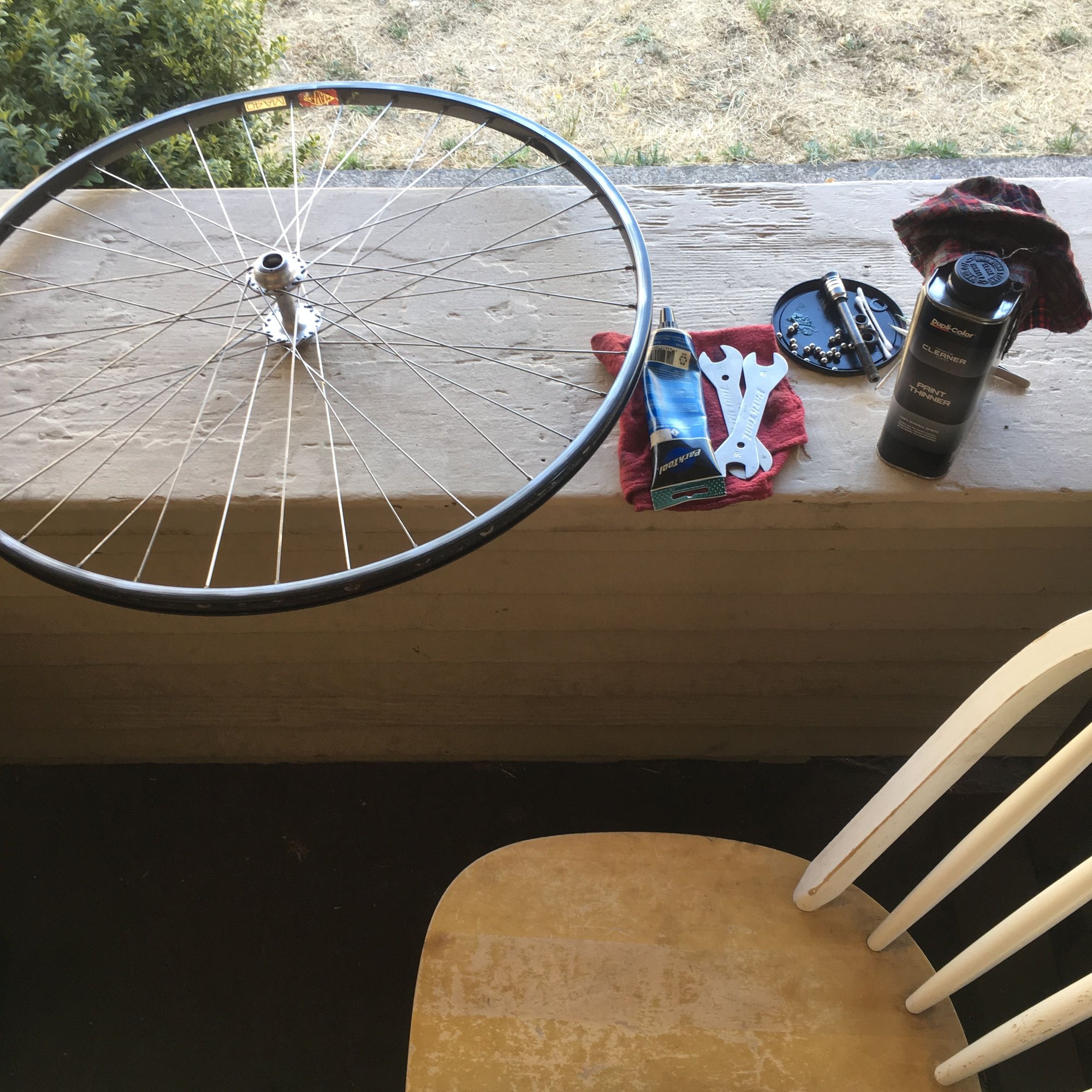

While the wheelset I’ll be using is smooth, and long spinning, I was tempted to let ‘em ride... But I decided to open the front hub to check things out just to be sure. Glad I did too since conditions are looking dry there. We’ll go ahead and rebuild the rear hub as well then.

Currently contemplating if I want to risk damaging the dust caps in an attempt to remove them, or just clean things out as best as I can, and repack them as is...

Last edited by deux jambes; 08-15-19 at 02:40 PM.
deux jambes is offline
Old 08-14-19, 08:23 PM
  #19
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Yea, no need to pop the dust caps. Managed to reach underneath them with a bent q-tip. Ran a chopstick wrapped in a rag down the length of the hub too. Things are all clean in there...

deux jambes is offline
Old 08-15-19, 03:37 PM
  #20
deux jambes
Senior Member
Thread Starter

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 948
Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 331 Post(s)
Likes: 0
Liked 18 Times in 14 Posts
Front hub went back together last night. And this morning, I took the rear outside to rebuild it there. Adjusted both hubs to smoothness with only a hairs width of play for QR mounting.





Then it was off to shop for a few supplies for tasks ahead.

Anyhow, the wheels which were a CL find, are slated for some minor trueness tuning this evening. Record hubs laced to Mavic MA40 rims with DT spokes. Brake tracks are in good shape with only the anodizing being lost to wear. They should have many miles left in them.

And after this evening’s true up, I’ll have a wheelset ready to go with frameset.


deux jambes is offline
Old 08-15-19, 04:27 PM
  #21
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,209

Bikes: 90/91 De Rosa, '84 Team Miyata, '82 nishiski,

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 851 Post(s)
Liked 59 Times in 48 Posts
Originally Posted by deux jambes View Post
Thank you. The bb should be a perfect mate for the crankset. Banking on a good chainline... we'll see!

And you guessed it... got a decaluer on the way

The FW is a New Winner. I’m not sure I want to dink around with trying to open it up without the special tool made for ‘em. Otherwise, I completely get where you’re coming from. The plan is to soak it in mineral spirits after the initial flush, and then follow that cleaning up with a final soak in a proper lubricant. Mystery Marvel Oil was one suggestion given so far.


— — —


While the wheelset I’ll be using is smooth, and long spinning, I was tempted to let ‘em ride... But I decided to open the front hub to check things out just to be sure. Glad I did too since conditions are looking dry there. We’ll go ahead and rebuild the rear hub as well then.

Currently contemplating if I want to risk damaging the dust caps in an attempt to remove them, or just clean things out as best as I can, and repack them as is...
Freewheels normally have grease..... but I have had good luck using Phil's Tenacious oil with old freewheels, smooths them out and makes them very quiet. I just put the freewheel small side down and dribble the oil around the seam and let gravity do it's job. so I recommend Phil's
__________________
Looking for more time to ride what I have
squirtdad is offline
Old 08-15-19, 05:33 PM
  #22
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 4,138

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, 1960 Cinelli SC, 1980 Bianchi SC and more

Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 1157 Post(s)
Liked 74 Times in 59 Posts
Originally Posted by deux jambes View Post
Thank you. The bb should be a perfect mate for the crankset. Banking on a good chainline... we'll see!

And you guessed it... got a decaluer on the way

The FW is a New Winner. I’m not sure I want to dink around with trying to open it up without the special tool made for ‘em. Otherwise, I completely get where you’re coming from. The plan is to soak it in mineral spirits after the initial flush, and then follow that cleaning up with a final soak in a proper lubricant. Mystery Marvel Oil was one suggestion given so far.


— — —


While the wheelset I’ll be using is smooth, and long spinning, I was tempted to let ‘em ride... But I decided to open the front hub to check things out just to be sure. Glad I did too since conditions are looking dry there. We’ll go ahead and rebuild the rear hub as well then.

Currently contemplating if I want to risk damaging the dust caps in an attempt to remove them, or just clean things out as best as I can, and repack them as is...
The Marvel is the initial fill and soak, it has some great cleaning properties. 50wt motor oil is my go to hack for lube. I also sometimes will warm the freewheel and inject grease with a hypodermic. None of this is meant to be a proper service but the Suntours are as tough as they come and will usually keep going even if you do nothing so this method has never caused any catastrophic failures.
merziac is online now

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
