Suntour Ultra Conversion to 8-speed

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Suntour Ultra Conversion to 8-speed

Old 08-12-19, 08:32 AM
  #26
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,415

Bikes: 1977 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 1730 Post(s)
Liked 72 Times in 56 Posts
When I first came here, this was all swamp. Everyone said I was daft to build a castle on a swamp, but I built in all the same, just to show them. It sank into the swamp. So I built a second one. And that one sank into the swamp. So I built a third. That burned down, fell over, and then sank into the swamp. But the fourth one stayed up. And that’s what you’re going to get.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Likes For The Golden Boy:
Old 08-12-19, 10:07 AM
  #27
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by pastorbobnlnh View Post
Which model of Suntour freewheel body are you using?

A very rare item, is a modified set of threaded Suntour sprockets which Moulton had made for their 20" wheeled bikes (they also made a Regina version). The Suntour went from being 7 speed Ultra to an 8 speed.
Suntour Winner Pro (I think-4 prong remover). Neat info and website on the Moulton. Now I kinda wish I'd kept my old Regina freewheels (I still have the remover). Maybe I didn't have the hoarding issue back then.

Originally Posted by Velo Mule View Post
This is an interesting project. Please post pictures. That is, if you don't get the Sachs 8 speed freewheel. I like Suntour and tinkering so I would be interesting in how this works out.

If the cog fits without interfering with with the spokes, shifting the derailleur should be no problem.
Yeah, I'd rather do this than space out my dropouts to 130mm. Reading about @masi61's opinion on the 8 speed freewheels makes me leery of them. I assume you're right about derailleur interference.
Eiko is offline
Old 08-12-19, 10:33 AM
  #28
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 6,337

Bikes: '72 Motobecane Le Champion(totaled), '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Tre Cime, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 474 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Just a side note to be an irritant: the only "cogs" on a bicycle are in the IGH, if it has one. Technically the items on a derailleur block on the hub are called sprockets. So are the front chain rings but that variation from sprockets is far more acceptable. Cogs mesh with each other, sprockets are driven by a chain like item.

Fortunately, post/pillar and seat/saddle discussions are out of scope of this thread!

If Sheldon could do it, so can many others. The devil is in the details which is why people plan via measurements and calculations. Having said that, may succeed with trial and error. The question is, can you afford the second half?

Oh! Since you will need to dish the wheel. the DS spokes will become more "straight" (reduced offset from center line of the hub), reducing the clearance of between the spoke and derailleur.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 08-12-19, 05:32 PM
  #29
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,082

Bikes: frankenbike based on MKM frame

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Likes: 0
Liked 36 Times in 27 Posts
Would this work? 8-speed freewheels are still made. https://www.amazon.com/SunRace-8-spe.../dp/B001GSQL6W - apparently 13, 15, 17, 19, 21, 24, 28, 32?

17-19-21 is closer than 17-19-22.
philbob57 is offline
Old 08-13-19, 10:50 AM
  #30
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by philbob57 View Post
Would this work? 8-speed freewheels are still made. https://www.amazon.com/SunRace-8-spe.../dp/B001GSQL6W - apparently 13, 15, 17, 19, 21, 24, 28, 32?

17-19-21 is closer than 17-19-22.
Thanks for the tip. I'm assuming any 8 speed freewheels will need 130mm dropout spacing? Mine is 126mm and I'd rather not spread the dropouts. With the needed new hubs and wheels. At which point I may as well go with a freehub.
Eiko is offline
Old 08-13-19, 11:22 AM
  #31
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island
Posts: 396

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Hybrid Drive concoction

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
I think that if you put the sprocket on the inboard side of the freewheel, remember it is not resting up against the freewheel sprocket flange but will be inboard of that flange and there is clearance for the spokes, there will be no re-dishing the wheel.

What Eiko is trying to do is use the space that may be available between the last sprocket of the freewheel and the spokes to fit in one more sprocket. There is room there, the question is, is it enough and how to attach that extra sprocket. The drop out side of the sprocket will be in exactly the same place as the original position.

Since the spokes angle away from the freewheel (it is a small angle) , the larger the sprocket, the more possibility that the add-on sprocket will fit.

My guess is that this will work if if the attachment of that sprocket can be worked out.
Velo Mule is offline
Old 08-13-19, 11:34 AM
  #32
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,082

Bikes: frankenbike based on MKM frame

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Likes: 0
Liked 36 Times in 27 Posts
Doesn't Sheldon talk about rearranging spacers to fit an 8-speed freewheel into a 125 mm space? I'm pretty sure someone does but I don;t remember who or where.
philbob57 is offline
Old 08-13-19, 11:51 AM
  #33
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,118

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Liked 15 Times in 14 Posts
This is an interesting project. When you say you want more in between cogs and are not necessarily going for a lower gear, then it sounds that you are prepared to swap out individual Suntour Winner Pro cogs in order to get smaller tooth jumps between them. I may have to re-read your post where you talked about which gear inches that you have now, and what the progression of gear inches will be once the conversion is made.





I know that replacement cogs for Winner Pro freewheels used to be quite plentiful and most bike shops had that Suntour board with all the different cogs so that you could do a customized build. I have never actually changed the individual cogs on my Suntour 7 speed freewheel. It would be nice if these were more like a cassette where the spline pattern is the same for every cog to be able to slide right on the freehub body. That design required far less intimate knowledge of which cog will fit into which stepped, splined, or threaded area on the freehub body. Could you talk about about how you will swap in different cogs in the middle of the freewheel?





Also, the idea of mounting an inboard large cog is definitely worth doing to see how it turns out. Even if it is less than a stellar result we all would have learned something.





With that said, could we talk some more about that 34 tooth cog and how you plan to attach to the current largest cog (lowest gear)? In the 8 speed MTB cassette era, the Shimano XTR 900 cassette came in a variant that was fully disassemble-able. That particular one I believe is rare, but the design of it was brilliant. The sub-carriers were not riveted together but bolted together with some really nice chainring style recessed bolts with spacers built in. Sort of like the triplizer chainrings that can take a double crank not designed to be a triple and to make it a triple.





So I guess I would like to know about the attachment of cog #8 to cog #7 . Now that you have softened the metal to make it drillable, what was your intention from there? Were you going to use chainring bolts and spacers through a through hole that is unthreaded or were you going to tap the through holes for a metric (or SAE) bolt and just go with a straight bolt and spacer set up?





One option worth looking into would be to put riv-nuts in one of the cogs. The riveted part might have the thickness to approach the spacing you need to match the cog spacing on the freewheel.





I'm just thinking out loud here, so good luck on your hands-on design process. It sounds like you have the determination to see it through and work with what options might work.





Now that you have posted enough, could you post a few photos now that capture what you are proposing?
masi61 is offline
Old 08-13-19, 12:15 PM
  #34
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 953
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 34 Times in 21 Posts
Originally Posted by Velo Mule View Post
I think that if you put the sprocket on the inboard side of the freewheel, remember it is not resting up against the freewheel sprocket flange but will be inboard of that flange and there is clearance for the spokes, there will be no re-dishing the wheel.

What Eiko is trying to do is use the space that may be available between the last sprocket of the freewheel and the spokes to fit in one more sprocket. There is room there, the question is, is it enough and how to attach that extra sprocket. The drop out side of the sprocket will be in exactly the same place as the original position.

Since the spokes angle away from the freewheel (it is a small angle) , the larger the sprocket, the more possibility that the add-on sprocket will fit.

My guess is that this will work if if the attachment of that sprocket can be worked out.

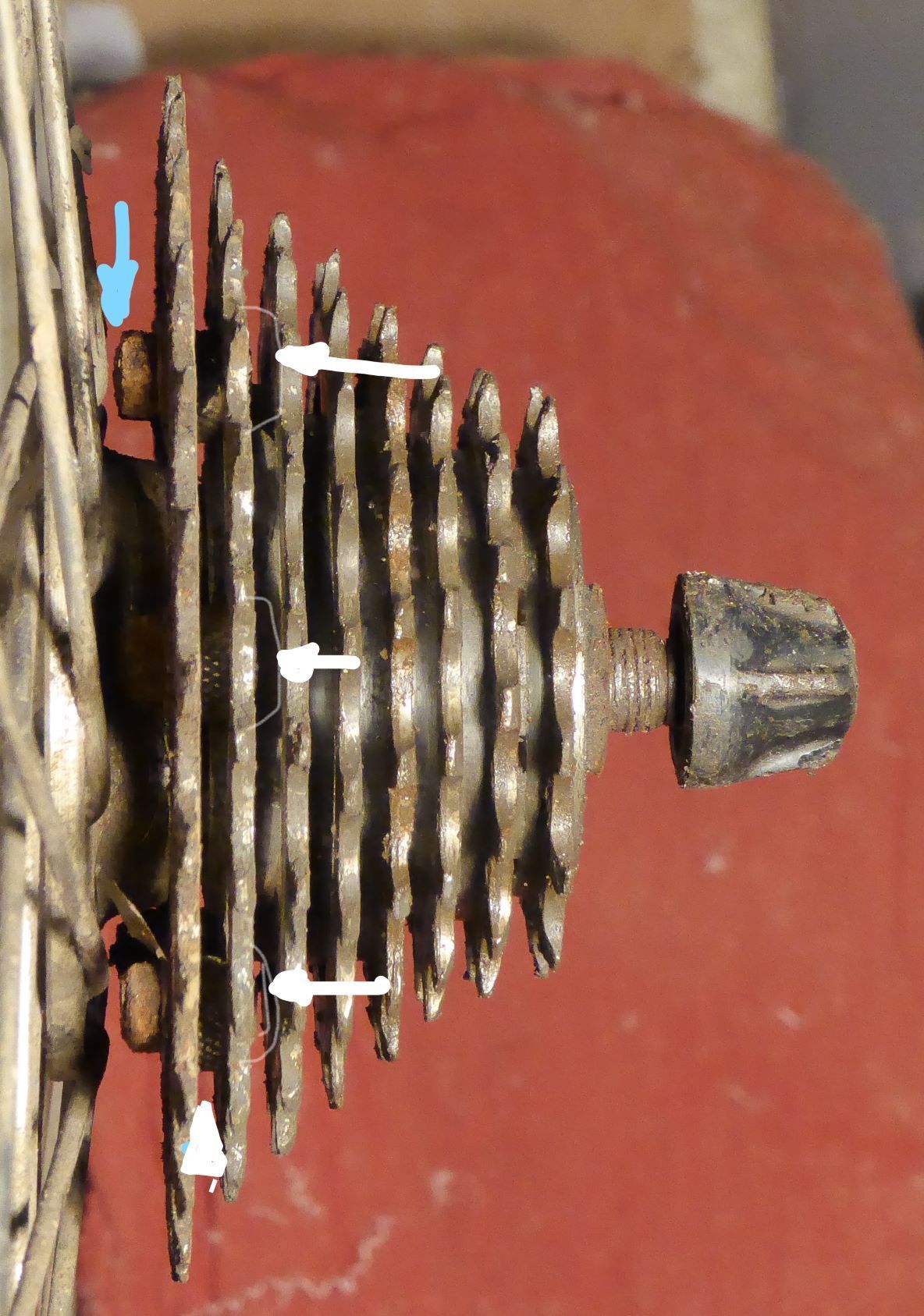

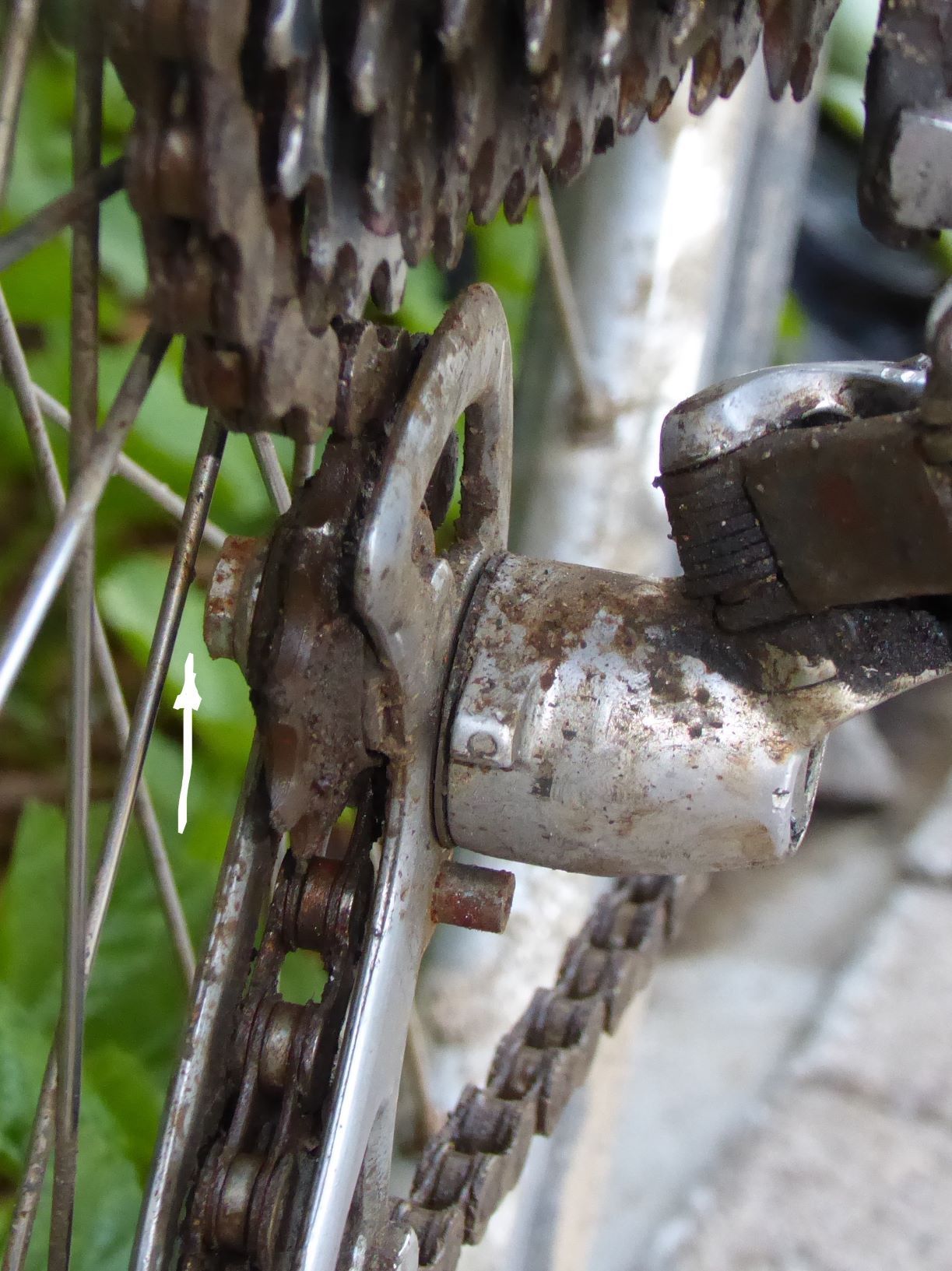

This can definitely work -- I've done it, albeit in a setting less challenging of metallurgy skills which I do not have. It's really sweet and required no re-centering of the wheel. I don't want to hijack the thread with my project, I just wanted to cheer on the OP in trying to get it to work. @Velo Mule has identified the opportunities and challenges precisely.

@Eiko, if you think my mod. would help you, p.m. me (or just respond here) and I will send you some notes.

Last edited by conspiratemus1; 08-13-19 at 12:20 PM.
conspiratemus1 is offline
Old 08-14-19, 12:55 PM
  #35
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
@Velo Mule Yes, everything you said.

Originally Posted by philbob57 View Post
Doesn't Sheldon talk about rearranging spacers to fit an 8-speed freewheel into a 125 mm space? I'm pretty sure someone does but I don;t remember who or where.
I didn’t see that on Sheldon’s page converting 7 to 8 speeds. The 7 speed 125 mm is already narrow Ultra spacing – I don’t see how you can rearrange spacers.

Originally Posted by masi61 View Post
you are prepared to swap out individual Suntour Winner Pro cogs in order to get smaller tooth jumps between them. I may have to re-read your post where you talked about which gear inches that you have now, and what the progression of gear inches will be once the conversion is made.
Exactly. The improvement in gear ratios and decreased steps is minor. I thought this project was minor so worth the small gain. That may have to be re-evaluated. If you have any suggestions for improving my proposed gearing or my current gearing, I’d like to hear them. I don’t think I'd want to do half-step though, right? Current gearing listed at the end of post 20. 52/39 up front but I only listed the 39t gear inches where I spend most of my time.

Originally Posted by masi61 View Post
I have never actually changed the individual cogs on my Suntour 7 speed freewheel. It would be nice if these were more like a cassette where the spline pattern is the same for every cog to be able to slide right on the freehub body. That design required far less intimate knowledge of which cog will fit into which stepped, splined, or threaded area on the freehub body. Could you talk about about how you will swap in different cogs in the middle of the freewheel?
I have a lot of cogs after upgrading from Perfect to Pro-Compe to New Winner to Winner Pro. Nice thing about Suntour is the cogs are more or less backward compatible.

For Winner Pro, it’s not as simple as a cassette but not too complicated. The 14t screws onto the body to lock the slide on cogs. The 13t screws onto the 14t. Those two are kinda fixed. There might be a 13t/12t combo? I don’t think there is a 15t option with a 14t screwing onto the 15t which would work better for my needs.

So you only have to deal with the two largest cogs (A cogs) which slide on with 4 splines. The middle cogs (B cogs) all slide on with multiple splines. Swapping the middle cogs is like the cassette.

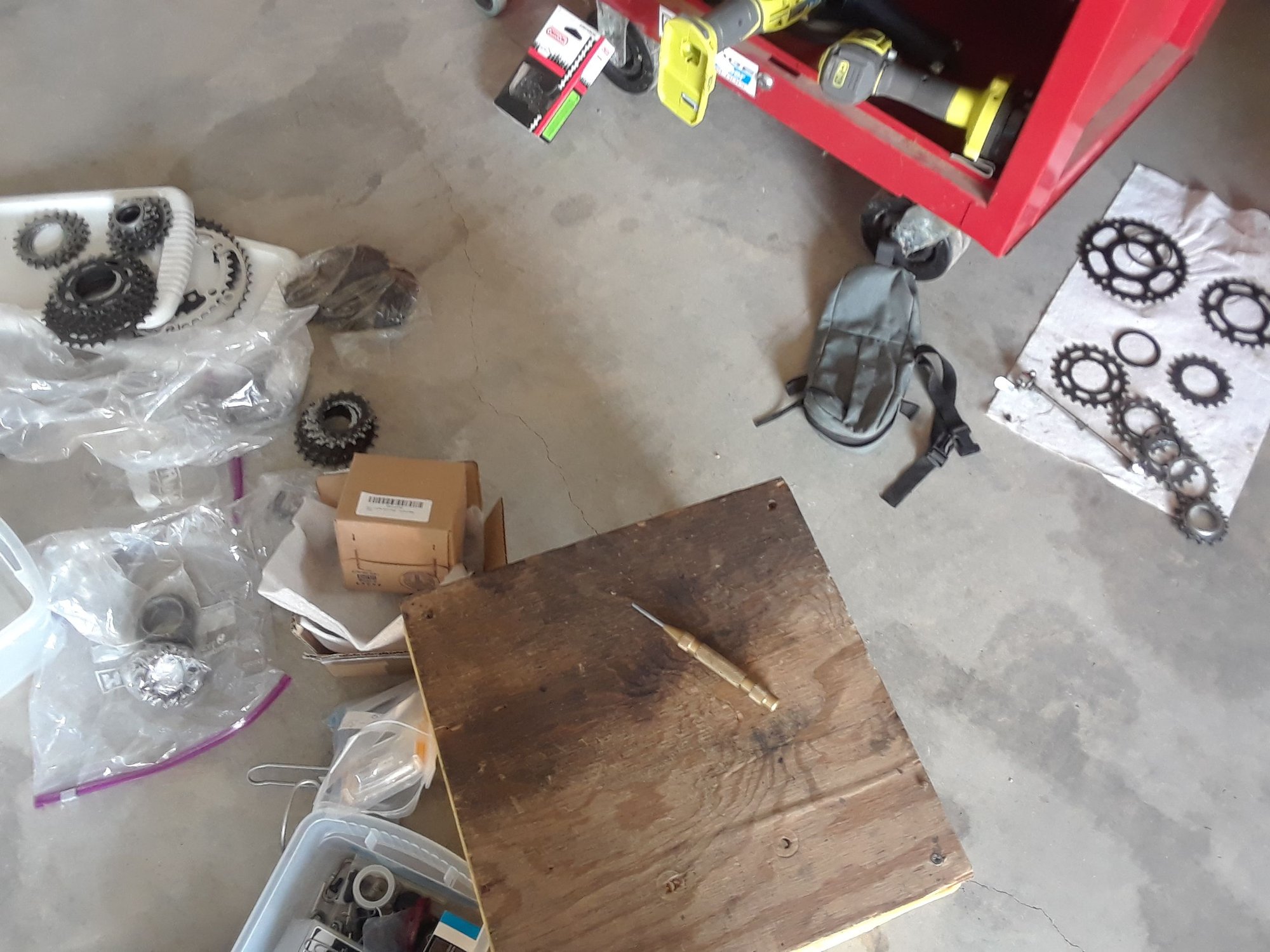

Below is a blurry overview of my cog collection. Left upper is a stack of A cogs and a freewheel. To the right of those on the floor is a stack of B cogs. Threaded small locking cogs, spacers, old freewheel bodies are in the plastic bags. On the right on the paper towel is my current freewheel cogs and spacers.

Originally Posted by masi61 View Post
Also, the idea of mounting an inboard large cog is definitely worth doing to see how it turns out. Even if it is less than a stellar result we all would have learned something.
Now I feel pressure to make this work and not disappoint everyone.

Originally Posted by masi61 View Post
So I guess I would like to know about the attachment of cog #8 to cog #7 . Now that you have softened the metal to make it drillable, what was your intention from there? Were you going to use chainring bolts and spacers through a through hole that is unthreaded or were you going to tap the through holes for a metric (or SAE) bolt and just go with a straight bolt and spacer set up?
Good questions that expose that I don’t know what I’m doing. Given the questions/skepticism from others, I finally threw the cogs on the hub to see how much room I have.

I don’t have as much room as I was imagining. The spacer is 2.7mm thick. With the 8th cog resting on the spokes, I eyeball about 1.3mm between the 8th and 7th cogs. I’m going to have to cut out the center of the 8th cog so I can move it medial (closer to the spokes) an additional 1.3mm.

I was thinking just a nut and bolt (my imagination is way off on actual dimensions). I don’t think there’s enough room for a bolt head (maybe an M4 allen head will work?) to clear the spokes. At least not M5. And a nut on the outside of the 7th cogs will interfere with the chain.

So tapping the 7th cog for an M4 bolt might work? With the M4 bolt head clearing the spokes? I'll have to see. The other option is welding the 8th and 7th cogs together.

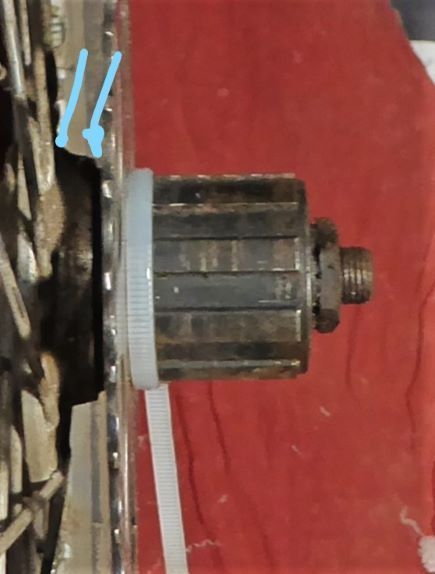

Below is a 26t A-cog in the inner position as a baseline photo.

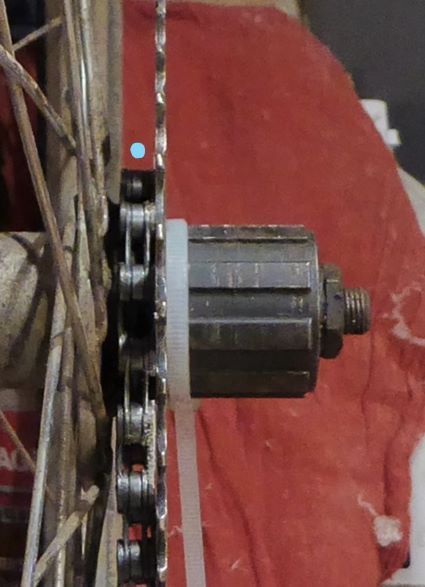

34t cog is in the proposed 8th position between the spokes and the freewheel. It's currently resting the spokes. The spacer I'm holding is 2.7mm so I need to move the 34t cog medial about 1 mm. I think cutting out the center of the 34t cog will allow moving it medial 1mm and clear the spokes. (I hope)


Originally Posted by masi61 View Post
One option worth looking into would be to put riv-nuts in one of the cogs. The riveted part might have the thickness to approach the spacing you need to match the cog spacing on the freewheel.
I’ll have to see how small those RivNuts/PlusNuts go. But if small enough, the heads may become too thin to work as a spacer. I'll have to look into the chainring bolts and spacers too. You’re full of good ideas. I really appreciate your suggestions.

Originally Posted by masi61 View Post
It sounds like you have the determination to see it through and work with what options might work.
Not sure about the determination. Though having posted this publicly may force me to see it through.

Originally Posted by conspiratemus1 View Post
I've done it, albeit in a setting less challenging of metallurgy skills which I do not have. It's really sweet and required no re-centering of the wheel. I don't want to hijack the thread with my project,
I don’t have the skills either. I did not know about martensite, austenite, annealing until I tried to drill the cog. I had thought heat treatment was only hardening. I've learned a little already.

I’m surprised at differences in forums; that you guys follow thread hijacking, on-topic rules. Please post your photos and tips from your project. I would think your photos and tips stay on topic as an aid to me.

I think I"m going to have to learn about heat treatment to restore the hardness as well. It turns out the few seconds of oxy/acet did affect the adjacent tooth. I can scratch it now. Better control of the oxy/acet and experimenting to find out the minimum heat needed would help too.

Last edited by Eiko; 08-14-19 at 01:23 PM.
Eiko is offline
Old 08-14-19, 02:03 PM
  #36
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,210

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 435 Post(s)
Likes: 0
Liked 21 Times in 13 Posts
I applaud your attempt. Good luck and god speed.

Originally Posted by Eiko View Post
My current setup in rear cogs / gear inches for the front 39t chainring:
13-14-15-18-22-26-32 / 81-75-70-59-48-41-33

My proposed setup in rear cogs / gear inches for the front 39t chainring:
13-14-15-17-19-22-26-34 / 81-75-70-62-55-48-41-31
T'were me, I'd just drop the 13, and make a 7-speed: 14-15-17-19-22-26-34. Bump the big ring to 53 if you really need that tall a top gear.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is online now
Old 08-14-19, 04:42 PM
  #37
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,118

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 407 Post(s)
Liked 15 Times in 14 Posts
There are thin washers that you can slide over the freewheel hub threads to move the freewheel outboard. It appears from the of the winner pro freewheel body that there might be some room left on the dropout side to move the freewheel out a few mm with the spacer. This could potentially make it to where the correct spacer could be used between cogs 7 and 8 and hopefully still clear the spokes too.
masi61 is offline
Old 08-14-19, 05:13 PM
  #38
philbob57
Senior Member

Join Date: Jul 2013
Location: Chicago North Shore
Posts: 1,082

Bikes: frankenbike based on MKM frame

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 266 Post(s)
Likes: 0
Liked 36 Times in 27 Posts
I remember reading that an 8-speed freewheel can be fit into 126 mm dropouts by moving axle spacers from NDS to DS and redishing.
philbob57 is offline
Old 08-14-19, 08:53 PM
  #39
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by jeirvine View Post
T'were me, I'd just drop the 13, and make a 7-speed: 14-15-17-19-22-26-34. Bump the big ring to 53 if you really need that tall a top gear.
I don't need the 13t dog. That's a good thought. I should see if a 15/14t small combo is available for the Winner. If it is, I would probably do a 14-34 cogset but I would still try to get 8 speeds on there. I don't need a 53 at my age.

Originally Posted by masi61 View Post
There are thin washers that you can slide over the freewheel hub threads to move the freewheel outboard. It appears from the of the winner pro freewheel body that there might be some room left on the dropout side to move the freewheel out a few mm with the spacer. This could potentially make it to where the correct spacer could be used between cogs 7 and 8 and hopefully still clear the spokes too.
Good idea. Thanks. A friend suggested using flat head bolts and countersinking the heads in the 8th cog. That and tapping the holes in the 7th cog seem like the way to go. For now.

Originally Posted by philbob57 View Post
I remember reading that an 8-speed freewheel can be fit into 126 mm dropouts by moving axle spacers from NDS to DS and redishing.
ah, that makes sense. It would pain me a little to do that since I just had this wheel built up.

I'm going to have to put this project on hold for now. I need to work on a Transit van for a trip to Chicago in a month. I'll post a new thread of progress (I'm assuming there will be) in a few months. Thank you all for your excellent ideas. You guys have really helped overcome a few little hurdles.
Eiko is offline
Old 08-15-19, 07:12 PM
  #40
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 953
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 34 Times in 21 Posts
Originally Posted by Eiko View Post
...
I don’t have the skills either. I did not know about martensite, austenite, annealing until I tried to drill the cog. I had thought heat treatment was only hardening. I've learned a little already.

I’m surprised at differences in forums; that you guys follow thread hijacking, on-topic rules. Please post your photos and tips from your project. I would think your photos and tips stay on topic as an aid to me.

...
Photos and tips coming.
conspiratemus1 is offline
Likes For conspiratemus1:
Old 08-16-19, 07:54 PM
  #41
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 953
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 34 Times in 21 Posts
Hope this isn't a day late and a dollar short. My project was to mount an eighth sprocket onto the inside of the cassette of a Shimano FH-07 tandem hub from the 1990s. The hub is peculiar in that the DS shell has a prominent shoulder that steps the #1 cog too far out, making the hub wider and more asymmetric than it needs to be (always an issue on tandems.) What follows is a reconstruction of what I did a couple of years ago. The first three photos show the baseline situation.

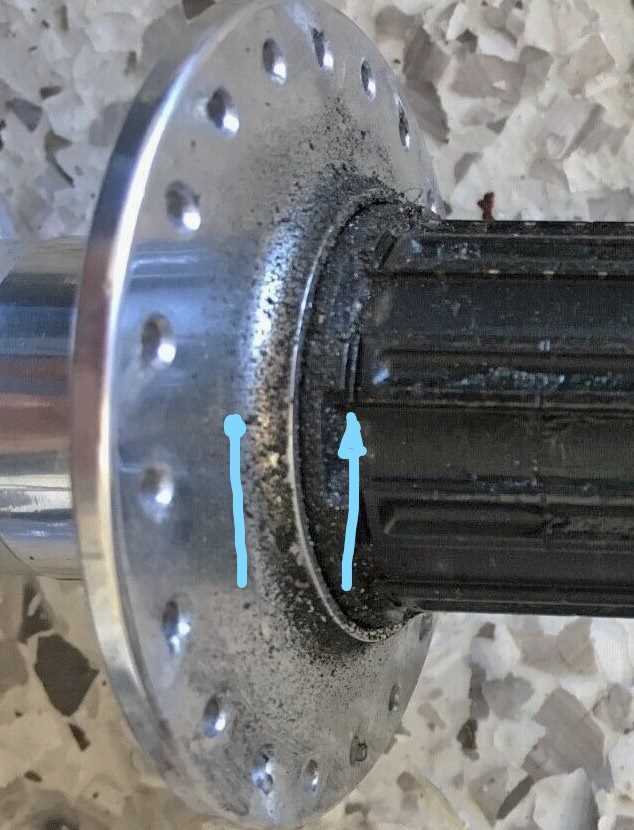

Not mine. Photo taken from an eBay auction.

Blue lollipop: root of shell shoulder

Blue arrow: stop on which dog of sprocket seats

----------------------------------------------------------------------------------------------------------------------




Sprocket placed against cassette body seat.

Lollipop and arrow same as previous photo. Note large space between sprocket and spokes...

----------------------------------------------------------------------------------------------------------------




...into which an 8-speed chain will drop and run freely on the hub shell without jamming in spokes. Blue dot shows the gap.

------------------------------------------------------------------------------------------------------------------------------------------------------

The tandem(s) have graduated into other wheels and I wanted to use the hub for an all-rounder bad-weather utilitarian single bike, an old Jeunet from 1975. The cassette I had was a 7-speed Hyperglide with 23-tooth largest sprocket. I wanted to "fill in" that "blue-dot" space with a 26-tooth sprocket and, in so doing, make the cassette into an 8-speed. I decided to try to bolt a 26-tooth freewheel sprocket to the inside of the 23-tooth sprocket of the cassette. The "bore" of the freewheel sprocket is, of course, larger than that of the cassette, and it does not mate in any way with the splines of the cassette body. It will be supported only by bolts to the 23-tooth native sprocket and will "hang" into the "blue-dot" space. I wouldn't want to rig a tandem hub this way for fear that the force of two of us pushing in low gear up a hill would shear the bolts off. I wasn't even sure it would be safe for just me, but it has been. Because this was to be a friction-shifting setup, I wasn't worried about precise spacing between the sprockets, just wanted it all to fit in the space available.


First, I prepared my parts. The hub axle was shortened to make 130 mm OLD (the tandem spacing was 140mm). The cassette was disassembled into loose cogs by removing those 3 long thin hex screws that align the sprockets.

I had to hunt around to find a suitable freewheel sprocket to use as the new #1 . Good sprockets are very hard to drill. Since this was, at the time, more proof of concept than anything else, I settled on a cheap sprocket salvaged from a knock-off Shimanoid freewheel that proved not too hard to drill with a cobalt bit. The cassette cog was suprisingly easy to drill. The next photos show how it went together.




Top side of assembled sprocket pair

Blue Arrow: cleaned-up bolt location to show countersinking and grinding down the bolt head to avoid fouling chain.

White circle: visible edge of stem-nut spacer

-------------------------------------------------------------------------------------------------------------------------------------------------




Bottom side. Note winter corrosion x 2. White dots in both photos show the visual checks for alignment.

--------------------------------------------------------------------------------------------------------------------------------


The crucial dimensions to check are that the bolt heads in the #2 sprocket do not foul the chain when it's trying to settle onto the #3 sprocket, which of course is not seen in the photo, nor do they foul the chain when it's on the #2 sprocket. The chain links reach down the face of the sprocket a surprisingly long way and there is a very small window where the bolts can be placed. Ideally I would have used flat-head bolts to be sure they were flush with the sprocket face but I had to use oval-heads that were available in the size I wanted. I think they are #8-32 but they could be #6 , or ?M4, don't remember and didn't think to look closely when I had the cassette apart to take these pix. Too big and I'd have to drill away too much metal on the webs of the sprockets.


The two sprockets wanted to be as closely concentric as possible and the bolt holes had to be positioned where a reasonable amount of metal was available in both. I lined them up visually so that the six apertures indicated by the white dots were the same size -- that was more accurate than trying to true up the inner diameters by eye. I clamped them together against a board and drilled away, same size hole all the way through the two, since I wasn't cutting threads in the lower one. Then I countersunk the holes in the upper sprocket to receive the oval heads. After de-burring I inserted a Presta valve-stem nut between the sprockets at each hole to act as a spacer, then bolted the two together. After the threadlocker set I ground down the protruding ends of the bolts, and also ground down the heads just a little, as it turned out.


It would have been nice to tap threads into the bottom sprocket and not need nuts, because I knew they'd create a clearance problem. But the sprocket was only 1.7 mm thick, less than 3 threads of an M4 x 0.7 bolt (or whatever size I actually used.) I never thought of using Rivnuts until @masi61 mentioned it here -- I'd never actually seen one in fact. Now that I know about them, they seem like such an ideal solution that I'm going to learn how to use them and redo this cassette.


Moment of Truth:

The next photos show the cassette installed, with critical clearance points identified. Unfortunately, the nuts fouled the spokes upon test fitting. So I placed a 1.5 mm spacer between the cassette and the freehub stops and this time it passed, as in the first photo.



Cassette installed with spacer against hub (not visible; see text)

Blue arrow: Nut just clears spokes

White arrows: No visible protrusion of bolt heads (view is not quite close enough to perpendicular to prove this)

White arrowhead: valve-stem nut spacer.

---------------------------------------------------------------------------------------------------------------------------------------------------

With the wheel installed, the chain shifted smoothly over all 8 sprockets (still does today even though very dirty, sorry!) Even though this old derailer's jockey pulley has a nut on the inner side of the cage, there is still lots of room. The limiting clearance is the nuts on back of the cassette. I'm really eager to try Rivnuts here. The centering of the rim on the wheel has not changed -- the only adjustment was to the low-gear limiting screw of the derailer so it could reach the new #1 .



Derailer with chain on #1 sprocket.

White arrow: Jockey pulley nut clears spokes easily.

--------------------------------------------------------------------------------------------------------------------------------------------

Bottom line: It worked. Because I had an exceptionally large gap between cassette and spokes to work with, I was optimistic that I'd have room to do this even resorting to using nuts on the back side (and I still needed a spacer, though -- those nuts take up a lot of space.) For more normal situations, I think you'd need some sort of near-flush mounting method, like Rivnuts, building up the thickness of the sprocket (by welding a ring of steel at the bolt holes?) enough to tap three or four threads into it, or by welding the new sprocket directly to the native sprocket of the cassette, with suitable spacers. I would like to be able to not use the spacer under the cassette because the 1.5 mm outward it pushes the cassette leaves that much less for the lockring to screw into. I might have some room to grind a little more off each nut without weakening it too much. Finally, it's a cheap sprocket but I don't need to use it very much and it's not likely to wear out before I do.

Anyway, I hope @Eiko is able to come back to his project. These things are fun to do, don't damage "heirloom" equipment, and learn ya some new skills and problem-solving, important for us retired people.

Last edited by conspiratemus1; 08-16-19 at 09:03 PM. Reason: The added sprocket is 26t, not 25.
conspiratemus1 is offline
Old 08-16-19, 08:16 PM
  #42
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,284

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 17 Post(s)
Tagged: 1 Thread(s)
Quoted: 291 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Originally Posted by Eiko View Post
No idea. I'll find out. As you can see, I find out if something will work empirically. I have friends who will measure first, do calculations with complicated formulas before doing the thing. I'm not that smart.
I have DA cassete 6/7 speed running with a Suntour shift group and the clearences are supper close had to add a spacer and dish the wheel slightly to get eveything to work nice, You will need to add 1.5mm spacing to the drive side and maybe dish the wheel plus realigne the RD hanger to get stuff to work nices.
zukahn1 is offline
Old 08-17-19, 08:40 PM
  #43
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by conspiratemus1 View Post
These things are fun to do, don't damage "heirloom" equipment, and learn ya some new skills and problem-solving, important for us retired people.
Thank you very much for the extensive and excellent writeup and photos. Many of your points are applicable despite your Shimano cassette system vs my Suntour freewheel. I'm taking away some good tips. The zip tie to temporarily hold the cog in place. I'll have to consider Rivnuts. Use of the valve stem nut - but I measure one of those at 3.0 mm thick. Does that match your cog spacing? My spacing is 2.7mm. 3.0 would probably work but that pushes the new cog 0.3 mm closer to the spokes. I may need that space. But I'm still looking for an already made spacer closer to 2.7mm rather than have to 'machine' my own.

Your comment summarizes my feelings - I initially wanted to 'improve' the bike. Now the challenges and problem solving as well as the learning and new skills are more interesting than the result.

"The hub is peculiar in that the DS shell has a prominent shoulder that steps the #1 cog too far out, making the hub wider and more asymmetric than it needs to be" Weird. You have a lot more space than I do.

I kinda wish you had to deal with hardened steel cogs to see what solution you would have come up with. But I'm taking away that maybe I don't need to re-harden the teeth that will get unhardened and the spiders that will be bolted together. And that M4 bolts will work. M4 looked a bit too small by my non-machinist/non-metallurgical eye.

What did you use to enlarge the center hole of the new cog? I'm considering a large hole saw.

Good point that the cog is too thin for tapping. I'm now considering a quick weld on the end of the bolt in the cog instead of a nut. Or brazing (which would be a new skill for me).

A Rivnut may provide the nut function as well as the spacer function. I'd assume the length of the Rivnut would have to be ground down to provide the correct spacer size.

You might be able to grind down the nuts by 1.5 mm? There shouldn't be too much axial load on the nuts and the smaller number of nut threads should be able to handle that small force?

"For more normal situations, I think you'd need some sort of near-flush mounting method, like Rivnuts, building up the thickness of the sprocket (by welding a ring of steel at the bolt holes?) enough to tap three or four threads into it, or by welding the new sprocket directly to the native sprocket of the cassette, with suitable spacers." I would generally like to try non-permanent solutions like the bolts/nuts/Rivnuts before resorting to soldering/welding.

As mentioned, I'll have to come back to this project in a couple of months.

Originally Posted by zukahn1 View Post
I have DA cassete 6/7 speed running with a Suntour shift group and the clearences are supper close had to add a spacer and dish the wheel slightly to get eveything to work nice, You will need to add 1.5mm spacing to the drive side and maybe dish the wheel plus realigne the RD hanger to get stuff to work nices.
I'm running a freewheel - does that make a difference? I think your comment may be more applicable to @conspiratemus' situation?

Last edited by Eiko; 08-17-19 at 08:59 PM.
Eiko is offline
Old 08-17-19, 11:01 PM
  #44
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 953
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 34 Times in 21 Posts
Hi @Eiko, glad you enjoyed my efforts.

Quotes from you in blue:

...Use of the valve stem nut - but I measure one of those at 3.0 mm thick. Does that match your cog spacing? ...
Close enough. The spacing of the native HyperGlide 7-sp sprockets is 3.15 mm, just a bit more than the stem nut.

...I kinda wish you had to deal with hardened steel cogs to see what solution you would have come up with. Ha. I'm glad I didn't....but see below.*

And that M4 bolts will work. M4 looked a bit too small... You're right, they are indeed M4. I must have been worried about that, too, since I now realize that I drilled the 23T "host" sprocket to take M5 bolts. I think I went with M4 for 2 reasons: On Shimano's high-end 9-speed cassettes, the little rivets that fix the large sprockets onto the central carrier are about the size of M4. There are 6 of them and they are the only things transmitting pedaling force from the sprocket into the hub. Just as in my bash-up, there is no direct splined connection between sprocket and hub. The other reason was than M4 has a thread pitch of 0.7 mm, so you get 3 threads engaged with a thinner nut than you do with M5, with pitch of 0.8 mm. But again, see below.*

What did you use to enlarge the center hole of the new cog? I'm considering a large hole saw.
The large hole in the new ("graft") cog is just how it comes from the factory, jagged teeth (engagement splines, actually) and all. Remember cassette bodies are much smaller than freewheel bodies, especially close to the hub. That's one of the things that made this cassette-based project easier than modifying a freewheel -- there's a nice extra clear space in the middle of the freewheel sprocket.

...You might be able to grind down the nuts by 1.5 mm? There shouldn't be too much axial load on the nuts and the smaller number of nut threads should be able to handle that small force?
My "do-as-I'm-told-because-I-don't-know-enough-to-break-the-rules" rule is 3 threads when it's steel into steel, to ensure the nut will tolerate the tension from the initial torquing of the fastener, never mind the stress it experiences in use. The M4 nuts are less than 3 mm thick as it is. But yet again, see below.*

"For more normal situations, I think you'd need some sort of near-flush mounting method, like Rivnuts,..."
which leads to the re-think, below*:

* I realize I erred in worrying about the chain fouling on the fastener heads on outer face of the the 23T sprocket when it shifts out to the next smaller. That won't happen because they are mounted low enough (close enough to centre) that the chain never gets near them -- they are hiding deep in the valley between the two sprockets. You do have to make sure the fasteners don't foul the chain when it is engaged on the 23T. But the only other clearance test the fastener has to pass it that it isn't thicker than the inter-sprocket spacing, in this case 3.15 mm, which would prevent the next smaller sprocket from seating.

Therefore....there is no need for the M4 nuts to be located on the back side of the two-sprocket sandwich after all. I could flip the nuts and bolts around so that the bolt head is on the back and the nut is on the face side. Then, with countersunk holes in the back side of the "graft" sprocket, I would have little (with oval-head bolts) or no (with flat-head bolts) protrusion on the back side. This would be useful to your project where you have less space to the spokes. It would avoid having to grind down Rivnuts to match the sprocket spacing. Downside is that while I was able to drill the holes in both sprockets with cobalt twist bits, my countersink bits are just high-speed steel for wood and aluminum. One clearly must have worked OK for the holes in the 23T, but this steel was softer than the grafted freewheel sprocket and cobalt countersink bits are spendy.

Something to sleep on.

Last edited by conspiratemus1; 08-17-19 at 11:05 PM.
conspiratemus1 is offline
Old 08-18-19, 09:25 AM
  #45
Eiko
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 15
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 0 Times in 0 Posts
[QUOTE=conspiratemus1;21080310]Good idea about using blue to highlight quotes.

My "do-as-I'm-told-because-I-don't-know-enough-to-break-the-rules" rule is 3 threads when it's steel into steel, to ensure the nut will tolerate the tension from the initial torquing of the fastener, never mind the stress it experiences in use. The M4 nuts are less than 3 mm thick as it is.

My friend tells me that "something like 80% of the force will be on the first two threads". And I don't think the bolt and nut will be exposed to a lot of lateral force compared to the inline force from the chain (whatever direction that force is - longitudinal?). The lateral force would be from the position as the 1st cog (is that the standard nomenclature? Most medial/closest to the spokes is 1 and the outer cog is 8?) and resulting chain deflection.

The 3 thread rule is something else I learned from you. If you're not a machinist, that sounds like something you picked up from the EAA. This discussion probably won't matter since I'm leaning to the Rivnut. Because of the small lateral force from the chain, I think my thought of using the Rivnut as a spacer won't work. The cog needs to be tightly held in place with an actual spacer. My friend suggests silver soldering the cog to the Rivnut would probably hold the cog in place without an additional spacer.

I'll have to go measure the M4 nut to see if that can be a spacer.

The large hole in the new ("graft") cog is just how it comes from the factory, jagged teeth (engagement splines, actually) and all. I didn't think you made the cuts - they are slanted and I figured you would have made them square. But they also looked to small to be engagement splines.

Remember cassette bodies are much smaller than freewheel bodies, especially close to the hub. That's one of the things that made this cassette-based project easier than modifying a freewheel Not fair! Same for the next point.

You do have to make sure the fasteners don't foul the chain when it is engaged on the 23T. But the only other clearance test the fastener has to pass it that it isn't thicker than the inter-sprocket spacing, in this case 3.15 mm, which would prevent the next smaller sprocket from seating. A bolt head or nut would be on my 2nd cog (26t). And then the jump to 22t exposes the bolt or nut to the chain. My bolt needs to be further from the center than yours (in addition to the larger dia of the freewheel vs cassette) to clear the spokes. Although the Rivnut may alleviate that issue. Or I could use a very thin spacer between the hub and freewheel to gain a bit of clearance at the spokes - similar to what you did.

I was able to drill the holes in both sprockets with cobalt twist bits, my countersink bits are just high-speed steel for wood and aluminum. One clearly must have worked OK for the holes in the 23T, but this steel was softer than the grafted freewheel sprocket and cobalt countersink bits are spendy. The 23T Shimano was softer than the generic freewheel sprocket? Surprised. I did find that removal of the hardening made the cog easy to drill with a cobalt bit. I assume it'd be easy to countersink and cut too at this point, maybe even with HSS.

Consolidating all these thoughts and advice, at this point I'm thinking Rivnuts on the inside of the 1st cog, a spacer (go measure the thickness of an M4 nut), and then a countersunk flat head bolt on the outside of cog 2.

Last edited by Eiko; 08-18-19 at 04:06 PM.
Eiko is offline
Old 08-18-19, 09:06 PM
  #46
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 953
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Liked 34 Times in 21 Posts
@Eiko,

If you're not a machinist, ...

Channeling Bones McCoy: "I'm just a country doctor, not a machinist." (You can only guess how badly I've wanted to use that and how long I've had to wait! ... I'm retired.) You could imagine the misquoted "Dammit Jim,...." preface if you liked.


I didn't think you made the cuts - they are slanted and I figured you would have made them square. But they also looked to small to be engagement splines.

As I said, it's cheap. I would say it looked like it was made from eavestroughing material, ...but that would be an insult to the crew who just replaced ours. And believe me, I am quite capable of making clumsy jagged cuts...just not in people.


The 23T Shimano was softer than the generic freewheel sprocket? Surprised.

Yes, weird. You are right to be sceptical. Guess I should just try scratching one with the other and see. On the other hand, the late Mike Barry (Mariposa Bicycles) used to say that aluminum chainrings lasted longer than the steel ones that preceded them -- and he raced with both -- even though they are of course softer. Not sure I ever understood his reasoning and it's too late to ask him to elaborate now. But fair enough, what kills a sprocket is letting a worn chain ride on it, and old freewheels were notorious for getting hooked teeth even though hard steel. Whatever, my HSS countersink chewed right into the holes of that HyperGlide sprocket. Maybe the teeth are hardened more than the face -- is that possible? Or maybe the countersink is now just toast from abusing it in steel. I'm going to do some reading about this.

P.S.: An oval-head machine screw is much thinner, effectively, than a hex- or Allen- head because about 2/3 of it's thickness is countersunk into the mounting hole, e.g., in the plastic covers over light switches and electrical outlets. They usually have a slot or Phillips drive and look like a flat-head screw with a bulging top. They look a little "dressier" than flat-heads.

Last edited by conspiratemus1; 08-18-19 at 11:02 PM.
conspiratemus1 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
