Guerciotti BB Crack?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Guerciotti BB Crack?

Old 08-19-19, 04:00 PM
  #1
nomadmax
Senior Member
Thread Starter

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,547
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 816 Times in 417 Posts
Guerciotti BB Crack?

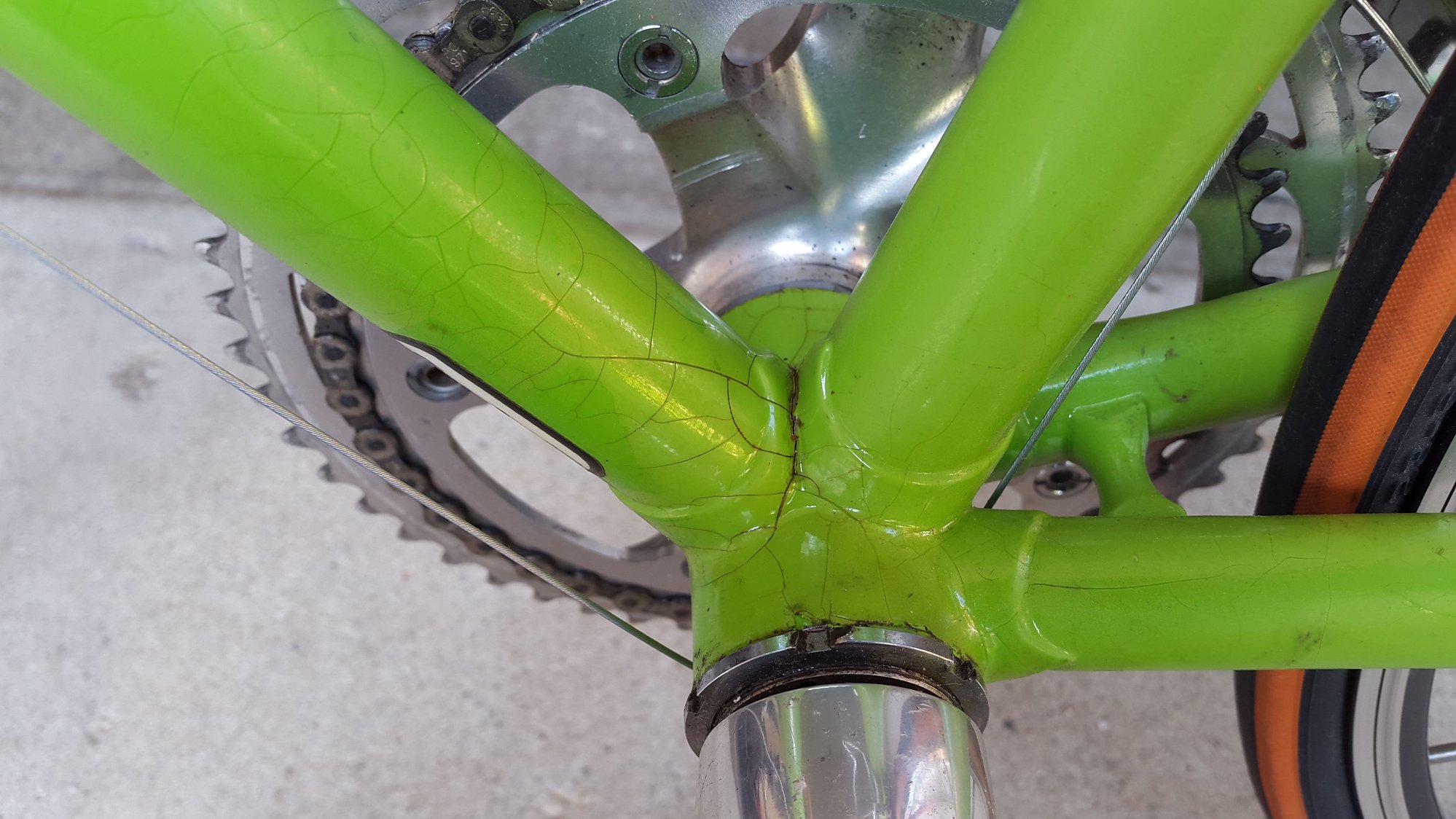

I recently came across a Guerciotti that I think is made of Columbus SL tubing. What concerns me are the visible cracks in the paint and possibly the BB shell pictured below. I know of one other bike from this batch of frames and the owner is a member here. I'm looking for opinions as to how to proceed, ie the seller may get this bike back. The only thing that has me holding out hope is that there's cracking like this in the paint on other parts of the frame, however, it isn't this pronounced. Thanks in advance.






nomadmax is offline
Old 08-19-19, 04:09 PM
  #2
Trevtassie
Senior Member

Join Date: Jun 2015
Location: Down Under
Posts: 1,676

Bikes: A steel framed 26" off road tourer from a manufacturer who thinks they are cool. Giant Anthem. Trek 720 Multiroad pub bike. 10 kids bikes all under 20". Assorted waifs and unfinished projects.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 556 Post(s)
Liked 348 Times in 184 Posts
It does look like they went hard with spray putty and paint, too thick, and that could explain the cracking, since there is cracking away from the lug, but then the main crack is right in a suspicious place. Only way to find out is to get that paint off. Which is probably a good idea anyway, since water and salt can collect under it and start rust anyway.
Trevtassie is offline
Likes For Trevtassie:
Old 08-19-19, 04:30 PM
  #3
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,312

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1565 Post(s)
Liked 875 Times in 445 Posts
I believe that is simply brittle paint cracking under normal BB shell stress. I'm sure someone will come up with a pic that proves me wrong, but every time I've seen a joint fail it's been the tube that cracks/breaks, not the lug or BB shell. It makes sense, as the tubing is much thinner than the shell or lug.

I've never, ever seen or heard of a shell cracking/failing like this. There's always a first time, of course. Take a careful test ride if you can, see if you can detect anything.

If that's original paint, I'd hate to take it off in the area of the crack just to disprove what is extremely unlikely. If it's truly cracked, a short spin around a parking lot should give you the answer.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 08-19-19, 05:57 PM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,256

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 1868 Post(s)
Liked 809 Times in 581 Posts
Originally Posted by Drillium Dude View Post
I believe that is simply brittle paint cracking under normal BB shell stress. I'm sure someone will come up with a pic that proves me wrong, but every time I've seen a joint fail it's been the tube that cracks/breaks, not the lug or BB shell. It makes sense, as the tubing is much thinner than the shell or lug.

I've never, ever seen or heard of a shell cracking/failing like this. There's always a first time, of course. Take a careful test ride if you can, see if you can detect anything.

If that's original paint, I'd hate to take it off in the area of the crack just to disprove what is extremely unlikely. If it's truly cracked, a short spin around a parking lot should give you the answer.

DD
If the BB is actually cracked it should be detectable from the inside, BB R+R would be easier than paint hack.
merziac is online now
Likes For merziac:
Old 08-19-19, 06:02 PM
  #5
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,526
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,014 Times in 650 Posts
It does look like it might be Imron or some other acrylic.

I bought the same seller's other bike, but I've been through the frame, and it's fine.
For the Gerk, the seller and I corresponded when he first got it, to get it rolling.
__________________

I have unfinished business.

RobbieTunes is offline
Likes For RobbieTunes:
Old 08-19-19, 06:15 PM
  #6
Sir_Name
Senior Member

Sir_Name's Avatar

Join Date: Oct 2013
Location: Connecticut
Posts: 3,106

Bikes: are fun!

Mentioned: 64 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Liked 87 Times in 52 Posts
That’s interesting. Could the DT/ST/BB shell joint have been compromised somehow, leading to extra flex and strain at that joint? Then over time the tubes and paint flexed enough to lead to what’s seen here?

I’m not saying that’s what happened necessarily, just a worst case to inspect and pick at.

The paint does tell a story.

Last edited by Sir_Name; 08-19-19 at 06:21 PM.
Sir_Name is offline
Likes For Sir_Name:
Old 08-19-19, 06:17 PM
  #7
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,084

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 42 Times in 26 Posts
I agree with what was stated above, check the inside of the bottom bracket. It may only be bad paint.
embankmentlb is offline
Likes For embankmentlb:
Old 08-19-19, 06:19 PM
  #8
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,256

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 1868 Post(s)
Liked 809 Times in 581 Posts
Either way it's nasty or toast.
merziac is online now
Likes For merziac:
Old 08-19-19, 06:34 PM
  #9
nomadmax
Senior Member
Thread Starter

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,547
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 816 Times in 417 Posts

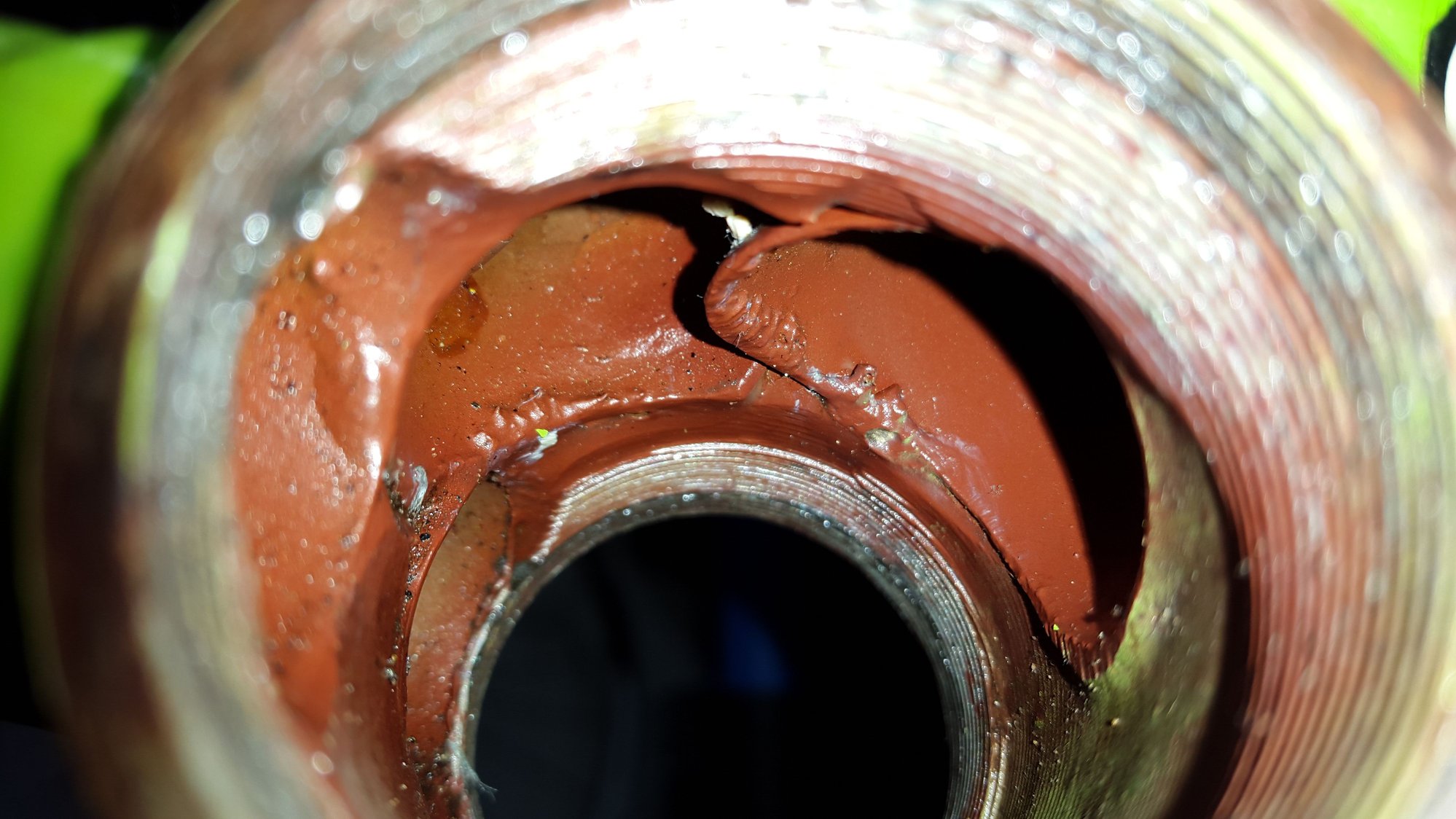

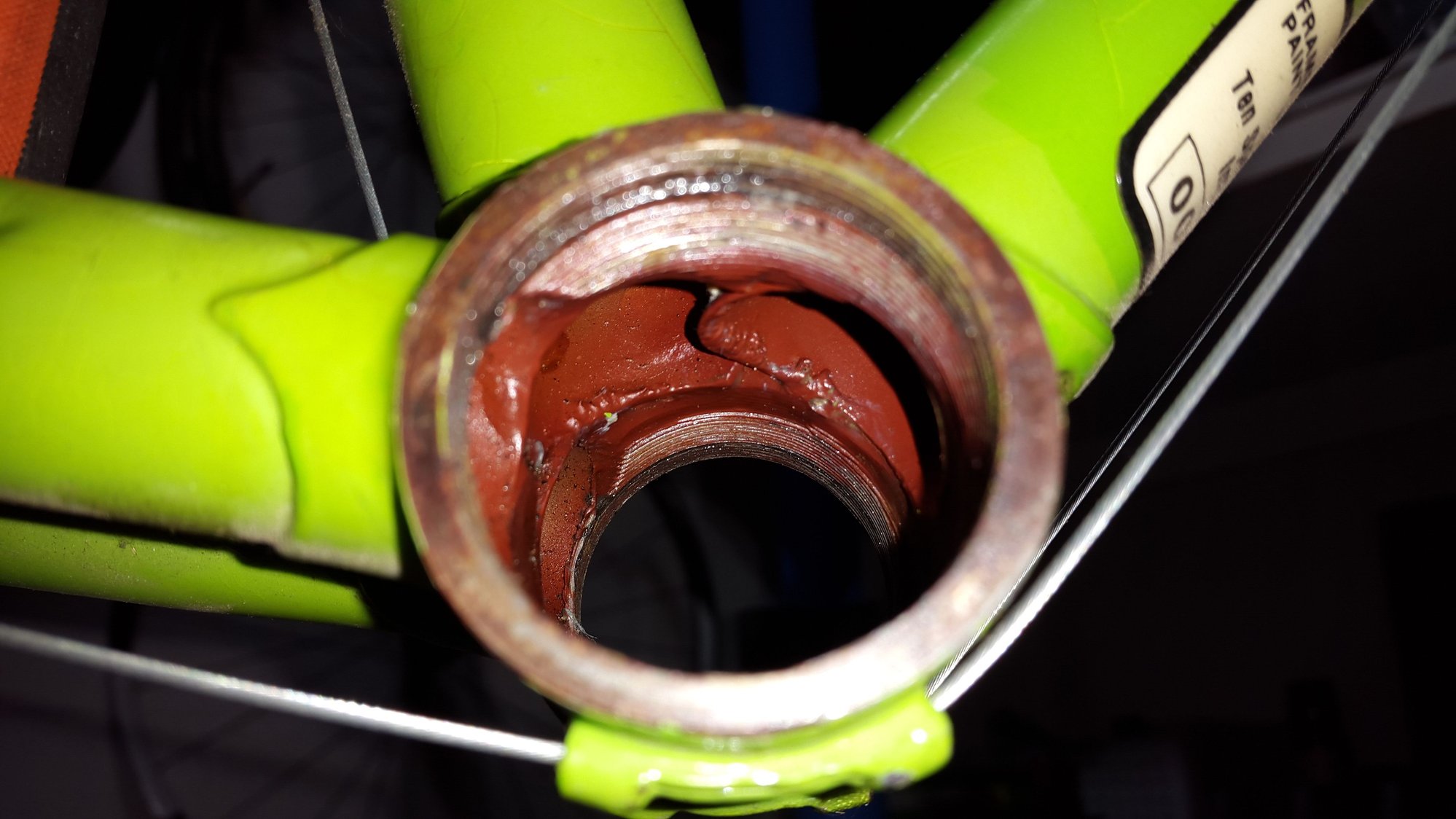

Thanks guys. I'll pull the BB and tomorrow and post back the results.

Here's my next question:

It's gonna need to be completely stripped and repainted. Based on the bike's history it has to be done in the same colors/setup. I'll have them cold set the rear to 130mm and probably have the cable guide braze ons moved from the top of the top tube and have a couple stops added to the side.

Who to send it to? Off the top of my head I think Allan Wanta but Jack Trumbull @ Franklin is semi local to me. Others to consider ?

Last edited by nomadmax; 12-19-19 at 06:38 AM.
nomadmax is offline
Old 08-19-19, 06:38 PM
  #10
gearbasher
Senior Member

gearbasher's Avatar

Join Date: May 2009
Location: Sitting on my butt in front of a computer
Posts: 931
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 201 Post(s)
Liked 69 Times in 45 Posts
I've seen two bottom bracket shells that cracked completely around the seat tube lug. So, you might want to inspect it.

A friend had the seat stay on his Masi re-brazed to the seat cluster and a total repaint done by Franklin Frames. It was beautiful.

Last edited by gearbasher; 08-19-19 at 06:41 PM.
gearbasher is offline
Likes For gearbasher:
Old 08-19-19, 06:58 PM
  #11
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 917

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Liked 436 Times in 263 Posts
Originally Posted by Drillium Dude View Post
I'm sure someone will come up with a pic that proves me wrong, but every time I've seen a joint fail it's been the tube that cracks/breaks, not the lug or BB shell. It makes sense, as the tubing is much thinner than the shell or lug.
You called it



This is from my thread about my commuter Holdsworth/Claud Butler. The bronze braze filler didn't penetrate all the way through under the lug, so the lug cracked due to fatigue. While economics/pricing suggest that a Guerch' shouldn't suffer from this sort of bad workmanship, you never know.

In addition, if it is a crack in the lug due to bad brazing, the tubes beneath should not be cracked. This means that you wouldn't be able to tell by looking inside the bottom bracket.

If you are going to strip and repaint it anyway, why not file/chip away the paint there to investigate?
scarlson is offline
Likes For scarlson:
Old 08-19-19, 07:05 PM
  #12
nomadmax
Senior Member
Thread Starter

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,547
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 816 Times in 417 Posts
Originally Posted by scarlson View Post

If you are going to strip and repaint it anyway, why not file/chip away the paint there to investigate?
This bike may be going back to the seller. I can't remove the paint. Once I do it's mine forever.
nomadmax is offline
Old 08-19-19, 07:12 PM
  #13
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,256

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 128 Post(s)
Tagged: 0 Thread(s)
Quoted: 1868 Post(s)
Liked 809 Times in 581 Posts
Originally Posted by scarlson View Post
You called it



This is from my thread about my commuter Holdsworth/Claud Butler. The bronze braze filler didn't penetrate all the way through under the lug, so the lug cracked due to fatigue. While economics/pricing suggest that a Guerch' shouldn't suffer from this sort of bad workmanship, you never know.

In addition, if it is a crack in the lug due to bad brazing, the tubes beneath should not be cracked. This means that you wouldn't be able to tell by looking inside the bottom bracket.

If you are going to strip and repaint it anyway, why not file/chip away the paint there to investigate?
The tubes at that juncture would be mitered and likely would show the crack in the BB shell, easy enough to examine, I would already have it done one way or the other.
merziac is online now
Likes For merziac:
Old 08-19-19, 07:38 PM
  #14
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,409

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 959 Times in 606 Posts
Originally Posted by nomadmax View Post
This bike may be going back to the seller. I can't remove the paint. Once I do it's mine forever.
Pull the BB. Shine a REALLY bright pen-style LED light into the gap. Do you see light?

If not, build up some non-hardening putty around the "crack" to make a water-tight valley. Fill it with water, WD40, or whatever cheap liquid you have in mind that won't soften or destroy the paint. Does any seep through?

If it passes these two tests, you have one more thing to ask yourself: How much frustration are you willing to deal if/when you finally decide to part with this one? You're going to get a ton of buyers who won't accept this crack; either out of fear, distrust, or general dislike of how it looks, or what it seems to look like.

-Kurt
__________________








Last edited by cudak888; 08-19-19 at 08:07 PM.
cudak888 is offline
Likes For cudak888:
Old 08-19-19, 08:44 PM
  #15
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,808
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 186 Times in 151 Posts
Originally Posted by cudak888 View Post
Pull the BB. Shine a REALLY bright pen-style LED light into the gap. Do you see light?

If not, build up some non-hardening putty around the "crack" to make a water-tight valley. Fill it with water, WD40, or whatever cheap liquid you have in mind that won't soften or destroy the paint. Does any seep through?

If it passes these two tests, you have one more thing to ask yourself: How much frustration are you willing to deal if/when you finally decide to part with this one? You're going to get a ton of buyers who won't accept this crack; either out of fear, distrust, or general dislike of how it looks, or what it seems to look like.

-Kurt
I agree with this approach, and if you document the testing (phone videos) and you got positive results (of course) you might dispel the fears/doubts of SOME future buyer who doesn't appreciate original "patina".
BTW, for the record DuPont Imron is/was 2-part (or "2-pack") polyurethane, not acrylic.
unworthy1 is offline
Likes For unworthy1:
Old 08-19-19, 09:24 PM
  #16
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 917

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 397 Post(s)
Liked 436 Times in 263 Posts
Yeah, and WD40 is probably safe for the paint. I regularly use @cudak888 's above-mentioned approach to check cylinder head valve seat leakdown. But there I can use plain guzzoline or acetone, which might touch the Imron. WD40 is a likely-safe substitute.
scarlson is offline
Likes For scarlson:
Old 08-19-19, 10:08 PM
  #17
delicious
dork

delicious's Avatar

Join Date: Jun 2006
Location: berkeley
Posts: 1,722
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 12 Times in 9 Posts
I have lots of questions, if you don't mind:

Where can I find this seller? Do they still have more of this "batch?" I didn't see these advertised in the classifieds.

Did you get that Gainesville jersey with the bike? Was this paint job designed for Gainesville Schwinn?

Thanks!
delicious is online now
Old 08-19-19, 11:57 PM
  #18
embankmentlb
Senior Member

embankmentlb's Avatar

Join Date: May 2008
Location: North, Ga.
Posts: 2,084

Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 42 Times in 26 Posts
Originally Posted by delicious View Post
I have lots of questions, if you don't mind:

Where can I find this seller? Do they still have more of this "batch?" I didn't see these advertised in the classifieds.

Did you get that Gainesville jersey with the bike? Was this paint job designed for Gainesville Schwinn?

Thanks!
The bike and the jersey are part of the original team kit from the North Georgia Wheelman team. There were 10 to 15 of these custom painted bikes ordered from TSD. I designed the jersey and picked the paint colors for the team. This was way way back before things were done by computer.
I know of two others that still exist. This is the first one I have seen for sale in many years.

Last edited by embankmentlb; 08-20-19 at 12:01 AM.
embankmentlb is offline
Likes For embankmentlb:
Old 08-20-19, 02:11 AM
  #19
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,380

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 731 Post(s)
Liked 371 Times in 250 Posts
Cracked BB Shell ???

The area in @nomadmax frame was a weak spot in some brands of BB shells because the sharp V could create stress risers which would lead to cracks.

On some better built frames, extra brazing material is added to that area from inside the BB shell to fill any gaps.

TSD? That frame most likely came into Ten Speed Drive Imports unpainted. They received a lot of Italian frames that way. They claimed that the Italian paint jobs were poor quality and they could do better themselves in house.

The "DayGlo" fluorescent colors are sprayed over a white base coat then clear coated. The "craquelure" finish looks to be mostly in the clear coat which has shrunk over time.

@cudak888 I like Kurt's suggestions on how to test for a crack in the BB shell.

It's DayGlo NOT NEON!!! You can still buy DayGlo paint but you may have to buy it in a gallon size for each color: https://www.dayglo.com/

We sold a number of Guerciotti frames in the mid to late 70's. We had to warranty a few of them because they cracked across the BB shell. They had a sharp 5 pointed star cut into the bottom of the BB shell which created stress risers.

We may have been getting those first frames through Gus Betat in New Orleans. The problem was soon rectified by using rounded points on the stars (like on nomadmax's frame) Later frames came from TSD. For some reason, most were fire engine red.


BB crack on another frame???

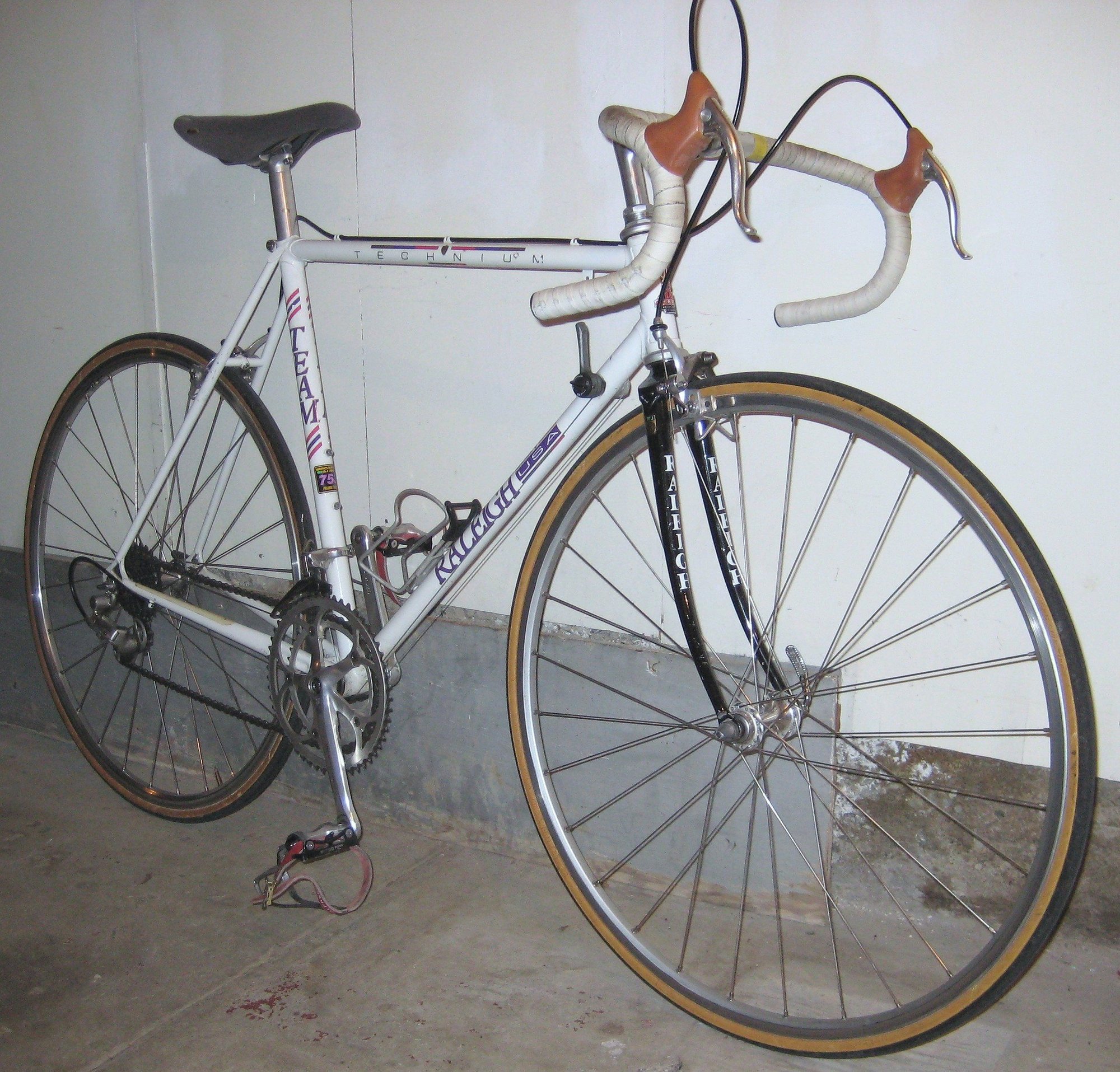

In 2010 I picked up a 1985 Raleigh USA Reynolds 753 Team Pro bike made in the UK by Raleigh's SBDU. It had been raced by sponsored teams in the Northwest and passed around for a few years. The frame had been resprayed (probably a factory job) in 1992 Raleigh USA Team Technium Kit.

What it looked like when I first got it with a worn out Suntour Superbe Pro gruppo.



As I was replacing the BB, I got sick when I noticed what looked like a crack at the down tube, BB shell.



I took it to a frame builder friend and he thought that it was in the braze not the down tube. He said that he could do a slight fillet around the BB and tube or replace the whole down tube. He recommend that I mark the ends of the "crack" and ride the bike to see if it got worse.

I used a Sharpie pen to mark the ends. That was 9 years ago. So far nothing has changed. Knock on wood.




verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 08-20-19 at 05:45 AM.
verktyg is offline
Old 08-20-19, 04:11 AM
  #20
RobbieTunes
Half drunk? Finish!

RobbieTunes's Avatar

Join Date: Dec 2007
Location: Very Southern Indiana
Posts: 26,526
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,014 Times in 650 Posts
I like that it's getting hopeful.
__________________

I have unfinished business.

RobbieTunes is offline
Likes For RobbieTunes:
Old 08-20-19, 04:49 AM
  #21
3Roch
Senior Member

Join Date: Jul 2019
Location: far western MD
Posts: 54
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 18 Times in 12 Posts
Perhaps better than using water etc or a light to find a crack ( the crack could be full of crud).

When you have the BB open plug up any holes in the frame including other side of the BB, rig up a BB size plug on the air chuck on your air compressor, put some soap water over the suspect area and put some air pressure (don't need much) inside the frame. No bubbles= good, bubbles= bad

Last edited by 3Roch; 08-20-19 at 04:50 AM. Reason: typo
3Roch is offline
Likes For 3Roch:
Old 08-20-19, 05:10 AM
  #22
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,409

Bikes: https://www.theheadbadge.com

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1077 Post(s)
Liked 959 Times in 606 Posts
Originally Posted by 3Roch View Post
Perhaps better than using water etc or a light to find a crack ( the crack could be full of crud).

When you have the BB open plug up any holes in the frame including other side of the BB, rig up a BB size plug on the air chuck on your air compressor, put some soap water over the suspect area and put some air pressure (don't need much) inside the frame. No bubbles= good, bubbles= bad
That might be tough sticking corks into both the downtube and top tube, but it's not a bad idea if the aforementioned tests come up inconclusive.

-Kurt
__________________







cudak888 is offline
Likes For cudak888:
Old 08-20-19, 05:17 AM
  #23
nomadmax
Senior Member
Thread Starter

Join Date: Jun 2018
Location: SW Ohio
Posts: 1,547
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 700 Post(s)
Liked 816 Times in 417 Posts

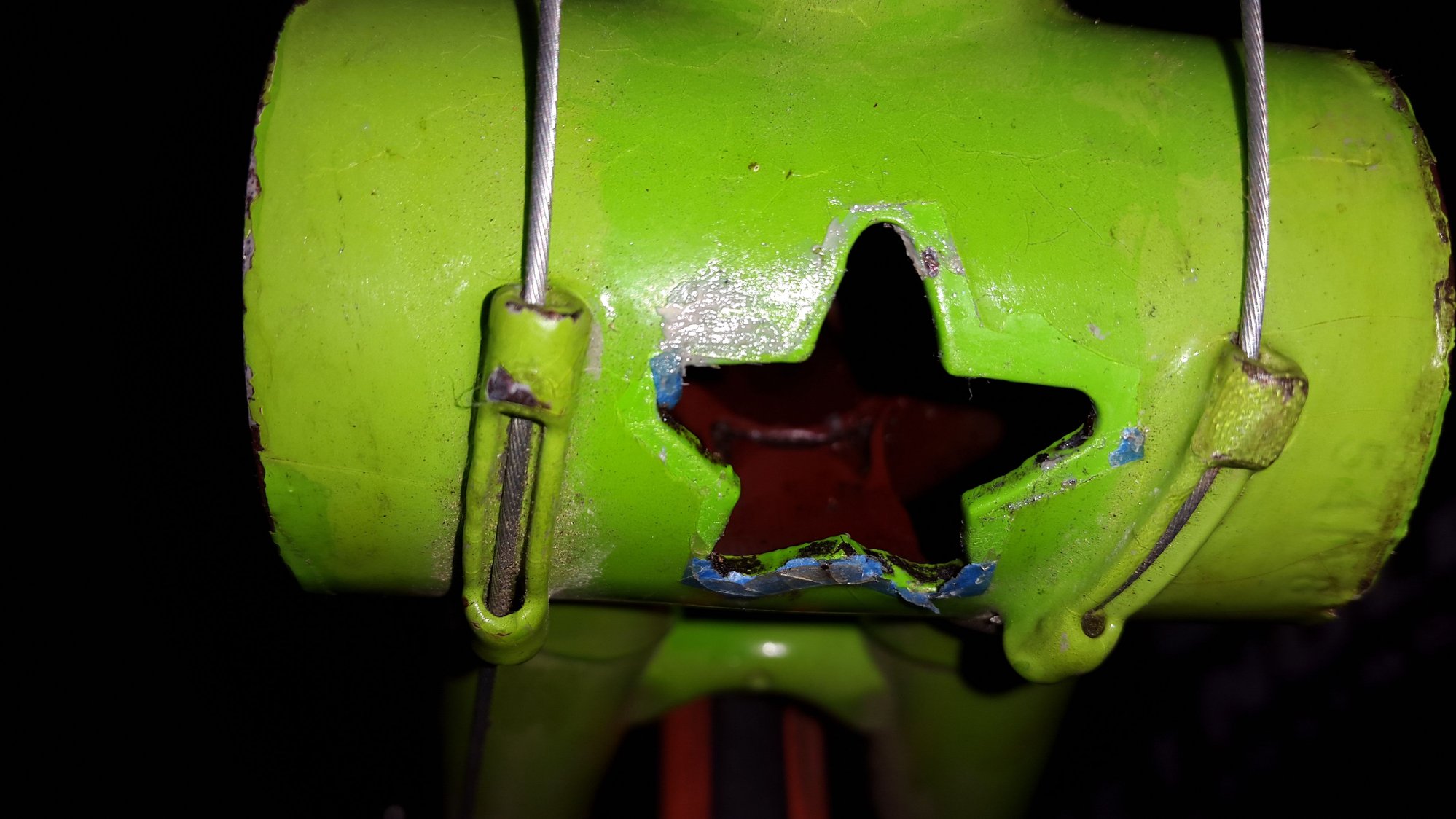

I pulled the BB and took a few photos. There was a fair amount of crap inside the BB shell as the previous owner used body masking tape to cover the star cut out on the outside as well as inside during his restoration, he even clear coated over it. It looks like the interior of the tubes still have the protective coating and rust doesn't seem to be an issue. I did find a dent in the right chainstay that isn't present on my 84 Guerciotti SL so it will need to be replaced.

I'm going to shoot off a couple emails to two frame builders/painters and get a ball park idea what it'll take to bring the bike back. In the meantime, when I get time, I'll get an endoscope camera look inside the BB and hopefully between the mitered seat and down tubes where the crack would be. I'll also try the liquid test as well. The good news is I can't see any light coming from the BB shell to the outside and I don't see any evidence of witness marks on the tubes indicating there has been movement. Not 100% but certainly encouraging. I'm not budgeted for this kind of time or money right now and based on the seller's assurances I had no reason to think I'd have to be.

I was originally scheduled to drive down to GA and pick up the bike in person; a couple days before, the seller suggested Bike Flights as a better alternative for both of us. My gut told me no but I agreed after asking for and getting more pictures of the frame. The close ups he sent were of every place on the frame but the areas of concern, most notably the BB shell. Had I seen the bike in person I would have walked away, this is 100% my fault for not following my instincts. Right now my gut tells me to drive it to GA and get my money back but I'm not decided yet. I've gotten some great deals in the C&V world so even if this thing turns out badly it still doesn't diminish the overall experience of the hunt and chase. Sometimes you get the bear and sometimes the bear gets you. Guerciottis hold a special place for me because I raced them, I'd probably go further than the next guy to bring one back. This one, given it's history and having actually talked with the guy who designed the colorway and jersey deserves to be put right and out on the road.







Last edited by nomadmax; 08-23-19 at 12:49 PM.
nomadmax is offline
Old 08-20-19, 05:19 AM
  #24
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,380

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 731 Post(s)
Liked 371 Times in 250 Posts
Soapy Water For Testing Gas Line Leaks

Originally Posted by 3Roch View Post
Perhaps better than using water etc or a light to find a crack ( the crack could be full of crud).

When you have the BB open plug up any holes in the frame including other side of the BB, rig up a BB size plug on the air chuck on your air compressor, put some soap water over the suspect area and put some air pressure (don't need much) inside the frame. No bubbles= good, bubbles= bad
Mix 1 tablespoon of dish washing detergent into 1 cup of water to create a leak detecting solution. You can also buy a thick commercial solution that does the same thing.

Paint the solution over the suspected crack and apply air from inside the BB shell and look for bubbles coming out.

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Likes For verktyg:
Old 08-20-19, 05:36 AM
  #25
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,380

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 731 Post(s)
Liked 371 Times in 250 Posts
Heavy Respray

Originally Posted by nomadmax View Post
It looks like the BB area has been resprayed, as if a repair was done in the area???

Does the paint look like it's been blended in like around the BB and/or is there cracking in the paint in any other area of the frame?

If not then you may have an answer to your question about a crack.

Also, there is a smaller ding behind the dent in the DS chain stay. Dents like these are not normal and can come from a severely jammed chain???

verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)

Last edited by verktyg; 08-20-19 at 05:41 AM.
verktyg is offline
Likes For verktyg:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
