Miyata 1000 Univega Specialissima compared

I've seen quite a lot of debate and speculation about how similar the Miyata 1000 and the Univega Specialissima are. We all know Miyata built the frames for both bikes and they were intended for virtually the same purpose. The two bikes were built up with slightly different components (though not all that different) but when you get down to the heart of the bicycle, how do they compare? I recently got a 1984 Specialissima frameset in the same size as my '84 1000, so I decided to find out. First, the geometry. The geometry is exactly the same--same angles, same wheelbase, etc. I did find a few differences in the details. Here is a photo showing the lug windows and the fork crown on the Univega:


The lug windows on the Univega are diamond shaped and the crown has no markings.

In the next two photos, you can see the M-shaped lug windows and the branded fork crown on the Miyata:


The lugs and the fork crowns appear to be identical other than these obvious cosmetic differences.
(continued)
WGD is offline
Old 08-24-19, 10:05 AM
  #2
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Here is the most obvious difference I found. On the Univega, the seat stay braze-ons for the rack are drilled into the tubes. (I apologize for the blurry photo.)


The rack mounts on the Miyata are tabs, brazed to the tops of the seat stays.


The cable stops on the right chain stay are different as well. Here's the Univega:


And here's the Miyata:


(continued)
WGD is offline
Likes For WGD:
Old 08-24-19, 10:24 AM
  #3
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts

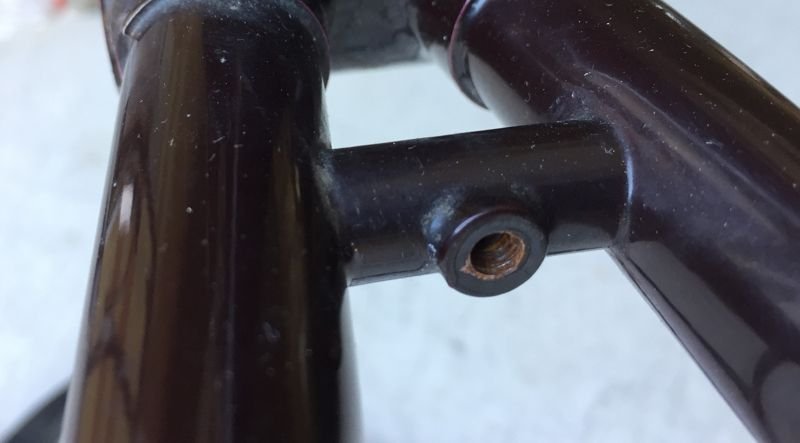

The chainstay bridge on the Univega has a threaded braze-on:


While on the Miyata, the bridge has a hole drilled through:


Finally, The seat stay tips on the Univega have flat faces:


The Miyata's seat stay tips have concave faces:


That's it. While it's possible the differences in fittings like the rack mounts, etc., are due to Univega providing their own specifications, I think it's at least as likely that these represent routine changes made during production. It would be interesting to hear from other owners of both makes, especially for '84s and '85s.

The serial number for the Miyata is M412XXX, while the Univega is M344XXX. I have no idea what the daily/monthly/annual production was, so I can't tell how much time elapsed between the two frames.

My conclusion is that (for 1984 at least) the frames are for all practical purposes identical. I would love to hear other opinions.
WGD is offline
Old 08-24-19, 11:47 AM
  #4
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,675

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2204 Post(s)
Liked 700 Times in 425 Posts
Great "apples to apples" comparison!

Especially because models and specs and components were changing so rapidly at this time.

Not that I think it *really* matters at this level- but I wonder if there were tubing thickness differences as well as the other minor appointments.

The Miyatas were specced with XT- that's the top of Shimano's range, and I believe the Univegas Superbe tech- and although it was the top of Suntour's range- it was not the best choice. But you see they were both applying top of the line technology to their top of the line touring bikes- the same... but different.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 08-24-19, 12:38 PM
  #5
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by The Golden Boy View Post
Not that I think it *really* matters at this level- but I wonder if there were tubing thickness differences as well as the other minor appointments.
My guess is they were using the same tubing but there's really no way to tell without test methods that are way more sophisticated than I can undertake.
WGD is offline
Old 08-24-19, 01:06 PM
  #6
robertj298
Senior Member

robertj298's Avatar

Join Date: Jun 2018
Location: NW Ohio
Posts: 836

Bikes: 1985 Specialized Sequoia, 1986 Miyata 912, 1987 Centurion Ironman Expert, 1988 Miyata 615, 1989 Centurion Ironman Expert

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 513 Post(s)
Liked 210 Times in 100 Posts
Originally Posted by WGD View Post
I've seen quite a lot of debate and speculation about how similar the Miyata 1000 and the Univega Specialissima are. We all know Miyata built the frames for both bikes and they were intended for virtually the same purpose. The two bikes were built up with slightly different components (though not all that different) but when you get down to the heart of the bicycle, how do they compare? I recently got a 1984 Specialissima frameset in the same size as my '84 1000, so I decided to find out. First, the geometry. The geometry is exactly the same--same angles, same wheelbase, etc. I did find a few differences in the details. Here is a photo showing the lug windows and the fork crown on the Univega:


The lug windows on the Univega are diamond shaped and the crown has no markings.

In the next two photos, you can see the M-shaped lug windows and the branded fork crown on the Miyata:


The lugs and the fork crowns appear to be identical other than these obvious cosmetic differences.
(continued)
I'm wondering how the 2 paint finishes compare on the 2 bikes. I've heard Miyatas paint jobs were the best.
robertj298 is offline
Old 08-24-19, 02:50 PM
  #7
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by robertj298 View Post
I'm wondering how the 2 paint finishes compare on the 2 bikes. I've heard Miyatas paint jobs were the best.
The Univega has a few more nicks but the paint is still pretty good on both. Considering they're both 35 years old, they look great. I can't see any obvious difference in the quality of the paint jobs.
WGD is offline
Old 08-24-19, 05:23 PM
  #8
delbiker1
Mother Nature's Son

delbiker1's Avatar

Join Date: Mar 2016
Location: Sussex County, Delaware
Posts: 1,781

Bikes: Early 90's Ochsner road, 2006 Schwinn SS DBX, 2014 Orbea Avant MD30, 2004 Airborne Zeppelin TI, 2003 Lemond Poprad, 1989? Fuji Ace, 2001 Lemond Tourmalet, 2014? Soma Smoothie

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 472 Post(s)
Liked 481 Times in 291 Posts
Nice job WGD. Interesting differences in the cosmetics. It seems likely to me that Miyata wanted to keep a difference to the two, as IMO, the Miyata is much nicer visually. So, I also wonder about any difference, if any, in the tubing between the two.
delbiker1 is offline
Old 08-24-19, 10:29 PM
  #9
mstateglfr
Sunshine

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 12,582

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 5284 Post(s)
Liked 2,572 Times in 1,504 Posts
Very cool rundown.

I like the univega's rack attachment setup more than the Miyata's tabs.
And the univega's chainstay bridge is better due to the threaded fender mount.
But the miyata's chainstay cable stop and spoon stay caps are nicer.
mstateglfr is offline
Old 08-25-19, 12:28 PM
  #10
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 559 Times in 402 Posts
Nice comparison. I do like the Miyata lug cutouts better. Very cool. As you conclude though, they are essentially the same frame. The '83 models IIRC were even more similar WRT frame details, and the Miyata of that year was Suntour equipped.
Salamandrine is offline
Old 08-25-19, 12:42 PM
  #11
sdn40
Senior Member

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 566

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 252 Post(s)
Liked 97 Times in 60 Posts
Have you ridden both ? Any differences there are what really matters
sdn40 is offline
Old 08-25-19, 04:26 PM
  #12
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by sdn40 View Post
Have you ridden both ? Any differences there are what really matters
Not yet. The Univega is just a frame at this point and will remain that way until probably next summer. I have a fairly major move coming up and I'm afraid the domestic authorities would freak out if another whole bike appeared. I plan to build it nearly identical to the Miyata, except I will probably use new rims. I have a pair of original Suntour 36/40, 110mm/126mm sealed bearing hubs though. I am thinking about different handlebars (maybe mustache) but I haven't really decided. But just about everything else (except for a Brooks B-17) will be original stock Miyata--deer-head derailleurs, etc.
WGD is offline
Old 08-25-19, 06:06 PM
  #13
Goofball
Senior Member

Join Date: Apr 2018
Posts: 123
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Likes: 0
Liked 55 Times in 35 Posts


Beautiful people ride univega 👯
Goofball is offline
Likes For Goofball:
Old 08-27-19, 05:50 PM
  #14
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,383
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1210 Post(s)
Liked 510 Times in 279 Posts
I prefer the hole drilled through the chain stay bridge as it allows a bolt and nut configuration. The threaded fender mount hole on the Univega is spiffy, however I have had the bolt back out of one several times. Had to thread lock it to keep in place. Just a preference that make little difference unless the bolt become rusted in the frame.
TiHabanero is offline
Old 08-27-19, 09:34 PM
  #15
panzerwagon
Garage tetris expert

panzerwagon's Avatar

Join Date: May 2016
Location: Texas Hill Country
Posts: 229

Bikes: Univega Specialissima, Univega Gran Touring

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Liked 93 Times in 46 Posts
RE: seat-stay braze-ons

I have the exact same burgundy specialissima from '84, as well as a steel gray specialissima from '83.
The one from '83 has tabs brazed on the seat-stays for racks, exactly the same as your miyata.

Generally, the univegas tended to be specced ever so slightly ahead of the curve from the miyatas, especially regarding componentry and frame features.

Did you note any differences in the number of bottle-cage mounts or the styles of threaded mid-fork mount? My '84 specialissima has a brazed-on standoff included in the threaded mid-fork mount.
panzerwagon is offline
Old 08-28-19, 11:55 AM
  #16
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,863

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 498 Times in 357 Posts
Very cool comparison @WGD, very cool that you have both and from the same year.

I have two touring bikes from 1987 : a Nishiki Cresta GT and a Trek 520 that I want to do a ride comparison on when I get the 520 refurbed but they are different manufacturers so I will be looking at ride and feel more than construction.
ryansu is offline
Old 08-29-19, 10:42 AM
  #17
Iowhat
Junior Member

Join Date: Oct 2017
Location: Iowa
Posts: 20

Bikes: Specialized Roubaix SL4 Sport (2015), Schwinn Voyageur (1985), Raleigh Portage (1984), Focus SG-300 (1985), Miyata Valley Runner (1987), Miyata Ridge Runner (1984), Miyata Ridge Runner SE (1985.5), DBRacing Vertex tr (1993), Moots Mooto X YBB (2010)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
Two years ago I looked at a 1980 Miyata Gran Touring and it had diamond-shaped lug cutouts and a smooth fork crown (like your Univega). I have photos but am not able to post yet (newbie). Maybe the same lugs were used into the mid-80s? (BTW: tubing on a 1980 Miyata Gran Touring was Tange Champion)
Iowhat is offline
Old 08-30-19, 11:33 AM
  #18
WGD
Member
Thread Starter

WGD's Avatar

Join Date: Dec 2014
Posts: 46

Bikes: 1984 Miyata 1000, 1984 Univega Specialissima (frame), 1993 Miyata 1000LT, 1987 Raleigh Ventura, 1935 Golden Sunbeam, Early '50s Columbia Bomber

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Likes: 0
Liked 4 Times in 4 Posts
Originally Posted by panzerwagon View Post
RE: seat-stay braze-ons

I have the exact same burgundy specialissima from '84, as well as a steel gray specialissima from '83.
The one from '83 has tabs brazed on the seat-stays for racks, exactly the same as your miyata.

Generally, the univegas tended to be specced ever so slightly ahead of the curve from the miyatas, especially regarding componentry and frame features.

Did you note any differences in the number of bottle-cage mounts or the styles of threaded mid-fork mount? My '84 specialissima has a brazed-on standoff included in the threaded mid-fork mount.
Interesting that your '83 Univega has tabs.

As for the bottle cage braze-ons: same number and same positions. When I was eyeballing them, it looked like the mounts under the down tube were slightly lower on the Univega. But when I measured them, they were the same distance from the BB shell.

I did spot one more difference while I was looking at this stuff:

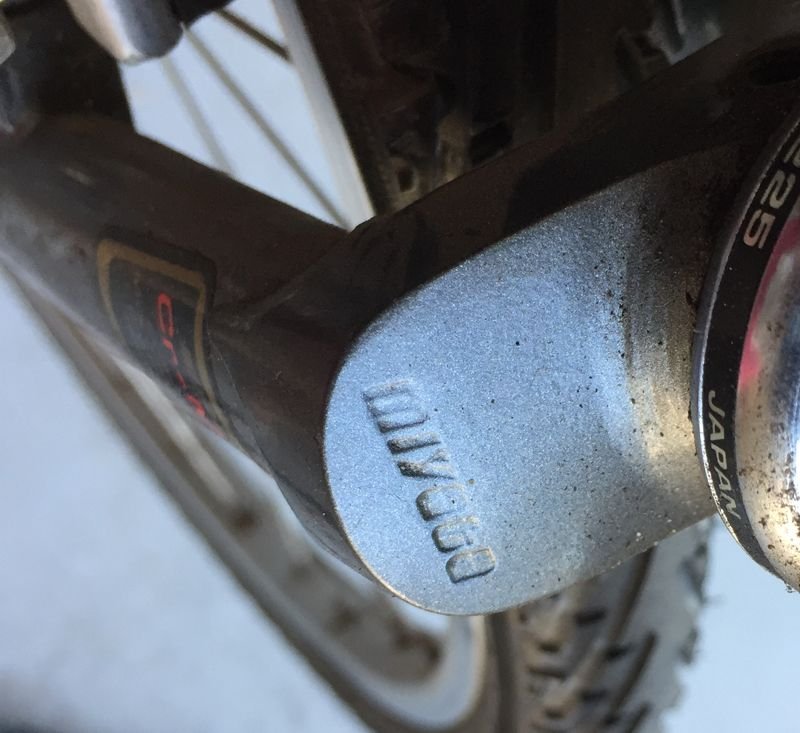

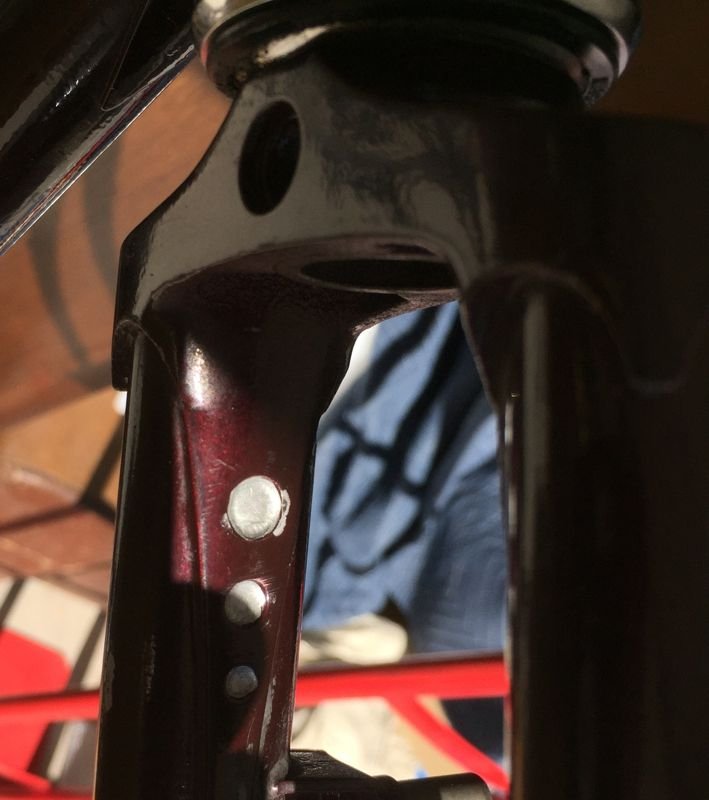

I initially thought the fork crowns were identical (except for the cast-in Miyata branding). They are actually quite different. As you can see, the Univega has a much longer tang on the inside, with nice looking circular cutouts. Slight advantage to the Univega on this point. Also, the fender mounting hole goes all the way through on the Univega. The Miyata has the hole only on the front.

Last edited by WGD; 09-07-19 at 07:58 AM.
WGD is offline
Old 09-02-19, 03:42 PM
  #19
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 559 Times in 402 Posts
^^^ That is a Viva Touring, not a Specialissima. It's a much cheaper bike. Not a bad bike, just a cheaper one.
Salamandrine is offline
Old 09-02-19, 04:50 PM
  #20
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,228

Bikes: 1992 Specialized Rockhopper Sport, 2016 Giant Liv Rove Lite, 1995 Trek Singletrack 930, 1994 Trek Multitrack 750

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 819 Post(s)
Liked 485 Times in 329 Posts
Originally Posted by Salamandrine View Post
^^^ That is a Viva Touring, not a Specialissima. It's a much cheaper bike. Not a bad bike, just a cheaper one.
D'oh! Sorry, too many tabs. This Specialissima.

Korina is offline
Old 09-02-19, 07:55 PM
  #21
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,726

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 557 Post(s)
Liked 283 Times in 193 Posts
In between the Viva Touring and the Specialissma was the Gran Tourismo. If you were to put the Univegas in comparison to the Miyatas, the 1000 was to the Specialisma, the Miyata 610 compares to the Gran Tourismo, and the Miyata 210 to the Viva Touring. Roughly. Actually, my late production '83 ('84 model year) Gran Tourismo has features that the same year Miyata 610 didn't have, like the mid-fork braze ons for the panniers, and the rear rack mount was hidden on the inside of the seat stay, not sticking out behind it.


as-bought '84 Univega Gran Tourismo

It has since been fitted-out my way -- with SunTour barcons, a better seatpost, a Fujita Belt brown leather saddle, VO Facette fenders, new cables, tires, bar wrap, brake pads, a 13-26 six-speed SunTour Winner Ultra freewheel, USB rechargeable LED lights, Blackburn rear rack...

I'm also thinking about using my hoarded set of vintage Phil Wood hubs to build a bomb-proof wheelset...
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 09-02-19, 07:57 PM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 559 Times in 402 Posts
Originally Posted by Korina View Post
D'oh! Sorry, too many tabs. This Specialissima.
Oh, that can happen.

For sure that's a real Specialissima. '82 I think. Looks like a garage queen. Nice.
Salamandrine is offline
Old 09-03-19, 03:54 PM
  #23
Korina
Happy banana slug

Korina's Avatar

Join Date: Sep 2015
Location: Arcata, California, U.S., North America, Earth, Saggitarius Arm, Milky Way
Posts: 2,228

Bikes: 1992 Specialized Rockhopper Sport, 2016 Giant Liv Rove Lite, 1995 Trek Singletrack 930, 1994 Trek Multitrack 750

Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 819 Post(s)
Liked 485 Times in 329 Posts
Originally Posted by Salamandrine View Post
For sure that's a real Specialissima. '82 I think. Looks like a garage queen. Nice.
Do you think it could handle a 650b conversion?
Korina is offline
Old 09-03-19, 04:07 PM
  #24
BikeWonder
Senior Member

Join Date: Oct 2018
Location: Calgary
Posts: 327
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 73 Times in 50 Posts
Originally Posted by Korina View Post
Do you think it could handle a 650b conversion?
I don't think so. A while back I made a post about doing a possible 650b on my 1982 Miyata 1000 but the conclusion was that unless you had some kind of adapter or remove and lower the cantilever braze-ons,it can't be done.
BikeWonder is offline
Old 09-03-19, 04:25 PM
  #25
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,287

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 120 Post(s)
Tagged: 0 Thread(s)
Quoted: 2310 Post(s)
Liked 559 Times in 402 Posts
Originally Posted by Korina View Post
Do you think it could handle a 650b conversion?
Originally Posted by BikeWonder View Post
I don't think so. A while back I made a post about doing a possible 650b on my 1982 Miyata 1000 but the conclusion was that unless you had some kind of adapter or remove and lower the cantilever braze-ons,it can't be done.
Yeah, the canti posts are a problem. It could be done by grinding them off and then brazing on new ones, or using long reach CP or something. That would be more trouble than it's worth IMO. YMMV It is possible.

A better option would be to keep eyes peeled for the previous year Univega Specialissima. Those had Gran Compe centerpulls instead of cantis through 1981. The Miyata 1000 had cantilevers from the start, more or less. 1979?
Salamandrine is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
