Somewhat seldom seen Italian brand rescue- Lazzaretti

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Somewhat seldom seen Italian brand rescue- Lazzaretti

Old 10-23-19, 05:33 AM
  #51
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,934

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 1364 Post(s)
Liked 1,550 Times in 816 Posts
Absolute keeper!
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 10-23-19, 06:57 AM
  #52
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,853
Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 1105 Post(s)
Liked 510 Times in 386 Posts
Looks great! It's amazing what a simple soap & water bath with a toothbrush can do. Just getting the grime out of all the seams (especially the lugs) can make a frame look brand new, even without wax and polishing.

Nice selection on the cable housing color. Did you wrap over the existing bar tape for extra padding, or double up on new tape? I noticed the remnant of what looks like Cyclolinea finishing tape is still on the bars.
francophile is offline
Old 10-23-19, 07:03 AM
  #53
orcas island
Senior Member
Thread Starter

Join Date: Sep 2009
Posts: 785
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 220 Times in 101 Posts
I wrapped over the existing cloth tape for a bit more padding, and did leave a remnant of the original finishing tape showing. A bit of a nod to the previous owner who died early
orcas island is offline
Likes For orcas island:
Old 10-23-19, 07:25 AM
  #54
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 13,047
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 3559 Post(s)
Liked 2,335 Times in 1,387 Posts
Awesome.
himespau is offline
Old 11-02-19, 04:36 PM
  #55
orcas island
Senior Member
Thread Starter

Join Date: Sep 2009
Posts: 785
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 220 Times in 101 Posts
I have the bike up on the CV sales site at this point. Iím moving bikes along that either wonít see much use or are not the right size for me. This one falls into the latter category.
orcas island is offline
Old 11-15-19, 07:51 PM
  #56
orcas island
Senior Member
Thread Starter

Join Date: Sep 2009
Posts: 785
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 168 Post(s)
Liked 220 Times in 101 Posts
Iíve had a few people contact me with their thoughts that this is a Galmozzi build. A couple of links were forwarded that talked about Galmozzi built Lazzarettis.
I took a flyer and reached out to the Lazzaretti shop in Rome to see if they might be able to shed some light on this, one way or another. Using an internet English to Italian translation program, I sent a few photos and description.
After a few rounds of translations and photos (and apologies for my total lack of Italian ), they came back and told me that yes, this bike is actually a late 1960ís Galmozzi built frame, badged and sold as a Lazzaretti.
Hearing that made my morning!

Last edited by orcas island; 11-15-19 at 10:13 PM.
orcas island is offline
Old 12-15-19, 05:30 AM
  #57
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,008

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 1,146 Times in 620 Posts

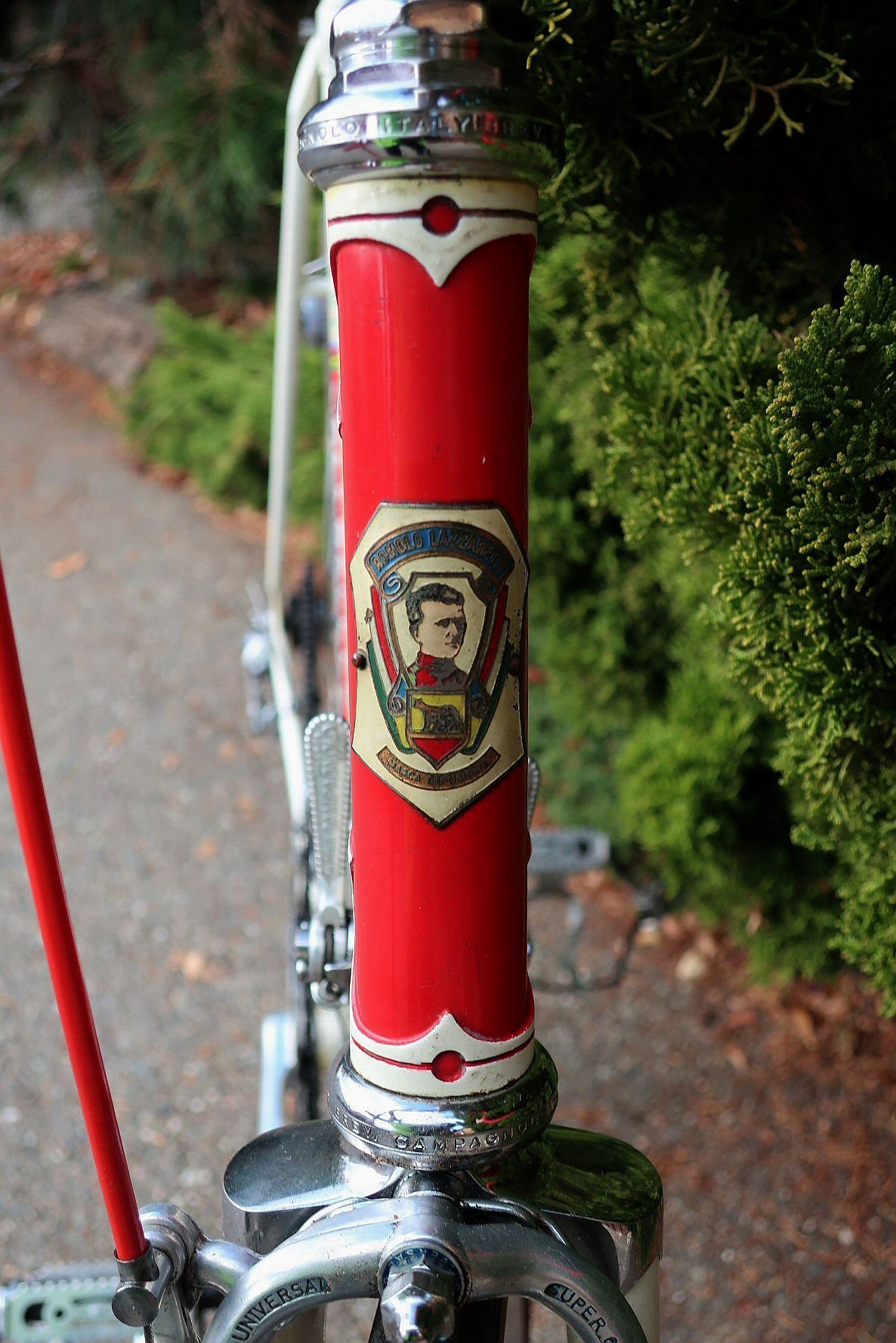

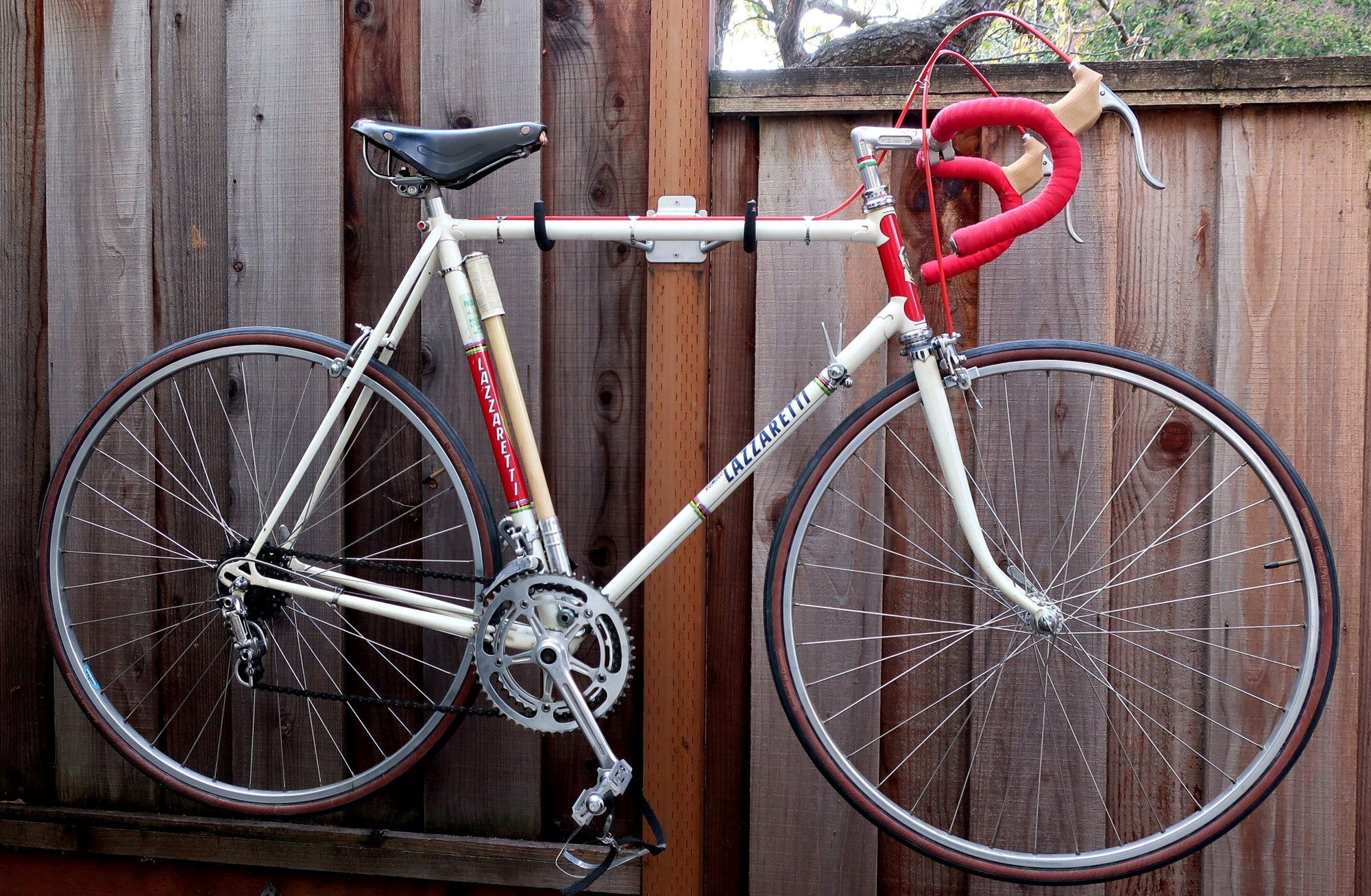

Late 60's early 70's Lazzaretti Galmozzi

I'm now the proud owner of the Lazzaretti.

orcas island and I did a horse trade... he got a bike his size and I got this sleek beauty.

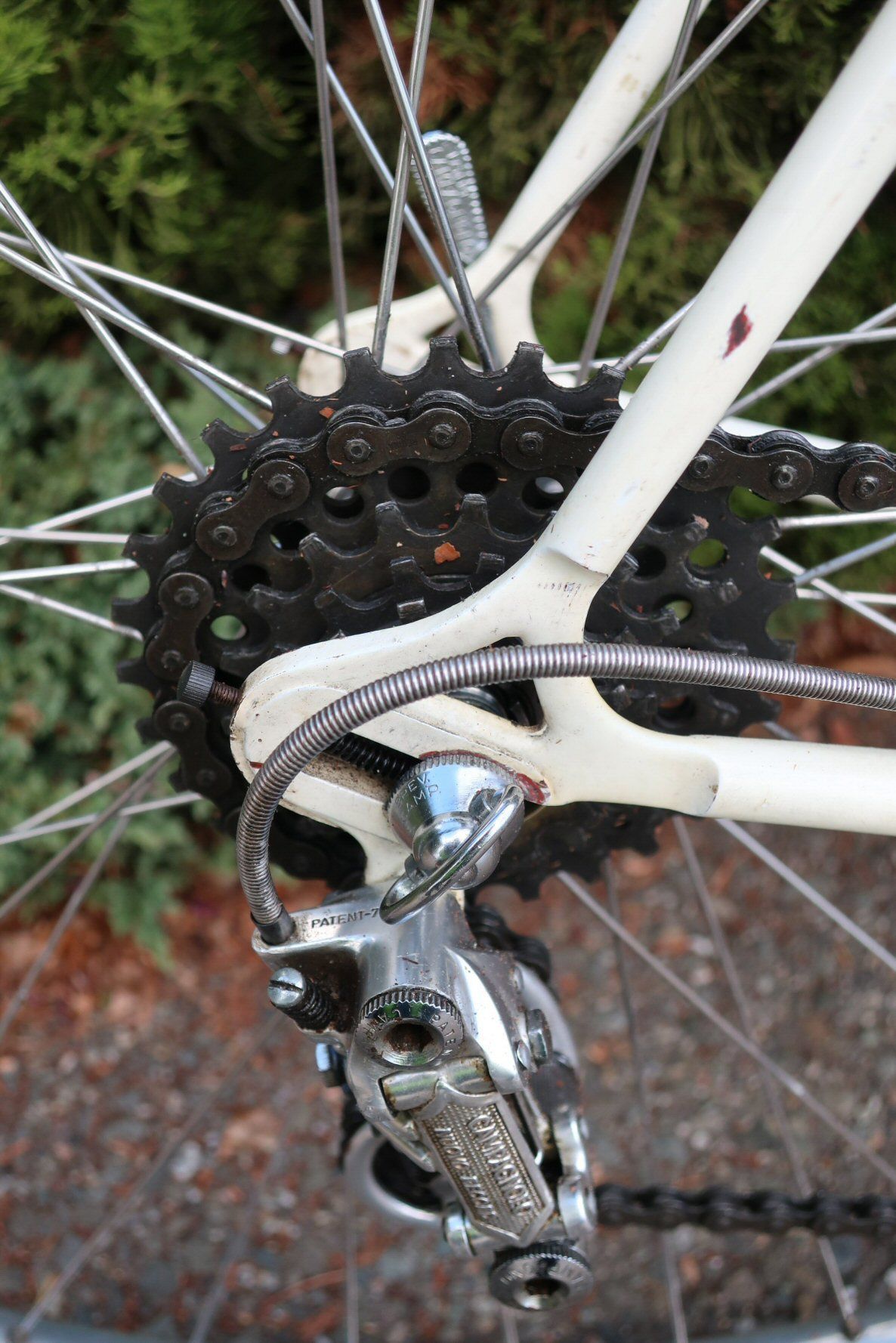

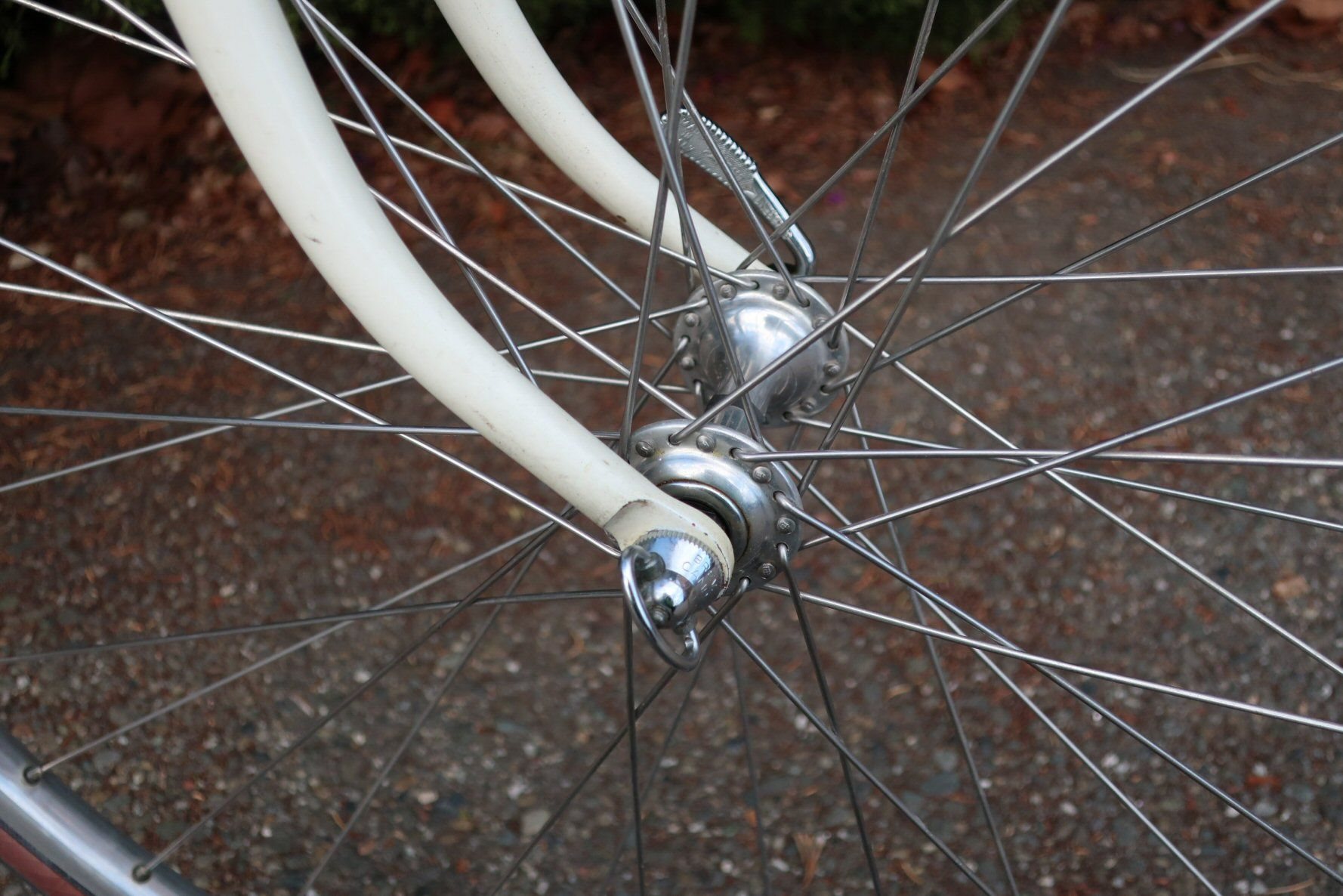

I replaced the old sewups for now with an NOS set of mid 70's wheels with 700c Super Champion Gentleman rims and Campy SF hubs. I mounted some 700 x 25c Continental Grand Prix Classics tires. Used a 13-28 5 speed Regina Oro freewheel. I also put on a NOS 1973 Brooks Pro saddle in place of the old Unicanitor.

This is definitely a Galmozzi built frame with rooster stamped into the seat tube and lots of little touches that show the fine workmanship like on these dropouts.




Galmozzi rooster stamped into the seat tube.





I've cleaned it up a lot more since I took these photos plus did some touch up on the paint chips.

The bike was supposed to be a 56cm??? When I first measured it with a pocket tape, it looked like that to me. I need to get my prescription changed because it's a 58.5cm (23") frame - center to top with a with a 57cm (22.5") top tube.

A 57cm is about as big a frame as I can ride and this bike would be too big for me except for the low 10 3/8" bottom bracket height. I can just squeak over the top tube.

The long wheel base and long fork rake plus the Columbus SL tubing make for a cushy ride, it handles great!

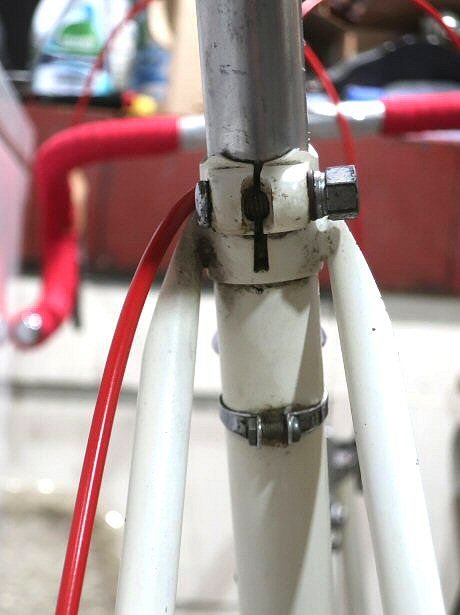

It had a 27.0mm seatpost which would suggest Columbus SP. When I looked at the rear of the seat lug I saw that it was clamped undersize. I ran a hone down the seat tube and found 2 small high spots that I cleaned up with a reamer. A 27.2 seatpost now fits perfect.



I took it out for a few short rides but need to wait for the weather to clear a bit to get some miles on it.

verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 12-15-19 at 05:42 AM.
verktyg is offline
Likes For verktyg:
Old 12-15-19, 08:11 AM
  #58
repechage
Senior Member

Join Date: Jun 2006
Posts: 18,006
Mentioned: 121 Post(s)
Tagged: 0 Thread(s)
Quoted: 2622 Post(s)
Liked 1,630 Times in 1,204 Posts
The original rims Duralca?
could not see tha labels but they looked on the wider side and did not have eyelets I could see.

Handsome bike.
repechage is offline
Old 12-15-19, 10:39 AM
  #59
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 7,746

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1265 Post(s)
Liked 1,413 Times in 752 Posts
Originally Posted by verktyg View Post
I'm now the proud owner of the Lazzaretti.


I took it out for a few short rides but need to wait for the weather to clear a bit to get some miles on it.

verktyg
I'll be seeing this on the Ironhorse?
curbtender is offline
Old 12-15-19, 03:02 PM
  #60
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,008

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 1,146 Times in 620 Posts
Iron Horse Trail

Originally Posted by curbtender View Post
I'll be seeing this on the Ironhorse?
You Betcha!

Originally Posted by repechage View Post
The original rims Duralca?
could not see tha labels but they looked on the wider side and did not have eyelets I could see.

Handsome bike.


No markings or labels. At first I thought that they were Nisi rims because of the sidewall knurling and lack of spoke eyelets but the serrations are too close together.

They measure 21mm wide. There's very little sign of wear so they must not have been ridden much.



verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 12-15-19 at 04:08 PM.
verktyg is offline
Old 12-15-19, 04:03 PM
  #61
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 2,533
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1854 Post(s)
Liked 585 Times in 392 Posts
Originally Posted by juvela View Post
-----

Galmozzi & Ideor, among others, made use of the Agrati "AM" pattern lugs, ART. 000.8040/E/U, with this same added cutout.

The feature cut on the lugs of the subject bicycle somewhat resembles the Agrati "AM" pattern whilst the nozzle cut does not.

The nozzle cut on the bicycle resembles that of the Agrati "ROMA" pattern, ART. 000.8020/E/U.

Possible this pattern was withdrawn prior to the cycle's manufacture. Or perhaps it was special order.

It is not shown in an Agrati catalogue of ca. 1970.

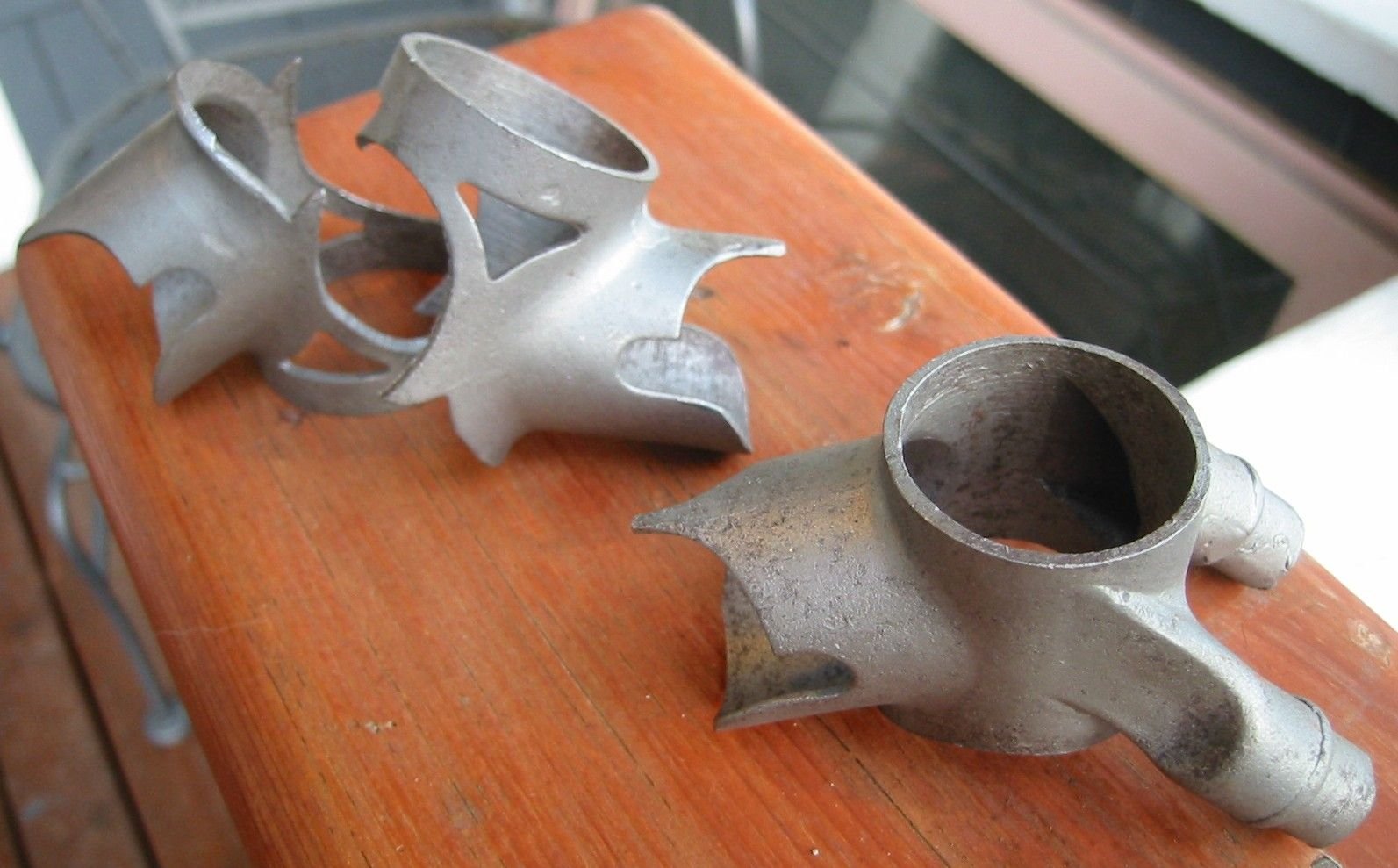

Agrati "ROMA" pattern; note nozzle cut -

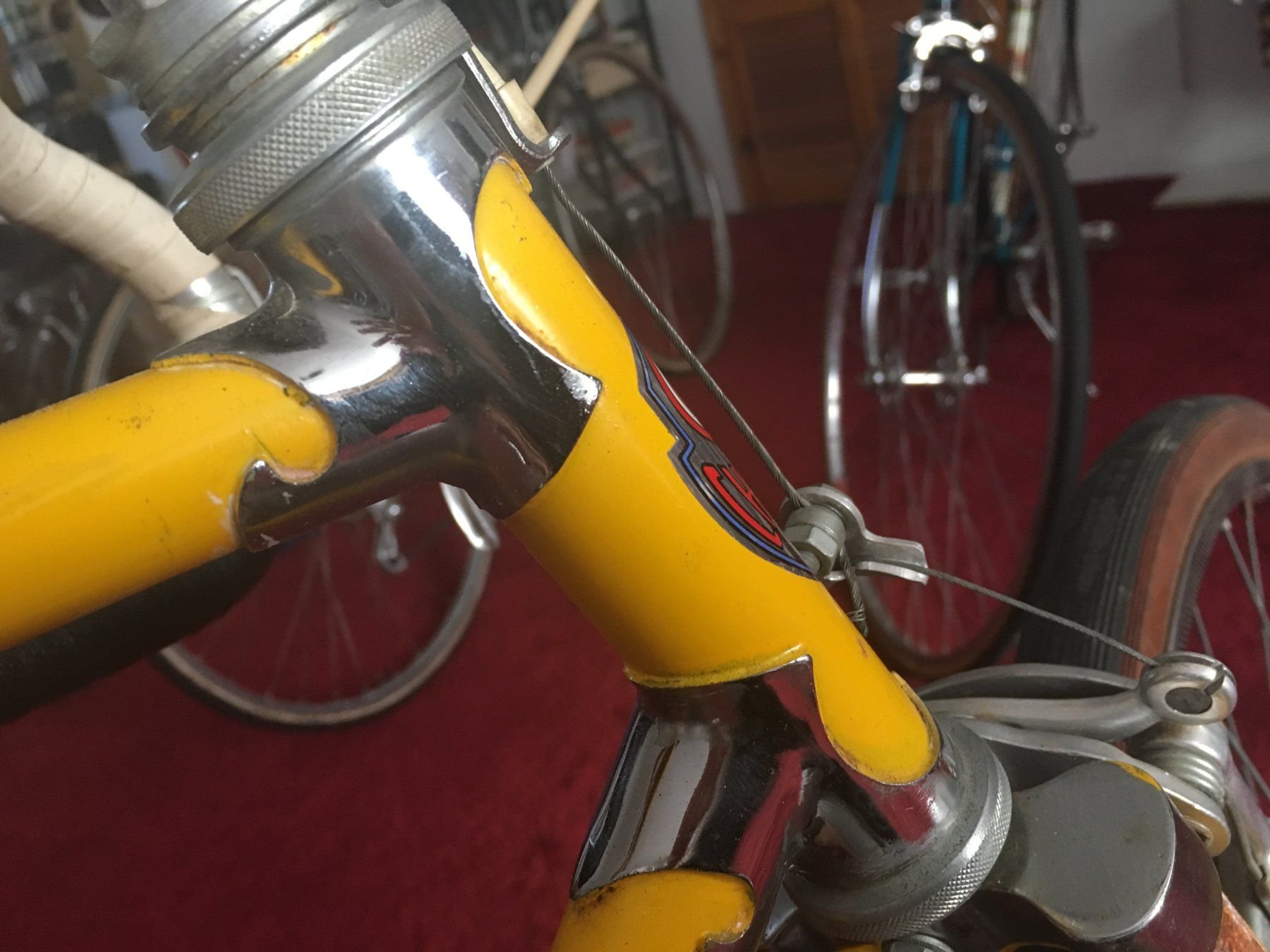

Agrati "AM" pattern, standard configuration, note feature cut -

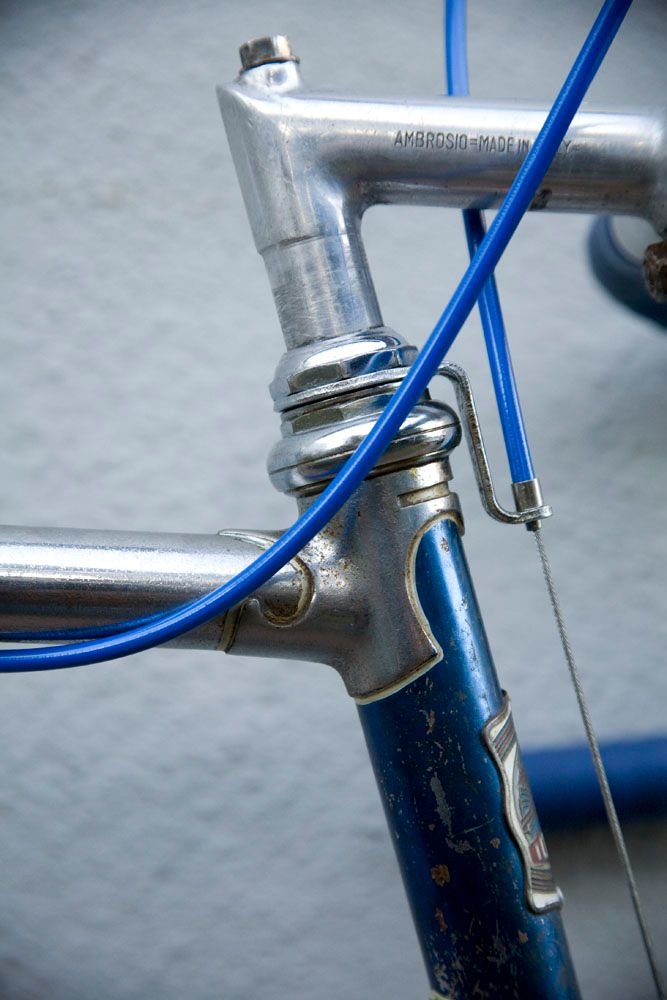

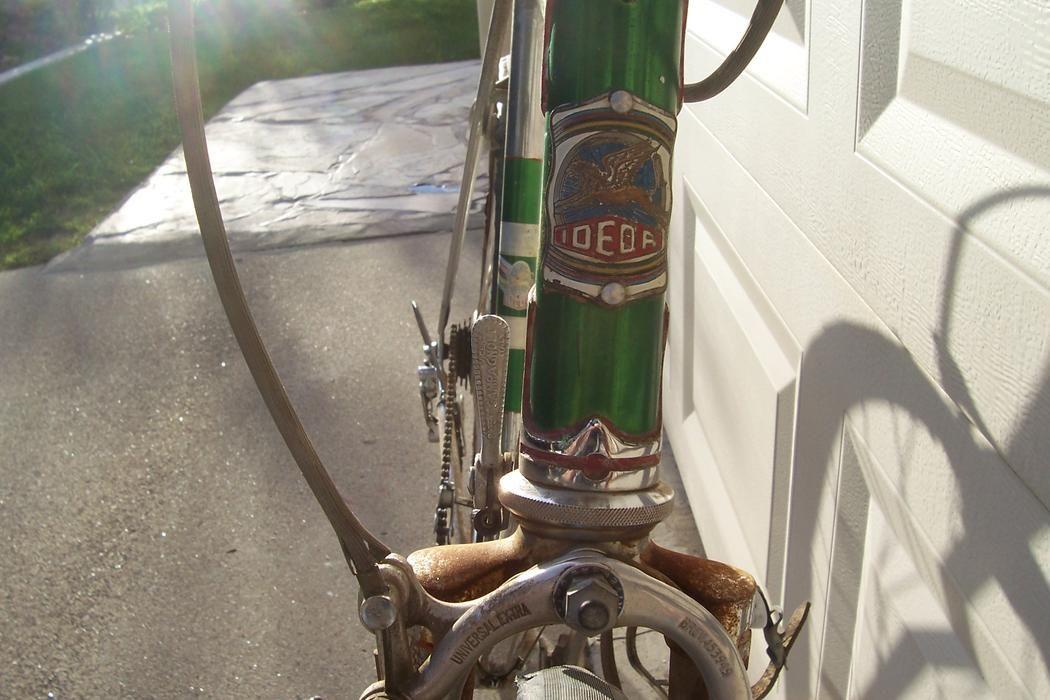

Agrati "AM" pattern lugs on Ideor bicycle w/cutout -

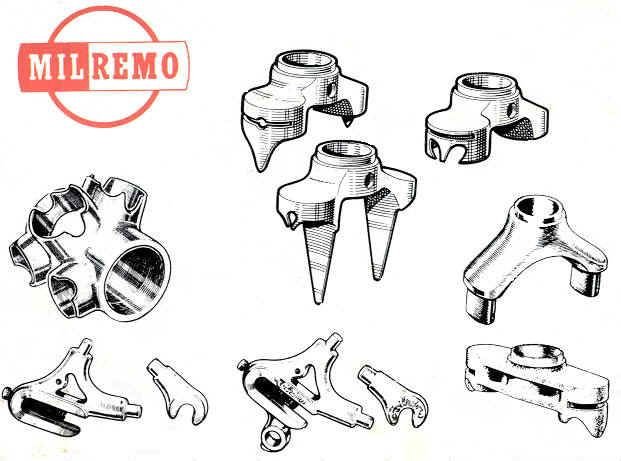

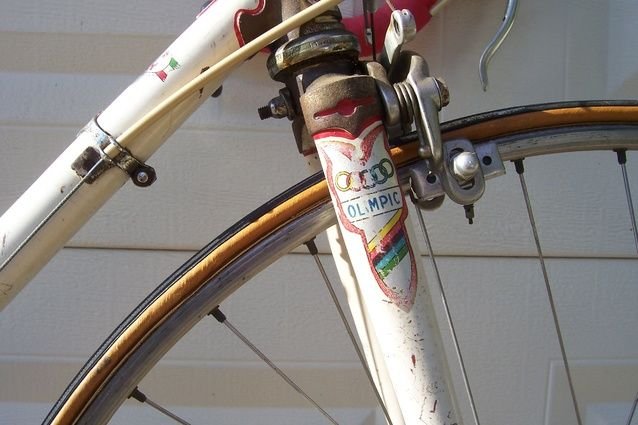

BOCAMA produced a forged semi-sloping crown with the same cutout, employed on Ideor cycles -






-----

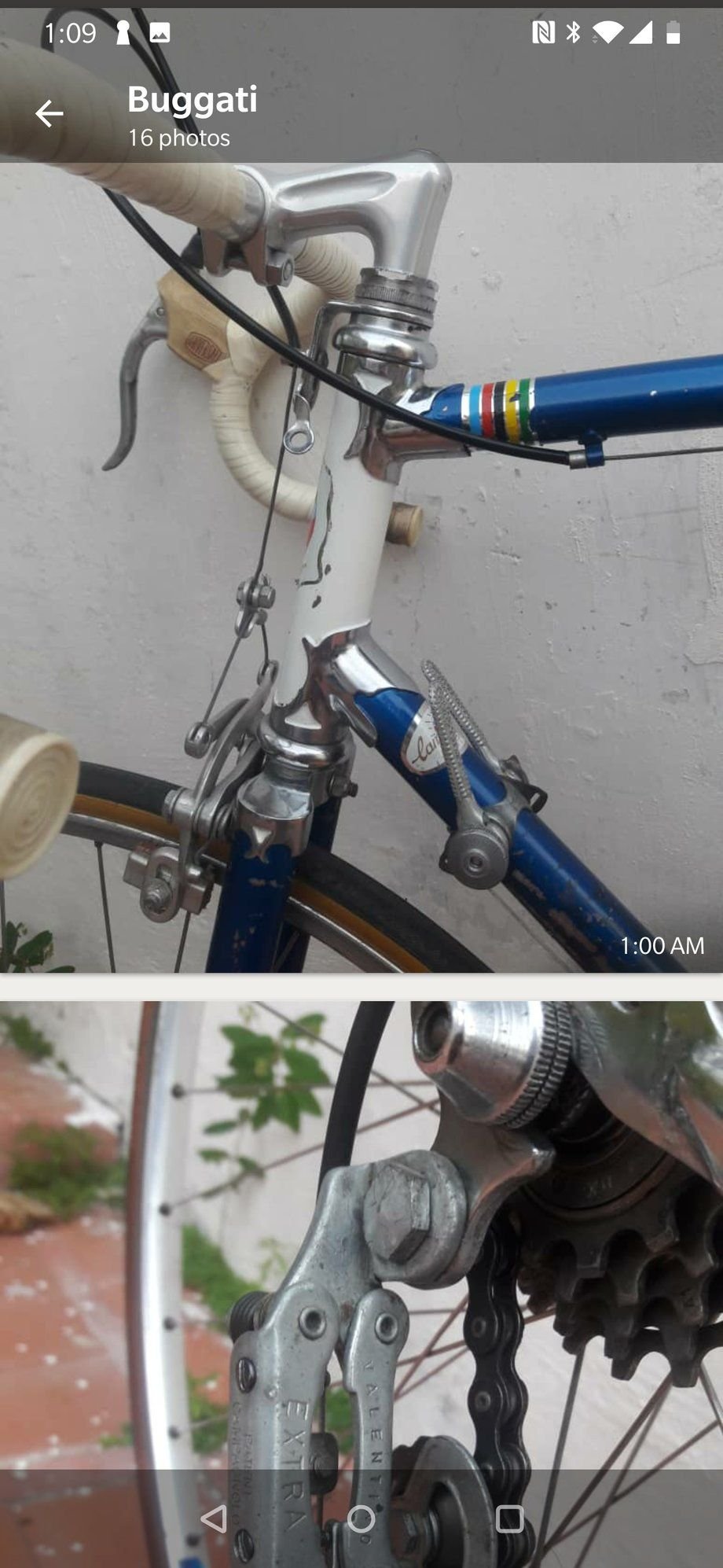

Would the Agrati lugs come in different thicknesses? The reason I am asking is because I have a Galmozzi from the same time frame the only difference between the two bikes is the thickness of the lugs. Or perhaps mine were filed down more, not sure.
Wileyone is offline
Old 12-15-19, 04:25 PM
  #62
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 4,008

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 1019 Post(s)
Liked 1,146 Times in 620 Posts
Agrati Lugs

Originally Posted by Wileyone View Post
Would the Agrati lugs come in different thicknesses? The reason I am asking is because I have a Galmozzi from the same time frame the only difference between the two bikes is the thickness of the lugs. Or perhaps mine were filed down more, not sure.

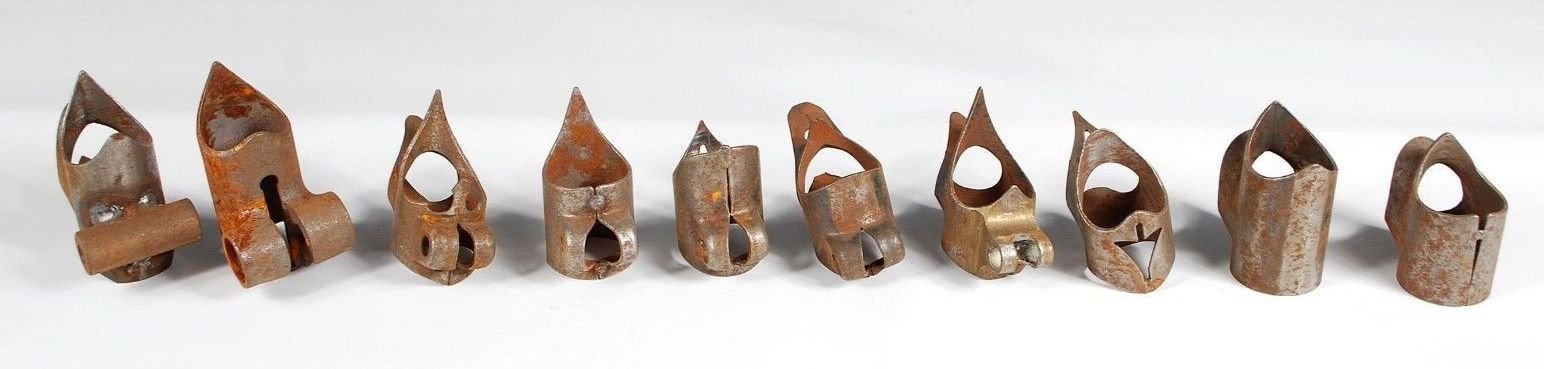

Yes and yes... Parts is parts, lugs back then were made of stamped and formed sheet metal and/or drawn tubing. Quality control was not a big deal.



Also a Galmozzi made for another seller (the Cicli Lazzaretti shop in Rome for example) may not have had the same attention to detail as one of their own badged frames. On the other hand since these were hand crafted frames built one at a time, variances would be normal.

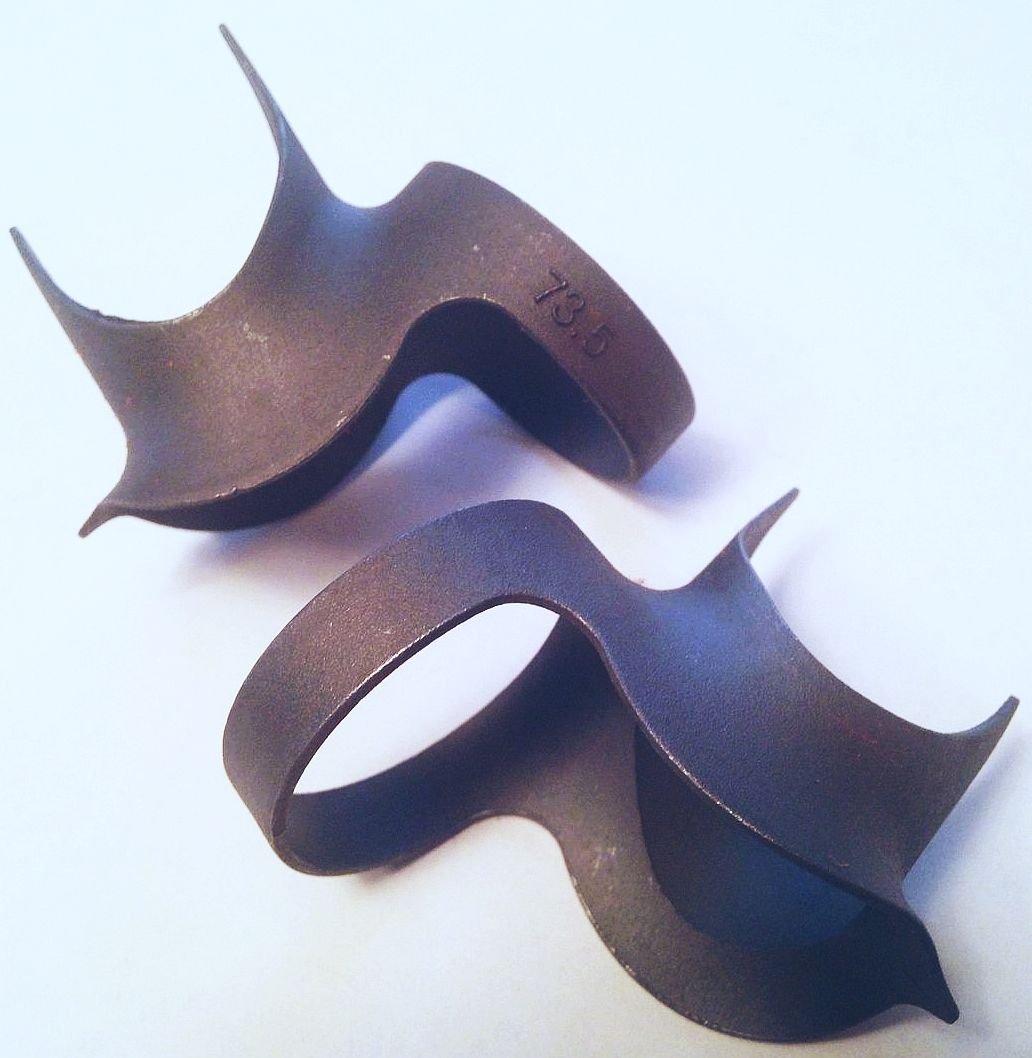

Heavily thinned lugs became more common into the 1970's. Modern thinned lugs are almost always precision investment cast. Building a frame with these kind of lugs is a WHOLE LOT less work.




verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)


Last edited by verktyg; 12-15-19 at 04:36 PM.
verktyg is offline
Old 11-05-21, 11:06 AM
  #63
Mark Swofford
Junior Member

Join Date: Apr 2017
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
56 Lazzaretti restoration

Originally Posted by Doug Fattic View Post
It isn't a lug I recognize. I'm going to assume the decoration in front was a simple drill hole and hacksaw cut to add a little distinction. After I learned how to build frames in England in 1975 I visited frame builders in Italy in 1977 looking for any tips. In Parma was a wholesale distributor of frame building supplies where the owner spoke some English. What I discovered was a lot of inventory of frame building materials that nobody brought into the States. It is possible that Lazzeretti's builder chose a particular style lug set from a lug manufacturer to represent their brand. Also lugs can have a very long shelf life before they are used. I built an example frame in my last frame building class using lugs that were at least 30 years old. I still have many lugs from the 50's/70's which I occasionally use.

While my memory of my personal Lazzeretti is suspect since I sold it in the early 70's, what I recall is that it used standard long point lugs that might have been or similar to Prugnat.
Hi Doug

if you get this Rich Gangl has just completed the frame restoration of my 1956 Lazzaretti. Monday weíll be mounting the period correct parts Iíve spent two years collecting. The lugs are Agrati ROMA lugs similar to those in my 1963 Galmozzi. Both of these bikes were sold out of the Lazzarettiís Rome shop but built under contract elsewhere. The Lazzaretti builder is unknown but wasnít Galmozzi despite the similar lugs. The original paint was metallic gold and itís possible (Olympic decals) the frame was a special display celebrating the victory of Ercole Baldini in the individual road race at the 1956 Melbourne Olympics.
Mark Swofford is offline
Old 11-05-21, 06:24 PM
  #64
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 1,300
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 536 Post(s)
Liked 1,481 Times in 527 Posts
Originally Posted by Mark Swofford View Post
Hi Doug

if you get this Rich Gangl has just completed the frame restoration of my 1956 Lazzaretti. Monday weíll be mounting the period correct parts Iíve spent two years collecting. The lugs are Agrati ROMA lugs similar to those in my 1963 Galmozzi. Both of these bikes were sold out of the Lazzarettiís Rome shop but built under contract elsewhere. The Lazzaretti builder is unknown but wasnít Galmozzi despite the similar lugs. The original paint was metallic gold and itís possible (Olympic decals) the frame was a special display celebrating the victory of Ercole Baldini in the individual road race at the 1956 Melbourne Olympics.
The last time I talked to Rich recently, we talked about Lazzarettis. I was surprised he knew what they were and he was surprised I bought one new in Rome in 68.
Doug Fattic is offline
Old 11-06-21, 01:17 PM
  #65
Mark Swofford
Junior Member

Join Date: Apr 2017
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Doug Fattic View Post
The last time I talked to Rich recently, we talked about Lazzarettis. I was surprised he knew what they were and he was surprised I bought one new in Rome in 68.

Hi Doug

Rich is pretty stoked about this bike, more than the other restorations heís done. He says itís gotta be the best Lazzaretti in the country. The parts are 1958 or older Campy parts then in production. This is going to be his and my last vintage restoration. Itís been a challenge to get affordable parts in reasonable condition for this period. You need some luck. Example: somehow I ended up with a vintage Campy seatpost I canít find was ever built. Itís an interim version probably only a few made. It has an alloy head and post pressed together like the older steel and hybrid steel/alloy ones and preceding the one piece alloy version. I have no idea where I got this.


Mark
Mark Swofford is offline
