Tear down for new project hitting some speed bumps.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Tear down for new project hitting some speed bumps.

Old 09-13-19, 08:39 PM
  #1
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
Tear down for new project hitting some speed bumps.









Iíve torn down and refurbished 5 vintage bikes this year, and who knows how many over the years, but Iíve neber had one fight me like this one.
It has been reduced down and cleaned up as best as can be done at this point.

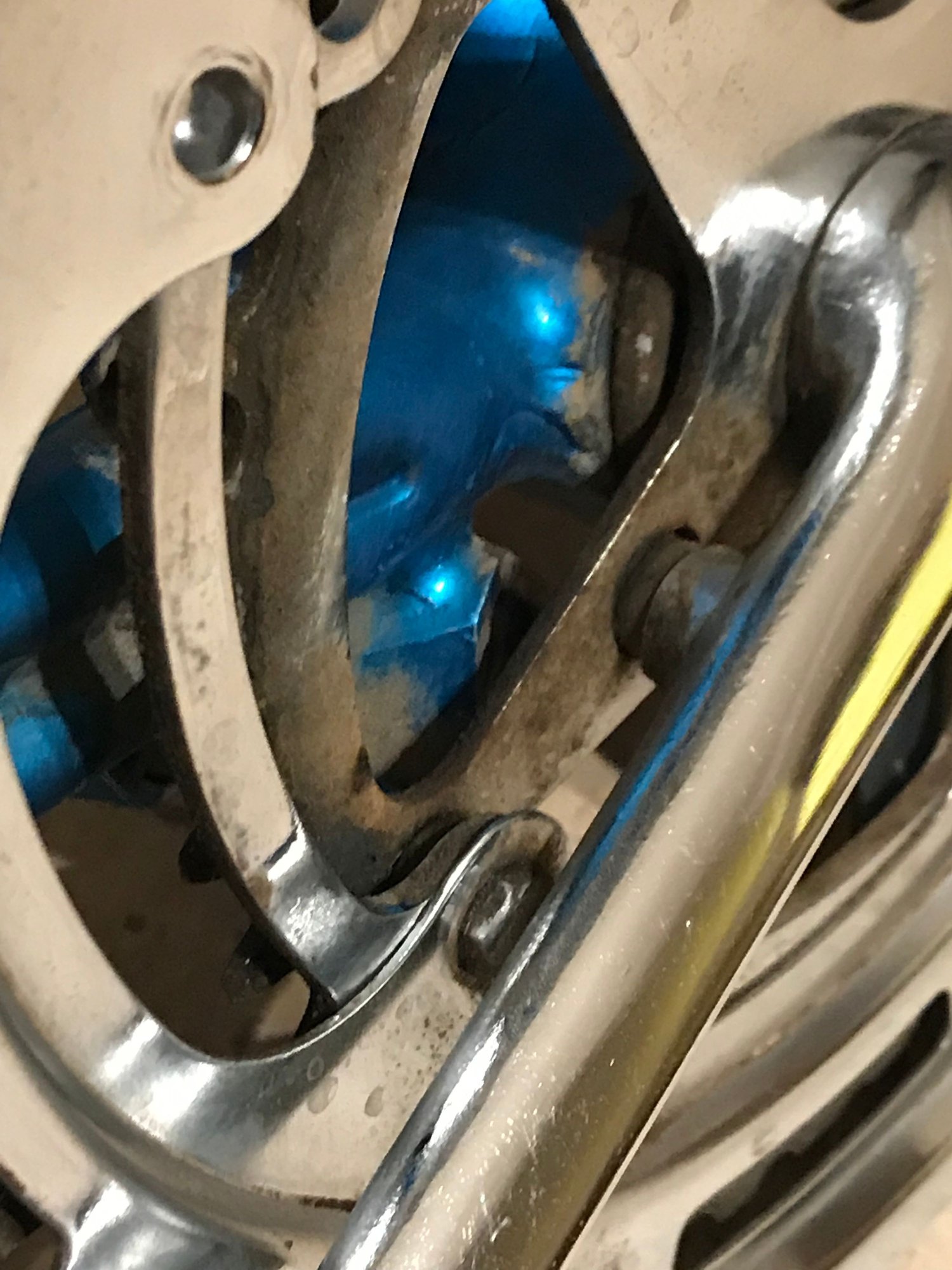

A couple of the obstacles: the chainrings canít be removed without removing the entire crankset. One of the bolts is wedged right under the crank arm. Iíve never run into this before.
I wanted to replace the worn incorrect rubber pedals with proper rat-traps, but one of them is frozen solid to the crank. Even a break over bar wonít budge it.

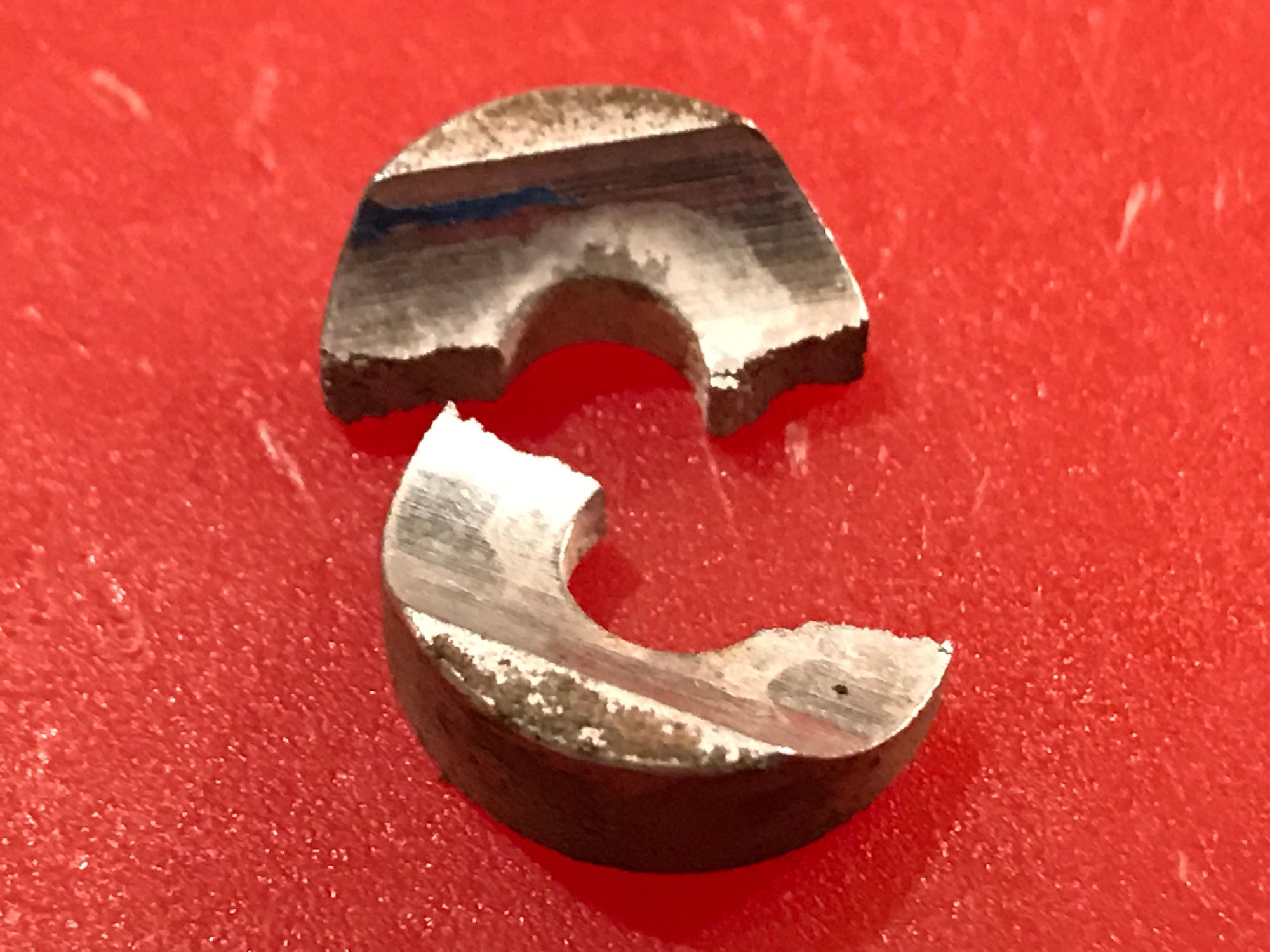

The frame shims crumbled for both brakes when the brake sets were removed.

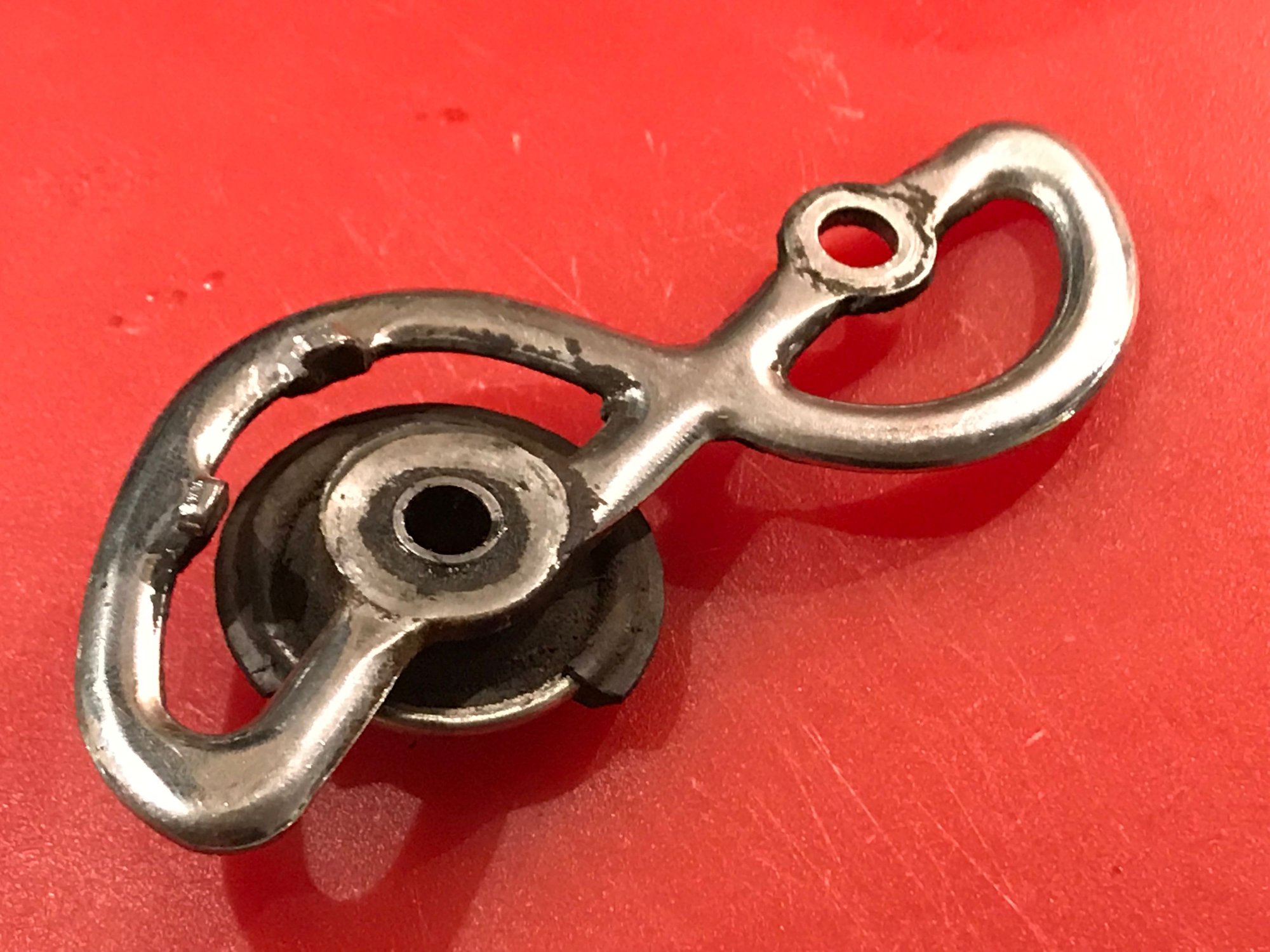

The pulleys for the rear derailleur crumbled when the chain was removed. Okay, Iíll just replace them. But one of them is frozen to the cage. I canít quite see how itís stuck in there. May not be serviceable.

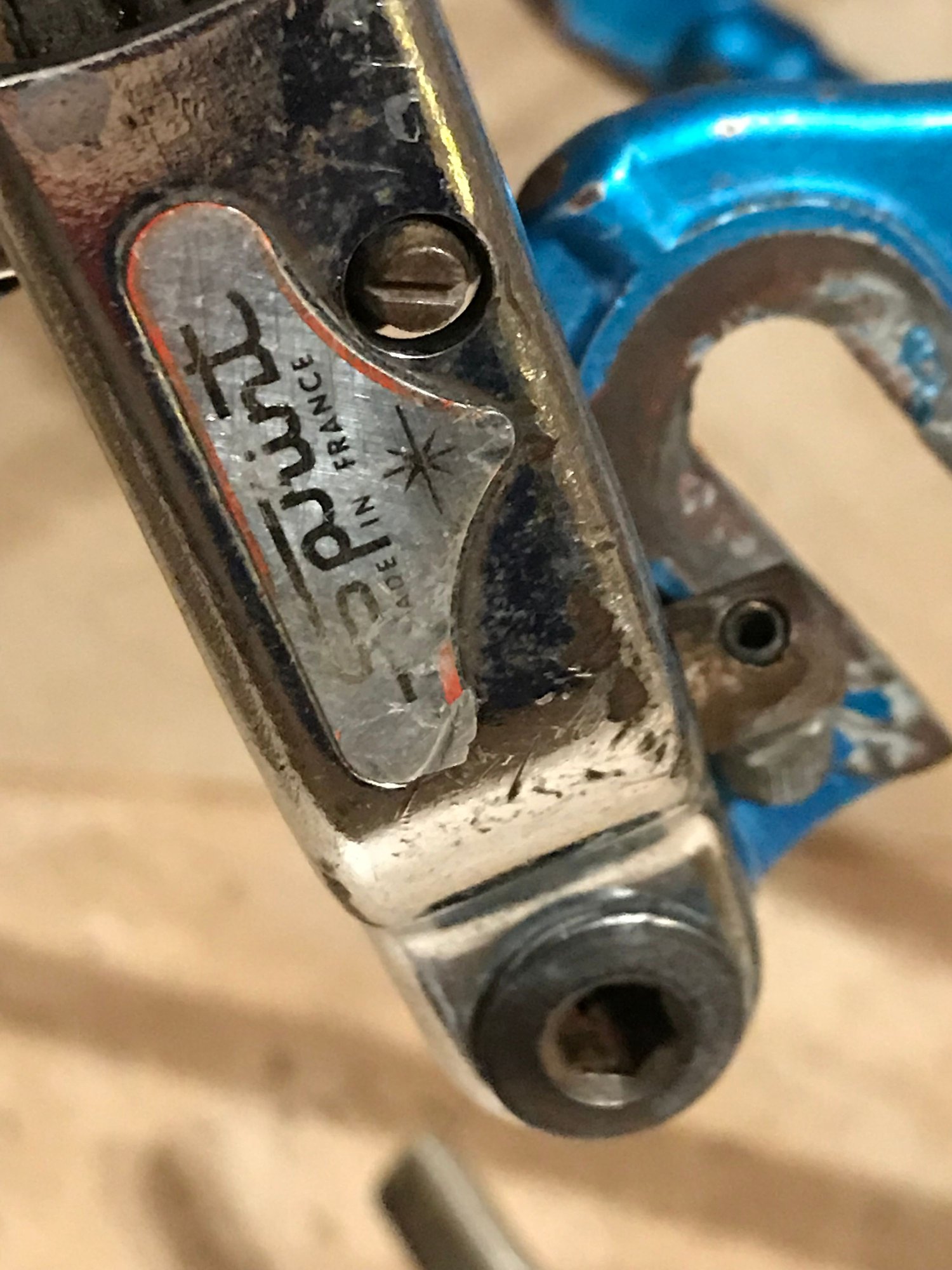

Okay, Iíll just replace the whole derailleur. Guess what? Itís frozen the the dropout. Bolt wonít budge no matter how much force I put on it.
Thereís virtually no rust on this bike, so Iím starting to wonder if the person that assembled it was drunk and cross threaded most of it?
I hate to give up, but I think Iím going to let a shop do the rest of the work.
Any advice or even encouragement would be greatly appreciated.

Last edited by Retroman69; 09-13-19 at 08:46 PM.
Retroman69 is offline
Old 09-13-19, 08:54 PM
  #2
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,436

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Sounds like you need to submerge some of these bits in your penetrating oil (yes, I know many argue their effectiveness) of choice, then get back to giving it a try.

It might help to put a dummy wheel in the frame and a chain to the chainrings to help keep the crankset in place while yanking off the pedal. I've had worse, years ago, and it was steel to aluminum

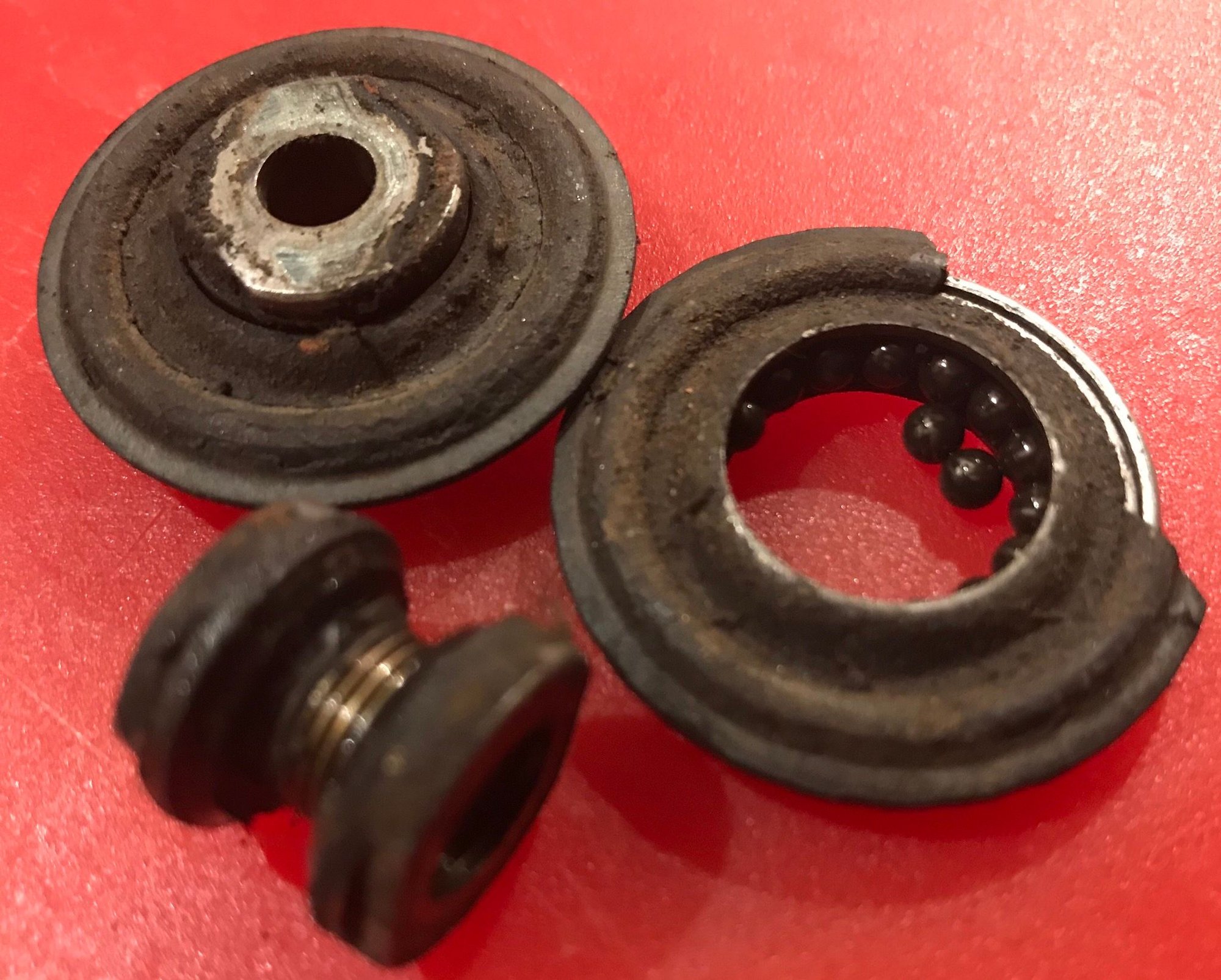

Huret pulley wheels don't have bushings, they have bearings. The free side of that pulley wheel is the adjustable cup, and I'd assume the cage has the other side (I've never cared enough about the Allvit to find out). Unscrew it carefully over a small container and let the bearings fall through the bottom and pick them out from the top as well. You can get another Allvit as a pulley wheel donor.

-Kurt
__________________







cudak888 is offline
Old 09-13-19, 08:57 PM
  #3
KerryP
Senior Member

Join Date: Jun 2008
Location: Ozark Mountains
Posts: 116

Bikes: '64 Varsity, '69 Varsity, '71 Varsity, '71 Super Sport, '72 Super Sport, PX10 times 4, '72 Paramount, '73 Sports Tourer, '73 Paramount '77 Paramount, two NOS Pros

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 13 Posts
If there's insufficient room to remove the last chainring bolt then I think you answered the question. Crank out and remove the nut that is also the bearing race that holds the inner chainring to the crank arm.

For the pedal heat is an option. Or, I've had good luck with a 50/50 mix of automotive ATF and acetone as a penetrating fluid.

Penetrating fluid might help the derailleur bolt but you need something that won't harm paint rather than the 50/50 mix that's OK for the crank/pedal area. I've had luck heating something (like a slightly smaller bolt) that would contact the derailleur bolt from the inside and using to transfer heat without heating the whole area (like a torch would do). You need to monitor the paint while transferring the heat and have a damp rag ready in case things get too hot. Sometimes multiple heating cycles get the bolt ready for removal (while hot).
KerryP is offline
Likes For KerryP:
Old 09-13-19, 09:10 PM
  #4
Nu2Miele
Senior Member

Join Date: Aug 2014
Posts: 111
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 4 Times in 4 Posts
The bike looks pretty nice.

HI. No expert on restoring, but everything can be overcome:

the chainrings canít be removed without removing the entire crankset. One of the bolts is wedged right under the crank arm. Iíve never run into this before.
But as long as you have access, who cares? Worst case scenario is to drill them out from front or back and use a set of "easy outs" or LH threaded self tapping screws)

I wanted to replace the worn incorrect rubber pedals with proper rat-traps, but one of them is frozen solid to the crank. Even a break over bar wonít budge it.
I recently had to use a harmonic balancer remover to get a set of cranks off a bike. Was able to salvage the BB, but the arms and chainrings are DONE. Worst case? Knock the plastic to bits and have a long bar (3 ft +) welded solid to the axle. Or cut the axle down so a deep 12 point socket and breaker bar can be used (or impact wrench)

The frame shims crumbled for both brakes when the brake sets were removed.
So metal ones can be had if wanting to stick with the existing brakes. you can even make your own

The pulleys for the rear derailleur crumbled when the chain was removed. Okay, Iíll just replace them. But one of them is frozen to the cage. I canít quite see how itís stuck in there. May not be serviceable.
From your pics, it may not be serviceable.

Okay, Iíll just replace the whole derailleur. Guess what? Itís frozen the the dropout. Bolt wonít budge no matter how much force I put on it.
Apply heat directly to the Allen (?) bolt that holds the derailleur to the frame., or to the frame itself. Use low heat, and as soon as it can be budged, stop with the heat. Else, cut off with a Dremel or similar. and hog out the bolt. Of course use care.

These are just ideas, but have been used for years on similar items over many years to good effect. The scariest of all of the ideas as presented above is the use of heat, but you may not have much of a choice. Love to see the Schwinn all done.

You can of course check with some of the experts. Perhaps Randy Jawa?
Nu2Miele is offline
Old 09-13-19, 09:20 PM
  #5
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,539

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1120 Post(s)
Liked 513 Times in 367 Posts
Heat, heat pad too.

When I refurbished the wife's Berkeley, the right pedal was a bear to remove. I watched
video and determined that there was only one thing to do. A couple seconds with a propane torch and the pedal came off without a fight. Use a heat pad (non flammable soldering shield) to protect heat sensitive parts and heat steel, not aluminum.
Unca_Sam is offline
Likes For Unca_Sam:
Old 09-13-19, 09:27 PM
  #6
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
Thank you guys for the tips!
I at least finally got the derailleur out!
I heated it up and just kept on it with steady brute force. Removing the bolt was like pulling your leg out of a tub of semi-hardened tar. Must have been fighting 52 year old petrified grease.

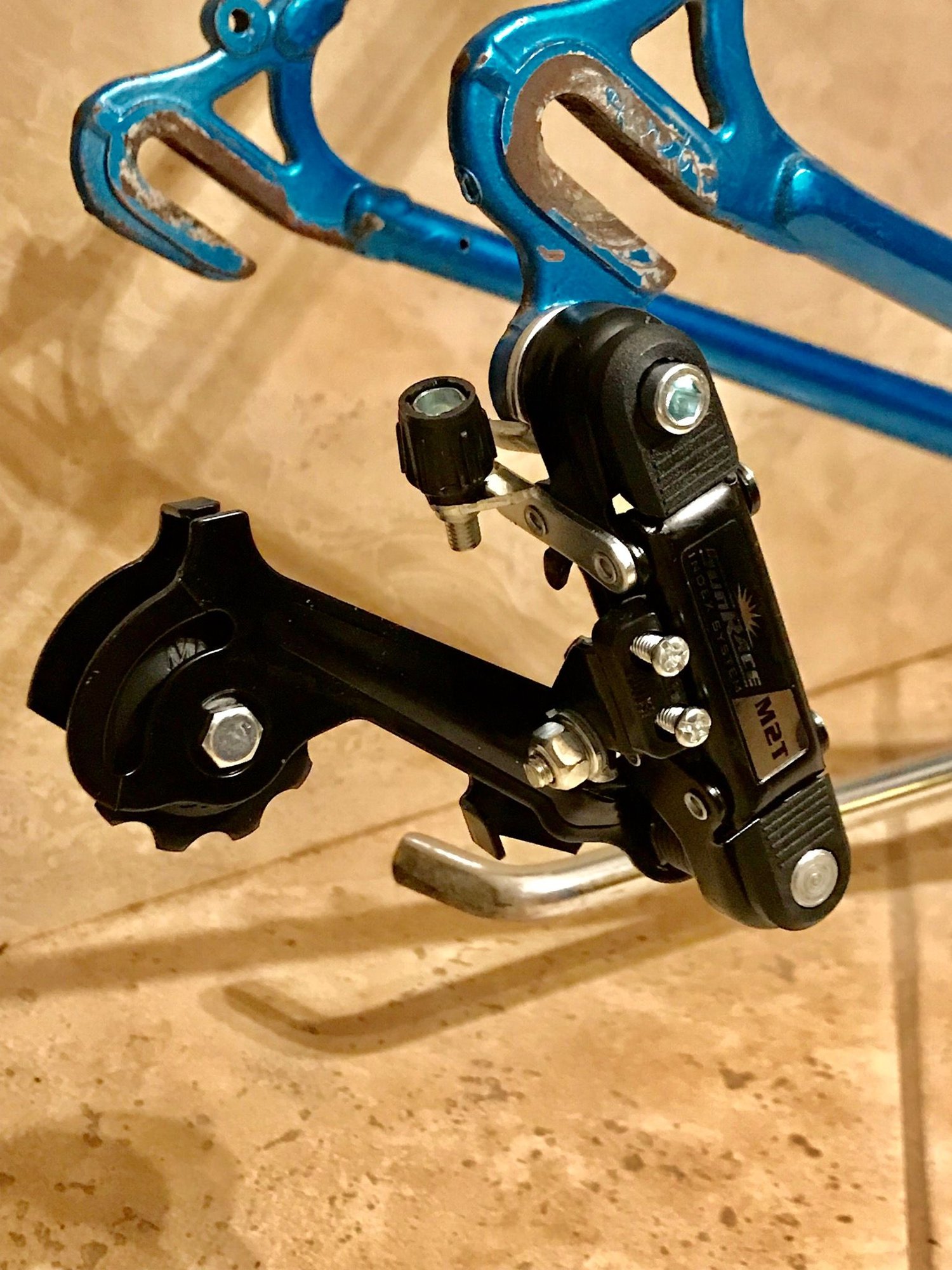

Iíll probably just replace the derailleur with a new one. Since I had to order new bars and brake levers anyway, this will just end up being a ďmostly correctĒ resto-mod.
I might even switch to a lighter 3-piece crank.
Actually those brake spacers are metal. Thatís why it surprised me when they fell apart upon removal.
Still no luck on the pedal (man, itís really on there!!), but Iíll try again in the morning.

Thanks again for all the great input!
Retroman69 is offline
Old 09-13-19, 09:38 PM
  #7
KerryP
Senior Member

Join Date: Jun 2008
Location: Ozark Mountains
Posts: 116

Bikes: '64 Varsity, '69 Varsity, '71 Varsity, '71 Super Sport, '72 Super Sport, PX10 times 4, '72 Paramount, '73 Sports Tourer, '73 Paramount '77 Paramount, two NOS Pros

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 13 Posts
Even if you don't use it on to that Sprint derailleur.
KerryP is offline
Old 09-13-19, 10:08 PM
  #8
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,436

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Originally Posted by Retroman69 View Post
Thank you guys for the tips!
I at least finally got the derailleur out!
I heated it up and just kept on it with steady brute force. Removing the bolt was like pulling your leg out of a tub of semi-hardened tar. Must have been fighting 52 year old petrified grease.
Iíll probably just replace the derailleur with a new one. Since I had to order new bars and brake levers anyway, this will just end up being a ďmostly correctĒ resto-mod.
I might even switch to a lighter 3-piece crank.
Actually those brake spacers are metal. Thatís why it surprised me when they fell apart upon removal.
Still no luck on the pedal (man, itís really on there!!), but Iíll try again in the morning.

Thanks again for all the great input!
How'd the paint hold up to the heat?

-Kurt
__________________







cudak888 is offline
Old 09-14-19, 05:25 AM
  #9
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
I didnít get too crazy with the heat, and the paint held out fine.
At last the pulley came out, but it took a vice and a long handled wrench.
I donít think aftermarket modern pulleys can replace these and vintage donor units that Iím seeing around the Internet are surprisingly expensive, so Iím likely going to have to replace the whole derailleur anyway.

Last edited by Retroman69; 09-14-19 at 05:34 AM.
Retroman69 is offline
Old 09-14-19, 06:04 AM
  #10
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,294
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Likes: 0
Liked 223 Times in 148 Posts
Replacing the rear derailleur with something better is likely to be your most cost effective solution. I'm not sure if replacement pulleys will fit the bolts you have.
Narhay is offline
Old 09-14-19, 06:30 AM
  #11
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,955

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 202 Times in 161 Posts
You will want to pull the entire crankset anyway, to lube the bearings and probably replace the balls themselves. A thin profile wrench of the proper size should get that stuck bolt out. (Removing the crank won't help with this particular fitting, other than letting you work in a more comfortable position or location.) It's a LH thread on the left side of the one-piece crank.

Just scrap the entire derailleur and find either another Huret Allvit or take advantage of this opportunity to upgrade (to almost anything else). Note -- if you upgrade to a SunTour V-GT, you may have to grind back the stop on the shift lever in order to hit all gears properly, because SunTours require a lot of cable wrap. (Been there ... done that ... worked like a champ, if you don't mind the right side lever going forward past vertical.)
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 09-14-19, 10:07 AM
  #12
KerryP
Senior Member

Join Date: Jun 2008
Location: Ozark Mountains
Posts: 116

Bikes: '64 Varsity, '69 Varsity, '71 Varsity, '71 Super Sport, '72 Super Sport, PX10 times 4, '72 Paramount, '73 Sports Tourer, '73 Paramount '77 Paramount, two NOS Pros

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by John E View Post
You will want to pull the entire crankset anyway, to lube the bearings and probably replace the balls themselves. A thin profile wrench of the proper size should get that stuck bolt out. (Removing the crank won't help with this particular fitting, other than letting you work in a more comfortable position or location.) It's a LH thread on the left side of the one-piece crank.
I'm confused. I thought the OP's problem was the head of the bolt being trapped by the crank arm. A thin open end wrench would turn the last chainring bolt but I assumed the issue was it hitting the crank arm before it was free of its threads. That's why I suggested removing the crank set and then separating the chainring assembly from the arm to allow the bolt's removal.
KerryP is offline
Old 09-14-19, 11:29 AM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,535

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
As long as the freewheel is to remain at five speeds, I vote for saving the less-common, original Sprint/Allvit.
I wouldn't take the main body apart though, these were assembled/adjusted well at the factory and typically just need some freeing-up to shift snappily. The springs seem to never go bad.

This looks like an easy one actually. First the top pulley has extended threading on the one cone that threads into the cage plate. Remove the "extended" cone and fit it into the good lower pulley with the plastic ring still intact.
Then find any pulley with a 6mm hole for use in the lower pulley position (Suntour pulleys are the most plentiful, but there are still many discarded Allvit derailers to be found for next to nothing in terms of effort or cost).
The remaining pulley with the broken plastic ring may work fine as a lower pulley once the remaining plastic is stripped off. It won't work so well as a top pulley though.

The long Twin-Stik levers are perfect for use with the Sprint derailer's spring rate, gives plenty of leverage for light-touch shifting if lined cable housing is used.

Note that the matching front derailer has a Schwinn-proprietary clamping diameter, so be gentle with it! There are no other derailers that will fit (other than reducing a modern 1-1/4" clamp derailer).

You'd probably want to grease the bottom bracket anyway, so off comes the drive-side cone and the chainring using the same 12" adjustable wrench needed on the bb nut.

The end of the crank can be heated to remove the pedal. Don't heat to a point much further than smoking some of the oil out of the threaded area, and use a good-fitting wrench. Heat makes all the difference.

Last edited by dddd; 09-14-19 at 11:42 AM.
dddd is offline
Old 09-14-19, 11:57 AM
  #14
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,955

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 202 Times in 161 Posts
Originally Posted by KerryP View Post
I'm confused. I thought the OP's problem was the head of the bolt being trapped by the crank arm. A thin open end wrench would turn the last chainring bolt but I assumed the issue was it hitting the crank arm before it was free of its threads. That's why I suggested removing the crank set and then separating the chainring assembly from the arm to allow the bolt's removal.
Ah --- you are probably correct.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 09-14-19, 12:53 PM
  #15
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,264
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 197 Post(s)
Liked 138 Times in 94 Posts
I know the OP is an experienced bicycle restorer, but since the recalcitrant pedal is the left, I can't resist asking, "Are you torquing it the right way, i.e., clockwise?" Sometimes we get tired, frustrated, disoriented working with the bike upside down from the wrong side of the clock and we just get lost. Honestly, no offense intended. (And you don't even have to confess. )
conspiratemus1 is offline
Old 09-14-19, 01:22 PM
  #16
KerryP
Senior Member

Join Date: Jun 2008
Location: Ozark Mountains
Posts: 116

Bikes: '64 Varsity, '69 Varsity, '71 Varsity, '71 Super Sport, '72 Super Sport, PX10 times 4, '72 Paramount, '73 Sports Tourer, '73 Paramount '77 Paramount, two NOS Pros

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Liked 15 Times in 13 Posts
Originally Posted by John E View Post
Ah --- you are probably correct.

I'm not going to share this with my wife
KerryP is offline
Likes For KerryP:
Old 09-14-19, 08:10 PM
  #17
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,822

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 766 Post(s)
Liked 447 Times in 333 Posts
Hitting some speed bumps...... so the usual vintage tear down then? good luck with sorting through the issues OP, I find patience, beer and the knowledge of BF is often quite helpful in these situations, oh and a willingness to walk away and come back to the problem later. I am often shocked at how clear a solution becomes once I have cleared my head of the red mist
ryansu is offline
Likes For ryansu:
Old 09-14-19, 10:18 PM
  #18
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
Thank you guys for so much great advice!
I took a trip today to take a break from it.
Tomorrow morning I will get a fresh start on it.
Yes, on the chainrings it doesnít look like there is enough clearance to back the trapped bolt all the way out. And you guys are right, even though it is spinning smoothly, it wouldnít hurt to clean and repack the BB anyway.
I fitted a new rear derailleur, but Iím slapping my forehead for not thinking about swapping pulleys or noticing that the bottom pulley bolt would allow for a modern sealed-bearing pulley to be fitted. Brilliant observation sir!
I carefully preserved the packaging in case I wanted to return the new derailleur.
Iím pretty sure I was I was turning the pedal clockwise, but when I hit it tomorrow Iíll pay attention to make sure that I am.
Everyone, thanks again!

Last edited by Retroman69; 09-14-19 at 10:24 PM.
Retroman69 is offline
Old 09-15-19, 06:36 AM
  #19
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,810

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 107 Times in 66 Posts
The brake spacers are still available new It's not uncommon for them to split. I'm pretty sure I have some Huret pulleys out in the barn. PM me and I'll send you one.
IIWM, the RD and crank would be the first to go.




Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Likes For top506:
Old 09-15-19, 07:27 AM
  #20
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,436

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Originally Posted by top506 View Post
The brake spacers are still available new It's not uncommon for them to split. I'm pretty sure I have some Huret pulleys out in the barn. PM me and I'll send you one.
IIWM, the RD and crank would be the first to go.

Top
The Viscount outer ring suits your Super Sport exceptionally well. Nice work.

-Kurt
__________________







cudak888 is offline
Old 09-15-19, 09:21 AM
  #21
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
Originally Posted by top506 View Post
The brake spacers are still available new It's not uncommon for them to split. I'm pretty sure I have some Huret pulleys out in the barn. PM me and I'll send you one.
IIWM, the RD and crank would be the first to go.




Top
Hi! Thank you very much for offering to send the elusive pulley, I appreciate that!
Thatís a gorgeous SS! Love all the mods you did, and they fit with it so well they look like they belong on it.
Iím staring at the bare frame and wheels sitting there and still debating continuing with a mild update/custom myself on this one.
Retroman69 is offline
Old 09-15-19, 05:50 PM
  #22
Retroman69
Senior Member
Thread Starter

Retroman69's Avatar

Join Date: Aug 2019
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 29 Post(s)
Likes: 0
Liked 37 Times in 17 Posts
Ah! Finally got the pedal off.
I used the other pedal as a wedge, got a long handled 9/16 wrench on it, and went after it with a 3 pound mini-sledge!
Popped loose immediately.
I again appreciate everyoneís encouragement.
Retroman69 is offline
Old 09-15-19, 07:05 PM
  #23
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 25,436

Bikes: https://www.theheadbadge.com

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 1087 Post(s)
Liked 987 Times in 624 Posts
Originally Posted by Retroman69 View Post
Ah! Finally got the pedal off.
I used the other pedal as a wedge, got a long handled 9/16 wrench on it, and went after it with a 3 pound mini-sledge!
Popped loose immediately.
I again appreciate everyoneís encouragement.
If you ever come across one of those MTB seatpost rear racks in horrible shape, consider taking the rack off and using the steel/aluminum rack support as a wrench extender. If it slides over the wrench just right...

Has helped me on more than one pedal in the past.

-Kurt
__________________







cudak888 is offline
Old 09-15-19, 07:33 PM
  #24
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,535

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
One step at a time, this SS is definitely coming along, and I predict success with getting that Sprint derailer set working as intended.

Also glad to see that the world's best kickstand is still proudly on board, it's a mere .9lb extra and goes along way to keeping the vibe intact.

At risk of having someone say "note to self, do not ever buy a bicycle from this guy", I must say that the 2 and 3# hammers are some of of my most useful tools, perfect for gently truing chainring spiders in-situ (using a wood dowel drift), and for helping wrenches along. Even on a stubborn bb cup, using a sugino cup wrench, I can hammer a cup loose while holding the wrench centered flat on the cup using my other hand (it's all about keeping the wrench opening pressed perfectly flat against the end of the bb shell, and also on the wrench arriving in a correct-enough clock position friendly to this technique).
The 3# hammer is also a convenient anvil.
Lastly, I can even use either of these to level (read "smash") any large embedded rocks that rise above grade in my ever-more-civilized backyard environs.



Last edited by dddd; 09-15-19 at 07:41 PM.
dddd is offline
Likes For dddd:
Old 09-15-19, 07:53 PM
  #25
Unca_Sam
The dropped

Unca_Sam's Avatar

Join Date: Oct 2018
Location: Columbus, OH
Posts: 1,539

Bikes: Pake C'Mute Touring/Commuter Build, 1989 Kona Cinder Cone, 1995 Trek 5200

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 1120 Post(s)
Liked 513 Times in 367 Posts
Originally Posted by dddd View Post
I'll admit that this photo made me laugh. It's certainly a reward for pulling that seatpost free.
Unca_Sam is offline
Likes For Unca_Sam:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
