Campag NR rear hub near dead

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Campag NR rear hub near dead

Old 09-19-19, 06:47 PM
  #1
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 2,909
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 218 Times in 131 Posts
Campag NR rear hub near dead

Been riding the same hubs since 1986, put at least 30 thousand miles on them. Got them new from Oschner Imports when I worked full time at a shop. Two years ago my daughter and I rode a crushed limestone bike trail for about 20 miles and a ton of dust was kicking up. Foolishly I did not repack the hubs when we got home, but kept on riding them for the rest of the season and part of this season. Went to repack today and found the balls very dull and the cones, although not pitted, are dull as well. Cups in the hub seem to be OK.

Put new grade 25 balls in and the hub no longer has that buttery smooth Campy feel to it. Now it feels like a mid grade Shimano hub. Suppose nothing lasts forever when not cared for. Shame on me for being so blind!
TiHabanero is offline
Old 09-19-19, 07:21 PM
  #2
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 7,662

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1953 Post(s)
Likes: 0
Liked 329 Times in 242 Posts
You could try the old trick with Tipo hubs. Replace the grease with polishing paste and ride a couple hundred miles. Might smooth them out. (Tipo hubs didn't get the final NR super smooth machining but the races were otherwise the same. After the final on-the-road polishing, there was very little difference in feel. The cost of this experiment will be very little and you have nothing to lose.

Ben
79pmooney is offline
Old 09-19-19, 07:26 PM
  #3
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 722

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 173 Times in 138 Posts
Habanero,
I just finished a hub that came in damaged and sent it out to Oregon. Your buttery smooth feel can be restored by a bit of work. It isn't gonna be cheap but it gets you back to square one. You will need to get a few rubber infused bits for your Dremel tool. And some 400, 600, and 800 water paper grit sandpaper. You will need a drill and a drill press, and a special tool I use that is basically a 1/4" piece of SS stock with a slot cut into it. The rubber infused bits will polish out all of the imperfections in the outer races of the hub. It will be back to mirror finish in a few minutes (like thirty). The inner races need more attention. You will need to use the drill press with the SS stock with the slot cut into it to make a a polishing tool for the races. The roughest grit first and down to the finest. Put the axle in your drill and set each inner race to the lowest point on the axle at a time, and lock it down with the jam nut. Then proceed to polish by using the low speed of your drill press coupled with the speed of your drill to polish the race to a mirror finish. Use all three papers to get the best results, and then do the other race. New bearings and new grease will have you back in bizniz! Smiles, MH
Mad Honk is offline
Likes For Mad Honk:
Old 09-19-19, 07:46 PM
  #4
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 38,575

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 464 Post(s)
Tagged: 0 Thread(s)
Quoted: 6197 Post(s)
Liked 703 Times in 469 Posts
It doesn't sound like it's nearly dead. It still has many years ahead.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is offline
Likes For noglider:
Old 09-19-19, 08:22 PM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 258 Times in 205 Posts
Originally Posted by 79pmooney View Post
You could try the old trick with Tipo hubs. Replace the grease with polishing paste and ride a couple hundred miles. Might smooth them out. (Tipo hubs didn't get the final NR super smooth machining but the races were otherwise the same. After the final on-the-road polishing, there was very little difference in feel. The cost of this experiment will be very little and you have nothing to lose.

Ben
The hub races between tipo and record were not the same. The tipo received nice stamping but just that- the records received heat treatment and grinding.

same with the cones.

i would go with grade 10 ball bearings- better than grade 25- one still might use simichrome in the hubs with the bearings now... it does not take long.

also might consider new cones- those do show up on that famous auction site- also sometimes look for axle sets and it a lone front or rear hub...

or or at the final build go ceramic ball bearings ...
repechage is offline
Likes For repechage:
Old 09-19-19, 08:24 PM
  #6
gfk_velo
Senior Member

Join Date: Mar 2014
Posts: 306

Bikes: Too many!

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 18 Times in 10 Posts
Originally Posted by Mad Honk View Post
Habanero,
I just finished a hub that came in damaged and sent it out to Oregon. Your buttery smooth feel can be restored by a bit of work. It isn't gonna be cheap but it gets you back to square one. You will need to get a few rubber infused bits for your Dremel tool. And some 400, 600, and 800 water paper grit sandpaper. You will need a drill and a drill press, and a special tool I use that is basically a 1/4" piece of SS stock with a slot cut into it. The rubber infused bits will polish out all of the imperfections in the outer races of the hub. It will be back to mirror finish in a few minutes (like thirty). The inner races need more attention. You will need to use the drill press with the SS stock with the slot cut into it to make a a polishing tool for the races. The roughest grit first and down to the finest. Put the axle in your drill and set each inner race to the lowest point on the axle at a time, and lock it down with the jam nut. Then proceed to polish by using the low speed of your drill press coupled with the speed of your drill to polish the race to a mirror finish. Use all three papers to get the best results, and then do the other race. New bearings and new grease will have you back in bizniz! Smiles, MH
This is an interesting way to do it, Mad Honk.

I had to read it twice but I think you mean to put the cone onto the lowermost part of the axle, with the axle set in the chuck of the drill press and lock it in place with the locknut., then use the 1/4" piece of stainless with the slot in it to carry some 400 / 600 / 800 grit (presumably just a difference in local naming of things) wet-and-dry paper, mounted in the drill and run the drill at 90 degrees to the axle so that the cone is being spun with the axle at a relatively low speed in the drill press, whilst the 1/4" bar which carries the wet and dry, being approx the same diameter as the balls, is spun by the drill at relatively high revs so buffing the bearing surface.

I'd guess you need a piece of 3/16" bar with a slot for the front cones, since they are radiused for a 3/16" ball?

Neat!

I used to use the method that 79pmooney recommends years ago when working for the teams (contrary to popular myth, very few teams had (or have) bottomless pockets so you sometimes had to improvise a bit) but would spin the axles with an electric drill for speed. More recently, I've set the cone on the axle in the lathe and used a 1000 grade water stone ground to a 1/4" radius for the rear and 3/16" for the front, held in the tool post, to do this job. Tricky because the water stone is quite brittle so you have to go in with water and very, very easy at just the right angle. Grinding the radius on the water stone is also a real PITA ...

Depending on which hubs you have, I probably have spare cones for them in the secret stash ...

Last edited by gfk_velo; 09-19-19 at 08:31 PM.
gfk_velo is offline
Old 09-19-19, 08:45 PM
  #7
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 602
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 182 Post(s)
Liked 38 Times in 33 Posts
Boulder bicycle has the cones. 14.50/pr. Sometimes they have the cups.

Found More! Campagnolo Vintage Rear Cone Pair NOS - fits Campy Nuovo Record and Victory and others

Last edited by Hobbiano; 09-19-19 at 10:00 PM.
Hobbiano is offline
Likes For Hobbiano:
Old 09-19-19, 08:45 PM
  #8
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,784

Bikes: old school 531c & campy

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 778 Post(s)
Liked 405 Times in 252 Posts
Originally Posted by noglider View Post
It doesn't sound like it's nearly dead. It still has many years ahead.

​​​​
But he says they are not as smooth. Like back when he was just a youth.
SurferRosa is offline
Old 09-19-19, 09:48 PM
  #9
nesteel
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 1,946

Bikes: See the signature....

Mentioned: 67 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Likes: 0
Liked 47 Times in 35 Posts
If 20 miles of limestone did your hub in, it was on the way out anyway.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 09-19-19, 10:20 PM
  #10
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,466

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1975 Post(s)
Liked 189 Times in 147 Posts
If the cones and the cups aren't pitted, they have plenty of miles yet. In your situation, I'd probably polish up the cones with polishing compound and a drill, and leave it at that. No sandpaper.

I've never tried the simichrome instead of grease method, but I guess that might work. Not sure I'd ride 200 miles with simichrome in my hubs. I'd try 50 and then check.
Salamandrine is online now
Old 09-19-19, 10:43 PM
  #11
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,105
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 81 Times in 55 Posts
7/32" balls in front Nuovo Record hubs, right? (3/16" in Tipo.)
conspiratemus1 is offline
Old 09-19-19, 10:50 PM
  #12
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 19,877

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 2681 Post(s)
Liked 553 Times in 399 Posts
If everything in the hubs is just a bit dull, why bother with the Dremels and polishing compound and everything? Wouldn't just continuing to run the hubs with fresh balls and grease polish them up where they need it?
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 09-19-19, 10:56 PM
  #13
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,105
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Liked 81 Times in 55 Posts
Originally Posted by Mad Honk View Post
Habanero,
... And some 400, 600, and 800 water paper grit sandpaper. You will need a drill and a drill press, and a special tool I use that is basically a 1/4" piece of SS stock with a slot cut into it. .. You will need to use the drill press with the SS stock with the slot cut into it to make a a polishing tool for the races. The roughest grit first and down to the finest. Put the axle in your drill and set each inner race to the lowest point on the axle at a time, and lock it down with the jam nut. Then proceed to polish by using the low speed of your drill press coupled with the speed of your drill to polish the race to a mirror finish. Use all three papers to get the best results, and then do the other race. New bearings and new grease will have you back in bizniz! Smiles, MH
Have you ever used the really fine aluminum oxide films sold for honing plane and chisel blades? 3Mâ„¢ Aluminum Oxide Films for Sharpening - Lee Valley Tools The finest I use (for woodworking tools) is the yellow stuff, 1 micron grit about equiv. to an 8000x stone. You work up through the range, just as you suggest with the water paper. It's great for people who do only occasional projects and don't want to invest in diamond stones. (Over the long haul, the Al2O3 gets expensive if you do a lot of sharpening.)
conspiratemus1 is offline
Likes For conspiratemus1:
Old 09-20-19, 10:32 AM
  #14
TiHabanero
Senior Member
Thread Starter

Join Date: Nov 2012
Posts: 2,909
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 218 Times in 131 Posts
In the middle of the night I remembered I had a set of spare hubs stashed away. Looked at them this morning and found that it is two sets of hubs!! Yea! Changed out the cones and the hubs are certainly smoother, however I will try rehabbing them before settling for second best. Thanks for the tips and process descriptions.
TiHabanero is offline
Old 09-20-19, 05:58 PM
  #15
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,137
Mentioned: 191 Post(s)
Tagged: 0 Thread(s)
Quoted: 10703 Post(s)
Liked 585 Times in 468 Posts
I regularly polish my cones.

I have a small drill press that I screw the cones onto a scrap axle, then polish with successive grades of sandpaper on high speed from 220 grit up to 600 grit. I don't have 1000 or greater, but it is available. I tend to use oil with the 600 and final polishing.

I get a pretty good mirror finish, and tiny circumferential scratches don't make any difference.
CliffordK is offline
Old 09-20-19, 07:34 PM
  #16
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,049

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 95 Post(s)
Tagged: 0 Thread(s)
Quoted: 727 Post(s)
Likes: 0
Liked 155 Times in 118 Posts
About once a year, give or take, I get out the equipment to polish my cones, my shoes and my helmet.
dddd is offline
Likes For dddd:
Old 09-21-19, 01:21 AM
  #17
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Posts: 12,258

Bikes: Yes

Mentioned: 314 Post(s)
Tagged: 0 Thread(s)
Quoted: 1832 Post(s)
Liked 138 Times in 89 Posts
I'd like to offer testimony as to the truth of what @Mad Honk is saying. The man is a straight up wonder worker. I just got the hub he mentioned above. I saw a picture of it in the "as found" state, and I was a bit skeptical as to whether or not it would clean up to be usable even on a basic rider. Then he did this:



It looks so good, I felt the need to polish the rear hub I'm going to pair it with before even putting them next to each other in the toolbox to await spokes.

Of course, the question in this thread is "How does it spin?" It feels great! Perfectly smooth without feeling loose.I am very impressed!
__________________
My Bikes
Andy_K is offline
Old 09-21-19, 06:48 PM
  #18
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 722

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 173 Times in 138 Posts
Andy,
Thanks for the words of support. It was a bit bad when it came in, but I did nothing to the outer shell other than a good cleaning with no polishing. And gave it the process described above.
Now about that rear hub... How about getting one of those leather buckle on reflector things we put on the hubs to keep them clean way back in the fifties and sixties? Har Har!!
Smiles, MH
Mad Honk is offline
Old 09-21-19, 06:59 PM
  #19
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 722

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 173 Times in 138 Posts
gfk_velo,
I just got back from a trip to New Harmony, IN ; a Utopian Society started in the 1830's, and a great place to get away from the real world. I will try to post pics of the process tomorrow when I get going. It isn't hard, but you have to have the tools available to do this work. I will find a hub or BB that needs some help and show the before and afters. But that is a a lot of pics! Hope it will be of help, smiles, MH
Mad Honk is offline
Old 09-22-19, 03:15 AM
  #20
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,548

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 165 Post(s)
Tagged: 0 Thread(s)
Quoted: 722 Post(s)
Likes: 0
Liked 180 Times in 136 Posts

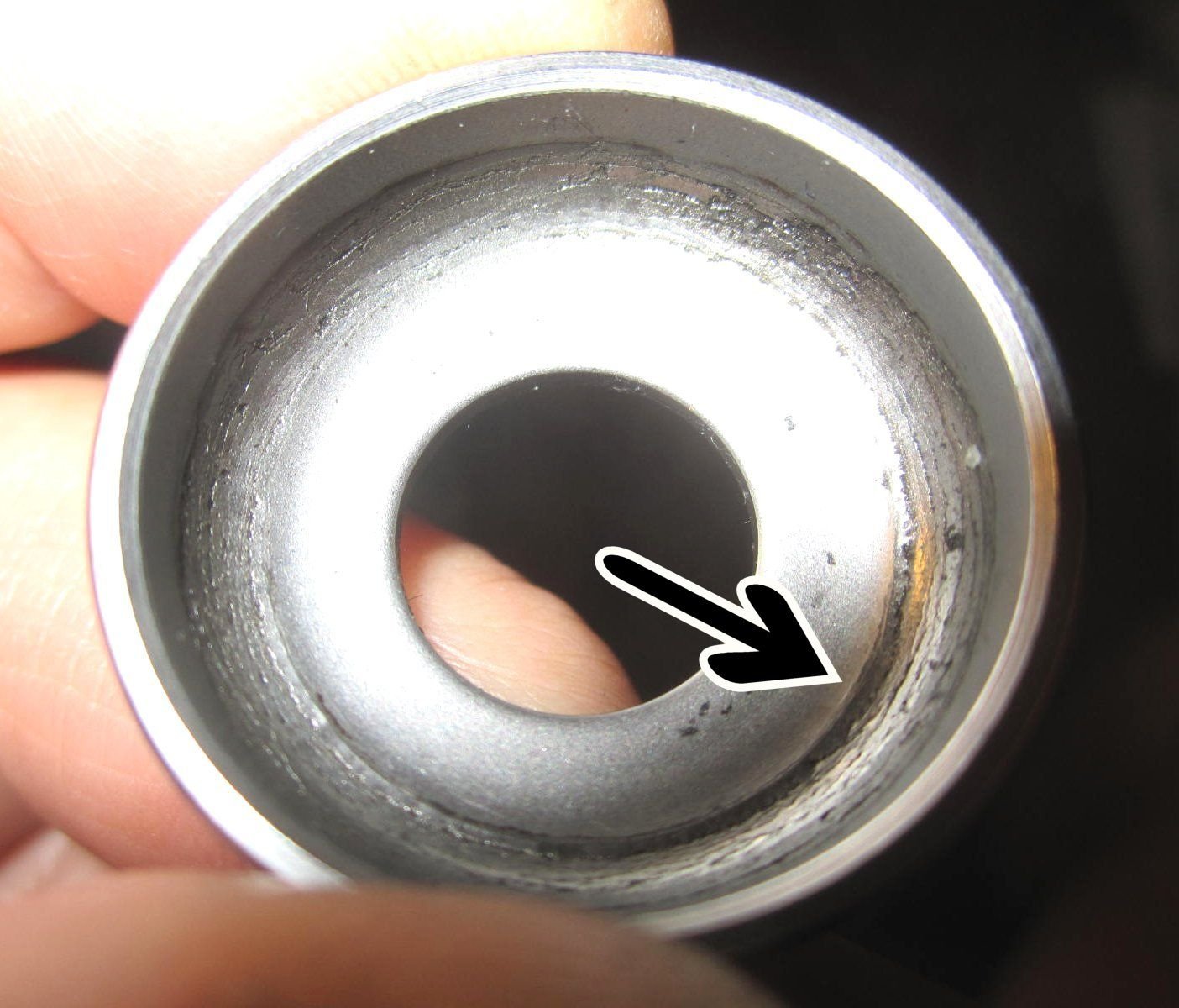

If the races are not pitted, clean everything up as well as you can and then polish the races with crumpled up aluminum foil. Argue if you wish, but this has helped me put, otherwise questionable hubs, back into reasonable working order. It costs nothing to implement. I might also suggest replacing the ball bearings. Then assemble and see how it feels. You might be surprised and get many years more out of the hub...
__________________
"98% of the bikes I buy are projects". Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 09-22-19, 06:13 PM
  #21
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 722

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 173 Times in 138 Posts








OK gfk_velo,

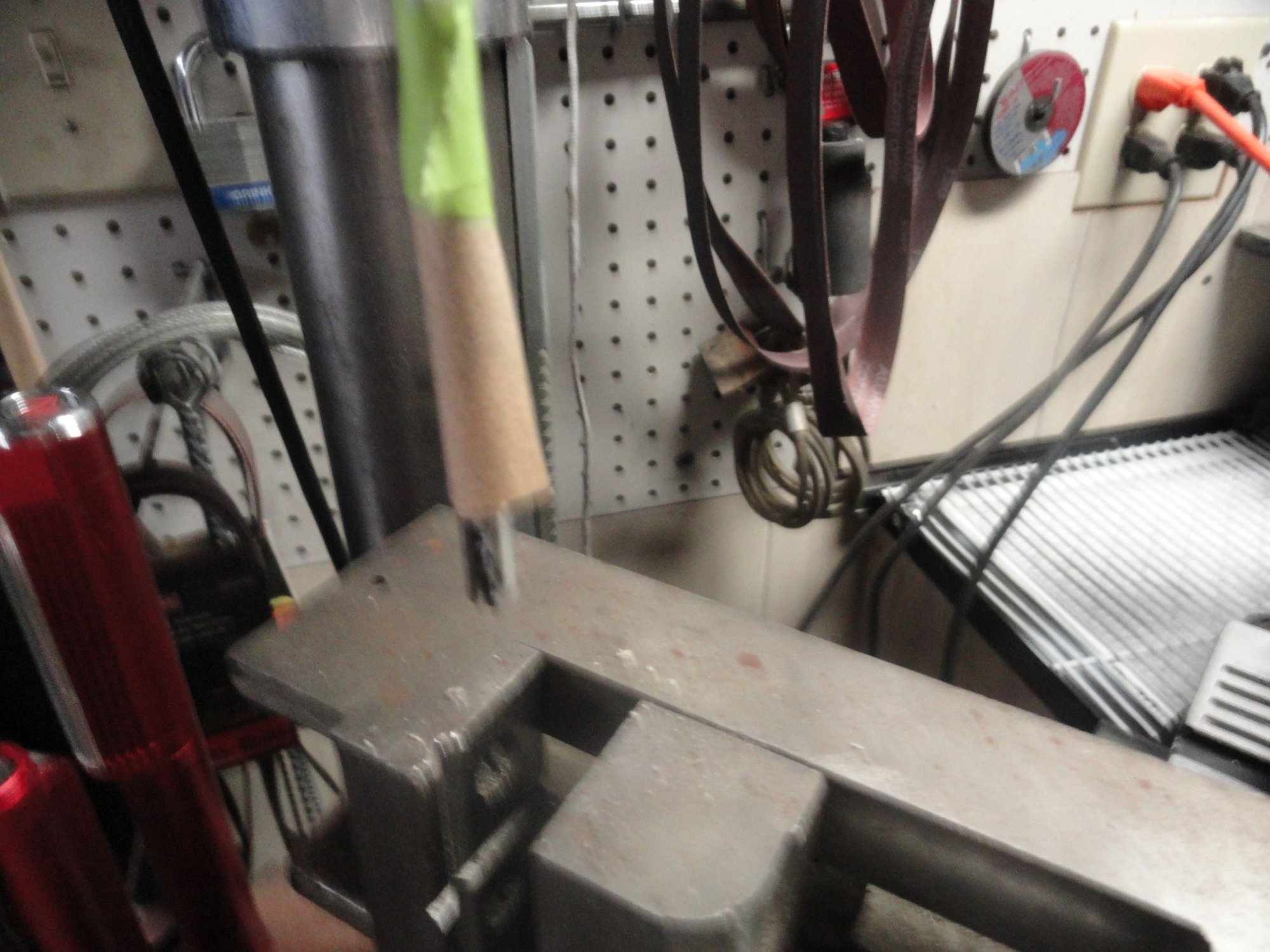

Here is the process: Clean the hub, and then polish the races. pics are like this: hub before any work, hub at cleaning, hub at the polishing stage, inner races being polished and the way to do it. One side first then the other, and then polishing to outer races, before and after. HTH, MH
Mad Honk is offline
Old 09-22-19, 06:20 PM
  #22
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,466

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1975 Post(s)
Liked 189 Times in 147 Posts
Campy NR cones are surface hardened, and you can't practically regrind the surface without destroying the hard surface layer. That's what I was always told at least. So, bad idea. n reality it depends on the method Campagnolo used to harden the cones. For normal mid level cones, go to town. In older times it was however easier just to buy a new cone.
Salamandrine is online now
Old 09-22-19, 06:32 PM
  #23
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 722

Bikes: Trek 770, Trek 760, Schwinn Peloton, Patelli Professional, Othon Ochsner

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 307 Post(s)
Liked 173 Times in 138 Posts
I may be whistling in the graveyard here, But how do you think those cones got polished in the first place? How do you harden a surface after the polishing process to get the hardness different than the base metal? I spent more than a few years in the steel industry and have yet to see any post production hardening of the surfaces. I get that hard anodizing of aluminum will increase it's tensile strength, but have no knowledge of anything like that for steel. What the steel is, is what it is. High carbon, chrome, or vanadium will help it out but won't change the structure of the base material. Smiles, MH
Mad Honk is offline
Old 09-22-19, 07:34 PM
  #24
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,238

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 156 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 255 Times in 171 Posts
Campy Record vs Nouvo Tipo Cups

Campy Nuovo Tipo # 1271 rear hub cups were stamped, minimally machined, hardened then the ODs, and ball bearing races were ground.

This # 1271 cup failed when it cracked from being overtightened and rode until the axle broke.




Notice the amount of wear in the cup.


Record # 738 rear hub cups were stamped or may have been machined from bar stock then hardened. The rear is flat. The ODs and rear faces were precision ground and the bearing races ground with a finer grit grinding wheel to provide a smoother finish.

I received the # 1271 cup below as a replacement. It looks identical to the # 738 but not as well ground. Triomphe and Victory hubs used the # 1271 rear cups too so maybe Campy changed the design???




@randyjawa When aluminum is exposed to the atmosphere it instantly starts forming (corroding) an aluminum oxide surface layer. That layer helps prevent further corrosion. Since aluminum oxide is hard and is used in abrasives, it's that surface layer on the foil that's doing the polishing. There are much faster and more effective forms of aluminum oxide in the form of powders, pastes, coated abrasives (sand paper).

verktyg
verktyg is offline
Likes For verktyg:
Old 09-23-19, 04:17 AM
  #25
gfk_velo
Senior Member

Join Date: Mar 2014
Posts: 306

Bikes: Too many!

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 58 Post(s)
Likes: 0
Liked 18 Times in 10 Posts
Originally Posted by Mad Honk View Post








OK gfk_velo,
Here is the process: Clean the hub, and then polish the races. pics are like this: hub before any work, hub at cleaning, hub at the polishing stage, inner races being polished and the way to do it. One side first then the other, and then polishing to outer races, before and after. HTH, MH
Thanks MadHonk - really appreciate your time to shoot the images and post.
Definitely simpler than my method.
Tooling isn't a problem this end :-D
gfk_velo is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
