Holdsworth Professional, team Campagnolo

I have wanted a Holdsworth Campagnolo for a long time. Recently I got the itch to get one and after looking around decided a real one would be way to expensive. It seems the brand new ones are cheaper! After browsing around the internet sites I came across a Holdsworth Elan frame with Reynolds 531 tubing for a decent price on eBay and won it. Upon receiving it I put it together with parts I had and rode it around for a while but still wanted the team bike. Well I decided to make my own version. Below is what I received from the auction.


I stripped it down to the bare frame and had it media blasted, It wasn't cheap to have done at $75 but it turned out they were charging by time rather than the job, so for the price of that frame being blasted I got four separate frames done. So for around $19 I thought it was a good deal. Here it is back from the blasters.

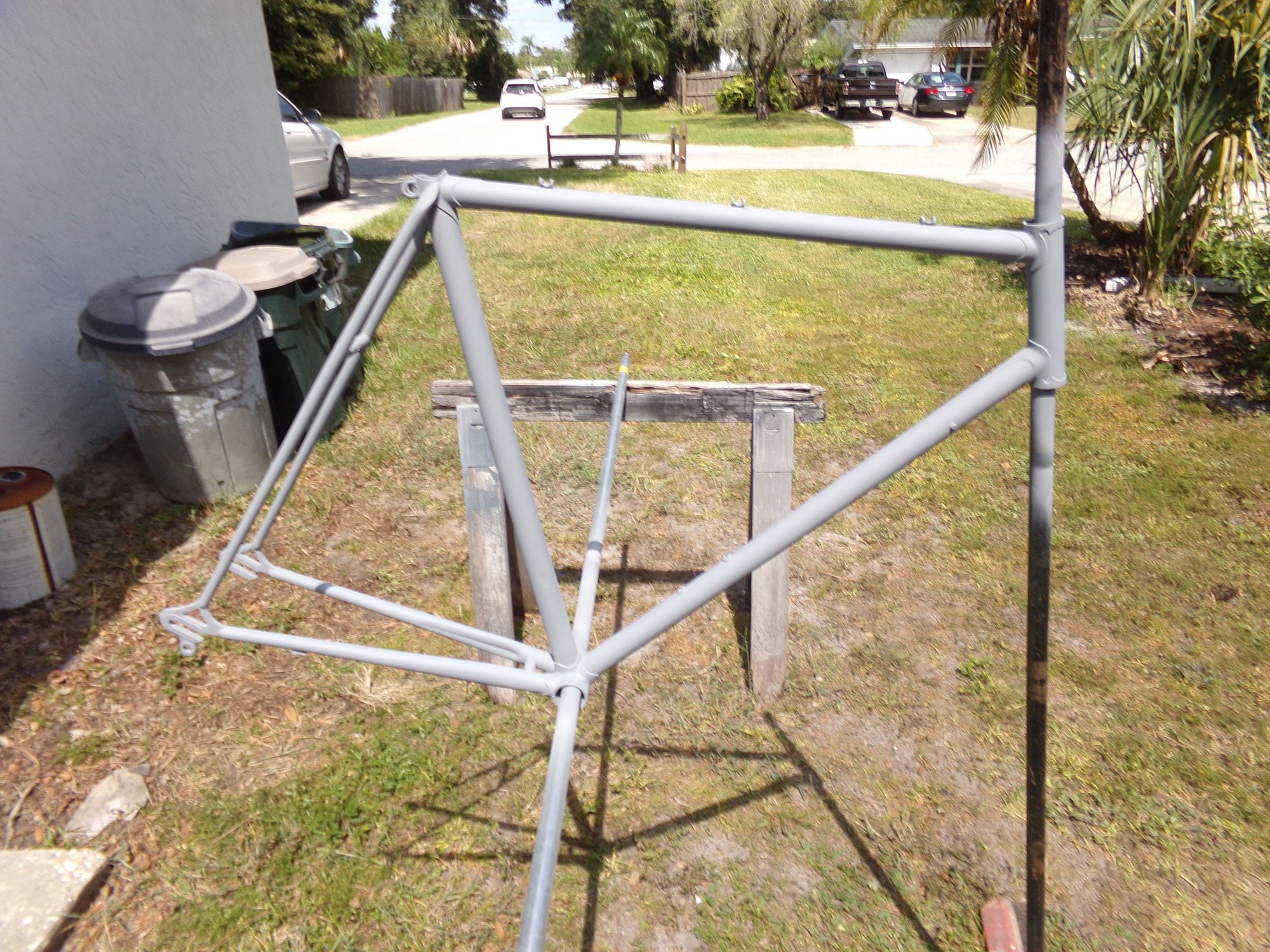

I removed the eyelets and primed it for paint.

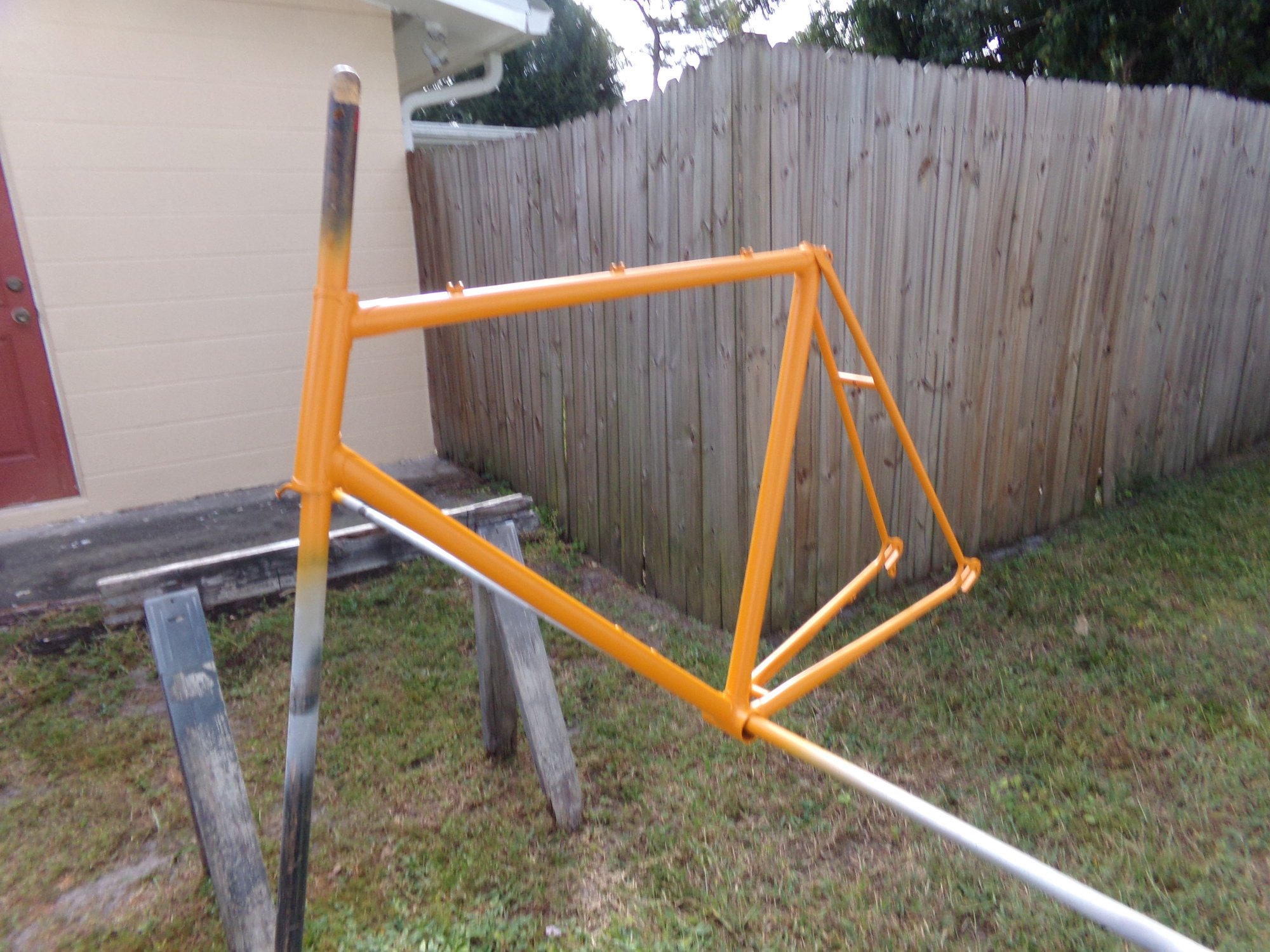

I let the primer dry for several days then sanded and applied 3 coats of Porsche orange basecote.

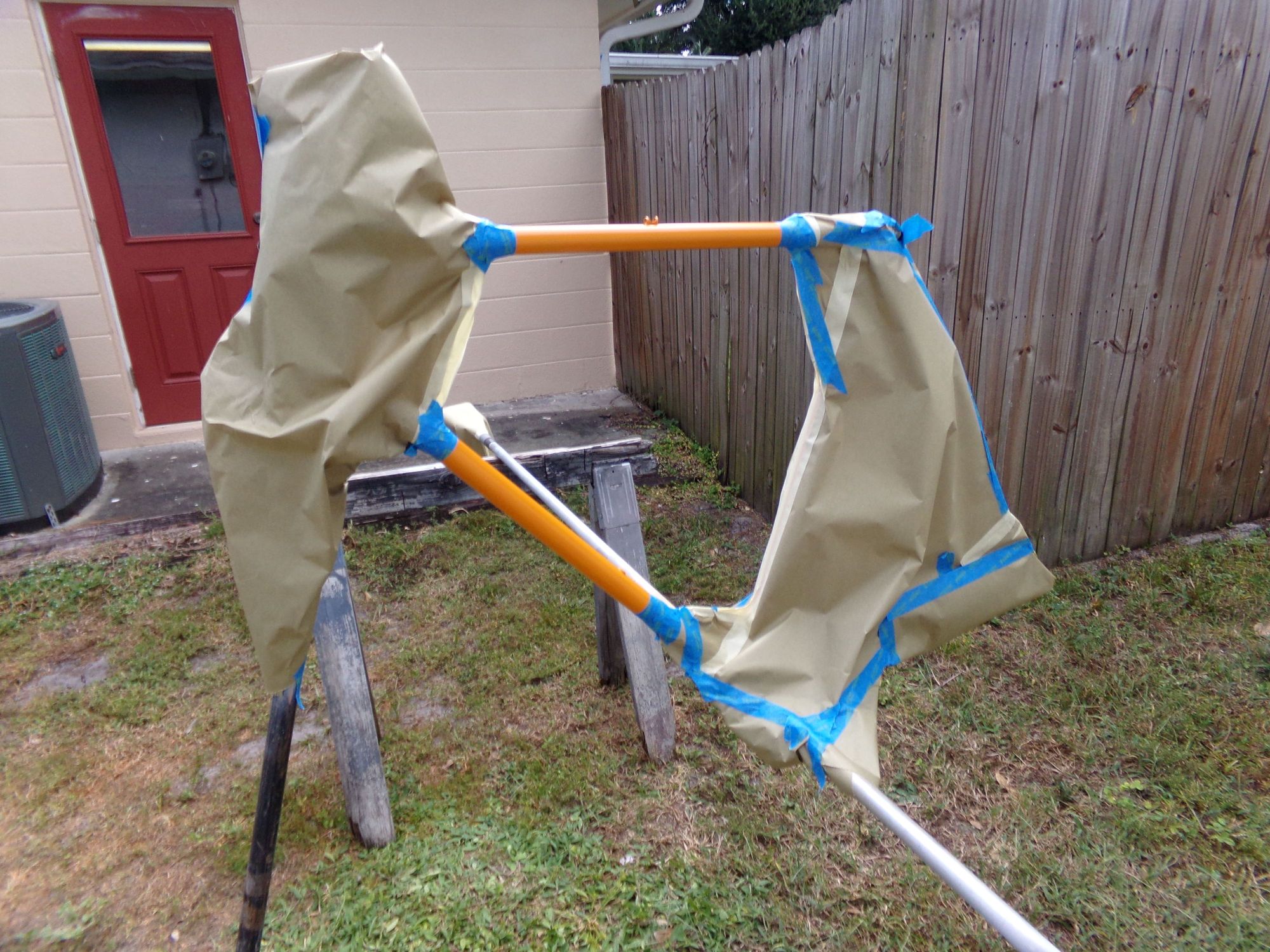

It was then masked off for the stripes and applied 3 coats of Subaru WRX blue basecote.





I then added the reproduction decals I received from H.Lloyde in England.



Then the entire thing was clear coated with 4 coats of urethane clear.
cdaniels is offline
Likes For cdaniels:
Old 10-07-19, 07:33 PM
  #2
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Here it is with the paintwork finished. I am very happy with the way it turned out so far. I found a donor bike with all Campagnolo parts and wheels. All parts from that bike will be cleaned up and installed on the Holdsworth.




cdaniels is offline
Likes For cdaniels:
Old 10-07-19, 07:46 PM
  #3
Soody
Senior Member

Soody's Avatar

Join Date: Mar 2015
Location: New Zealand
Posts: 455

Bikes: Gunnar crosshairs, F Moser, Ken Evans, Pete Tansley, Rocky Mountain Summit, Cinelli mtb

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 56 Post(s)
Likes: 0
Liked 19 Times in 16 Posts
looks fantastic
Soody is offline
Old 10-07-19, 08:19 PM
  #4
jeirvine
Senior Member

jeirvine's Avatar

Join Date: Sep 2011
Location: Bethesda/Baltimore MD
Posts: 3,284

Bikes: '72 Moto Grand Record, '72 Gitane tandem, '72 Raleigh Super Course, '73 Raleigh Gran Sport, '73 and '76 Colnagos Super, '76 Fiorelli Coppi, '78 Raleigh SBDU Team Pro, '78 Trek 930, '81 Holdsworth Special 650B, '86 Masi GC, '87 Panasonic DX5000

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 465 Post(s)
Liked 39 Times in 26 Posts
Nice job. How did you spray it? Gun, or rattle can? You're giving me ideas for when (if) I refinish my Holdsworth Special.
__________________
The man who dies with the most toys…is dead. - Rootboy
jeirvine is offline
Old 10-07-19, 09:10 PM
  #5
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 971
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 120 Post(s)
Liked 25 Times in 20 Posts
yes...stunning job! why remove the eyelets, though?
thook is offline
Old 10-07-19, 09:20 PM
  #6
CV-6
If I own it, I ride it

CV-6's Avatar

Join Date: Nov 2005
Location: Cardinal Country
Posts: 4,867

Bikes: Lejeune, Raleigh, Raysport, Jan De Reus, Gazelle, Masi, B. Carré, Springfield, Motobecane, John Howard, Greg Lemond

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Likes: 0
Liked 50 Times in 34 Posts
Looks outstanding. What paint were you using?
__________________
Please do not "like" my posts. This isn't Facebook.

Lynn Travers

Photos

CV-6 is offline
Old 10-08-19, 06:20 AM
  #7
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
I sprayed it with Dupont "shop line" automotive two stage paint.

The eyelets were removed because the team bikes don't have them, and personal choice.
cdaniels is offline
Old 10-08-19, 06:21 AM
  #8
qcpmsame
Semper Fi

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,594

Bikes: '80 Medici Pro Strada, '86 Tommasini Prestige, '12 CAAD 10 Ultegra

Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 1045 Post(s)
Liked 72 Times in 57 Posts
Well done you, very well done. Can't wait to see the finished product. Please continue the build thread on this one.

Bill
__________________
I Didn't Choose To Have Parkinson's Disease, I Have Chosen Not To Allow It To Define How I Live
Life Member "Hairy Eared Engineer's Society"
"I Can Do All Things Through Christ, Whom Strengthens Me" Philippians 4:13
qcpmsame is offline
Old 10-08-19, 09:20 AM
  #9
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 402

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 31 Times in 26 Posts

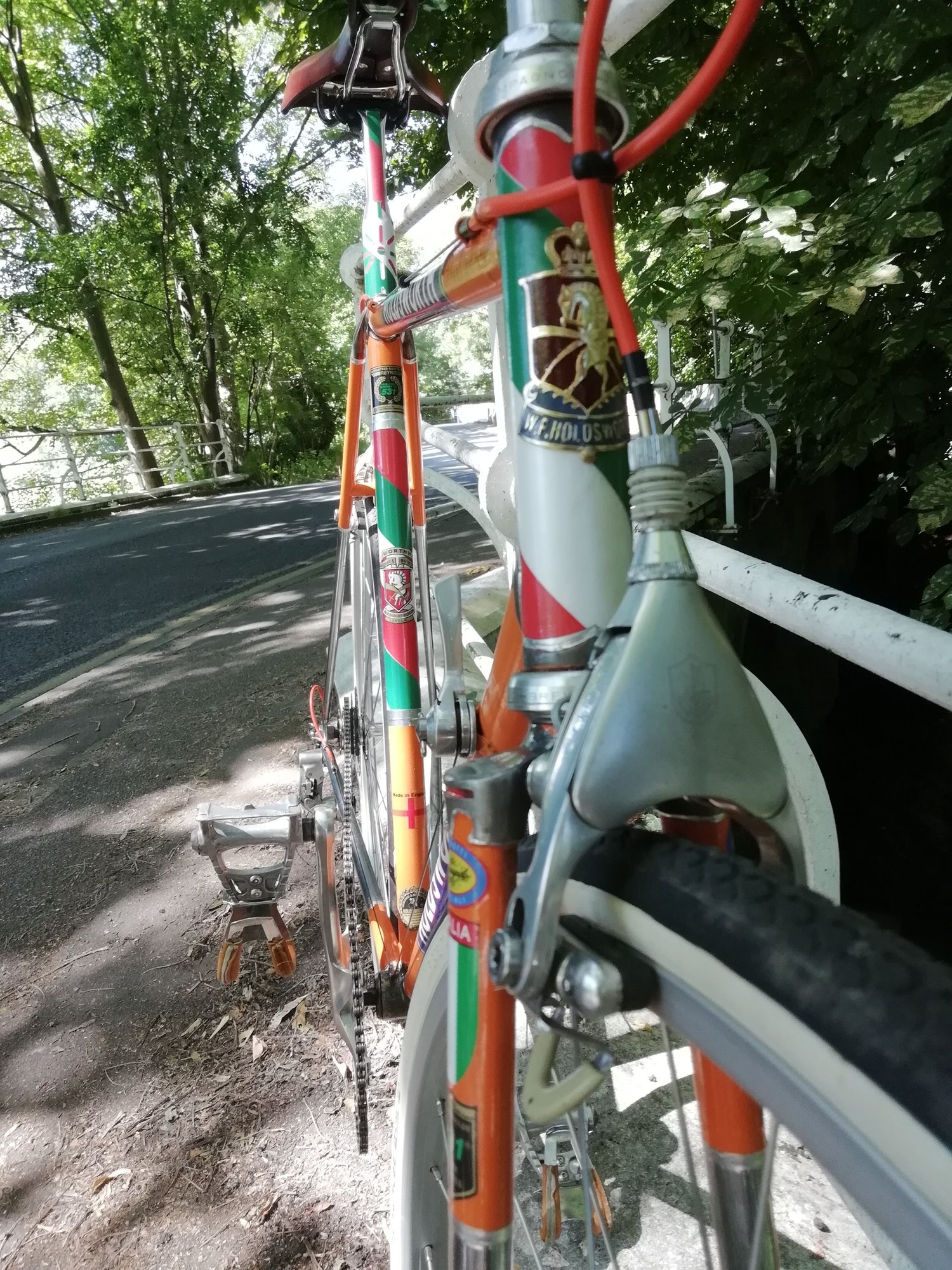

1984 Holdsworth Italia with record Campag grouppo



The original had high flange Campag hubs, English sprint 20mm tubs with piano wire soldered spokes. But the spares were too difficult and expensive.


The team bikes had no chromed socks anywhere on the frame.
Johno59 is offline
Likes For Johno59:
Old 10-08-19, 10:32 AM
  #10
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,127
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 38 Times in 29 Posts
Huh. My parents used to live right around the corner from you. Small world.

Awesome job on the paint! How many coats of clear over everything? Like @jeirvine I've got a project far out in the distant wings needing some paint and I've been mulling over shooting myself (as I'm sure many here on BF have considered).

I lack a suitable compressor these days. Sold it with my welder, plasma cutter and all the other tools I was using for classic auto suspension, frame and body work.
francophile is offline
Old 10-08-19, 11:16 AM
  #11
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Four coats of clear. Its enough to barely feel the edge of the decals.
cdaniels is offline
Old 10-08-19, 11:19 AM
  #12
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 6,598
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1125 Post(s)
Likes: 0
Liked 92 Times in 58 Posts
Originally Posted by Johno59 View Post


The original had high flange Campag hubs, English sprint 20mm tubs with piano wire soldered spokes. But the spares were too difficult and expensive.


The team bikes had no chromed socks anywhere on the frame.
Quite the looker!

(Suggest to closely inspect the top part of the seatpost clamp. Brand new including the replacement piece is concerning.)



crank_addict is offline
Old 10-08-19, 12:57 PM
  #13
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
I will be using a Campagnolo seatpost and clamp. They have never let me down.
cdaniels is offline
Old 10-08-19, 03:28 PM
  #14
aceves
Senior Member

Join Date: Aug 2018
Posts: 142
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Likes: 0
Liked 10 Times in 9 Posts
Great work cdaniels! Yes, please continue the build thread on this one! Stunning frame; I foresee a Holdsworth build for me in the future.

aceves
aceves is offline
Old 10-08-19, 04:53 PM
  #15
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Thanks for the positive comments guys.
cdaniels is offline
Likes For cdaniels:
Old 10-08-19, 05:11 PM
  #16
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 3,060

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 662 Post(s)
Liked 23 Times in 17 Posts
yeah very nice. I am also a fan of the team professional and have not been able to get my hands on one- cost and scarcity! building a replica is a lot of fun~ though you might want to etch Replica in the bottom if you ever sell it- it looks good enough to be real!
jetboy is offline
Old 10-08-19, 06:01 PM
  #17
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
I understand what you mean by marking it as "replica" but I think it might be self defeating as the real team bikes stopped production in the 70's,,,,,I think,,,,,,, and this frame is an 83.
cdaniels is offline
Old 10-08-19, 06:04 PM
  #18
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 2,127
Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 38 Times in 29 Posts
If you happen to sell the bike one day, nothing stopping someone from re-selling to an unsuspecting person for a huge sum of money and said buyer would have no "easy" way of knowing...

And it would be a testament to the high quality of work you've done But also a bummer for the victim.
francophile is offline
Old 10-09-19, 09:20 AM
  #19
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 402

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 31 Times in 26 Posts
Pro Team Holdsworth

The pro team Holdsworth had a wrap over single piece seat stays. Many Holdsworth have wrap over seat stays but the section of the pro version's that wrapped over the front of the seat lug was about 3/8 thick - the wrap on any non-team version was about half that thickness.
Johno59 is offline
Old 10-09-19, 01:39 PM
  #20
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 402

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 31 Times in 26 Posts


This is a pro team Holdsworth. Note the heavy duty seat stay wrap


Big time metal going over the seatpost lug.
Johno59 is offline
Old 10-09-19, 01:47 PM
  #21
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Don't forget mine is not the real deal, it's an Elan being made to look like a team bike. There are several differences between the two, seat stays, cable guides, dropouts, geometry........
cdaniels is offline
Likes For cdaniels:
Old 10-09-19, 01:52 PM
  #22
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 402

Bikes: 1903 24 spd Sunbeam, 1927 Humber, 3 1930 Raleighs, 2 1940s Sunbeams, 2 1940s Raleighs, Rudge, 1950s Robin Hood, 1958 Claud Butler, 2 1973 Colnago Supers, Eddie Merckx, 2 1980 Holdsworth, EG Bates funny TT bike, another 6 or so 1990s bikes

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 150 Post(s)
Likes: 0
Liked 31 Times in 26 Posts
Orange

I have an irrational compassion for orange Holdsworth bikes. I think your bike looks fabulous. Git Sum!!!!
Johno59 is offline
Old 10-09-19, 05:21 PM
  #23
rjhammett
Senior Member

rjhammett's Avatar

Join Date: Dec 2011
Location: Saint Paul, Minnesota
Posts: 1,880

Bikes: 92 Colnago Master PIU, 85 Fuso, 92 Bridgestone RB-1, 87 Centurion Ironman, 83 Pinarello Record, 92 Tommaso, 92 Merckx MX Leader, 90 Serotta Colorado II, 99 Tommasini Sintesi, 90 Pinarello Montello, 89 Tommasini Super Prestige, 08 Look 585 and 5 more

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 180 Post(s)
Likes: 0
Liked 17 Times in 12 Posts
You are about a month ahead of me in your Holdsworth build. My Professional was built in late 1972. I have the decals and will get it in for a paint job shortly. Mine has an all chrome fork that is in pretty good shape for a 47 year old bike.

rjhammett is offline
Old 10-09-19, 05:44 PM
  #24
cdaniels
Senior Member
Thread Starter

Join Date: Jan 2019
Posts: 72
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
Polishing the shiny bits is definitely time consuming but worth it. All the aluminum parts were quite dull but now shine like new. Compare the two wheels, the front one is how it was the other is after some "Mothers" metal polishing cream and new decals.
cdaniels is offline
Old 10-09-19, 08:29 PM
  #25
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 3,060

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 662 Post(s)
Liked 23 Times in 17 Posts
Originally Posted by cdaniels View Post
Don't forget mine is not the real deal, it's an Elan being made to look like a team bike. There are several differences between the two, seat stays, cable guides, dropouts, geometry........
I get it- I may just be reacting because there was one on ebay.uk that was being sold as a team professional, I was interested, but it turned out to be a replica. Probably all the buyers would do their homework like I did, but maybe not. and often its the sellers that don't even know: they are just flipping and listing it as whatever it says on the top tube. so a little notice somewhere is nice.

My look replica team bike has a REPLICA decal on the downtube just to let you know (comes like this) but i'd not be suggesting that! for that bike it part of the charm.
