Shimano Hub Goodness

Still cleaning up some recently acquired parts and thought I'd share this pic. Three sets of really nice looking old hubs.

Shimano Tricolor 6400 series in very good condition
Dura Ace 7403 series in almost mint condition
Dura Ace 7700 series, NOS in boxes.

I have to figure out what tools I need for that odd 7403 one.


__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-15-19, 11:09 AM
  #2
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,565

Bikes: Yes, please.

Mentioned: 239 Post(s)
Tagged: 0 Thread(s)
Quoted: 1666 Post(s)
Liked 1,508 Times in 769 Posts
Pretty!
__________________
Will she ride the clunker? Look at granny run!

non-fixie is offline
Old 10-15-19, 11:37 AM
  #3
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,525

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 705 Post(s)
Liked 830 Times in 416 Posts
Very nice!!!!

I have 2-3 sets of 6400 hubs that I got in a lot.

Need to check the bearings and build a rear wheel around one of them.
thinktubes is offline
Old 10-15-19, 11:55 AM
  #4
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 1,120

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 1988 Masi Nuovo Strada, 1983 Pinarello Turismo

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 294 Post(s)
Liked 132 Times in 82 Posts
I'm sure you know this, but that 7403 freehub is practically unobtanium. 7401 freehubs/hubsets are a lot more common, but the 7403 will take a Shimano 10 speed cassette. I have a 12-30 on my 7400-series hub using the 7403 freehub.

The only nuisance is that you have to do all of your preload work on the NDS, because the freehub is longer than the 7401 models and the cone and locknut can't be reached from the drive side.
__________________
Dale, NL4T
speedevil is offline
Old 10-15-19, 02:45 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,442

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1512 Post(s)
Liked 866 Times in 416 Posts
Nice.
That middle set is either 7401 (6 or 7 speed, 126OLD) or 7402 (8 speed, 130OLD). Both are UG only.
7403's take either UG or HG and the threaded outside end does not have the reduced diameter.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 10-15-19, 04:13 PM
  #6
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,662

Bikes: Paletti,De Rosa Neo Pro,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom & Versailles,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Jan De Reus,Prologue TT,Y-Foil,Softride

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 1643 Post(s)
Liked 1,092 Times in 556 Posts
You guys made me go back and do some more research. Lot's of mis-identified freehubs on the internet as I found several listed as 7403 like mine and I figured that's what it was. Finally pulled of the Shimano document on the 7402 and it's a match. @rccardr you win the prize!
__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-16-19, 07:30 AM
  #7
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,940

Bikes: Seriously downsizing.

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 440 Post(s)
Liked 183 Times in 107 Posts
Originally Posted by rccardr View Post
Nice.
That middle set is either 7401 (6 or 7 speed, 126OLD) or 7402 (8 speed, 130OLD). Both are UG only.
7403's take either UG or HG and the threaded outside end does not have the reduced diameter.
Beat me to it.
I lucked into a 7403 freehub body on the 'Bay and swapped it onto a 7400 hub. That'll confuse someone in the future!

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)

Last edited by top506; 10-17-19 at 03:56 PM.
top506 is offline
Old 10-17-19, 02:10 PM
  #8
masi61
Senior Member

masi61's Avatar

Join Date: Oct 2005
Location: SW Ohio
Posts: 2,892

Bikes: Puch Marco Polo, Saint Tropez, Masi Gran Criterium

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 728 Post(s)
Liked 152 Times in 117 Posts
Originally Posted by jamesdak View Post
You guys made me go back and do some more research. Lot's of mis-identified freehubs on the internet as I found several listed as 7403 like mine and I figured that's what it was. Finally pulled of the Shimano document on the 7402 and it's a match. @rccardr you win the prize!

That 7400 series freehub in the picture does not appear to be a 7402 I donít think. The freehub body is less long than the 7700 below it. This makes me think it is a 7 speed which (I believe, but we should discuss this further) makes it a 7401. Another reason why I donít think it is a 7402 is the flat axle locknuts. The Uniglide only, 8 speed 7402 and the combo UG/HG 8,9,10 speed 7403 hubs both have domed locknuts that I read somewhere were designed to work better in 126 or 128 mm rear triangle frames. With that said I think they were in reality more like 129mm locknut to locknut making them a perfect fit into a modern 130mm spaced road frame.
masi61 is offline
Old 10-17-19, 04:02 PM
  #9
Dave Mayer
Senior Member

Join Date: Dec 2006
Posts: 2,032
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 773 Post(s)
Likes: 0
Liked 125 Times in 84 Posts
The bottom rear hub is Dura-Ace 7700: my favorite of all time.

The older of the Dura-Ace hubs is a 7-speed 7401 unit: for 6/7 speed Uniglide. Replacement freehubs for these are unobtainable. The tool to replace the freehub: ditto.

The custom #1 (threaded) and #2 (special spline and spacer) cogs are impossible to find. I recommend not assuming any value to this orphaned hub.
Dave Mayer is offline
Old 10-17-19, 04:04 PM
  #10
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,662

Bikes: Paletti,De Rosa Neo Pro,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom & Versailles,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Jan De Reus,Prologue TT,Y-Foil,Softride

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 1643 Post(s)
Liked 1,092 Times in 556 Posts
Originally Posted by masi61 View Post
That 7400 series freehub in the picture does not appear to be a 7402 I donít think. The freehub body is less long than the 7700 below it. This makes me think it is a 7 speed which (I believe, but we should discuss this further) makes it a 7401. Another reason why I donít think it is a 7402 is the flat axle locknuts. The Uniglide only, 8 speed 7402 and the combo UG/HG 8,9,10 speed 7403 hubs both have domed locknuts that I read somewhere were designed to work better in 126 or 128 mm rear triangle frames. With that said I think they were in reality more like 129mm locknut to locknut making them a perfect fit into a modern 130mm spaced road frame.
I've got to stop posting before I have my morning coffee, lol!

The hub in question has a still brand new looking "7s" decal right on it.
__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-17-19, 04:44 PM
  #11
jamesdak
Senior Member
Thread Starter

Join Date: Aug 2010
Location: Utah
Posts: 6,662

Bikes: Paletti,De Rosa Neo Pro,Pinarello Monviso,Duell Vienna,Giordana XL Super(2)Lemond Maillot Juane (2) & custom & Versailles,PDG Paramount,Serotta CSI,Fuji Opus III,Davidson Impulse,Pashley Guv'nor,Evans,Fishlips,Jan De Reus,Prologue TT,Y-Foil,Softride

Mentioned: 119 Post(s)
Tagged: 0 Thread(s)
Quoted: 1643 Post(s)
Liked 1,092 Times in 556 Posts
Originally Posted by Dave Mayer View Post
The bottom rear hub is Dura-Ace 7700: my favorite of all time.

The older of the Dura-Ace hubs is a 7-speed 7401 unit: for 6/7 speed Uniglide. Replacement freehubs for these are unobtainable. The tool to replace the freehub: ditto.

The custom #1 (threaded) and #2 (special spline and spacer) cogs are impossible to find. I recommend not assuming any value to this orphaned hub.

No worries on my part. The first post was mainly to show how sweet looking these babies are. I've got several classics running 7400 series and quite honestly doubt I'll ever build one up that way. All my bikes are riders and I tend to upgrade them. The wheels are usually the first because modern wheels tend to really liven a bike up.

All that said, it would be cool to find the freehub for it. Or for that matter I may have it. Somewhere in the box of parts this came from is some kind of cassette that came with it. I get to that soon as I continue to clean things up.

I totally appreciate everyone's insight and knowledge on this. Always good to learn something new.
__________________
Steel is real...and comfy.
jamesdak is offline
Old 10-17-19, 05:58 PM
  #12
mpetry912
aged to perfection

mpetry912's Avatar

Join Date: Jun 2009
Location: PacNW
Posts: 470

Bikes: Dinucci Allez 2.0, Richard Sachs, Alex Singer, Serotta, Masi GC, Raleigh Pro Mk.1, Hetchins, etc

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 204 Post(s)
Liked 132 Times in 98 Posts
nice pics. they are cool parts !

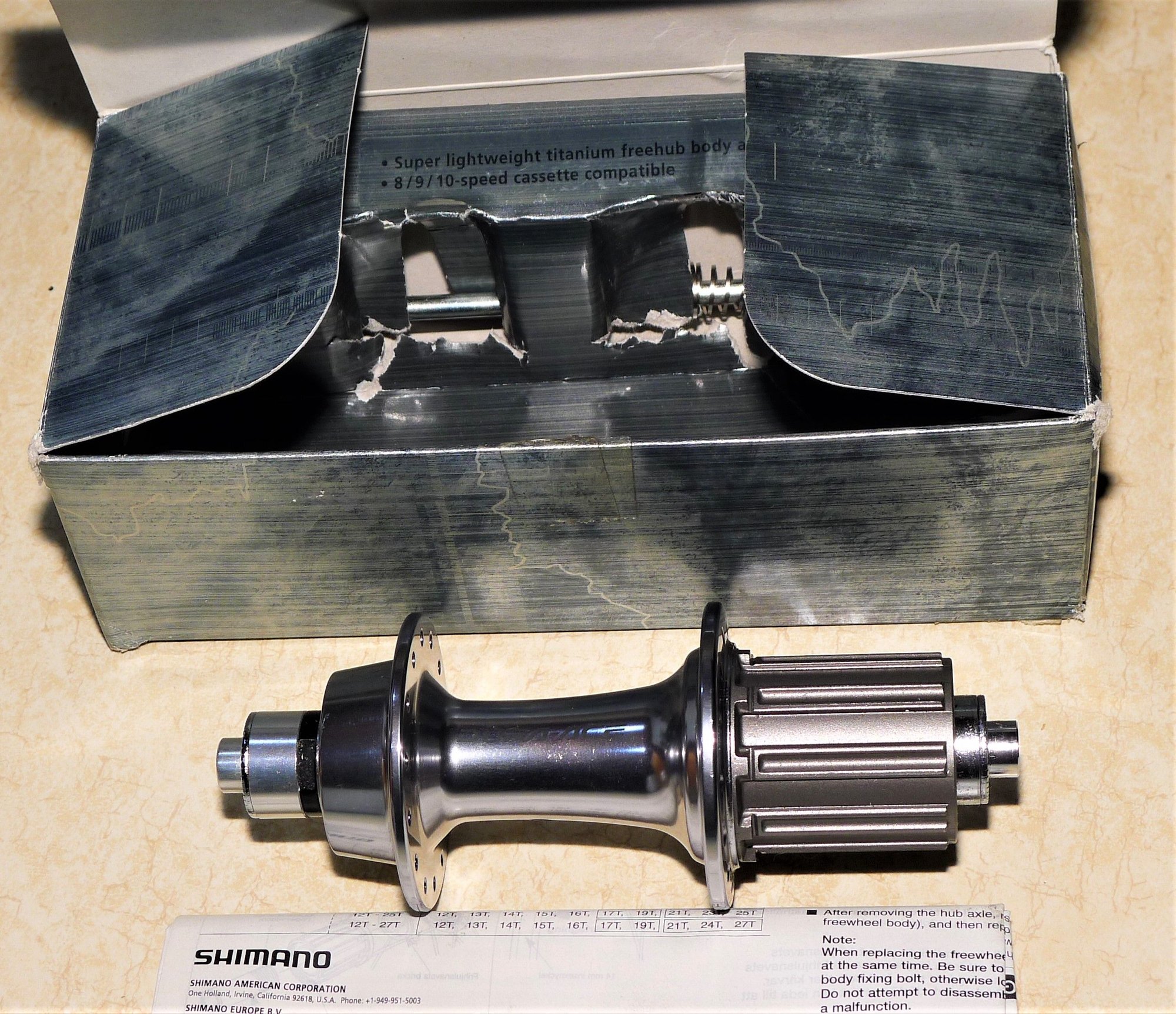

Here's a 7850, new in box. End of the evolution, best rear hub ever. Has the titanium freehub body

I'm going to build it up and use it for a rear wheel on my travel bike (Ritchey Breakaway titanium with DI2)

Mark Petry
Bainbridge Island, WA USA

mpetry912 is offline
Likes For mpetry912:
Old 10-17-19, 07:01 PM
  #13
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,442

Bikes: Lots. Just...lots.

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1512 Post(s)
Liked 866 Times in 416 Posts
If you find yourself needing #1 or #2 cogs, let me know.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 10-17-19, 09:49 PM
  #14
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,120

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 2798 Post(s)
Liked 755 Times in 531 Posts
Loose Screws has a few of those smaller-diameter 13T/14T/15T/16T cogs in stock, too, but definitely hit up the Dr first!
