Repainted Mystery - Need help ID'ing

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Repainted Mystery - Need help ID'ing

Old 10-16-19, 08:40 PM
  #1
Hailstorm_7
Senior Member
Thread Starter

Hailstorm_7's Avatar

Join Date: Feb 2018
Posts: 64

Bikes: 2019 Trek Emonda SLR7 Disc, 2017 Advocate Cycles Sand County, 2016 Surly Disc Trucker, 2011 Specialized Tarmac SL3 Expert Double, 1996 Sancineto, 1989 Cinelli Corsa "Mens Sana," 1985 Peugeot PGN-10 Galibier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 11 Times in 6 Posts
Repainted Mystery - Need help ID'ing

We had another mystery bike left at our local co-op. Obvious repaint, and all identifying features are gone. No serial number visible, unfortunately. What I could spot, however, were the Campagnolo headset and drop-outs, the Shimano 600 SLX drive chain, snappy lugs, etc. I don't know if the parts can be entirely relied upon to help ID the bike, because it is such a strange mix. I'm hoping you fine folks have some clues as to what this may be. I'm happy to take other pictures as needed to help hone the search. Thanks as always for your help.

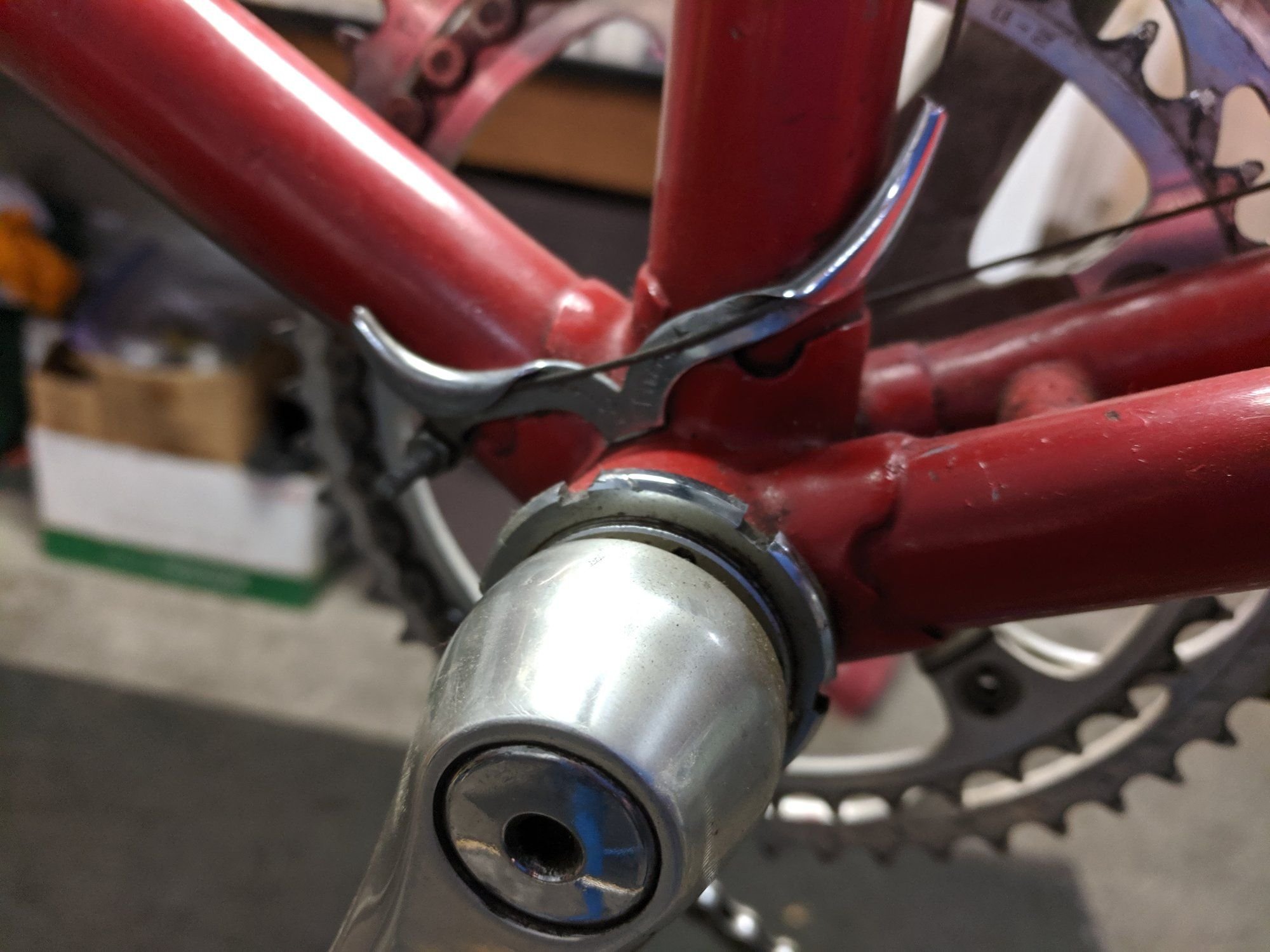

I'm digging this Huret cable guide.


Hailstorm_7 is offline
Old 10-16-19, 08:53 PM
  #2
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,201

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Liked 517 Times in 272 Posts
Getting a Schwinn Paramount vibe...
thinktubes is offline
Old 10-16-19, 09:02 PM
  #3
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,355

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 131 Post(s)
Tagged: 0 Thread(s)
Quoted: 1893 Post(s)
Liked 860 Times in 610 Posts
Originally Posted by thinktubes View Post
Getting a Schwinn Paramount vibe...
Maybe, no S/N on the NDS DO.
merziac is offline
Old 10-16-19, 09:06 PM
  #4
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,201

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Liked 517 Times in 272 Posts
Originally Posted by merziac View Post
Maybe, no S/N on the NDS DO.
Yeah, I noticed that too. Waiting for the real experts to show up.
thinktubes is offline
Old 10-16-19, 09:06 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

Headset locknut is from an Alatet

no-slide bit suggestive of UK

domed taper tube ends also suggest UK

chainstays appear rapier pattern which pretty much locks it to the isles

Schwinn never employed this shell nor this model of Vagner crown

all this text and imagery but no mention made of threading


-----

Last edited by juvela; 10-16-19 at 09:11 PM. Reason: addition
juvela is online now
Old 10-17-19, 08:51 AM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,825
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Liked 188 Times in 153 Posts
Yep, we need threading and maybe seatpost size but I agree we could be looking at something from GB and without a serial number this could be a mystery that won't be easily solved! The paint is a nod to Motobecane Grand Record (not one) and it may turn out the fork crown may be a strong clue, tho not that unique it still is distinctive (IF it's OEM).

Last edited by unworthy1; 10-17-19 at 08:55 AM.
unworthy1 is online now
Old 10-17-19, 11:04 AM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

This shell, with its slightly beveled sockets, was employed on some Tube Investments products of the later 1960's and early 1970's. One of its quirks is that while a nominal 68mm it ofttimes comes through on completed bicycles as underwith, in the vicinity of 66.5mm.

In the image below it appears we once again have it in a narrow form. Note the two or so exposed threads on the adjustable bottom bracket cup.



---

Two checks the folks on hand may wish to perform to advance the inquiry would be to measure shell width and examine interior of head tube to see if any headplate fastener holes have been filled in.

How closely has underside of shell been examined for sign of markings? Sometimes they are shallow enough to be filled by paint finish.

-----
juvela is online now
Old 10-17-19, 11:43 AM
  #8
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,077
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 349 Times in 190 Posts
My guess it is 531 tube set, likely British made. Perhaps a Raleigh?
TiHabanero is offline
Old 10-17-19, 06:58 PM
  #9
Doug Fattic
framebuilder

Join Date: Dec 2009
Location: Niles, Michigan
Posts: 619
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 186 Post(s)
Likes: 0
Liked 216 Times in 109 Posts
One of the challenges of identifying British built frames is that there were a lot of local builders throughout the UK. When I was looking for a place to learn I visited many of them. In addition bigger outfits would make frames for various local bicycle stores that marketed their own brand. For example at Ellis Briggs where I learned they had a couple of painters that sprayed frames built by Woodrup for R.E.W. Reynolds. On Wednesday's when Mr and Mrs. Briggs were taking a day off some builder (I can't remember his name but was somehow associated with the business) would come in to use the Campy frame prepping tools. He sometimes sold frames under his own name but usually it was for various local store brands. That way he didn't have to spend time interacting with customers advising on bits and colors but could concentrate on turning out frames. This large number of small builder's frames seldom made it over here but did sometimes by US cyclists that did a tour in the UK.
Doug Fattic is offline
Old 10-17-19, 07:32 PM
  #10
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,090
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 847 Post(s)
Liked 254 Times in 196 Posts
Just an observation, but those socks on the fork are super high, and it appears entire frame was chromed, but is an obvious repaint.
@juvela that's all Nervex Professional lugs, yes?

At first I thought Libertas but don't think it's the case because of lugs. Lejeune and a few others used similar lug and crown, but without knowing threading and seat tube ID, who knows?
francophile is offline
Old 10-17-19, 08:44 PM
  #11
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
Originally Posted by francophile View Post
Just an observation, but those socks on the fork are super high, and it appears entire frame was chromed, but is an obvious repaint.
@juvela that's all Nervex Professional lugs, yes?

At first I thought Libertas but don't think it's the case because of lugs. Lejeune and a few others used similar lug and crown, but without knowing threading and seat tube ID, who knows?
-----

Yes to lugs.

The clinker with Libertas is the indigenous British shell.

This something L would not employ.

They might use one from BOCAMA or from NERVEX but not this one.

Sorry, do not know the name of this shell. Another reader is bound to know it.

It was found on Raleigh/Carlton Reynolds tubing frames of the 1960'sa and early 1970's.

It expresses on me 1970 Competition.

Something VERY unlikely to ever encounter on a product from the continent.

Have never seen a TI product with this model of Vagner, a situation which of course means nothing since there were always variations from "specification."

Of course, we do not know that fork is original to frame.

The specific chainstay stop employed might be a clue but it is not shown well enough in the images provided to determine what it is (well, at least not for me auld peepers! ).

-----
juvela is online now
Old 10-17-19, 08:57 PM
  #12
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 417

Bikes: 1977 Windsor Profesional,1979 Mondia Special, Pinarello Gavia TSX,Eddy Merckx Corsa Extra,Eddy Merckx EMX-5 , Guerciotti SL,Basso Gap, 1982 Moser SL,Concorde TSX,Concorde TVT, LOOK 486,Vitus 979 KAS.Diamant SLX,60's Meteor

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 115 Post(s)
Liked 125 Times in 73 Posts
It looks like a Meteor,Made in England. I need a better shot of the forks.
Manny66 is offline
Old 10-17-19, 09:15 PM
  #13
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

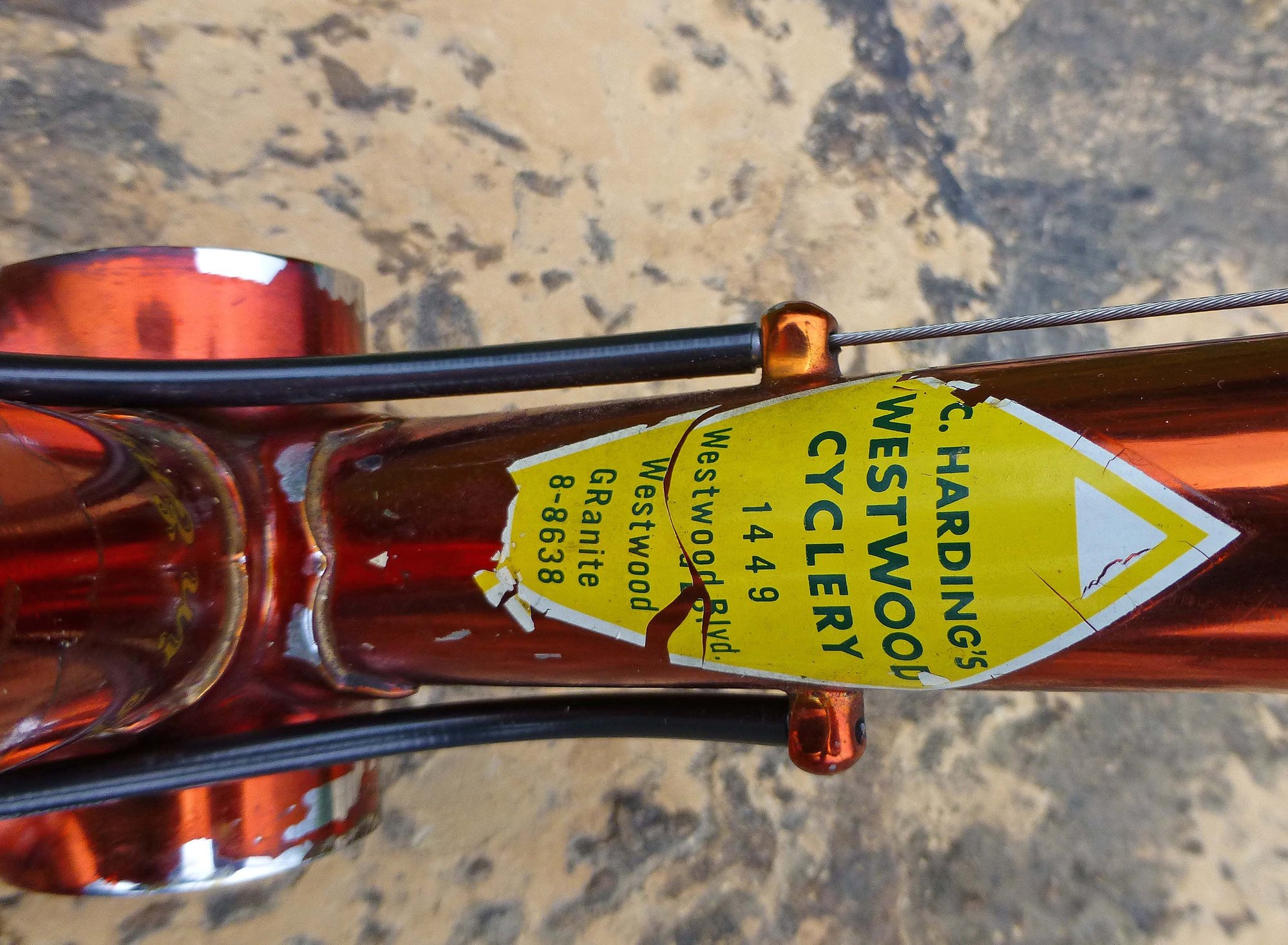

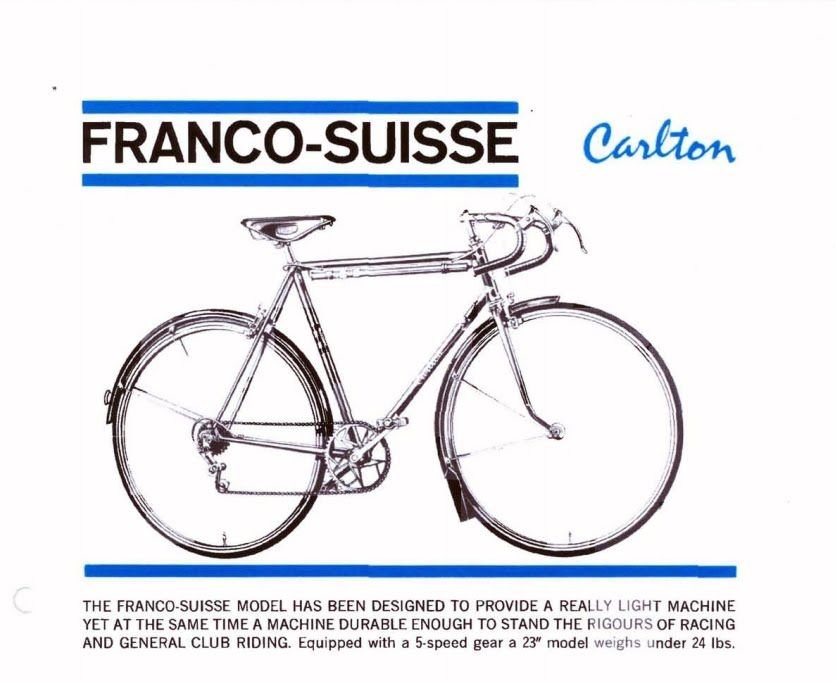

Here is a Meteor Franco Suisse belonging to a cycle collector friend.

It exhibits both similarities and differences compared with the subject machine.

It is all chrome beneath the paint, built with NERVEX Professional lugset and rapier pattern chainstays.

However, it has wraparound seat stay treatment, a different shell and the crown found on the International.







-----
juvela is online now
Old 10-18-19, 07:41 AM
  #14
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,216

Bikes: 1960s Bertin C37, 1973 Carre Bertin C 37, 1970s Carlton Kermesse, 1982 Peugeot PB 12

Mentioned: 35 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Liked 73 Times in 53 Posts
The Coop bike looks to be a Carlton or Raleigh / Carlton from the late 60s or early 70s. The Meteor's lugs, overall chrome with the transparent acrylichrome paint along with the Carlton OEM model name decal support a Carlton manufacturing ID. I believe the Meteor branding was a sub-brand or special production by Carlton. However, to confirm the Coop's bike as a Carlton, Raleigh (International?) or a Meteor, check the interior of the headtube. Two vertical badge mount drillings would indicate a Meteor, two horizontal drillings would indicate a Carlton badge branding and a triad of badge holes would identify a Raleigh. Another Carlton related id support is the Vagner PL style fork crown which was very common on higher end Carltons of the period.

bertinjim is offline
Likes For bertinjim:
Old 10-18-19, 08:52 AM
  #15
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,111
Mentioned: 527 Post(s)
Tagged: 1 Thread(s)
Quoted: 3407 Post(s)
Likes: 0
Liked 805 Times in 627 Posts
My immediate thought on seeing the photos and before reading the other members' posts, was a Carlton product. Of course, the red and black re-paint gave me a bit of a push in that direction.
T-Mar is offline
Old 10-18-19, 09:16 AM
  #16
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,154

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 475 Post(s)
Tagged: 0 Thread(s)
Quoted: 6496 Post(s)
Liked 1,037 Times in 688 Posts
It looks a lot like my 1974 Raleigh International. It uses the same stop for the downtube shifter clamp.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

When man invented the bicycle he reached the peak of his attainments. Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 10-18-19, 09:26 AM
  #17
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

Thanks so much for your post Jim!

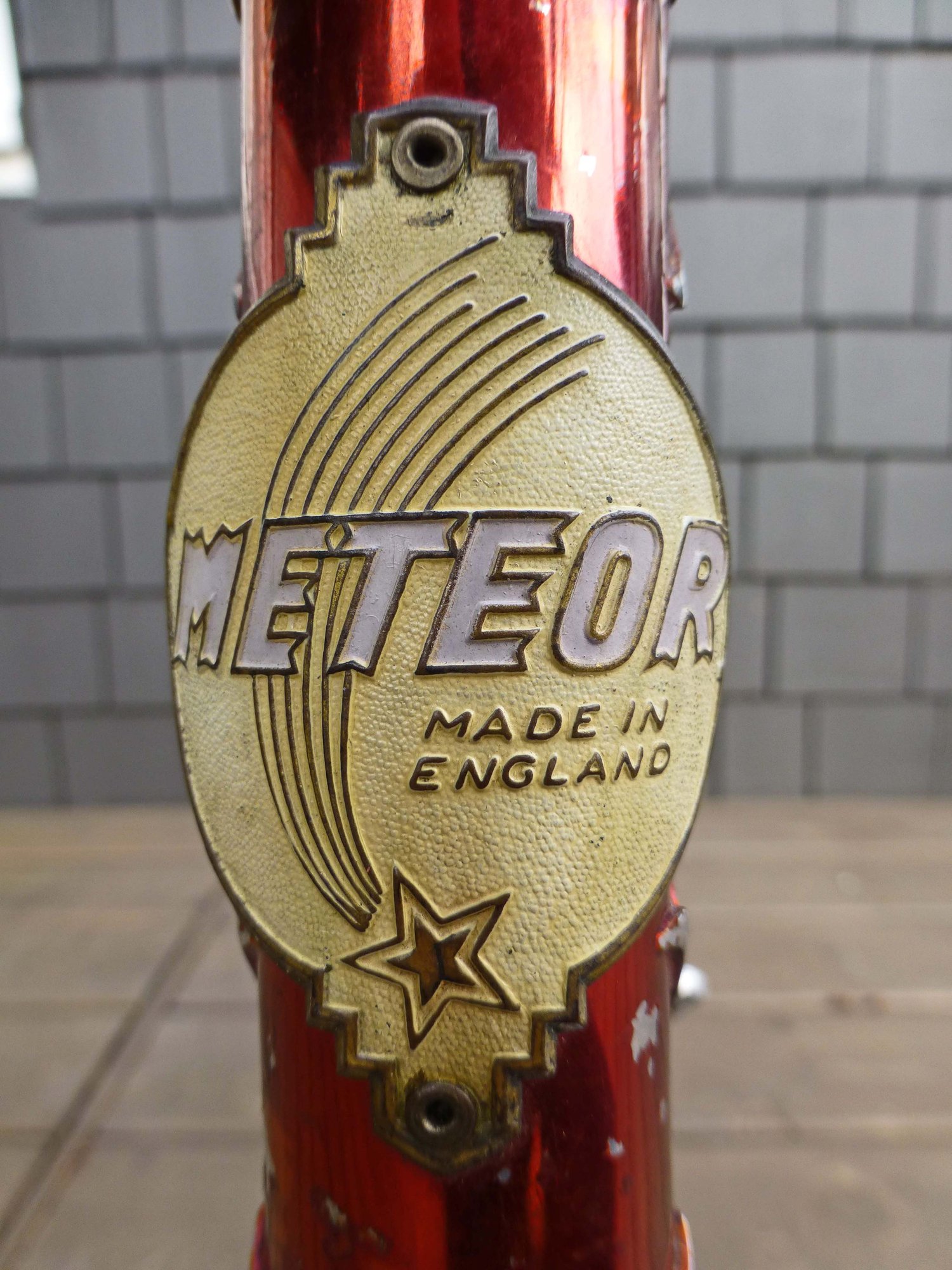

Explanation of the Meteor badge in California here -

The Meteor bicycle Made in England ?


-----
juvela is online now
Old 10-18-19, 09:26 AM
  #18
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,057
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Liked 672 Times in 514 Posts
Fork looks original; anything on the steerer tube?

I know it's just a bolt/nut, but I see the seat post binder bolt says Simplex, if that suggests anything.
madpogue is offline
Old 10-18-19, 01:00 PM
  #19
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

There is scarcely anything original on the machine. The Alatet locknut may be the only original piece.

OEM binder would have been a Gripfast, likely one with a C monogram on the nut.


-----

Last edited by juvela; 10-18-19 at 03:33 PM. Reason: addition
juvela is online now
Old 10-18-19, 01:05 PM
  #20
jiangshi
Senior Member

Join Date: Jul 2013
Posts: 1,655
Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 381 Post(s)
Liked 104 Times in 67 Posts
Why does no one ever state the BB size/threading and seat post size?

Apologies if I missed it.
jiangshi is offline
Old 10-18-19, 01:33 PM
  #21
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
Originally Posted by jiangshi View Post
Why does no one ever state the BB size/threading and seat post size?

Apologies if I missed it.
-----

+1

And no, you did not miss it.


-----
juvela is online now
Old 10-18-19, 01:37 PM
  #22
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 5,057
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1616 Post(s)
Liked 672 Times in 514 Posts
Originally Posted by jiangshi View Post
Why does no one ever state the BB size/threading and seat post size?

Apologies if I missed it.
It's been asked; not yet answered.
madpogue is offline
Old 10-21-19, 07:08 AM
  #23
Hailstorm_7
Senior Member
Thread Starter

Hailstorm_7's Avatar

Join Date: Feb 2018
Posts: 64

Bikes: 2019 Trek Emonda SLR7 Disc, 2017 Advocate Cycles Sand County, 2016 Surly Disc Trucker, 2011 Specialized Tarmac SL3 Expert Double, 1996 Sancineto, 1989 Cinelli Corsa "Mens Sana," 1985 Peugeot PGN-10 Galibier

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 11 Times in 6 Posts
And I was getting to those measurements as soon as possible. The seatpost size is 27.2mm. Unfortunately, I haven't had a chance yet to check or confirm the BB size/threading. I would be surprised if it was anything but 68mm but we'll see. Thanks for the thoughts and help so far. I'll also take some pictures of the chainstay cable stop and interior of the steerer tube when I can (likely Tuesday).
Hailstorm_7 is offline
Old 10-21-19, 10:08 AM
  #24
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,740
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 401 Times in 343 Posts
-----

Thanks for getting back to us Hailstorm_7.

It is not the interior of the steerer we are interested in but rather the interior of the head tube.

We wish to know if there is any sign of head emblem fastener holes being filled in and, if present, in what pattern they are.

Thank you again.


-----

Last edited by juvela; 10-21-19 at 10:12 AM. Reason: addition
juvela is online now
Old 10-21-19, 02:15 PM
  #25
USAZorro
Seor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,764

Bikes: Mostly English - predominantly Raleighs

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 942 Post(s)
Liked 223 Times in 161 Posts
Another possibility here is that there's a serial stamped on the steerer tube. If the OP is taking it off to check for badge-hole drilling, may as well check for serial as well.
__________________
In search of what to search for.
USAZorro is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
