What is your lowest/highest gear ratio?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

What is your lowest/highest gear ratio?

Old 10-21-19, 05:48 PM
  #1
dualresponse
Senior Member
Thread Starter

Join Date: Aug 2019
Posts: 125
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Liked 53 Times in 34 Posts
What is your lowest/highest gear ratio?

And what is the slowest you can ride? (or fastest?)

steadily.. before trackstanding...

I'm thinking 20/34 on my gravel bike and touring bike. It lets me go 1.5 mph. Then I fall over. I don't really know because the garmin thingee cuts out and so does the bike computer. Also, I fall asleep. I have no idea in "gear inches." btw/all "classic bikes..." with neo retro whatevermaggitts.
What's yours?

Also... what is the steepest grade you can climb before wheelieng over or losing traction?

( I guess the reason I ask, is that, I am just using regular old school components. Surely, someone has combined a 1'by' ..with some 40+ or something rear cassette... system with a triple front to get some stupid low combos!)

Who's the lowest / or highest fish in the sea?

Last edited by dualresponse; 10-21-19 at 06:03 PM.
dualresponse is offline
Old 10-21-19, 07:02 PM
  #2
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,167
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 687 Post(s)
Liked 187 Times in 125 Posts
My bike goes to eleven.
due ruote is offline
Likes For due ruote:
Old 10-21-19, 07:53 PM
  #3
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,060
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 40 Times in 34 Posts
Originally Posted by due ruote View Post
My bike goes to eleven.
oh no....don't touch it! don't even look at it...lol!

btw, my bikes tend to top out around 100 or so gear inches with a low of 20-25. ring and cluster size/range depends on tire sizes, but triple cranks on everything. for example....24-28t/32-34t granny with say 32mm-40mm on road/gravel bikes, and 24-28t/28-32t with 50-57mm tires on 26" mtb's.

grades?? i don't know. pretty freakin' steep in a lot of places. but, i use grippy tires and never lose traction....or fall over. legs get to burning too much sometimes to keep from falling asleep...haha

Last edited by thook; 10-21-19 at 08:02 PM.
thook is offline
Old 10-21-19, 07:56 PM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,355

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 1893 Post(s)
Liked 857 Times in 608 Posts
Originally Posted by dualresponse View Post
And what is the slowest you can ride? (or fastest?)

steadily.. before trackstanding...

I'm thinking 20/34 on my gravel bike and touring bike. It lets me go 1.5 mph. Then I fall over. I don't really know because the garmin thingee cuts out and so does the bike computer. Also, I fall asleep. I have no idea in "gear inches." btw/all "classic bikes..." with neo retro whatevermaggitts.
What's yours?

Also... what is the steepest grade you can climb before wheelieng over or losing traction?

( I guess the reason I ask, is that, I am just using regular old school components. Surely, someone has combined a 1'by' ..with some 40+ or something rear cassette... system with a triple front to get some stupid low combos!)

Who's the lowest / or highest fish in the sea?

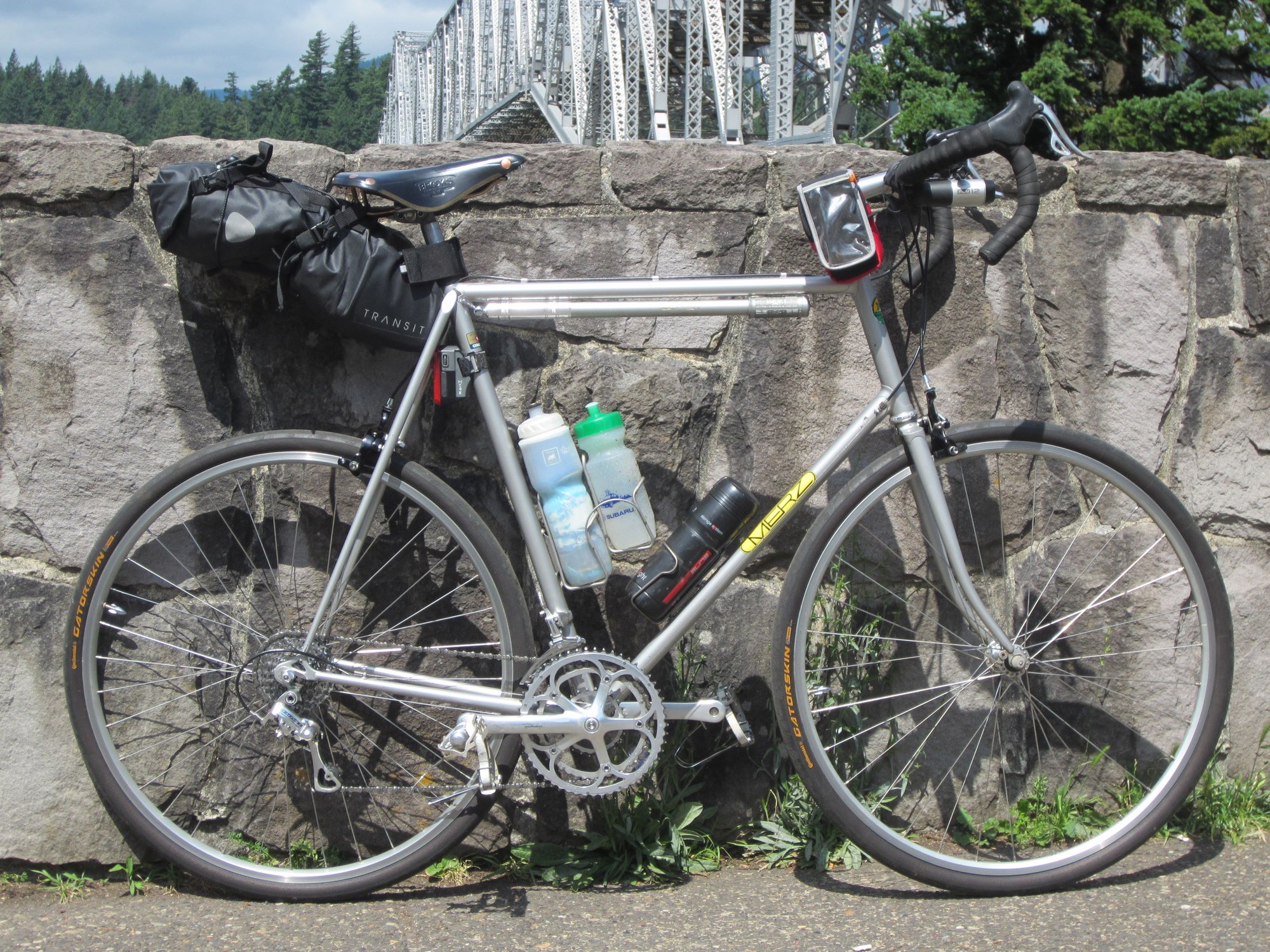

Here's 24 x 36 and 54 x 11, doesn't really take anything epic for me to need the granny but it does keep me from having to walk at whatever point that is.





Last edited by merziac; 10-21-19 at 08:00 PM.
merziac is offline
Old 10-21-19, 08:04 PM
  #5
thook
Senior Member

Join Date: Aug 2009
Location: Winslow, AR
Posts: 1,060
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 143 Post(s)
Liked 40 Times in 34 Posts
heaven's to merzatroid...that's a big bike! lovely!
thook is offline
Old 10-21-19, 08:09 PM
  #6
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 6,355

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 130 Post(s)
Tagged: 0 Thread(s)
Quoted: 1893 Post(s)
Liked 857 Times in 608 Posts
Originally Posted by thook View Post
heaven's to merzatroid...that's a big bike! lovely!
Tx! It rides as good as it looks, Merz knew exactly what he was doing no matter what you were doing.
merziac is offline
Old 10-21-19, 08:14 PM
  #7
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 10,262
Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1835 Post(s)
Liked 719 Times in 372 Posts
1925 Frejus - 45/16 high, 45/18 low
1933 Frejus - 49/16 high, 49/20 low
1959 Cinelli - 50/16 high, 47/22 high
iab is offline
Old 10-21-19, 09:39 PM
  #8
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,201

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 625 Post(s)
Liked 517 Times in 272 Posts
"Three on the tree"
thinktubes is offline
Old 10-21-19, 09:53 PM
  #9
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 1,007
Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 274 Times in 155 Posts
Slow crawls, and zippy sprints! I spend most of the time in the middle.

deux jambes is offline
Old 10-22-19, 12:02 AM
  #10
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2785 Post(s)
Liked 708 Times in 499 Posts
'87 Bianchi Sport SX: 48/13 high, 34/26 low
'91 Bianchi Eros: 49/13 high, 42/21 low
'88 Diamond Back: 45/16 high, 45/16 low*

I think the steepest hill I've climbed, and it was on the top bike in bottom gear, was 18% or so, and I had to psych myself up a bit to do it.


*
Spoiler

__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 10-22-19, 12:30 AM
  #11
verktyg
verktyg

verktyg's Avatar

Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,389

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 735 Post(s)
Liked 380 Times in 255 Posts
26-34 Low Gear

When we started rough stuff riding (road bikes off road) in 1976. I was using a Shimano 14-34T 5 speed skip tooth FW with a 42-26T TA crank.

Mostly used the 26-34 combo to pop a wheelie to get over a log or rock on or off trail.

I found that it was difficult to maintain balance at ratios lower than 1 to1 on the road (26-26T or similar gears). It was a little easier in soft dirt or sand because the wheels would sink in a give some lateral support.

This is a bike I built in 1992 with 46-26T chainrings and a 7 speed 14-28T FW.



Over the years I ovalized 2 or 3 TA 26T chainrings from hard starts up a hill so I switched to a Shimano Deore 48-38-28T triple. The 28-28T combo gives me 1 to1 ratio which is plenty low.



My touring bike that I also built back in 1992 has 50-46-28T half step with a granny chain rings an a 13-32T FW which is my lowest geared bike.



verktyg
__________________
Things aren't always what they seem... Don't believe everything you think!

Chas. ;-)
verktyg is offline
Old 10-22-19, 01:02 AM
  #12
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,862

Bikes: A green one, "Ragleigh," or something.

Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 1568 Post(s)
Liked 430 Times in 252 Posts
I think (but I am not sure) my Cannondale is 30/34 for low and 53/12 for high. With a 170mm crank and 700c x 35mm tires this is 24 gear inches for low and 120 for high, which ranges the farthest of all my bikes in both directions. This is the only bike I've never "spun out" on, hitting 45 or 46 mph with some overhead for faster pedaling. Just haven't found a long /steep enough hill to get it up faster. It's a total freight train descending, and quite a pleasant climber, too. I think it's probably my "If you had to ride ONLY one bike for the rest of your life..." bike.

__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●

Last edited by Lascauxcaveman; 10-22-19 at 01:06 AM.
Lascauxcaveman is offline
Old 10-22-19, 05:02 AM
  #13
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,436

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 183 Times in 126 Posts

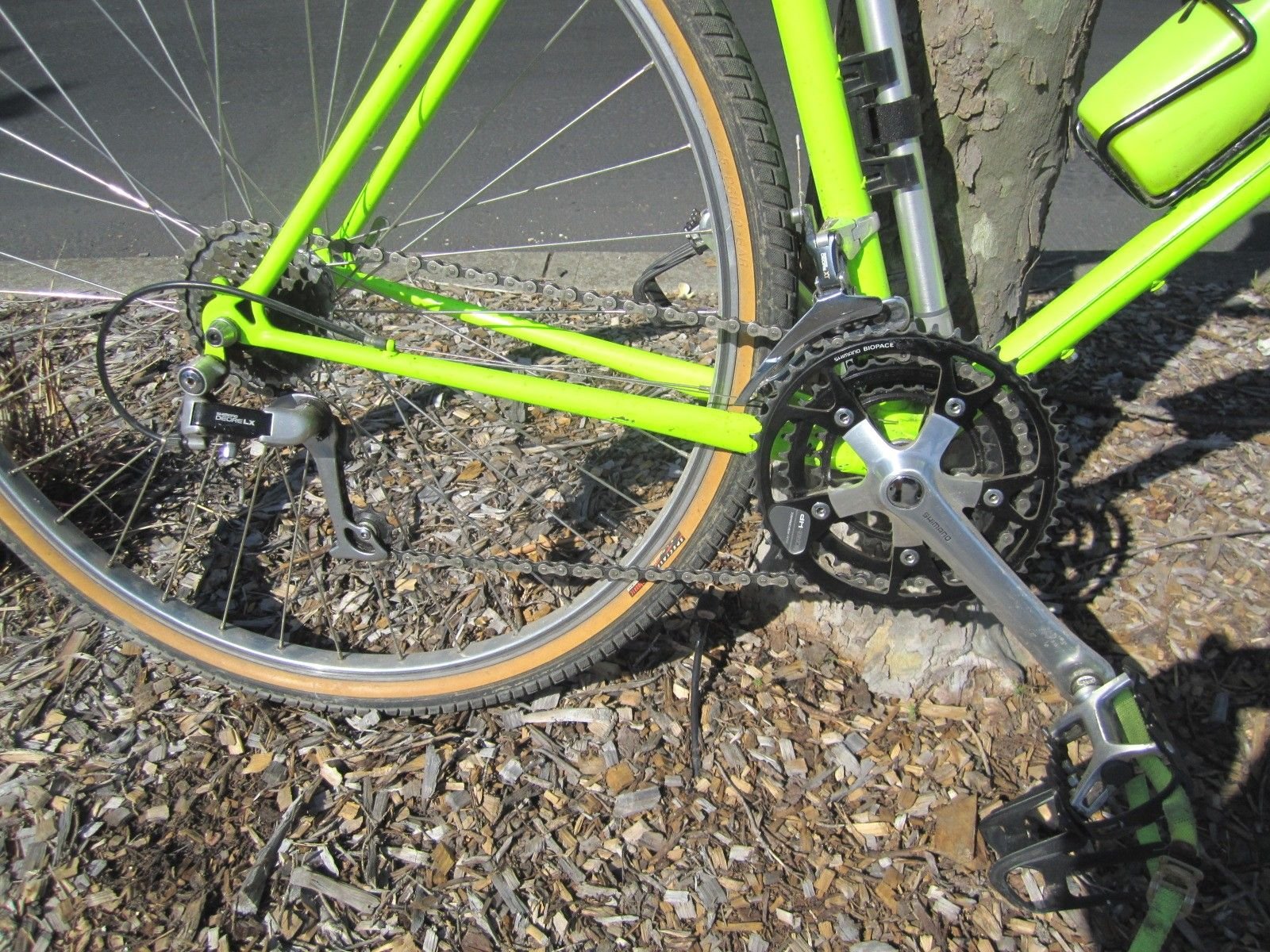

Out back that's 38-34-30-25-20-16 X 31-42-50 up front.



Yes, every gear combination is usable. And look! I'm not falling over while riding in the 31X38 low.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 10-22-19, 05:34 AM
  #14
hokiefyd
Senior Member

hokiefyd's Avatar

Join Date: Feb 2017
Location: Northern Shenandoah Valley
Posts: 3,092

Bikes: '18 Redline Zander MTB, '97 Trek MultiTrack 750, '70 Peugeot UO-18 Mixte

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 278 Times in 215 Posts
Originally Posted by thook View Post
my bikes tend to top out around 100 or so gear inches with a low of 20-25. ring and cluster size/range depends on tire sizes, but triple cranks on everything. for example....24-28t/32-34t granny with say 32mm-40mm on road/gravel bikes, and 24-28t/28-32t with 50-57mm tires on 26" mtb's.

grades?? i don't know. pretty freakin' steep in a lot of places. but, i use grippy tires and never lose traction....or fall over. legs get to burning too much sometimes to keep from falling asleep...haha
Another vote for all of that, pretty much verbatim. I target a gear inches range of about 20-100. I have a mixte I'm running as a 1x7 that has a narrower range (34-77 gear inches), but it's definitely not a "do all" bike for me, so I don't worry as much about it. I generally use a gear inches range of about 30-90 on most of my rides, but I do like the option of having shorter or taller gears than that.
hokiefyd is offline
Old 10-22-19, 08:03 AM
  #15
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,927

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 611 Post(s)
Liked 195 Times in 129 Posts
All flat terrain where I ride, so 42/21 and 52/13 is more than I need. A 49 or 50 would be enough IMO.
Reynolds is offline
Old 10-22-19, 08:25 AM
  #16
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,189
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
Liked 45 Times in 38 Posts
Road bikes: 11-28 x 30-46 (700x25c and 650x42b). Recumbent: 11-28 x 28-42-52 biopace (26x1.1) . Gravel bike/drop bar MTB: 11-34 x 22-32-44 (26x2.1). Mostly 9sp; one 10sp. The 11-28 gives me good gear spacing and a decent range, so that's become my standard setup. The riding around here is an unusual mix of rollers with the odd big hill along the coast and dead flat with the occasional double-digit climb heading inland.

SP
Nwpt, OR
rando_couche is offline
Old 10-22-19, 07:45 PM
  #17
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,952

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 201 Times in 160 Posts
Originally Posted by pastorbobnlnh View Post
Out back that's 38-34-30-25-20-16 X 31-42-50 up front.

Yes, every gear combination is usable. And look! I'm not falling over while riding in the 31X38 low.
Now that's gear-phreaking! Your 50/16 top is a bit low for my tastes -- I would want to add a 14T in back to make it a 3x7 setup.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-22-19, 07:51 PM
  #18
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,952

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 845 Post(s)
Liked 201 Times in 160 Posts
My road bikes vary from 45/13 = 93.5 gear-inches to 49/14 = 94.5 to 46/13 = 95.5 to 50/14 = 96.4 on top.

Bottom gears are 38/25 = 41.0 to 45/28 = 43.4 to 42/26 = 43.6

My mountain bike currently has a 4:1 range, from 28/26 = 28 gear-inches to 48/12 = 104, but I shall probably swap the 24T granny back in, giving me a low of 24/26 = 24.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 10-22-19, 08:56 PM
  #19
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Posts: 21,555

Bikes: Old Steelies I made, Old Cannondales

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 1010 Post(s)
Liked 333 Times in 246 Posts
I pretend I'm still fit and still riding 53/39 with 12-25. No massive climbs here.
I have some lower gears in the box that will get used one of these days.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.

FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Homebrew01 is offline
Old 10-22-19, 10:30 PM
  #20
bargo68
Senior Member

bargo68's Avatar

Join Date: Oct 2015
Location: Fairfax, California
Posts: 230

Bikes: 2008 Surly Cross Check, 1979 Miyata Gran Touring, 1983 Miyata Ridge Runner, 1997 Serotta Atlanta

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
Liked 165 Times in 90 Posts
My daily rider Cross Check high is 46/11 and low is 30/34.
bargo68 is offline
Old 10-22-19, 10:32 PM
  #21
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,577

Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Liked 195 Times in 95 Posts
All my bikes' gear ranges (except the MTB) are pretty similar. Most of my road bikes are set up with 39/53 x 13-26 on tubulars with a ~39"-108" range.

However, the high end of this range is slightly edged out by my commuter, a Cilo Pacer, which is set up as 36/53 x 13-26 on 27" x 1-1/4" wheels. This gives a low of 37.5" and a high of 110.8" range.

The lowest-geared road bike I have is my only bike with a "modern" drive train, a 9-speed De Rosa with a 39/53 x 13-28 for a gear inch range of 36.7"-107.5".

Last edited by gaucho777; 10-23-19 at 12:49 AM.
gaucho777 is offline
Old 10-23-19, 12:42 AM
  #22
Cycle Tourist
Senior Member

Join Date: Jan 2017
Posts: 491
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Liked 63 Times in 51 Posts
This recummbant needed every bit of the crank 53/42/24 and the freewheel 13-32t. Grinding up long hills without being able to stand made the lows nesssesary. Most of my touring bikes use a 23 or 24 granny with a 30 or 32 FW.
Cycle Tourist is offline
Old 10-23-19, 04:06 AM
  #23
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 26,572
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,034 Times in 665 Posts
I don't do math...

Modern:
Trek Y-Foil: 52/36 & 11-30 11sp DA9000
Wraith: 52/36 & 11-34 11sp Ultegra 8000
Wraith: 50 & 14/16 flip fixed

C&V:
Fiorini: 50/34 & 11-28 DA9000 11sp
Merckx: 53/39 & 11-34 DA7700 9sp
Comp TA: 52/42 & 13-28 Superbe Pro 6sp
Titan: 52/42 & 13-18 Superbe/DA mix 5sp
Competition: 52/42/30 & 11-28 Ultegra 6500 9sp
Battaglin: 52/42/30 & 11-27 Centaur 10sp
Equipe: 52/42/30 & 12-26 Racing T 8sp
Colnago: 53/39 & 11-28 Centaur 10sp
Super Corsa: 52/42 & 12-26 Record 7sp
Basso: 52/42 & 12-26 Chorus 7sp
Ironman: 50/34 & 11-28 Ultegra 6800 11sp
Litespeed: no idea-pending.
Klein: 48/38/26 & 13-28 DA 7400 6sp
KG196: 53/39 & 11-24 Mektronic 9sp
CFR-1: no idea-pending
Turbo Road: 53/39 & 12-27 Ultegra 6403 8sp
Turbo TT: 54/39 & 12-21 Ultegra 6403 8sp
International: 52/42 & 13-28 Cyclone 5sp

Last edited by RobbieTunes; 10-23-19 at 07:50 PM.
RobbieTunes is offline
Old 10-23-19, 04:07 AM
  #24
JaccoW
Tinkerer

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, The Netherlands
Posts: 1,563

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 495 Post(s)
Liked 400 Times in 251 Posts


The Batavus has a 21 to 129 gear inches range so that would be 618%
Took it up some bumpy climbs but I don't know what grade we are talking about.



***



My girlfriends Gazelle is a 1x9 commuter and has a 45-114 range of 255%.



***



The Koga-Miyata has a 33-85 range but I haven't ridden it yet. Perhaps I'll switch to a smaller rear sprocket and move the range a bit higher.

JaccoW is offline
Old 10-23-19, 07:11 AM
  #25
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,889

Bikes: Still have a few left!

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 338 Post(s)
Liked 54 Times in 35 Posts
That would be my Cino Heroica PX10 with its 5 speed Shimano 14/34 freewheel and a 30/47 Stronglight 100 crank. Climbing speed is just short of a track stand and it loses traction on really steep gravel but haven't found an incline it can't handle otherwise. Don
Attached Images
File Type: jpg
ollo_ollo is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
