Sears and Robuck lives?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Sears and Robuck lives?

Old 10-28-19, 01:30 PM
  #1
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Sears and Robuck lives?

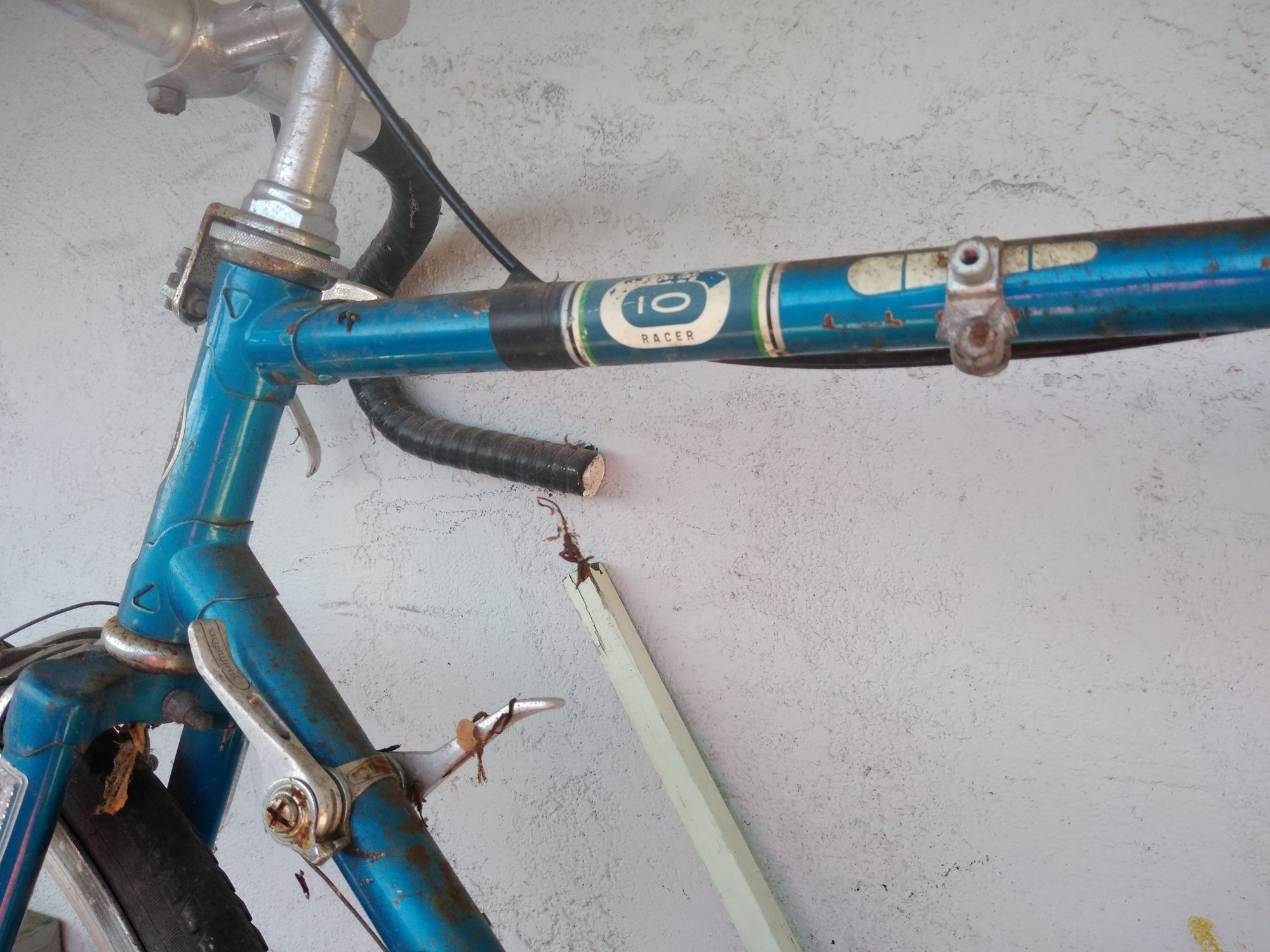

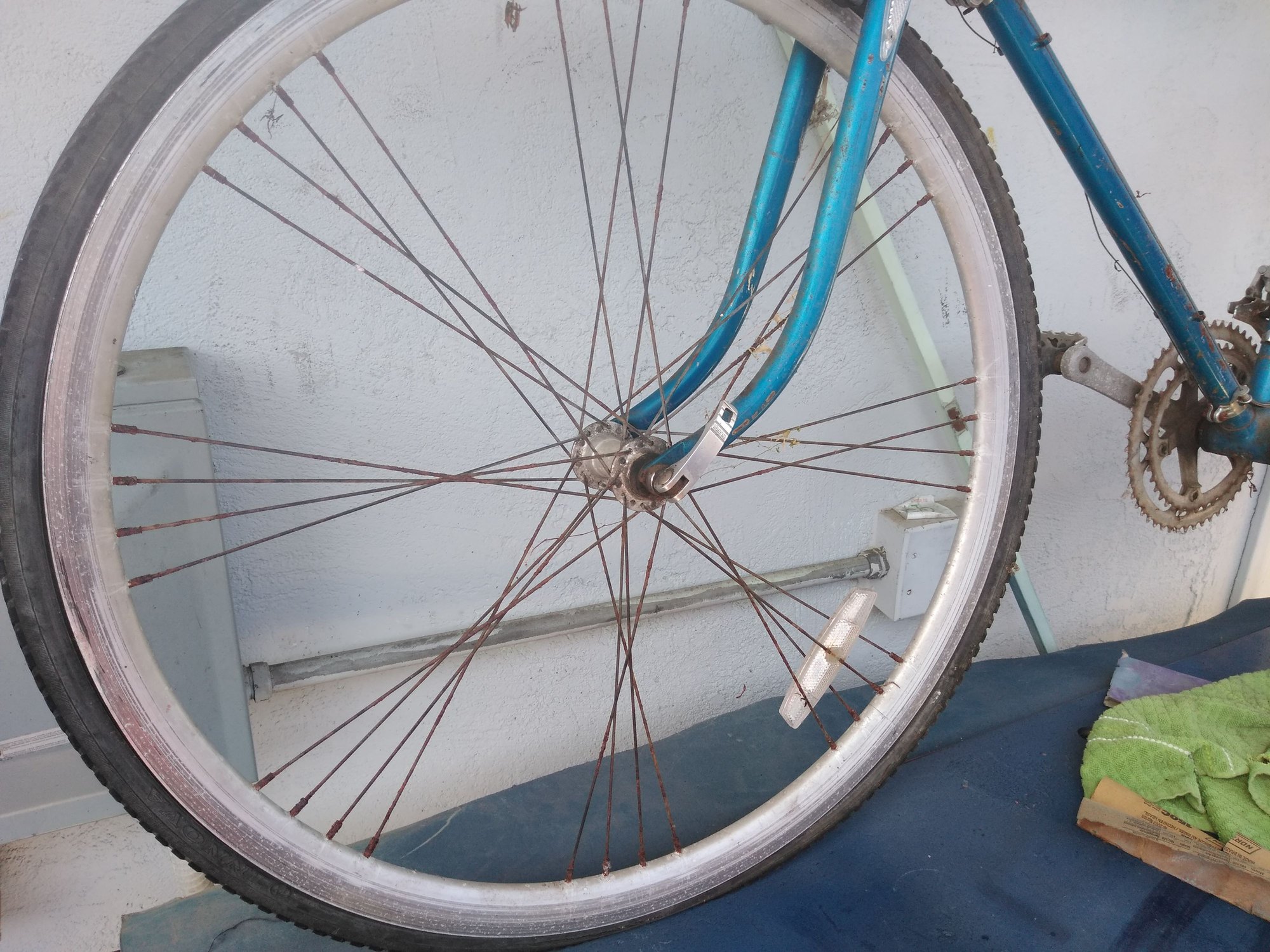

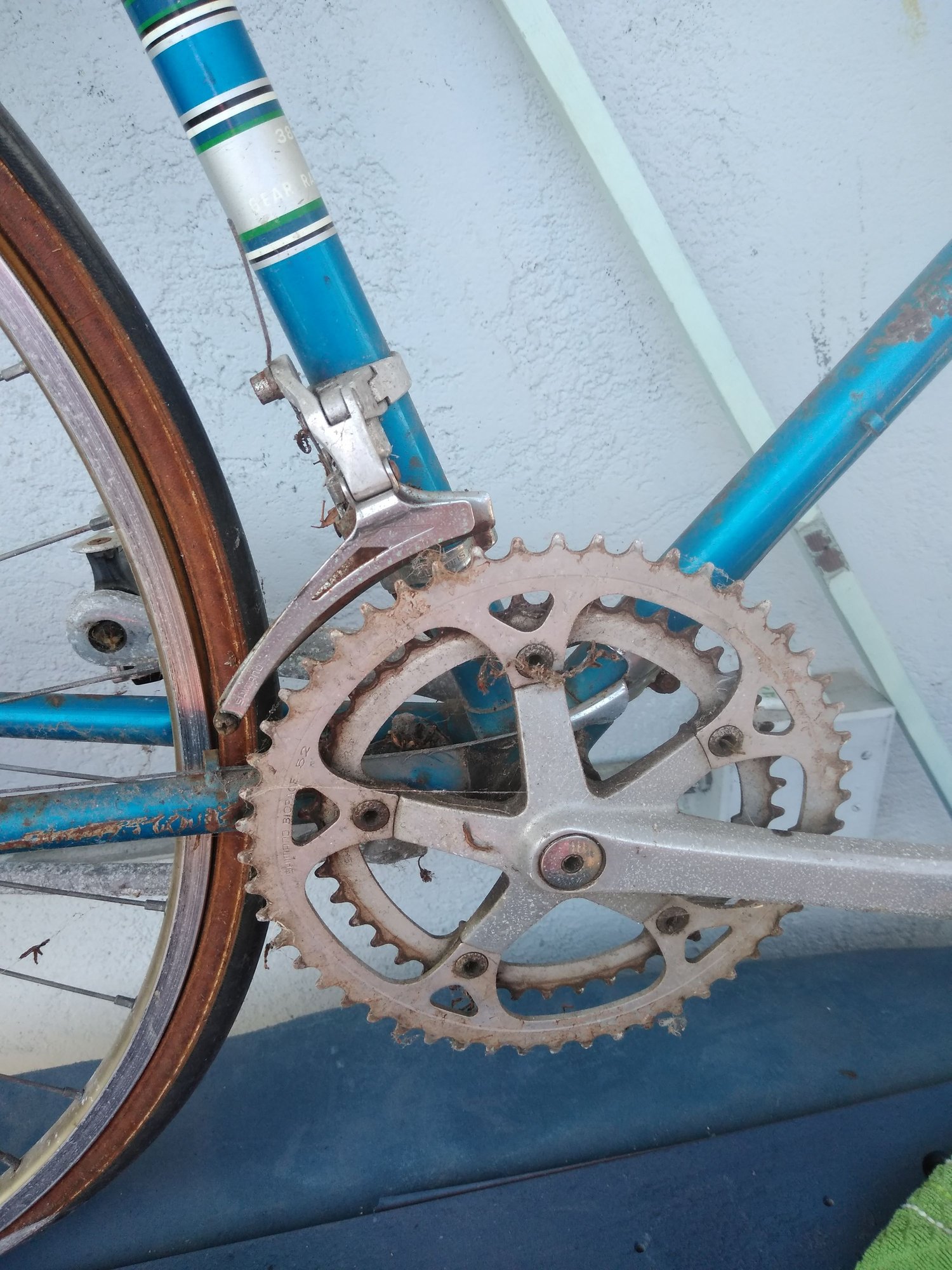

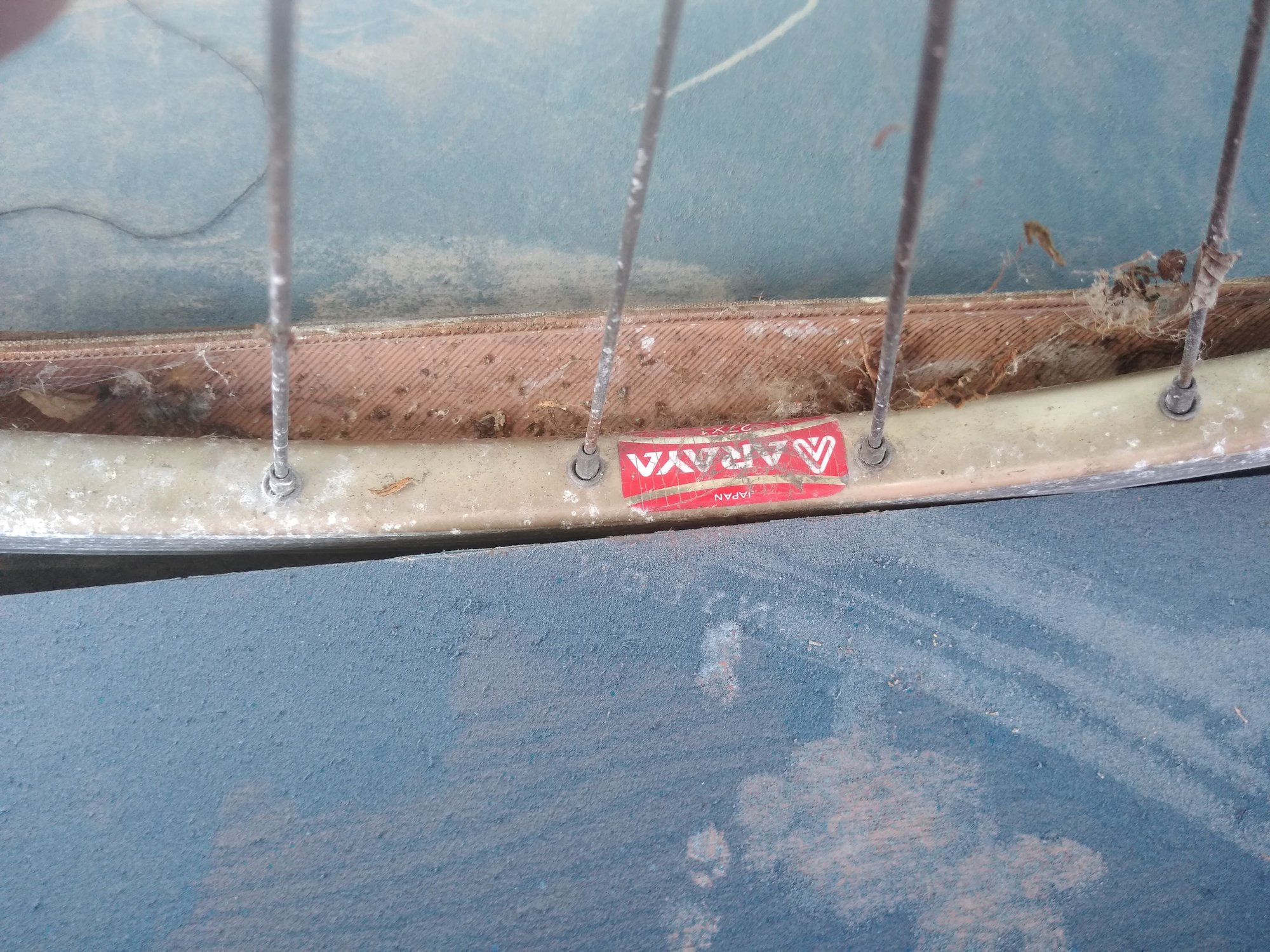

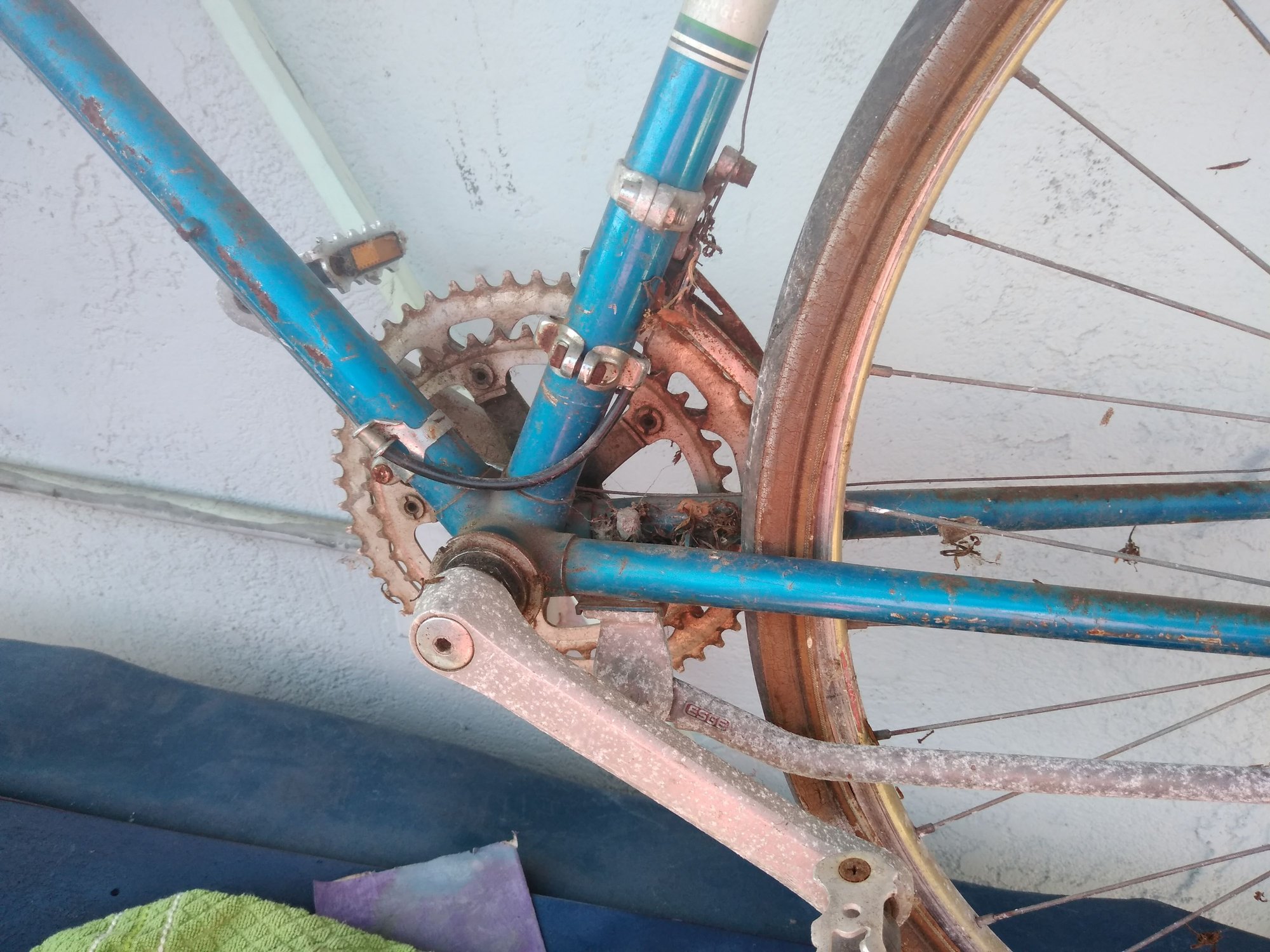

This was a near freeby. I liked the rear wheel, the crank, the front derailleur and maybe the handlebars. The chain was in a bag and that's about it. I did a little research and these bikes came from a variety of sources. The cutouts on the lugs are kinda cool. Does anyone know the source of these models?








I thought Puch might be a likely candidate. I think I've got a matching or near matching front wheel, some used cables and a decent flat bar and stem with brake levers and shifters I took off a criminal retrofit to a Univega GT. It could be a college runabout especially if I'm willing to "rattle-can" it after spending some time in prep. (I know it's probably time unwell spent but WTH)
Cycle Tourist is offline
Old 10-28-19, 02:05 PM
  #2
AeroGut
Senior Member

Join Date: Jun 2019
Posts: 311
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Likes: 0
Liked 60 Times in 46 Posts
AD/Puch supposedly made the Ted Williams Free Spirit bikes that are labeled made in Austria like yours is, so that seems like a good possibility. The Ted Williams ones have 531 stickers on frame and fork, which I donít see on yours, so it might be a lower model.
AeroGut is offline
Old 10-28-19, 02:26 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 1,751

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 532 Post(s)
Liked 203 Times in 148 Posts
Yes, Austrian Puch-made bikes. Even if it's a non-Reynolds, it will be a good quality bike, if a bit heavy. If you decide to restore/rebuild, take care not to lose the headset parts, as Austrian headsets have specific dimensions and are not so easily available.
noobinsf is offline
Old 10-28-19, 03:23 PM
  #4
uncle uncle
Senior Member

Join Date: Aug 2010
Location: south kansas america
Posts: 1,624

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 51 Times in 38 Posts
Not many original parts on it (the front wheel assy, shift levers, derailleurs, crank assy... all of them are of later vintage), but, I'm always on the lookout for one of these, so, for about free, I would have picked it up too. I remember staring and reading, over and over, the Sears catalog sent to our house every spring with it's selection of bicycles. If there was ever a half way decent bicycle that COULD have possibly been within the dusty, one stop sign, town I grew up in, it would have been a Sears bicycle. Sears was the only porthole to the outside world. In an alternative reality to how I really grew up, I would have found a Sears bicycle like this one, and rode it to a career as a marginally acceptable yet totally forgettable bicycle racer. I never found one of these, and I blame that for my lack of early bicycling prowess. But for only reasons known to me, and the dusty cobweb of stories I told myself as a child, I still desire one.
uncle uncle is offline
Likes For uncle uncle:
Old 10-28-19, 05:50 PM
  #5
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 7,917

Bikes: A few

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 1464 Post(s)
Liked 256 Times in 193 Posts
Oh, my poor baby!
3speedslow is offline
Likes For 3speedslow:
Old 10-28-19, 07:39 PM
  #6
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Originally Posted by noobinsf View Post
Yes, Austrian Puch-made bikes. Even if it's a non-Reynolds, it will be a good quality bike, if a bit heavy. If you decide to restore/rebuild, take care not to lose the headset parts, as Austrian headsets have specific dimensions and are not so easily available.
Thanks for the heads up. The headset is in a sealed snack bag in a duffle bag with everything else that came off the bike. 😁
Cycle Tourist is offline
Old 10-28-19, 07:39 PM
  #7
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,535

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 672 Post(s)
Liked 298 Times in 224 Posts
Funny I tell myself a similar story -I didn't stumble onto C&V until I was in my 40s after getting back into cycling in my late 30s. For my 16th birthday (1980) my parents gave me a Huffy 10 speed I don't think I rode it more than 3 or 4 times. I wonder what might have happened had that bike been a Raleigh or Peugeot.....?

Last edited by ryansu; 10-28-19 at 07:44 PM.
ryansu is offline
Likes For ryansu:
Old 10-28-19, 07:54 PM
  #8
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Originally Posted by uncle uncle View Post
Not many original parts on it (the front wheel assy, shift levers, derailleurs, crank assy... all of them are of later vintage), but, I'm always on the lookout for one of these, so, for about free, I would have picked it up too. I remember staring and reading, over and over, the Sears catalog sent to our house every spring with it's selection of bicycles. If there was ever a half way decent bicycle that COULD have possibly been within the dusty, one stop sign, town I grew up in, it would have been a Sears bicycle. Sears was the only porthole to the outside world. In an alternative reality to how I really grew up, I would have found a Sears bicycle like this one a step up.
I get it. I lived in Montville Connecticut and pedaled my Dunelt 3 speed with the fenders removed and the handlebars turned upside down. 😂

The rust is very superficial so the restoration is going well. I'll probably swap out a few parts for something newer/cheaper but the "Sears" will ride again. Don't know if the next owner will realize the significance of the bike he/she will be riding but it will be a good-looking, reliable and convenient way to travel.
Cycle Tourist is offline
Old 10-28-19, 07:58 PM
  #9
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Originally Posted by ryansu View Post
Funny I tell myself a similar story -I didn't stumble onto C&V until I was in my 40s after getting back into cycling in my late 30s. For my 16th birthday (1980) my parents gave me a Huffy 10 speed I don't think I rode it more than 3 or 4 times. I wonder what might have happened had that bike been a Raleigh or Peugeot.....?
When I got married, my wife didn't want the shotgun in the house so I traded it for a Gitante with Cannondale panniers and never looked back.
Cycle Tourist is offline
Old 10-28-19, 08:01 PM
  #10
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,038

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 548 Post(s)
Liked 137 Times in 115 Posts
Congratulations. You have one of the rare Sears 10 speeds that was actually a decent bike. That's really amazing. (Almost like finding a unicorn). (Most Sears 10 speeds are absolute rubbish). I'm pretty sure the wheels are not original. But, it should be a real smooth ride with that front fork geometry. Clean it up and ride it. Be good. Have fun.
ramzilla is offline
Likes For ramzilla:
Old 10-28-19, 08:22 PM
  #11
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 24,812

Bikes: http://www.theheadbadge.com

Mentioned: 48 Post(s)
Tagged: 0 Thread(s)
Quoted: 818 Post(s)
Liked 602 Times in 400 Posts
The crank, FD, and shifters are newer upgrades - and in a good way.

Would make for a nice upright-bar cruiser. That slack geometry is halfway to a Raleigh DL-1

-Kurt
__________________


cudak888 is offline
Old 10-28-19, 09:01 PM
  #12
uncle uncle
Senior Member

Join Date: Aug 2010
Location: south kansas america
Posts: 1,624

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 51 Times in 38 Posts
Bob R?s 1969 Sears (Puch) 10-Speed Racer | Old Ten Speed Gallery
https://picclick.com/Rare-Old-Vintage-10-Speed-Steyr-Clubman-Bike-292599462569.html#&gid=1&pid=12


Some reference material. /\

Probably the easiest way to identify the Steyr/Puch/Austro Daimler bicycles made for the Sears/USA market is the big scoops at the top of the seat tubes. I don't think any other bicycle manufacturer had a design quite like it. It would fun (but probably cost prohibitive) to do a Euro parts restoration/upgrade.... sort of what I would expect a "serious" rider to have done to make this bicycle more competitive at the local classic (aka, the single course/single time) race. I'd probably go Huret Duopar derailleurs, Weinmann brakes (sounds like they were original equipment, and their levers are at least a usable reach for my normal sized hands), Weinman alloy rims/Normandy hubs, etc. (Day dreaming, just like my youth version of myself.)

Last edited by uncle uncle; 10-28-19 at 09:18 PM.
uncle uncle is offline
Old 10-28-19, 09:57 PM
  #13
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,134

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 768 Post(s)
Likes: 0
Liked 188 Times in 144 Posts
I wouldn't put an upright bar on one of these unless the rider's fit would require a longer stem.

The reason I say this is because, despite the slack ~71-degree frame angles, these framesets seem to have low trail courtesy of the heavily-raked fork.

I ended up using longer stems on my SEARS and Steyr bikes, since the handling felt too light with the 8cm original stem.

Here's my 1968 SEARS 10 SPEED, with 10cm stem and a longer-reach handlebar it handles quite well in spirited riding.

dddd is offline
Likes For dddd:
Old 10-28-19, 11:01 PM
  #14
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Originally Posted by dddd View Post
I wouldn't put an upright bar on one of these unless the rider's fit would require a longer stem.

The reason I say this is because, despite the slack ~71-degree frame angles, these framesets seem to have low trail courtesy of the heavily-raked fork.

I ended up using longer stems on my SEARS and Steyr bikes, since the handling felt too light with the 8cm original stem.

Here's my 1968 SEARS 10 SPEED, with 10cm stem and a longer-reach handlebar it handles quite well in spirited riding.

Damn dude. That's a mighty nice looking bike.

Maybe I've fallen into the trap of underestimating these bikes. Although a "bit" heavy they're still pretty nice. Makes me wish I had more of the original parts.

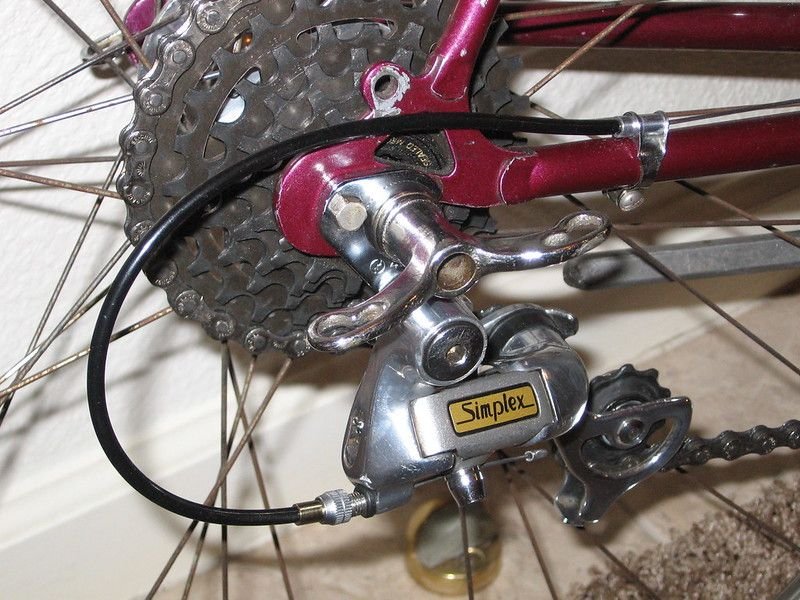

Say, I think I've got a simplex RD in a box somewhere. Too bad I didn't keep that 3 piece crank I took off an old Stella.
Cycle Tourist is offline
Old 10-29-19, 08:53 AM
  #15
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,134

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 768 Post(s)
Likes: 0
Liked 188 Times in 144 Posts
Originally Posted by Cycle Tourist View Post
Damn dude. That's a mighty nice looking bike.

Maybe I've fallen into the trap of underestimating these bikes. Although a "bit" heavy they're still pretty nice. Makes me wish I had more of the original parts.
Say, I think I've got a simplex RD in a box somewhere. Too bad I didn't keep that 3 piece crank I took off an old Stella.
Thanks, Cycle Tourist!
Bikes like these I wouldn't go to the trouble (lots of hours) unless they initially looked appealing in the paint department.
I took a chance with the SEARS and the Steyr Clubman because they looked cool to me and were being offered for just $80 in both cases.
I was quite pleased with the first one (the Clubman), as far as how it's riding qualities turned out. The quality looked iffy, especially the 26mm Austrian headset, but I found that replacements are available from a SF area moped parts dealer.
The Sears model I bought a year later also turned out to be a great rider.

The bb parts on these bikes seem very high quality, good hard metal there, and the 14-ball (!) headset retainers can be re-packed with like 22 or 24 balls for a big improvement in durability there.
I removed my cotters for bb servicing after first using a torch on the ends of the crankarms to spare any damage to the precious original cotters. Heat them till they start issuing some smoke and then the cotters should come out without any damage. This applies to any cottered crankset. After driving the cotters back in, I alternate between nut tightening and moderate blows with a hammer until the nuts don't want to turn any further.

I've ridden my Steyr thousands of miles on quite-sporting rides, it's a comfortable bike that gets down the road pretty good with only a 13-24t 5s freewheel and it's original 52-36t Agrati-style chainset.
The frame tubing on these is "Precision Steel", so is fairly thick-walled straight-gage tubing. So not overly flexy, but like I said very comfortable in use.

No great loss on any missing plastic derailers. They shift fine for me, but less so as you go up toward using a 7s freewheel or a bigger freewheel. I re-badged a short-cage Deore rear derailer after I took the photo above, though I frankly miss the quicker action of the original Simplex. My FD had already been replaced when I got the bike.


Last edited by dddd; 10-29-19 at 09:02 AM.
dddd is offline
Likes For dddd:
Old 11-03-19, 04:20 PM
  #16
zbillster
Member

zbillster's Avatar

Join Date: Oct 2019
Location: Texas
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 7 Times in 5 Posts
So this is me looking disappointed one Xmas in 1973 ... my parents wouldn't dare go to a proper bicycle store ... if it wasn't Montgomery Wards or Sears, it wasn't bought. (Unless it was golf clubs for themselves).
At least it had a lugged frame and was made somewhere in Europe? Steel 26" rims, Simplex drivetrain (the downtube shifters were constantly sliding down the tube because they forgot to braze a stop), steel cottered cranks ... this bike would be stolen when the repair shop was broken into to fix the downtube shifter issue under warranty for the umpteenth time ... and replaced with a welded stovepipe Mongomery Wards bike. :/

zbillster is offline
Likes For zbillster:
Old 11-11-19, 06:29 PM
  #17
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,178

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 759 Post(s)
Liked 254 Times in 186 Posts

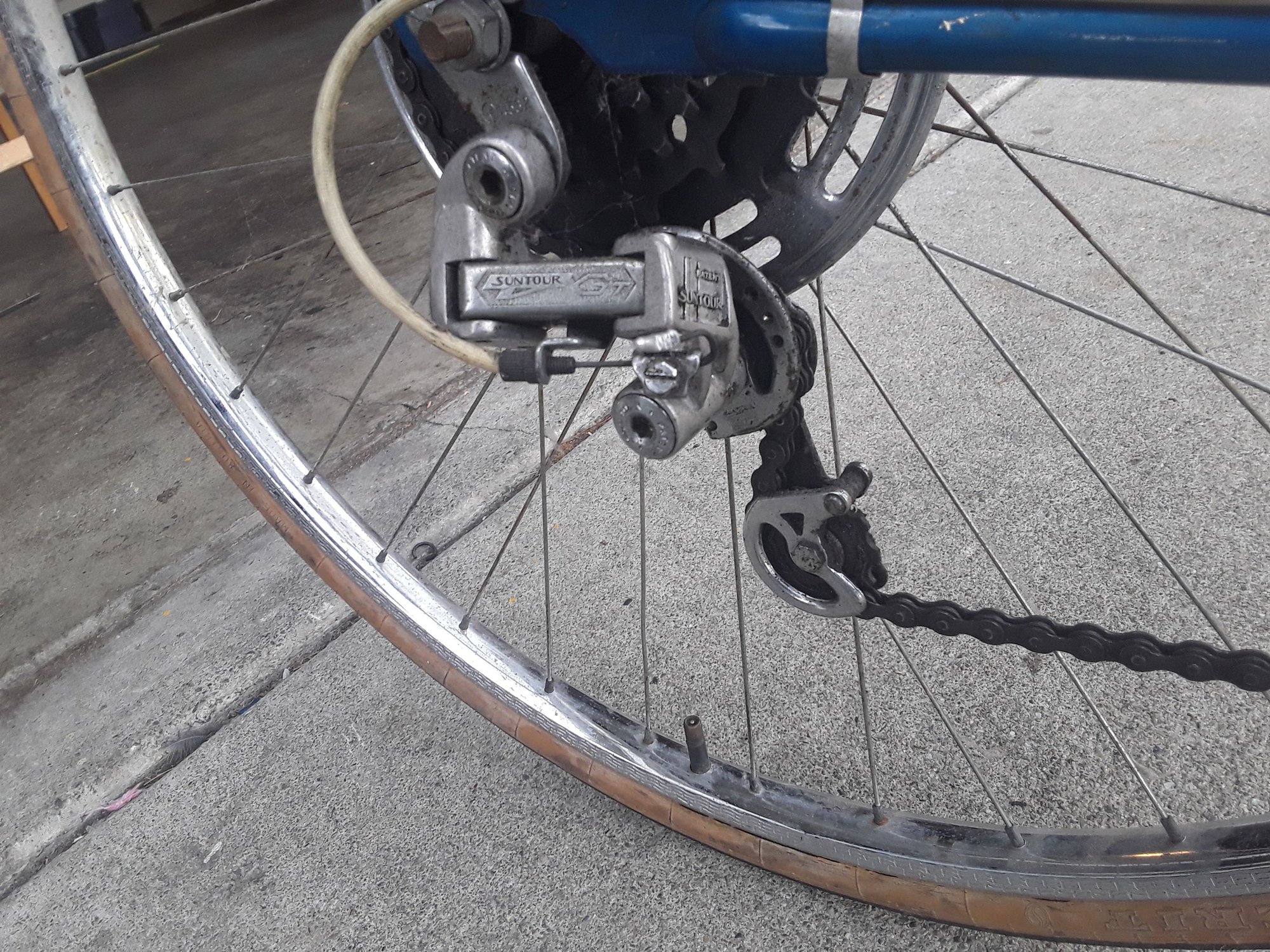

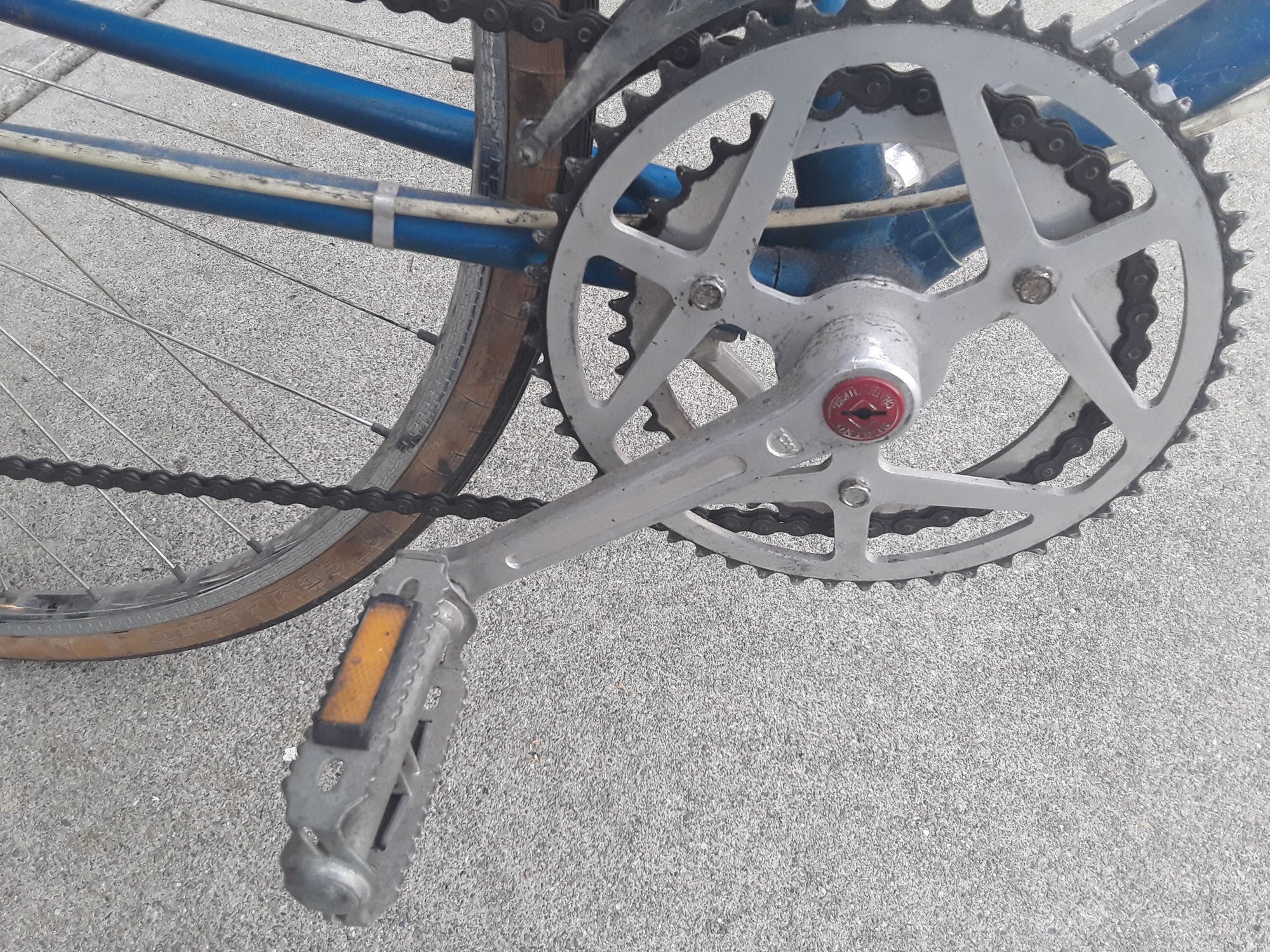

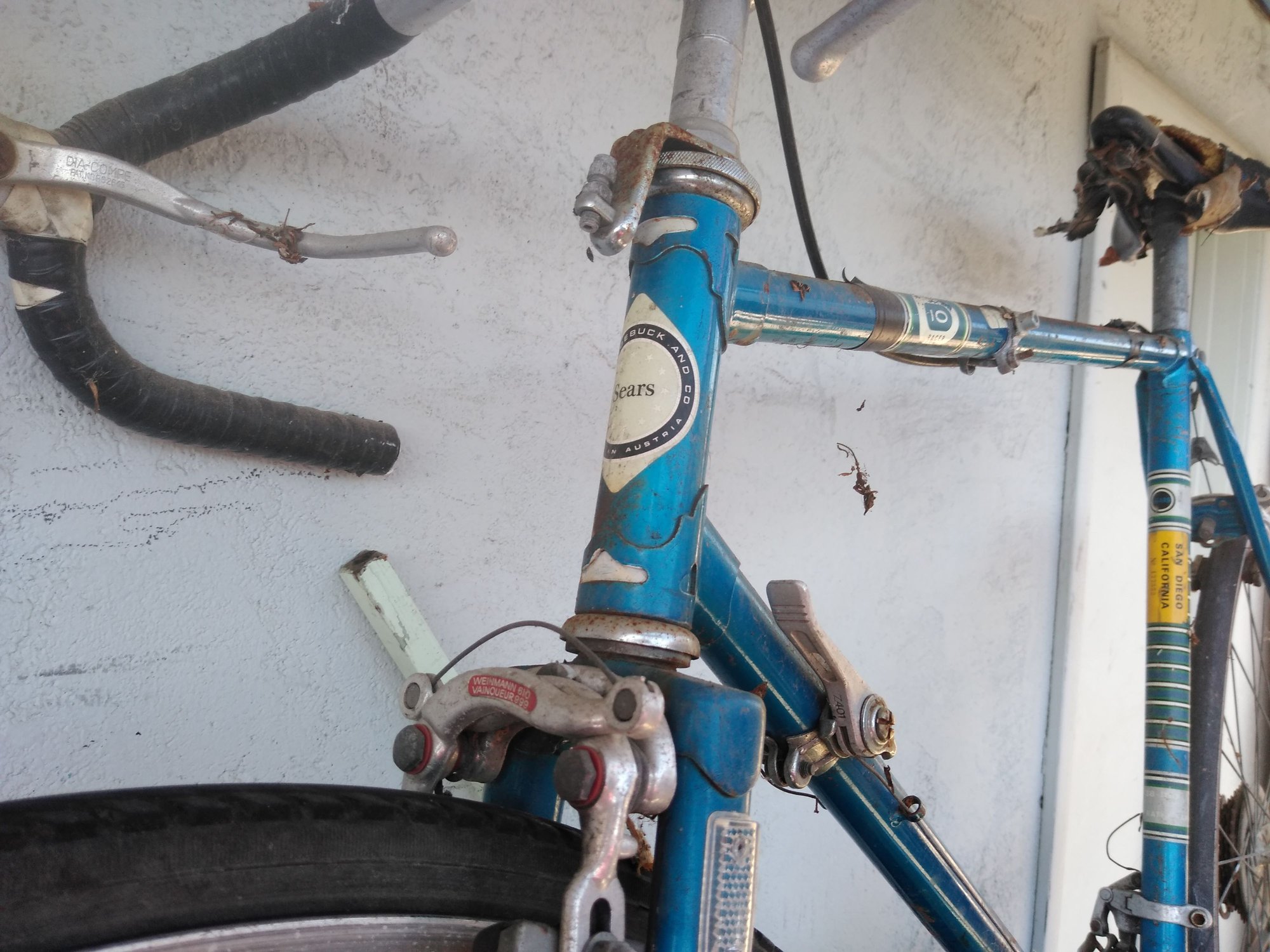

Picked this up in a free pile, replaced fork and front wheel, but everything else looks original. Sugino Maxi crank and early Suntour GT. Aluminum bars and seatpost. Not sure what to do with it.

Through frame brake cable.


curbtender is offline
Old 11-11-19, 06:41 PM
  #18
zbillster
Member

zbillster's Avatar

Join Date: Oct 2019
Location: Texas
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 7 Times in 5 Posts
Nice weld on that stem!
Wow, internal rear brake cable routing?
"Made in Austria" = Puch? I know Puch supplied motorcycles under the Sears Allstate brand.
zbillster is offline
Old 11-11-19, 07:01 PM
  #19
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,178

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 759 Post(s)
Liked 254 Times in 186 Posts
Originally Posted by zbillster View Post
Nice weld on that stem!
Wow, internal rear brake cable routing?
"Made in Austria" = Puch? I know Puch supplied motorcycles under the Sears Allstate brand.
Has a made in Germany stamp on the brake bridge. I'm guessing that stem came with the fork.
curbtender is offline
Old 04-25-20, 06:10 AM
  #20
Vburrall
Vince b

Join Date: Apr 2020
Location: Maryland
Posts: 7

Bikes: Ross old road bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
1982

I have one that definitely needs tlc. Is it worth putting new tires rims cables and derailers on? Looks like I might spend about $1000 I donít think the bike is worth it. Except for the nostalgic part.
Vburrall is offline
Old 04-25-20, 11:55 PM
  #21
uncle uncle
Senior Member

Join Date: Aug 2010
Location: south kansas america
Posts: 1,624

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 51 Times in 38 Posts
Originally Posted by zbillster View Post
So this is me looking disappointed one Xmas in 1973 ... my parents wouldn't dare go to a proper bicycle store ... if it wasn't Montgomery Wards or Sears, it wasn't bought. (Unless it was golf clubs for themselves).
At least it had a lugged frame and was made somewhere in Europe? Steel 26" rims, Simplex drivetrain (the downtube shifters were constantly sliding down the tube because they forgot to braze a stop), steel cottered cranks ... this bike would be stolen when the repair shop was broken into to fix the downtube shifter issue under warranty for the umpteenth time ... and replaced with a welded stovepipe Mongomery Wards bike. :/

That's the "Italian Sears".... apparently supplied by Chiorda. Another noteworthy Sears bike, though probably not valuable (I have this bike, waiting, possibly, for a restore). Nice pants, btw.
uncle uncle is offline
Old 04-27-20, 12:46 AM
  #22
Cycle Tourist
Senior Member
Thread Starter

Join Date: Jan 2017
Posts: 431
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 34 Times in 31 Posts
Originally Posted by Vburrall View Post
I have one that definitely needs tlc. Is it worth putting new tires rims cables and derailers on? Loks like I might spend about $1000 I donít think the bike is worth it. Except for the nostalgic part.
Why new rims? What's wrong with the rims? New spokes on a nice well polished rim and hub can make a bike. That being said, pulling some derailleurs out of a parts bin is ideal but new derailleurs make the rebuild too much for what you wind up with. There's a better way to spend your time if your trying to get the most for your money.
If you like the bike though, you can find parts for it that will work fine for a fraction of $1000 and learn a lot along the way.
In short it's a bike with history which in my mind makes it worthy to be saved and some pastimes are more fun than others but shop around and look for value.😁
Cycle Tourist is offline
Old 04-27-20, 09:06 AM
  #23
curbtender
Senior Member

curbtender's Avatar

Join Date: Mar 2007
Location: SF Bay Area, East bay
Posts: 6,178

Bikes: Marinoni, Kestral 200 2002 Trek 5200, KHS Flite, Koga Miyata, Schwinn Spitfire 5, Schwinn Speedster, Mondia Special, Univega Alpina, Miyata team Ti, MB3

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 759 Post(s)
Liked 254 Times in 186 Posts
If you spend over a hundred bucks, you've gone too far. That's probable what they sold for new.
curbtender is offline
Old 04-27-20, 12:38 PM
  #24
uncle uncle
Senior Member

Join Date: Aug 2010
Location: south kansas america
Posts: 1,624

Bikes: too many

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 299 Post(s)
Liked 51 Times in 38 Posts
Originally Posted by Vburrall View Post
I have one that definitely needs tlc. Is it worth putting new tires rims cables and derailers on? Looks like I might spend about $1000 I donít think the bike is worth it. Except for the nostalgic part.
If it were my Sears bike, I'd bargain shop at the local bicycle coop for some period appropriate replacement parts, like some Suntour GT and Spirt derailleurs, and alloy rimmed wheels. Even online auction places can provide bargain/period appropriate derailleurs, if you are patient and diligent. Finding those bargain parts are part of the enjoyment of having a bicycle like this, imo. Periodic tire and cable replacements are just part of upkeep/maintenance of any bicycle, so, I really don't worry as much about their cost reflected in the whole cost of the purchase.
uncle uncle is offline
Old 04-27-20, 12:44 PM
  #25
zbillster
Member

zbillster's Avatar

Join Date: Oct 2019
Location: Texas
Posts: 34
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Liked 7 Times in 5 Posts
Originally Posted by curbtender View Post
If you spend over a hundred bucks, you've gone too far. That's probable what they sold for new.

Yeah, no WAY my 1970s parents were going to spend over $100 on a bicycle!
zbillster is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
