Mid-'40s René Herse tandem
So I finally did it. I went on Ebay and put too much money where my mouth was, to get something I've always wanted.
It is a mid-'40s René Herse tandem. It is in pretty rough shape. I really don't care!!
It was listed as local pickup only on Ebay France, about 20 minutes from an old family friend's place (a cycling and tandeming friend, no less!), so he was happy to go pick it up. Here is a smattering of photos from the listing.
I went to France and picked it up. Took the front and rear wheels and fork and rear fender and rack off, boxed it nicely, and got it ready to go. My friend drove us all the way to the airport with the box on the roof, dodging rainstorms the whole way! It was treated pretty poorly by the airline (Norwegian CDG-BOS), but other than a slightly bent chainring, things seem fine.
It does have all the René Herse things: carbon brush for the headlight wire, Herse stem, tied-and-soldered (!) wheels with really old Maxicar hubs (so old that they say CAR-MAXI instead of the other way around), Herse cranks, and lots of custom hardware.
So over the last few weeks I've been diving into this thing. One thing became apparent pretty quickly: it's very, very old. First of all, the original owner as indicated on the stem cap, R.S. Gaulandeau, lived on Impasse Gauron in Malakoff, a suburb of Paris. Impasse Gauron no longer exists - it was bulldozed in the '50s! Secondly, it's got to be from pretty early in René Herse's production. I'm talking pre-1947. It's got some really strange bottom brackets, which I'll get into in my next post, that pre-date his aluminum-cupped SKF that I've seen on his bikes from as early as '47. Also, the serial number is 11.
After '46 or '47, I have been told, Herse bikes have a serial number that's composed of a year and then an ordinal number corresponding to how many frames he'd produced so far that year. So for example, if a frame was his eighth frame in 1948, he'd stamp it "48 8" or "8 48". The way I have been told, before '46 or '47, he just restarted his ordinal numbering every year from 1 and didn't include any year. I kind of find this hard to believe, because it would make things impossible to keep track of. Under this system, my # 11 could be the 11th frame of any year in the mid-'40s. Unless that was the point. I wonder if this was a wartime/immediately-postwar thing. I can imagine with rationing of metal and gas he'd rather not have anybody know how many he had made. Weird, right?
In the next few days I'll get together more stuff. I have been working hard on this, of late, and have a lot to share!
It is a mid-'40s René Herse tandem. It is in pretty rough shape. I really don't care!!
It was listed as local pickup only on Ebay France, about 20 minutes from an old family friend's place (a cycling and tandeming friend, no less!), so he was happy to go pick it up. Here is a smattering of photos from the listing.
I went to France and picked it up. Took the front and rear wheels and fork and rear fender and rack off, boxed it nicely, and got it ready to go. My friend drove us all the way to the airport with the box on the roof, dodging rainstorms the whole way! It was treated pretty poorly by the airline (Norwegian CDG-BOS), but other than a slightly bent chainring, things seem fine.
It does have all the René Herse things: carbon brush for the headlight wire, Herse stem, tied-and-soldered (!) wheels with really old Maxicar hubs (so old that they say CAR-MAXI instead of the other way around), Herse cranks, and lots of custom hardware.
So over the last few weeks I've been diving into this thing. One thing became apparent pretty quickly: it's very, very old. First of all, the original owner as indicated on the stem cap, R.S. Gaulandeau, lived on Impasse Gauron in Malakoff, a suburb of Paris. Impasse Gauron no longer exists - it was bulldozed in the '50s! Secondly, it's got to be from pretty early in René Herse's production. I'm talking pre-1947. It's got some really strange bottom brackets, which I'll get into in my next post, that pre-date his aluminum-cupped SKF that I've seen on his bikes from as early as '47. Also, the serial number is 11.
After '46 or '47, I have been told, Herse bikes have a serial number that's composed of a year and then an ordinal number corresponding to how many frames he'd produced so far that year. So for example, if a frame was his eighth frame in 1948, he'd stamp it "48 8" or "8 48". The way I have been told, before '46 or '47, he just restarted his ordinal numbering every year from 1 and didn't include any year. I kind of find this hard to believe, because it would make things impossible to keep track of. Under this system, my # 11 could be the 11th frame of any year in the mid-'40s. Unless that was the point. I wonder if this was a wartime/immediately-postwar thing. I can imagine with rationing of metal and gas he'd rather not have anybody know how many he had made. Weird, right?
In the next few days I'll get together more stuff. I have been working hard on this, of late, and have a lot to share!
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Last edited by scarlson; 11-03-19 at 08:57 AM.
Likes For scarlson:
#2
Bike Butcher of Portland
Join Date: Jul 2014
Location: Portland, OR
Posts: 11,811
Bikes: It's complicated.
Liked 6,184 Times
in
2,406 Posts
Oh damn
Likes For gugie:
#3
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,671
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Liked 2,604 Times
in
1,594 Posts
Likes For ThermionicScott:
#4
Senior Member
Thread Starter
Join Date: Jun 2010
Location: Medford MA
Posts: 2,090
Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem
Liked 1,455 Times
in
723 Posts
Oh and here are some pictures of my fantastic packing job. Thanks Norwegian...
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Likes For scarlson:
#5
Senior Member
Thread Starter
Join Date: Jun 2010
Location: Medford MA
Posts: 2,090
Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem
Liked 1,455 Times
in
723 Posts
OK so first step of the overhaul, here's the bottom bracket removal and disassembly. These BBs are super weird, and not your typical René Herse SKF jobs either.
I had a hell of a time getting the crank bolts out. I know the standard difficulties that normally apply with French cranks: 16mm bolts and 23mm extractor threads don't leave a ton of room for a socket. I have some sockets that work on my TA and Stronglight cranks, so I thought, "no problem!" But this bike takes things to another level. None of my tools would fit, but mostly only on one side of the bolt. The hex was not centered! Now it's well known that René Herse made these bolts himself. But it looks like René probably didn't have a mill, only a lathe. The hex heads looked like they'd been done by hand, with a file! So none of my usual thin-walled sockets would fit the off-centered hex. I ended up turning a cheap socket on the lathe to make a "special tool" to get the bolts off.
I started by taking off a left crank, but the bolt wasn't really loosening. I'd gone a sixth of a turn before it occurred to me that the crank bolts were possibly reverse-threaded. Bingo!! Left side is reverse-thread. Extractor thread was TA 23mm, not Stronglight 23.35mm.
Now comes the really weird part. Look at this thing.
So I surmised that those two locknuts must be like the two locknuts on a hub axle, holding cones under some preload against bearings and cups, and so I unscrewed them.
I took the dust cap off the other side. The dust caps are held in with some little wire "snap-rings". Then I tapped carefully on the BB spindle.
And then, as I predicted, it all fell out the other side. Here's the assembly, minus the cups, which are pressed into the frame and do not need to be removed. Look at those bearings!!! They are like what you'd find on the axle of a boat trailer!! And indeed, you can still get them, for pretty cheap. Trade number 30203, by my measurement. Like $25 at NAPA, or $7 on Ebay from China. I am keeping the originals, which say "TIMKEN fabriqué en France" and appear hardly worn.
People tell me this is a "C.A.R." bottom bracket. As in Maxi-C.A.R. There's no branding anywhere, but they are really good quality in my estimation. They are chromed over copper plating, and the base metal is harder than a coffin nail! One has some questionable threads, which I tried to chase with a tap of appropriate pitch. I ruined the tap.
I wonder why René switched to his own design, with the very delicate aluminum reverse threading and (to my mind) inferior ball bearings. I imagine they might be better sealed. These are really barely sealed at all, if I'm being honest. The only barrier between the bearings and the outside world is the dust cap, held in with a tiny wire snap-ring.
I had a hell of a time getting the crank bolts out. I know the standard difficulties that normally apply with French cranks: 16mm bolts and 23mm extractor threads don't leave a ton of room for a socket. I have some sockets that work on my TA and Stronglight cranks, so I thought, "no problem!" But this bike takes things to another level. None of my tools would fit, but mostly only on one side of the bolt. The hex was not centered! Now it's well known that René Herse made these bolts himself. But it looks like René probably didn't have a mill, only a lathe. The hex heads looked like they'd been done by hand, with a file! So none of my usual thin-walled sockets would fit the off-centered hex. I ended up turning a cheap socket on the lathe to make a "special tool" to get the bolts off.
I started by taking off a left crank, but the bolt wasn't really loosening. I'd gone a sixth of a turn before it occurred to me that the crank bolts were possibly reverse-threaded. Bingo!! Left side is reverse-thread. Extractor thread was TA 23mm, not Stronglight 23.35mm.
Now comes the really weird part. Look at this thing.
So I surmised that those two locknuts must be like the two locknuts on a hub axle, holding cones under some preload against bearings and cups, and so I unscrewed them.
I took the dust cap off the other side. The dust caps are held in with some little wire "snap-rings". Then I tapped carefully on the BB spindle.
And then, as I predicted, it all fell out the other side. Here's the assembly, minus the cups, which are pressed into the frame and do not need to be removed. Look at those bearings!!! They are like what you'd find on the axle of a boat trailer!! And indeed, you can still get them, for pretty cheap. Trade number 30203, by my measurement. Like $25 at NAPA, or $7 on Ebay from China. I am keeping the originals, which say "TIMKEN fabriqué en France" and appear hardly worn.
People tell me this is a "C.A.R." bottom bracket. As in Maxi-C.A.R. There's no branding anywhere, but they are really good quality in my estimation. They are chromed over copper plating, and the base metal is harder than a coffin nail! One has some questionable threads, which I tried to chase with a tap of appropriate pitch. I ruined the tap.
I wonder why René switched to his own design, with the very delicate aluminum reverse threading and (to my mind) inferior ball bearings. I imagine they might be better sealed. These are really barely sealed at all, if I'm being honest. The only barrier between the bearings and the outside world is the dust cap, held in with a tiny wire snap-ring.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
Likes For scarlson:
#6
Methinks there should be a new C&V thread for tandems.
You have such a cool bike to work on. It's rare, unique, and jusy quirky all around. Looking forward to the progress pics. Keep em coming!
You have such a cool bike to work on. It's rare, unique, and jusy quirky all around. Looking forward to the progress pics. Keep em coming!
#7
Senior Member
Wow, first the Dujardin and now this! Considering the state of your finds you might be the most thrifty constructeur-collector around.
Fascinating the steps taken before a globalized economy to get the right hardware.
Will eagerly watch what I'm sure will be a long restoration process.
Fascinating the steps taken before a globalized economy to get the right hardware.
Will eagerly watch what I'm sure will be a long restoration process.
#8
Fat Guy on a Little Bike
Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 15,944
Bikes: Two wheeled ones
Liked 355 Times
in
178 Posts
What an amazing bike, and what a fantastic story. I love the passion here, and I 100% get it. Normally I have little love for vintage tandems, but this is special.
Likes For KonAaron Snake:
Likes For Vonruden:
#10
Senior Member
Took a while to comprehend the bottom bracket assemblage. So French. Makes me think Citroen.
good employment of tapered roller bearings.
the local collection only is what probably made this tolerable in price- I would think Alexander March would have been your bidding competition.
i am assuming 650b tires... with those eyeballing the frame sizes is difficult
it will look terrific when done.
good employment of tapered roller bearings.
the local collection only is what probably made this tolerable in price- I would think Alexander March would have been your bidding competition.
i am assuming 650b tires... with those eyeballing the frame sizes is difficult
it will look terrific when done.
Likes For repechage:
#11
Senior Member
Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,896
Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project
Liked 222 Times
in
104 Posts
Downright incredible. Perhaps we will see this in person next October at French Fender Day??
#12
Full Member
Join Date: Aug 2014
Location: Vancouver, BC
Posts: 242
Bikes: 48 Alleluia, 52 Blondin, 68 CNC, 55 Dujay, 46 Herse, 67 Herse, 76 Singer, 48 LeGreves, 55 Metropole, 62 Holdsworth Cyclone, 55 Condor, 65 Masi Special, 81 Sequoia, 76 Eisentraut, 72 Proteus, 60 Paramount, 77 Trek TX700, 81 Ross, 82 CBS, 70 Cinelli SC
Liked 166 Times
in
59 Posts
Wonderful bike with all the special bits, and seems in pretty solid condition. I believe Herse switched to the forged brake calipers like yours in about 1946. IIRC the date didn't appear in the serial number until about 1950. A few years back I restored a 1946 Herse Competition and it was a challenge. Your bottom bracket is a lot like one on a late-40s Bianco 650B frame I had a few years ago. I believe there should be some sort of soft fibre washers to help with the sealing - see photo.
#13
Bike Butcher of Portland
Join Date: Jul 2014
Location: Portland, OR
Posts: 11,811
Bikes: It's complicated.
Liked 6,184 Times
in
2,406 Posts
Finally, a unicorn that's not in your collection!
FFD 2020 is shaping up to be a must-see event...
FFD 2020 is shaping up to be a must-see event...
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
Likes For gugie:
#14
Senior Member
Thread Starter
Join Date: Jun 2010
Location: Medford MA
Posts: 2,090
Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem
Liked 1,455 Times
in
723 Posts
Chainring design
I need new chainrings. All four are pretty worn-out, in my estimation!
Classic René Herse cranks are a little different from the ones Jan Heine sells now. These may have been among the very very first, in fact! While the 70mm bolt circle was retained throughout the years, the bolt size changed as well as the interface between the crank and the ring. Now, I had thought that Jan Heine sold replacement classic René Herse chainring "blanks" on his website, that could be filed or drilled to fit the various iterations of classic Herse cranks. He does, but not the big ring.
So I will have to make them myself. Simple decision is what metal to use. 7075-t6 is the premium stuff - much harder than 6061, and [MENTION=52458]jonwvara[/MENTION] who makes triplizers happily confirmed he used it as well. Thanks Jon
Next is how to make them. First, the big ring, which is a 48t. I like 48. It is divisible by 3 and 2, several times over, so geometry can reference the teeth tips and achieve a lot of symmetry
There are well-defined engineering formulae for sprocket teeth. These formulae take three variables: chain pitch; roller diameter; and number of teeth, and use geometry to create the sprocket profile. Interestingly, only one CAD software I have access to had a macro that implemented the formula for me. I grabbed a tooth profile from there and imported it into Autodesk Fusion 360.
From here, I had to decide how to geometrically define those beautiful René Herse chainring curves. This is challenging.
Some of you may know I have some mixed feelings about Jan Heine taking over the Herse brand. I didn't really understand why I felt this way until I started really looking at the chainrings he designed. You see, the way you approach designing a chainring is a bit of a Rorschach test on your cycling philosophy. I'll explain.

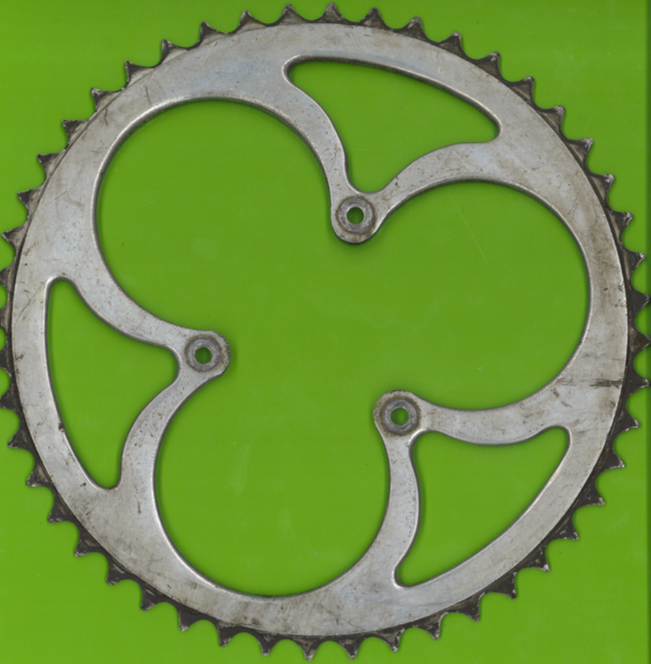

Jan's ring looks like this:
The circular cutouts are perfectly concentric, making structurally-sound limbs of non-varying thickness to carry the load of pedaling from the spider to the teeth. It's very pragmatic. Very German.
And that's not how René Herse did it - at least in his early days, according to the google images I've found, plus my own ring.
As my friend and Cycles René Hubris co-founder Kevin put it, "René Herse managed to be both pragmatic and whimsical." His ring looks really art nouveau. Like this:
It's subtle, as most tasteful things are.

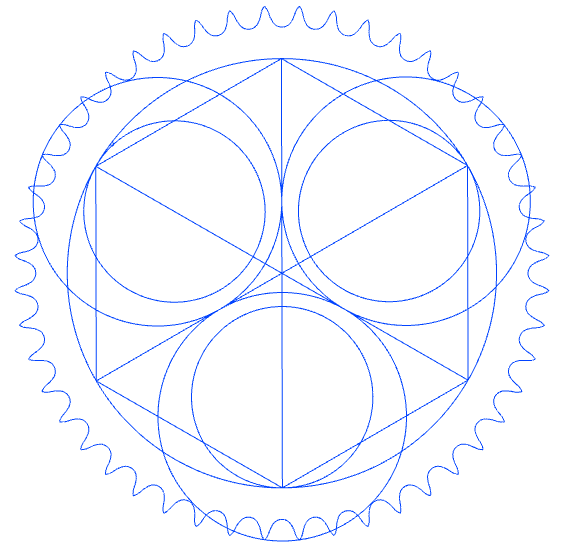

So I am a biologist, and I thought about how the chainring looks kinda art nouveau. I have no knowledge of art nouveau, but of course I thought about how a lot of those curves must have come from biology. The cast iron vines around the Métro entrance, for example (really the only example of art nouveau I can come up with). So drawing from my love of molluscs, which have really nice, platonic, well-defined geometry, I drew this in Fusion 360:
