Polishing out scratches on aluminum crankset

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Polishing out scratches on aluminum crankset

Old 11-09-19, 11:39 AM
  #1
WGB
WGB
Thread Starter

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,922

Bikes: League Fuji

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Liked 117 Times in 87 Posts
Polishing out scratches on aluminum crankset

I have seen references to using oven cleaner on cranks to remove anodizing.

I have used aluminum foil to remove rust spots on derailleurs, just never on bigger items.

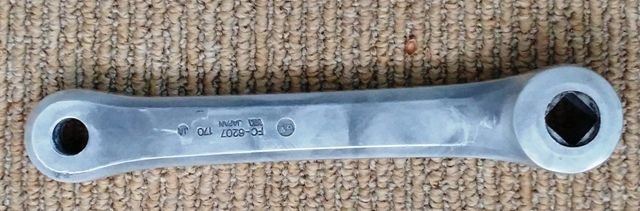

Enter these cranks.,

Can I use aluminum foil to buff them?? I know I'd need lubricant but would the little scuffs buff out??





WGB is offline
Old 11-09-19, 11:46 AM
  #2
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,729
Mentioned: 196 Post(s)
Tagged: 0 Thread(s)
Quoted: 11743 Post(s)
Liked 1,051 Times in 816 Posts
One of the issues with aluminum is anodizing. Or, perhaps even a layer of oxidization. Which gets you into an all or none with the polishing.

A good way to polish is just successive sandpaper. Depending on the depth of damage, start low, and work up to 600 or 1000 grit. Maybe oil or polishing compound near the end.

It appears as if your Shimano 600 logo is imprinted into the crank. Be careful around it, but there is not the same risk as simple painted on logos.

Overall your scratches don't look that deep, so perhaps there is a better way.
CliffordK is online now
Old 11-09-19, 12:00 PM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,707
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1444 Post(s)
Liked 394 Times in 312 Posts
They are anodized, to accomplish any surface smoothing, you will sand through that.
So, it is time to decide before if you are willing to remove that.
repechage is offline
Old 11-09-19, 12:01 PM
  #4
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,082
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Liked 254 Times in 196 Posts
I would start by testing out some Mother's mag and aluminum polish OR if you prefer something even less abrasive, NEVR DULL tends to do a solid job at removing marks and stains. I also like using Simichrome, but reserve it for special occasions and smaller projects.

Ultra-fine bronze wool (0000) is a safe way to remove light marks in aluminum, then follow up with a compound like the Mother's.

As not mentioned above, some alloy parts are clearcoated. Anodizing is also used on much of what you get. I've found after polishing parts out, waterspotting and tarnish seems to become a problem where it didn't exist before. You can at-home re-anodize on your own, instructions all over the internet. Involves liquid and electricity however, so be advised.
francophile is offline
Old 11-09-19, 01:01 PM
  #5
rccardr
aka: Dr. Cannondale

rccardr's Avatar

Join Date: Jul 2009
Posts: 6,006

Bikes: Lots. Just...lots.

Mentioned: 172 Post(s)
Tagged: 0 Thread(s)
Quoted: 1338 Post(s)
Liked 436 Times in 237 Posts
Shimano 620X cranks have quite a thick layer of anodizing on them. This is what I do:
Use 80 grit to wet sand them enough that the anodizing will be scratched thru in multiple locations
Put on a pair of latex or rubber gloves
Spray Easy Off brand oven cleaner on them and wait ten minutes
Wet sand again with 80 grit. You will see that some (but not all) of the anodizing has been removed.
Spray again with Easy Off and wait ten minutes
Wet sand with 220 grit until you are down to bare aluminum
Clean with SOS pad, scrubbing fairly hard
Rinse well with soap and water, then proceed with polishing by hand or with a buffing wheel.

I do this in a stainless steel sink with access to running water and good ventilation, e.g. the kitchen while Mrs. Doc is out of the house for a few hours. Cuz it stinks.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Old 11-09-19, 04:46 PM
  #6
plonz
Senior Member

plonz's Avatar

Join Date: Mar 2015
Location: Northampton, MA
Posts: 2,282
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 478 Post(s)
Liked 112 Times in 83 Posts
@rccardr is spot on. If you do more wet sanding with higher grits all the way up to 3000 you can get a mirror finish if that’s what you’re looking for. You’ll want a polishing compound to finish it. Have had good luck with Blue Magic, Meguiars rim polish and Simichrome.
plonz is online now
Old 11-09-19, 04:59 PM
  #7
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
1500 or so is probably as high as you need to go up to before an aggressive polish. Aluminum is a soft metal, and stripping the anodizing removes the harder more scratch resistant coating. You might be able to achieve a showroom mirror finish with higher grits, but if it's going to be actually used and the maintenance is just buffing with more metal polish, I don't think the 3000 is going to appreciably improve the result unless you plan on doing that prep work every time you get a slight scuff.
Kuromori is offline
Old 11-09-19, 05:23 PM
  #8
ThermionicScott
7-speed cultist

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 20,062

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 2785 Post(s)
Liked 708 Times in 499 Posts
Call me lazy, but I'd just leave them be unless there were suspicious scratches I wanted to sand out...
__________________
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 11-09-19, 05:28 PM
  #9
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,804

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 439 Times in 327 Posts
I might also try Mothers polish before going the sandpaper route just to see how that cleans up
ryansu is offline
Old 11-09-19, 06:04 PM
  #10
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,320

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1568 Post(s)
Liked 891 Times in 450 Posts
There are anodizing-removal products on the market that are much less messy and much more efficient to use than Easy-Off.

In fact, I'd state categorically that Easy-Off is not what you want to use at all. Why? There's no way of estimating accurately how long one should leave it on. Foam it on, you can't see how it's affecting the anodizing unless you take it out of the foam, rinse it off and then assess. Didn't come all the way off? More Easy-Off goes on, repeat, perhaps repeat again. No fun. Plus it is messy as all get-out.

Do yourself a favor and get some of this: Jestco Anodizing Remover

I swear by it because, put simply, it works best. I used Easy-Off before discovering this stuff and will never go back. The Jestco remover has mixing instructions (EO does not), and because it is mixed with warm water the solution into which you put your part is clear. Once the part is dunked, the remover goes to work in a bubbling froth of white - through which you can observe the part. When the part turns uniformly black or grey, the anodizing is gone. Pull the part, rinse with water and a fine scouring pad to remove the black/grey residue. It's now ready for polishing.

Dump the stuff down the drain after use. It's lye-based, the same as most kitchen sink cleaners, so it'll help keep your pipes clean as a secondary use.

Seriously, this stuff ends up paying for itself.

See this thread for more details: Drillium How-To Guide: Stripping Anodizing

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Likes For Drillium Dude:
Old 11-09-19, 06:15 PM
  #11
2cam16
Senior Member

2cam16's Avatar

Join Date: Oct 2016
Location: San Mateo,Ca.
Posts: 3,584

Bikes: TOO MANY

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Liked 406 Times in 286 Posts
Good info in this thread for my future reference.
2cam16 is offline
Old 11-09-19, 06:22 PM
  #12
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
Originally Posted by Drillium Dude View Post
I swear by it because, put simply, it works best. I used Easy-Off before discovering this stuff and will never go back. The Jestco remover has mixing instructions (EO does not), and because it is mixed with warm water the solution into which you put your part is clear. Once the part is dunked, the remover goes to work in a bubbling froth of white - through which you can observe the part. When the part turns uniformly black or grey, the anodizing is gone. Pull the part, rinse with water and a fine scouring pad to remove the black/grey residue. It's now ready for polishing.

Dump the stuff down the drain after use. It's lye-based, the same as most kitchen sink cleaners, so it'll help keep your pipes clean as a secondary use.
I've used dollar store drain cleaner with the same process. The important thing is to let the entire thing get coated with that dark, sometimes brownish residue, and not try to keep removing the residue and dunking the blotchy part back in the solution. It also won't work effectively if the part is touching the edge of the container and works best if the part is suspended.

Last edited by Kuromori; 11-09-19 at 06:26 PM.
Kuromori is offline
Old 11-09-19, 06:37 PM
  #13
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,320

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 189 Post(s)
Tagged: 0 Thread(s)
Quoted: 1568 Post(s)
Liked 891 Times in 450 Posts
Originally Posted by Kuromori View Post
The important thing is to let the entire thing get coated with that dark, sometimes brownish residue, and not try to keep removing the residue and dunking the blotchy part back in the solution.
Exactly. This is how you know the anodizing has been completely removed. No guess-work. You might name the specific drain cleaner you used with success so others can give it a go

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 11-09-19, 06:51 PM
  #14
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
I can't even remember, I was just at the dollar store and bought some NaOH (sodium hydroxide or lye) based drain cleaner to experiment with. I think it was Mr. Plumber or something like that. I'm sure it's slower given that it's probably more diluted and not warm. I also do this thing with melted candle wax to plug up holes in things like stems and seatposts where you can't easily remove the residue on the inside.
Kuromori is offline
Old 11-09-19, 09:36 PM
  #15
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 926

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 404 Post(s)
Liked 451 Times in 269 Posts
I work in a science lab, so I use chemically-pure NaOH to remove anodizing. I use about 5% weight by volume, so that means if you have a solution of 100mL you would use 5g of NaOH. The process is the same as @Drillium Dude described, with the bubbling and then the part turning black. The only problem is if you have black anodizing, then it can be tricky to know if you've gotten it all. The technical term for the black/gray residue left behind is "smut". I usually use a toothbrush and soap to de-smut.

I bet that Jestco stuff is just NaOH with a little non-foaming surfactant to help with the de-smut.

The NaOH will have etched the base aluminum a little. This is unavoidable. The finish will be matte-ish, about equivalent to a wet-sand with 800-1200 grit (not a dry-sand, which would be worse). Depending on alloy. I have gone directly to polishing on some die-cast parts. Some require a little finish sanding with some high grit like 800 or 1000 after the NaOH and de-smut, and before polishing.

I use Mothers Mag and Aluminum polish, but you can really use any of the above-suggested. Mothers is what the car and motorcycle guys use, and you can get it at walmart, so I bought a tub long ago when I only did car stuff and lived where there were no other options, and now I still have it. Works on foggy plastic headlights and dull bronzework and copper kettles too. I think it has a wax built in that sorta protects your part after you've polished it up.

I don't like scouring pads because I find the grit in them varies quite a bit, like you'll need to go so hard to remove the ano that you'll be making a few deep scratches from the coarser bits in the scouring pad. Then you'll spend forever sanding those scratches out. Not fun.

Last edited by scarlson; 11-09-19 at 10:09 PM.
scarlson is offline
Old 11-09-19, 10:23 PM
  #16
TXsailor
Senior Member

Join Date: Jul 2013
Location: Bowie Texas
Posts: 681

Bikes: Origin-8 Lactic Acid Giant Escape 2 Centurian Lemans 12 Kuwahara Tandem 1989 Ironman Expert 1988 Ironman Master

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 239 Post(s)
Liked 78 Times in 55 Posts
I have a orbital buffer that is made to remove the scratches from automotive clear coat. After sanding with the finer sand paper it makes short work of the polishing. I use the same polish that is made for paint.
TXsailor is offline
Old 11-10-19, 04:55 AM
  #17
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,035

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 853 Post(s)
Likes: 0
Liked 412 Times in 274 Posts
Foil won't help at all. First, remove the anodized coating. I use Extra Strength Eazy-Off. Apply to a small area, let sit for a couple of minutes then scrubb it off. I use a soft brass brush for this task. Rinse immediately and do it again (failure to rinse will cause the caustic in the Easy-Off to eat into the alloy if left on too long...


After removing the anodizing, time to polish. I use wet and dry sand paper at first (1000 to 2000 grit) after which I switch to my yard sale purchased home made polisher, coupled with two grades of polishing stick compound...


I should add that, as often as not and assuming no anodizing, the machine polisher can be used without sanding anything, offering results like this with only a few minutes of effort.

From this...


To this...
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 11-10-19, 06:21 AM
  #18
RobbieTunes
Senior Member

Join Date: Dec 2007
Posts: 26,560
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,031 Times in 663 Posts
Great info. I'm tired just reading it.
RobbieTunes is offline
Old 11-10-19, 06:45 AM
  #19
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 2,972

Bikes: Old school lightweights

Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 975 Times in 597 Posts
I say leave it alone. Chances are you're not putting a 600 crank on a prized keeper, so no need for perfection. Remove the big scuff from the drive side arm with some wet sanding. No one cares about the nds.
SurferRosa is online now
Old 11-10-19, 07:33 AM
  #20
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,423

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Liked 73 Times in 58 Posts
If all of this is not enough, when you get the beautifully polished peace put an aluminum sealer on it to resist oxidation. I use Wolfgang MetallWerk but others are just as good. Auto parts houses have it for keeping polished aluminum wheels looking good.
easyupbug is offline
Old 11-10-19, 03:22 PM
  #21
Rocket-Sauce
Port

Rocket-Sauce's Avatar

Join Date: Jan 2008
Location: Boston
Posts: 7,883

Bikes: 1984 Peter Mooney, 2017 Soma Stanyan, 1990 Fuji Ace, 1990 Bridgestone RB-1, 1995 Independent Fabrications Track, 2003 Calfee Dragonfly Pro

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 547 Post(s)
Liked 292 Times in 209 Posts
While 600 is not top of the line, it can be made to look super bling-y with some (a LOT) elbow grease.
Check out this super helpful thread on polishing al parts. There is also some helpful info about removing scratches along the way.
KHatfull's Aluminum Polishing Thread
Rocket-Sauce is offline
Old 11-10-19, 04:40 PM
  #22
conspiratemus1
Used to be Conspiratemus

Join Date: Jan 2009
Location: Hamilton ON Canada
Posts: 1,256
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 194 Post(s)
Liked 131 Times in 89 Posts
Originally Posted by rccardr View Post
. . .

I do this in a stainless steel sink with access to running water and good ventilation, e.g. the kitchen while Mrs. Doc is out of the house for a few hours. Cuz it stinks.
Well, if she notices the smell when she gets home and there are lye stains on the floor, you could always say you cleaned the oven..........
conspiratemus1 is offline
Old 11-12-19, 04:13 PM
  #23
WGB
WGB
Thread Starter

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 1,922

Bikes: League Fuji

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 563 Post(s)
Liked 117 Times in 87 Posts
I tried the Easy Off method but found it was an effort to get the smut off. I tried washing but that was useless, at least for me so I went to sanding.

Next time I will try to get a proper de-anodizing product. The sales clerk at the auto parts store had never heard of such a product so I got some Easy Off.



I hand buffedd with 160 to get the larger scrapes and then 220 500 and finally 1000 grit. Attempts to use a dremel tool failed miserably and I created scars that had to be sanded out by hand. There is a single rough spot that I didn't "grind" down too deep as I didn't want to leave a divot. It's just below the two zeros in the 600.




I applied some buffing compound by hand to clean up and finally used some car wax to protect the finish for now. I believe one of my neighbors has a buffing pad. He does have a bench top grinder and if he doesn't have a pad I'll buy one as I'd like to see how it turns out with a final buffing. If no machine I will have to go at it by hand.

For now I can live with this, though I want a better shine.

WGB is offline
Old 11-12-19, 05:05 PM
  #24
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 80 Times in 61 Posts
"Proper" stripper is a mix of particularly nasty acids (NaOH is a base though and uses a different process), and unless you're a pro, you generally don't want to go through the effort of obtaining said chemicals, handling them, clean up, and responsibly disposing of them (or you could be one of those people that just dumps hazardous chemicals down the sewer because all this regulatory stuff is just a conspiracy). That looks rather dark and may have been etched by the cleaner. Aluminum is a soft metal, and one of the relatively aggressive metal polishes mentioned by others will put a very bright finish on aluminum in quick order with a little elbow grease.
Kuromori is offline
Old 11-12-19, 05:10 PM
  #25
UKFan4Sure
Useless Member

Join Date: Jun 2015
Location: Louisville, KY
Posts: 738
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 157 Times in 105 Posts
Originally Posted by plonz View Post
@rccardr is spot on. If you do more wet sanding with higher grits all the way up to 3000 you can get a mirror finish if that’s what you’re looking for. You’ll want a polishing compound to finish it. Have had good luck with Blue Magic, Meguiars rim polish and Simichrome.
I have found that the higher your grit, the harder it is to keep nice. EVERY little future scratch shows up if you polish them too highly. I prefer about 1000 grit and leave it alone with Mother's as a finish to polish.
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1986 Schwinn Voyageur
UKFan4Sure is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
