Restoration/Preservation of Raleigh Competition G. S.

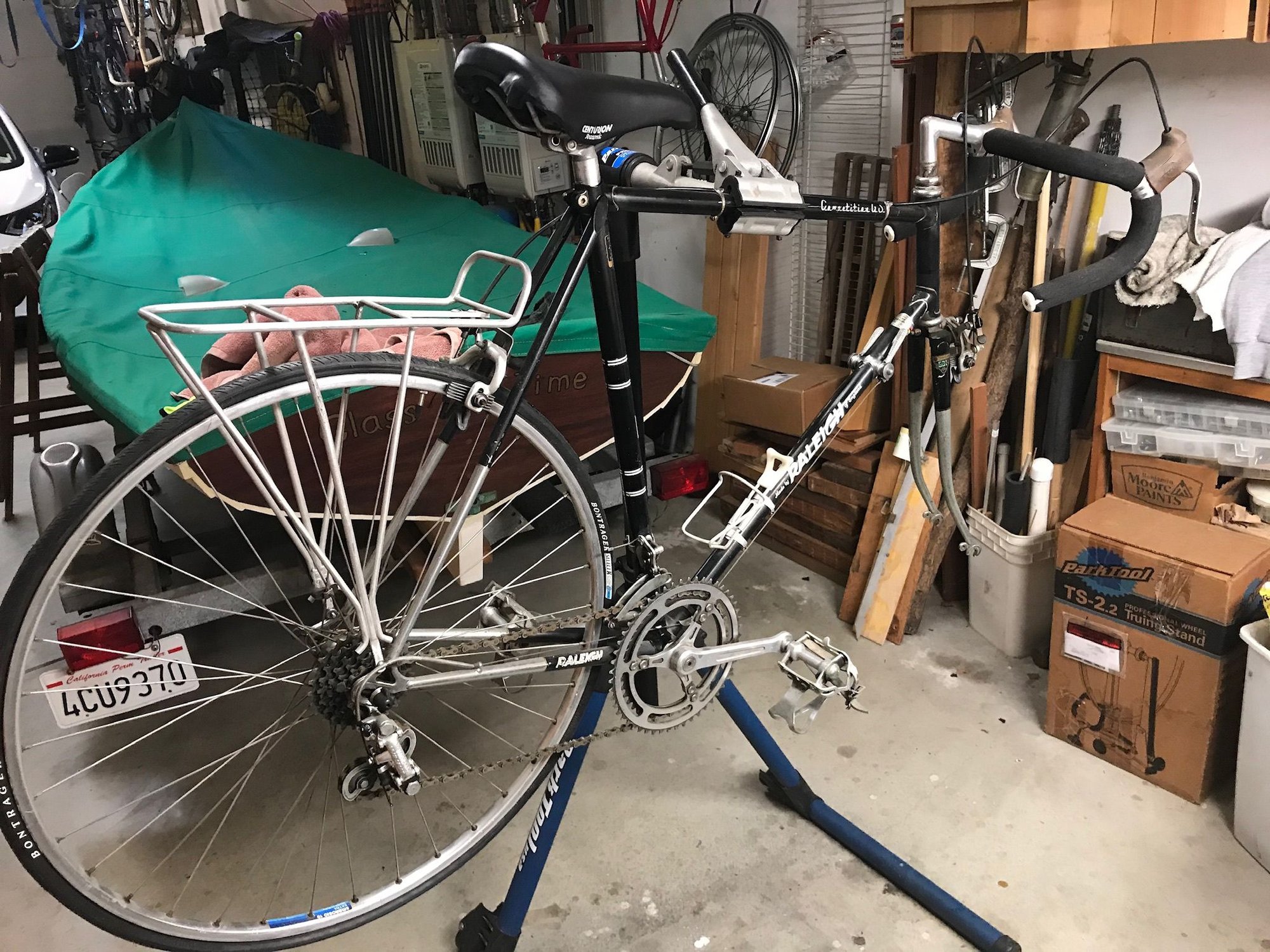

I got it with much of the Catalog Spec. Missing a wheel, the rear rim is an Ambrosio Elite,
the FW is a Suntour 13/28 and obviously the saddle.

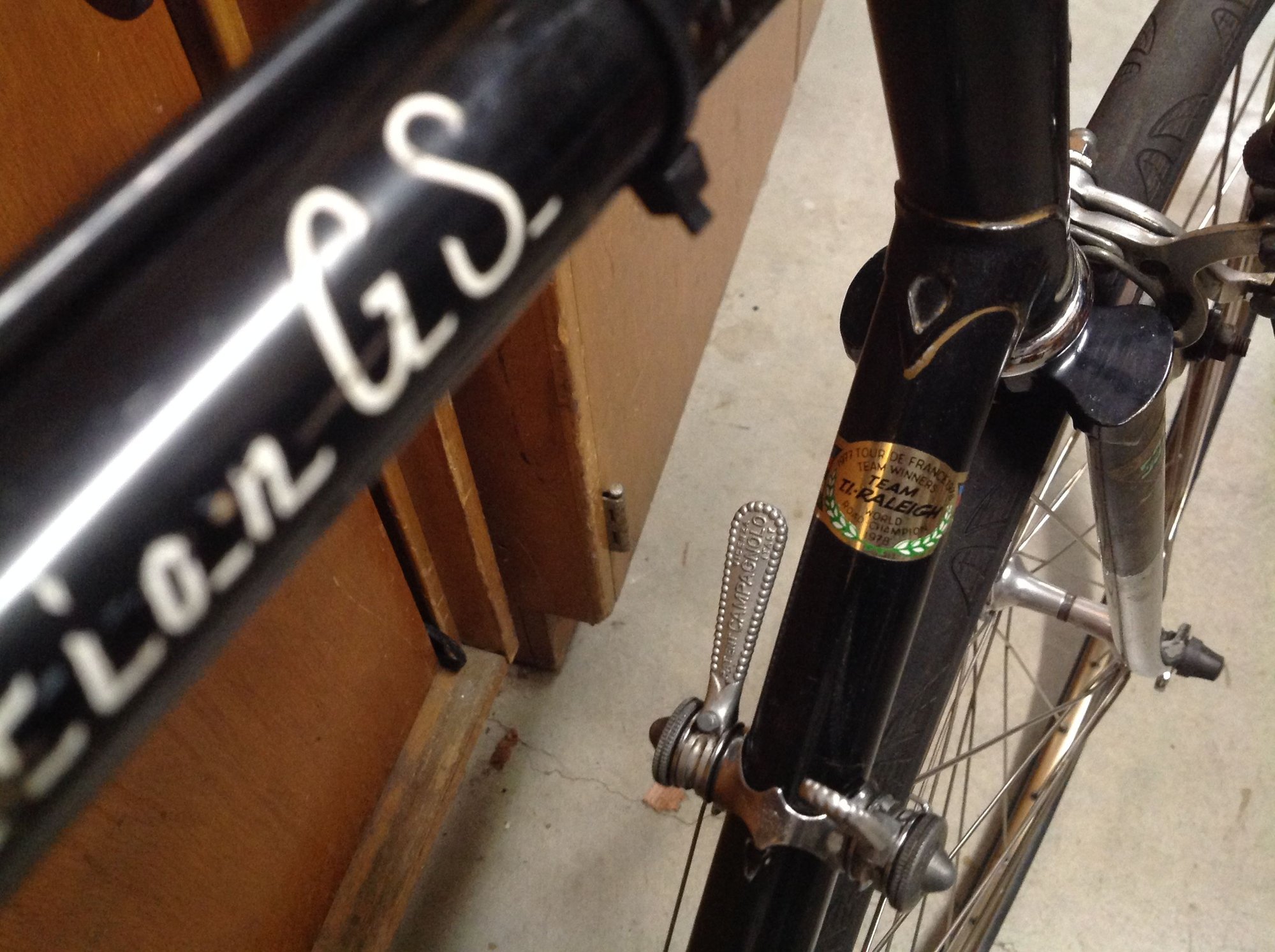

First concern is the preservation of the decals. I'm looking for advice on removing some
oxidation while not harming the graphics and preserving the graphics from the abuse of normal riding and handling.


Not a candidate for refinishing.

Last edited by Classtime; 11-10-19 at 07:32 PM. Reason: additions
Classtime is offline
Old 11-11-19, 08:53 AM
  #2
Mr. 66
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 912
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 246 Post(s)
Likes: 0
Liked 29 Times in 24 Posts
That looks really nice. I would wash the frame very lightly with a windex, or something very mild. That may not do much, I also like to wipe down everything with a motor oil or wd40. That will do wonders of course you will need to careful at the decals. On top of that one can do wax or a little more aggressive some rubbing compound.

That should clean very well.
Mr. 66 is offline
Old 11-11-19, 12:58 PM
  #3
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island
Posts: 449

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Hybrid Drive concoction

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 124 Post(s)
Likes: 0
Liked 16 Times in 14 Posts
+1 on clean and wax.
Velo Mule is offline
Old 11-11-19, 01:20 PM
  #4
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,162

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1828 Post(s)
Liked 109 Times in 82 Posts
Originally Posted by Classtime View Post
I got it with much of the Catalog Spec. Missing a wheel, the rear rim is an Ambrosio Elite,
the FW is a Suntour 13/28 and obviously the saddle.
First concern is the preservation of the decals. I'm looking for advice on removing some
oxidation while not harming the graphics and preserving the graphics from the abuse of normal riding and handling.
Hey, nice bike there! Almost all there and it looks like a garage queen. Yep, you do need to find a new saddle. The Grab-On grips are quaint and period correct, but c'mon. Oddly enough they are still in business. Pretty sure OEM would be cotton tape.

WD40 is pretty good for general bike cleaning. It's pretty much all we used when I worked in bike shops BITD. Before sealed bearings, anything with water in it was considered a no no. Whatever you use, test on a small spot first.

A very mild compound like Meguiars 17 "plastic cleaner" should be enough to remove surface oxidation and bring up the shine without harming the decals. Follow with wax.
Salamandrine is offline
Old 11-11-19, 01:58 PM
  #5
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,634

Bikes: old ones

Mentioned: 246 Post(s)
Tagged: 0 Thread(s)
Quoted: 15564 Post(s)
Liked 279 Times in 242 Posts
Originally Posted by Classtime View Post
... and preserving the graphics from the abuse of normal riding and handling.


Not a candidate for refinishing.
...I used to just clean, wax and ride. But lately, having done some complete repaints that I finished with a final coat of epoxy clear coat, I'm of the opinion that if you're up to a lot of work, in terms of stripping off all the parts and components (IOW prepping for a repaint), and have someplace out in the back yard where you can spray it out, coating everything with SprayMaxx 2k is probably the most durable coating you can achieve for trying to save the original graphics.

I did this on a '58 Lenton recently, and it turned out well. Also just did it on this Stella. But the whole thing is much more labor and time intensive than cleaning and waxing.

The paint itself is a remarkable advance for us home project painters, and dries to a very hard, clear, glossy finish that is almost as durable as Imron. You buy it at an automotive paints place, or online. You want the "Clear Glamour" version. One can is just about the right amount for a frame and fork, or maybe a frame and two forks if you're doing another project at the same time.
3alarmer is online now
Old 11-11-19, 02:36 PM
  #6
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,634

Bikes: old ones

Mentioned: 246 Post(s)
Tagged: 0 Thread(s)
Quoted: 15564 Post(s)
Liked 279 Times in 242 Posts
.^^^^
...addendum: if you do decide to do this, mask off the chrome. In my experience it is a mistake to put a clear finish like this over polished chrome. It seems to adhere pretty well to older paint surfaces that are securely bonded to the underlying surface, but there will probably be some problems getting it to adhere well to polished chrome. Not right away, probably, but somewhere down the line.
3alarmer is online now
Old 11-11-19, 03:38 PM
  #7
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,162

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1828 Post(s)
Liked 109 Times in 82 Posts
Originally Posted by 3alarmer View Post
.^^^^
...addendum: if you do decide to do this, mask off the chrome. In my experience it is a mistake to put a clear finish like this over polished chrome.
Lacquers work better for this. I like Mohawk M102-0420 'tone finish' clear gloss. It's in a rattle can, sticks to the chrome and flows out nicely. It's tough to tell that it's there, and it will come off with acetone if need be.

I like bronze wool followd by simichrome to clean and polish chrome. Treat with rust remover first if necessary.

I personally would not clear over the paint. I can see the practical arguments, but to me it just ruins the vintage look. I prefer restorations that are reversible. Just my preference.
Salamandrine is offline
Old 11-11-19, 06:51 PM
  #8
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,686

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 610 Post(s)
Liked 38 Times in 33 Posts

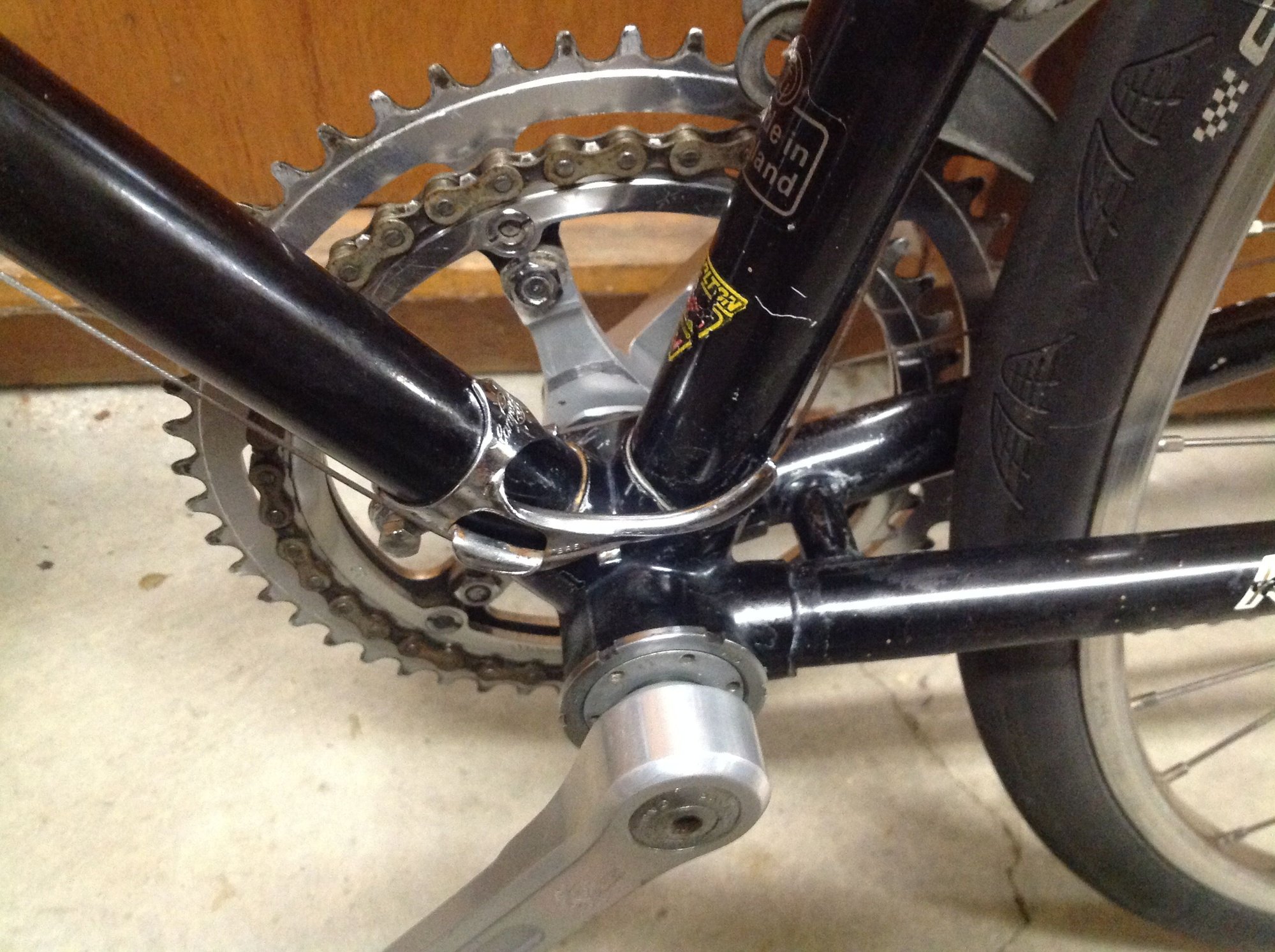

I removed everything but the fixed cup, then washed and waxed trying to be careful with the decals. Man, those things are delicate. I used nail polish on part of the 531 but it is too thick. I plan to brush on some reconstituted spray lacquer to protect the decals and touch up the scrapes with Testors.
Wish I could replace the pads and keep the holders.


531!


How hard is it to put on a sticker?
Classtime is offline
Old 11-11-19, 07:17 PM
  #9
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,634

Bikes: old ones

Mentioned: 246 Post(s)
Tagged: 0 Thread(s)
Quoted: 15564 Post(s)
Liked 279 Times in 242 Posts
Originally Posted by Salamandrine View Post
Lacquers work better for this....

I personally would not clear over the paint. I can see the practical arguments, but to me it just ruins the vintage look. I prefer restorations that are reversible...
...the fragility of lacquer paints is why I end up doing a lot of my repaints anyway. I'm one of those, "Why would god give me Imron if he didn't want me to use it ?" people. I think maybe I developed this method of painting as an outflow of my prior experience with art glass. We pretty much clear cased over everything as a final layer, so to my eye it looks swell.

To the OP: be careful putting reconstituted lacquer over those decals. It's a good test of just how "fragile" they are. The solvents in lacquer paints can bubble them a little, and it happens faster than you can say, "Awwww, crap."
3alarmer is online now
Likes For 3alarmer:
Old 11-11-19, 07:35 PM
  #10
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,245

Bikes: 2009 Handsome Devil, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 2012 Soma Smoothie, 1986 Schwinn Passage

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 596 Post(s)
Liked 187 Times in 146 Posts
the zip ties must go
ryansu is offline
Old 11-11-19, 08:17 PM
  #11
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,686

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 610 Post(s)
Liked 38 Times in 33 Posts
Originally Posted by ryansu View Post
the zip ties must go
They are placeholders.
I only have two of the Weinmann clips and they will go on when I get brake lever hoods and new cables.
I'm troubled by the Campy 626a. How low should the guide be positioned. Should that little tab rest against the BB.The front derailleur cable hits the seat tube.
Classtime is offline
Old 11-11-19, 08:29 PM
  #12
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,162

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1828 Post(s)
Liked 109 Times in 82 Posts
Originally Posted by 3alarmer View Post
...the fragility of lacquer paints is why I end up doing a lot of my repaints anyway. I'm one of those, "Why would god give me Imron if he didn't want me to use it ?" people. I think maybe I developed this method of painting as an outflow of my prior experience with art glass. We pretty much clear cased over everything as a final layer, so to my eye it looks swell.
Just to clarify: My suggestion was for lacquer over the chrome sections only - that is if Classtime wants to clear the chrome. I do not suggest lacquer over the paint and decals. Mask the painted section off completely. Lacquer clear over paint has been done in the past, but it's asking for trouble: crackles, decal lifting, etc. I agree with you on the danger to decals.
Salamandrine is offline
Old 11-11-19, 08:34 PM
  #13
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,162

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1828 Post(s)
Liked 109 Times in 82 Posts
Originally Posted by Classtime View Post
I'm troubled by the Campy 626a. How low should the guide be positioned. Should that little tab rest against the BB.The front derailleur cable hits the seat tube.
I've always put those as low as they will go, and that works for me.
Salamandrine is offline
Likes For Salamandrine:
Old 11-11-19, 09:13 PM
  #14
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 5,683

Bikes: G.L. Maillot Juane & Ventoux,Schwinn Circuit, Prologue,PDG Paramount,Paramount,Tempo,Jake The Snake,LeMond Zurich & Tourmelet,Giordana XL Super & Antares,Puegeot U08,Bob Jackson,Fuji S12-S,Opus III,Orbea Cabestany,Bianchi Campione,Basso Gap

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1271 Post(s)
Liked 213 Times in 128 Posts
Those front brake pad holders look the business for mountain descending, cooling fins.
jamesdak is offline
Old 11-11-19, 09:58 PM
  #15
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,634

Bikes: old ones

Mentioned: 246 Post(s)
Tagged: 0 Thread(s)
Quoted: 15564 Post(s)
Liked 279 Times in 242 Posts
Originally Posted by jamesdak View Post
Those front brake pad holders look the business for mountain descending, cooling fins.

...I'm pretty sure those are the bonded pads with heat fins that everyone tossed out when there were some reports of adhesive failures at the pad/finned holder interface. I forget the name, and I could be wrong. I have some I've been afraid to use after I removed them from a project bike.
3alarmer is online now
Old 11-11-19, 10:51 PM
  #16
Insidious C.
Crash Test Dummy

Join Date: Jan 2014
Location: PNW
Posts: 900

Bikes: Dawes, Williams, Raleigh, Daccordi, Scott, Univega, Mercier, Vitus, J. Anquetil, Specialized

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 193 Post(s)
Likes: 0
Liked 14 Times in 12 Posts
Matthauser brake pads. I would keep 'em just for show.
__________________
I.C.
Insidious C. is offline
Old 11-12-19, 06:39 AM
  #17
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 5,683

Bikes: G.L. Maillot Juane & Ventoux,Schwinn Circuit, Prologue,PDG Paramount,Paramount,Tempo,Jake The Snake,LeMond Zurich & Tourmelet,Giordana XL Super & Antares,Puegeot U08,Bob Jackson,Fuji S12-S,Opus III,Orbea Cabestany,Bianchi Campione,Basso Gap

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1271 Post(s)
Liked 213 Times in 128 Posts
Originally Posted by 3alarmer View Post
...I'm pretty sure those are the bonded pads with heat fins that everyone tossed out when there were some reports of adhesive failures at the pad/finned holder interface. I forget the name, and I could be wrong. I have some I've been afraid to use after I removed them from a project bike.

Wow, I was just sort of kidding about the cooling. That really was a thing?
jamesdak is offline
Old 11-12-19, 07:48 AM
  #18
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,686

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 610 Post(s)
Liked 38 Times in 33 Posts
Originally Posted by jamesdak View Post
Wow, I was just sort of kidding about the cooling. That really was a thing?
Is a thing. Seems Scott Mathouser is still around. And Koolstop makes a version.
Classtime is offline
Old 11-12-19, 07:59 AM
  #19
jamesdak
Senior Member

Join Date: Aug 2010
Location: Utah
Posts: 5,683

Bikes: G.L. Maillot Juane & Ventoux,Schwinn Circuit, Prologue,PDG Paramount,Paramount,Tempo,Jake The Snake,LeMond Zurich & Tourmelet,Giordana XL Super & Antares,Puegeot U08,Bob Jackson,Fuji S12-S,Opus III,Orbea Cabestany,Bianchi Campione,Basso Gap

Mentioned: 90 Post(s)
Tagged: 0 Thread(s)
Quoted: 1271 Post(s)
Liked 213 Times in 128 Posts
Originally Posted by Classtime View Post
Is a thing. Seems Scott Mathouser is still around. And Koolstop makes a version.
Hmmm......

I have literally had smoke coming off my front brake two years in a row when I overcooked a horsebend turn during a descent at the Tour De Park City. Felt like an idiot doing the same stupid thing on the same turn because I forgot, LOL!
jamesdak is offline
Old 11-12-19, 09:54 AM
  #20
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,162

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1828 Post(s)
Liked 109 Times in 82 Posts
FWIW it's Yokozuna that makes the current licensed version of the Scott Mathauser 'superbrake' pads.

Yokozuna Premium Cables, Housing and Brake Pads

These have inserted not glued on pads so they are more safe than the original.

It's usually been argued that the insulating properties of the rubber pad made the fins irrelevant. I'm not sure that's entirely true, but it's mostly true. The rim itself is the main heat sink, by far.

FWIW. Some vendors still have the identical looking but Scott-Mathauser branded modernized superbrake pads. Not sure if that's NOS, what the deal is between them and Yokozuna, or if they are still making them in Oregon or wherever it was.

Last edited by Salamandrine; 11-12-19 at 10:10 AM.
Salamandrine is offline
Old 11-13-19, 07:29 AM
  #21
Classtime
Senior Member
Thread Starter

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 1,686

Bikes: 81 Medici, 84 Turbo, 86 IM, 2010 Milwaukee Road, 2011 RS

Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 610 Post(s)
Liked 38 Times in 33 Posts
Still needs new brake blocks.


Just about done..
Classtime is offline
Old 11-13-19, 08:06 AM
  #22
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,651

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 376 Post(s)
Liked 50 Times in 36 Posts
Looks great!!!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
