Replacement brake pad recommendations for Dia Compe 610-G center pulls

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Replacement brake pad recommendations for Dia Compe 610-G center pulls

Old 11-13-19, 03:26 AM
  #1
ctak
Senior Member
Thread Starter

ctak's Avatar

Join Date: Sep 2019
Posts: 347
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 224 Times in 123 Posts
Replacement brake pad recommendations for Dia Compe 610-G center pulls

Looking for replacement brake pad recommendations for my late 70s Dia Compe 610-G center pulls. I ran across a 2013 post on this topic but would appreciate hearing about recent user experiences. My rims are Araya 27.25" alloy clinchers ~ thanks
ctak is offline
Old 11-13-19, 03:37 AM
  #2
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,795

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 919 Post(s)
Liked 740 Times in 546 Posts
kool stop "weinmann x" in salmon > black
thook is offline
Old 11-13-19, 11:32 AM
  #3
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,257

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 739 Post(s)
Liked 808 Times in 416 Posts

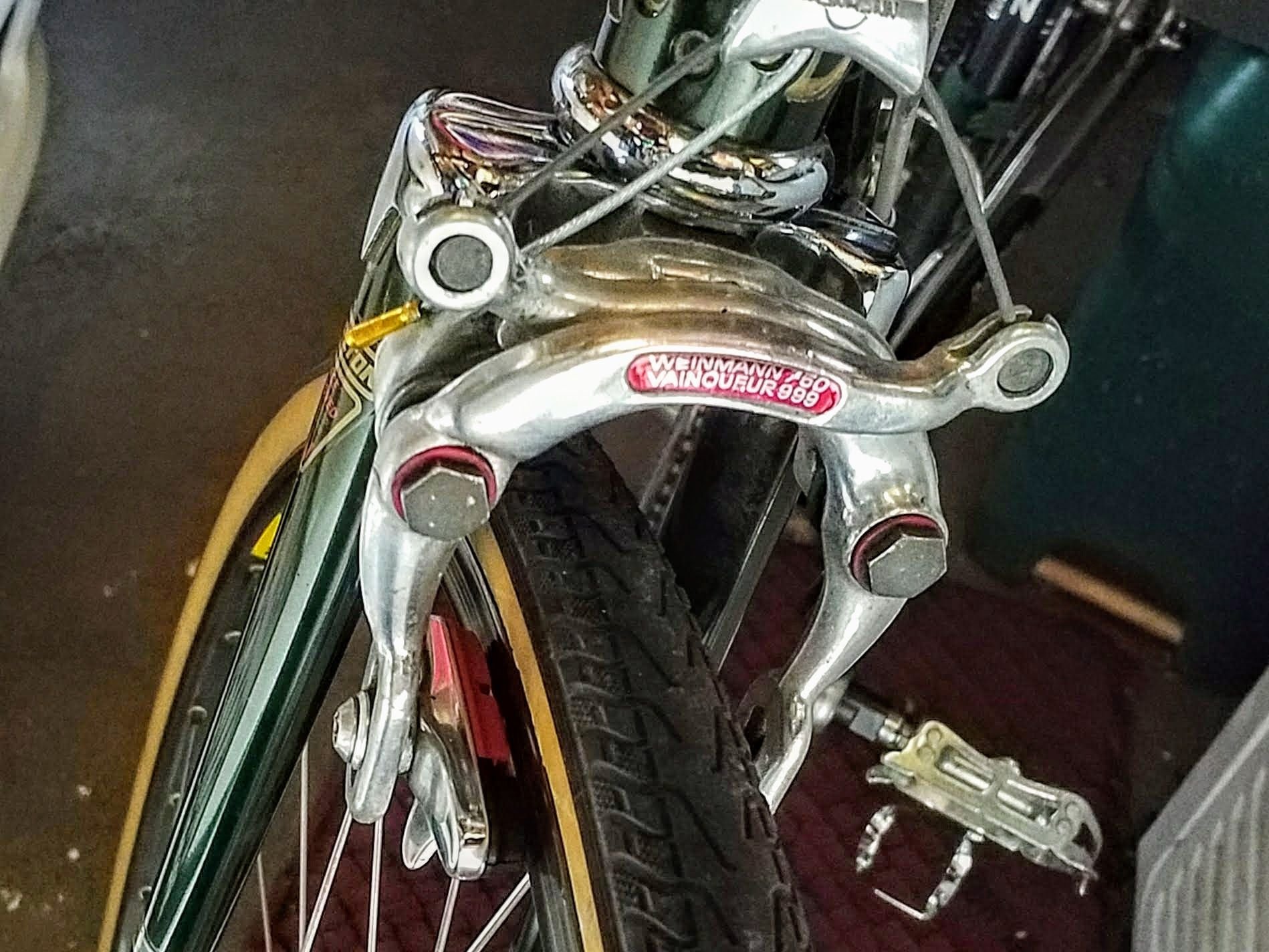

+1 on the Koolstops, but I prefer the modern Shimano type pad shape. They bolt right onto vintage centerpulls. These are Weinmann, similar to Dia Compe, but they also work well on my Universal centerpulls, as well as the modern 105 brakes I have. The dual compounds are for wet/dry stopping, because you never know. I did a 50 mile rain ride last year with these, and they worked very well.
Slightspeed is offline
Likes For Slightspeed:
Old 11-13-19, 11:42 AM
  #4
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,613

Bikes: A bunch of old bikes and a few new ones

Mentioned: 169 Post(s)
Tagged: 0 Thread(s)
Quoted: 5530 Post(s)
Liked 2,490 Times in 1,601 Posts
kool stop continentals

https://www.amazon.com/Kool-Stop-Bic...8-2&th=1&psc=1
bikemig is offline
Old 11-13-19, 04:38 PM
  #5
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,928

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 372 Times in 222 Posts
I’m using Kool Stop Cyclocross Linear pad holders that have a longer threaded post (like a V-brake pad) and use readily available Shimano-type pads. The longer post means that the pad needed to rotate less to fit flat against the rims - nice with the wider brazed-on posts of the Gugificazione mods to the fork, and there’s still that nice rotational adjustment to get to desired toe-in. BTW, for that toe-in, a rubber band around the back end of the pad works great! I always use full salmon pads and get great life out of them.

https://www.universalcycles.com/shop...s.php?id=31465

Dfrost is offline
Likes For Dfrost:
Old 11-13-19, 07:51 PM
  #6
ctak
Senior Member
Thread Starter

ctak's Avatar

Join Date: Sep 2019
Posts: 347
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 224 Times in 123 Posts
Thanks everyone - think I'll try the mentioned cartridge variations with salmon Kool Stop pads.
ctak is offline
Old 11-13-19, 07:54 PM
  #7
ctak
Senior Member
Thread Starter

ctak's Avatar

Join Date: Sep 2019
Posts: 347
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 224 Times in 123 Posts
"Gugificazione mods to the fork"
Care to elaborate? I'm assuming such mods refer to a 700c or 650b conversion?

Originally Posted by Dfrost View Post
I’m using Kool Stop Cyclocross Linear pad holders that have a longer threaded post (like a V-brake pad) and use readily available Shimano-type pads. The longer post means that the pad needed to rotate less to fit flat against the rims - nice with the wider brazed-on posts of the Gugificazione mods to the fork, and there’s still that nice rotational adjustment to get to desired toe-in. BTW, for that toe-in, a rubber band around the back end of the pad works great! I always use full salmon pads and get great life out of them.

https://www.universalcycles.com/shop...s.php?id=31465

ctak is offline
Old 11-13-19, 08:47 PM
  #8
thook
(rhymes with spook)

thook's Avatar

Join Date: Aug 2009
Location: Winslow, AR
Posts: 2,795

Bikes: '83 univega gran turismo x2, '85 schwinn super le tour,'89 miyata triple cross, '91 GT tequesta, '90 yokota grizzly peak, '94 GT backwoods, '95'ish scott tampico, '98 bonty privateer, '93 mongoose crossway 625, '98 parkpre ariel, 2k'ish giant fcr3

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 919 Post(s)
Liked 740 Times in 546 Posts
Originally Posted by Slightspeed View Post
+1 on the Koolstops, but I prefer the modern Shimano type pad shape. They bolt right onto vintage centerpulls. These are Weinmann, similar to Dia Compe, but they also work well on my Universal centerpulls, as well as the modern 105 brakes I have. The dual compounds are for wet/dry stopping, because you never know. I did a 50 mile rain ride last year with these, and they worked very well.
that's a rather nice match up with older brakes and newer pads!
thook is offline
Old 11-14-19, 03:16 AM
  #9
Dfrost
Senior Member

Dfrost's Avatar

Join Date: May 2013
Location: Pacific Northwest
Posts: 1,928

Bikes: ‘87 Marinoni SLX Sports Tourer, ‘79 Miyata 912 by Gugificazione

Mentioned: 158 Post(s)
Tagged: 0 Thread(s)
Quoted: 477 Post(s)
Liked 372 Times in 222 Posts
Originally Posted by ctak View Post
"Gugificazione mods to the fork"
Care to elaborate? I'm assuming such mods refer to a 700c or 650b conversion?
Nope. But yes I’ll elaborate (with apologies to the OP if this derails the thread badly).

My goal was to mod the Miyata 912 that I’ve had since new into a front-loaded “travel bike” for credit card touring, beyond its normal role as my fender bike. This would also differentiate it a bit from my rather similar Marinoni SLX Sports Tourer. The original request was for @gugie to just add mid-fork mounts for low rider panniers, so he only had the 912’s original steel fork for these mods. BTW, this year 912 came with 27” wheels, and it had been converted to 130mm-spaced 700C Ergo shifting earlier. Tire clearances are sufficient for 700x28’s with fenders, but it’s not a 650B conversion candidate, unlike the Marinoni.

Mark suggested that re-raking the fork would help with that goal. Then I was inspired by a Norther Cycles custom at the Velo Cult gathering where the fork handoff was taking place. Yes, he could also do: 1) braze-on posts, enabling a 2) custom rando bag rack with 3) one of his clever custom stem-encircling decaleurs (modified for my tall stem/bars and incorporating a threaded housing stop). There were 4) the new mid-fork mounts for both rack configurations, and 5) additional dropout eyelets on the front of the fork. Then there’s the 6) three-part custom modular pannier rack that disassembles small enough to fit inside my panniers when needed. And 7) his fork rerake gives fantastic handling with any load from just the empty rando bag to full panniers. Oh yeah, he also 8) supplied the Dia Compe front brake arms, and pointed me toward Waxwing for one of Dave’s excellent custom rando bags. And he had the fork powder-coated when it was done. Whew!

I love this bike even more now, and the mods far exceeded my expectations. Just wish I could afford to travel more with it. Maybe next year after my wife recovers from shoulder replacement in December.

Here’s just a few shots:



And proud to proclaim:

Last edited by Dfrost; 11-14-19 at 03:13 PM.
Dfrost is offline
Old 11-14-19, 08:00 AM
  #10
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,939

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 215 Times in 100 Posts
I just replaced the pads on my 610 set. I used VO cartridge pads and am very pleased with the look and grip.


Untitled by irishbx4th, on Flickr
greg3rd48 is offline
Old 11-14-19, 03:39 PM
  #11
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,790

Bikes: It's complicated.

Mentioned: 1197 Post(s)
Tagged: 0 Thread(s)
Quoted: 4177 Post(s)
Liked 3,904 Times in 1,696 Posts
Originally Posted by Dfrost View Post
Nope. But yes I’ll elaborate (with apologies to the OP if this derails the thread badly).

My goal was to mod the Miyata 912 that I’ve had since new into a front-loaded “travel bike” for credit card touring, beyond its normal role as my fender bike. This would also differentiate it a bit from my rather similar Marinoni SLX Sports Tourer. The original request was for @gugie to just add mid-fork mounts for low rider panniers, so he only had the 912’s original steel fork for these mods. BTW, this year 912 came with 27” wheels, and it had been converted to 130mm-spaced 700C Ergo shifting earlier. Tire clearances are sufficient for 700x28’s with fenders, but it’s not a 650B conversion candidate, unlike the Marinoni.

Mark suggested that re-raking the fork would help with that goal. Then I was inspired by a Norther Cycles custom at the Velo Cult gathering where the fork handoff was taking place. Yes, he could also do: 1) braze-on posts, enabling a 2) custom rando bag rack with 3) one of his clever custom stem-encircling decaleurs (modified for my tall stem/bars and incorporating a threaded housing stop). There were 4) the new mid-fork mounts for both rack configurations, and 5) additional dropout eyelets on the front of the fork. Then there’s the 6) three-part custom modular pannier rack that disassembles small enough to fit inside my panniers when needed. And 7) his fork rerake gives fantastic handling with any load from just the empty rando bag to full panniers. Oh yeah, he also 8) supplied the Dia Compe front brake arms, and pointed me toward Waxwing for one of Dave’s excellent custom rando bags. And he had the fork powder-coated when it was done. Whew!

I love this bike even more now, and the mods far exceeded my expectations. Just wish I could afford to travel more with it. Maybe next year after my wife recovers from shoulder replacement in December.

Here’s just a few shots:



And proud to proclaim:
I am gugie, and I approve of this message.

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
