Can you help me identify the Bike?
12-02-19, 01:03 PM
#1
Junior Member
Thread Starter
Join Date: Dec 2019
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Can you help me identify the Bike?

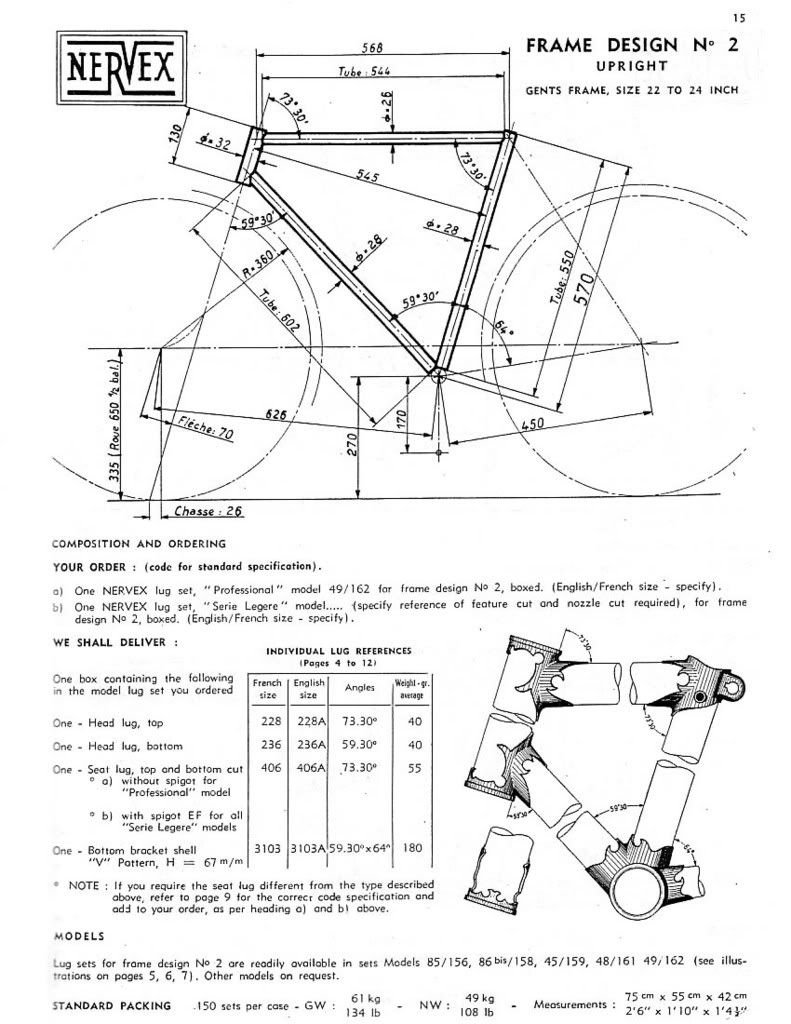

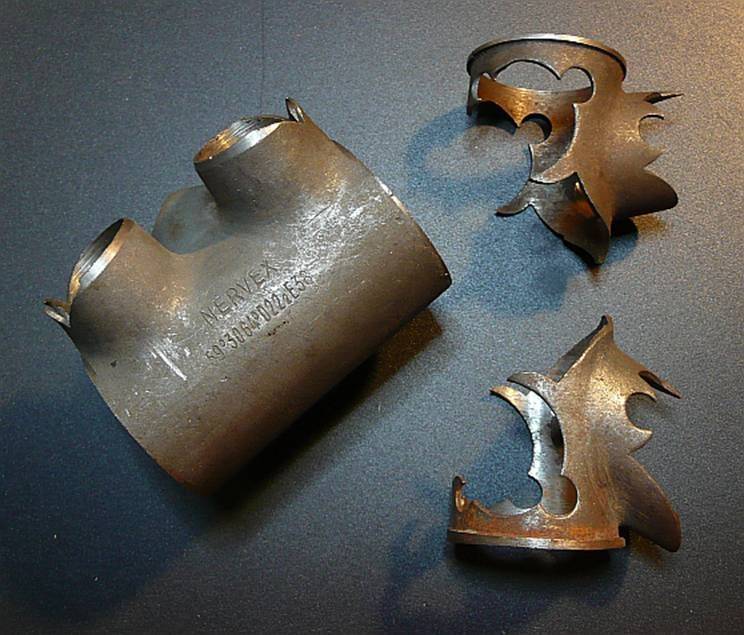

Hello, I have this bike, but I don´t know what brand it is... I found some info that may be the Viking frame with Nervex professional lugs. But Im not sure if it is Viking or not. It comes with 2 pairs of wheels Campa hubs and Duralca rims. Other components are campy. Does anybody know about this frame? Thank you... Campagnolo seatpost is 27. Campagnolo English theads.
12-02-19, 01:08 PM
#2
Not riding enough
No photos, no clue. 27.0 is Columbus SP size amongst others, but that's about all you're going to get. I'm sure someone will be along in a sec with a photo assist...
__________________
I'm on holiday whenever I ride my bike
I'm on holiday whenever I ride my bike
Likes For CO_Hoya:
12-02-19, 03:18 PM
#4
Shifting is fun!
Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,183
Bikes: Yes, please.
Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 1877 Post(s)
Liked 2,566 Times
in
1,135 Posts
Pretty bike. Very well-proportioned. Looks like it was made for a rider named "C. Kern":
Did a quick search, but haven't found him. Whatever it is, it looks quite decent. Enjoy!
Did a quick search, but haven't found him. Whatever it is, it looks quite decent. Enjoy!
Likes For non-fixie:
12-02-19, 08:10 PM
#5
Stop reading my posts!
Join Date: Sep 2004
Posts: 11,857
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 486 Times
in
398 Posts
Kern could be a Swiss surname, cannot tell from the shot of the head tube whether there are any filled-in holes for a headbadge, but I believe a Viking would have had a badge (correct?)
12-03-19, 07:15 AM
#6
Señor Member
Join Date: Oct 2004
Location: Hardy, VA
Posts: 17,118
Bikes: Mostly English - predominantly Raleighs
Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1120 Post(s)
Liked 434 Times
in
295 Posts
The style of the fork is a bit reminiscent of some that Viking made. The seat stay treatment - considerably less so.
__________________
In search of what to search for.
In search of what to search for.
12-03-19, 03:12 PM
#7
Senior Member
Join Date: Nov 2004
Posts: 22,729
Mentioned: 604 Post(s)
Tagged: 1 Thread(s)
Quoted: 4475 Post(s)
Likes: 0
Liked 2,543 Times
in
1,617 Posts
Originally Posted by MiloFrance
No photos, no clue. 27.0 is Columbus SP size amongst others, but that's about all you're going to get. I'm sure someone will be along in a sec with a photo assist...
SL = strada, leggera = road, light
SP = strada, pesante = road, heavy
PS = pista, sprint = track, sprint
PL = pista, leggera = track, light
Assuming the fork is OEM to the frame, a Columbus tubeset can be verified by the presence of a Columbus steerer tube, which will have Columbus' dove logo stamped on the outside and five helical ridges on the inside, at the bottom.
Likes For T-Mar:
12-03-19, 03:41 PM
#8
verktyg
Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,941
Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth
Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,040 Times
in
579 Posts
BB Numbers
Numbers stamped into the BB shell are the angles not a serial number. Maybe the seat lug too but can't read it clearly.
verktyg
verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
Last edited by verktyg; 12-04-19 at 05:36 PM.
Likes For verktyg:
12-03-19, 11:40 PM
#9
Stop reading my posts!
Join Date: Sep 2004
Posts: 11,857
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 486 Times
in
398 Posts
From what I can tell the seat lugs has at least "73" and then another mark which may be the degree "•" or possibly another digit, but I'd bet it's a degree symbol. And the pinch bolt says "ITALY".
12-04-19, 02:50 PM
#10
Shifting is fun!
Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,183
Bikes: Yes, please.
Mentioned: 260 Post(s)
Tagged: 0 Thread(s)
Quoted: 1877 Post(s)
Liked 2,566 Times
in
1,135 Posts
"C. Kern" wouldn't be just any amateur to have had such a bike made, methinks. How about giving Christophe Kern a call?
Likes For non-fixie:
12-04-19, 07:14 PM
#11
verktyg
Join Date: Jul 2006
Location: SF Bay Area
Posts: 3,941
Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1973 Holdsworth
Mentioned: 195 Post(s)
Tagged: 0 Thread(s)
Quoted: 992 Post(s)
Liked 1,040 Times
in
579 Posts
Early 70's Track Bike
Originally Posted by non-fixie
"C. Kern" wouldn't be just any amateur to have had such a bike made, methinks. How about giving Christophe Kern a call?
verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
12-05-19, 07:30 AM
#13
Junior Member
Thread Starter
Join Date: Dec 2019
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
There are some photos in that link in second reply, photos of the wheels and rims... the colors may be colors of Belgium (I am not sure) ... and there is a JS on the rims... maybe som cyclist but I dont know...
12-05-19, 09:20 AM
#14
Stop reading my posts!
Join Date: Sep 2004
Posts: 11,857
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 486 Times
in
398 Posts
No idea what the "JS" on one rim could mean, or the big "A" on one hub barrel but that hub is a Campagnolo. My guess is those letters are some after-market decals that some previous owner used to personalize the wheel(s) and neither seems to have any connection to "C. Kern" (dontcha think?)
12-05-19, 09:28 AM
#16
Senior Member
Join Date: Jun 2006
Posts: 17,378
Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 2382 Post(s)
Liked 1,298 Times
in
981 Posts
Originally Posted by T-Mar
Assuming that it is Columbus, a 27.0mm post of a track frame with round section fork blades would be representative of PS rather than SP.
SL = strada, leggera = road, light
SP = strada, pesante = road, heavy
PS = pista, sprint = track, sprint
PL = pista, leggera = track, light
Assuming the fork is OEM to the frame, a Columbus tubeset can be verified by the presence of a Columbus steerer tube, which will have Columbus' dove logo stamped on the outside and five helical ridges on the inside, at the bottom.
SL = strada, leggera = road, light
SP = strada, pesante = road, heavy
PS = pista, sprint = track, sprint
PL = pista, leggera = track, light
Assuming the fork is OEM to the frame, a Columbus tubeset can be verified by the presence of a Columbus steerer tube, which will have Columbus' dove logo stamped on the outside and five helical ridges on the inside, at the bottom.
Reasonably clean workmanship. those crowns could receive or not get various cuts to them from the foundry. This one is more on the plain side.
Threading type may provide a Nationality.
Ignore the KERN, the bike has been repainted.... got a stamp set?
04-13-20, 12:42 AM
#18
Senior Member
Join Date: Jul 2017
Location: East Midlands, UK
Posts: 150
Bikes: Mezzo D9, Nigel Dean Tour Master
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 27 Times
in
16 Posts
Viking Head Tube Badge
Originally Posted by CO_Hoya
The hole centres are 60mm apart.
Message me if you are interested!
Last edited by MezzoLew; 04-13-20 at 12:47 AM.
04-13-20, 07:10 AM
#19
Señor Member
Join Date: Dec 2007
Location: Colorado
Posts: 893
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Liked 175 Times
in
98 Posts
Bumping for OP Hagiadiz to see.
Originally Posted by MezzoLew
I have a head tube badge (NOS) for a Viking if you want to add it to your bike. I has a Viking as my first drop bar racing bike when I was 14 and loved it.
The hole centres are 60mm apart.
Message me if you are interested!
The hole centres are 60mm apart.
Message me if you are interested!
Likes For CO_Hoya:
06-01-20, 09:15 AM
#21
Senior Member
Join Date: Jul 2017
Location: East Midlands, UK
Posts: 150
Bikes: Mezzo D9, Nigel Dean Tour Master
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Liked 27 Times
in
16 Posts
Originally Posted by CO_Hoya
Bumping for OP Hagiadiz to see.
