Let me introduce you to my International

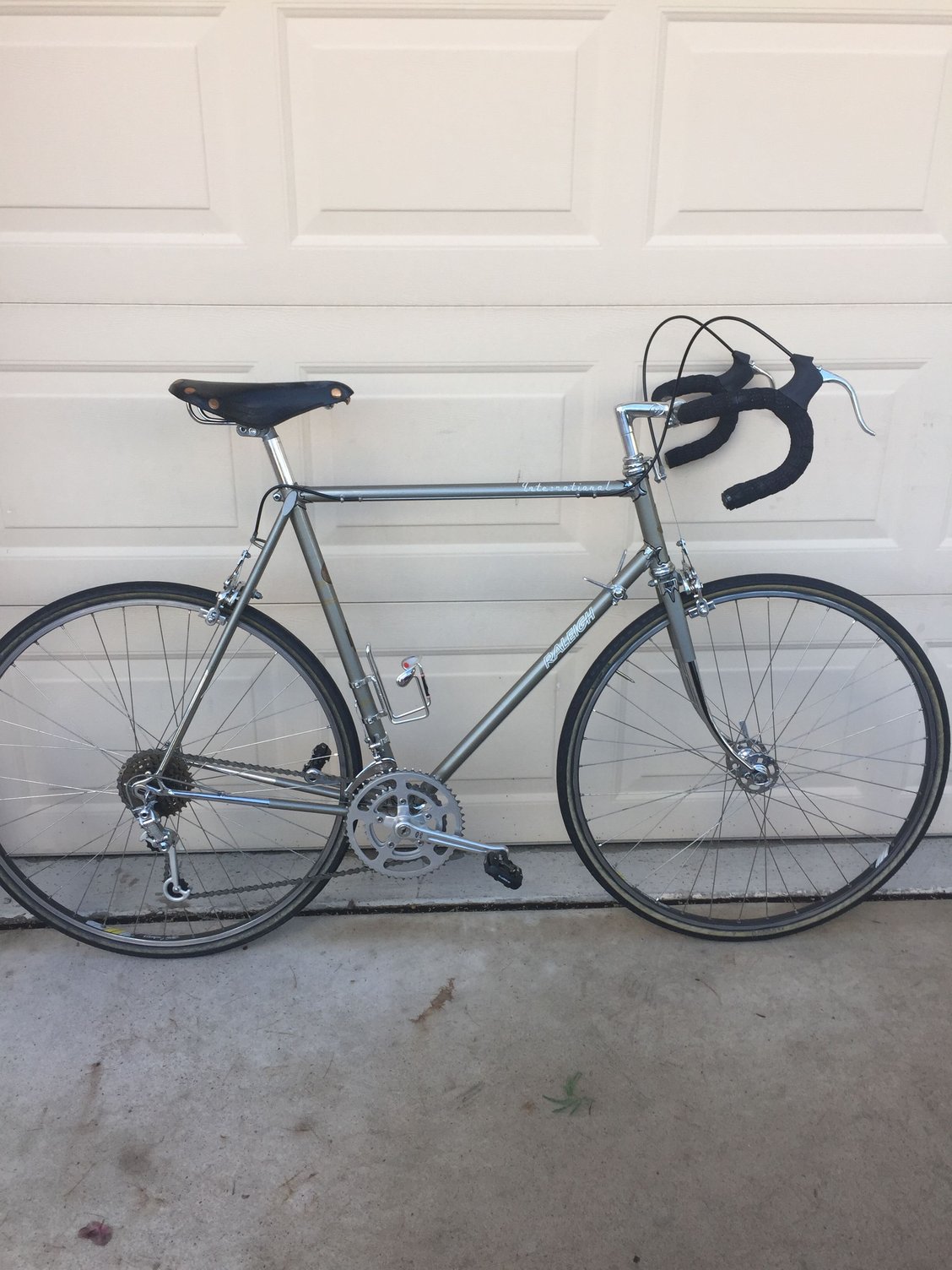

Thought I would finally show my ‘74 Raleigh International. It has been a multi year project as I have fitfully worked on it.

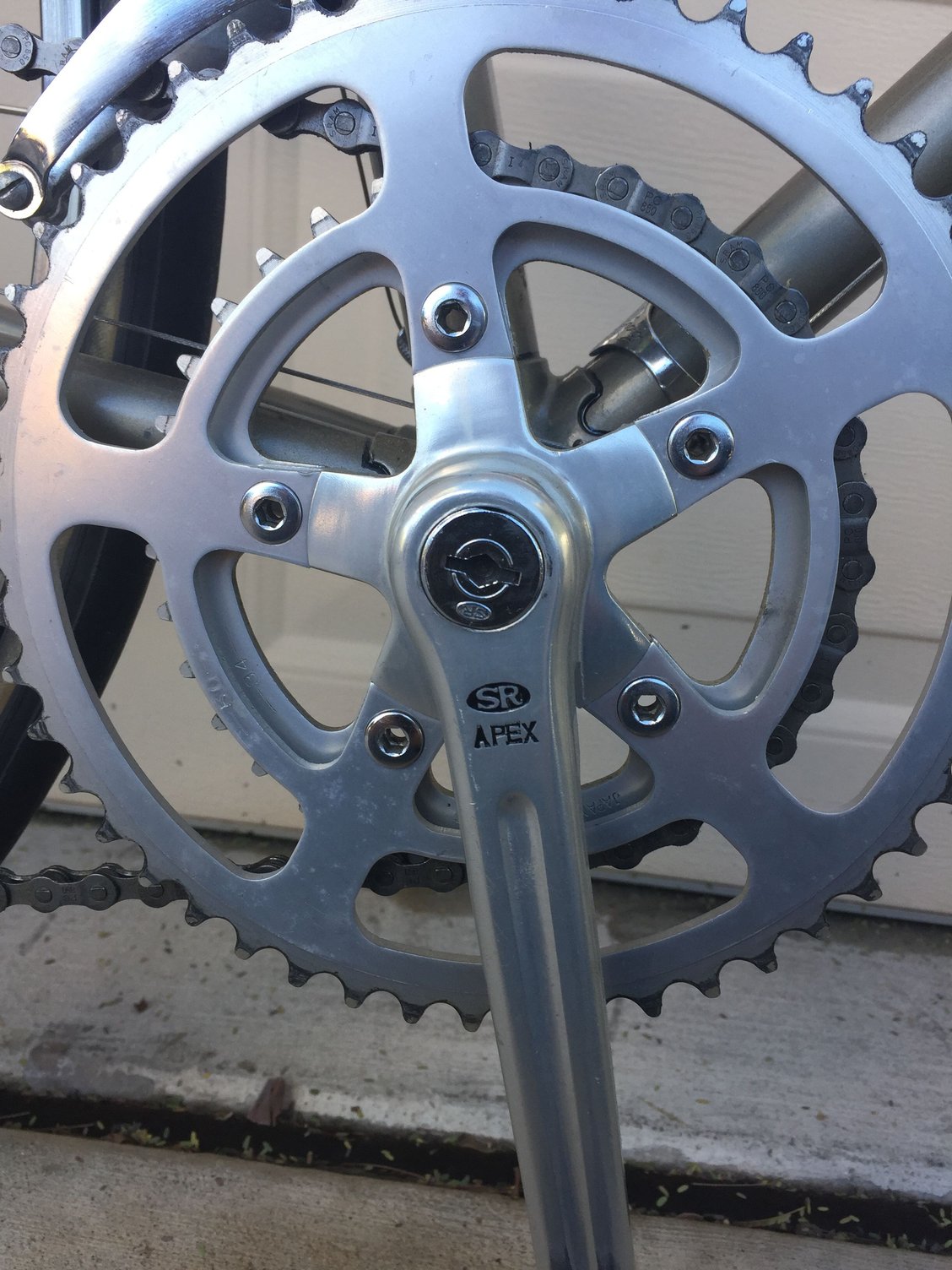

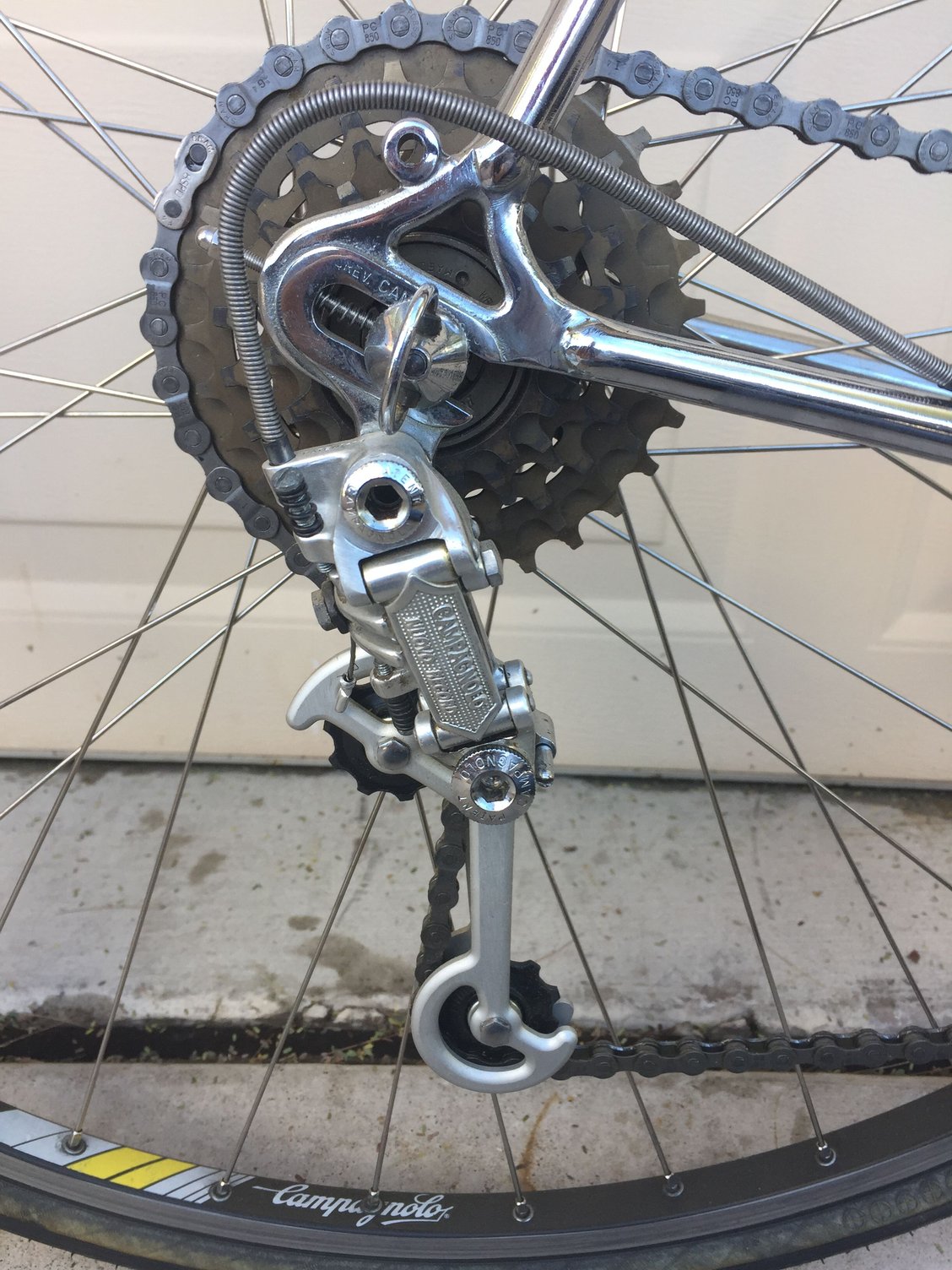

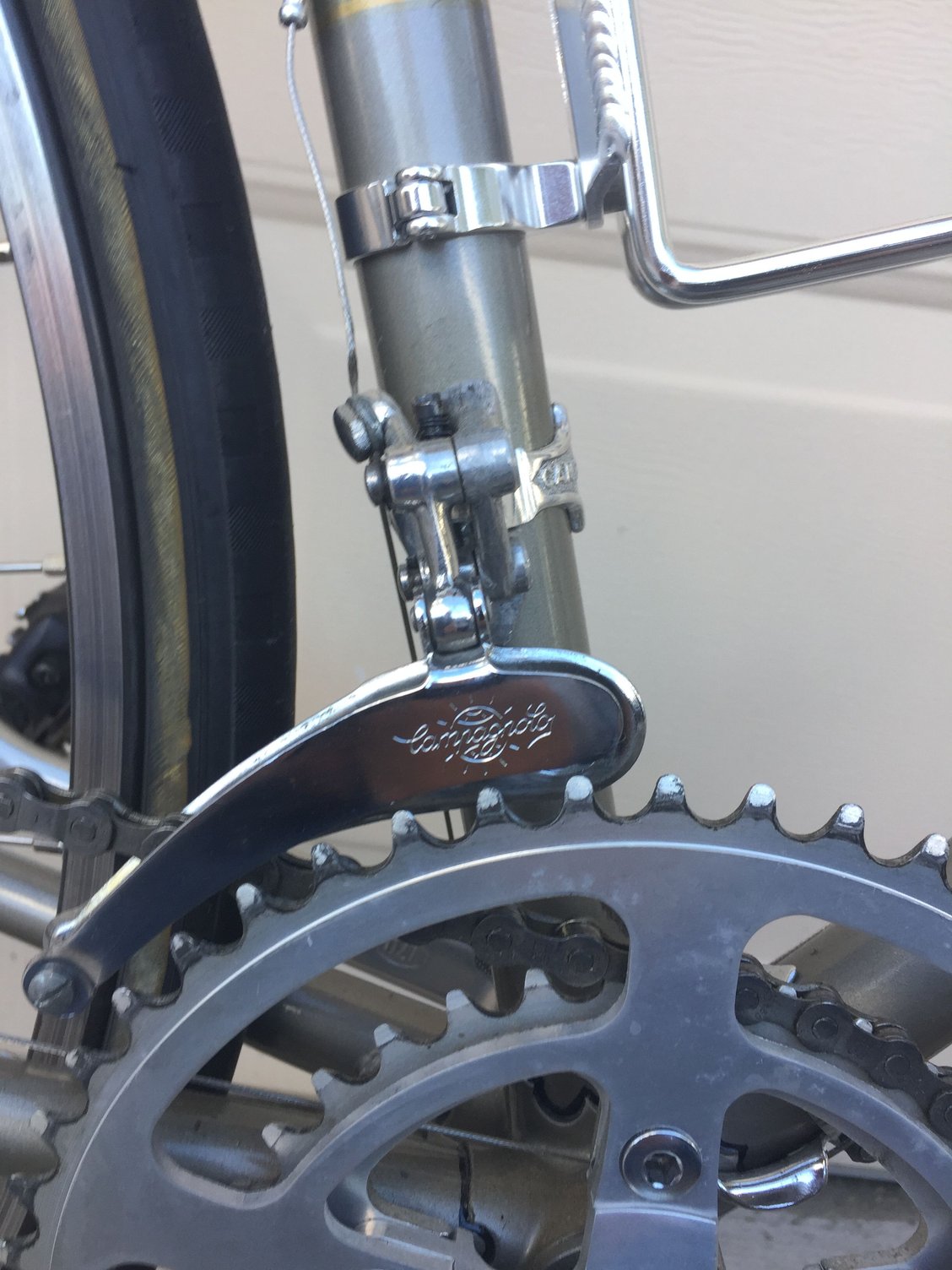

I am a Clydesdale and needed low gearing for hills but still wanted to use mostly period correct Campagnolo. For the rear Nuovo Record derailleur I added the Soma long arm which works well with my 14-32 rear cluster. For the front I tried to use a triplezed Nuovo Record using the RedClover Tripleizer, the correct Campy triple bottom bracket with a 121 mm axle. No go. I couldn’t get the chainline right for the derailleur to throw it onto the large ring and there didn’t appear to be enough room between the 30 tooth small ring and the chainstay to go use a shorter axle. My solution was to give up on the Campy triple and install an SR Apex 50-34 double. This combination works well front and rear.

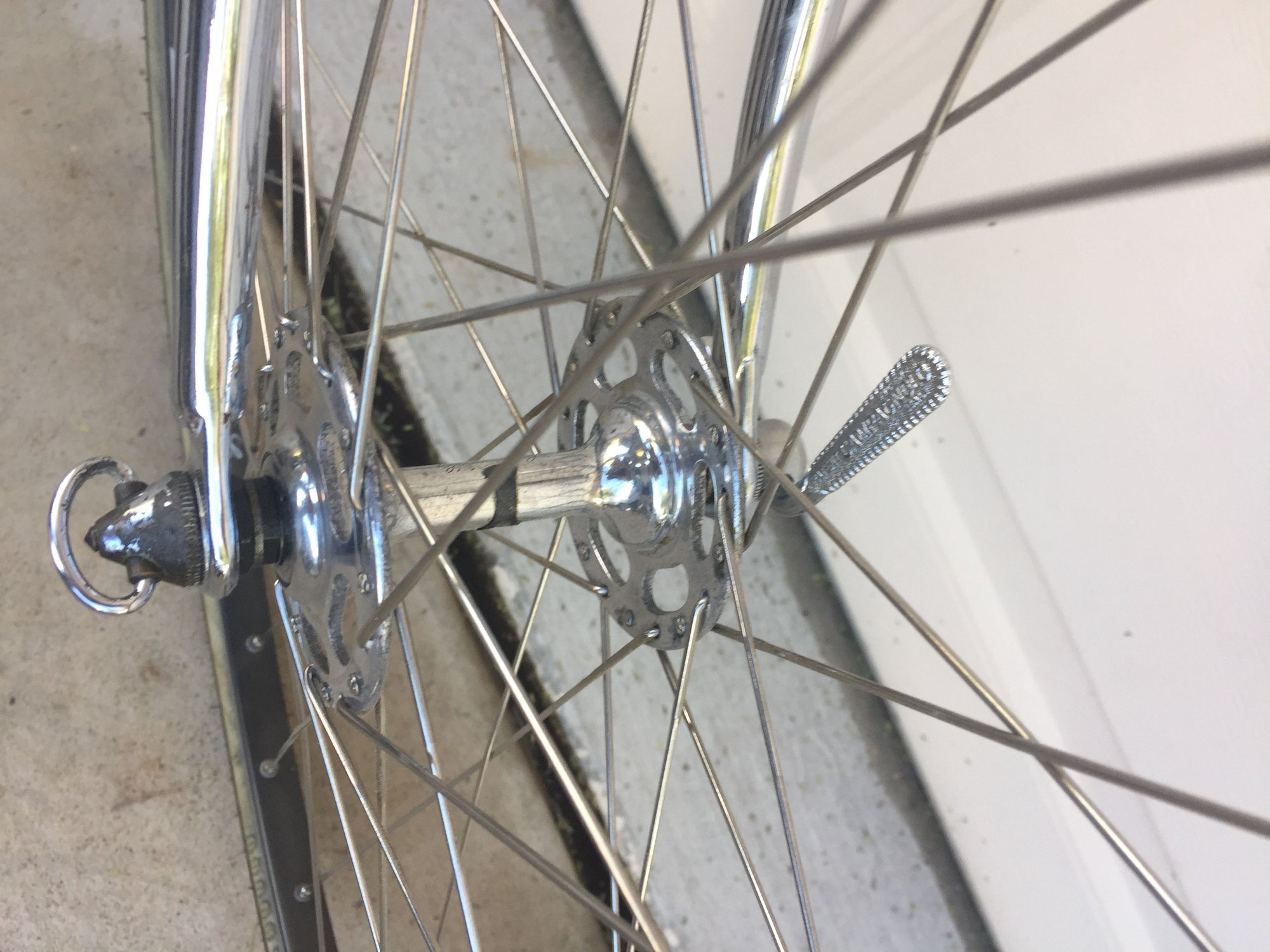

I found some large flange Record hubs laced to Campy Omega Strada Hardox rims (not period correct but a nice wheelset).

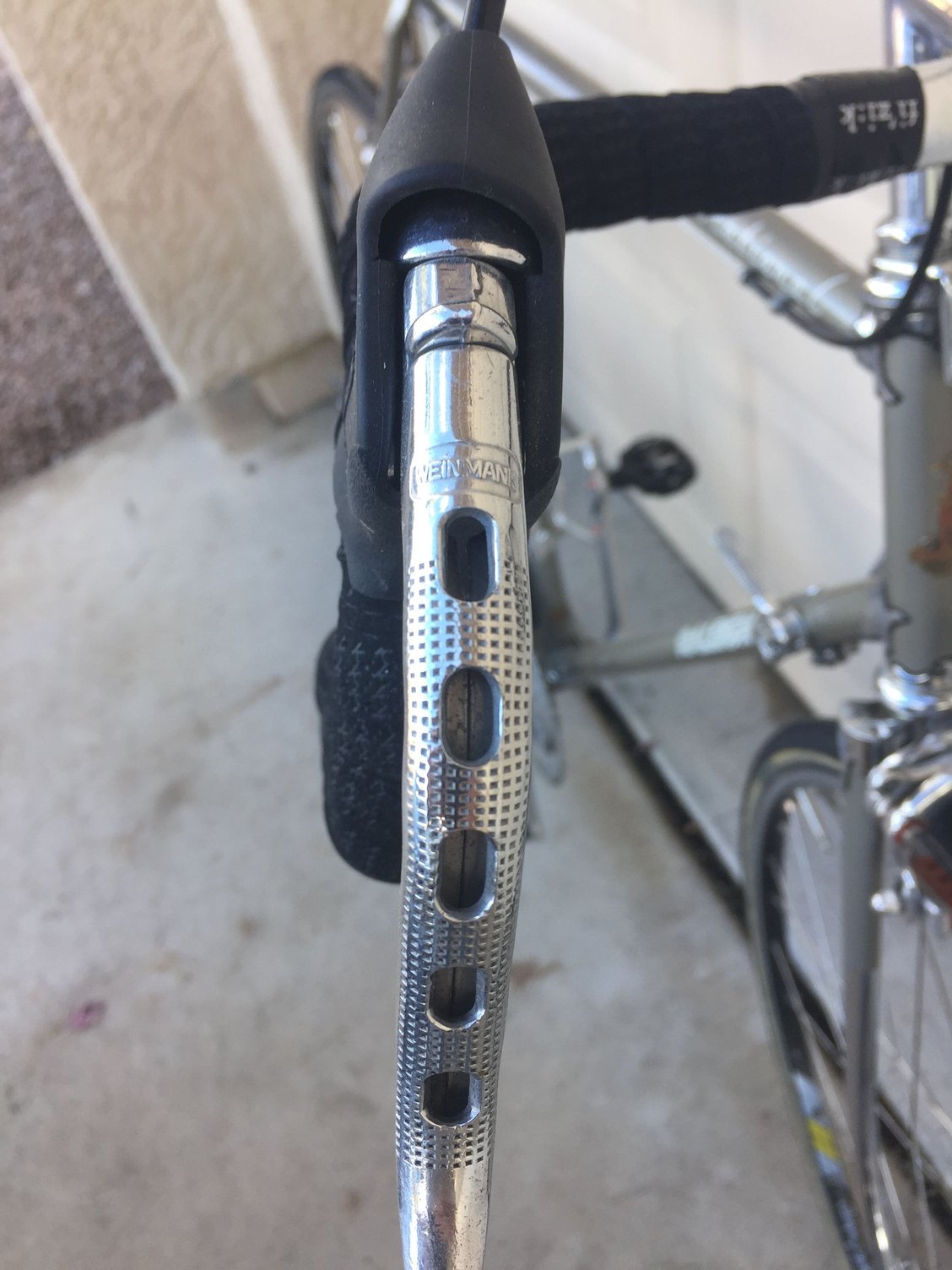

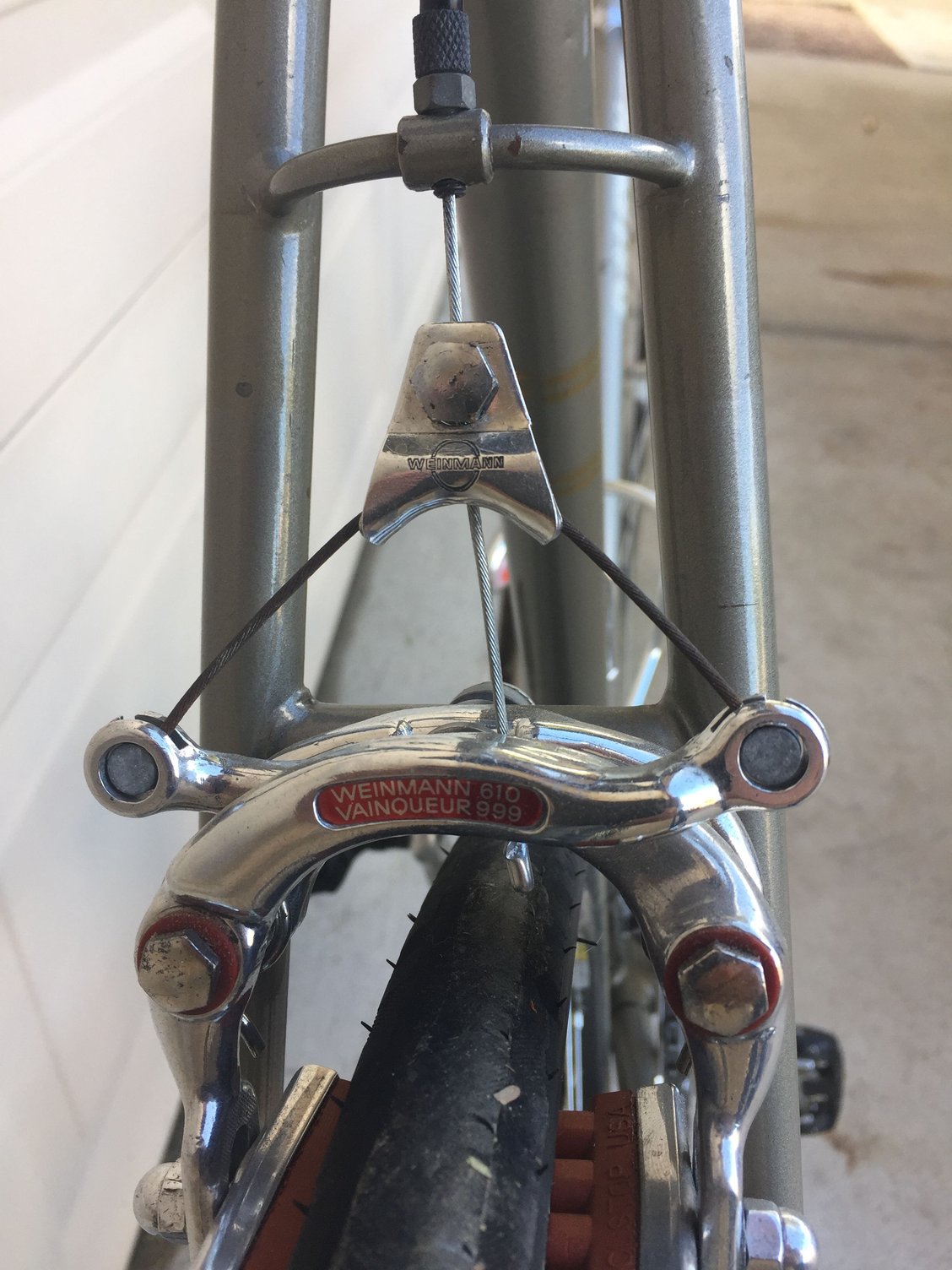

Original Campy seat post, GB stem, Weinmann brakes and levers were all polished. Brooks B17 with large copper rivets. Used the hinged-type water bottle brackets from Wiggle(?) for the bottle cage. Was originally going to use two, seat post/down tube but when I got them I realized it wouldn’t work on the down tube because of the derailleur cables. Handlebars are Nitto Noodles.

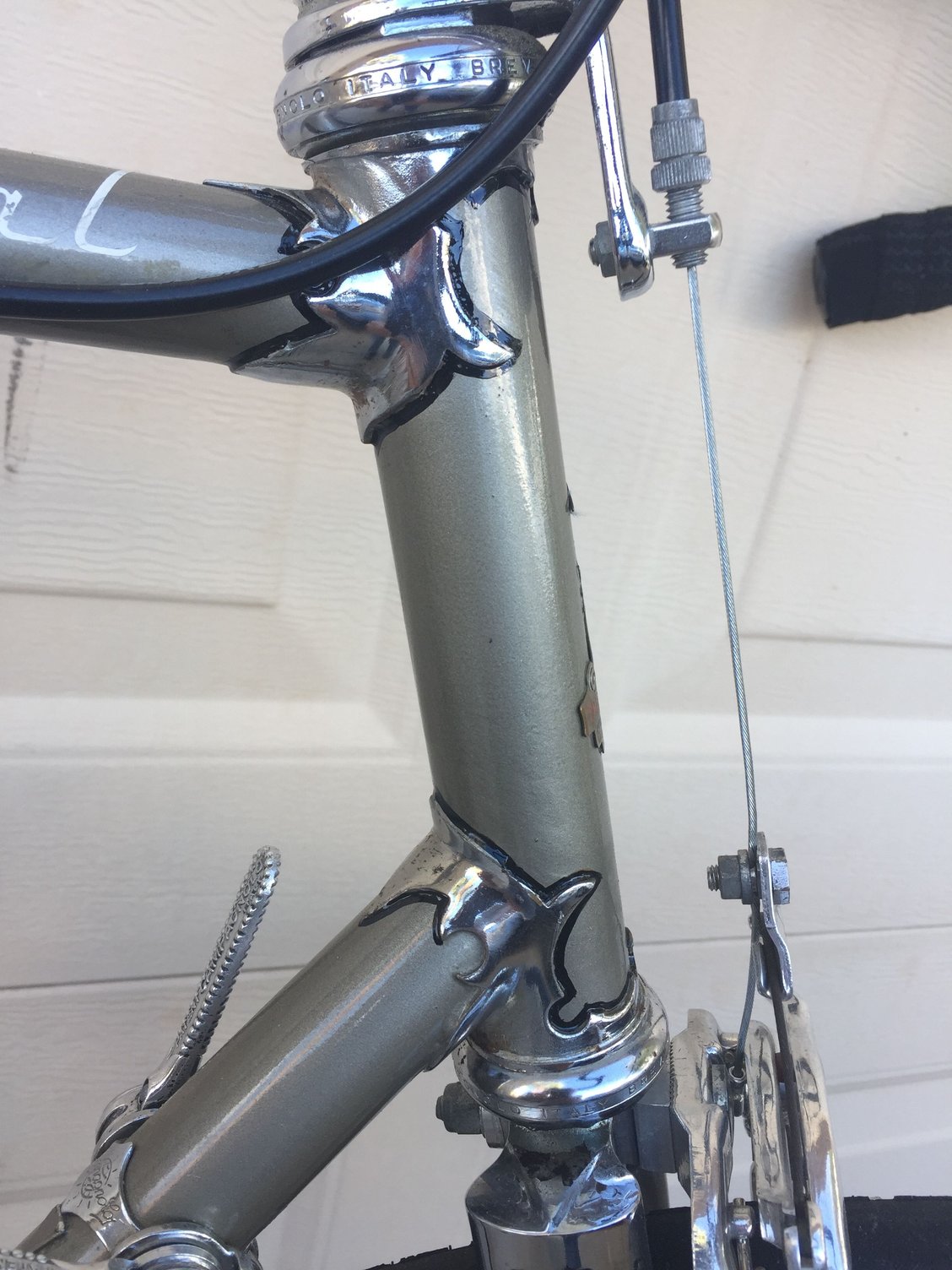

The finish on the frame is quite good considering it’s age. There is some pitting of the socks chrome and head lugs and a little flaking of the chrome on fork crowns. I had an artist friend reline the lugs in black to go with the seat, tape and rims. It is a little wider than ideal in some areas but I still like the overall look.
Now on to the important part—the pictures.
I am a Clydesdale and needed low gearing for hills but still wanted to use mostly period correct Campagnolo. For the rear Nuovo Record derailleur I added the Soma long arm which works well with my 14-32 rear cluster. For the front I tried to use a triplezed Nuovo Record using the RedClover Tripleizer, the correct Campy triple bottom bracket with a 121 mm axle. No go. I couldn’t get the chainline right for the derailleur to throw it onto the large ring and there didn’t appear to be enough room between the 30 tooth small ring and the chainstay to go use a shorter axle. My solution was to give up on the Campy triple and install an SR Apex 50-34 double. This combination works well front and rear.
I found some large flange Record hubs laced to Campy Omega Strada Hardox rims (not period correct but a nice wheelset).
Original Campy seat post, GB stem, Weinmann brakes and levers were all polished. Brooks B17 with large copper rivets. Used the hinged-type water bottle brackets from Wiggle(?) for the bottle cage. Was originally going to use two, seat post/down tube but when I got them I realized it wouldn’t work on the down tube because of the derailleur cables. Handlebars are Nitto Noodles.
The finish on the frame is quite good considering it’s age. There is some pitting of the socks chrome and head lugs and a little flaking of the chrome on fork crowns. I had an artist friend reline the lugs in black to go with the seat, tape and rims. It is a little wider than ideal in some areas but I still like the overall look.
Now on to the important part—the pictures.
Likes For 2wheeljonz:
12-03-19, 01:42 PM
#2
Senior Member
Join Date: Feb 2013
Location: Alta California
Posts: 10,414
Mentioned: 298 Post(s)
Tagged: 1 Thread(s)
Quoted: 2410 Post(s)
Liked 674 Times
in
543 Posts
-----
Very nice, AND you have made the changes necessary to make the cycle fit your requirements!
Thus it will be ridden rather than being a catalogue perfect wall piece.
BTW - another maker of the hinged type water bottle mounting clamps is Allara/AL-E of Italy.
-----
Very nice, AND you have made the changes necessary to make the cycle fit your requirements!
Thus it will be ridden rather than being a catalogue perfect wall piece.
BTW - another maker of the hinged type water bottle mounting clamps is Allara/AL-E of Italy.
-----
Likes For juvela:
12-03-19, 02:20 PM
#3
Senior Member
Nice! you did a great job, that looks like a rider for sure. I have those same cranks on my main ride, although they are marked "Super Custom" Originally they were 50/45/28 but I had similar fitment concerns as you on the frame they were transferred to. I managed to find a nice condition 34t ring (with the kooky 86 BCD) so ended up with the same double configuration as you. Not really a fan of the half step anyway although a more evenly space triple would be nice as it's a touring frame.
I also couldn't reduce the granny any smaller as these rings oddly all attached through the same extra long bolts (no additional tapped holes on the inside spider arms) not sure if yours is the same. Anyway, nice bike, thanks for sharing!
I also couldn't reduce the granny any smaller as these rings oddly all attached through the same extra long bolts (no additional tapped holes on the inside spider arms) not sure if yours is the same. Anyway, nice bike, thanks for sharing!
12-03-19, 02:25 PM
#4
aka Tom Reingold
Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,786
Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem
Mentioned: 484 Post(s)
Tagged: 0 Thread(s)
Quoted: 6809 Post(s)
Liked 1,406 Times
in
903 Posts
That's awfully nice. I'm interested in those handlebars. Can you tell us about them? The forward reach looks long.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog
“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author
Please email me rather than PM'ing me. Thanks.
12-03-19, 02:30 PM
#5
Senior Member
Join Date: Jan 2016
Location: Ventura County ,California
Posts: 1,564
Bikes: 1973 Windsor Profesional,1976 Kabuki diamond formula with full Campy, 1977 Raleigh Competition GS , 1971 Stella original Campy equip. 1978 Raleigh Super Grand Prix, 1972 Italvega Gran Rally ,1972 Super Mondia Special,Medici Pro Strada,Colnago
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Liked 527 Times
in
353 Posts
Very nice indeed.That rear derailleur cage is interesting as I live on a hill and my lowest gearing (on my ItalVega) is 41 x 28 with Campy NR/SR equip. It is hell getting home after a 30+ mile ride! Also the GB stem with the countersunk cap screw is great. I did the same treatment to my 1977 Raleigh Competition GS by making( I am a tool grinder) a piloted C'Bore cutter and drilling just enough to hide the allen head cap bolt because I didn't like the bolt sticking up on top.I don't think the embossed (early) GB stems were available that way. Nice bike and enjoy the ride! Joe joesvintageroadbikes.wordpress
12-03-19, 03:35 PM
#6
Senior Member
Thread Starter
Join Date: Nov 2010
Location: Mesa, AZ
Posts: 101
Bikes: Eddy Merckx Titanium, AX, '74 Raleigh International, Velo Orange Randonneur, Trek 7600, Fuji Touring Series V, DeRosa, Miami Vice Ironman, Eddy Merckx 10th Anniversary
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 15 Times
in
6 Posts
Originally Posted by noglider
That's awfully nice. I'm interested in those handlebars. Can you tell us about them? The forward reach looks long.
2wheeljonz
12-03-19, 04:00 PM
#7
feros ferio
Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,284
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 939 Post(s)
Liked 322 Times
in
241 Posts
I have always liked the Internationals of that vintage -- great looking and great road manners.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
12-03-19, 05:15 PM
#9
Ride.Smile.Repeat
Join Date: May 2011
Location: Seattle WA
Posts: 2,863
Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 787 Post(s)
Liked 497 Times
in
356 Posts
Well done brother Clydesdale looks great and those low gears do help!
12-03-19, 05:32 PM
#10
Semper Fi
Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,787
Bikes: 1980 Medici Pro Strada, 1984 Tommasini Prestige, 2012 Cannondale CAAD 10 Ultegra
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 190 Times
in
150 Posts
Very nicely done sir, makes me wish that I still had my own '74.
Bill
Bill
__________________
Semper Fi, USMC, 1975-1977
I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13
Semper Fi, USMC, 1975-1977
I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13
12-03-19, 11:46 PM
#11
Senior Member
Join Date: Jul 2007
Location: Manhattan
Posts: 1,849
Bikes: 1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mk1
Mentioned: 74 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Liked 860 Times
in
385 Posts
Nicely done! It's a handsome bike that will reward you...
__________________
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 1984 Lotus Eclair, 1974 Raleigh Sports, 1972 Raleigh Super Course
1987 Mercian Pro, 1971 Raleigh International, 1971 Peugeot PX-10E, 1970 Raleigh Professional Mark I
Curator/Team Mechanic: 1984 Lotus Eclair, 1974 Raleigh Sports, 1972 Raleigh Super Course
12-04-19, 07:24 AM
#13
Senior Member
Originally Posted by noglider
That's awfully nice. I'm interested in those handlebars. Can you tell us about them? The forward reach looks long.
12-04-19, 09:01 AM
#14
Veteran, Pacifist
Join Date: Dec 2004
Location: Seattle area
Posts: 10,796
Bikes: Bikes??? Thought this was social media?!?
Mentioned: 242 Post(s)
Tagged: 0 Thread(s)
Quoted: 2689 Post(s)
Liked 1,501 Times
in
887 Posts
I like bikes with full socks!
Could use a bit of colour for POP. (not criticism, just suggestion)
Could use a bit of colour for POP. (not criticism, just suggestion)
12-04-19, 05:11 PM
#15
Semper Fi
Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,787
Bikes: 1980 Medici Pro Strada, 1984 Tommasini Prestige, 2012 Cannondale CAAD 10 Ultegra
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1132 Post(s)
Liked 190 Times
in
150 Posts
Originally Posted by Wildwood
I like bikes with full socks!
Could use a bit of colour for POP. (not criticism, just suggestion)
Could use a bit of colour for POP. (not criticism, just suggestion)
Bill
__________________
Semper Fi, USMC, 1975-1977
I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13
Semper Fi, USMC, 1975-1977
I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13
Last edited by qcpmsame; 12-04-19 at 05:17 PM.
12-04-19, 05:47 PM
#16
Senior Member
Thread Starter
Join Date: Nov 2010
Location: Mesa, AZ
Posts: 101
Bikes: Eddy Merckx Titanium, AX, '74 Raleigh International, Velo Orange Randonneur, Trek 7600, Fuji Touring Series V, DeRosa, Miami Vice Ironman, Eddy Merckx 10th Anniversary
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 15 Times
in
6 Posts
Originally Posted by TugaDude
The bars appear to be Nitto. I'm assuming one of their randoneur-type based upon the curves. Perhaps the OP remembers the model number?
i don’t remember the model number but they were referred to as Nitto Noodle.
2wheeljonz
12-04-19, 10:15 PM
#17
Senior Member
Originally Posted by 2wheeljonz
i don’t remember the model number but they were referred to as Nitto Noodle.
2wheeljonz
2wheeljonz
12-05-19, 12:33 AM
#18
Senior Member
Originally Posted by fliplap
Noodles are B177, but noodles don't have that rise. Might be a B132.
12-05-19, 02:45 PM
#19
Senior Member
Join Date: May 2014
Location: Lewisville, TX
Posts: 645
Bikes: 1976 Motobecane Grand Touring, 2013 Fuji Absolute 2.1 hybrid, 2000 Mongoose S2000 MTB, 2009 Schwinn Jaguar beach cruiser
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 82 Post(s)
Liked 148 Times
in
84 Posts
This Clydesdale appreciates that bike. Well done!
12-06-19, 09:53 AM
#20
Fat Guy on a Little Bike
Join Date: Jun 2008
Location: Philadelphia, PA
Posts: 17,117
Bikes: Two wheeled ones
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1217 Post(s)
Liked 198 Times
in
113 Posts
My International was among the flexiest bikes I've owned...constant ghost shifting. Not a bike I'd rec for a clyde.
12-06-19, 10:50 AM
#21
Senior Member
The bike looks great!
From the photo, it appears you need to work on your chain length. My guess is it is too shot.
From the photo, it appears you need to work on your chain length. My guess is it is too shot.
