Super Sport, suggestions please.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Super Sport, suggestions please.

Old 12-04-19, 05:43 PM
  #1
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,749

Bikes: 1980 Medici Pro Strada, 1984 Tommasini Prestige, 2012 Cannondale CAAD 10 Ultegra

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1115 Post(s)
Liked 156 Times in 126 Posts
Super Sport, suggestions please.

Right off the start, pictures will begin when I am building up this one, none right now. It's the frame and fork purchased here, from marius.suiram .

I'm starting to plan out the build of my recently acquired Schwinn Super Sport frame, not going for anything remotely totally accurate and catalogue correct. I do want to keep the 27" wheels, I scored a set of the correct SS wheels and a stock freewhee, bot in excellent condition, on eBay. I know that the FD, seat post and stem need to fit the unusual diameters that these CroMo Schwinn frames were made with, so these will be limited as to options save some machining work (possible but not my first choice.)

I am seriously considering using a slip in adapter for the bottom bracket, and using a 3-piece crankset. A Suntour, SR or Shimano of older vintage double would do the service, but which to use.

I also have decided to use a Suntour RD with a long cage, non-indexed, any suggestions as to which one to look for?

Saddle will be a Brooks leather, black, that is decided. If there was a quill style seat post that fit the ID of the tubing, please point me in the right direction, I need to take my calipers and find the metric sizing this evening. No problems with using a the Schwinn original post and clamp though.

Brakes will be the same center pulls as were offered on the bikes.

Have at, I'll post/respond more later on, right now the wife is ready for a taller person to place the angel on the Christmas tree!!!!

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 12-04-19, 06:06 PM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,578

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1068 Post(s)
Liked 381 Times in 247 Posts
Here are the oddities of the fillet-brazed Schwinn frames of that era:
  • 29.5mm seat tube outer diameter, about a millimeter larger than the standard 28.6 of most seat tubes. The lowly Huret FDs these bikes came with are not very good. I would recommend taking a file or dremel to an FD of your choice with a 28.6 clamp and opening it up a bit. Another option is a later FD made for an oversized seat tube (31.8mm) and make a shim to shim it down to 29.5mm. Also regarding the FD - there is no housing stop on the frame for the FD, so you will need to choose a model with a housing stop. For example, I put on a 1st generation Suntour Cyclone, some of which came with built in housing stops. There are clamp-on housing stops you could use, but again the odd diameter seat tube makes that trickier than it sounds. The other rub here is the seat clamp - I have not found a standard seat clamp that will fit well on this seat tube. I tried a 30mm and it was much too loose. YMMV. I stuck with the stock Schwinn steel one and just replaced the rusty hardware with a new large stainless bolt and nut. The seatpost diameter should be 26.8.
  • 21.15mm (13/16") fork steerer inner diameter,rather than the standard 22.2. So you will need a stem with a 21.15mm quill. The stock Schwinn-Approved/branded GB stems are actually pretty nice. Besides that, there are decent alloy stems from many manufacturers through the years in this diameter (Nitto, Jun, Win, Dia Compe, etc...).
  • 32.6mm head tube inner diameter, rather than the standard 30.2. As far as the headset goes, you will need an "OPC"- or "old school BMX"-sized headset to fit this. Luckily, the crown race and steerer outer diameter measurements are the same as standard. I would personally recommend using a reissued Tange MX125 headset if you want to replace the stock steel one on the Schwinn. It's a very well-made alloy headset, although a little expensive. https://www.ebay.com/itm/Tange-Seiki...-/181478891403

Last edited by TenGrainBread; 12-06-19 at 12:57 PM.
TenGrainBread is offline
Old 12-04-19, 06:29 PM
  #3
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,160

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '78 Motobecane Grand Jubile, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 341 Post(s)
Liked 519 Times in 297 Posts
One thing to watch for regarding the three piece crank conversion adapter - some of the bottom bracket shells on these Super Sports have just enough depth for the old press-in cups, but the adapter can bottom out against the thicker part of the inner shell. My old one was like this, but I don't think they all were.

Regardless, the adapters work great. I ran a Sugino Mighty Competition in mine for a while. Good to go.

Also, if yours has a derailleur hanger, it should be a Huret. Mine did not, and I ran indexed 7-speed Shimano with a claw. For a Suntour long cage, you can't go wrong with almost any of them. V-GT Luxe or Cyclone GT would be nice.
BFisher is offline
Old 12-04-19, 07:10 PM
  #4
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,804

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Likes: 0
Liked 103 Times in 63 Posts

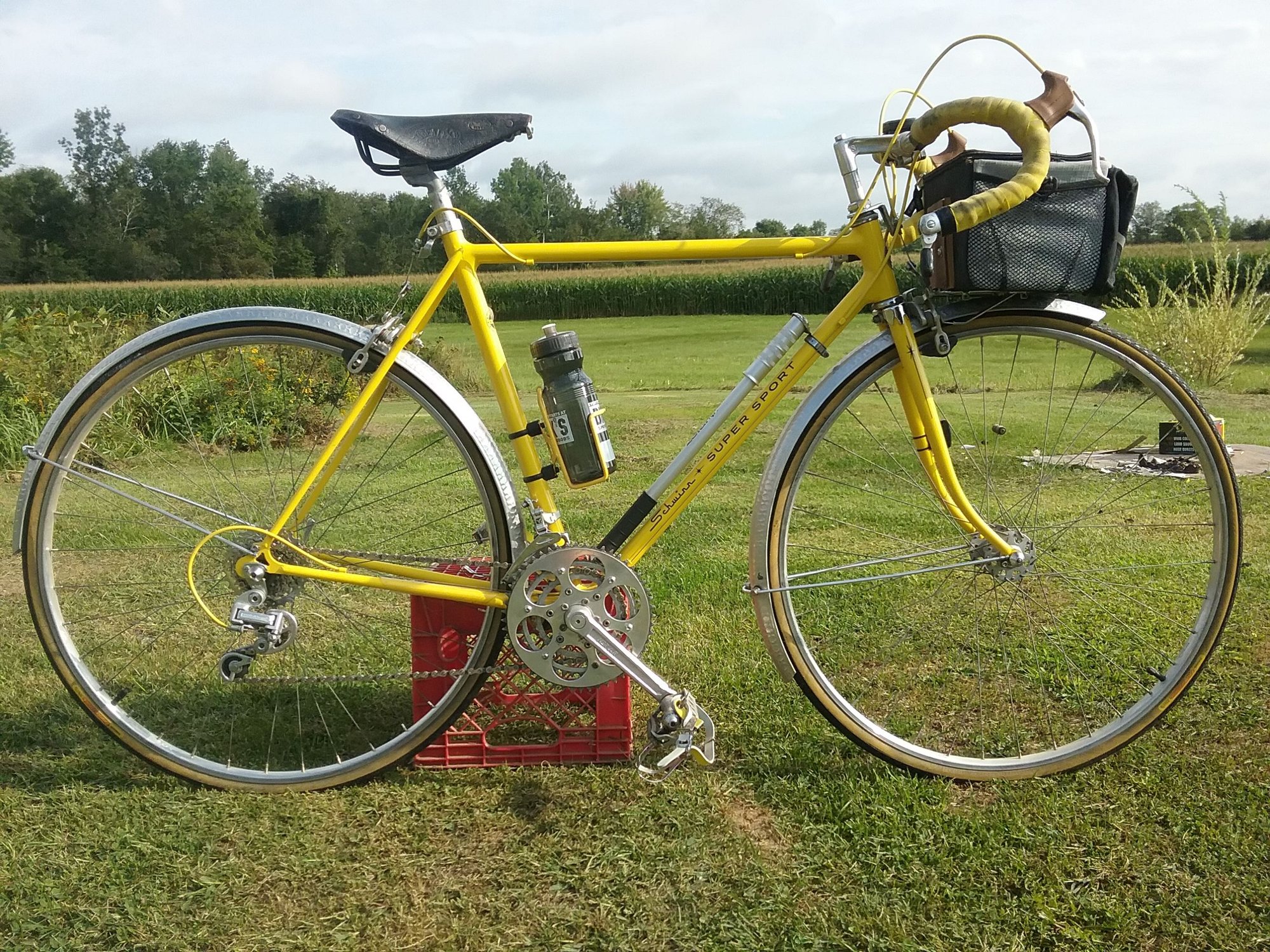

There it is, perfect.
All of @TenGrainBread 's and @BFisher 's observations are valid, but none are insurmountable.
A worthy project. As I cull down from 16 to 5, the SS will be one of the 5.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 12-04-19, 09:03 PM
  #5
cqlink
Senior Member

cqlink's Avatar

Join Date: Sep 2015
Location: Detroit
Posts: 621

Bikes: '72 Paramount 15-9, '74 Schwinn Paramount P10-9, '73 Schwinn Super Sport, 1983 Schwinn Voyageur SP,17 Motobecane Cafe Noir, 1970 Raleigh Competition Tourist, 1999 Rans V-Rex

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 208 Post(s)
Likes: 0
Liked 69 Times in 38 Posts
There's likely a ridge in the BB shell that will need to be ground down to get that type of BB to fit. Be careful when you torque down the screws if your using the Truvativ version. Very easy to strip those screws.
cqlink is offline
Old 12-04-19, 09:18 PM
  #6
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: City of Lakes
Posts: 1,964

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 487 Post(s)
Liked 167 Times in 116 Posts
Fun project! The Suntour VX-GT would be the easy choice for an RD, although I like the look of the Shimano Crane/LeTour GT300 myself. I suppose RD choice will depend on whether you choose to go indexed or not. I'm also partial to the original "Twin Stik" stem shifters. Those would also allow you to use any funky handlebar design you want. Whatever you do, send us pics!!!
__________________
"If we don't change direction soon, we'll end up where we're going." -Irwin Corey
Hudson308 is offline
Old 12-04-19, 09:57 PM
  #7
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,934

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 840 Post(s)
Liked 193 Times in 154 Posts
You do not need an integral cable stop on the front derailleur if you route the cable under the BB shell, as I did on the 1959 Capo, which has a newer Campag. Record instead of the original Gran Sport.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 12-04-19, 11:50 PM
  #8
Sandstrom
Senior Member

Sandstrom's Avatar

Join Date: Sep 2019
Location: Cincinnati
Posts: 166
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 69 Times in 42 Posts
Originally Posted by top506 View Post
There it is, perfect.
All of @TenGrainBread 's and @BFisher 's observations are valid, but none are insurmountable.
A worthy project. As I cull down from 16 to 5, the SS will be one of the 5.

Top
Oh man, I can see why, that bike is a beauty! What are those cranks? They have to be the coolest set of cranks I've ever seen...
Sandstrom is offline
Old 12-05-19, 05:38 AM
  #9
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,434

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 597 Post(s)
Liked 182 Times in 125 Posts
Bill,

Finding a quill type seat post is not a problem. At the moment I'm forgetting the diameter dimension but there are several manufacturers who made posts in the same size.

Super Sport conversions are great fun and the bike is a joy to ride. While not light weight, it is a bike which is easily ridden all day. The fillet brazed frame is semi-unique and has great geometry which contributes to the "plush" ride. The frameset makes a wonderful canvas upon which "to paint" your one-of-a-kind ride!

Looking forward to your pictures and your creation!
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Likes For pastorbobnlnh:
Old 12-05-19, 06:33 AM
  #10
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,804

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 392 Post(s)
Likes: 0
Liked 103 Times in 63 Posts
Originally Posted by Sandstrom View Post
Oh man, I can see why, that bike is a beauty! What are those cranks? They have to be the coolest set of cranks I've ever seen...
The cranks themselves (and BB) are the Nevar set that came on the mid 70's Sports Tourers. Outer ring is Viscount, two inner rings are Lambert, 52/42/34.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Old 12-05-19, 06:46 AM
  #11
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,782
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 571 Post(s)
Liked 191 Times in 111 Posts

i went classic French components on mine. Tubulars too. Nice riding bike.
big chainring is offline
Likes For big chainring:
Old 12-05-19, 07:03 AM
  #12
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,160

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '78 Motobecane Grand Jubile, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 341 Post(s)
Liked 519 Times in 297 Posts
Originally Posted by big chainring View Post
i went classic French components on mine. Tubulars too. Nice riding bike.
Isn't that an Italian RD? Nice looking ride!

Bar ends would be my choice as well if I ever build another SS. Stops are already there.

I'll second the comments about ride quality. These really are smooth riding bikes.
BFisher is offline
Old 12-05-19, 10:32 AM
  #13
Slightspeed
Senior Member

Slightspeed's Avatar

Join Date: Apr 2017
Location: Los Angeles, CA
Posts: 2,162

Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 709 Post(s)
Liked 618 Times in 339 Posts
I agree on the VGT Luxe RD. I have two of them paired with Suntour Cyclone II FD with the adjustable mounting band. Not sure if they fit your seat tube diameter, but these Cyclone II work great either as a double or triple. One downside, the Cyclone II I have do not have built in cable stops. Both of these bikes are paired with Suntour bar end shifters, my favorites. Never fooled with BB adaptors, so I can't give you any ideas there. I rode awhile with a guy on a yellow Super Sport at last year's Eroica. He's had the bike since new, but had made a few upgrades.

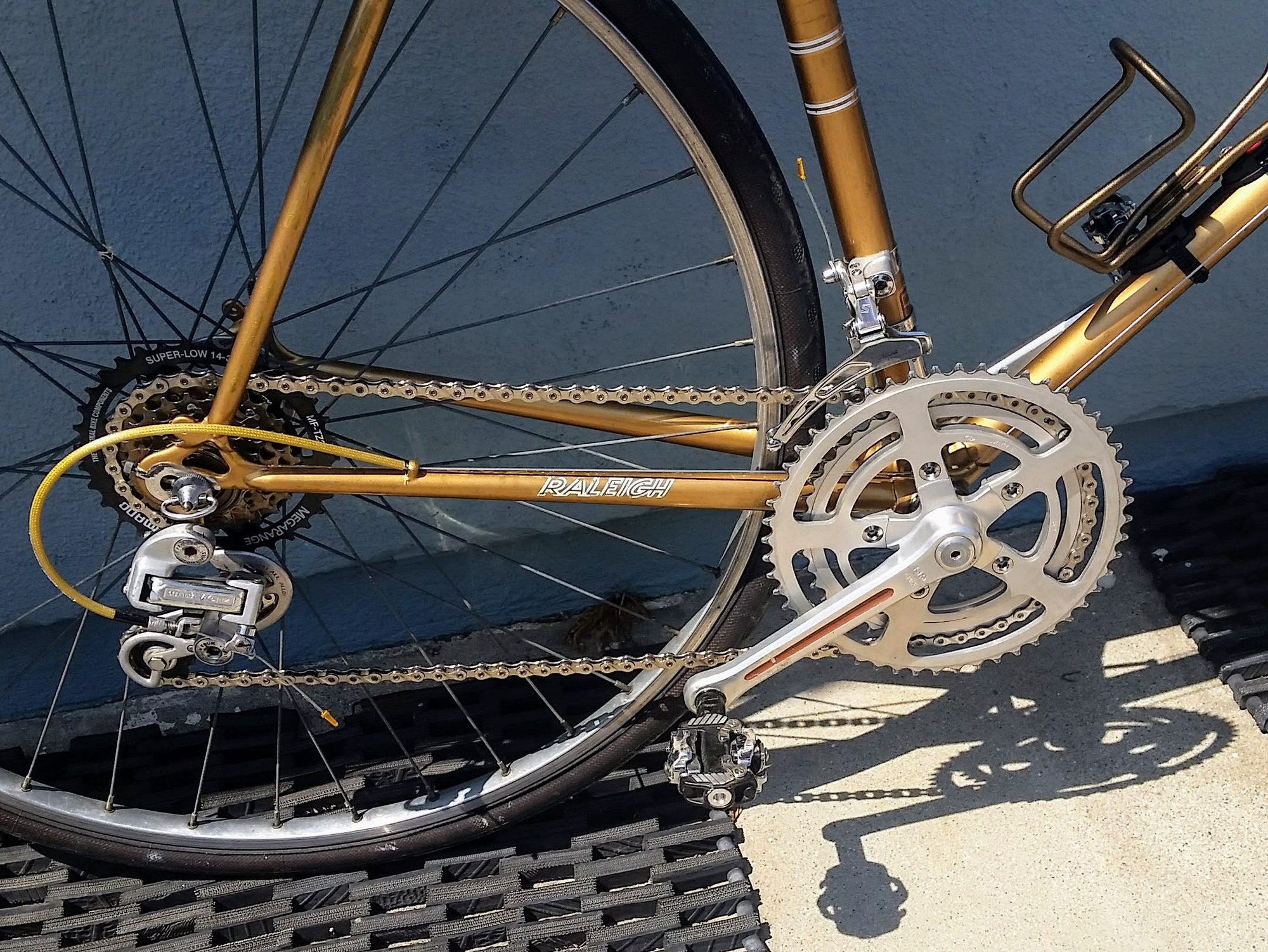

Direct mount VGT Luxe, Cyclone II, Sakae SR Apex double crank and Megarange 34t six speed. Great combination.

Similar set-up, but with claw mount VGT Luxe, and with Sugino AT triple. Very versatile combination.

Last edited by Slightspeed; 12-05-19 at 10:48 AM.
Slightspeed is offline
Old 12-05-19, 03:54 PM
  #14
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,434

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 597 Post(s)
Liked 182 Times in 125 Posts
Originally Posted by big chainring View Post

i went classic French components on mine. Tubulars too. Nice riding bike.
Tubulars on a Super Sport! Love it! I have the same Schwalbe One tubulars on my '71 Paramount. Great riding tires and I love the idea of mounting them on my '71 Super Sport "Sporty."



My only challenge would be that the current Campagnolo brake calipers would not reach the 700c diameter rims. They barely work on the 27" wheels I currently run. I'd need to find suitable replacements.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 12-05-19, 04:29 PM
  #15
sykerocker
Senior Member

sykerocker's Avatar

Join Date: Dec 2005
Location: Ashland, VA
Posts: 4,272

Bikes: The keepers: 1958 Raleigh Lenton Grand Prix, 1968 Ranger, 1969 Magneet Sprint, 1971 Gitane Tour de France, 1973 Raleigh Tourist, 3 - 1986 Rossins, and a '77 PX-10 frame in process.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 112 Times in 69 Posts
Did the same thing a number of years ago, still have the bike. My plan was to duplicate my first 10-speed to the condition it was in just before I sold it. At that time, I had a burgundy '72:

Stripped the stock crankset down to the bare minimum.
Replaced the stem shifters with Huret friction downtube shifters.
Removed the 'safety levers' from the brakes.
Replaced the stock saddle with a Brooks Swallow.
Rebuilt the stock hubs with Mavic tubular rims and tires.

A few years ago I chanced on an orange '73 in nice condition, which I rebuilt as pictured. Since this picture, the saddle has been replaced with a Brooks B-17, and . . . . . . . thank God . . . . . . . . about three months ago the crankset was replaced with a modern cotterless conversion bottom bracket (the modern ones are a lot nice than those things they've been selling for decades), and the Nervar cotterless crank I'd been saving for this bike. Considering the rest of my vintage European cranks were lost in the fire, I'm damned glad I quit putting this job off. Still want to replace the Huret Allvit, but with something else Huret. Tried a Svelto, wasn't happy with the way it worked, put the Allvit back on.

__________________
Syke

"No wonder we keep testing positive in their bicycle races. Everyone looks like they're full of testosterone when they're surrounded by Frenchmen." ---Argus Hamilton

Last edited by sykerocker; 12-05-19 at 04:30 PM. Reason: damn spellchecker
sykerocker is offline
Old 12-05-19, 07:03 PM
  #16
Kdogbikes
Senior Member

Join Date: Jul 2015
Location: Madison, Ohio
Posts: 638

Bikes: Gitane tdf,Schwinn 12.2,2 continentals,miyata310,univega supra soort,couple peugeots,ou8,ou10,a few mtb's and other bikes

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 136 Post(s)
Liked 49 Times in 38 Posts
qcpmsame. Following this thread bc I’m in process of a ss build also. Managed to remove all of the paint on mine to be able to see the fillet brazing. Working on part selection over the winter. I have a Ross bike that has a 3piece crank that I may try. Cheers, Kevin.
Kdogbikes is offline
Likes For Kdogbikes:
Old 12-05-19, 09:30 PM
  #17
big chainring
Senior Member

Join Date: Sep 2007
Location: Wilmette, IL
Posts: 6,782
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 571 Post(s)
Liked 191 Times in 111 Posts
Originally Posted by pastorbobnlnh View Post
Tubulars on a Super Sport! Love it! .
I'm running tubulars on my Grand Prix too. I cant hep myself.

big chainring is offline
Old 12-05-19, 11:23 PM
  #18
Sandstrom
Senior Member

Sandstrom's Avatar

Join Date: Sep 2019
Location: Cincinnati
Posts: 166
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Liked 69 Times in 42 Posts
Originally Posted by top506 View Post
The cranks themselves (and BB) are the Nevar set that came on the mid 70's Sports Tourers. Outer ring is Viscount, two inner rings are Lambert, 52/42/34.

Top
Thanks for explaining. I have to look into the Viscount stuff, very nice...
Sandstrom is offline
Old 12-05-19, 11:52 PM
  #19
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,354
Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 193 Times in 129 Posts
Originally Posted by pastorbobnlnh View Post
Bill,

Finding a quill type seat post is not a problem. At the moment I'm forgetting the diameter dimension but there are several manufacturers who made posts in the same size.

Super Sport conversions are great fun and the bike is a joy to ride. While not light weight, it is a bike which is easily ridden all day. The fillet brazed frame is semi-unique and has great geometry which contributes to the "plush" ride. The frameset makes a wonderful canvas upon which "to paint" your one-of-a-kind ride!

Looking forward to your pictures and your creation!
The seatpost is 26.8mm, IIRC. I put a Kalloy seatpost in my restomod green Superior and it fit perfectly. I also have a Super Sport that I'm working on bit by bit. It'll be a three-speed with a three-piece Nervar crank conversion and a cat chainring. Normal I ain't...

__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Likes For Jeff Wills:
Old 12-06-19, 06:41 AM
  #20
sykerocker
Senior Member

sykerocker's Avatar

Join Date: Dec 2005
Location: Ashland, VA
Posts: 4,272

Bikes: The keepers: 1958 Raleigh Lenton Grand Prix, 1968 Ranger, 1969 Magneet Sprint, 1971 Gitane Tour de France, 1973 Raleigh Tourist, 3 - 1986 Rossins, and a '77 PX-10 frame in process.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 112 Times in 69 Posts
Originally Posted by Sandstrom View Post
Thanks for explaining. I have to look into the Viscount stuff, very nice...
Lambert/Viscount cranks are quite nice. I've got a triple on my Lambert which I've been rather happy with, it's probably the only component I've returned to the frame that hasn't downgraded performance from what the bike originally came with (Lambert frame, nothing else on the bike was). Unfortunately, lost two other cranksets (both doubles) in the fire.
__________________
Syke

"No wonder we keep testing positive in their bicycle races. Everyone looks like they're full of testosterone when they're surrounded by Frenchmen." ---Argus Hamilton
sykerocker is offline
Old 12-06-19, 11:33 AM
  #21
maaakaaa
Member

Join Date: Apr 2017
Posts: 29

Bikes: 2011 Giant TranceX, 2015 Ralleigh Rumson, early 1990s Gitane CX, 1993 Specialized Rockhopper Sport, 1992 Bianchi Project-3, 1994 Norco Blitz

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 4 Times in 4 Posts
Very cool Super Sport! When I was growing up my dad had a dark green SS that he bought new in college (maybe ‘71?). I always admired the style of the fillet brazed frame, even before I knew what the method was. He would ride it for everything—mostly park riding with us on rough paved and dirt paths and it seemed to do fine.

Eventually I sold it for him since he was ready for a more leisurely ride and it was unfortunately too big for me. The person who bought it got a great deal, and was excited about the bike.
maaakaaa is offline
Old 12-06-19, 11:52 AM
  #22
machinist42
Senior Member

machinist42's Avatar

Join Date: Dec 2016
Location: Silver Lake, Wilmington, NC
Posts: 1,360

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 557 Post(s)
Liked 106 Times in 80 Posts
Not About Me

Suggestions?

I suggest you read through this thread.

(I recently acquired a '72 SS in Opaque Green, and a '64. Both are 24", and sport most of their originality. I have no intention of keeping the '64 original; it has been oversprayed. Neither are presentable; they are disassembled. I've surveyed much of the literature out there, and that thread has been the most helpful and inspirational.)

Last edited by machinist42; 12-06-19 at 10:12 PM.
machinist42 is offline
Likes For machinist42:
Old 12-06-19, 02:18 PM
  #23
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 795

Bikes: Retrospec AMOK low budget low trail - Polygon Bend RV - Bombtrack Arise

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 63 Post(s)
Liked 59 Times in 34 Posts
That looks so good. I have to know what method you used to strip it.
Dylansbob is offline
Old 12-09-19, 06:49 PM
  #24
qcpmsame
Semper Fi
Thread Starter

qcpmsame's Avatar

Join Date: Jan 2008
Location: Barrineau Park, Florida
Posts: 12,749

Bikes: 1980 Medici Pro Strada, 1984 Tommasini Prestige, 2012 Cannondale CAAD 10 Ultegra

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1115 Post(s)
Liked 156 Times in 126 Posts
Thanks much for all the input, I kind of got waylaid by life stuff, our home is nearby Pensacola, FL. I have done several construction and renovation projects in the building where the horrible terrorist attack occurred, and I was attached there as it was Hq Naval Aviation Schools Command, during brief AVROC and AOC training periods, as well as multiple projects throughout the Schools Command campus over the years. Kind of rocked me back, to follow the news this weekend Sorry for being away right after posting this one.

Lots of good inspiration here, some great looking builds of Sports!

The frame set came with the head set, so that is good to go. I plan to use a correct Schwinn stem and Randonneur bend bar. I figured on having to modify the tube clamp on which ever FD I decide to use, looking for a nice triple crankset and bottom bracket right now, so the FD will need to accommodate that if I go with that thought. There is no hanger on the drive side drop, so a claw mounted RD is going to be in order, I see no problems in finding that accommodation at all.

Pastor Bob, I am not going the tubby route with this one, two with tubulars is good for now, she gets the original wheel set as I scored a really nice condition on eBay, will be getting a pair of
Pasela 27-1-1/4 gum walls, and the same seller had a pretty good freewheel too. You'll be receiving an order for the Spa Treatment shortly.

I have already decided that it gets either media blasted, of just plain old stripped, then repainted in the same Kool Lemon colourway. Decals will be obtained for placement then clear coat applied over them.

Seriously considering bar end shifters, I loved the SunTours my Raleigh Super Course came with.

Getting back to abnormal now, thanks for the suggestions and sizing information, I'm not going to attempt a complete naming of all of you that have been such a great source of information on this new adventure. Into the breech once more.....

Bill
__________________
Semper Fi, USMC, 1975-1977

I Can Do All Things Through Him, Who Gives Me Strength. Philippians 4:13


qcpmsame is offline
Old 12-09-19, 08:02 PM
  #25
Iowegian
Senior Member

Iowegian's Avatar

Join Date: Dec 2005
Location: Boulder, Colo
Posts: 2,017
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Liked 7 Times in 7 Posts
I'g glad I stumbled on this thread. I, too, have a SS project in the works and the info here was great. It's just a F/F/HS at this point as it was stripped when I bought it. I've since recycled the crankset, bought a BB converter and a threadless stem adapter after removing the old stem with lye. Top's yellow SS is soooo cool that I might even get it power coated in that color now that I see what is possible although the original plan was to leave the old faded red paint alone. In any event, thanks for the inspiration and information and hints and I'll update if/when I get something together.

Edit to add: I just looked through the thread linked above and saw the OP there used a modified BB30 crankset. I was thinking of that as well and it's great to know what is involved.

Last edited by Iowegian; 12-09-19 at 08:09 PM.
Iowegian is offline
Likes For Iowegian:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
