1985 Suntour Cyclone Front Derailleur Question

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1985 Suntour Cyclone Front Derailleur Question

Old 12-05-19, 09:02 PM
  #1
jdave5917
Senior Member
Thread Starter

Join Date: Feb 2010
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 1 Time in 1 Post
1985 Suntour Cyclone Front Derailleur Question

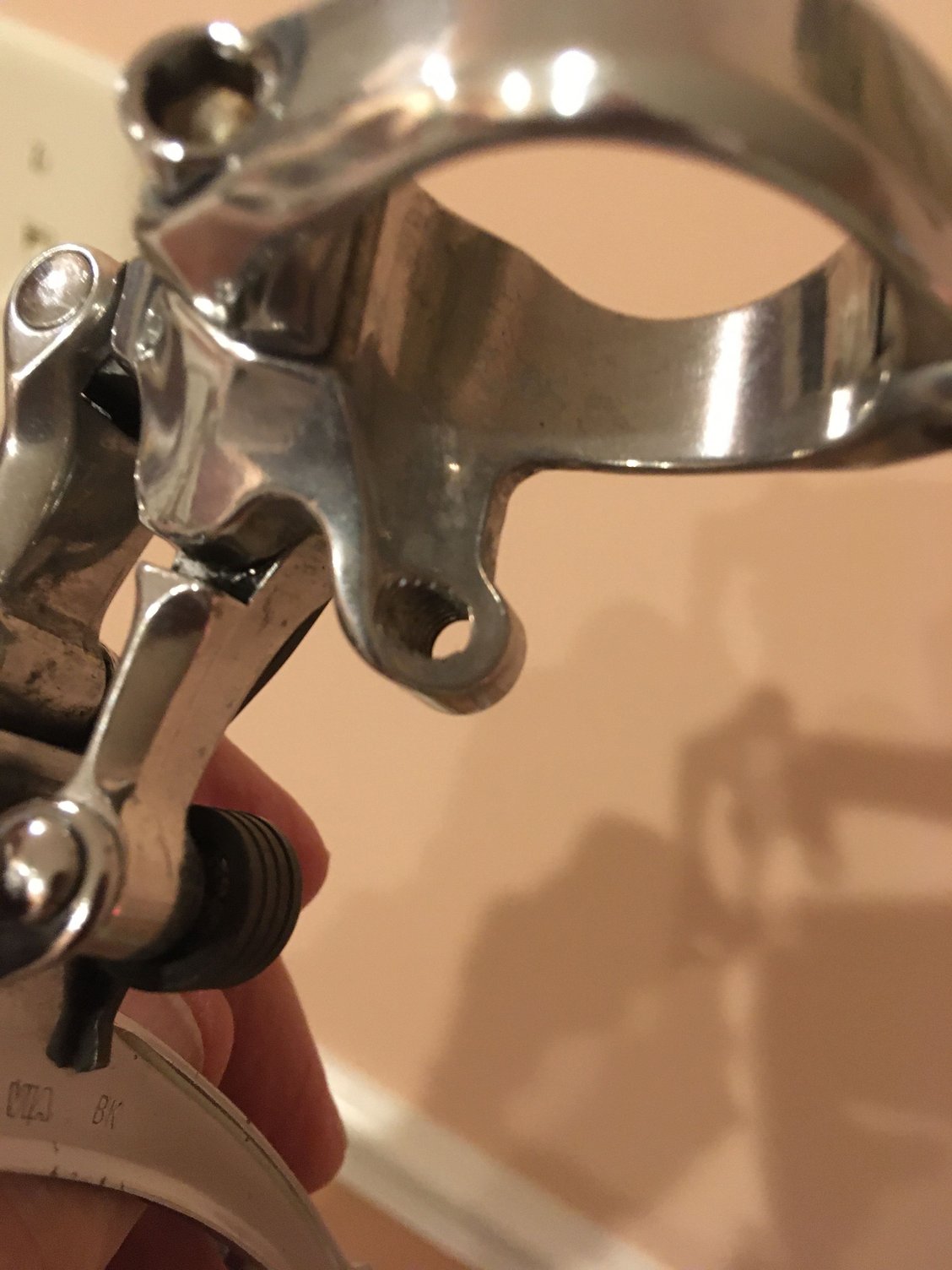

Late 1985 Suntour Cyclone front derailleur. Curious what the purpose of the threaded hole at the bottom of that "tail" on the clamp is for. Guessing for some alternative clamping method.
jdave5917 is offline
Old 12-06-19, 01:39 AM
  #2
d_dutchison
Classic, Vintage Mechanic

Join Date: Feb 2017
Location: Vancouver B.C. Canada
Posts: 98

Bikes: '65 Legnano Gran Primeo || '76 Holdsworth Mistral || '82 Specialized Stumpjumper

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 21 Times in 15 Posts
It's there for a thread-in cable stop in case you're running cable covers instead of using a BB cable guide - other Suntour F. Ders had them too. The stops had a 5mm thread so they could also be screwed into downtube shifter bosses for use with bar-cons instead of using a clamp-on cable stop.
d_dutchison is offline
Old 12-06-19, 07:57 AM
  #3
jdave5917
Senior Member
Thread Starter

Join Date: Feb 2010
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by d_dutchison View Post
It's there for a thread-in cable stop in case you're running cable covers instead of using a BB cable guide - other Suntour F. Ders had them too. The stops had a 5mm thread so they could also be screwed into downtube shifter bosses for use with bar-cons instead of using a clamp-on cable stop.
Just realized I posted this in the wrong forum but thanks for the reply. The hole on this one looks more like a 3 mm tap/thread, or 4 mm at most. The cable clamp screw threads in perfectly and it's definitely smaller than 5 mm.
jdave5917 is offline
Old 12-06-19, 08:18 AM
  #4
cb400bill
High Derolic Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 19,118

Bikes: Fuji SL 2.1 Carbon, Cannondale Synapse Alloy, Trek 710

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2307 Post(s)
Liked 2,536 Times in 1,566 Posts
Originally Posted by jdave5917 View Post
Just realized I posted this in the wrong forum but thanks for the reply.
Thread moved from appraisals to C&V.
cb400bill is offline
Old 12-06-19, 08:19 AM
  #5
jdave5917
Senior Member
Thread Starter

Join Date: Feb 2010
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 1 Time in 1 Post
1985 Suntour Cyclone Front Derailleur Question

Moving this thread here since I unintentionally posted it in the "What's it Worth" forum yesterday.
Late 1985 Suntour Cyclone front derailleur. Curious what the purpose of the threaded hole at the bottom of that "tail" on the band clamp is for.
jdave5917 is offline
Old 12-06-19, 09:44 AM
  #6
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,949

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1060 Post(s)
Liked 487 Times in 346 Posts
That would be for an optional cable housing stop. A few other derailers have this also iir.
dddd is offline
Old 12-06-19, 11:07 AM
  #7
cb400bill
High Derolic Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 19,118

Bikes: Fuji SL 2.1 Carbon, Cannondale Synapse Alloy, Trek 710

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 2307 Post(s)
Liked 2,536 Times in 1,566 Posts
Merged duplicate threads.
cb400bill is offline
Old 12-06-19, 04:11 PM
  #8
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,382

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 751 Post(s)
Liked 530 Times in 349 Posts
Originally Posted by jdave5917 View Post
Moving this thread here since I unintentionally posted it in the "What's it Worth" forum yesterday.
Late 1985 Suntour Cyclone front derailleur. Curious what the purpose of the threaded hole at the bottom of that "tail" on the band clamp is for.
Here is a related thread that I started when I had the same question some time ago. It includes pics!

Suntour FD cable housing stop missing -- workaround?
noobinsf is offline
Old 12-06-19, 07:41 PM
  #9
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,438

Bikes: yes

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 429 Post(s)
Likes: 0
Liked 143 Times in 72 Posts

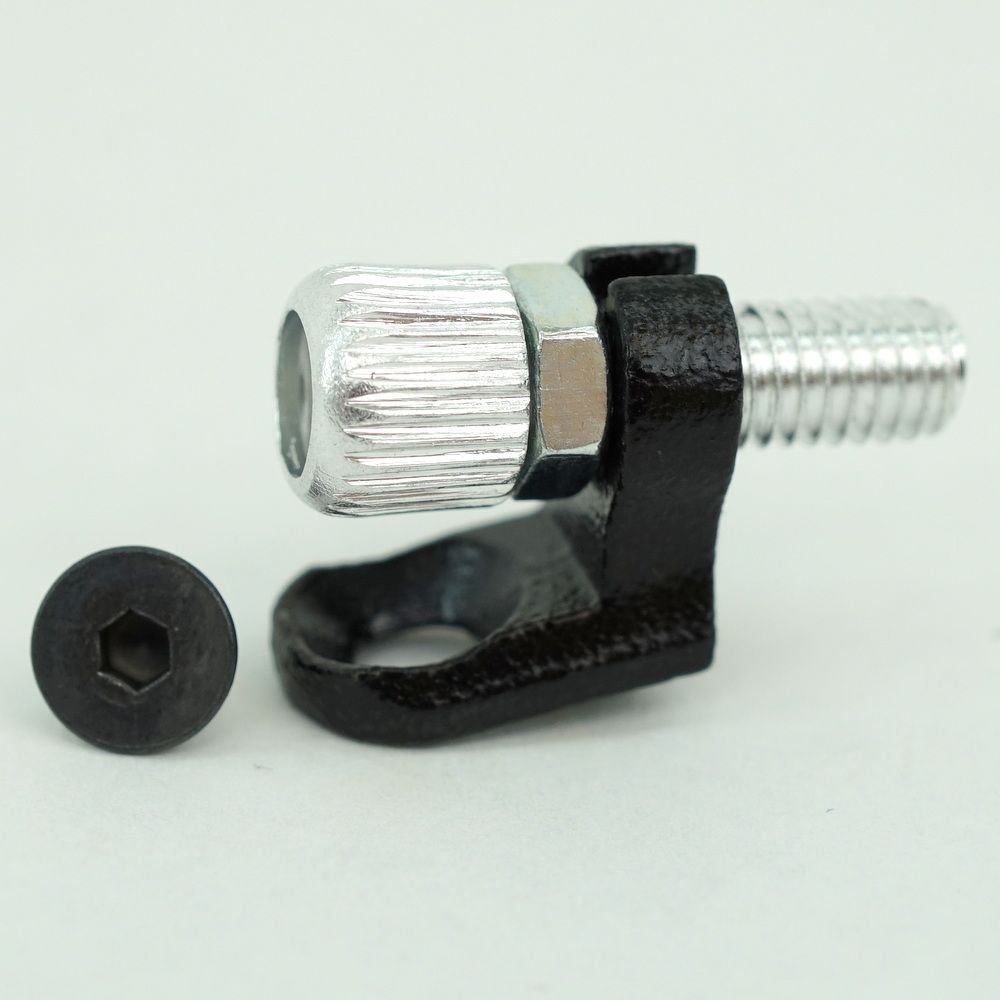

Another potential solution. Would probably require obtaining the correct threaded bolt, to fit the derailleur.

https://www.planetbmx.com/shop/threa...able-stop.html

Vintage_Cyclist is offline
Old 12-07-19, 10:04 AM
  #10
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 12,614

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 2180 Post(s)
Liked 645 Times in 400 Posts
Here's two pretty much identical Mountech FDs- one has the cable stop, the other doesn't:

Mountech FD by Dave The Golden Boy, on Flickr

Mountech FD Side by Dave The Golden Boy, on Flickr


FWIW- it's a 5g cable stop.
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
Old 12-07-19, 11:05 AM
  #11
jdave5917
Senior Member
Thread Starter

Join Date: Feb 2010
Posts: 87
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by noobinsf View Post
Here is a related thread that I started when I had the same question some time ago. It includes pics!

Suntour FD cable housing stop missing -- workaround?
Thanks - the photos were helpfull. In my case, the question was just to satisfy my curiosity since the 1986 Club Fuji that I'm working on has integrated cable guides on the bottom of the bottom bracket shell.
jdave5917 is offline
Old 12-08-19, 02:34 PM
  #12
d_dutchison
Classic, Vintage Mechanic

Join Date: Feb 2017
Location: Vancouver B.C. Canada
Posts: 98

Bikes: '65 Legnano Gran Primeo || '76 Holdsworth Mistral || '82 Specialized Stumpjumper

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 21 Times in 15 Posts
Originally Posted by jdave5917 View Post
... The cable clamp screw threads in perfectly and it's definitely smaller than 5 mm.
The clamp screw on a Suntour FD is (also) 5mm
d_dutchison is offline
