1972 Colnago Super Eddy Merckx part list

Hello I recently acquired a 1972 colnago super EM with original paint and decals. Just the frameset. Iíd like to build it up just like this catalog scan. My question is does anyone know the parts rundown on this bike? Specifically the stem, would it have been 3ttt or cinelli? It looks to have 3 lines panto on it. Anyone seen one of these I canít find a pic outside of this scan. Any help would be much appreciated

Zen10NiN is offline
Old 12-17-19, 10:06 AM
  #2
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
Basically full Campagnolo. Record/Nuovo Record, take your pick. Steel quill pedals with the strap loop, Binda blue straps.
Regular/normal reach brakes, "flat" quick release levers, no plastic on the tire guides.
No lip front derailleur, crank set before date codes. Campagnolo cables.
The chainring and seatpost are custom drill/mill/ I think Greg Softley may have made up big rings like that.
Rims on the imaged bike appear to be Nisi Oro. 32 spoke was common, Italian threading, Regina ORO chain ( early SC, not the Extra Oro) and freewheel.
Tires, Clement seta or Pirelli.
Saddle, Cinelli. Stem oval logo, (also custom milled) bike shows Cinelli Model 66 bars.
ALE waterbottle cage.

That should deplete the bank pretty effectively to replicate.
repechage is offline
Old 12-17-19, 10:25 AM
  #3
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by repechage View Post
Basically full Campagnolo. Record/Nuovo Record, take your pick. Steel quill pedals with the strap loop, Binda blue straps.
Regular/normal reach brakes, "flat" quick release levers, no plastic on the tire guides.
No lip front derailleur, crank set before date codes. Campagnolo cables.
The chainring and seatpost are custom drill/mill/ I think Greg Softley may have made up big rings like that.
Rims on the imaged bike appear to be Nisi Oro. 32 spoke was common, Italian threading, Regina ORO chain ( early SC, not the Extra Oro) and freewheel.
Tires, Clement seta or Pirelli.
Saddle, Cinelli. Stem oval logo, (also custom milled) bike shows Cinelli Model 66 bars.
ALE waterbottle cage.

That should deplete the bank pretty effectively to replicate.
Wow! Just what I was looking for! Thanks man! I want to try and drill out the chain ring myself it doesnít look too difficult. Tell me more about these custom milled parts. So that seatpost is a campy NR post with custom panto? Who did that panto? Do you have any pics? I have most of the campy NR parts Iíve been building up a collection past couple years. Even have pat 72 rd.
Zen10NiN is offline
Old 12-17-19, 12:48 PM
  #4
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
If you have a vertical mill and a rotary table (with indexing head even better) go- otherwise do a sample on a cheap used up ring.
Not that easy. Not impossible, but I would not want to do it.

Colnago panto or milling varied a lot, 5 -6mm probably on the seatpost, 6-8mm on the stem as seen in the image, probably 1-1.5mm deep on stem, .5 to 1mm deep on the seatpost, probably 6-8 flutes. often the flutes end short of the stampings, I would hold the flute on the back side of the seatpost above the seat lug.
repechage is offline
Old 12-17-19, 01:27 PM
  #5
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,768

Bikes: 1998 Pinarello Asolo, 1992 KHS MontaŮa pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 104 Times in 73 Posts
OP, I suppose you've seen this already?

75 Colnago Molteni
Reynolds is offline
Old 12-17-19, 01:34 PM
  #6
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by Reynolds View Post
OP, I suppose you've seen this already?

75 Colnago Molteni
saw that earlier today. Shame jon the milling guy isnít around anymore
Zen10NiN is offline
Old 12-17-19, 01:42 PM
  #7
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
Forgot about Ray's bike, very well done, very very little to pick at.

Note that Eddy used Superleggeri Pista pedals often as seen in magazine images from the day.
The Catalog, shows steel strada.

A 1972 bike would have the Cinelli saddle without the logo on the back. a '75 would.
repechage is offline
Old 12-17-19, 03:12 PM
  #8
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by repechage View Post
Forgot about Ray's bike, very well done, very very little to pick at.

Note that Eddy used Superleggeri Pista pedals often as seen in magazine images from the day.
The Catalog, shows steel strada.

A 1972 bike would have the Cinelli saddle without the logo on the back. a '75 would.
just a pure black cinelli saddle?
Zen10NiN is offline
Old 12-17-19, 04:45 PM
  #9
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,469
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 726 Post(s)
Liked 125 Times in 95 Posts
Google on Colanago Super Pantagrafata. Lots will come up. Check Google image gallery as well as listings.
Current master of panto is Chris Howard @ cycloretro.com. Remember that prices quoted are in Australian dollars which are about $0.70 American. Also be aware that his work is significantly better than original and he doesn't easily turn that off.
63rickert is offline
Old 12-17-19, 06:34 PM
  #10
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
Originally Posted by Zen10NiN View Post
just a pure black cinelli saddle?
Side skirt foil stamping is the only decoration, the oval type as shown in the catalog image faintly.
Later the rear of the saddle received branding too.
repechage is offline
Old 12-17-19, 06:41 PM
  #11
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
Originally Posted by Zen10NiN View Post
just a pure black cinelli saddle?
Side skirt foil stamping is the only decoration, the oval type as shown in the catalog image faintly.
Later the rear of the saddle received branding too.
repechage is offline
Old 12-18-19, 05:17 AM
  #12
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,271

Bikes: 1969/70 Legnano Roma, 1971 Guerciotti, 1972 Cinelli SC, 1973 Bianchi Team, 173 Colnago Super, 1974 Marnati Corsa, 1974 ish Motobecane CT, 1971 Mercier 300, 1977/78 Colnago Mexico, 1982 Pinarello Italia,Tesch S-22, 1983 Peugeot Mixte

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 36 Times in 23 Posts
How about some photos of your bike? Would love to see them!
satbuilder is online now
Old 12-18-19, 05:21 AM
  #13
styggno1
Steel is real

styggno1's Avatar

Join Date: May 2016
Location: Stockholm, Sweden
Posts: 703

Bikes: A lot - accumulated over +30 years

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 211 Post(s)
Liked 27 Times in 15 Posts
Originally Posted by repechage View Post
snip...

Stem oval logo, (also custom milled)

snip...
And make sure it is a nutted oval logo Cinelli stem.




styggno1 is offline
Old 12-18-19, 09:09 AM
  #14
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by styggno1 View Post
And make sure it is a nutted oval logo Cinelli stem.




nice observation. Itís the little things. Thanks for pointing that out!
Zen10NiN is offline
Old 12-18-19, 09:10 AM
  #15
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts

Here she is. In all her glory
Zen10NiN is offline
Old 12-18-19, 09:11 AM
  #16
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by satbuilder View Post
How about some photos of your bike? Would love to see them!
Posted below
Zen10NiN is offline
Old 12-18-19, 10:00 AM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
The finish has suffered.
are you considering getting it painted?
this color has been known to fade.
if you are considering paint - color sand with 1000 grit with water and the original color will reveal- match to that.
be sure to measure graphics placement
some use a reference stick for easy transfer of placement.
nothing cries error louder than a sat tube band covered partly by the derailleur band or Super hiding behind a chainring.
repechage is offline
Old 12-18-19, 10:39 AM
  #18
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,271

Bikes: 1969/70 Legnano Roma, 1971 Guerciotti, 1972 Cinelli SC, 1973 Bianchi Team, 173 Colnago Super, 1974 Marnati Corsa, 1974 ish Motobecane CT, 1971 Mercier 300, 1977/78 Colnago Mexico, 1982 Pinarello Italia,Tesch S-22, 1983 Peugeot Mixte

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 36 Times in 23 Posts
Originally Posted by Zen10NiN View Post
Posted below
I'm not sure where you're located, but Franklin frames did a wonderful job on the repaint of Ray Dobbins' restoration, mentioned earlier in this thread.

Does your frame by chance have any areas down to primer? I'm trying to find the primer color they used on their Molteni orange paint jobs.

I've been trying to hone in on the correct shade of orange for the Colnagos, as my '73 is in need of some touchup, or a repaint. Getting close. So far I've tried the following RAL colors: 2000, 2004, 2008, 2010, 2011. And I've mixed different quantities of each to get close, but still not quite there yet.

Looks like a fun project. Would love to find a Merckx.

Kurt

Last edited by satbuilder; 12-18-19 at 10:57 AM. Reason: .
satbuilder is online now
Likes For satbuilder:
Old 12-18-19, 01:32 PM
  #19
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by repechage View Post
The finish has suffered.
are you considering getting it painted?
this color has been known to fade.
if you are considering paint - color sand with 1000 grit with water and the original color will reveal- match to that.
be sure to measure graphics placement
some use a reference stick for easy transfer of placement.
nothing cries error louder than a sat tube band covered partly by the derailleur band or Super hiding behind a chainring.
not a chance! Only original once!
Zen10NiN is offline
Likes For Zen10NiN:
Old 12-18-19, 03:52 PM
  #20
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,194
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1257 Post(s)
Liked 257 Times in 204 Posts
Originally Posted by Zen10NiN View Post
not a chance! Only original once!
It does have that Gladiator look.
I just facilitated one for a friend that I will place in that category.
repechage is offline
Old 12-19-19, 03:25 AM
  #21
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 282
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 162 Post(s)
Liked 168 Times in 103 Posts
Originally Posted by Zen10NiN View Post
just a pure black cinelli saddle?
If you want it to match what Eddy rode in the '72 TdF, I think that would be a Brooks Pro. I was just watching this footage of the '72 tour
-- German language, which I don't understand, but still very interesting. You can see his saddle two places in that video, both just for a split second, but it clearly has large rivets, which probably means Brooks.

Eddy's Brooks was probably custom butchered, with those the large copper rivets that are hammered flush with the leather. Like the Team Pro, where Brooks tried to mimic the work of the custom saddle butchers. It's possible Eddy rode a stock Team Pro (they were available in 72) but unlikely I think. The video isn't good enough to tell if it's been butchered, but he was famously picky about his saddle and would have gone with the best. It's also possible that he rode the Brooks in some stages and some other saddle (Unicanitor?) in others, but I doubt it. Finally, it's possible his saddle started life as something other than a Brooks Pro. I have seen some butchered B-17 saddles on pros' bikes, and certainly a saddle customizer could have started with an Idťale or any other leather saddle brand, though Brook is most common.

It's not easy to find a real pro-quality custom butchered saddle from back then, from one of the good guys. Ottusi is probably the most famous, but I don't know who did Eddy's saddles. They were always rare, and riders took them with them from bike to bike, even from team to team. It's one of those "you can have my butchered Brooks when you pry it from my cold dead fingers" kinda things. I have one, with the rivets stamped with "LŁders Berlin", but I don't know if it's considered one of the good ones. It's not reshaped as much as an Ottusi, just carved a bit. The big rivets are not done quite the same way as a stock Team Pro, so you can tell it's customized.

A Unicanitor is perfectly acceptable though, and it's what most people would have used on those BITD.
bulgie is offline
Old 01-12-20, 09:44 PM
  #22
Zen10NiN
Banned.
Thread Starter

Join Date: Sep 2016
Posts: 116
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by satbuilder View Post
I'm not sure where you're located, but Franklin frames did a wonderful job on the repaint of Ray Dobbins' restoration, mentioned earlier in this thread.

Does your frame by chance have any areas down to primer? I'm trying to find the primer color they used on their Molteni orange paint jobs.

I've been trying to hone in on the correct shade of orange for the Colnagos, as my '73 is in need of some touchup, or a repaint. Getting close. So far I've tried the following RAL colors: 2000, 2004, 2008, 2010, 2011. And I've mixed different quantities of each to get close, but still not quite there yet.

Looks like a fun project. Would love to find a Merckx.

Kurt

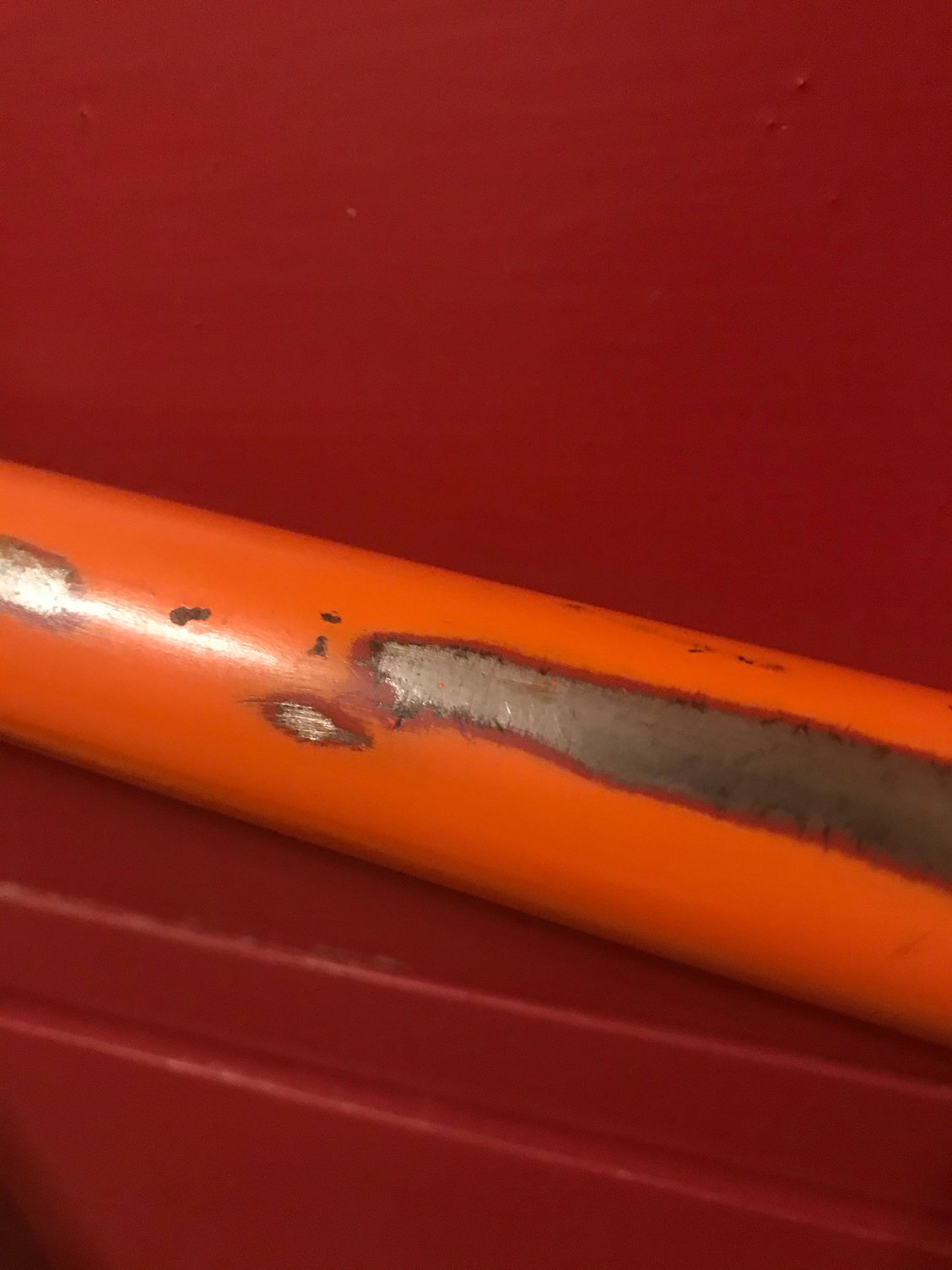

Here you go Kurt. Primer is a dark almost blood colored red
Zen10NiN is offline
Old 01-13-20, 10:57 AM
  #23
satbuilder
Senior Member

Join Date: May 2005
Location: Southern Maryland
Posts: 1,271

Bikes: 1969/70 Legnano Roma, 1971 Guerciotti, 1972 Cinelli SC, 1973 Bianchi Team, 173 Colnago Super, 1974 Marnati Corsa, 1974 ish Motobecane CT, 1971 Mercier 300, 1977/78 Colnago Mexico, 1982 Pinarello Italia,Tesch S-22, 1983 Peugeot Mixte

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 195 Post(s)
Liked 36 Times in 23 Posts
Thanks!!
satbuilder is online now
Old 01-13-20, 02:45 PM
  #24
bikemike73
Senior Member

Join Date: Mar 2016
Location: North of Boston
Posts: 69

Bikes: 1973 Schwinn Sports Tourer plus a " few" more :)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Likes: 0
Liked 15 Times in 11 Posts
Absolutely a beautiful frame !!

I wouldn't change a thing

Good Luck and post pics when done.

Very exciting !!!
bikemike73 is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
