Restoring a 1936 BSA Light Roadster 2

This is the completion of the restoration of my 1936 BSA Light Roadster written about earlier.

You can see this at:- Restoring a 1936 BSA Light Roadster

The bike is completed and is regularly ridden. I completed all the tasks stated in my earlier post:-

Namely;-
1) Dismantle, clean and rebuild the 3 Speed Hub. To do this I have had to design a special tool to remove the hub end cap which is recessed inside the brake drum so no spanner purchase possible. This was done and the BSA 3 Speed stripped, cleaned and re-assembled.
2) Dismantle the wheels to clean up hubs and rims, refinish rims and build with new spokes.
3) Re-assemble all the brake linkages onto the frame.
4) Re-assemble the pedals with new ball bearings and re-fit pedals & Cranks to bike.

Finally the bike assembly was completed and all adjustments and fine tuning carried out.



Repainting all the small components after de-rusting.


Wheels rebuilt with Stainless Spokes after Rims Powder Coated.


Partially rebuilt as components refurbished



View of Rear Wheel with BSA 3 Speed & Hub Brake.


View of Front Wheel with BSA Hub Brake.


Another view of BSA front Hub Brake.


View of Bottom Bracket.


BSA chainwheel, original chrome finish survived well.


Completed Bike with original 1929 Lucas Challis Bell and Rear Carrier.
__________________
Cuius summa inventa


Last edited by PeterLYoung; 01-06-20 at 01:08 PM.
PeterLYoung is offline
Likes For PeterLYoung:
Old 01-06-20, 12:59 PM
  #2
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,999

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2176 Post(s)
Liked 392 Times in 297 Posts
Looks great! Well done. Enjoy!
Salamandrine is offline
Likes For Salamandrine:
Old 01-06-20, 01:10 PM
  #3
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Riding in style- leisurely pace of the 1930's!
crank_addict is offline
Likes For crank_addict:
Old 01-06-20, 05:30 PM
  #4
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,225
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1290 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
A fine looking machine and very well done.
__________________
Inflate Hard
BigChief is offline
Likes For BigChief:
Old 01-06-20, 06:52 PM
  #5
markk900
Senior Member

markk900's Avatar

Join Date: Jan 2007
Location: Ontario
Posts: 1,853
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 16 Times in 14 Posts
Great job Peter! Sure looks like a fun ride.
markk900 is offline
Likes For markk900:
Old 01-07-20, 07:38 AM
  #6
bluesteak
Senior Member

Join Date: Feb 2018
Posts: 52
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 38 Post(s)
Likes: 0
Liked 15 Times in 8 Posts
Great job.

Are you using the original pedals?

I just finished working on a 1939 Elswick. (I posted some pics in the English 3 speeds thread). I decided that the 80 year old rubber blocks on my pedals were beyond hope.
bluesteak is offline
Likes For bluesteak:
Old 01-07-20, 08:29 AM
  #7
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,928

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 561 Post(s)
Liked 304 Times in 164 Posts
Good job!
OldsCOOL is offline
Likes For OldsCOOL:
Old 01-07-20, 04:01 PM
  #8
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 285

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 35 Times in 21 Posts
Originally Posted by bluesteak View Post
Great job.

Are you using the original pedals?

I just finished working on a 1939 Elswick. (I posted some pics in the English 3 speeds thread). I decided that the 80 year old rubber blocks on my pedals were beyond hope.
Thanks for your interest. I am using the pedals on it when I got it, they look like they could be original pedals but may not be. I dismantled them, de-rusted them painted with 'Etch Primer' and Black Enamel and rebuilt with new bearings. The rubbers were a little worn but OK for re-use, see earlier post for details.

Your rubbers are really worn but replacements turn up on eBay from time to time so I would overhaul the pedals and look for replacement rubbers. Good luck!!!
__________________
Cuius summa inventa

PeterLYoung is offline
Old 01-07-20, 04:51 PM
  #9
BigChief
Senior Member

BigChief's Avatar

Join Date: Jan 2015
Posts: 3,225
Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 1290 Post(s)
Likes: 0
Liked 80 Times in 67 Posts
I think it's a good bet those pedals are original. The blocks might have been replaced at some point, but those end plates are what I see on Birmingham bikes up until the mid 50s or so. They changed to the flat diamond shaped end plates around the same time as Raleigh did.
__________________
Inflate Hard
BigChief is offline
Old 01-07-20, 06:29 PM
  #10
kalker
Member

Join Date: Apr 2017
Posts: 30
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 5 Times in 5 Posts
That is one great looking BSA ... It must be a blast to ride .
kalker is offline
Old 01-07-20, 07:52 PM
  #11
supersport73
Junior Member

Join Date: Sep 2014
Location: Columbia, SC
Posts: 14

Bikes: 1973 Schwinn Super Sport, 1981 AustroDaimler SLE, 1981 Miyata 912, 1985 Trek 510, 1986 Schwinn Paramount, 1990 Team Miyata

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Your project turned out really well.
supersport73 is offline
Old 01-07-20, 11:40 PM
  #12
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,269

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 586 Post(s)
Liked 182 Times in 127 Posts
How about a few details of the build; wheel size, pics of the brakes, cockpit view, rear view,
Nice Build, I was hoping my Gazelle would end up looking similar to this but it got over built and way too heavy
Speaking of heavy, what does it weigh?

This is what a roadster should look like.
bwilli88 is offline
Old 01-08-20, 11:08 AM
  #13
PeterLYoung
Senior Member
Thread Starter

PeterLYoung's Avatar

Join Date: Mar 2014
Location: Southport, North Carolina, USA & Pevensey, East Sussex, UK
Posts: 285

Bikes: 1)1992 Trek 970, 2)2010 Trek 6500, 3)1973 Colnago Super, 4)1955 Freddie Grubb Meteor. 5)1993 Airborne Ti-Hag Titanium. 6)1936 BSA 602DX Roadster. 7)1957 Philips P2 Sports. 8)1955 Dayton Roadmaster. 9)1948 Humber Clubman. 10) 1949 Sunbeam WA3 Wayfarer

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 35 Times in 21 Posts
Originally Posted by bwilli88 View Post
How about a few details of the build; wheel size, pics of the brakes, cockpit view, rear view,
Nice Build, I was hoping my Gazelle would end up looking similar to this but it got over built and way too heavy
Speaking of heavy, what does it weigh?

This is what a roadster should look like.
The bike is very heavy, I have not weighed it but it could easily weigh circa 40lbs, this type of bike was built to last a long time and weight was not a consideration. having said that the weight is not noticeable when riding it, it is a very smooth ride but not fast. It is a great cruising bike.

The wheel size is 26" x 1-1/2". They were chromed originally, then painted black by a previous owner but I had the rims Powder Coated black to preserve them, fortunately with Hub Brakes the rims aren't subject to brake wear.

The brakes are drum brakes and there are photos above showing the exterior of the brake drums.

The previous owner had carried out some repairs to the fenders and these were very nicely done with riveted plates and I did not touch these other than to re paint the fenders, they add character.

Below are some photos showing more aspects of restoration which I hope answer your request.

To strip the BSA Hub I had to design and have made a special extractor tool to remove/unscrew the 3 speed end cap inside the brake drum. I completely stripped the hub so it could be cleaned and rebuilt with new bearings and re lubricated. No parts had to be replaced fortunately.


Front Brake before restoration.


Rear Brake before restoration.


Handlebars view.


Rear View, The White area on rear fender is a proprietary Celluloid material of wartime supply or earlier bolted on to the fender.


Close up of Celluloid accessory, you can just about read the proprietary name "The Leader" made by B and T (Components) Ltd.

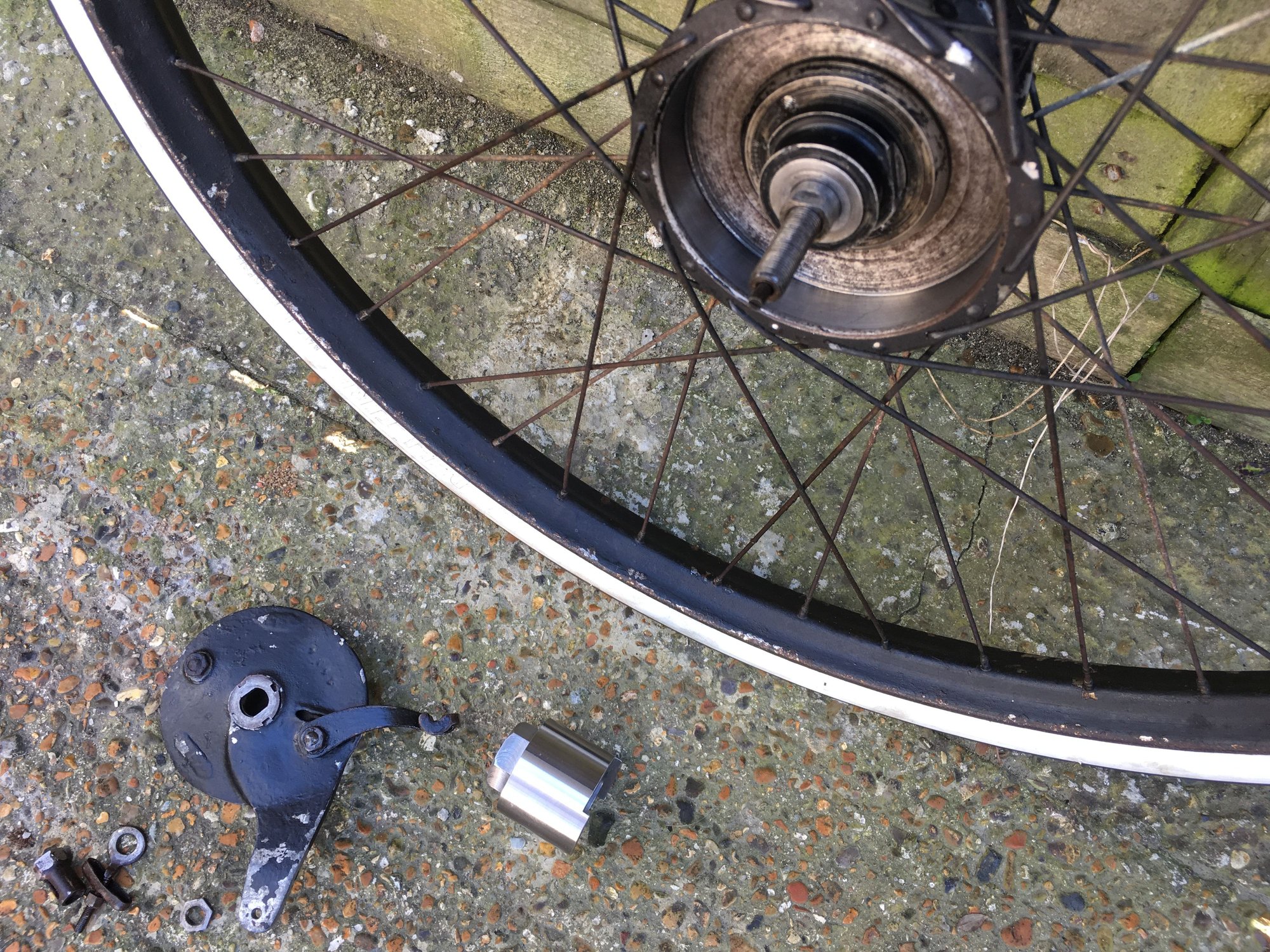

Stripping Rear Hub to overhaul BSA 3 Speed, required a special Extractor Tool you can see on the ground.


Extractor Tool in position to undo the 3 Speed end cap.
