Cannondale ST500 Chainstay Issue

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cannondale ST500 Chainstay Issue

Old 01-08-20, 07:50 PM
  #1
jrg1244
Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 48
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 4 Posts
Cannondale ST500 Chainstay Issue

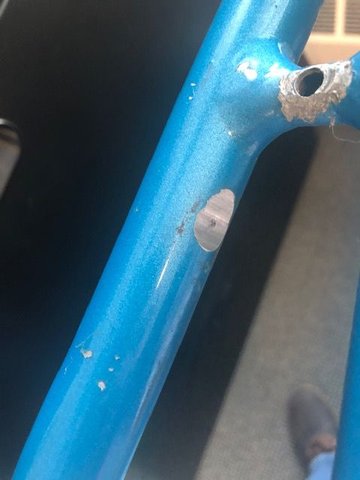

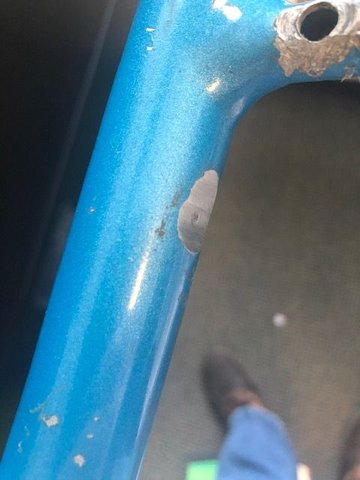

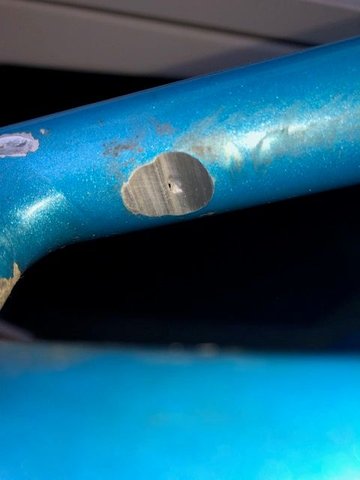

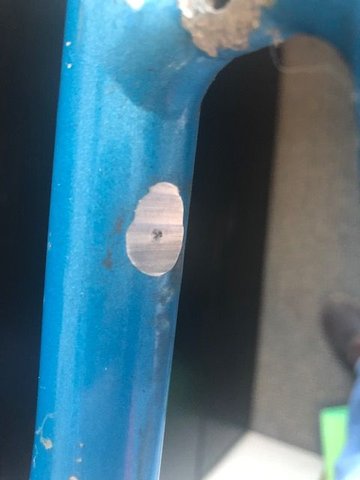

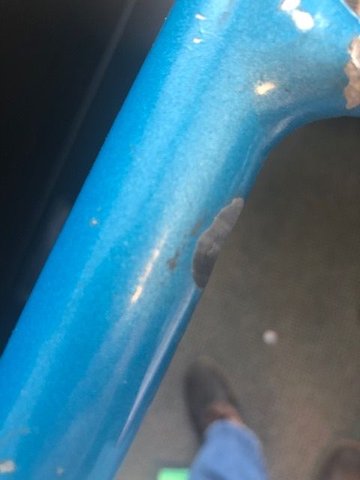

Ugh... I finally found and recently bought a 27" 1986 Cannondale ST500 frame on fleabay and received it just today. When I unwrapped the frame, which was packed quite well, I noticed what looks like tire rub on the inside of the DS chainstay. The issue is that it looks like some serious aluminum is missing, I don't even understand how a rubber tire could have caused this. I tried to take a picture at an angle where the missing metal could be seen. The rest of the frame is in decent condition and I was planning to media blast/powdercoat it anyways. I guess my question is this... Is this frame toast? Would you guys ride it like this? The damage wasn't disclosed in the auction, so I may have some recourse with the seller or paypal, we'll see.





Last edited by jrg1244; 01-08-20 at 08:02 PM.
jrg1244 is offline
Old 01-08-20, 08:31 PM
  #2
speedevil
I never finish anyth

speedevil's Avatar

Join Date: Jul 2010
Location: Western KY
Posts: 1,115

Bikes: 2008 Merckx LXM, 2003 Giant XTC mtb, 2001 Lemond Alpe d'Huez, 1997 Lemond Zurich, 1989 Cannondale ST, 1988 Masi Nuovo Strada, 1983 Pinarello Turismo

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 292 Post(s)
Liked 118 Times in 78 Posts
The early ST frames did not have dimpled chainstays are as a result cannot handle as large a tire as the later models.

It's not so much the rubber wearing away the alloy, it's the grit on the tires from riding on the road that does the damage. If it were me, I'd probably ride it. But since you do have recourse and are concerned about it, the best long term solution is to return it and find an undamaged frame.
__________________
Dale, NL4T
speedevil is offline
Old 01-08-20, 08:47 PM
  #3
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 940

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 408 Post(s)
Liked 463 Times in 273 Posts
I don't know if I'd even ride it.

What is that darker spot in the middle of the rub-mark? Possibly a place where it's worn so paper thin that it is bending and near-through?

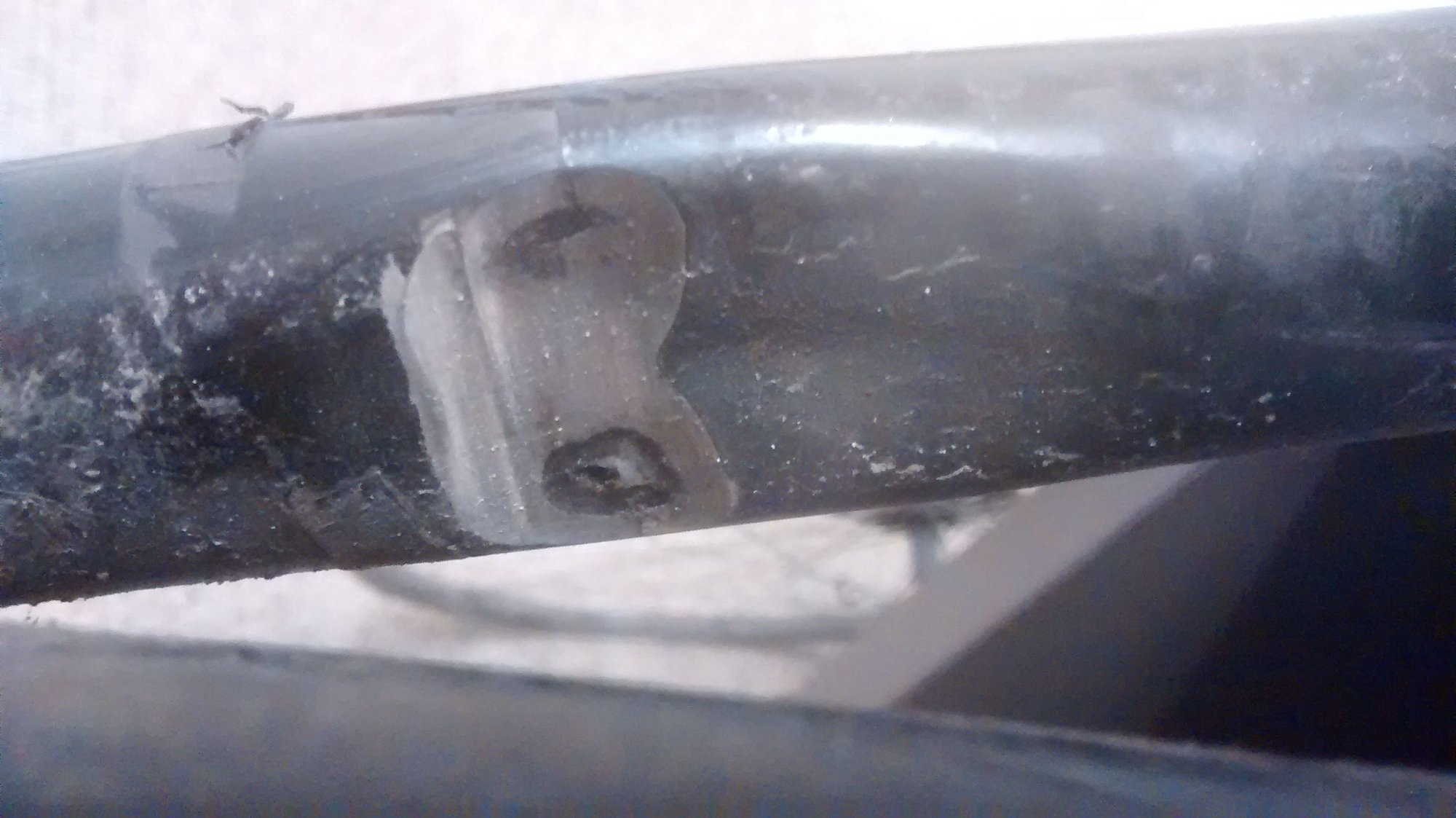

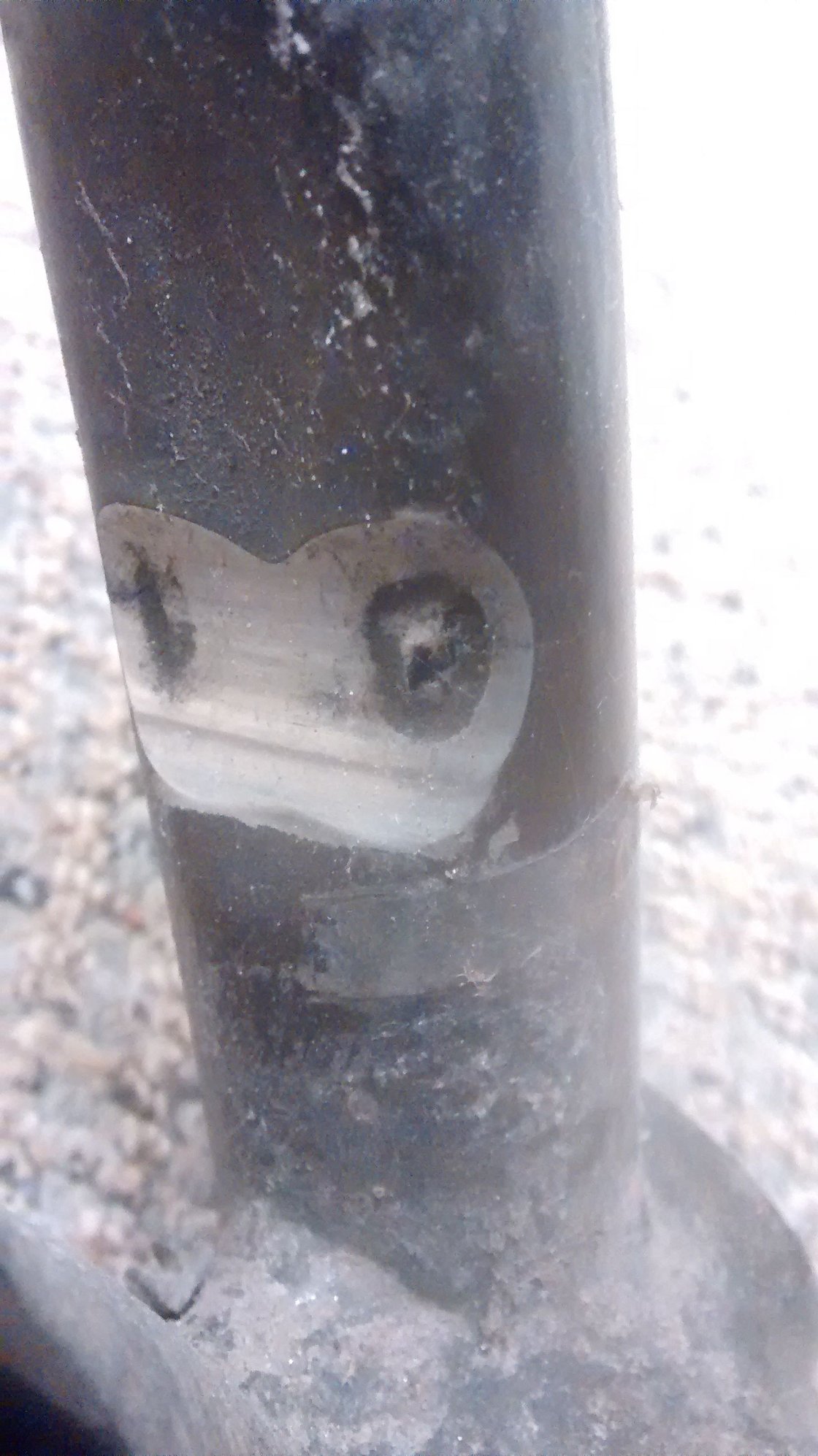

This just happened on my friend's Cannondale, which he now calls the Crack 'n Fail (rhymes with Cannondale)
See how the darker spots in the center of the wear are paper-thin aluminum, just about to wear completely through? And note the crack starting at the holes and spreading. It was nearly halfway around when he stopped riding it.



He rode it with a broken axle and a few broken spokes for some time. Now he has a Litespeed (and a new wheel).
You can't weld these, says my welder friend. He has the impression that they were welded in the beginning, and then the whole frame was heat-treated. Welding on them removes the heat treatment from one spot, which seems like a bad thing to do.
scarlson is offline
Old 01-09-20, 06:40 AM
  #4
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,336

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 34 Times in 25 Posts
Whether paper thin or not, the thin spot is a stress concentration and guaranteed site for crack initiation.
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 01-09-20, 06:56 AM
  #5
sdn40
Senior Member

Join Date: Sep 2016
Location: Green Bay, WI
Posts: 548

Bikes: 88 Cannondale Criterium

Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 245 Post(s)
Liked 72 Times in 48 Posts
Don't make compromises based upon the rarity of finding a 27" frame and the pia factor of sending it back. Life's too short to be worried about every creak and bump ..... and you probably will.
sdn40 is online now
Old 01-09-20, 07:05 AM
  #6
pastorbobnlnh
Freewheel Medic

pastorbobnlnh's Avatar

Join Date: Oct 2005
Location: Ascending or Descending the NH Mountains NW of Concord!
Posts: 11,436

Bikes: Snazzy* Schwinns, Classy Cannondales, & a Lonely '83 Santana Tandem (* Ed.)

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 598 Post(s)
Liked 183 Times in 126 Posts
Not far away from you in Bellows Falls, VT is frame builder and an extraordinary craftsman, Frank the Welder. My recommendation is to contact him and send your pictures and ask if this could be repaired. Finding a 27" Cannondale frame (I'm assuming you don't mean wheel or tire size) is not and easy task. Maybe the ebay seller would refund part of your purchase in order to offset the cost of repair.
__________________
Bob
Dreaming about riding in NH's summertime!

Visit my websites:
FreeWheelSpa.com orpastorbobnlnh.com
pastorbobnlnh is offline
Old 01-09-20, 07:13 AM
  #7
shelbyfv
Banned.

Join Date: Jun 2007
Posts: 7,172
Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 1810 Post(s)
Liked 1,182 Times in 672 Posts
That's a significant amount of material missing. I'd send it right back.
shelbyfv is offline
Old 01-09-20, 08:28 AM
  #8
jrg1244
Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 48
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 4 Posts
Originally Posted by scarlson View Post
I don't know if I'd even ride it.

What is that darker spot in the middle of the rub-mark? Possibly a place where it's worn so paper thin that it is bending and near-through?
Yup. Upon much closer inspection, it appears that the darker spot in the middle is literally paper thin and looking closer at a more head on angle, a tiny hole that goes clear through the tube can be seen. I think I have an answer. This frame isn't worth building up. Back to searching for my 27" ST!

Thanks for the thoughts and guidance in this.

jrg1244 is offline
Old 01-09-20, 11:41 AM
  #9
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: not sure
Posts: 6,988
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1315 Post(s)
Liked 185 Times in 137 Posts
Originally Posted by scarlson View Post
This just happened on my friend's Cannondale, which he now calls the Crack 'n Fail (rhymes with Cannondale)
Not to poo poo on your friend but he didn't make that nickname up
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Likes For shoota:
Old 01-09-20, 02:57 PM
  #10
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, 86 Miyata 710, 91 Cannondale ST600, 84 Trek 610, 520, 620, 91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
Originally Posted by jrg1244 View Post
Yup. Upon much closer inspection, it appears that the darker spot in the middle is literally paper thin and looking closer at a more head on angle, a tiny hole that goes clear through the tube can be seen. I think I have an answer. This frame isn't worth building up. Back to searching for my 27" ST!

Thanks for the thoughts and guidance in this.

This looks like a 27 https://www.ebay.com/itm/Vintage-Cannondale-Sport-Touring-Bicycle-Barn-Find/283734554116?hash=item420fe5b604:g:hMcAAOSwMAxd3JNv

https://www.ebay.com/itm/Vintage-Cannondale-Sport-Touring-Bicycle-Barn-Find/283734554116?hash=item420fe5b604:g:hMcAAOSwMAxd3JNv

Last edited by Chr0m0ly; 01-09-20 at 03:00 PM.
Chr0m0ly is offline
Old 01-09-20, 03:11 PM
  #11
jrg1244
Member
Thread Starter

Join Date: Nov 2018
Location: Falmouth, ME
Posts: 48
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
Liked 5 Times in 4 Posts
By George, I think you're right! Thanks for the head's up. My search didn't turn that one up. Wish me luck!
jrg1244 is offline
Old 01-09-20, 05:14 PM
  #12
hazetguy
Custom User Title

hazetguy's Avatar

Join Date: Nov 2004
Location: asheville
Posts: 1,414

Bikes: are filling up my basement.

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1004 Post(s)
Likes: 0
Liked 554 Times in 332 Posts
while it would bother me, it would not be the end of that frame for me. i'd have that spot tig welded, then file/sand the repair, then paint it.
__________________
I bet you think things are over now. No, au contraire. I'll say that again, No au contraire! Raire! Back of the throat, RAIRE!!!! OK!
hazetguy is offline
Old 01-09-20, 06:38 PM
  #13
RiddleOfSteel
Master Parts Rearranger

RiddleOfSteel's Avatar

Join Date: Mar 2015
Location: Seattle, WA
Posts: 3,309

Bikes: '88 Land Shark Road Shark 66cm - '88 Davidson Signature 67cm - Other Too-Small Frames awaiting keep/sell decision..

Mentioned: 178 Post(s)
Tagged: 0 Thread(s)
Quoted: 1083 Post(s)
Liked 427 Times in 286 Posts
Originally Posted by jrg1244 View Post
By George, I think you're right! Thanks for the head's up. My search didn't turn that one up. Wish me luck!
If it is indeed a 1983, and the RD and other components say as much, they didn't offer a 27" (68cm) frame yet. That would come a few years later. A 1983 frame is pretty special, IMO, but it appears to be a 25" (which is my size, haha)

@hazetguy posits a solid option. Cannondale aluminum is pretty thick, but that is a lot of wear to have happened. Really sorry to hear/see it as 27" frames [not 27" tires, for the rest of you reading] are really hard to come by. Great bikes--I want another after selling my '90 ST.
RiddleOfSteel is offline
Old 01-09-20, 07:36 PM
  #14
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 3,077
Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 1054 Post(s)
Liked 349 Times in 190 Posts
Cdales are heat treated after welding. Weld that hole with a reinforcing sleeve, maybe. Good question for Frank the Welder.
TiHabanero is offline
Old 01-10-20, 07:51 AM
  #15
sixer
amateur

Join Date: Nov 2006
Location: Boston, MA
Posts: 79

Bikes: 1982 Mercian Vincitore, 2014 Fitwell DeGroot, 1999 Raleigh M80, 1968 Schwinn Stingray, 2002 Ibex Classic 3300, 1978 Kabuki Track

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 24 Post(s)
Liked 13 Times in 7 Posts
I wouldn't feel bad about passing on it. 27" ST Cannondale frames are rare, but not impossible to find - I bought two last summer within a few weeks of each other, but ended up selling both late last year. Winter may not be the best time to be searching for them. I know @ronno6 has several that he may be willing to part with if you're serious.

sixer is offline
Old 01-10-20, 10:00 AM
  #16
trailmix
Senior Member

trailmix's Avatar

Join Date: Jun 2013
Posts: 641

Bikes: 50+/-

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 40 Post(s)
Liked 37 Times in 26 Posts
Originally Posted by Chuckk View Post
Those REALLY BIG Cannondale frames make the proportions of the large frame tubes and tires seem like a normal sized sports bike!

My 23" 1990 Cannondale T700 - the tubes look really big
In 1990, they increased the size of the downtube significantly.
trailmix is offline
