1986 Trek 770 restoration or run?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

1986 Trek 770 restoration or run?

Old 01-13-20, 03:03 PM
  #1
alexihnen
Senior Member
Thread Starter

alexihnen's Avatar

Join Date: Sep 2019
Location: Cincinnati, OH
Posts: 283

Bikes: Masi, Wizard, Raleigh, DiNucci, Gangl, Fuso, Gilmour, Appel, Davidson, Toei, Trek, Della Santa, Ritchey

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 81 Times in 51 Posts
1986 Trek 770 restoration or run?

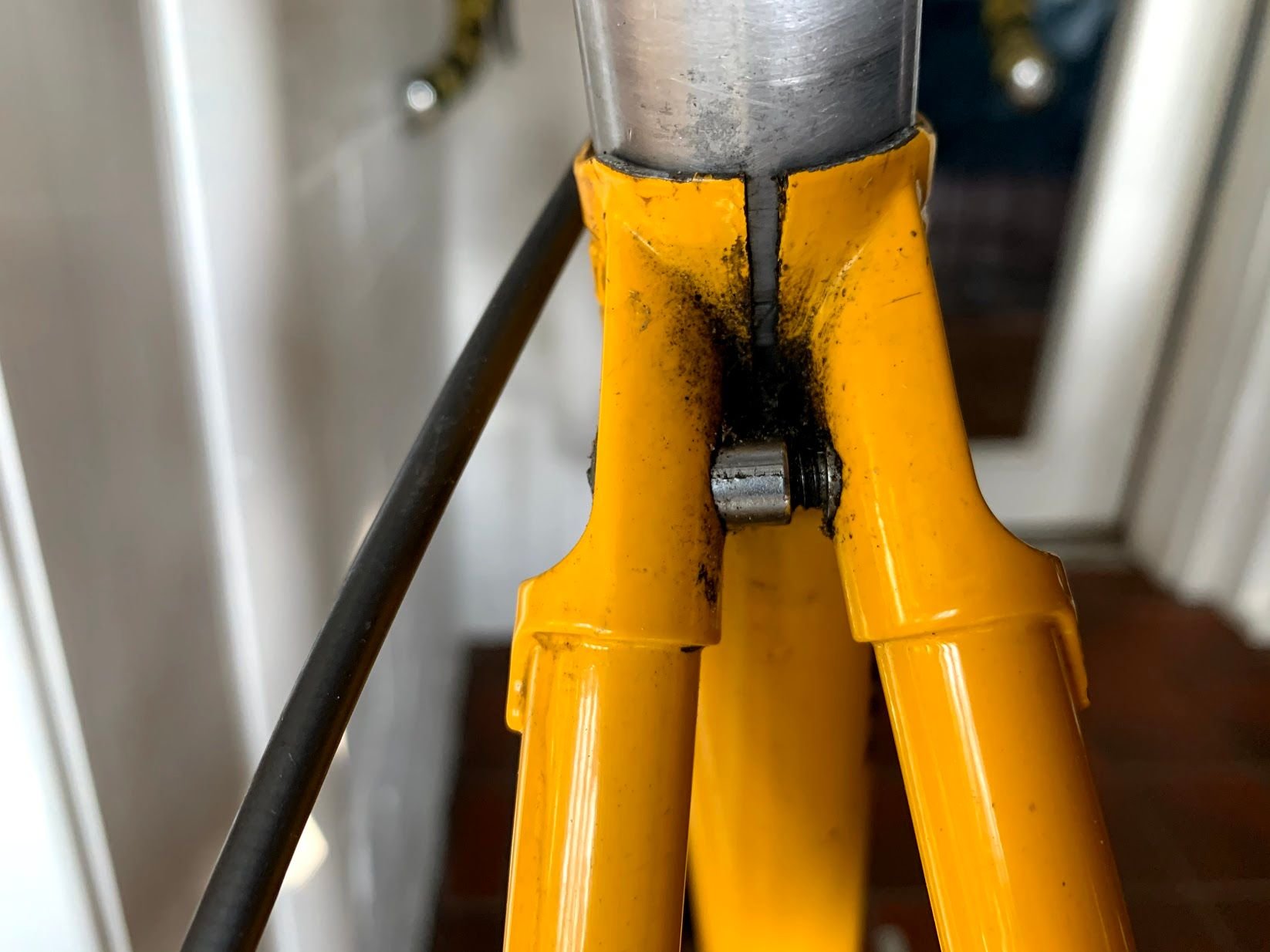

I picked up this 1986 Trek 770 recently and later discovered that the seat lug is cracked. It appears that a previous owner jammed in a too-large seat post. The paint is roughed up about everywhere and the components are an incredible mish-mash.

So...is it restoration worthy, or do I run away?

Actually, the options are 1) attempt a restore myself or 2) send to someone else to restore.




alexihnen is online now
Old 01-13-20, 03:08 PM
  #2
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,796

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 702 Times in 483 Posts
I might have a seat lug for it.
From a 1987 400 531 frame, 21"? frame

You can look in the Trek Brochures and see if the frame angles are the same or close.

https://www.vintage-trek.com/TrekBrochures.htm

Last edited by dedhed; 01-13-20 at 03:11 PM.
dedhed is offline
Old 01-13-20, 03:32 PM
  #3
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,560

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 858 Post(s)
Liked 160 Times in 116 Posts
I remember seeing a forum member treat an identical crack by simply drilling a small hole at the end of the crack to stop it.
GrainBrain is offline
Likes For GrainBrain:
Old 01-13-20, 07:44 PM
  #4
Ross200
Junior Member

Join Date: Feb 2019
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
+1 on the hole at the end of the crack. Rdie it-you'll like it!
Ross200 is offline
Old 01-13-20, 09:36 PM
  #5
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 660
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Liked 55 Times in 49 Posts
My guess would be to drill a hole at the end of the crack like others have said. It seems like as long as the seatpost was the correct size, the seatpost clamp bolt would prevent it from getting any worse.
Hobbiano is online now
Old 01-13-20, 11:12 PM
  #6
shoota
Senior Member

shoota's Avatar

Join Date: Jun 2012
Location: not sure
Posts: 6,976
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1308 Post(s)
Liked 183 Times in 136 Posts
There's no harm in drilling it and riding it till either it cracks worse, or nothing happens at all. Easy decision.
__________________
2014 Cannondale SuperSix EVO 2
2019 Salsa Warbird
shoota is offline
Likes For shoota:
Old 01-14-20, 04:53 AM
  #7
bark_eater
Senior Member

Join Date: Sep 2017
Location: Eastern Shore, MD
Posts: 891

Bikes: Road ready: 1993 Koga Miyata City Liner Touring Hybrid, 1989 Centurion Sport DLX, "I Blame GP" Bridgestone CB-1. Projects: Yea, I got a problem....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Liked 91 Times in 61 Posts
If you drill the hole a little lower and carefully file down to it, no one will ever know...
bark_eater is offline
Old 01-14-20, 05:36 AM
  #8
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,636
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 808 Post(s)
Liked 178 Times in 132 Posts
If the object were to keep a beater operational a short time, then drilling a hole would be fine.

Assume the @#$%^ idiot who rammed in the oversize post has abused the bike beyond your imagination. Ramming in an oversize post is really hard to do. You are going to find one problem after another. There is no cure for idiocy.
63rickert is offline
Old 01-14-20, 07:55 AM
  #9
xiaoman1
Slightly Mental

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angels
Posts: 3,083

Bikes: A few too many

Mentioned: 26 Post(s)
Tagged: 1 Thread(s)
Quoted: 644 Post(s)
Liked 397 Times in 273 Posts
I would go with the vast majority of opinions voiced here...Drill&Ride..I'll add enjoy, very unlikely it will have a catastrophic failure.
Ben
xiaoman1 is online now
Old 01-14-20, 08:29 AM
  #10
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 7,122

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '90 De Rosa Professional, '91 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 742 Post(s)
Liked 299 Times in 197 Posts
Oh BTW, Nice find!
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 01-14-20, 10:11 AM
  #11
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,743

Bikes: Mostly English - predominantly Raleighs

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 929 Post(s)
Liked 216 Times in 155 Posts
Originally Posted by alexihnen View Post
Huh - I guess the lugs were the same across the lineup? I'll take some measurements.
JohnDThompson was a builder at Trek for a good while. He may know the answer off the top of his head.
__________________
In search of what to search for.
USAZorro is offline
Old 01-14-20, 10:14 AM
  #12
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,743

Bikes: Mostly English - predominantly Raleighs

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 929 Post(s)
Liked 216 Times in 155 Posts
Originally Posted by 63rickert View Post
If the object were to keep a beater operational a short time, then drilling a hole would be fine.

Assume the @#$%^ idiot who rammed in the oversize post has abused the bike beyond your imagination. Ramming in an oversize post is really hard to do. You are going to find one problem after another. There is no cure for idiocy.
It might be from a proper-sized post that was not inserted far enough and then ridden. Also note that these could have been ordered as frames and then equipped as the buyer wished. It's the same materials and dimensions as a 760 frame, but with different paint and decals.
__________________
In search of what to search for.
USAZorro is offline
Old 01-14-20, 02:03 PM
  #13
aceves
Senior Member

Join Date: Aug 2018
Location: Northern Cal
Posts: 206

Bikes: Lots, mostly Bianchi

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 51 Times in 30 Posts
+1 on drill, restore and ride. Enjoy the bike, it's meant to be ridden!!

aceves
aceves is offline
Old 01-14-20, 03:40 PM
  #14
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,636
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 808 Post(s)
Liked 178 Times in 132 Posts
Originally Posted by USAZorro View Post
It might be from a proper-sized post that was not inserted far enough and then ridden. Also note that these could have been ordered as frames and then equipped as the buyer wished. It's the same materials and dimensions as a 760 frame, but with different paint and decals.
Sure, that sounds plausible. Correct post would be 27.2 and 27.4 is not common.

Either way the bike has been abused. Abuse is seldom isolated. To easy to see a project that snowballs. A full and correct repair with new lug, new seat tube, new paint, easily exceeds imaginable value of bike. Who would want to take on that frame repair? Start over with a more promising frame.

If the only object is to cruise the neighborhood have at it.
63rickert is offline
Old 01-14-20, 04:01 PM
  #15
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,743

Bikes: Mostly English - predominantly Raleighs

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 929 Post(s)
Liked 216 Times in 155 Posts
Originally Posted by 63rickert View Post
Sure, that sounds plausible. Correct post would be 27.2 and 27.4 is not common.

Either way the bike has been abused. Abuse is seldom isolated. To easy to see a project that snowballs. A full and correct repair with new lug, new seat tube, new paint, easily exceeds imaginable value of bike. Who would want to take on that frame repair? Start over with a more promising frame.

If the only object is to cruise the neighborhood have at it.
Agree with your sensibilities here. Wouldn't mind hearing what John says about the drill and file strategy. If the crack hadn't gone past the lug, I would have much more faith than in this instance. When I discovered what appeared to be a hairline crack in the seat-tube of a Raleigh Competition that I was already preparing to have modifications made to, and which I was also intending to repaint, gugie was able to braze a reinforcing band on it. That was pretty unobtrusive in that instance, but for a bike with original paint... considerably less so, I'd think.
__________________
In search of what to search for.
USAZorro is offline
Old 01-14-20, 05:03 PM
  #16
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 6,796

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 1297 Post(s)
Liked 702 Times in 483 Posts
Looked around. Have the BB shell, brake bridge, DT mounts, headtube & lugs.
Didn't find the seat cluster lug. I must have turned that into a keychain and gave it to someone.
dedhed is offline
Old 01-14-20, 05:11 PM
  #17
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 376 Times in 245 Posts
That break is nothing, and I'd be more concerned of the barf tape. 💀
crank_addict is offline
Likes For crank_addict:
Old 01-14-20, 05:12 PM
  #18
San Rensho
Senior Member

Join Date: Oct 2005
Posts: 5,820
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 360 Post(s)
Liked 118 Times in 80 Posts
Drill and ride. That was one of the best non italian racebikes back in the day. Concor saddle?
__________________
Il faut de l'audace, encore de l'audace, toujours de l'audace

1980 3Rensho-- 1975 Raleigh Sprite 3spd
1990s Raleigh M20 MTB--2007 Windsor Hour (track)
1988 Ducati 750 F1
San Rensho is offline
Old 01-14-20, 05:17 PM
  #19
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 1,028

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, Faggin Matrix thingy

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 298 Post(s)
Liked 177 Times in 121 Posts
Weld of glue the post in and enjoy...no need to ever take it out again...
jdawginsc is offline
Old 01-14-20, 07:09 PM
  #20
PhotonDon
Senior Member

Join Date: Dec 2005
Location: Northwest Arkansas
Posts: 102

Bikes: 97 Litespeed Classic, 05 LOOK 555, 71 Raleigh International, 72 Motobecane Grand Record, 1985 Trek 760, 1987 Trek 520 2018 Steve Rex Custom

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 5 Times in 3 Posts
Unfortunately it's not worth a ton of money. Fortunately, you own one of the best riding bikes ive ever swung a leg over. Just ride the heck out of it.
PhotonDon is offline
Old 01-14-20, 07:28 PM
  #21
J.Higgins
Mentally Derailleured

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,107

Bikes: Bilenky Tourlite, Peter Mooney

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1014 Post(s)
Liked 246 Times in 174 Posts
Originally Posted by GrainBrain View Post
I remember seeing a forum member treat an identical crack by simply drilling a small hole at the end of the crack to stop it.
Precisely what I would have recommended. Drill it, and ride the %#$@ out of it.
__________________
Most powerful nation on Earth, and we failed to come up with something better than these two.

J.Higgins is offline
Old 01-14-20, 08:11 PM
  #22
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,997
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1594 Post(s)
Liked 656 Times in 503 Posts
Originally Posted by USAZorro View Post
Also note that these could have been ordered as frames and then equipped as the buyer wished.
The subject bike has primarily Shimano bolted to it, rather than the Campag as noted in the catalog, so this is a strong possibility.

Originally Posted by USAZorro View Post
Wouldn't mind hearing what John says about the drill and file strategy.
Ahem ( JohnDThompson ) cough!
madpogue is online now
Old 01-14-20, 08:33 PM
  #23
mechanicmatt
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 904

Bikes: '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '07 Stumpjumper

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 152 Times in 91 Posts
Originally Posted by NoControl View Post
Precisely what I would have recommended. Drill it, and ride the %#$@ out of it.
Agreed.

I have a 560, same frame, IT IS ONE OF THE BEST RIDERS I'VE EVER OWNED. They are just awesome riders.
mechanicmatt is offline
Likes For mechanicmatt:
Old 01-14-20, 09:41 PM
  #24
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 660
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Liked 55 Times in 49 Posts
Originally Posted by mechanicmatt View Post
Agreed.

I have a 560, same frame, IT IS ONE OF THE BEST RIDERS I'VE EVER OWNED. They are just awesome riders.
The 760 & 770 had a different frame then the 560. In '86 the 560 had a main triangle of Reynolds 531 and forks and stays of chrome moly. The 760 and 770 had 531 main tubes, fork, and stays. In '86 the 560 & 760 shared geometry and the 770 had shorter wheelbase and slightly steeper angles.
In previous years the 760 & 770 were the same frame, while the 560 had a longer wheelbase, slacker angles, and used Reynolds 501 for the main tubes.
I have an '85 560 and an '84 760. Totally different riding frames. The 760 is much more lively, imo. I haven't ridden one of the later 560's built with Reynolds 531.

Last edited by Hobbiano; 01-14-20 at 09:46 PM.
Hobbiano is online now
Likes For Hobbiano:
Old 01-15-20, 10:02 AM
  #25
OldsCOOL
Senior Member

OldsCOOL's Avatar

Join Date: Jul 2004
Location: northern michigan
Posts: 12,963

Bikes: '77 Colnago Super, '76 Fuji The Finest, '88 Cannondale Criterium, '86 Trek 760, '87 Miyata 712

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 573 Post(s)
Liked 315 Times in 171 Posts
Originally Posted by Hobbiano View Post
The 760 & 770 had a different frame then the 560. In '86 the 560 had a main triangle of Reynolds 531 and forks and stays of chrome moly. The 760 and 770 had 531 main tubes, fork, and stays. In '86 the 560 & 760 shared geometry and the 770 had shorter wheelbase and slightly steeper angles.
In previous years the 760 & 770 were the same frame, while the 560 had a longer wheelbase, slacker angles, and used Reynolds 501 for the main tubes.
I have an '85 560 and an '84 760. Totally different riding frames. The 760 is much more lively, imo. I haven't ridden one of the later 560's built with Reynolds 531.
I have a cherry (no exaggeration) ‘84 braze dated 760 that was intended for the ‘85 season but sat until ‘86. It has the steep geometry, same frame as the 770 confirmed by the Trident fork crown and “through the stay” RD cable. Excellent riding bikes and worthy of restoring if at all possible. The full 531c frames are incredibly light, lively and smooth if you can master the twitchy but intuitive geo. I removed the Wolber clinchers for era Mavic tubulars. Awesome bikes.
OldsCOOL is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
