Cheap cables failed

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Cheap cables failed

Old 01-20-20, 05:43 PM
  #1
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
Cheap cables failed



*Edit*
I think I did this with poor cable routing, I'm going to try with slacker cable bends.


I installed this cheapo brake cable and the housing split before I used it.

I have more housing from the kit, and I could redo it, but I have safety concerns.

Should I just get a jagwire kit, or give this one more shot?

And anyone ever see this kind of failure before?

Last edited by Chr0m0ly; 01-20-20 at 07:54 PM.
Chr0m0ly is offline
Old 01-20-20, 05:51 PM
  #2
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,899

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project

Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 279 Post(s)
Liked 136 Times in 76 Posts
I have used inexpensive housing without an issue for years and thousands of rough miles. I have also used quality housing on non-commuter builds. Honestly I never had an issue with either one. Perhaps there was just a defect in that particular spot?
greg3rd48 is offline
Old 01-20-20, 05:55 PM
  #3
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,009

Bikes: CURRENT: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp PAST: '72 Puch Bergmeister, '72ish Peugeot UO-8, '86 Univega Gran Premio, '85 Univega Viva Touring

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 611 Post(s)
Liked 335 Times in 233 Posts
Originally Posted by Chr0m0ly View Post
I installed this cheapo brake cable and the housing split before I used it.

I have more housing from the kit, and I could redo it, but I have safety concerns.

Should I just get a jagwire kit, or give this one more shot?

And anyone ever see this kind of failure before?
Is it the Schwinn or Bell brand stuff, or even cheapo-er? Just curious, because I have used the Schwinn set on a couple of bikes with no issues. I recently bought a Jagwire kit for $17 shipped on eBay, including cables, housing, and ferrules for shifters and brakes. (Shifter cables are stainless, but brake cables galvanized.)
noobinsf is offline
Old 01-20-20, 06:09 PM
  #4
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,534

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
Is the OP saying that the metal coils of the housing collapsed?
Or, was the covering pushed back at the ferrule, then buckled and split?

I've bought cheap housing (generic off ebay) where the vinyl covering was prone to splitting, but in my life I can't recall ever seeing a coiled cable housing collapse on it's own where it wasn't severly stressed off of it's lengthwise axis.

Do we get to see what's under the split vinyl covering?
dddd is offline
Old 01-20-20, 06:14 PM
  #5
SurferRosa
Seρor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,012

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 1,008 Times in 615 Posts
4 piece Shimano brake cable kit -- $8.47
SurferRosa is offline
Old 01-20-20, 06:15 PM
  #6
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,810

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 107 Times in 66 Posts
The bend to the stop is rather abrupt. Just say'n....

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
Likes For top506:
Old 01-20-20, 06:29 PM
  #7
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
It's the vinal, not the coil.

The split is at the bend, I think my top tube wrap has pushed it into the edge of the seat lug.

Sounds like a redo, with a gentler bend, and not wrapping the cable past the braze on might do it.

This is the kit,
https://www.amazon.com/Yakamoz-Unive.../dp/B07GCK7BG1

I've used the Schwinn kit before, but this seemed like it might be better. 🤷‍♂️

Last edited by Chr0m0ly; 01-20-20 at 06:43 PM.
Chr0m0ly is offline
Old 01-20-20, 06:32 PM
  #8
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,092
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 256 Times in 197 Posts
Originally Posted by top506 View Post
The bend to the stop is rather abrupt. Just say'n....
+1, came here to say the same only to scroll down and see Top beat me to it. That does seem awful abrupt. I normally try to run about an inch more slack in mine to arch about a half an inch above the binder, if not a little more. Tubes prefer gentle arches over taught runs.

@SurferRosa thanks for the link. I needed something like that for my personal bikes. I buy this for all my lower-mid quality flips, it handles all shifting and brakes and actually works with the tighter-tolerance cable-end Simplex shift levers. Under $10 to cable an entire bike and never seen failure like OP is posting. https://www.amazon.com/gp/product/B00L8NDVD6/
francophile is offline
Old 01-20-20, 07:03 PM
  #9
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,085

Bikes: many

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 723 Post(s)
Liked 250 Times in 167 Posts
Chr0m0ly I have a big box of silver Shimano brake cable housing. I'd be happy to ship you a bike's worth for postage.
smontanaro is offline
Old 01-20-20, 07:41 PM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,534

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
Toptube wrap? That's going to complicate cable servicing, like having housings hidden along the bar.

But, for a bike that appears to go around in public wrapped with tape, is the split in the vinyl covering even an issue, cosmetic or otherwise(?).
Perhaps more tape is the answer(?).

Sorry, I couldn't resist. Having said that, I haven't lived in NY in a loooong time.
dddd is offline
Old 01-20-20, 07:43 PM
  #11
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
Originally Posted by francophile View Post
+1, came here to say the same only to scroll down and see Top beat me to it. That does seem awful abrupt. I normally try to run about an inch more slack in mine to arch about a half an inch above the binder, if not a little more. Tubes prefer gentle arches over taught runs.

@SurferRosa thanks for the link. I needed something like that for my personal bikes. I buy this for all my lower-mid quality flips, it handles all shifting and brakes and actually works with the tighter-tolerance cable-end Simplex shift levers. Under $10 to cable an entire bike and never seen failure like OP is posting. https://www.amazon.com/gp/product/B00L8NDVD6/
I bet when I was applying the brake to check tension it pushed into the edge of the lug.

I'm going to redo it, when I get the cable off, I'll post a snap of the inside, but it's just coiled steel, nothing to amazing.
Chr0m0ly is offline
Likes For Chr0m0ly:
Old 01-20-20, 07:47 PM
  #12
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,203

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Liked 549 Times in 317 Posts
I've used heat shrink tubing to cover up a split in the vinyl here and there. Stays put and keeps the elements off.
BFisher is offline
Old 01-20-20, 07:52 PM
  #13
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
Originally Posted by dddd View Post
Toptube wrap? That's going to complicate cable servicing, like having housings hidden along the bar.

But, for a bike that appears to go around in public wrapped with tape, is the split in the vinyl covering even an issue, cosmetic or otherwise(?).
Perhaps more tape is the answer(?).

Sorry, I couldn't resist. Having said that, I haven't lived in NY in a loooong time.
The bare steel would rub the paint, and I believe it's contributing the spongy rear brake feel. The tape is to camouflage it in the city. It's an '84 Trek 520, and I want to keep it. The tape also cushions it when I have to lock it outside.
Chr0m0ly is offline
Old 01-20-20, 08:20 PM
  #14
francophile
PM me your cotters

francophile's Avatar

Join Date: Jun 2015
Location: ATL
Posts: 3,092
Mentioned: 68 Post(s)
Tagged: 0 Thread(s)
Quoted: 848 Post(s)
Liked 256 Times in 197 Posts
Originally Posted by Chr0m0ly View Post
The bare steel would rub the paint, and I believe it's contributing the spongy rear brake feel. The tape is to camouflage it in the city. It's an '84 Trek 520, and I want to keep it. The tape also cushions it when I have to lock it outside.
Noticed this when I was in the city late last year. Meant to ask @greg3rd48 about that (or maybe I did and forgot) about that whole situation. I noticed a lot of the bikes, high- and low-end were wrapped across all the tubes. I couldn't figure out if it was for rack protection, weather protection, theft protection, or all the above. Not sure if he has to deal with all that jazz in BX, but I saw it all over BK and lower Manhattan, especially the latter.
francophile is offline
Old 01-20-20, 08:23 PM
  #15
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts

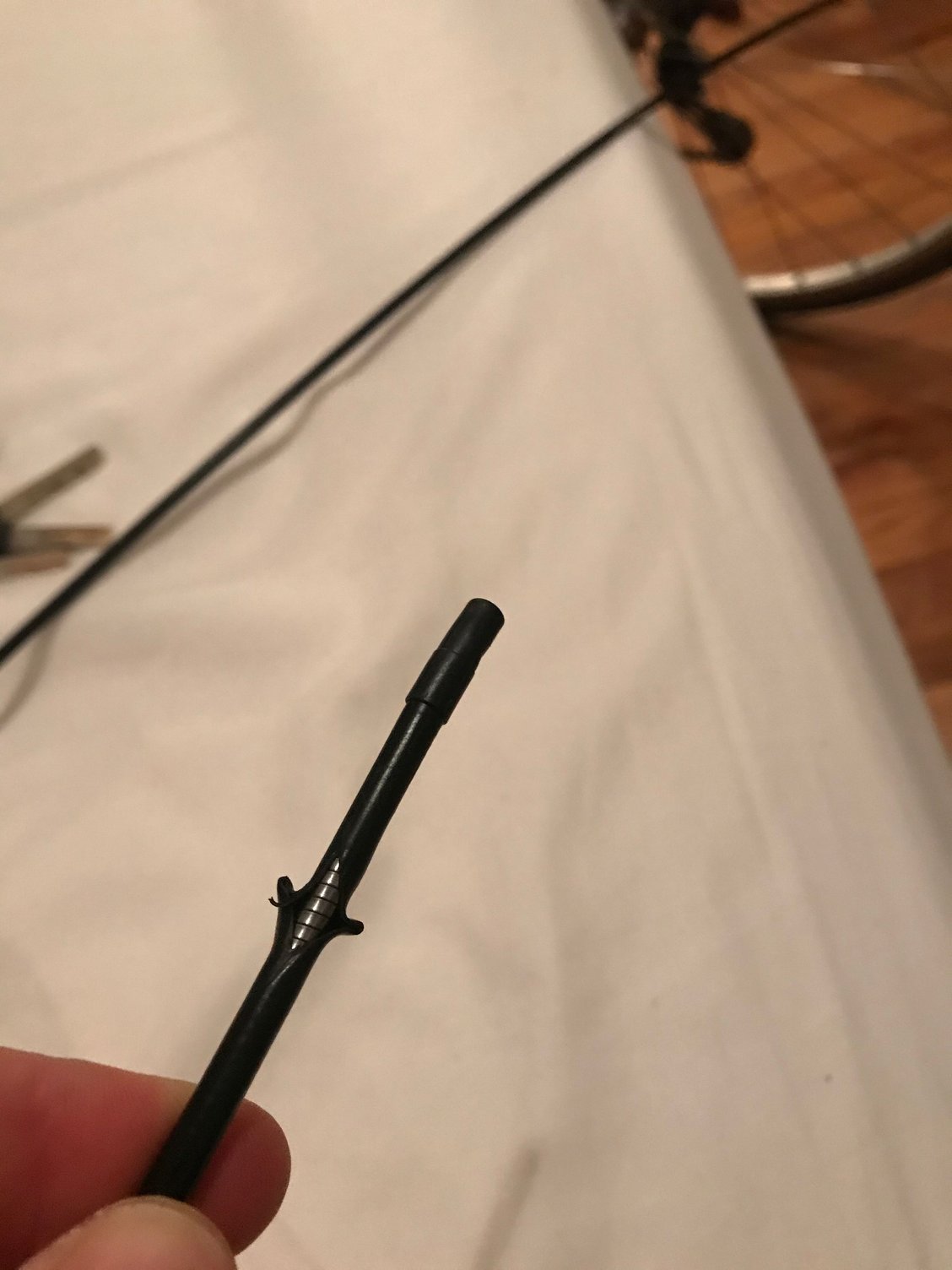

Looks like it WAS the ferrule after all, it did push up the housing. That plus the sharp bend did the trick.
Chr0m0ly is offline
Old 01-20-20, 08:33 PM
  #16
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts

That should do it
Chr0m0ly is offline
Old 01-20-20, 09:04 PM
  #17
zukahn1
Senior Member

zukahn1's Avatar

Join Date: Oct 2011
Location: Fairplay Co
Posts: 7,911

Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 427 Post(s)
Liked 144 Times in 105 Posts
Originally Posted by Chr0m0ly View Post


*Edit*
I think I did this with poor cable routing, I'm going to try with slacker cable bends.


I installed this cheapo brake cable and the housing split before I used it.

I have more housing from the kit, and I could redo it, but I have safety concerns.

Should I just get a jagwire kit, or give this one more shot?

And anyone ever see this kind of failure before?
The cable is on the wrong side of the post and way too short. It should be on the other side with a bit of loop around..
zukahn1 is offline
Old 01-20-20, 09:07 PM
  #18
Chr0m0ly
Senior Member
Thread Starter

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,581

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 235 Times in 150 Posts
Originally Posted by zukahn1 View Post
The cable is on the wrong side of the post and way too short. It should be on the other side with a bit of loop around..
I'm with you on the loop around, but the hanger is centrally located, why should the cable be on the left side?

Chr0m0ly is offline
Old 01-20-20, 09:09 PM
  #19
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 24,732
Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 11787 Post(s)
Liked 1,084 Times in 839 Posts
What direction do the wires in the cable housing go?

"Shift" housing has longitudinal wires.
"Brake" housing has coiled wires.

You are not supposed to use the shift housing for brakes as one has too much force on them.
CliffordK is offline
Old 01-20-20, 09:19 PM
  #20
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,726
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1452 Post(s)
Liked 395 Times in 313 Posts
Originally Posted by Chr0m0ly View Post
I'm with you on the loop around, but the hanger is centrally located, why should the cable be on the left side?

Tradition.

chant it like they did in Fiddler on the Roof.
repechage is offline
Likes For repechage:
Old 01-20-20, 09:39 PM
  #21
Manny66
Senior Member

Manny66's Avatar

Join Date: Oct 2018
Location: Whittier
Posts: 421

Bikes: 1977 Windsor Profesional,1979 Mondia Special, Pinarello Gavia TSX,Eddy Merckx Corsa Extra,Eddy Merckx EMX-5 , Guerciotti SL,Basso Gap, 1982 Moser SL,Concorde TSX,Concorde TVT, LOOK 486,Vitus 979 KAS.Diamant SLX,60's Meteor

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 118 Post(s)
Liked 125 Times in 73 Posts
Ive had Issues wih those cheap plastic cable end Ferrules a few times , Even the new "metal" Ferrules will will buckle and pinch/ruin the end of the cable. They are making them so thin that they crush themselves when you apply the brakes.
Manny66 is online now
Old 01-20-20, 09:49 PM
  #22
SurferRosa
Seρor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,012

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1243 Post(s)
Liked 1,008 Times in 615 Posts
Originally Posted by Chr0m0ly View Post
... should the cable be on the left side?
Yes, if it's on the left side of the stem/head tube.
SurferRosa is offline
Likes For SurferRosa:
Old 01-20-20, 10:59 PM
  #23
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,534

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 925 Post(s)
Likes: 0
Liked 315 Times in 240 Posts
Originally Posted by SurferRosa View Post
Yes, if it's on the left side of the stem/head tube.
I had an '84 Trek 520 I used as a commuter for several years, I believe the front brake cable went to the left and the rear brake cable went to the right of the stem because of the cable hanger, and I can't recall how the cable went past the seatpost.

I'm trying to figure out what the thieves think of the black tape wrap-ups, I'm sure that they know it's the better bikes that get wrapped.
dddd is offline
Old 01-21-20, 02:36 AM
  #24
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,200
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1139 Post(s)
Likes: 0
Liked 154 Times in 119 Posts
If I cannot find good NOS for my C&V bikes, My go-to cable and housing is the ones from "Porkchop BMX", sold at eBay for very reasonable prices (Around 14 bucks/set, IIRC). I like the Porkchop cable sets as they have it in clear casing where you can see the spring. It looks exactly like what many bike makers used back in the 80's. I never had any problems with them splitting like that, so far.
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Likes For Chombi1:
Old 01-21-20, 07:01 AM
  #25
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Location: NEPA
Posts: 1,203

Bikes: '61 Schwinn Klunker, '68 Hercules Klapprad, '73 Raleigh Super Course, '79 Motobecane Grand Sprint, '82 Colnago Super, '87 Ironman Expert, '89 Puch Mistral Leader

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 348 Post(s)
Liked 549 Times in 317 Posts
+1 on the Porkchop BMX housing. Great color selection, lined, not expensive, has held up nicely for me.
BFisher is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
