I may have messed up....Avocet cranks????

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

I may have messed up....Avocet cranks????

Old 01-22-20, 07:53 PM
  #1
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,346

Bikes: to many to list

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 92 Times in 36 Posts
I may have messed up....Avocet cranks????

Hey guys and gals,

I purchased an Avocet crankset for my Jack Taylor. It's a triple crankset. Like an idiot I didnt do my homework and learned that it has a unique spindle. I found one for a double but not a triple...Any thoughts? Does anyone have any experience putting an ofmega or Avocet crank on a campy or Shimano tapered BB? It seems to work on both Campy and Japanese sized spindles but Sheldon says its unique.. Any thoughts?

Thanks

J.J.
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 01-22-20, 08:14 PM
  #2
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 10,435
Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 73 Times in 61 Posts
No, not all of them are "unique", some are but many sold in the US were compatible with Campy spindles and other Campy knock-off brand spindles. However, with a Shimano JIS spindle you may experience 'class B' or lower fit...try one and see! If it fits without bottoming out or too-little interface contact then...you're good to go in my book.And if you have the option try a Phil Wood BB, those used a "hybrid" spindle taper that might be right in the sweet spot!
unworthy1 is offline
Old 01-22-20, 08:18 PM
  #3
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,346

Bikes: to many to list

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 92 Times in 36 Posts
Originally Posted by unworthy1 View Post
No, not all of them are "unique", some are but many sold in the US were compatible with Campy spindles and other Campy knock-off brand spindles. However, with a Shimano JIS spindle you may experience 'class B' or lower fit...try one and see! If it fits without bottoming out or too-little interface contact then...you're good to go in my book.
Thanks for the input. I put it on a Philwood BB and it goes on, it tightens and seems to work. Very far from bottoming out. The campy one seems to fit like a glove but my 120mm spindle is 1-2mm short. Thinking about putting the campy on with a spacer under the fixed cup.
I'm having some bad luck. My philwood works, spacing is ok but there is a little freeplay in the BB..from side to side. Maybe that is common for Phil because my Phil hubs are the same way LOL>

JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 01-22-20, 09:46 PM
  #4
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,030
Mentioned: 88 Post(s)
Tagged: 0 Thread(s)
Quoted: 1196 Post(s)
Liked 227 Times in 179 Posts
My experience with Phil bottom brackets is they do not have the free play the hubs do.
repechage is offline
Likes For repechage:
Old 01-22-20, 10:00 PM
  #5
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,375

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1922 Post(s)
Liked 160 Times in 125 Posts
Originally Posted by repechage View Post
My experience with Phil bottom brackets is they do not have the free play the hubs do.
That's my experience too. FWIW Phil will rebuild a BB with new bearings for 30 bucks or so, IIRC.

All of the Avocet cranks I've dealt with fit campy and campy copy spindles of the same era just fine. The skinny ones must have just been the first year or something.
Salamandrine is offline
Likes For Salamandrine:
Old 01-22-20, 10:42 PM
  #6
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,033
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1063 Post(s)
Likes: 0
Liked 76 Times in 61 Posts
OP mentioned Ofmega. Might the Avocet crank had been made by Ofmega? If that's the case, Ofmegas do have a slightly different spindle taper than most other Euro ISO cranks. IIRC, the Ofmega spindles have a longer taper than most.
I remember dealing with this with my Ofmega Mistral crankset a few years ago.

Last edited by Chombi1; 01-23-20 at 02:15 AM.
Chombi1 is offline
Old 01-22-20, 11:51 PM
  #7
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,921

Bikes: old ones

Mentioned: 251 Post(s)
Tagged: 0 Thread(s)
Quoted: 16453 Post(s)
Liked 631 Times in 511 Posts
...
...Ofmega did make the Avocet cranks. There are, indeed, two variations. The ones with the unique spindles are quite distinctive, and considerably smaller in dimensions of the square taper and crank socket. There's no mistaking when you have one, because the cranks just won't fit onto a regular spindle. After a certain date ( which I have either forgotten or never knew), Ofmega went to a standard size socket and spindle.

I have at least one of the Avocet triples here. The smallest ring is mounted on holes that are drilled and tapped into the spider arms. I imagine a lot of them have broken by now, because this seems to be asking those aluminum spider arms to do an awful lot considering the amount of material in their cross section. I don't recall what it took in terms of spindle length, but I decided to run it without the smallest ring anyway. I just used the spindle that came with it on the bicycle it was on.
3alarmer is online now
Old 01-23-20, 10:03 AM
  #8
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,957

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1934 Post(s)
Liked 271 Times in 191 Posts
Originally Posted by 3alarmer View Post
I have at least one of the Avocet triples here. The smallest ring is mounted on holes that are drilled and tapped into the spider arms. I imagine a lot of them have broken by now, because this seems to be asking those aluminum spider arms to do an awful lot considering the amount of material in their cross section. I don't recall what it took in terms of spindle length, but I decided to run it without the smallest ring anyway. I just used the spindle that came with it on the bicycle it was on.
I have an Avocet triple I used on my wife's bike. It held up fine for many years, but she doesn't punish her equipment.

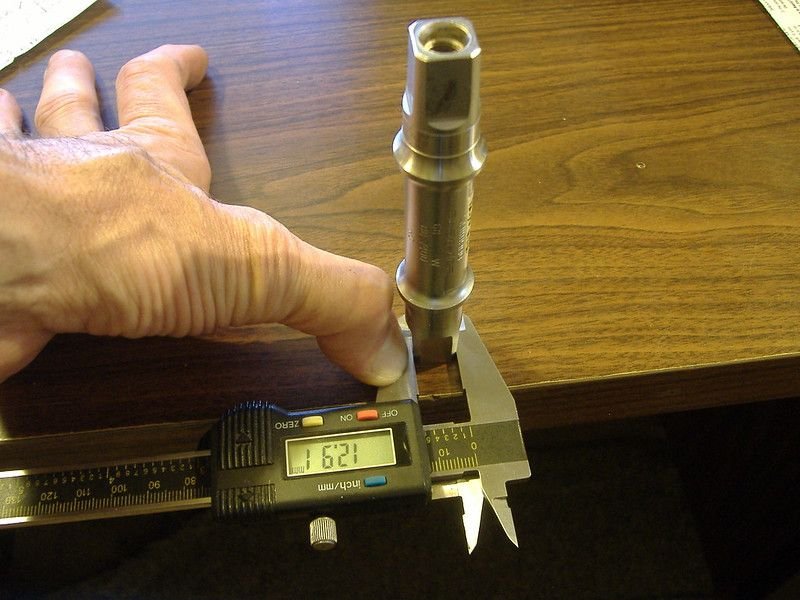

The spindle measures 124mm end to end, and has an ISO taper.

JohnDThompson is offline
Likes For JohnDThompson:
Old 01-23-20, 11:18 AM
  #9
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 6,570

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) '82 nishiski,

Mentioned: 66 Post(s)
Tagged: 0 Thread(s)
Quoted: 965 Post(s)
Liked 185 Times in 140 Posts
here is what sheldon has to say about this subject https://www.sheldonbrown.com/bbtaper.html

If this a relatively new avocet/ofmega it is probably ISO standard....mine was

(part of the fun is that "older" ofmega is not well defined, per sheldon "Note: Old Ofmega/Avocet spindles were quite a bit skinnier/longer even than ISO. There are no modern bottom brackets that work with old Ofmega/Avocet cranks.)

and per sheldon on JIS/ISO interchangebility


If you install an ISO crank on a J.I.S. spindle, it will sit about 4.5 mm farther out than it would on an ISO spindle of the same length.ISO crank on J.I.S. spindle -- small square-taper hole in crank
places it farther outboard on the spindle.




Conversely, if you install a J.I.S. crank on an ISO spindle, it will wind up about 4.5 mm farther in than it would on a J.I.S spindle of the same length.

Theoretically, ISO cranks should only be used on ISO spindles, and J.I.S. cranks only on J.I.S. spindles.

In practice, you can very often get away with mixing these sizes, as long as you select a spindle length that gives the desired chainline.

Taper matching was fairly important back in the day of loose-ball cup-and-cone bottom brackets, because these required regular maintenance/overhauls, and this required removal of the cranks. Every time you remove and re-install a square-taper crank, the hole in the crank is liable to get very slightly larger.

This was particularly an issue when using J.I.S. cranks on ISO spindles, because over time, as the crank went on farther and farther, you could run out of taper, and the square end of the spindle would become flush with the surface the crank fixing bolt/washer pushed against. At that point, further tightening of the bolt won't make the crank any tighter, since the bolt is bumping onto the end of the spindle.

Tolerances on older spindles may not be closely held, and dimensions may vary enough even with the same model number to affect crank/spindle compatibility.

The if end of a bolt-type (hollow, internally-threaded) spindle is too small, it may be ground down, as long as the spindle does not bottom out on the back of the crank and the spindle's internal threads are long enough to hold the bolt.

These days, however, most folks are using sealed cartridge bearing bottom brackets. With these, there is no routine maintenance required, so typically the crank will be installed once, and will stay in place unless/until the bottom bracket needs to be replaced. This greatly reduces problems of wear to the interface.

I generally avoid mixing sizes on customers' bikes, but I have a lot of experience mixing ISO/J.I.S. in both directions on my own personal bikes, and it has never given me a lick of trouble.

__________________
Looking for more time to ride what I have
squirtdad is online now
Old 01-23-20, 05:56 PM
  #10
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,957

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 1934 Post(s)
Liked 271 Times in 191 Posts
Originally Posted by squirtdad View Post
(part of the fun is that "older" ofmega is not well defined, per sheldon "[color=#000000]Note: Old Ofmega/Avocet spindles were quite a bit skinnier/longer even than ISO. There are no modern bottom brackets that work with old Ofmega/Avocet cranks.)
Sutherland's has a graphic representation of spindle tapers, including the old style Ofmega:


Source: Sutherland's 4th Edition
JohnDThompson is offline
Likes For JohnDThompson:
Old 01-23-20, 08:10 PM
  #11
jjhabbs
Senior Member
Thread Starter

jjhabbs's Avatar

Join Date: Feb 2012
Location: Chicagoland
Posts: 1,346

Bikes: to many to list

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 92 Times in 36 Posts
Thanks for all the input guys!

Thanks
JJ
__________________
From Illinois. Collector of many fine bicycles from all over the world. Subscribe to my Youtube channel. Just search John Haboush
jjhabbs is offline
Old 01-23-20, 08:16 PM
  #12
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,958

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Likes: 0
Liked 125 Times in 99 Posts
Originally Posted by squirtdad View Post
...per sheldon on JIS/ISO interchangebility

If you install an ISO crank on a J.I.S. spindle, it will sit about 4.5 mm farther out than it would on an ISO spindle of the same length.ISO crank on J.I.S. spindle -- small square-taper hole in crank
places it farther outboard on the spindle.


Conversely, if you install a J.I.S. crank on an ISO spindle, it will wind up about 4.5 mm farther in than it would on a J.I.S spindle of the same length...
Note that the above oft-quoted statements reflect a mathematical error.
The quoted 4.5mm is the COMBINED offset difference of the left arm plus the right arm. So each arm sits outward or inward only 2-2.5mm versus the other (JIS or ISO) taper.

The math error surely resulted merely from a failure to distinguish taper angle (2-degrees) from the included taper angle (4-degrees).
It's an easy mistake to make when doing these sort of trig calculations.

It is always easy and perhaps a good idea to do one's own comparative measurements of spindle tapers, either by measuring the taper width at some standard distance (the thickness of the caliper's jaws) from the end of the spindle, or by comparing the distance from the end of each spindle that a fixed-setting caliper slides up the taper. Better yet, do both!
Spindle width measurement at 1/8" from spindle end:

dddd is offline
Old 01-23-20, 09:01 PM
  #13
The Golden Boy
Extraordinary Magnitude

The Golden Boy's Avatar

Join Date: Aug 2009
Location: Waukesha WI
Posts: 11,755

Bikes: 1978 Trek TX700; 1978/79 Trek 736; 1984 Specialized Stumpjumper Sport; 1984 Schwinn Voyageur SP; 1985 Trek 620; 1985 Trek 720; 1986 Trek 400 Elance; 1987 Schwinn High Sierra; 1990 Miyata 1000LT

Mentioned: 75 Post(s)
Tagged: 0 Thread(s)
Quoted: 1864 Post(s)
Liked 166 Times in 134 Posts
I have one of those Avocet triples- it's a beautiful crankset. I've heard stories that they're supposed to be one of the lightest cranksets around- I just think it's pretty.

As far as the spindle goes- I bought it with the matching Avocet spindle.

FWIW- the Avocet spindle box had measurements on it.



1986 Trek 400 Elance by Dave The Golden Boy, on Flickr
__________________
*Recipient of the 2006 Time Magazine "Person Of The Year" Award*

Commence to jigglin’ huh?!?!

"But hey, always love to hear from opinionated amateurs." -says some guy to Mr. Marshall.
The Golden Boy is offline
