40 hole sturmey archer hub laced to a 32 hole rim.

There is an older thread here with some info on building one of these wheels, but it is missing information, specifically, the diameter of the hub flange he used for his calculations. I did some rough measuring and came to the conclusion that his numbers were for a sturmey archer hub, so I ordered the spokes and they worked.

Lacing a 32H rim to a 40H hub

Getting the right length spokes in their respective holes is obviously essential, and its not particularly intuitive, every other spoke from each side of the flange is "the other length spoke". The first 8 spokes you install will be 4 short ones and 4 long ones. So, I marked the hub to make this all fairly error proof. Black for holes that get no spokes, blue for holes that get longer spokes and red for holes that get shorter spokes.

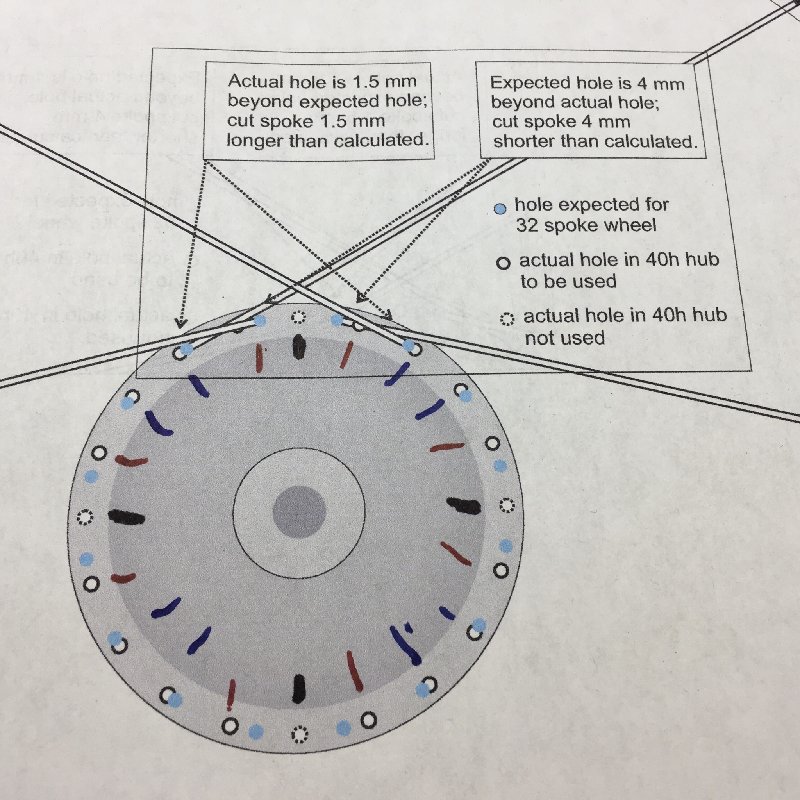

I printed the PDF from the above thread and marked it with felt tip markers, and also marked my hub,





I initially laced up the 2nd side of the wheel "one hole off" accidentally as I tried to index it from the empty holes, but I messed that up, so I indexed it from the one of the central spokes of the group of 4 and got it right. I'm not claiming to be any sort of master wheelbuilder, I've laced up 15 or so wheels in my life, enough to have a decent Idea what I'm doing, but I certainly don't know all, or even most of the tricks...

At any rate, I REALLY like sturmey hubs, being able to lace them to modern rims is fantastic, hopefully this will encourage other people to build up sweet wheels for restomod builds based around sturmey hubs!

EDIT/// additional info, just to clarify, you calculate your spokes for a 32 hole hub and rims, then do the addition/subtraction noted above. For the 700c rim I used (ERD of 611) with a Sturmey hub my spoke lengths were 290 and 296, 16 of each.

Last edited by jackbombay; 01-27-20 at 01:44 PM.
jackbombay is offline
Likes For jackbombay:
Old 01-26-20, 11:37 PM
  #2
Hoards Thumbshifters

mechanicmatt's Avatar

Join Date: Jul 2010
Location: Signal Mountain, TN
Posts: 1,158

Bikes: '23 Black Mtn MC, '87 Bruce Gordon Chinook, '08 Jamis Aurora, '86 Trek 560, '97 Mongoose Rockadile, & '91 Trek 750

Liked 342 Times in 194 Posts
Sounds awesome, we all want pics of what the whole wheel looks like.
mechanicmatt is offline
Likes For mechanicmatt:
Old 01-27-20, 05:59 AM
  #3
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,441

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Liked 1,314 Times in 709 Posts
That looks great and +1 on @mechanicmatt's comment, we want pictures!
Especially interested in what the angles look like near the rim.

I have an alloy 40H FM-hub that needs a rim but I'm not sure I dare to lace that one up like this. Or maybe I should just try and see how it works.
JaccoW is offline
Old 01-27-20, 06:05 AM
  #4
2-Wheeled Fool

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,346

Bikes: Surly Ogre, Brompton

Liked 677 Times in 457 Posts
Originally Posted by jackbombay
There is an older thread here with some info on building one of these wheels, but it is missing information, specifically, the diameter of the hub flange he used for his calculations. I did some rough measuring and came to the conclusion that his numbers were for a sturmey archer hub, so I ordered the spokes and they worked.

Lacing a 32H rim to a 40H hub

Getting the right length spokes in their respective holes is obviously essential, and its not particularly intuitive, every other spoke from each side of the flange is "the other length spoke". The first 8 spokes you install will be 4 short ones and 4 long ones. So, I marked the hub to make this all fairly error proof. Black for holes that get no spokes, blue for holes that get longer spokes and red for holes that get shorter spokes.

I printed the PDF from the above thread and marked it with felt tip markers, and also marked my hub,





I initially laced up the 2nd side of the wheel "one hole off" accidentally as I tried to index it from the empty holes, but I messed that up, so I indexed it from the one of the central spokes of the group of 4 and got it right. I'm not claiming to be any sort of master wheelbuilder, I've laced up 15 or so wheels in my life, enough to have a decent Idea what I'm doing, but I certainly don't know all, or even most of the tricks...

At any rate, I REALLY like sturmey hubs, being able to lace them to modern rims is fantastic, hopefully this will encourage other people to build up sweet wheels for restomod builds based around sturmey hubs!
I admire your tenacity, Jack, but why not simply use a 40H rim? I too love the SA hubs, but there are many places to get 40H rims, or custom drillings. No malice intended here; I'm just curious why you chose to do this.
J.Higgins is offline
Old 01-27-20, 08:26 AM
  #5
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,441

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Liked 1,314 Times in 709 Posts
Originally Posted by J.Higgins
I admire your tenacity, Jack, but why not simply use a 40H rim? I too love the SA hubs, but there are many places to get 40H rims, or custom drillings. No malice intended here; I'm just curious why you chose to do this.
Not anymore in my experience, and certainly not in anything remotely C&V worthy. And even if there is, there is rarely a matching 32H rim for the front anymore. e.g. Kinlin 700C 40H rim or the only in black Velocity Dyad

Even old stock of Sun or Velocity rims is hard to come by and practically non-existent in Europe.
The only one I am aware of is Cycles Grand Bois and those are expensive rims with expensive shipping.
JaccoW is offline
Old 01-27-20, 10:35 AM
  #6
Senior Member
Thread Starter

Join Date: Jun 2019
Location: Portland Oregon
Posts: 998
Liked 469 Times in 272 Posts
More pics!

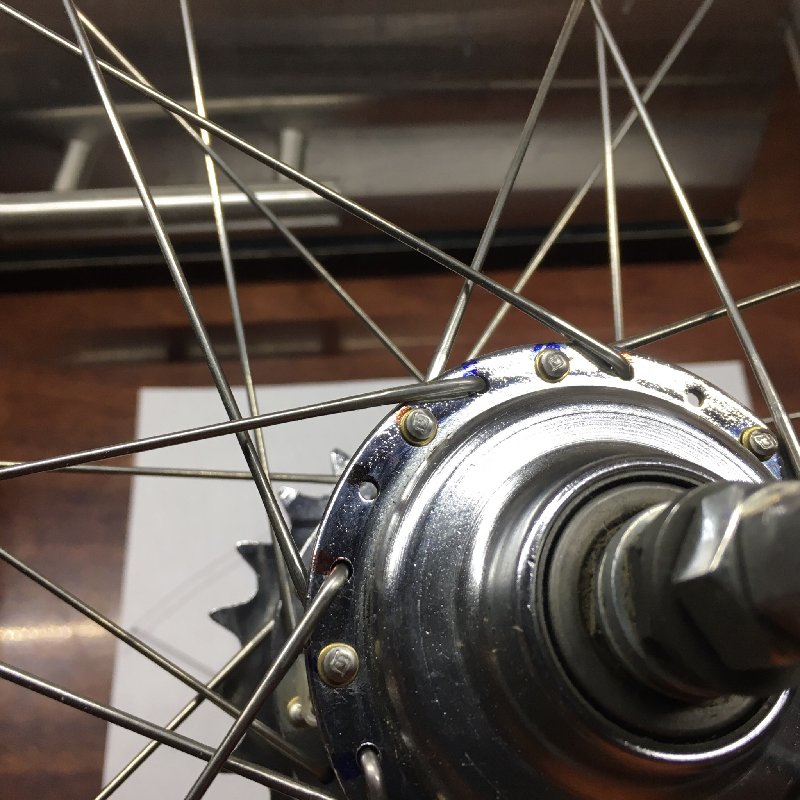

Side view,



The angle the spokes meet the rim,



And I stuffed some black neoprene kneepads inside the wheel so you can see the pattern of one side of the wheel clearly,

jackbombay is offline
Old 01-27-20, 10:47 AM
  #7
Senior Member
Thread Starter

Join Date: Jun 2019
Location: Portland Oregon
Posts: 998
Liked 469 Times in 272 Posts
Originally Posted by JaccoW
That looks great and +1 on @mechanicmatt's comment, we want pictures!
Especially interested in what the angles look like near the rim.

I have an alloy 40H FM-hub that needs a rim but I'm not sure I dare to lace that one up like this. Or maybe I should just try and see how it works.
I would totally lace it up like this! The altered pattern is hardly notable, I can see wanting to stay period correct and build a 40 spoke rim for it, but if that isn't a concern of yours you should absolutely do it!

Originally Posted by J.Higgins
I admire your tenacity, Jack, but why not simply use a 40H rim? I too love the SA hubs, but there are many places to get 40H rims, or custom drillings. No malice intended here; I'm just curious why you chose to do this.
I have found some 40 hole rims, but they are usually tandem rims, and heavy, and expensive, and they don't make a matching front rim in 32. Plus, I like to have the same number of spokes in both wheels for a symmetrical look.

Originally Posted by JaccoW
Not anymore in my experience, and certainly not in anything remotely C&V worthy. And even if there is, there is rarely a matching 32H rim for the front anymore. e.g. Kinlin 700C 40H rim or the only in black Velocity Dyad

Even old stock of Sun or Velocity rims is hard to come by and practically non-existent in Europe.
The only one I am aware of is Cycles Grand Bois and those are expensive rims with expensive shipping.
Yep, and if you want to go with a 14mm internal width rim to work well with a 25 or 28c tire you're out of luck.


The other option to use modern rims with a sturmey hub is to get a 28 hole sturmey and build a 28 hole wheelset, but that only works if you have/want a steel shell AW, which I love, but sturmey made so many other hubs that are very cool. My super awesome townie has a 28 hole sturmey AW for the rear wheel, and I swapped the internals into it from an S5, which is great functionally, but not using the five speed hubshell is a bit sad given their relative rarity, but even if I did build up another wheel for that bike with the S5 hubshell then I would have 32 spokes in the rear and 28 up front. As I'm building this bike from scratch for a friend I had the option to build a 32 hole wheelset so I took it!
jackbombay is offline
Likes For jackbombay:
Old 01-27-20, 12:49 PM
  #8
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,441

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Liked 1,314 Times in 709 Posts
Originally Posted by jackbombay
I would totally lace it up like this! The altered pattern is hardly notable, I can see wanting to stay period correct and build a 40 spoke rim for it, but if that isn't a concern of yours you should absolutely do it!
Well, the 40H alloy hubs are prone to crack and explode! They do seem to be a fairly direct swap with steel AW shells.
JaccoW is offline
Old 01-27-20, 01:03 PM
  #9
Campy NR / SR forever

cadillacmike68's Avatar

Join Date: Jun 2007
Location: FL
Posts: 399

Bikes: 1977-78 Raleigh Professional - bought new, 1987 Shogun 400 (for the lady)

Liked 7 Times in 5 Posts
OK, you got it done, I wouldn't have tried, but more power to you.

A steel hub won't break, but watch the spokes, some of them look like they will be taking a larger stress load and there are 8 fewer than normal in a 40H rim.
cadillacmike68 is offline
Old 01-27-20, 01:04 PM
  #10
Senior Member
Thread Starter

Join Date: Jun 2019
Location: Portland Oregon
Posts: 998
Liked 469 Times in 272 Posts
Originally Posted by JaccoW
Well, the 40H alloy hubs are prone to crack and explode! They do seem to be a fairly direct swap with steel AW shells.
Eeeekkkkk!!!!!

Do you have an early FM with the desirable early ball cup?
jackbombay is offline
Old 01-27-20, 01:11 PM
  #11
Senior Member

Join Date: Mar 2010
Posts: 1,795
Liked 144 Times in 107 Posts
The only rims I know of in 40 for 700c are Sun Rhyno Lite and Velocity Dyad (and other Velocity offerrings). I've built wheels with both. Seems that the 590 CR18 with 40 is no longer which is a great loss for lovers of Raleigh Sports bikes and similar as there is no substitute as far as I know. Well, SJS offers what looks like a house brand single wall alloy rim with 40h in 590 mm, but I've never seen one or heard of how they are.

Not so many years ago, you could get 700c CR18s in 40h.

Oh, for the good old days.
desconhecido is offline
Old 01-27-20, 01:21 PM
  #12
Overdoing projects

JaccoW's Avatar

Join Date: Oct 2011
Location: Rotterdam, former republic of the Netherlands
Posts: 2,441

Bikes: Batavus Randonneur GL, Gazelle Orange Excellent, Gazelle Super Licht, Gazelle Grand Tourist, Gazelle Lausanne, Gazelle Tandem, Koga-Miyata SilverAce, Koga-Miyata WorldTraveller

Liked 1,314 Times in 709 Posts
Originally Posted by jackbombay
Eeeekkkkk!!!!!

Do you have an early FM with the desirable early ball cup?
Not sure, disassembly is due for some time later this year:



JaccoW is offline
Likes For JaccoW:
Old 01-27-20, 01:45 PM
  #13
Senior Member
Thread Starter

Join Date: Jun 2019
Location: Portland Oregon
Posts: 998
Liked 469 Times in 272 Posts
Nice restoration on that 4 speed shifter!


Just to put some more info on this wheel build in this thread, you calculate your spokes for a 32 hole hub and rims, then do the addition/subtraction noted above. For the 700c rim I used (ERD of 611) with a Sturmey hub my spoke lengths were 290 and 296, 16 of each. I did add this info to the original post too.
jackbombay is offline
Likes For jackbombay:
