(Vintage) pedals, toe clips, and straps?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

(Vintage) pedals, toe clips, and straps?

Old 02-13-20, 01:58 PM
  #26
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,443
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked 117 Times in 88 Posts
Originally Posted by Salamandrine View Post
I've struggled a bit with foot issues myself when using clips and straps.

Most of my lifetime miles were with campy SL quill pedals and traditional cycling shoes with cleats. I wore out a lot of pairs of shoes. Detto, Duegi, and Rivat were the main ones I remember. After some experimentation, clips were always Christophe steel, straps Binda regular. I don't like the laminated extras. I can accept Christophe straps as well. Alloy clips had a tendency to break an unfortunate times. Also BITD, I used at various points Lyotard CA45 and 23 pedals.

More recently, my PX10 was my main bike for about a year. That had Lyotard CA45 quill pedals. For clips, Christophe as always. Still made and still the best. I used VO straps, which I think are excellent. I normally do not like laminated straps but found these very comfortable, secure, and well made.

For a while I tried Chrome messenger shoes. They have a stiff shank and they improved comfort a lot in that regard, and I did quite a few 80-100 mile rides with them, but ultimately they were just too hot for the climate in CA. They're also unreasonably heavy. The PX10 is currently in stasis, and I'm still deciding myself what the next shoe will be. Pedals will be Lyotard 23.
https://www.dsw.com/en/us/product/me...ctiveColor=965

Do these look enough like cycling shoes? Pretty much like what a shoe would have looked like when #23 was created. Also available in a woven top for hot weather. Quite a bit lighter than you might expect.

Personally have never found any tendency to pull out with the smooth soles. A leather pedal patch can always be glued on. Just a square of leather stuck to sole with barge cement. A regular quill pedal will indent a pair of grooves pretty quick. They will hold well enough and will release easy. Pedal patch will wear down if you walk a lot but so easy to glue another.
63rickert is offline
Old 02-13-20, 02:43 PM
  #27
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,379

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 161 Times in 126 Posts
Originally Posted by 63rickert View Post
https://www.dsw.com/en/us/product/me...ctiveColor=965

Do these look enough like cycling shoes? Pretty much like what a shoe would have looked like when #23 was created. Also available in a woven top for hot weather. Quite a bit lighter than you might expect.

Personally have never found any tendency to pull out with the smooth soles. A leather pedal patch can always be glued on. Just a square of leather stuck to sole with barge cement. A regular quill pedal will indent a pair of grooves pretty quick. They will hold well enough and will release easy. Pedal patch will wear down if you walk a lot but so easy to glue another.
I have thought about that actually: both the use of ordinary traditional shoes, and gluing on an old school square leather patch. I bet that could work pretty well for Eroica. Should be reasonably easy to walk around on. I think I may have an old pair of dress shoes I could sacrifice. Hmm, then again, I'm not sure that would work with no. 23 pedals and their flat platform. Maybe. With quill pedals, should be great. My unique requirements at this point are shoes that work with campy quill pedals, and Lyotard no. 23 platforms.

Those posted shoes look pretty good, but I think they'd be too hot for me without getting a lot of holes punched in them. I had some traditional leather shoes, also Italian made, and they made very good cycling shoes. This was when I used to live in SF. My bike was my car then, and they got used a lot.

In the meantime I found these ProoŁ shoes that @non-fixie posted on another older thread about shoes (thanks!). There's some plain brown and black ones with no stripes also. They're kind of like a hybrid between the old Avocet touring shoes and a traditional lace up cycling shoe.

https://proou.com/boutique/cycling-s...exico-touring/


Salamandrine is offline
Old 02-13-20, 02:59 PM
  #28
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 1,804
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 594 Post(s)
Liked 67 Times in 51 Posts
For commuting and running errands, I've got some Diadora shoes that I'm really fond of. They have rubber soles with shallow grooves to engage the pedal cage.





For riding my vintage bikes in appropriate shoes, I've got a variety of vintage Duegi and Detto shoes with plastic slotted cleats. Most were purchased when they were going out of style.
The pair shown below are an unknown brand with a leather sole and no cleats. I've got a pair of TA cleats that I've been meaning to have nailed on.




For a shoe that looks traditional but can be walked in, I have a pair of Carnac Carlits. These were in production 15 or 20 years ago...
The soles are a hard plastic, so not as nice as proper rubber soles. Still, a nice shoe!





Unfortunately, none of these are still in production. There is always a chance that you might find a pair on ebay or other such vendors of pre-owned goodies.

Steve in Peoria
steelbikeguy is online now
Old 02-13-20, 04:53 PM
  #29
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,355

Bikes: Yes, please.

Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 1251 Post(s)
Liked 310 Times in 210 Posts
For those who are interested: ProoŁ have joined forces with Magliamo, a Belgian outfit who make replica wool jerseys.

I've met the Magliamo representative at several C&V events and asked him about it when the ProoŁ shoes appeared on his stand in Oudenaarde last year. Apparently ProoŁ had trouble keeping the business afloat with the traditional shoes. By joining Magliamo they gained better access to the C&V crowd, and together they have introduced a broader line of casual cycling shoes, which should appeal more to the "lifestyle consumer".

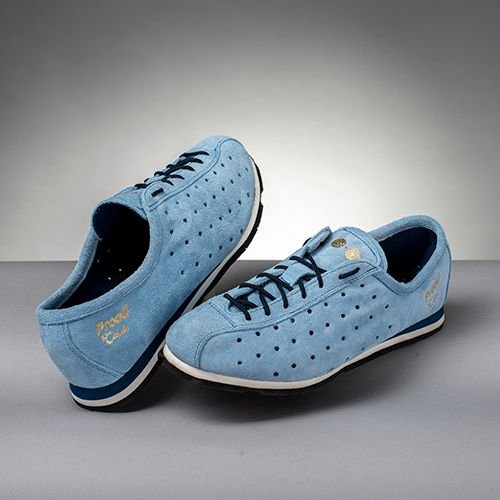

Like this "ProoŁ Celeste", which looks rather good IMO, and mrs non-fixie actually considered* buying:



* and she might have bought them, too, if she hadn't also stumbled upon HNB at the Faggin stand in Gaiole while I was talking to with their frame builder. The Faggin shoes are made by HNB. Turned out they hey had their own stand at the venue as well, and we spent some time there. Nice stuff! She likes the Urban 1, but I am trying to nudge her towards the City 1 in white:


__________________
The postman with my new frame: I'll be here when he comes!

non-fixie is offline
Old 02-13-20, 05:07 PM
  #30
oneclick
Junior Member

Join Date: Feb 2020
Posts: 14
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 6 Times in 2 Posts
I used a set of lyotard platforms for a while, they started making a click which turned out to be the hole in the alloy end-plate wearing larger than the threaded bit of the steel housing that went though the hole. Every time the click started I would remove them and persuade the hole to close up again.
oneclick is offline
Old 02-13-20, 05:51 PM
  #31
63rickert
Senior Member

Join Date: Dec 2013
Posts: 1,443
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 706 Post(s)
Liked 117 Times in 88 Posts
Originally Posted by Salamandrine View Post
I have thought about that actually: both the use of ordinary traditional shoes, and gluing on an old school square leather patch. I bet that could work pretty well for Eroica. Should be reasonably easy to walk around on. I think I may have an old pair of dress shoes I could sacrifice. Hmm, then again, I'm not sure that would work with no. 23 pedals and their flat platform. Maybe. With quill pedals, should be great. My unique requirements at this point are shoes that work with campy quill pedals, and Lyotard no. 23 platforms.

Those posted shoes look pretty good, but I think they'd be too hot for me without getting a lot of holes punched in them. I had some traditional leather shoes, also Italian made, and they made very good cycling shoes. This was when I used to live in SF. My bike was my car then, and they got used a lot.

In the meantime I found these ProoŁ shoes that @non-fixie posted on another older thread about shoes (thanks!). There's some plain brown and black ones with no stripes also. They're kind of like a hybrid between the old Avocet touring shoes and a traditional lace up cycling shoe.

https://proou.com/boutique/cycling-s...exico-touring/


Those do look very good. So do the Faggin. The biggest problem I've encountered with the better Italian dress shoes is that the length of the toe box is variable with this year's fashion. To use with clips longer bolts and spacers are always required. Also the Italians for any reasonable price are one width only and it's narrow for most. I am fine on that part. And as there is a very large DSW nearby there is always the discount rack. All of the problems would be easier to cope with if we had feet as small as most did in vintage era.
63rickert is offline
Old 02-13-20, 06:00 PM
  #32
bertinjim
Senior Member

bertinjim's Avatar

Join Date: Mar 2012
Location: Niagara Region, Canada
Posts: 1,089

Bikes: 1960s Bertin C37, 1970s Bertin C 37

Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 200 Post(s)
Liked 39 Times in 30 Posts
bikemig-

Lyotard "Marcel Berthet" pedals work really well. They are especially good with cycle touring shoes having the molded in groove on the sole. They work badly with 70s deep cleat racing shoes as the cleat depth allows foot pullout. The Berthets were designed during the era of nail-on cleats and are a perfect fit for foot support and cleat depth and retention with the TA Jacques Anquetil nail-on cleats on my really old Detto Pietros. Christophe clips and matching straps (white, blue, black, red and tan) and end buttons are still available from Velo Heaven in the UK.

bertinjim is offline
Likes For bertinjim:
Old 02-13-20, 09:42 PM
  #33
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,414

Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 423 Post(s)
Liked 59 Times in 34 Posts
My regular commuter setup: Lyotard "Berthet" 23 pedals, (rusty) Balilla clips, ALE straps and Avocet 30 shoes. They all work great together, but I do find the pedals feel a bit narrow when I'm wearing regular tennis shoes. I wear size 11 (45ish) shoes, and the outer edge of my non-cycling shoes do extend a bit past the pedal platforms. Not an issue with narrower, hard-soled cycling shoes.


Last edited by gaucho777; 02-14-20 at 12:49 AM.
gaucho777 is offline
Old 02-13-20, 11:23 PM
  #34
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,041

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 474 Times in 280 Posts
I don't know how many of us are still left, but mark me down as another cyclist who still rides with traditional pedals, clips and straps. I did give clipless a good try, but I had foot pain from three different sets of pedals. The pain went away and never came back once I switched back. I'm convinced.

I do need a bit more support at the outside edge these days as my little piggies go to sleep if the ride is over 30 miles with a non-quill pedal. However, I decided to give these a try recently as they look a bit wider at the rear:



So far, my little toes have stayed awake for an entire almost-50-mile ride, so it's lookin' good.

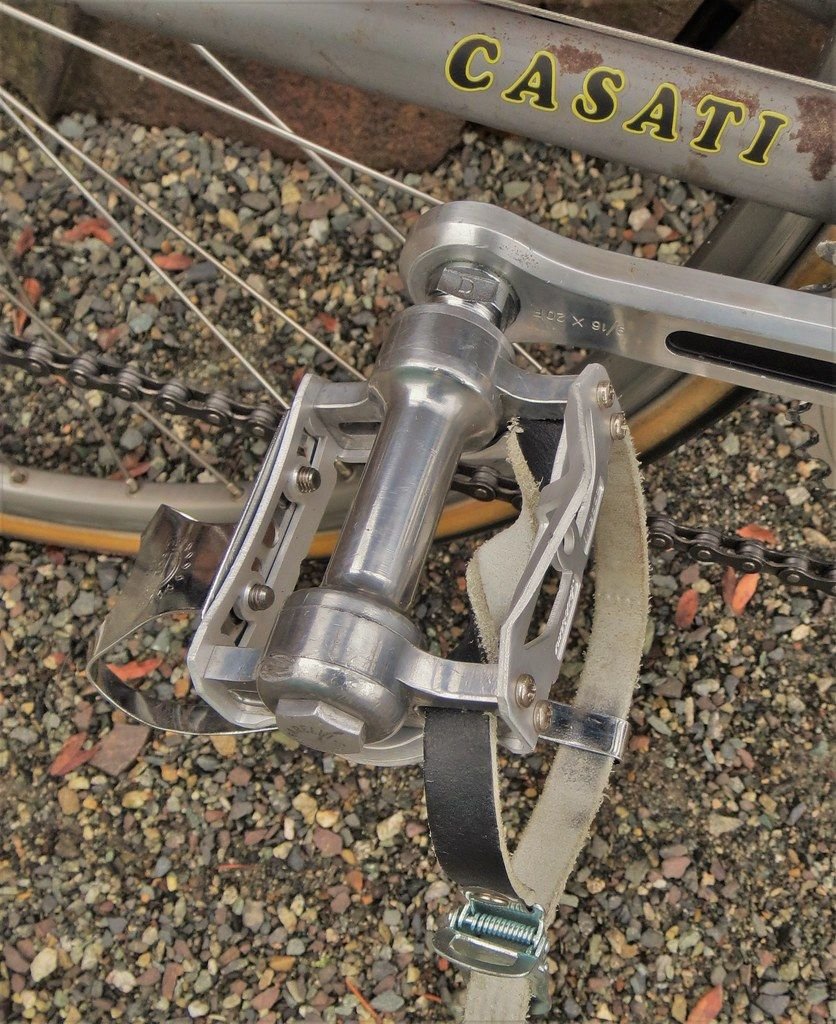

I've been expanding my pedal choices in these past couple years and in addition to the Suntour pair above, I've added Barelli Supremes:

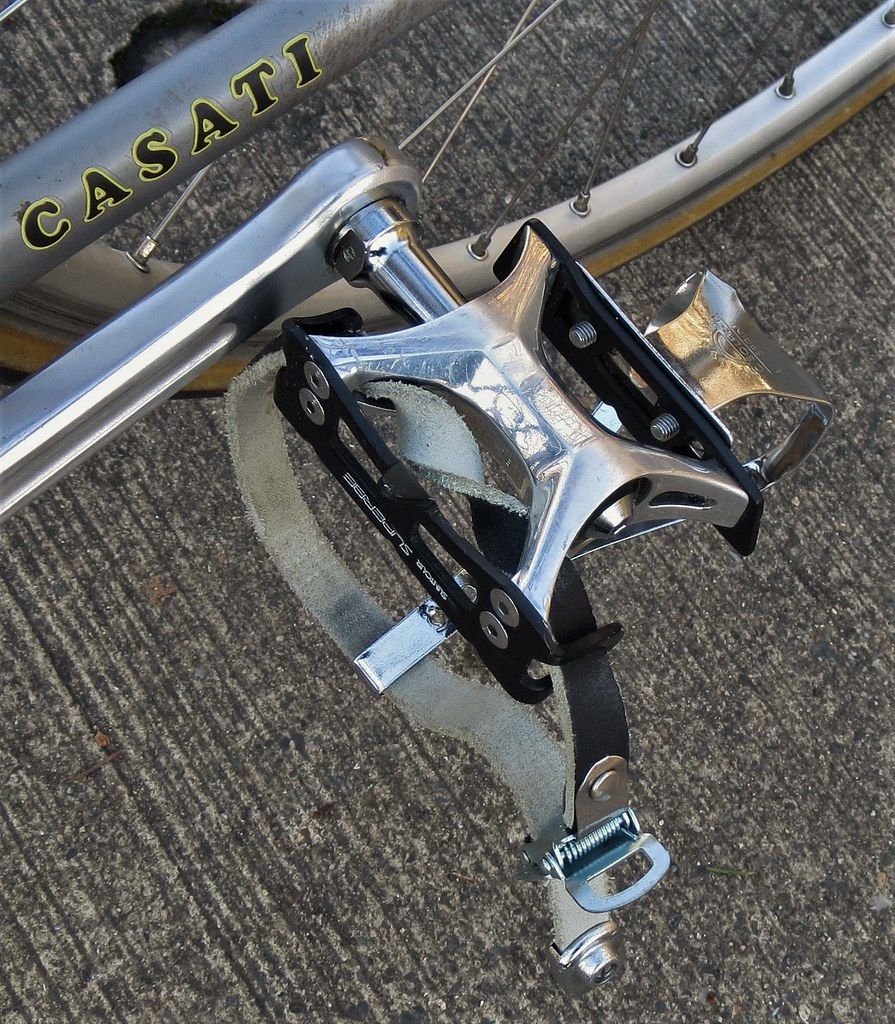

Barelli B-25s:

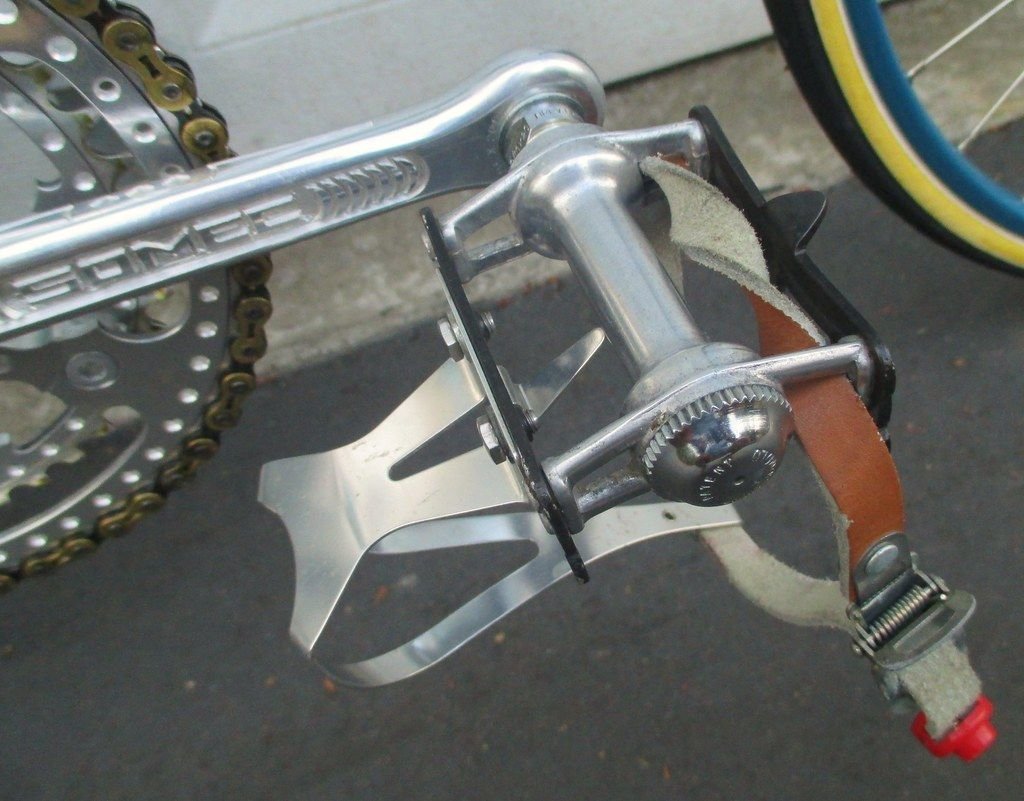

Of course, I still rely upon the indestructible Campy Record pedals for the remainder of the stable. SL, Record, Record pista and Super Record:












Shoes are a whole 'nother story. Next post

DD
__________________
My Flickr pics: http://www.flickr.com/photos/30331021@N08/


Last edited by Drillium Dude; 02-13-20 at 11:43 PM.
Drillium Dude is offline
Likes For Drillium Dude:
Old 02-14-20, 12:30 AM
  #35
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 223
Mentioned: 14 Post(s)
Tagged: 0 Thread(s)
Quoted: 131 Post(s)
Liked 133 Times in 84 Posts
Originally Posted by Drillium Dude View Post
Barelli B-25s:

I don't remember the Barelli model names, but I would be wary of the ones with sealed cartridge bearings. I have heard a few reports of those snapping at the sharp transition from the larger-diameter part of the axle to the smaller part that goes through the bearing.

The "victim" of that pedal measured the diameter where it broke and it's kinda small, obviously too small for this one fella. Of course we don't know its full service life; maybe it was in a crash? Still, this is not the only one I heard of breaking. I remember at the time, I measured the diameter of a TA pedal, with a needle bearing at this end (near the crank). It had a sharp-corner transition like the Barelli, but was a much larger diameter there. Sorry I don't remember the numbers but the difference was significant, with TA something like 50% larger IIRC. Look how small the fatigue-cracked part is -- the darker, crescent moon shape. The rest snapped all at once.

Too bad, because the Barellis sure are beautiful (if you like that kinda thing!) and exotic. They were considered an "upgrade" from Campy in some quarters. Those who have gone many miles on Barellis with cartridge bearings are welcome to report their experience, but the failures I've heard about are too many for me. I'm heavy, and I've had a pedal snap on me -- in traffic -- putting me on the pavement pretty quickly. The car driver behind me was awake enough to hit the brakes or I might not be telling the story. That colors my willingness to ride that style of Barelli.

The one I snapped in traffic broke at the thread where it goes in the crank -- it was a Schwinn/Ashtabula crank on my klunker. Those have 1/2" threads, versus 9/16" on any proper enthusiast's bike (or 14 mm if French, which is close enough). So, mine broke from a different cause, but same effect: FDGB.

Barellis with the cup-and-cone bearing like a Campy are safe. The critical diameter is larger, and most importantly, the curved "cone" of the ball race is a practically perfect shape for maximizing fatigue life.

BTW Phil Wood CHP pedals are another one I won't ride, seen too many of them snapped off. Same deal, sharp transition due to a cartridge bearing. Same deal also with people reporting they rode them for decades and tens of thousands of miles, so YMM literally V. Do you feel lucky?

Oh and don't count on being able to spot the fatigue crack in time, even if you inspect closely. I bet that Barelli crack was not visible to the human eye before it snapped, nor was my Schwinn's. Advanced techniques like magnaflux or dye-penetrant might have caught it, but who does that?

Mark B in Seattle
bulgie is offline
Likes For bulgie:
Old 02-14-20, 11:45 AM
  #36
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 3,699

Bikes: many

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 579 Post(s)
Liked 88 Times in 68 Posts
Dang, Drillium Dude , just the pedals along with the fragments of chainstays and crank arms in your pix qualifies as bike porn in my book. Even the patina on the Casati.
__________________
I prefer you contact me by email (skip.montanaro@gmail.com).
smontanaro is offline
Likes For smontanaro:
Old 02-14-20, 12:19 PM
  #37
Drillium Dude
NNNN

Drillium Dude's Avatar

Join Date: Jul 2009
Location: Bothell, WA
Posts: 10,041

Bikes: 1973 Colnago Super, 1973 Colnago Super concept, 1979 Medici Pro Strada, 1979 Dennis Sparrow, 1980 Alpina, 1981 Bianchi Super Leggera, 1983 Colnago Mexico, 1985 Casati Perfection, 1985 Somec Super Corsa, 2002 Bill Davidson custom

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 1405 Post(s)
Liked 474 Times in 280 Posts
I had heard stories about some Barellis snapping axles, but nothing specific - nor any photographic evidence - until your post bulgie . How common was this failure, anyway? Was there ever a recall? Maybe a bad batch of axles? It's too bad because they're beautifully made and spin smooth as butter!

AFAIK, both pairs I currently have run sealed bearings, so they probably have the same pedal spindle. One pair was NOS and the other had so little wear I would call them new, too. I will continue to use the one pair mounted on the Colnago because (1) the bike sees light use today and (2) I recently mounted my sitting-in-a-box-forever Campy alloy freewheel - which I will use exclusively for flat ground. Not planning to put this drivetrain through any crazy climbing stresses.

I had not heard the Phil CHPs had a similar problem. I admit to having considered finding a pair of those; in recent years I've been going back to my roots and riding for 20+ miles in street clothes/shoes. That's why I got the Barelli platforms, and was thinking maybe a pair of Phils, too. Might have to reconsider.

DD
__________________
My Flickr pics: http://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 02-14-20, 01:54 PM
  #38
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,314

Bikes: '84 Miyata 610 '85 Miyata 710, Ď86 Miyata 710, Ď91 Cannondale ST600, Ď84 Trek 610, 520, 620, Ď91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 498 Post(s)
Liked 70 Times in 54 Posts

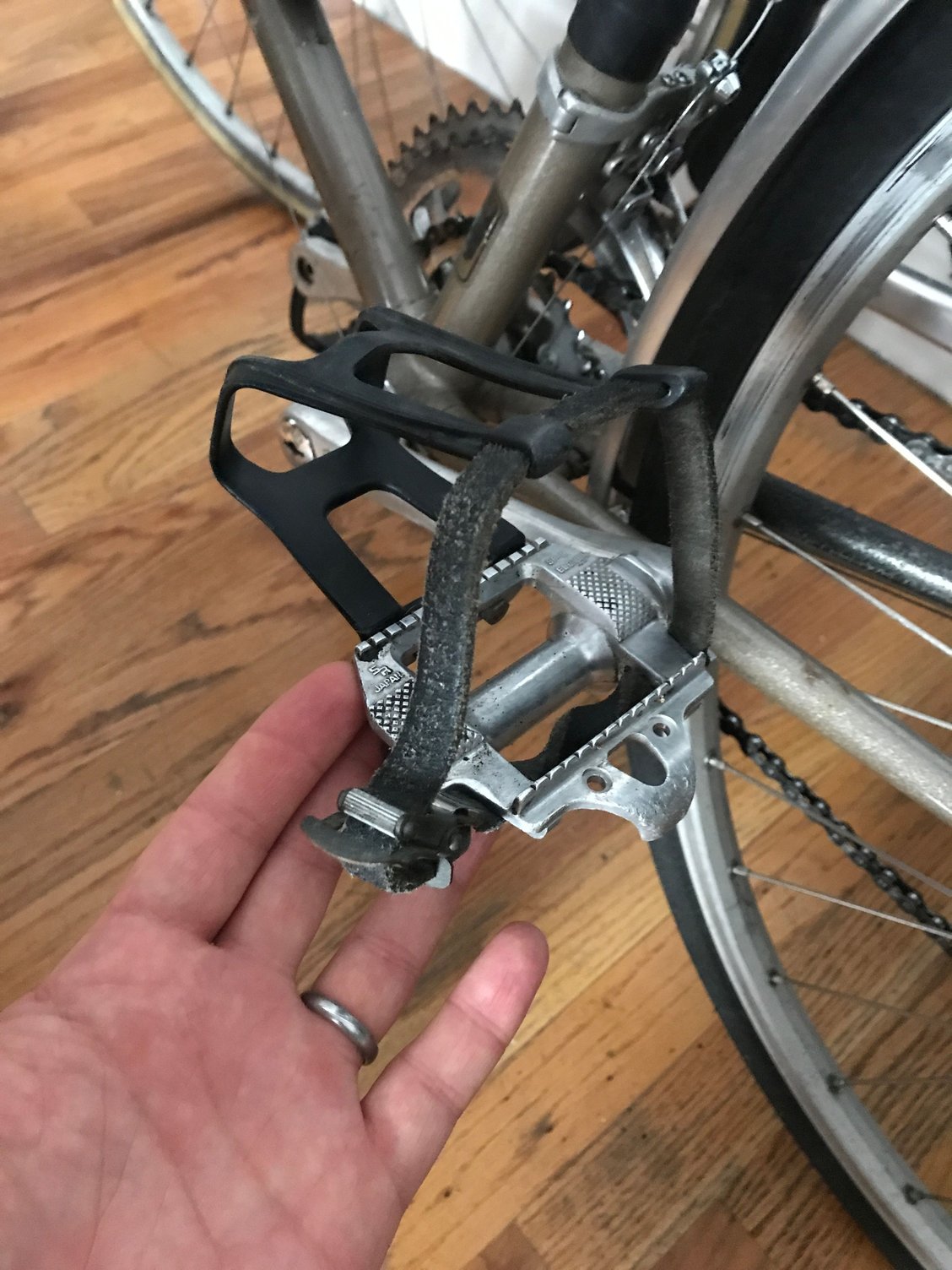

Another vote for XP-11's. I was looking for a pair of pedals to replace the plastic craptastic pedals the PO had on my 520, they didn't even have mounting holes for clips! I was checking the Ebay and I found a pair of SP-11 for under than 20 bucks!
They're a little beat up, but so am I 👍

Chr0m0ly is offline
Old 02-14-20, 02:37 PM
  #39
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,379

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1924 Post(s)
Liked 161 Times in 126 Posts
Originally Posted by bulgie View Post
BTW Phil Wood CHP pedals are another one I won't ride, seen too many of them snapped off. Same deal, sharp transition due to a cartridge bearing. Same deal also with people reporting they rode them for decades and tens of thousands of miles, so YMM literally V. Do you feel lucky?
I'm glad you brought up the Phil pedals. I was going to mention them in response to merziac's platform concept in post #17 . They were at one time pretty common, at least around my parts. I guess my parts was kind of the greater San Jose area though, so there's that. Anyway, in some ways they were a very smart design, but IMO it wasn't fully worked out. I also remember plenty of broken Phil pedals coming into the shop, during my wrenching days. As you say, some people rode them forever with no problems. I don't like relying on luck.
Salamandrine is offline
Old 02-14-20, 02:44 PM
  #40
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 16,313

Bikes: A bunch of old bikes and a few new ones

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4125 Post(s)
Liked 416 Times in 321 Posts
Originally Posted by Drillium Dude View Post
I don't know how many of us are still left, but mark me down as another cyclist who still rides with traditional pedals, clips and straps. I did give clipless a good try, but I had foot pain from three different sets of pedals. The pain went away and never came back once I switched back. I'm convinced.

I do need a bit more support at the outside edge these days as my little piggies go to sleep if the ride is over 30 miles with a non-quill pedal. However, I decided to give these a try recently as they look a bit wider at the rear:



So far, my little toes have stayed awake for an entire almost-50-mile ride, so it's lookin' good.

I've been expanding my pedal choices in these past couple years and in addition to the Suntour pair above, I've added Barelli Supremes:

snip . . .

Shoes are a whole 'nother story. Next post

DD
Terrific bike porn which is what this thread needs more of,

Suntour pedals are sweet.
bikemig is offline
Old 02-14-20, 04:35 PM
  #41
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 5,139

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci x2, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 123 Post(s)
Tagged: 0 Thread(s)
Quoted: 1485 Post(s)
Liked 338 Times in 259 Posts
Originally Posted by bikemig View Post
Terrific bike porn which is what this thread needs more of,

Suntour pedals are sweet.
Standby
merziac is offline
Old 02-14-20, 04:48 PM
  #42
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 16,313

Bikes: A bunch of old bikes and a few new ones

Mentioned: 134 Post(s)
Tagged: 0 Thread(s)
Quoted: 4125 Post(s)
Liked 416 Times in 321 Posts
Originally Posted by merziac View Post
Standby


bikemig is offline
Old 02-14-20, 05:05 PM
  #43
miroslav kadlec
Junior Member

Join Date: Jan 2020
Posts: 5
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Gipiemme sprint pedals
Ale clips
Christophe straps
​​​​
Shoes from badminton, Mizuno.
miroslav kadlec is offline
