Originally Posted by JacobLee View Post

I never noticed that the fender bracket had been broken off, or that the bb shell had been forged in hell!



No, that's typical of Schwinn electro-forged BB shells. They were made from a plate of steel which was punched for the tube joints, curved in a circle, and welded. The seam was only partially smoothed over.

Darn shame about the fender bracket.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 01-08-22, 02:07 PM
  #52
JacobLee
Total Scrounge
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 733

Bikes: 71 International 72 Super Course 83 Gap

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 539 Times in 229 Posts

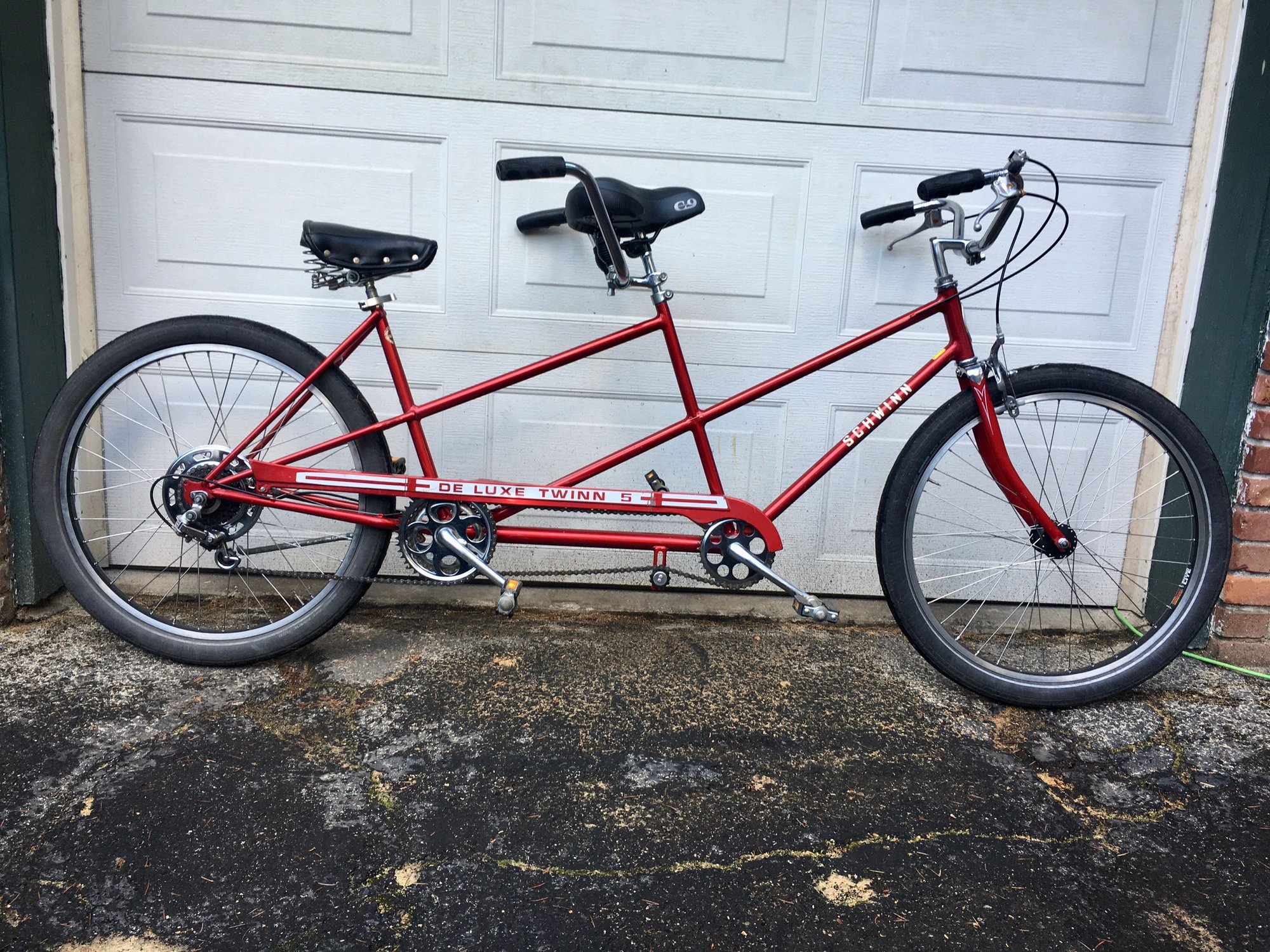

Well, it took almost two years, but I finally got the Twinn that my wife bought me some twenty-odd years ago back together. I think Iíve moved three times with this in non-op condition. I didnít realize what a huge weight would be lifted by the completion of this project.



Got lots of great tips from members, which were very helpful. bulgie recommended an mtb fork with canti mounts, but those are hard to find with 7Ē steerers, so that didnít happen. I did, however, find this crazy, huge dual-pivot Tektro in the case at an LBS, and it works pretty darn good!



I built the front wheel around a Shimano disk hub because it was the only thing I could find at the co-ops with a threaded axle that I could swap for solid w/nuts. Plus, I figured itíd be a useful wheel down the road (fork with disc tabs?). The funny thing is this hub has a 10mm axle with turned-down ends, so that threw me for a loop when looking for a solid axle.



Built the rear wheel with burly 12g Sapim spokes to fill the hub flange holes. I saw this mod for the Atom drum brake, which is almost useless, on Sheldon Browne. Used the pulley from a Travel Agent that I havenít used in 20 years, and itís pretty slick. Needs a little work still before I trust it 100%, but if you trust the brakes 100% on this bike, youíre in trouble anyways!



Swapped the stem shifter for a Suntour XC thumbie that I only had one of, and it works fine. No reason to shift on the stem when youíre a captain.

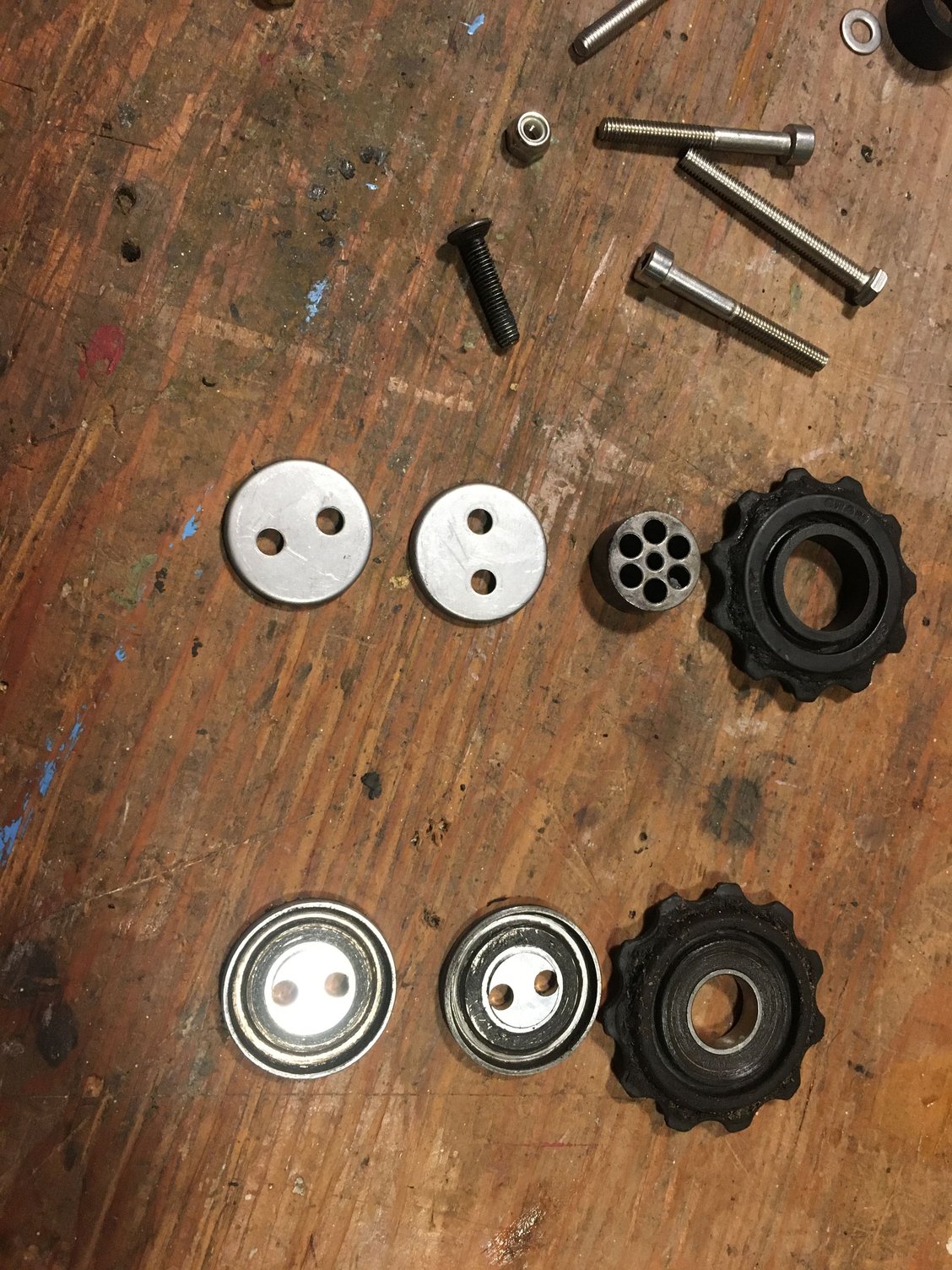

And finally, among the items missing when I got this bike was the idler gear, so I made one from the guts of two Sram X9 derailleurs which have these weird off-center mounting holes. Used the pulley with sealed bearing.



Itís clattery, but I canít imagine the original metal unit was any quieter. Weíll see how it holds up.



Rides about as well as a Twinn is gonna ride!
JacobLee is online now
Likes For JacobLee:
Old 01-08-22, 07:55 PM
  #53
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,027
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Liked 228 Times in 158 Posts
That turned out great. I think you made good decisions choosing your parts without getting too carried away with modifications. Something to keep in mind, if you ever need a replacement headset, is that Tange makes some nice BMX headsets that will likely drop right in - I have a Schwinn Sports Tourer with high quality Tange BMX 125 cartridge bearing headset . It's pretty nice.
Hobbiano is online now
Likes For Hobbiano:
Old 01-09-22, 06:22 AM
  #54
J.Higgins
Covid Hermit

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,481

Bikes: Bilenky Tourlite, Surly Ogre

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 1384 Post(s)
Liked 667 Times in 452 Posts
That bike turned out nice!
J.Higgins is offline
Likes For J.Higgins:
Old 01-09-22, 05:05 PM
  #55
Hobbiano
Senior Member

Join Date: Sep 2014
Location: Baton Rouge La
Posts: 1,027
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 324 Post(s)
Liked 228 Times in 158 Posts
Originally Posted by JacobLee View Post




Rides about as well as a Twinn is gonna ride!
Is that a single speed master link to the left of the idler pulley? If it is it looks like its missing the clip that keeps it from coming apart.
Hobbiano is online now
Old 01-09-22, 05:26 PM
  #56
JacobLee
Total Scrounge
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 733

Bikes: 71 International 72 Super Course 83 Gap

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 539 Times in 229 Posts
Originally Posted by Hobbiano View Post
Is that a single speed master link to the left of the idler pulley? If it is it looks like its missing the clip that keeps it from coming apart.
Yes! Thanks for catching that! Iíve never been able to get it apart, so I think I had forgotten about it. Iíll get a new master link.

Thanks again!
JacobLee is online now
Old 01-09-22, 07:46 PM
  #57
Senior Ryder 00
Old bikes, Older guy

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 645

Bikes: A few modern, Several vintage, All ridden when weather allows.

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 164 Post(s)
Liked 63 Times in 49 Posts
Great job with solid, practical components. Should serve you well!
Cheets,
Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Likes For Senior Ryder 00:
Old 01-09-22, 08:17 PM
  #58
bulgie
blahblahblah chrome moly

bulgie's Avatar

Join Date: Apr 2009
Location: Seattle
Posts: 836
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 481 Post(s)
Liked 775 Times in 385 Posts
Originally Posted by Hobbiano View Post
Is that a single speed master link to the left of the idler pulley? If it is it looks like its missing the clip that keeps it from coming apart.
It could be, but I'm 92% sure it's not. I think it's the type of master link that doesn't use the spring clip. It works by the thin outer plate having holes the nestle into grooves in the pins. The way you remove it is by flexing the chain sideways with both hands, to move the two pins closer together, allowing the outer plate to come off. Hard to explain but easy to demonstrate; maybe I should make a YouTube on it?

JacobLee , I'd say if the plate is hard to remove then you have the type I'm thinking of and it's working as expected, no need to replace it. Maybe try the flexing trick and see if the plate can be wiggled off. Can be tricky since both hands are needed to flex the chain, so you may want to have a helper wiggle the plate off while you do the flexing. I know I can do it myself (have done, many times over the decades), but I don't remember the exact proceedure as in which fingers are free to manipulate the plate while flexing the chain. I don't have one in front of me to try it to remind myself but ISTR it was easy enough..

Mark B
bulgie is offline
Likes For bulgie:
Old 01-09-22, 10:20 PM
  #59
JacobLee
Total Scrounge
Thread Starter

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 733

Bikes: 71 International 72 Super Course 83 Gap

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 263 Post(s)
Liked 539 Times in 229 Posts
Originally Posted by bulgie View Post
It could be, but I'm 92% sure it's not. I think it's the type of master link that doesn't use the spring clip. It works by the thin outer plate having holes the nestle into grooves in the pins. The way you remove it is by flexing the chain sideways with both hands, to move the two pins closer together, allowing the outer plate to come off. Hard to explain but easy to demonstrate; maybe I should make a YouTube on it?

JacobLee , I'd say if the plate is hard to remove then you have the type I'm thinking of and it's working as expected, no need to replace it. Maybe try the flexing trick and see if the plate can be wiggled off. Can be tricky since both hands are needed to flex the chain, so you may want to have a helper wiggle the plate off while you do the flexing. I know I can do it myself (have done, many times over the decades), but I don't remember the exact proceedure as in which fingers are free to manipulate the plate while flexing the chain. I don't have one in front of me to try it to remind myself but ISTR it was easy enough..

Mark B
I suspect youíre right. I spent a few minutes with clamps and pliers trying to see the groove where a clip would go, but that plate doesnít want to move. I had tried flexing the links as you described, but Iíll give it another shot, just to see if thatís the ticket. Again, Iíve never needed to break the chain, or been able to, so itís probably fine, but Iíd like to figure it out either way.
