Wood BB and alloy crank bolt?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Wood BB and alloy crank bolt?

Old 03-09-20, 07:57 AM
  #1
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Phil Wood BB and alloy crank bolt?

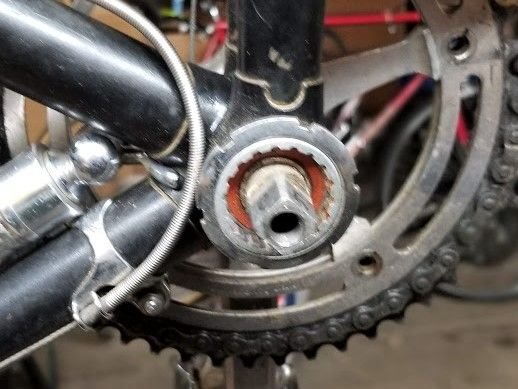

I recently picked up a 1971 Witcomb. It has what I believe to be a Phil Wood bottom bracket. I've never taken one apart so I wanted to ask if it is a Wood before buying the tool to take it out.

Also the bike has very light weight crank bolts that I believe are aluminum alloy. Was that a "thing" BITD? I've never seen one and it seems like a stupid place to save weight but there you have it.



Last edited by bikemig; 03-09-20 at 08:35 AM.
bikemig is offline
Old 03-09-20, 08:01 AM
  #2
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 791

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Liked 133 Times in 111 Posts
Oh, you got me. Good tittle. I was expecting some sort of wooden bottom bracket. The bolt looks like it is cadmium plated steel. Use a magnet to be be sure it is steel.
Velo Mule is offline
Likes For Velo Mule:
Old 03-09-20, 08:27 AM
  #3
PilotFishBob
My brain hurts!

PilotFishBob's Avatar

Join Date: Apr 2014
Location: Memphis, TN
Posts: 966

Bikes: A few. Define "few".

Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 143 Times in 88 Posts
Wonder if the bolts are titanium if not steel?
PilotFishBob is offline
Likes For PilotFishBob:
Old 03-09-20, 08:34 AM
  #4
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
It's too light to be steel. It is painted but perhaps it's ti. I need to track down a magnet!
bikemig is offline
Old 03-09-20, 08:36 AM
  #5
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by Velo Mule View Post
Oh, you got me. Good tittle. I was expecting some sort of wooden bottom bracket. The bolt looks like it is cadmium plated steel. Use a magnet to be be sure it is steel.
lol, good point. A wood BB (as opposed to a phil wood) would have been an awesome find. I need to find a way to change the thread title. In the meantime, it's good click bait, right?

Last edited by bikemig; 03-09-20 at 08:53 AM.
bikemig is offline
Likes For bikemig:
Old 03-09-20, 08:46 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 19,854
Mentioned: 515 Post(s)
Tagged: 1 Thread(s)
Quoted: 3299 Post(s)
Likes: 0
Liked 718 Times in 553 Posts
Yes, aluminum crank bolts were a weight weenie item. You would install the crankarm using the stock, steel bolt, then remove the steel bolt and replace it with the lighter aluminum version.
T-Mar is offline
Likes For T-Mar:
Old 03-09-20, 08:50 AM
  #7
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by T-Mar View Post
Yes, aluminum crank bolts were a weight weenie item. You would install the crankarm using the stock, steel bolt, then remove the steel bolt and replace it with the lighter aluminum version.
That makes sense.

Last edited by bikemig; 03-09-20 at 08:13 PM.
bikemig is offline
Likes For bikemig:
Old 03-09-20, 08:56 AM
  #8
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 791

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 233 Post(s)
Liked 133 Times in 111 Posts
I thought it was a clever tittle. It got me to look right away.

Perhaps this is gold anodized aluminum bolt. That is beyond weight weenie! I think that T-mar's advice is good. Install with a steel bolt, replace it with the gold anodized bolt, weigh the bike and then immediately replace again with the steel bolt. Is the spindle hollow?

Ok, I believe following T-mar's advice would work, but I wouldn't ride with the aluminum bolts.
Velo Mule is offline
Likes For Velo Mule:
Old 03-09-20, 09:05 AM
  #9
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,158
Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1125 Post(s)
Likes: 0
Liked 142 Times in 110 Posts
Just remember not to torque down the aluminum bolt too hard or risk the head cracking off on you....
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 03-09-20, 09:44 AM
  #10
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by Chombi1 View Post
Just remember not to torque down the aluminum bolt too hard or risk the head cracking off on you....
Agreed. I'm dumping those aluminum bolts (I'll save them for a weight weenie build) and running steel for sure.
bikemig is offline
Old 03-09-20, 10:05 AM
  #11
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 18,754

Bikes: old ones

Mentioned: 258 Post(s)
Tagged: 0 Thread(s)
Quoted: 17973 Post(s)
Liked 1,651 Times in 1,206 Posts
.
...it's sort of interesting it has that lock ring on there. I don't know any way for sure to distinguish the Phil Wood BB without trying a tool in there. I think it has something to do with the number of splines. If it's not Shimano or Campagnolo, the only other thing I encounter here is the Phil Wood BB's .
3alarmer is offline
Old 03-09-20, 10:08 AM
  #12
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by 3alarmer View Post
.
...it's sort of interesting it has that lock ring on there. I don't know any way for sure to distinguish the Phil Wood BB without trying a tool in there. I think it has something to do with the number of splines. If it's not Shimano or Campagnolo, the only other thing I encounter here is the Phil Wood BB's .
I assume the lockring was put there because there were some exposed threads on the unit. The shimano tool does not fit and I don't have a campy tool. In any case, all the parts are from the early 70s and Wood is the most likely BB. I just hate to buy the tool without knowing whether this is a Wood BB but I think you're right. There's no way to tell until you try to use the tool.
bikemig is offline
Old 03-09-20, 11:00 AM
  #13
mkeller234
Rustbelt Rider

mkeller234's Avatar

Join Date: Oct 2008
Location: Canton, OH
Posts: 8,876

Bikes: 1990 Trek 1420 - 1978 Raleigh Professional - 1973 Schwinn Collegiate - 1974 Schwinn Suburban

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 192 Post(s)
Liked 169 Times in 82 Posts
Anyway to take it into local bike shop? If you have a good relationship with the mechanic, they may let you use the tool for free.
__________________
|^^^^^^^^^^^^^^| ||
|......GO.BROWNS........| ||'|";, ___.
|_..._..._______===|=||_|__|..., ] -
"(@)'(@)"""''"**|(@)(@)*****''(@)
mkeller234 is offline
Likes For mkeller234:
Old 03-09-20, 11:04 AM
  #14
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,968

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2163 Post(s)
Liked 379 Times in 288 Posts
Originally Posted by T-Mar View Post
Yes, aluminum crank bolts were a weight weenie item. You would install the crankarm using the stock, steel bolt, then remove the steel bolt and replace it with the lighter aluminum version.
Yeah, that was a thing. I remember people doing this.
Salamandrine is offline
Old 03-09-20, 11:22 AM
  #15
crank_addict
Senior Member

crank_addict's Avatar

Join Date: Aug 2013
Posts: 7,144
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 369 Times in 241 Posts
Balsa wood spindle, painted silver...., no less.
crank_addict is offline
Likes For crank_addict:
Old 03-09-20, 11:29 AM
  #16
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,524
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1383 Post(s)
Liked 349 Times in 275 Posts
Looks like a Phil to me, or at least Phil rings.
I have been surprised before!
Those are Arnold Industries aluminum "retaining" bolts.
Attach the cranks with a steel bolt, remove then install to retain the arms, do not try to set them with those.
They WILL break.
Don't be afraid of them.
Knowledge is power
They are 70's Cool.
repechage is offline
Likes For repechage:
Old 03-09-20, 11:32 AM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,524
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1383 Post(s)
Liked 349 Times in 275 Posts
Originally Posted by Chombi1 View Post
Just remember not to torque down the aluminum bolt too hard or risk the head cracking off on you....
Teledyne ti bolts will fail too...
"these are delicate instruments" ya know.
repechage is offline
Old 03-09-20, 11:42 AM
  #18
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,968

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2163 Post(s)
Liked 379 Times in 288 Posts
Looks like a Phil to me as well, BUT, the vintage Phil bottom brackets had asymmetrical spindles and the both sides of the rings would have been flush with the edge of the BB shell. There would not have been room for a lock ring on there. I suppose this could be relatively modern Phil Wood that was put on much later; it's possible. I don't remember the red bearing, but it's been a long time. Modern Phil bearings are not red.

FWIW, there were quite a few lesser known sealed bottom bracket BITD. This could be one of them. That makes more sense to me. Maybe some of them were designed to use the Phil spline standard. OR it could be Phil Wood rings on some other BB, as suggested above. With current info, that would be my best guess.

I'm not at home so I can't check but IIRC Phil tools have 18 teeth and the Shimano BB tools have 20 teeth.

Last edited by Salamandrine; 03-09-20 at 12:19 PM.
Salamandrine is offline
Old 03-09-20, 11:58 AM
  #19
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,929

Bikes: fewer (n-1)

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 780 Post(s)
Likes: 0
Liked 436 Times in 216 Posts
The Phil tool has 18 teeth that should slide into 18 slots in the "cup." It is darned close to 30mm in diameter. (My digital calipers are broken)
Brent
obrentharris is offline
Old 03-09-20, 12:17 PM
  #20
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 5,968

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 116 Post(s)
Tagged: 0 Thread(s)
Quoted: 2163 Post(s)
Liked 379 Times in 288 Posts
This Phil BB posted on Velobase looks like a match. It has a symmetrical spindle and red bearings. Was this a really early one? Anyone know? By the time I was working on them a lot they were asymmetrical and neither the adjustable or the drive side cup/ring protruded past the BB shell. No lockrings at all.

It's kind of funny that there is a steel lock ring on that cup, considering the crank bolts are aluminum.

VeloBase.com - Component: Phil Wood (Cartridge Bearing)

(Image pilfered from above Velobase page)


Addendum. OK. Looks like this was the original design from the first year of production in 1972. Makes sense. Phil Wood didn't make them this way for very long.

Last edited by Salamandrine; 03-09-20 at 12:28 PM.
Salamandrine is offline
Old 03-09-20, 12:17 PM
  #21
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by repechage View Post
Looks like a Phil to me, or at least Phil rings.
I have been surprised before!
Those are Arnold Industries aluminum "retaining" bolts.
Attach the cranks with a steel bolt, remove then install to retain the arms, do not try to set them with those.
They WILL break.
Don't be afraid of them.
Knowledge is power
They are 70's Cool.
Here is a set that was for sale on eBay for $25 & free shipping. A bargain ,right?

https://www.ebay.ie/itm/Arnold-Indus...-/133351857704

bikemig is offline
Old 03-09-20, 12:21 PM
  #22
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,366

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1046 Post(s)
Liked 407 Times in 240 Posts
Somembody was closing out ti crank fixing bolts for 10.00. I bought a couple of sets and they work well. Of course i tighten with steel and really cant tell the diff on my touring bike.
52telecaster is offline
Old 03-09-20, 12:27 PM
  #23
bikemig
Senior Member
Thread Starter

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,032

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4523 Post(s)
Liked 820 Times in 581 Posts
Originally Posted by 52telecaster View Post
Somembody was closing out ti crank fixing bolts for 10.00. I bought a couple of sets and they work well. Of course i tighten with steel and really cant tell the diff on my touring bike.
Wait you use these on your touring bike? Brave man. Tell me that at least you cut your toothbrush in half.
bikemig is offline
Old 03-09-20, 12:35 PM
  #24
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,534

Bikes: Several, mostly not name brands.

Mentioned: 125 Post(s)
Tagged: 0 Thread(s)
Quoted: 2170 Post(s)
Liked 537 Times in 370 Posts
Originally Posted by bikemig View Post
I recently picked up a 1971 Witcomb. It has what I believe to be a Phil Wood bottom bracket. I've never taken one apart so I wanted to ask if it is a Wood before buying the tool to take it out.

Also the bike has very light weight crank bolts that I believe are aluminum alloy. Was that a "thing" BITD? I've never seen one and it seems like a stupid place to save weight but there you have it.


The mounting ring doesn't quite look like Phil:



Phil didn't use lockrings either, but that could have been an end-user modification.

The bolt looks like Arnold Industries' gold anodized aluminum crank bolts:

JohnDThompson is offline
Old 03-09-20, 01:08 PM
  #25
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,524
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 1383 Post(s)
Liked 349 Times in 275 Posts
Originally Posted by JohnDThompson View Post
The mounting ring doesn't quite look like Phil:



Phil didn't use lockrings either, but that could have been an end-user modification.

The bolt looks like Arnold Industries' gold anodized aluminum crank bolts:

Don't forget one side has the counterbore for the cartridge, the other outside is flush, I count the same number of "teeth"
I would buy a Phil form factor remover if I did not own one...
(reminds me that I need to buy a 4 prong Winner Pro remover... I did find my three prong TDC..., two prong Suntour "perfect" Regina, Phil "atom" form factor... and a number of others... One always needs the next one on the shopping list)
repechage is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
