So lame- tires don't fit the frame.

I have no idea why I assumed 32mm tires would fit the '88 Schwinn Premis I've been slowly working on, but I decided to try em out and they arent even close to fitting. The tires hit the brake bridge and fork crown quite substantially. The pics are with both tires only half inflated.

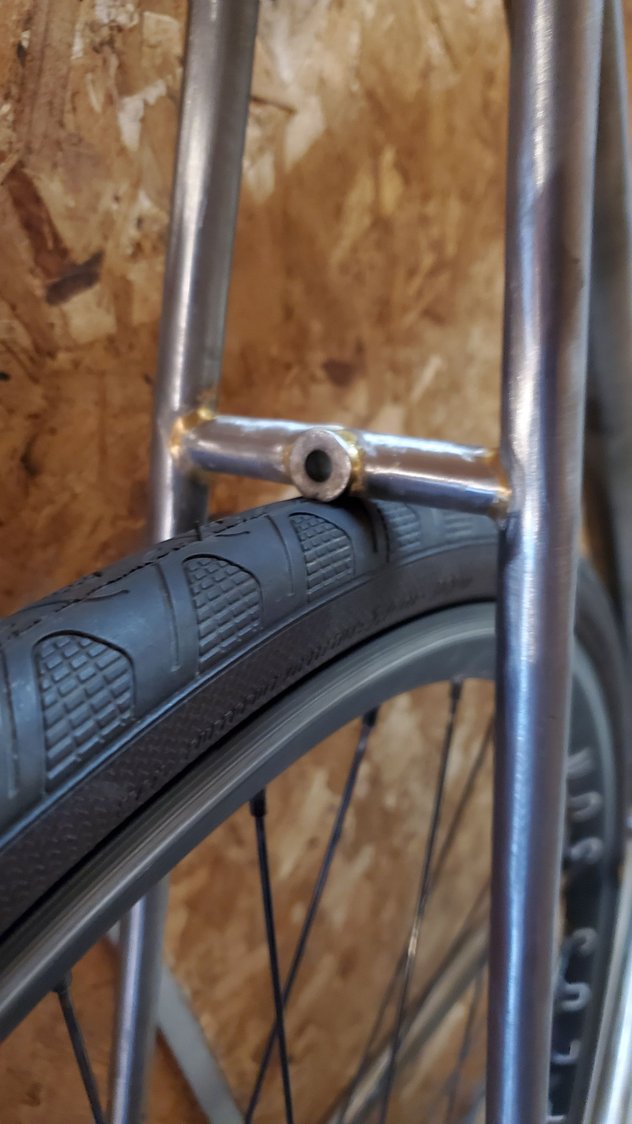

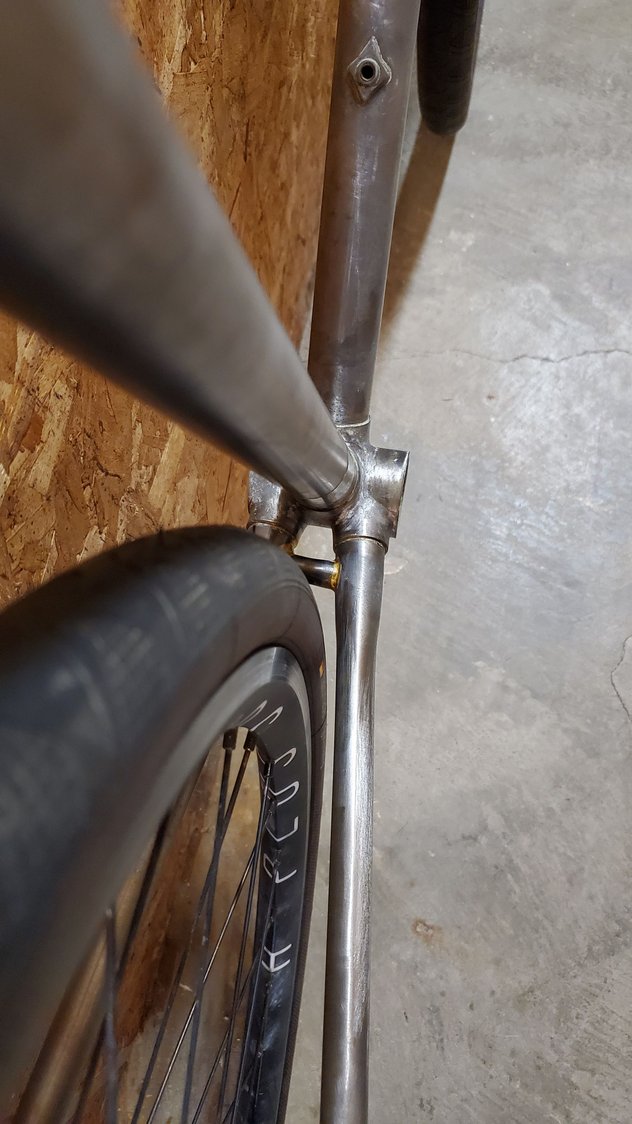

good news is there is plenty of room along the chainstays and bridge.

The plan was to strip the paint and rust, braze on some brake cable guides, then get it powder coated and built with modern 105 and modern cockpit.

No idea why I assumed 32s would fit and no idea why this has me all annoyed(maybe because i have these 32s that arent used for any bikes!).
If 28s fit, then I should continue with the plan, but man that's annoying I didnt even think to check clearance before putting in the work and planning.





Last edited by mstateglfr; 03-15-20 at 12:56 PM.
mstateglfr is offline
Old 03-15-20, 01:05 PM
  #2
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 6,609

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1426 Post(s)
Liked 480 Times in 321 Posts
I find that to be common with most Japanese bikes made in the late 80's. My Miyata 312 won't take 28's let alone a fender, for which there's frame attachments. I'm assuming the Premis is also Japanese?
clubman is offline
Old 03-15-20, 01:13 PM
  #3
CO_Hoya
Señor Member

Join Date: Dec 2007
Location: Colorado
Posts: 769

Bikes: Yes

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Liked 89 Times in 51 Posts
What about going 650b?
CO_Hoya is offline
Likes For CO_Hoya:
Old 03-15-20, 01:19 PM
  #4
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 21,727

Bikes: Several, mostly not name brands.

Mentioned: 126 Post(s)
Tagged: 0 Thread(s)
Quoted: 2248 Post(s)
Liked 643 Times in 432 Posts
Looks like a candidate for 650B conversion.
JohnDThompson is offline
Likes For JohnDThompson:
Old 03-15-20, 01:57 PM
  #5
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,731

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4229 Post(s)
Liked 1,258 Times in 783 Posts
Originally Posted by clubman View Post
I find that to be common with most Japanese bikes made in the late 80's. My Miyata 312 won't take 28's let alone a fender, for which there's frame attachments. I'm assuming the Premis is also Japanese?
It was made in greenville, ms. But still- yes the trend was for later 80s competition level(mid to upper tier) bikes to have less clearance.
All the more reason that it's odd I would just assume they would fit.
mstateglfr is offline
Old 03-15-20, 02:02 PM
  #6
52telecaster
ambulatory senior

52telecaster's Avatar

Join Date: Dec 2016
Location: Peoria Il
Posts: 3,369

Bikes: Bob Jackson World Tour, Falcon and 98 Bianchi Volpe

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1047 Post(s)
Liked 412 Times in 243 Posts
To me this was a ridiculous trend for which i see no upside. Its why i prefer frames designed for 27s.
52telecaster is offline
Likes For 52telecaster:
Old 03-15-20, 02:59 PM
  #7
nlerner
Senior Member

Join Date: Dec 2005
Posts: 13,254
Mentioned: 292 Post(s)
Tagged: 0 Thread(s)
Quoted: 1671 Post(s)
Liked 804 Times in 457 Posts
650b ftw.
nlerner is offline
Likes For nlerner:
Old 03-15-20, 03:36 PM
  #8
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,778

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 749 Post(s)
Liked 431 Times in 319 Posts
Had this issue on an a 89 Allez with 28s so I ended up buying 25s
ryansu is offline
Likes For ryansu:
Old 03-15-20, 04:08 PM
  #9
Cougrrcj
Over forty victim of Fate

Cougrrcj's Avatar

Join Date: Jul 2011
Location: NE Ohio
Posts: 3,433

Bikes: A few...

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 445 Post(s)
Liked 153 Times in 111 Posts

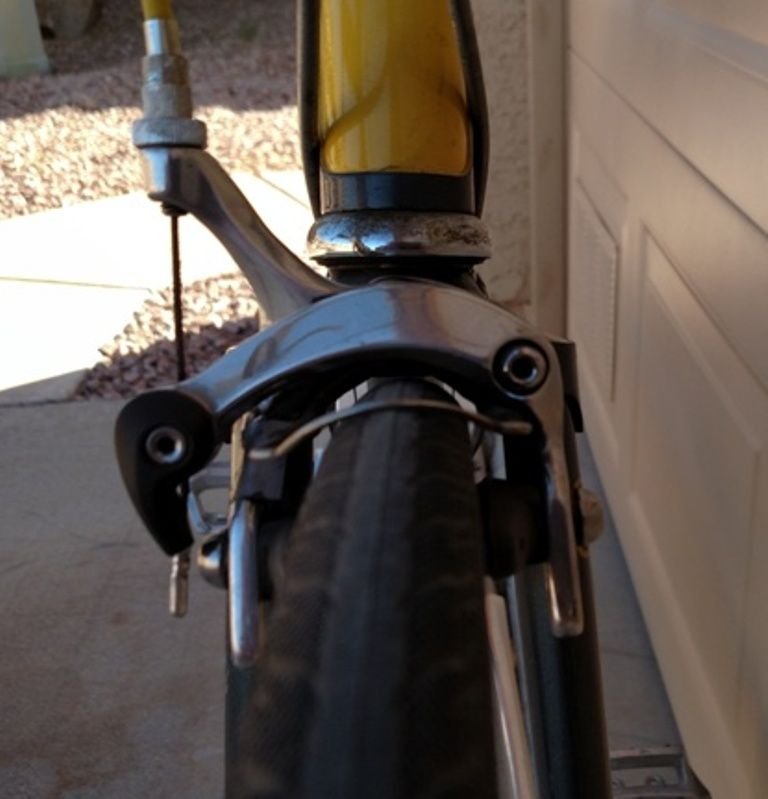

I had that problem fitting 700x28s on my '86 Miyata 710. Only 1mm of clearance - maybe...



There's a bit more room in the rear, so maybe next time 25s in front, and 28 rear...
__________________
'75 Fuji S-10S bought new, 52k+ miles and still going!
'84 Univega Gran Tourismo
'84 Univega Viva Sport
'86 Miyata 710
'90 Schwinn Woodlands
Unknown brand MTB of questionable lineage aka 'Mutt Trail Bike'
Plus or minus a few others from time-to-time

Cougrrcj is offline
Old 03-15-20, 05:25 PM
  #10
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,514

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 105 Post(s)
Tagged: 0 Thread(s)
Quoted: 916 Post(s)
Likes: 0
Liked 307 Times in 236 Posts
Grand Prix 4000 is known to inflate bigger than stated, while other brands/models are just the opposite.

These tires won't work, but now to find out what will!

I prefer 25's myself.
Only my old carbon Epic and my Rigi seem to have any problem mounting GP4000 25mm.
dddd is offline
Likes For dddd:
Old 03-15-20, 05:27 PM
  #11
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,322

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4622 Post(s)
Liked 996 Times in 682 Posts
Originally Posted by mstateglfr View Post
I have no idea why I assumed 32mm tires would fit the '88 Schwinn Premis I've been slowly working on, but I decided to try em out and they arent even close to fitting. The tires hit the brake bridge and fork crown quite substantially. The pics are with both tires only half inflated.
good news is there is plenty of room along the chainstays and bridge.

The plan was to strip the paint and rust, braze on some brake cable guides, then get it powder coated and built with modern 105 and modern cockpit.

No idea why I assumed 32s would fit and no idea why this has me all annoyed(maybe because i have these 32s that arent used for any bikes!).
If 28s fit, then I should continue with the plan, but man that's annoying I didnt even think to check clearance before putting in the work and planning.




What kind of tires? I may have some 28s to swap out for these.
bikemig is offline
Old 03-15-20, 06:03 PM
  #12
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,731

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4229 Post(s)
Liked 1,258 Times in 783 Posts
Originally Posted by bikemig View Post
What kind of tires? I may have some 28s to swap out for these.
conti 4 season that are new.
Later tonight I'm going to mount some 25mm gp4k tires from another bike which run a couple mm wider than that to see how they fit.
mstateglfr is offline
Old 03-15-20, 06:29 PM
  #13
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,322

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4622 Post(s)
Liked 996 Times in 682 Posts
Originally Posted by mstateglfr View Post
conti 4 season that are new.
Later tonight I'm going to mount some 25mm gp4k tires from another bike which run a couple mm wider than that to see how they fit.
I'll send a PM; I have some tires you may be interested in.
bikemig is offline
Old 03-15-20, 06:56 PM
  #14
Chr0m0ly
Senior Member

Chr0m0ly's Avatar

Join Date: Apr 2014
Location: Hamilton Heights, Manhattan, New York, NY
Posts: 1,580

Bikes: '84 Miyata 610 '85 Miyata 710, ‘86 Miyata 710, ‘91 Cannondale ST600, ‘84 Trek 610, 520, 620, ‘91 Miyata 1000LT, a few frames, some odds and ends....

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 623 Post(s)
Liked 234 Times in 150 Posts
Originally Posted by Cougrrcj View Post
I had that problem fitting 700x28s on my '86 Miyata 710. Only 1mm of clearance - maybe...



There's a bit more room in the rear, so maybe next time 25s in front, and 28 rear...
I have an ‘85 and an ‘86 710. The ‘85 has more room and dia comp 500 mid reach brake calipers. The ‘86 has less room and short reach Dia Comp 400 brake calipers. Good news is your ‘86 has the fatter seat stays and Chromo forks while the ‘85 has Mangalite forks.

That year really marks a change between a more traditional “sporting” bike and a “racing” bike. I don’t know why they kept the eyelets on the ‘86 model, I don’t think you could fit fenders with anything bigger than a 23mm (possibly (but doubtfully) a 25mm) tire.
Chr0m0ly is offline
Old 03-15-20, 07:10 PM
  #15
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,568

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 864 Post(s)
Liked 168 Times in 122 Posts
Would it be worth getting a little wild, grinding that bit of excess under the crown and doing a bit of braze work on the bridge?
GrainBrain is offline
Old 03-15-20, 07:16 PM
  #16
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 834
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 354 Times in 215 Posts
A Premis, in stock form can't run a tire bigger than 25c, maybe some small 28's can fit, but it would be VERY VERY close, cigarette paper clearance.
jackbombay is offline
Old 03-15-20, 07:23 PM
  #17
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,698
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1442 Post(s)
Liked 390 Times in 308 Posts
The 1980's : splash tape, clearance for 23's MAX.

You could take a halfround file to the crown, find a builder to move the bridge up.
The frame is naked. $$
650b, good, but brakes and wheels....$$$
Smaller tires..$
repechage is offline
Old 03-15-20, 07:28 PM
  #18
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 834
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 354 Times in 215 Posts
Originally Posted by repechage View Post
The 1980's : splash tape, clearance for 23's MAX.
It will fit 25c tires reasonably, I just built up the exact same frame.


I would like to shift my asphalt bikes to 28c tires, but I'm plenty happy on 25c tires too, but the Premis will forever be a 25c bike. I do have the tools and skill to move the brake bridge up, but I'm fine with it as it sits.
jackbombay is offline
Old 03-15-20, 07:52 PM
  #19
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,731

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4229 Post(s)
Liked 1,258 Times in 783 Posts
Originally Posted by GrainBrain View Post
Would it be worth getting a little wild, grinding that bit of excess under the crown and doing a bit of braze work on the bridge?
Grinding the fork crown is fine. Removing the current bridge and installing a new bridge is more than I think I want to do...though I am already set to braze on some cable guides.
What's funny is that this really isnt some impressive frame. The Tenax tubing is ok but nothing incredible, and the tube joining all around has an obvious focus of being as quick and cost effective as it gets.
mstateglfr is offline
Old 03-15-20, 07:53 PM
  #20
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,731

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4229 Post(s)
Liked 1,258 Times in 783 Posts
Originally Posted by CO_Hoya View Post
What about going 650b?
Originally Posted by JohnDThompson View Post
Looks like a candidate for 650B conversion.
Originally Posted by nlerner View Post
650b ftw.
I dont have 650 wheels and while it would be neat to try, this isnt the time or frame for that.
It would be neat to try out though.
mstateglfr is offline
Old 03-15-20, 07:58 PM
  #21
mstateglfr
Sunshine
Thread Starter

mstateglfr's Avatar

Join Date: Aug 2014
Location: Des Moines, IA
Posts: 10,731

Bikes: '18 class built steel roadbike, '19 Fairlight Secan, '88 Schwinn Premis , Black Mountain Cycles Monstercross V4, '89 Novara Trionfo

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 4229 Post(s)
Liked 1,258 Times in 783 Posts
Originally Posted by jackbombay View Post
A Premis, in stock form can't run a tire bigger than 25c, maybe some small 28's can fit, but it would be VERY VERY close, cigarette paper clearance.
Originally Posted by jackbombay View Post
It will fit 25c tires reasonably, I just built up the exact same frame.
I would like to shift my asphalt bikes to 28c tires, but I'm plenty happy on 25c tires too, but the Premis will forever be a 25c bike.
I fit some 25mm GP4k tires tonight that measure out to 27mm and they fit fine with enough clearance that I would be comfortable.
Then I tried some 28mm GP4k tires that measure out to 30.5mm and they are really razor edge thin on fitting.

Bikemig and I will swap some tires and I'll try out some Panaracers that I've read are a true 28mm and that would then most likely be OK.

But at worst, I'll toss the 27mm true size GP4k tires on and call it a day.


Always funny when something throws you for a loop even though you know about it well in advance.
mstateglfr is offline
Old 03-15-20, 08:03 PM
  #22
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 834
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 354 Times in 215 Posts
Originally Posted by mstateglfr View Post
I fit some 25mm GP4k tires tonight that measure out to 27mm and they fit fine with enough clearance that I would be comfortable.
Then I tried some 28mm GP4k tires that measure out to 30.5mm and they are really razor edge thin on fitting.

Bikemig and I will swap some tires and I'll try out some Panaracers that I've read are a true 28mm and that would then most likely be OK.

But at worst, I'll toss the 27mm true size GP4k tires on and call it a day.


Always funny when something throws you for a loop even though you know about it well in advance.
As I had several 25c tires around I had planned on using them for my Premis build, then when I put the wheels in the bike I chuckled as anything bigger wouldn't fit with enough clearance for me to feel comfortable anyway!

While frames that can't take a tire bigger than 25c are absurd, I'm glad I have one in my fleet, it was a trend in cycling that in retrospect made no sense, but is still a vaguely interesting footnote.
jackbombay is offline
Likes For jackbombay:
Old 03-15-20, 08:38 PM
  #23
UKFan4Sure
Useless Member

Join Date: Jun 2015
Location: Louisville, KY
Posts: 738
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 372 Post(s)
Liked 157 Times in 105 Posts
Originally Posted by dddd View Post
Grand Prix 4000 is known to inflate bigger than stated, while other brands/models are just the opposite.

These tires won't work, but now to find out what will!

I prefer 25's myself.
Only my old carbon Epic and my Rigi seem to have any problem mounting GP4000 25mm.
Yes, my GP4000's 25's measure 28mm.
__________________
2013 Schwinn Paramount Series 8, 2015 Specialized Roubaix Competition, 2008 Trek Portland, 1986 Schwinn LeTour, 1985 Peugeot PGN-10, 1986 Schwinn Voyageur
UKFan4Sure is offline
Old 03-15-20, 10:39 PM
  #24
bwilli88
Senior Member

bwilli88's Avatar

Join Date: Jan 2013
Location: Kampong Cham, Cambodia but I have quite a few in Lancaster, PA
Posts: 2,325

Bikes: Bikes in USA; 73 Raleigh Supercourse dingle speed, 74 Raleigh Grand Prix SS, 78 Raleigh Supercourse, 83 Centurion Pro-Tour, 82 Raleigh RRA.

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 601 Post(s)
Liked 204 Times in 142 Posts
Just me but I would take a half round file to the fork and a BFH to the brake bridge. If you are doing brazing that brake bridge is an easy job while in a bare frame state.
To dimple some chain stays I took a large cast iron cylinder about 2.5" in diameter and hammered it between the stays, flattened them enough I could fit the tires I wanted.
Regards the fork and brake bridge, you might also have to file the brake caliper a bit if you go the file direction and or BFH.

Last edited by bwilli88; 03-15-20 at 10:44 PM.
bwilli88 is offline
Old 03-15-20, 10:44 PM
  #25
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 834
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 389 Post(s)
Liked 354 Times in 215 Posts
Originally Posted by bwilli88 View Post
Just me but I would take a half round file to the fork and a BFH to the brake bridge.
File to the fork crown? Sure I'd start with a grinder and then make it nice and symmetrical with a file.

The brake bridge + BFH? No way.

To be clear, I LOVE problems I can solve with a hammer, and I have a large assortment of hammers to solve all sorts of problems that may unfortunately cross my path, but, as the OP has the capacity to braze, he should move the brake bridge properly, IMO.
jackbombay is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
