Should I be worried? Crack(s)

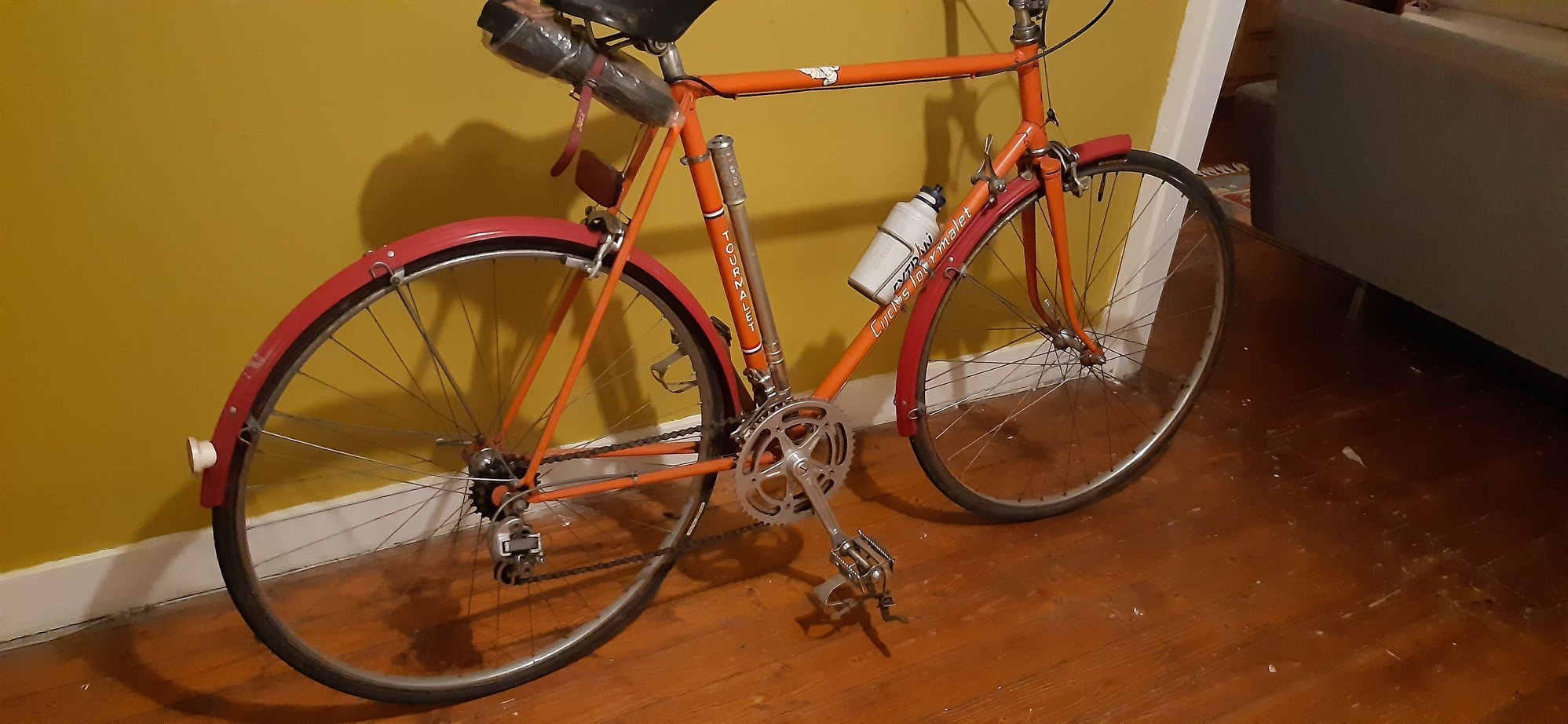

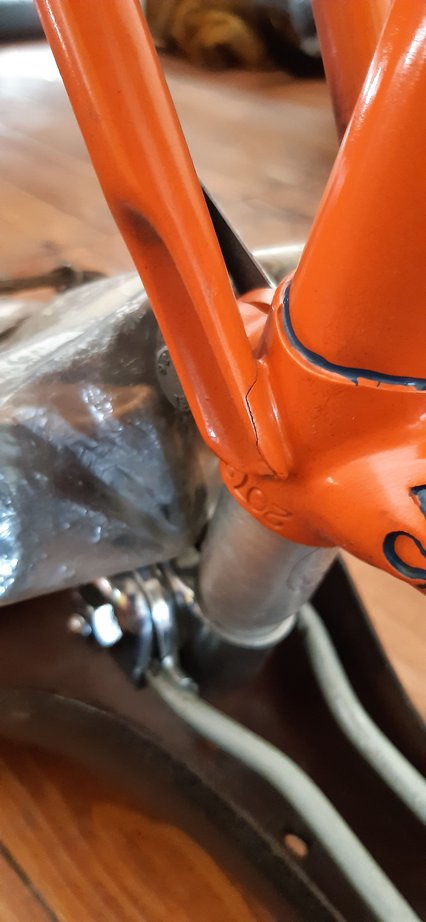

Today I had my new old bike upside down. And noticed these two cracks. The one under my saddle I'm not sure about if it's the paint or the connection.

The other one near my back brake is length wise. that probably means they didn't use seamless tubing.

What do guys think?



Locomotief is offline
Old 03-17-20, 09:13 AM
  #2
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: SW OH
Posts: 377

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 75 Times in 50 Posts
That is... problematic. Do NOT continue riding that bike. Do not pass GO and collect $200.
Ferrouscious is offline
Old 03-17-20, 09:28 AM
  #3
velomateo
Senior Member

velomateo's Avatar

Join Date: Aug 2007
Location: California
Posts: 735

Bikes: '87 Serotta Colorado,'96 Moots VaMoots, Bertoni MAX

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Liked 35 Times in 25 Posts
Time to start frame shopping, that one is done.
velomateo is offline
Old 03-17-20, 09:48 AM
  #4
cleroica
Member

cleroica's Avatar

Join Date: Feb 2020
Location: Cleveland, OH
Posts: 35
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Liked 30 Times in 13 Posts
New frame time!
cleroica is offline
Old 03-17-20, 09:55 AM
  #5
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,902

Bikes: Yes, please.

Mentioned: 224 Post(s)
Tagged: 0 Thread(s)
Quoted: 1434 Post(s)
Liked 845 Times in 463 Posts
Bummer! While I wouldn't write it off just yet, not without some further investigation, I'll agree that it doesn't look particularly good.
__________________
Wikkid Wrenching Widdim #63: Idle Burg
non-fixie is offline
Old 03-17-20, 10:02 AM
  #6
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 10,009

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac, 196? Torpado Professional

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 843 Post(s)
Likes: 0
Liked 394 Times in 262 Posts
Clean it and re-silver solder (make sure that a professional does this). My guess is that the frame is pretty special. Were the frame mine, I would do what I just suggested, repaint and keep an eye on it forever. If the crack does show up again, or the stay separates, you will, most likely, not crash but you just might have to walk home.

Question - is the frame something pretty special?
__________________
"98% of the bikes I buy are projects".
randyjawa is offline
Old 03-17-20, 10:16 AM
  #7
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,996
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1594 Post(s)
Liked 656 Times in 503 Posts
Hmm, I must be the only one without X-ray vision, unable to see if the frame is damaged without removing the paint.
madpogue is offline
Old 03-17-20, 10:22 AM
  #8
ramzilla
Senior Member

ramzilla's Avatar

Join Date: Dec 2014
Location: Fernandina Beach FL
Posts: 3,298

Bikes: Vintage Japanese Bicycles, Tange, Ishiwata, Kuwahara

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 634 Post(s)
Liked 210 Times in 168 Posts
I would definitely make that a "no downhill" rider. Just for flat road riding less than 20mph now.
ramzilla is offline
Old 03-17-20, 10:23 AM
  #9
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,425

Bikes: It's complicated.

Mentioned: 917 Post(s)
Tagged: 0 Thread(s)
Quoted: 2811 Post(s)
Liked 788 Times in 439 Posts
Originally Posted by madpogue View Post
Hmm, I must be the only one without X-ray vision, unable to see if the frame is damaged without removing the paint.
Yeah, remove the paint in the areas of concern, otherwise you're guessing.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 03-17-20, 11:21 AM
  #10
Miele Man
Senior Member

Join Date: Jun 2014
Location: Ontario, Canada
Posts: 4,187

Bikes: iele Latina, Miele Suprema, Miele Uno LS, Miele Miele Beta, MMTB, Bianchi Model Unknown, Fiori Venezia, Fiori Napoli, VeloSport Adamas AX

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 1127 Post(s)
Liked 675 Times in 478 Posts
I didn't notice anything wrong with this bike until I was riding it to the store late one night. I thought I had a rear tire flat when the bike started to squirm a bit. I stopped and felt the tire and it was hard. I then thought perhaps my rear rack was looses and I pulled it side to side. that's when I saw this.



I was still able to ride that bike to the store and then back home. After that it was broken up and the frame tossed into the recycling pile.

Cheers
Miele Man is offline
Old 03-17-20, 11:48 AM
  #11
Ferrouscious
Some Weirdo

Ferrouscious's Avatar

Join Date: Dec 2017
Location: SW OH
Posts: 377

Bikes: '86 Maruishi Excellence, '86 Schwinn Prelude

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 160 Post(s)
Liked 75 Times in 50 Posts
Originally Posted by Miele Man View Post
I didn't notice anything wrong with this bike until I was riding it to the store late one night. I thought I had a rear tire flat when the bike started to squirm a bit. I stopped and felt the tire and it was hard. I then thought perhaps my rear rack was looses and I pulled it side to side. that's when I saw this.



I was still able to ride that bike to the store and then back home. After that it was broken up and the frame tossed into the recycling pile.

Cheers
You didn't keep it? Think of all the people you could fool! Hey man, check out my new duál suspension road bi-cycle! Ain't it neat?
Ferrouscious is offline
Old 03-17-20, 11:55 AM
  #12
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 4,996
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 1594 Post(s)
Liked 656 Times in 503 Posts
^^^^^ Bend 'em forward a bit, weld 'em onto the seat tube / top-tube, and you've got your own custom Hellenic / triple-triangle design.
madpogue is offline
Old 03-17-20, 12:21 PM
  #13
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,625

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 2384 Post(s)
Likes: 0
Liked 825 Times in 555 Posts
If that's a frame you like, take to to someone like TiCycles and have a good, solid repair done. Call them. My bet, Dave will tell you it will take one afternoon, he'll do both sides, yo will have to look at more braze (which should have been there from the beginning) and the frame will need a paint job after. Dave told me that when I called with my early '80s TREK which had a crack running through the seatstay cap. He also told me if I looked closely I wold see cracks on the other side too. He was right. TiCycles is far from the only ones who do these repairs but they have done many and for them it is just another repair they know well.

So ask yourself - is this frame worth $600 to you? $400 for the repair, $200 for paint. Better than new. (Stronger. A touch less sexy.)
79pmooney is online now
Old 03-17-20, 12:24 PM
  #14
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 8,625

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 100 Post(s)
Tagged: 0 Thread(s)
Quoted: 2384 Post(s)
Likes: 0
Liked 825 Times in 555 Posts
Originally Posted by Miele Man View Post
I didn't notice anything wrong with this bike until I was riding it to the store late one night. I thought I had a rear tire flat when the bike started to squirm a bit. I stopped and felt the tire and it was hard. I then thought perhaps my rear rack was looses and I pulled it side to side. that's when I saw this.



I was still able to ride that bike to the store and then back home. After that it was broken up and the frame tossed into the recycling pile.

Cheers
You tossed it! The downhill bomber. Lower BB for stability and suspension with lots of travel.
79pmooney is online now
Old 03-17-20, 12:27 PM
  #15
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,152

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2252 Post(s)
Liked 462 Times in 347 Posts
Looks like it's probably cracked, but as already pointed out, you'll need to remove the paint to find out for sure.

Seatstays cracking or breaking at the seatcluster junction is one of a handful or relatively common failures seen on traditional steel frames. For reasons I never understood, it was widely believed that this joint has very little stress. As a consequence the area was often underbuilt. IMHO. The uncapped ends of those stays is a perfect example of this.

At any rate it's a relatively easy frame repair if you want to go that route. Obviously the paint will get torched.
Salamandrine is online now
Old 03-17-20, 01:07 PM
  #16
Locomotief
Senior Member
Thread Starter

Locomotief's Avatar

Join Date: Dec 2019
Posts: 131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 21 Times in 14 Posts

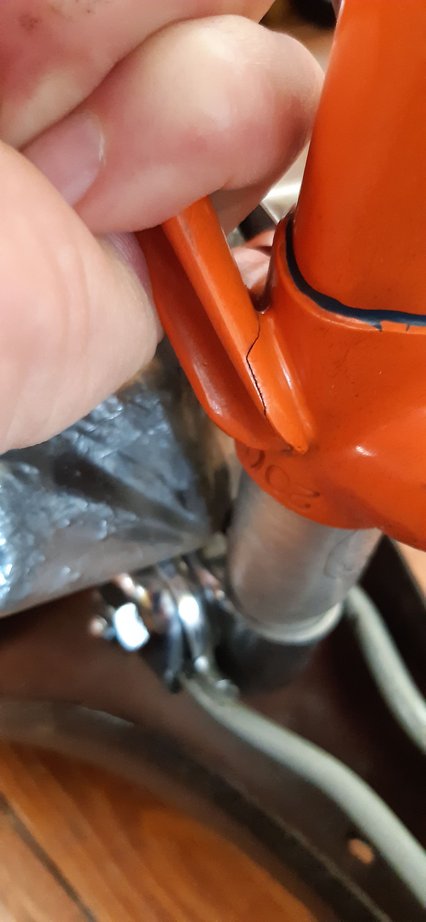

I will try to explain what I found in my best English... the top of the seat stay tube is crimmed. It's not a separate piece. The part of the tube that's fastened to the frame is slowly getting ripped of.
I hope I'm making sense. This is not easily repaired. I would have to replace the whole seat stay. Even without the other crack that it has length wise.


here you can see the two parts of the crimmed seat stay. And how they are starting to separate.
Locomotief is offline
Old 03-17-20, 01:26 PM
  #17
Wildwood
Veteran/Pacifist/Resister

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 9,999

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 221 Post(s)
Tagged: 0 Thread(s)
Quoted: 2349 Post(s)
Liked 849 Times in 525 Posts
Originally Posted by Locomotief View Post
I will try to explain what I found in my best English... the top of the seat stay tube is crimmed. It's not a separate piece. The part of the tube that's fastened to the frame is slowly getting ripped of.
I hope I'm making sense. This is not easily repaired. I would have to replace the whole seat stay. Even without the other crack that it has length wise.


here you can see the two parts of the crimmed seat stay. And how they are starting to separate.
JB Weld and some twine, shellac for vintage look.

edit: might cover the serial number, if that matters....
Wildwood is offline
Old 03-17-20, 01:35 PM
  #18
Locomotief
Senior Member
Thread Starter

Locomotief's Avatar

Join Date: Dec 2019
Posts: 131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 21 Times in 14 Posts
Originally Posted by randyjawa View Post
Clean it and re-silver solder (make sure that a professional does this). My guess is that the frame is pretty special. Were the frame mine, I would do what I just suggested, repaint and keep an eye on it forever. If the crack does show up again, or the stay separates, you will, most likely, not crash but you just might have to walk home.

Question - is the frame something pretty special?
I don't think it's a very special frame. I do like it but probably not worth the money to fix it.

Locomotief is offline
Old 03-17-20, 01:51 PM
  #19
guy153
Senior Member

Join Date: Dec 2019
Posts: 238
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 70 Post(s)
Liked 42 Times in 36 Posts
Originally Posted by Locomotief View Post
I will try to explain what I found in my best English... the top of the seat stay tube is crimmed. It's not a separate piece. The part of the tube that's fastened to the frame is slowly getting ripped of.
Are you sure? It looks to me like there is a concave shell that is part of the lug casting into which the crimped seatstay has been brazed. The idea of this design is to give a decent amount of surface area for the braze.

​I don't think any steel has cracked here but either the braze joint has failed and the tube is separating from that shell, or it's just paint. If the joint has failed it can probably be brazed back in fairly easily. You could even attempt it yourself with a MAPP torch and silver "solder" if the alternative is to scrap the frame.

The other possibility is that after brazing the top of the seatstay wasn't quite flush with the shell and they basically smoothed it over with the paint and maybe that's all that's cracked. You will know more if you take some paint off. You could also put a screwdriver into the crack and pry on it a bit. If the SS moves relative to the lug then you have a failure. If it doesn't then you might not have a failure at all!
​​
As for the other crack it may just be in the paint, but you'll find out if you take a bit of the paint off.

Last edited by guy153; 03-17-20 at 01:58 PM.
guy153 is offline
Old 03-17-20, 02:17 PM
  #20
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,152

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2252 Post(s)
Liked 462 Times in 347 Posts
Originally Posted by Locomotief View Post
I will try to explain what I found in my best English... the top of the seat stay tube is crimmed. It's not a separate piece. The part of the tube that's fastened to the frame is slowly getting ripped of.
I hope I'm making sense. This is not easily repaired. I would have to replace the whole seat stay. Even without the other crack that it has length wise.

here you can see the two parts of the crimmed seat stay. And how they are starting to separate.
I should clarify. If the problem is only at the top of the seat stay, that is fixable. There are several ways to go about it.

IF that crack in the middle of the seatstay is in fact a crack, and not just in the paint, then the whole frame is probably toast. Replacing a whole seatstay is a big job, and there's still be the one on the other side to worry about. If it's just a paint crack I think the seatsay ends are worth fixing.
Salamandrine is online now
Old 03-17-20, 03:20 PM
  #21
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,902

Bikes: Yes, please.

Mentioned: 224 Post(s)
Tagged: 0 Thread(s)
Quoted: 1434 Post(s)
Liked 845 Times in 463 Posts
Before speculating any further, I suggest removing a bit of paint in both areas and see what's what. If it is only a paint problem, it's a trip to the "Gamma" and €10 for a small can of matching paint and Bob's your uncle. I think this frame at least deserves that.
__________________
Wikkid Wrenching Widdim #63: Idle Burg
non-fixie is offline
Old 03-17-20, 03:41 PM
  #22
Locomotief
Senior Member
Thread Starter

Locomotief's Avatar

Join Date: Dec 2019
Posts: 131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 21 Times in 14 Posts



It's hard to make a good photo of the crack. But it almost goes around the tube.
Locomotief is offline
Old 03-17-20, 04:09 PM
  #23
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 8,902

Bikes: Yes, please.

Mentioned: 224 Post(s)
Tagged: 0 Thread(s)
Quoted: 1434 Post(s)
Liked 845 Times in 463 Posts
That was quick!

Thank you for these pictures. I am no constructeur, and I'm having a hard time trying to understand what is going on here. It does look like a crack, but why? And why there?
__________________
Wikkid Wrenching Widdim #63: Idle Burg
non-fixie is offline
Old 03-17-20, 04:19 PM
  #24
mgopack42
Senior Member

Join Date: Apr 2018
Location: The Baths, CA
Posts: 610

Bikes: 2012 Pinarello FP Quatro, 1994 Specialized Allez, Mid 80's Ciocc, 1985 Masi 3V.

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 219 Post(s)
Liked 132 Times in 89 Posts
I was going to say it was just the "crimp" seams, until you showed the under the seat stay pictures.. that is definitely coming away from the seat cluster.
mgopack42 is offline
Old 03-17-20, 04:25 PM
  #25
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,680
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1435 Post(s)
Liked 389 Times in 307 Posts
the seat stay top is of the "maximum deformation" type. the longitudinal crack under and along and not yet joined indicates a tube that was probably too brittle to begin with. The heat of brazing often anneals this - not this time. This type of construction is fast. Production oriented. The bike let's assume rides well. The options:
Find a substitute frame with as much of the same attributes, size, threading, seatpost diameter and swap things over.
Locate a framebuilder who will replace Both seat stays and bridge. You will end up with a different style of top eye. The design here really needs tooling and a stamping press to create. Not worth it.
The second route implies new paint, the frame repaint and time.
The decider is to what $ extent is the frame really wanted.
repechage is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
