Identify This Freewheel; Missing Outer Cog?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Identify This Freewheel; Missing Outer Cog?

Old 03-22-20, 08:04 AM
  #1
Phil_gretz
Journeyman Bike Commuter
Thread Starter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,879

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 616 Times in 348 Posts
Identify This Freewheel; Missing Outer Cog?

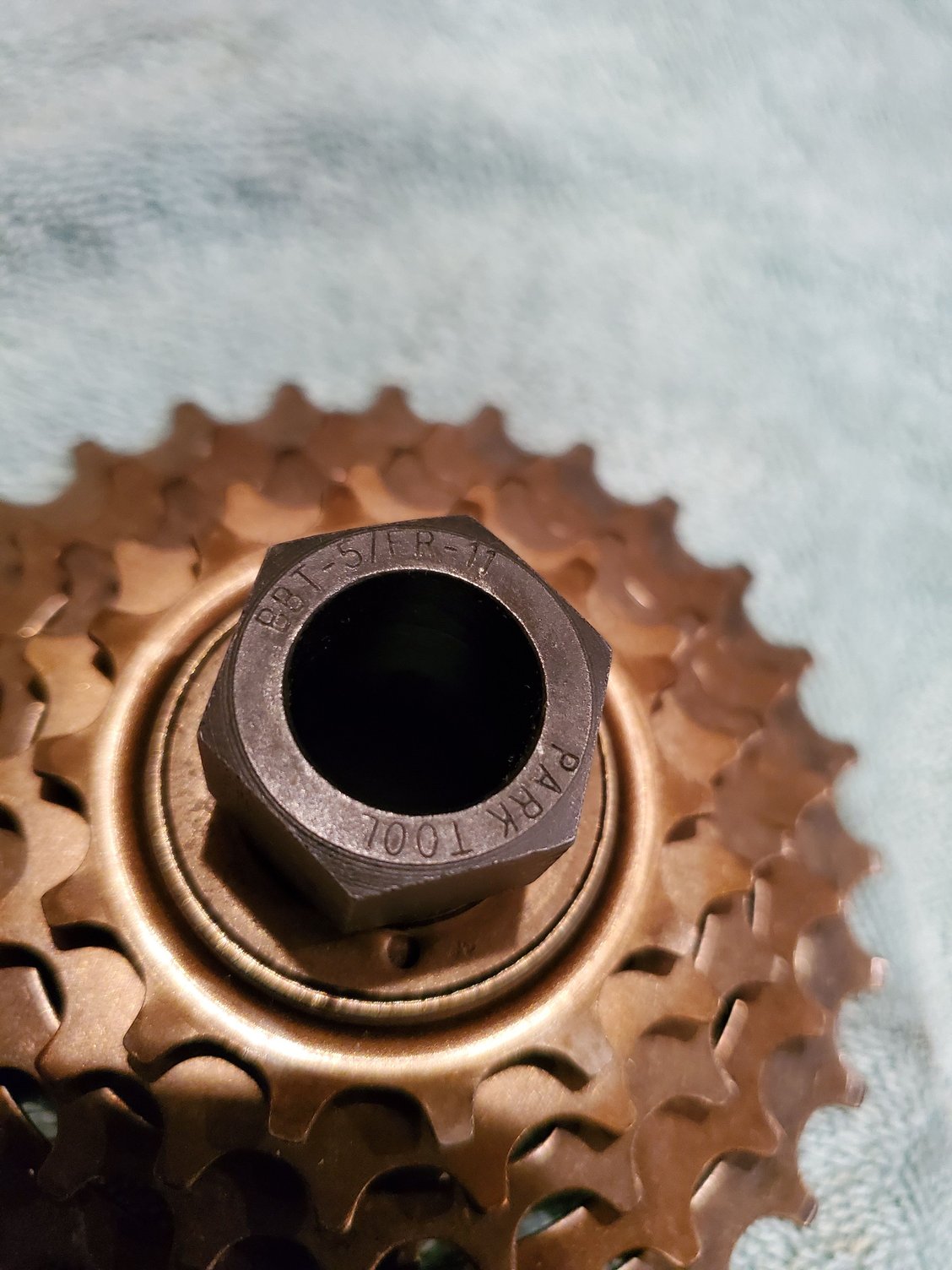

There are no discernible markings. It fits the Park BBT 5, FR 11 freewheel removal tool.

The remaining five cogs are 14 to 28T. The mechanism feels and sounds very nice. It appears that I can add the outer 13T cog, if I could identify the maker. Thoughts on how to approach this?

Last edited by Phil_gretz; 03-22-20 at 08:07 AM.
Phil_gretz is offline
Old 03-22-20, 08:04 AM
  #2
Phil_gretz
Journeyman Bike Commuter
Thread Starter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,879

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 616 Times in 348 Posts
Phil_gretz is offline
Old 03-22-20, 08:06 AM
  #3
Phil_gretz
Journeyman Bike Commuter
Thread Starter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,879

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 616 Times in 348 Posts

Nearly 3 threads exposed...are those enough?

It appears that the 14T cog doesn't match its neighbors, the 17 and 20.

Last edited by Phil_gretz; 03-22-20 at 08:09 AM.
Phil_gretz is offline
Old 03-22-20, 08:20 AM
  #4
old's'cool
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,336

Bikes: 2 many 2 fit here

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 229 Post(s)
Liked 34 Times in 25 Posts
What is the spacing between cogs, and is it consistent?
__________________
Geoff
"There is no Fail without Try" - Yoda Simpson
old's'cool is offline
Old 03-22-20, 08:36 AM
  #5
Phil_gretz
Journeyman Bike Commuter
Thread Starter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,879

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 616 Times in 348 Posts
Originally Posted by old's'cool View Post
What is the spacing between cogs, and is it consistent?
5.0 mm consistently. And the threading is for an English freewheel hub.
Phil_gretz is offline
Old 03-22-20, 08:51 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 14,677
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 1434 Post(s)
Liked 389 Times in 307 Posts
First glance says Shimano
butithink the spacing may have been reduced to match early index. 7speed era

i would ask PastorBob
repechage is offline
Old 03-22-20, 09:19 AM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,671
Mentioned: 266 Post(s)
Tagged: 1 Thread(s)
Quoted: 2189 Post(s)
Liked 387 Times in 331 Posts
-----

Thanks very much for the fine job with the pictures Phil!

Absence of markings on face plate of body makes me think it a third tier product from a maker in a venue such as Formosa, Cathay or the subcontinent.

Removal splines appear of Shimano pattern.

Wonder if unused threads might be for a Schwinn type guard flange.


-----

Last edited by juvela; 03-22-20 at 02:52 PM. Reason: addition
juvela is offline
Old 03-22-20, 10:22 AM
  #8
Phil_gretz
Journeyman Bike Commuter
Thread Starter

Phil_gretz's Avatar

Join Date: Aug 2009
Location: Alexandria, VA
Posts: 5,879

Bikes: '71 Jeunet 640, '74 Fuji Special Road Racer, '79 Peugeot PXN10LE, '88 Fuji Saratoga, '13 Motobecane Fantom29 HT, '16 Motobecane Turino Pro Disc, '16 Motobecane Gran Premio Elite, '18 Velobuild VB-R-022

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Liked 616 Times in 348 Posts
^ Interesting. Thanks. Whatever the source, the bearings and freewheeling mechanism feel well above average, in my experience.
Phil_gretz is offline
Old 03-22-20, 11:50 AM
  #9
JacobLee
Senior Member

Join Date: Nov 2019
Location: Portland, Oregon
Posts: 307

Bikes: More Than Enough

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 137 Post(s)
Liked 108 Times in 61 Posts

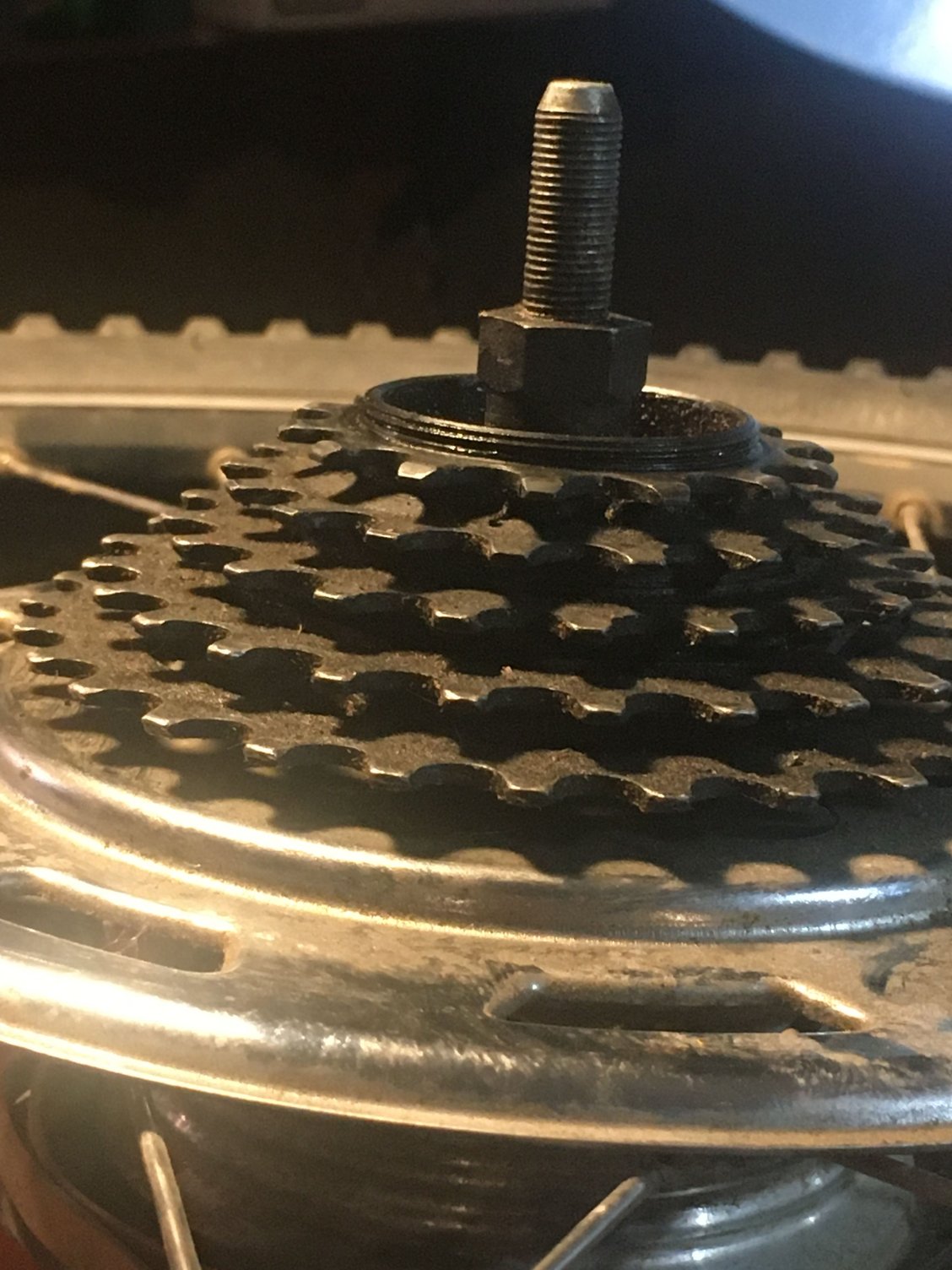

This is from my Schwinn Twinn. Different removal tool, though. Never realized I donít own the tool! Good to know.
