Well, darn. Freewheel removal...removed

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Well, darn. Freewheel removal...removed

Old 04-11-20, 04:34 PM
  #1
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,293
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Likes: 0
Liked 223 Times in 148 Posts
Well, darn. Freewheel removal...removed




I have heard you can take the cogs off, clamp the ratchet and pray it pops off. Any other ideas? All I really want is the Nuovo Tipo high flange hubs.
Narhay is offline
Old 04-11-20, 04:48 PM
  #2
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 3,009

Bikes: Old school lightweights

Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1241 Post(s)
Liked 1,005 Times in 613 Posts
Give it a 24hr soak in penetrating oil before you do anything.

This works best when you have another project to take up the time and works worst when you don't.
SurferRosa is offline
Old 04-11-20, 04:54 PM
  #3
jackbombay
Senior Member

Join Date: Jun 2019
Location: Portland Oregon
Posts: 839
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Liked 358 Times in 218 Posts
Use a tiny grinding wheel in a dremel and make some new square faces, and use the quick release to hold the freewheel tool completely engaged with the freewheel, once you crack it loose remove the quick release.
jackbombay is offline
Old 04-11-20, 04:55 PM
  #4
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 932

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 405 Post(s)
Liked 454 Times in 271 Posts
My favorite thing to do to freewheels for which I have no remover is to take the whole outside off, so that just the core is left. You'll have to unscrew the cover plate, using a punch. It's left-hand threaded and since the remover splines are damaged, it may take some force, but I bet you can get it. Then about 1873580 bearings will spill on the floor, and pawls and springs will fly into your eyes or under your workbench, never to be found again. Then you will be able to unscrew the core using a pipe wrench or a vise.

The following video explains it.
scarlson is offline
Old 04-11-20, 05:04 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,741
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 402 Times in 344 Posts
-----

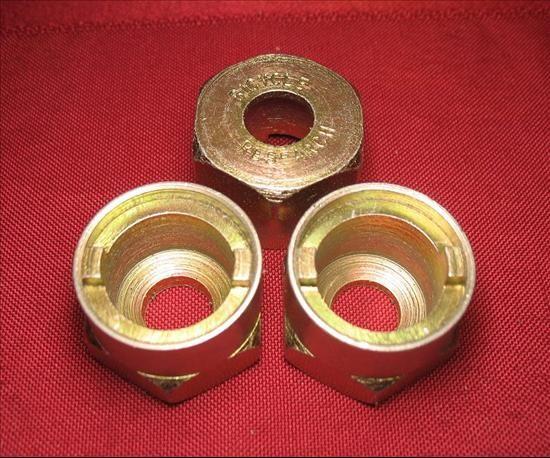

all that is needed for removal is a remover with a guide ring such as the Dura-Ace or Bicycle Research.

no need to even square up the munged removal ears.




-----
juvela is offline
Likes For juvela:
Old 04-11-20, 05:11 PM
  #6
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 6,198

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2268 Post(s)
Liked 507 Times in 366 Posts
The way you do the desperation removal is to take the whole freewheel body off, not the cogs. Unscrew the face plate and prepare for ball bearings everywhere. Then put the whole thing in a vise and twist it off. This generally destroys the freewheel. Oh, duh, scarlson already explained this. +1 on this method then. It always works.

If you want to save the freewheel, take it apart, grind some new notches as suggested above.

It might come off as is with one of those removers with a ring, but IME I'd say the odds are not great. Depends on how well greased the threads were when the FW was installed, among other things.
Salamandrine is offline
Old 04-11-20, 07:58 PM
  #7
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: High Falls, NY, USA
Posts: 39,174

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 475 Post(s)
Tagged: 0 Thread(s)
Quoted: 6502 Post(s)
Liked 1,044 Times in 692 Posts
As the guy in the video said, the faceplate or whatever it's called comes off clockwise. That's because it's reverse-threaded.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 04-12-20, 10:18 AM
  #8
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,334

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4626 Post(s)
Liked 1,011 Times in 691 Posts
Good stuff. Yeah I have a wheel I need to do this with. Time to buy a big pipe wrench.
bikemig is offline
Old 04-12-20, 10:45 AM
  #9
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 2,013
Mentioned: 59 Post(s)
Tagged: 0 Thread(s)
Quoted: 693 Post(s)
Liked 238 Times in 145 Posts
Originally Posted by bikemig View Post
Good stuff. Yeah I have a wheel I need to do this with. Time to buy a big pipe wrench.
I still have the big pipe wrench that I bought for this purpose about 25 years ago!
Haven't needed it since, naturally. Of course, I've gotten better at routinely pulling the freewheel and applying new/more grease to the threads.

I think I needed it for a two prong SunTour freewheel. I was amazed at how hard the steel used for the body was. The pipe wrench struggled to get a grip on it.

Steve in Peoria
steelbikeguy is online now
Old 04-12-20, 11:10 AM
  #10
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 17,334

Bikes: A bunch of old bikes and a few new ones

Mentioned: 140 Post(s)
Tagged: 0 Thread(s)
Quoted: 4626 Post(s)
Liked 1,011 Times in 691 Posts
Originally Posted by steelbikeguy View Post
I still have the big pipe wrench that I bought for this purpose about 25 years ago!
Haven't needed it since, naturally. Of course, I've gotten better at routinely pulling the freewheel and applying new/more grease to the threads.

I think I needed it for a two prong SunTour freewheel. I was amazed at how hard the steel used for the body was. The pipe wrench struggled to get a grip on it.

Steve in Peoria
Oh yeah, greasing the threads makes all the difference. The wheels are from a 1985 Cannondale ST 400 I bought used 2 years ago. That bike was pretty much all original. I'll bet that freewheel hasn't seen any service for 35 years. Plus it takes a flaky shimano removal tool. I was able to buy a VAR tool for it but the tool bit the dust when I used it. The metal was too soft. But the wheels and hubs are worth salvaging (shimano 600 hubs laced to rigida 27 inch rims).
bikemig is offline
Old 04-12-20, 11:32 AM
  #11
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 6,577

Bikes: '72 Cilo Pacer, '72 Peugeot PX10, '73 Speedwell Ti, '74 Nishiki Competition, '74 Peugeot UE-8, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 493 Post(s)
Liked 195 Times in 95 Posts
Been there, done that:
Damaged Regina freewheel & a dremel to the rescue
gaucho777 is offline
Old 04-12-20, 12:11 PM
  #12
escii_35
Senior Member

Join Date: Feb 2008
Location: PNW lifer
Posts: 580

Bikes: 2007 C-dale 63cm T series. My 1994 was a better design 1994 Bianchi 61cm El/OS Sachs 2004 Rodreguiz 26' UTB touring thing

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Yes to the YouTube vid.

13-30 Suntour 7 speed freewheel on a 1992 cdale. I Destroyed one of the co-ops widgits then watched the vid.

Key manouvers.
1: Tap punching the lockring.
2. Mega pipe wrench.
3. Flat stone wall.
4. My full bodyweight standing on wrench with wheel wedged to wall. Light bounce and bingo.


There was so much life in the rims I had to try.
escii_35 is offline
Old 04-12-20, 02:35 PM
  #13
canklecat
Me duelen las nalgas

canklecat's Avatar

Join Date: Aug 2015
Location: Texas
Posts: 11,704

Bikes: Centurion Ironman, Trek 5900, Univega Via Carisma, Globe Carmel

Mentioned: 184 Post(s)
Tagged: 0 Thread(s)
Quoted: 3717 Post(s)
Liked 1,324 Times in 871 Posts
A bench vise makes this stuff easier than any wrench. A couple of times I've trotted over to the LBS so they could use their vise to unstick stuck stuff that I couldn't remove with my longest wrench and cheater bar.

A wheel gives plenty of leverage when using a bench vise, but you lose that leverage with a wrench and have to wrestle both the wrench and the wheel.
canklecat is offline
Old 04-12-20, 03:46 PM
  #14
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 9,741
Mentioned: 269 Post(s)
Tagged: 1 Thread(s)
Quoted: 2210 Post(s)
Liked 402 Times in 344 Posts
-----

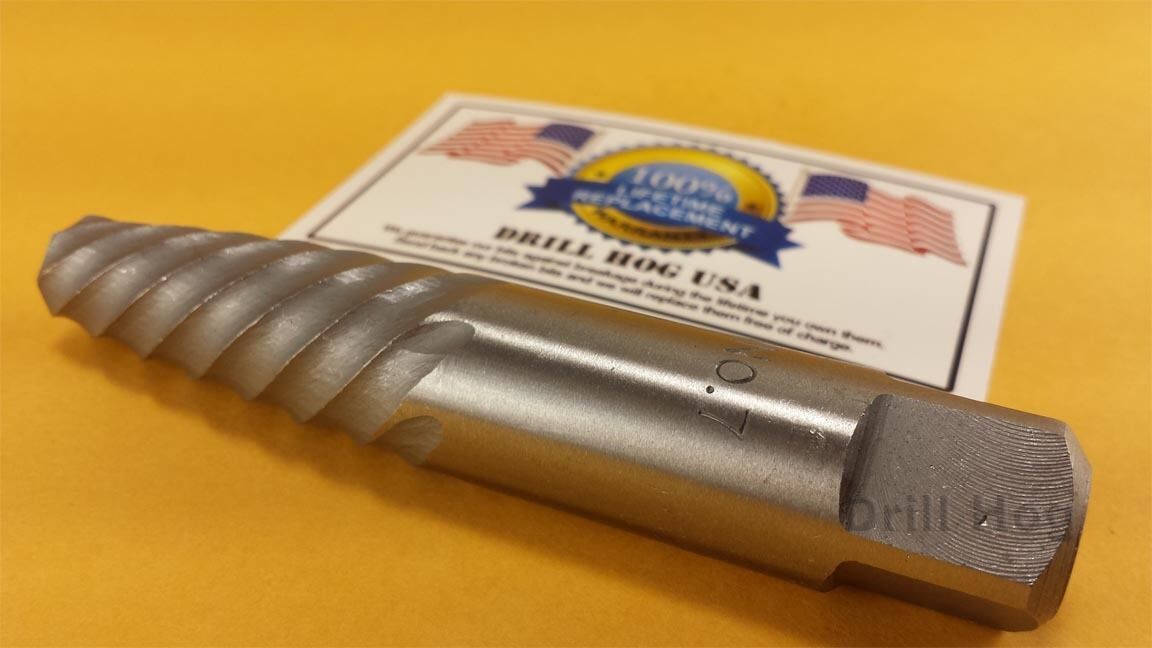

a far simpler technique when you lack the correct remover is to remove the hub's axle set and then remove the gear block with a Nr. 8 screw extractor ("easy-out") -



Brands such as ACE, Drill Hog and Sears offer them individually so no need to purchase a set.

-----
juvela is offline
Old 04-12-20, 03:59 PM
  #15
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 6,927

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 611 Post(s)
Liked 195 Times in 129 Posts
The core is not perfectly round, so if you use some soft, copper or aluminum, even leather jaws on a big bench vise, sometimes you can unscrew the core without damaging it.
Reynolds is offline
Old 04-12-20, 07:45 PM
  #16
Narhay
Senior Member
Thread Starter

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 3,293
Mentioned: 96 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Likes: 0
Liked 223 Times in 148 Posts
Thanks for all the ideas. I will try a couple and if they fail I will buy the easy out.
Narhay is offline
Old 04-13-20, 05:51 AM
  #17
top506
Death fork? Naaaah!!

top506's Avatar

Join Date: Nov 2005
Location: The other Maine, north of RT 2
Posts: 4,810

Bikes: Seriously downsizing.

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 394 Post(s)
Likes: 0
Liked 106 Times in 65 Posts
Originally Posted by Reynolds View Post
The core is not perfectly round, so if you use some soft, copper or aluminum, even leather jaws on a big bench vise, sometimes you can unscrew the core without damaging it.
This:
I've managed it three or four times over the years and was able to re-assemble the freewheel.

Top
__________________
You know it's going to be a good day when the stem and seatpost come right out.

(looking for a picture and not seeing it? Thank the Photobucket fiasco.PM me and I'll link it up.)
top506 is offline
