Centurion Turbo build

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Centurion Turbo build

Old 04-12-20, 09:06 PM
  #1
rfj
Senior Member
Thread Starter

rfj's Avatar

Join Date: Oct 2011
Location: Sandy Eggo
Posts: 116
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Centurion Turbo build

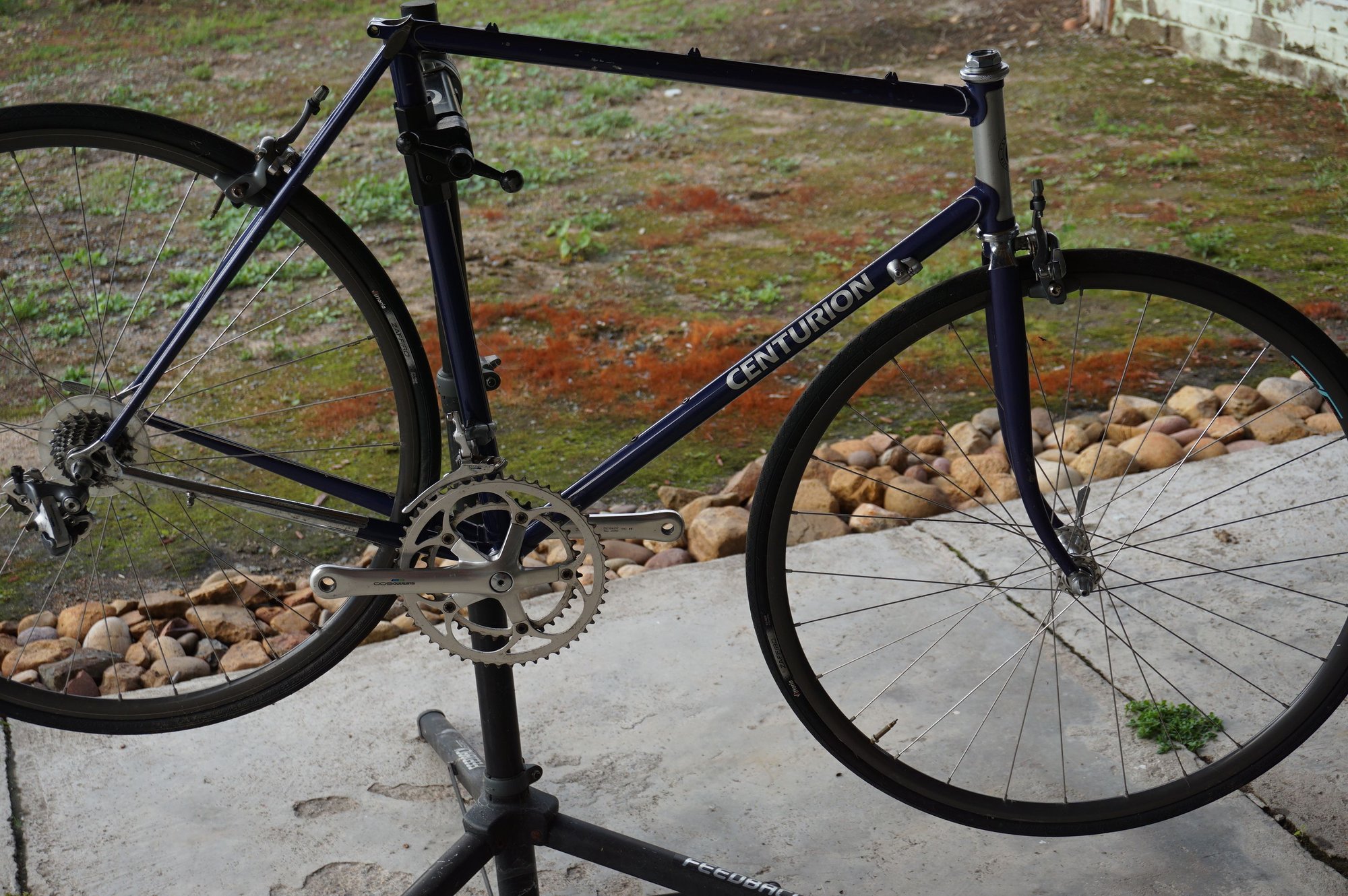

Hey all, doing a build of this frameset I picked up from a fellow forum member.
I've got most of the parts on hand with the exception of a seatpost and accompanying binder bolt.

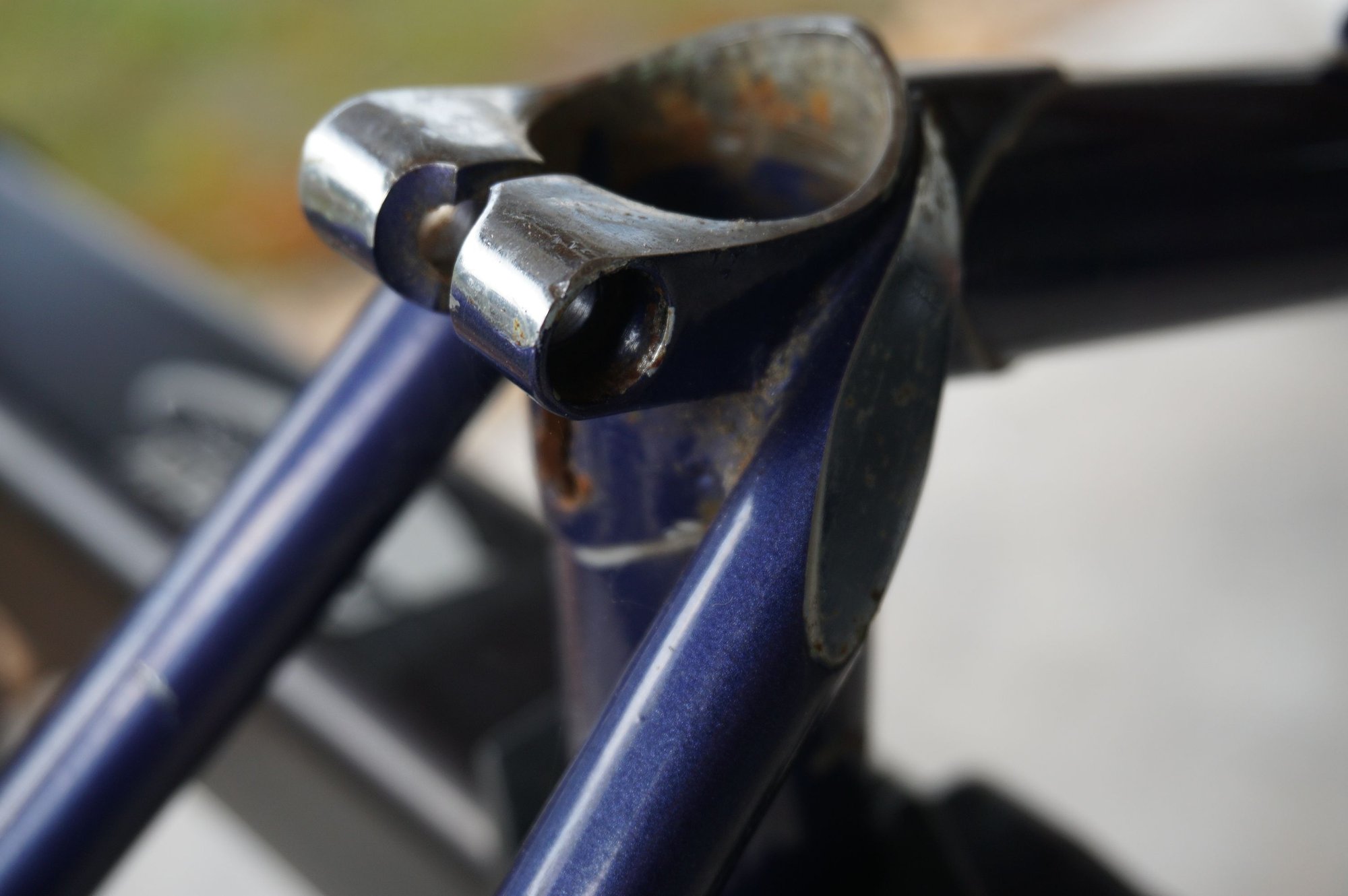

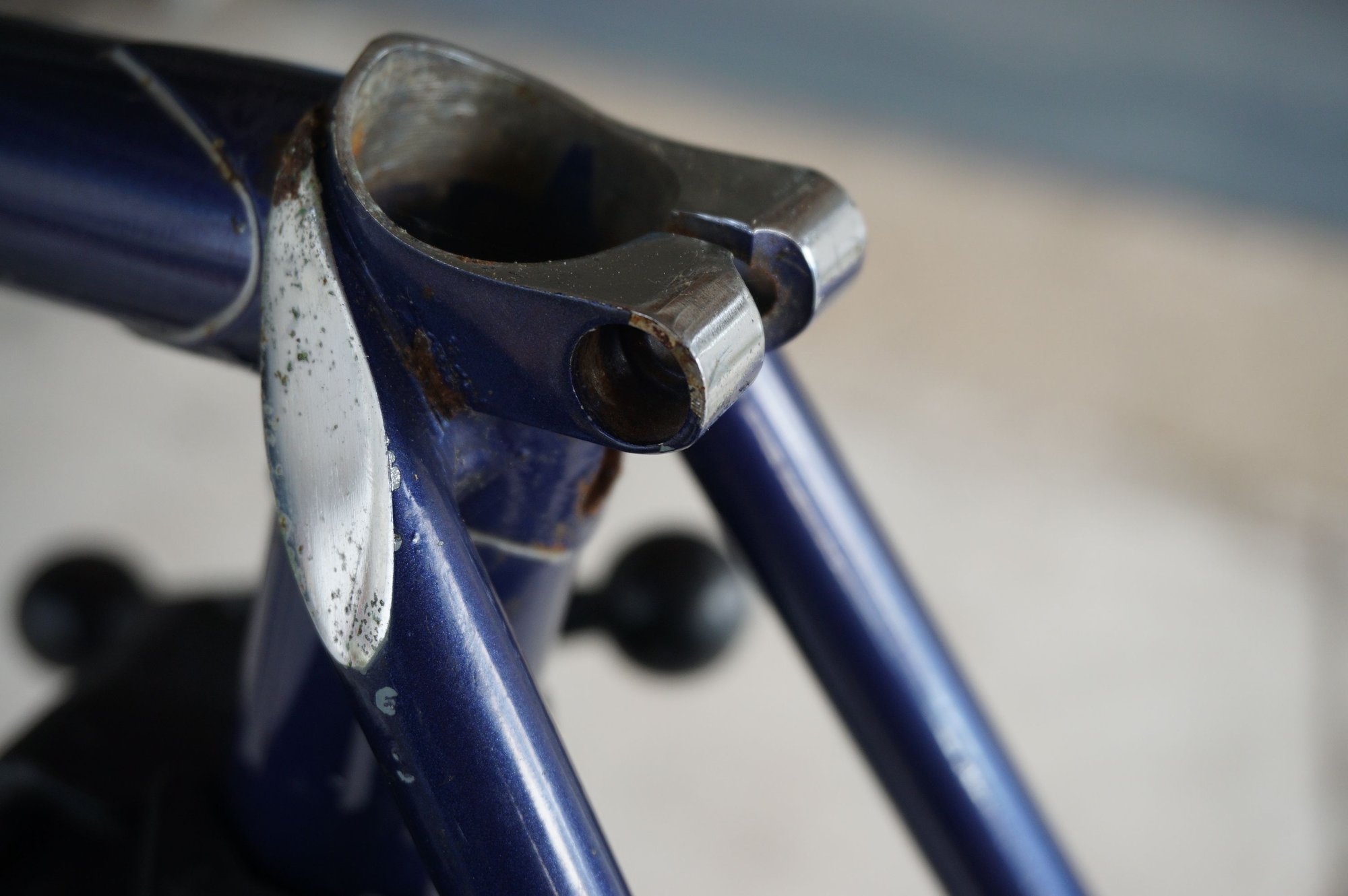

From doing a bit of research, I've gathered that the seatpost size is 27.0 and I'll need a binder bolt w/out the key.
However, all the binder bolts online seem to have the key. Anyone have a source for the keyless bolts or any suggestions?

Hope everyone is having a safe quarantine.
-Rafael











rfj is offline
Old 04-12-20, 09:30 PM
  #2
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 3,397

Bikes: 82 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 38 Post(s)
Tagged: 0 Thread(s)
Quoted: 1318 Post(s)
Liked 806 Times in 506 Posts

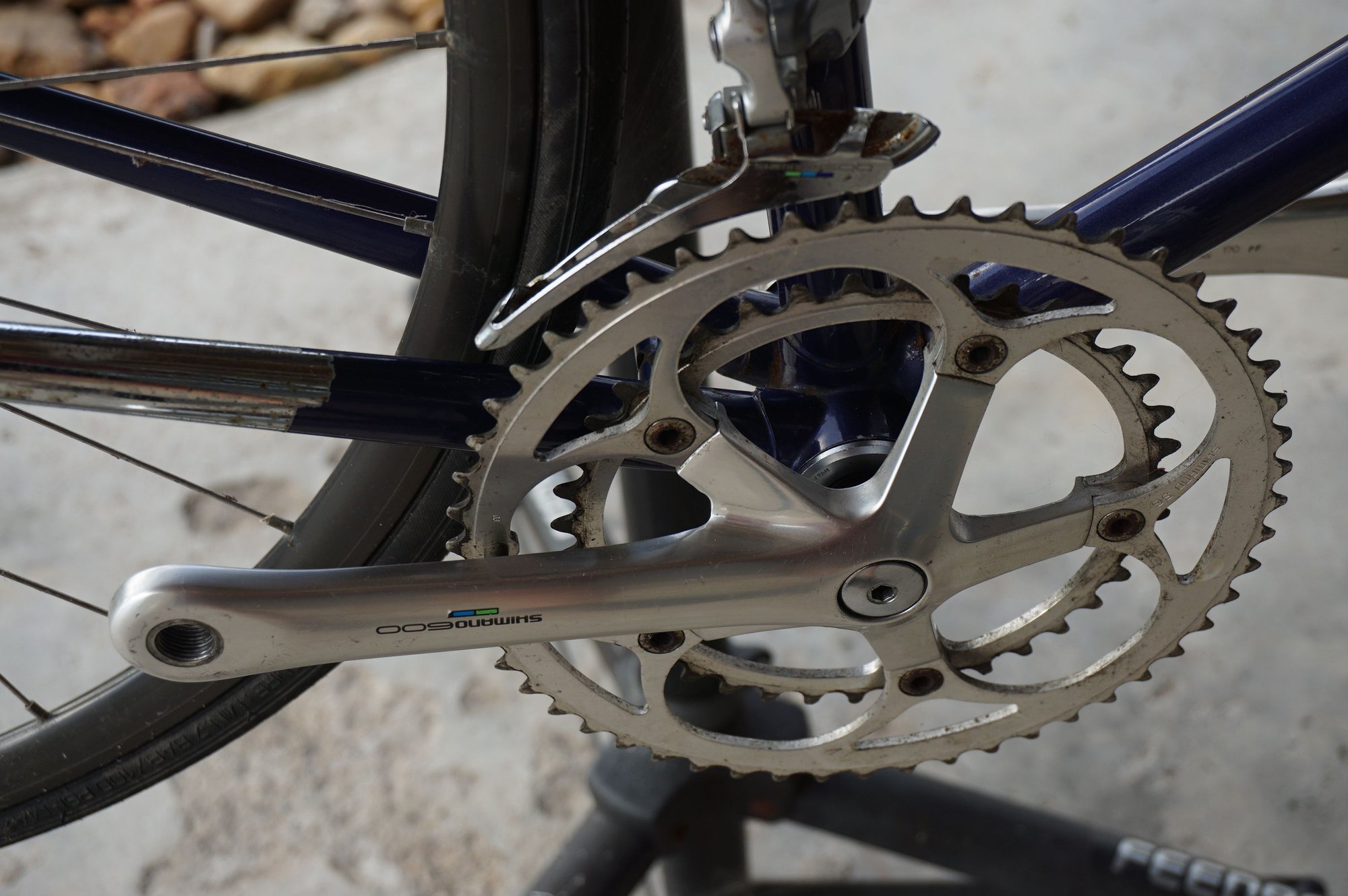

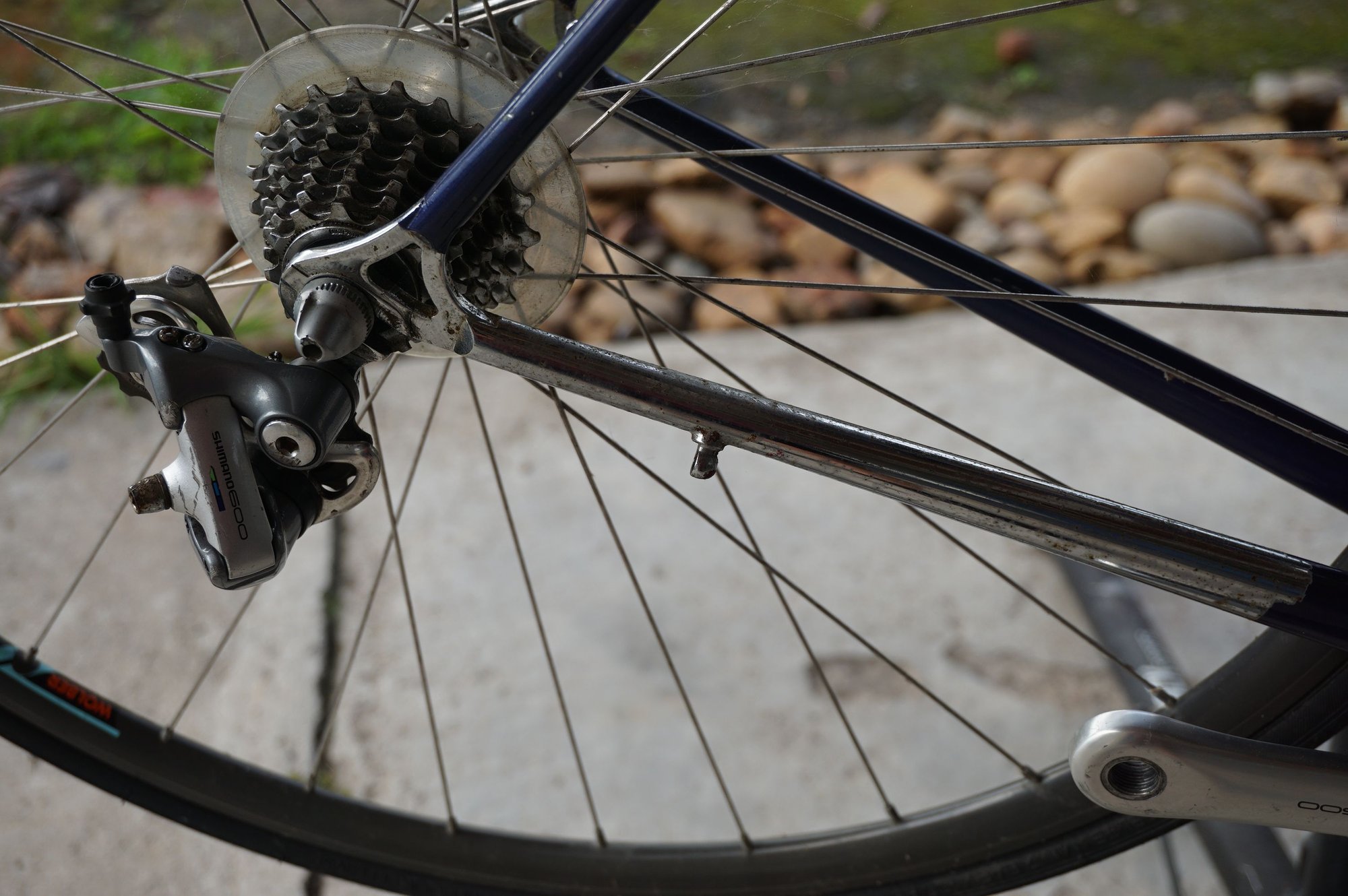

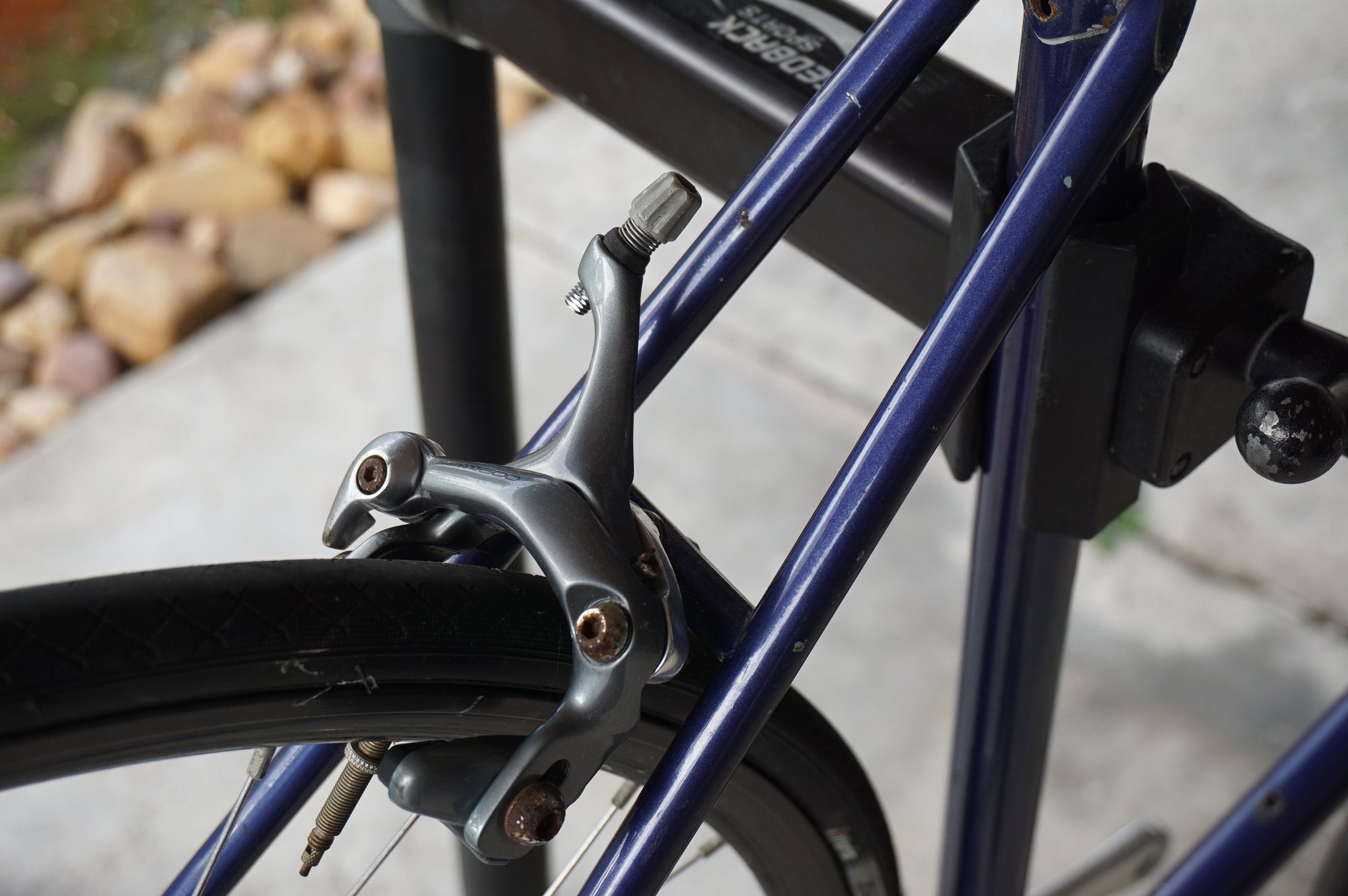

My '84 Turbo has a 27.2 seat post. The Ironman takes a 27.0. My binder bolt has a slotted ribbed nut with an Allen key bolt. I can't help with that but to suggest Dremel. You will luv your Turbo. I've never had the fortune to ride a Tricolor group but it likely is perfect for the Turbo.

edit: looking at your pictures again: you should use some Rustoleum Rust Remover on the fasteners of your Tricolor bits and baste your frame also.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.

Last edited by Classtime; 04-12-20 at 09:44 PM.
Classtime is offline
Old 04-13-20, 06:24 AM
  #3
Pompiere
Senior Member

Pompiere's Avatar

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,935

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-S LTD

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 304 Times in 201 Posts

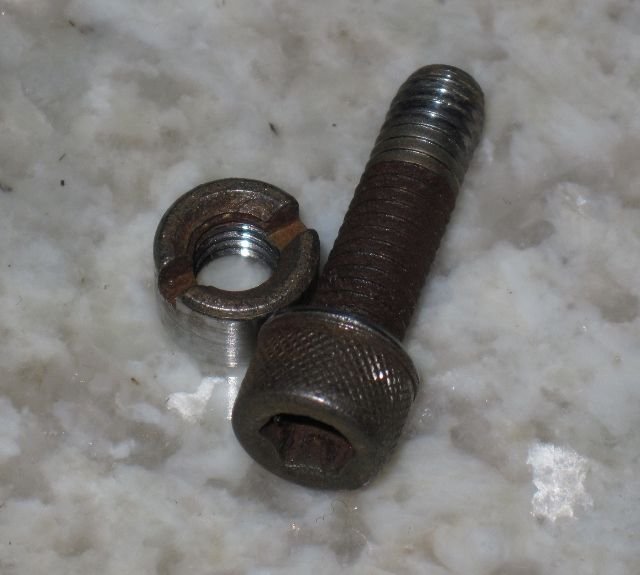

It looks like the same bolt as on my son's bike, an '89 Club Fuji. He's got it with him at school, so I can't measure the size. The bolt looks like a standard 6mm, but I don't know where you would find a nut like that. Turning down a hex nut might be the easiest option. Next would be drilling and tapping a piece of bar stock.


Seat post binder for 1989 Club Fuji
Pompiere is offline
Old 04-13-20, 09:45 AM
  #4
norcalmike
Senior Member

norcalmike's Avatar

Join Date: Aug 2017
Location: Salinas
Posts: 445
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 123 Times in 71 Posts
Originally Posted by Pompiere View Post
It looks like the same bolt as on my son's bike, an '89 Club Fuji. He's got it with him at school, so I can't measure the size. The bolt looks like a standard 6mm, but I don't know where you would find a nut like that. Turning down a hex nut might be the easiest option. Next would be drilling and tapping a piece of bar stock.


Seat post binder for 1989 Club Fuji
that's what the nut looks like on my 84 turbo. Slotted
norcalmike is offline
Old 04-13-20, 10:22 AM
  #5
rfj
Senior Member
Thread Starter

rfj's Avatar

Join Date: Oct 2011
Location: Sandy Eggo
Posts: 116
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Thanks for the good info, guys. Looks like the bolt length has to be just about exact for that setup?
rfj is offline
Old 04-14-20, 08:31 AM
  #6
norcalmike
Senior Member

norcalmike's Avatar

Join Date: Aug 2017
Location: Salinas
Posts: 445
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 161 Post(s)
Liked 123 Times in 71 Posts

for anyone wondering. The background is the T.V. box the bike is leaned up against.
norcalmike is offline
Old 04-14-20, 09:38 AM
  #7
jetboy
Senior Member

jetboy's Avatar

Join Date: Oct 2007
Location: Oakland, CA
Posts: 3,290

Bikes: centurion ironman, look hinault 753, Zunow z-1, 83 stumpy sport, look kg96, various others

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 754 Post(s)
Liked 173 Times in 103 Posts
oh I have had this problem before. "fixed" by doing quite a bit of grinding. take a standard bolt then grind off key, then grind key side to the correct length, then use a different bolt (without the sleeve.. the sleeve wont fit- thus the need to grind the other side down). The other option is that hardware stores - good ones- may have just what you need. I only did all that grinding because I had some old bolts around and a grinder.

If all one has is hammers and screws...
jetboy is offline
Old 04-14-20, 02:49 PM
  #8
RobbieTunes
Banned.

Join Date: Dec 2007
Posts: 27,297
Mentioned: 34 Post(s)
Tagged: 1 Thread(s)
Quoted: 378 Post(s)
Liked 1,389 Times in 898 Posts
Let me check my stash
__________________

BLDMAMTAOLD


RobbieTunes is offline
